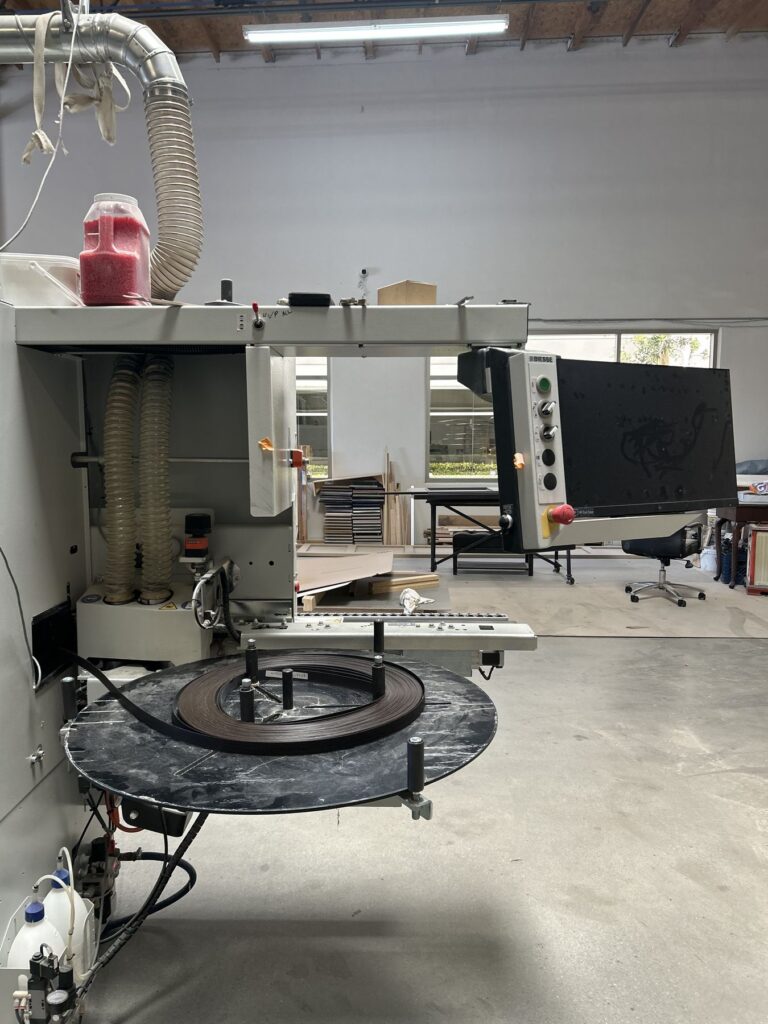

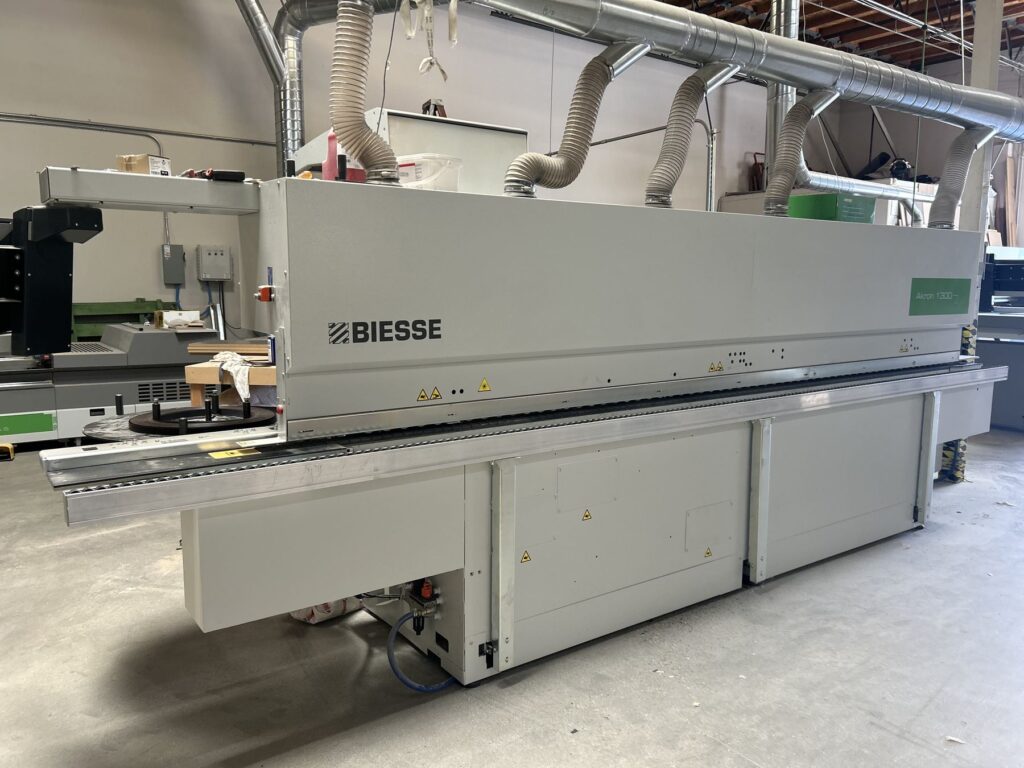

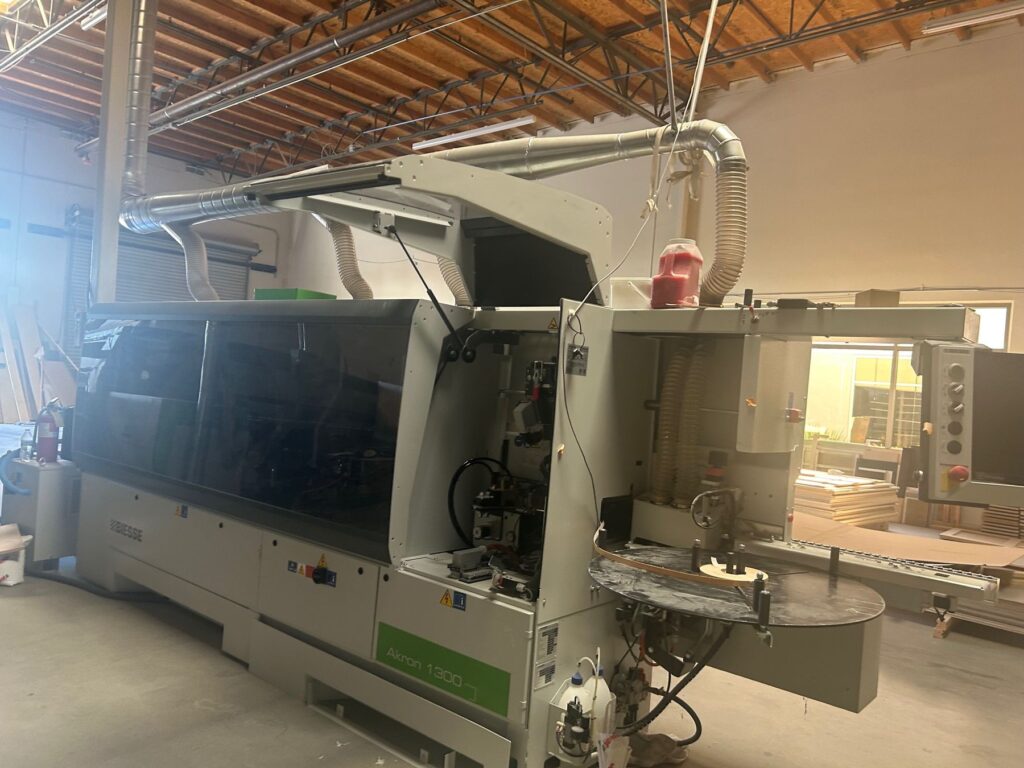

Biesse Akron 1330 CNC Edge Bander (2023)

Manufacturer

Biesse

Category

Drilling Machines

Type

DRILLS, ROCK

Stock

111260002

Model

Akron 1330

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 111260002
  • Location: CA
  • Brand: Biesse
  • Model: Akron 1330
  • Year: 2023
  • Loading Fee: Rigging Required

Specifications

  • Panel Height: 10 – 60 mm
  • Edge Height: 14 – 64 mm
  • Edge Thickness (Rolls): .4 – 3 mm
  • Edge Thickness (Strips): .4 – 5 mm
  • Panel Overhand from Track: 25 mm
  • Panel Length: 150 – 3200 mm
  • Track Feed Speed: 12 m/min
  • Chain Feed Speed: 12 m/min
  • Panel Gap: 350 – 650 mm
  • Pneumatic Connection: 7 Bar
  • Glue Tank Capacity: 2 Kg
  • Glue Tank Warm-Up Time (50% Full): 10 min

Equipped With

Touchscreen-control panel for direct programming, administration and display of the adhesive temperature on the glue roller and in the container, Air Force System for invisible edge banding (zero joint). AKRON 1330 is available in the configurations AKRON 1330-A, AKRON 1330-B and AKRON 1330-C. Units in all versions include jointing cutter system (optionally), Equipment AutoSet for an automatic centering of the tools in relation to the panel, gluing unit for automatic installment of rolling and stripe edges (0,4 – 5 mm), cutting unit, FlexSystem for automatic setup of the edge protrusion, copy system with tracing for a processing without leaving stripes especially for high gloss surfaces, cutting unit DESMO, radius-scraper unit (optional), gluing scraper unit (optional), brushes (optional). Further possible units in the different configurations include precision milling, rounding unit, groove unit, trimming unit (optional).
