MSS NitroCube5 High Pressure Nitrogen Generation System for Fiber Laser Cutting Systems (2021)

MSS NitroCube5 High Pressure Nitrogen Generation System for Fiber Laser Cutting Systems (2021)

Manufacturer

MSS

Spec Sheet

Stock #: 171260005
Location: KY
Brand: MSS
Model: NitroCube5
Year: 2021
Loading Fee: Rigging Required

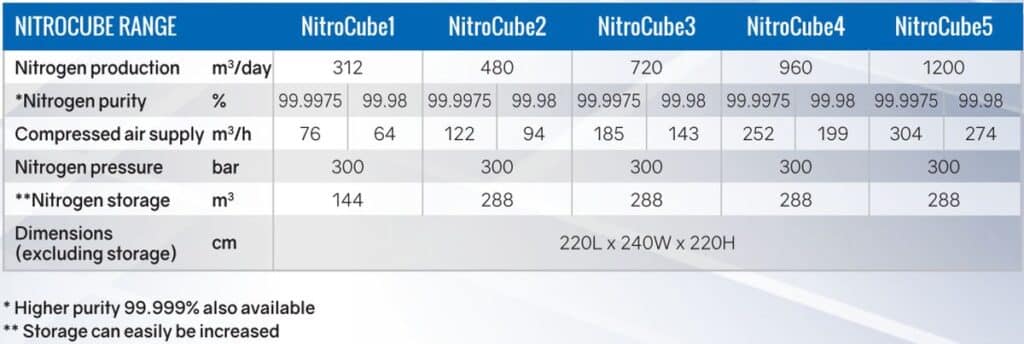

Specifications

Nitrogen Flow Rate: 42,375 scf per day
Air Inlet Pressure: 145 psi
Air Requirement to the NitroCube: 147 cfm @ 145 psi
Nitrogen Purity: 99.9975% (25 ppm)
Nitrogen Outlet Pressure: 4350 psi

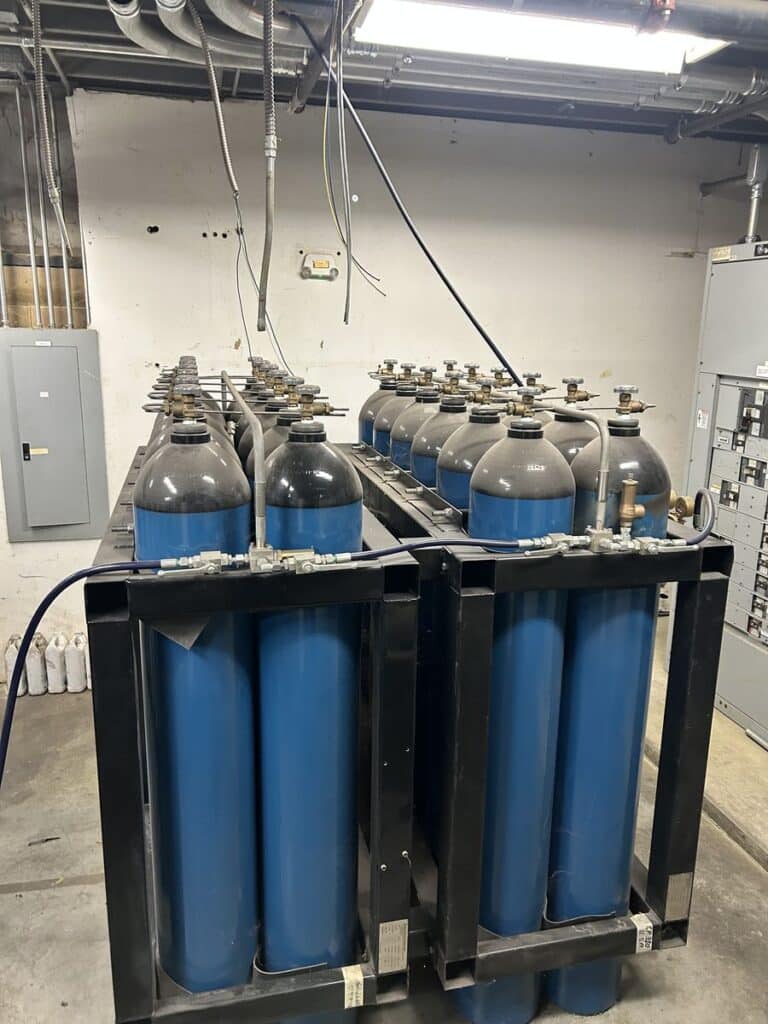

Nitrogen Storage Capacity (CP12): 105 ccf

Equipped With

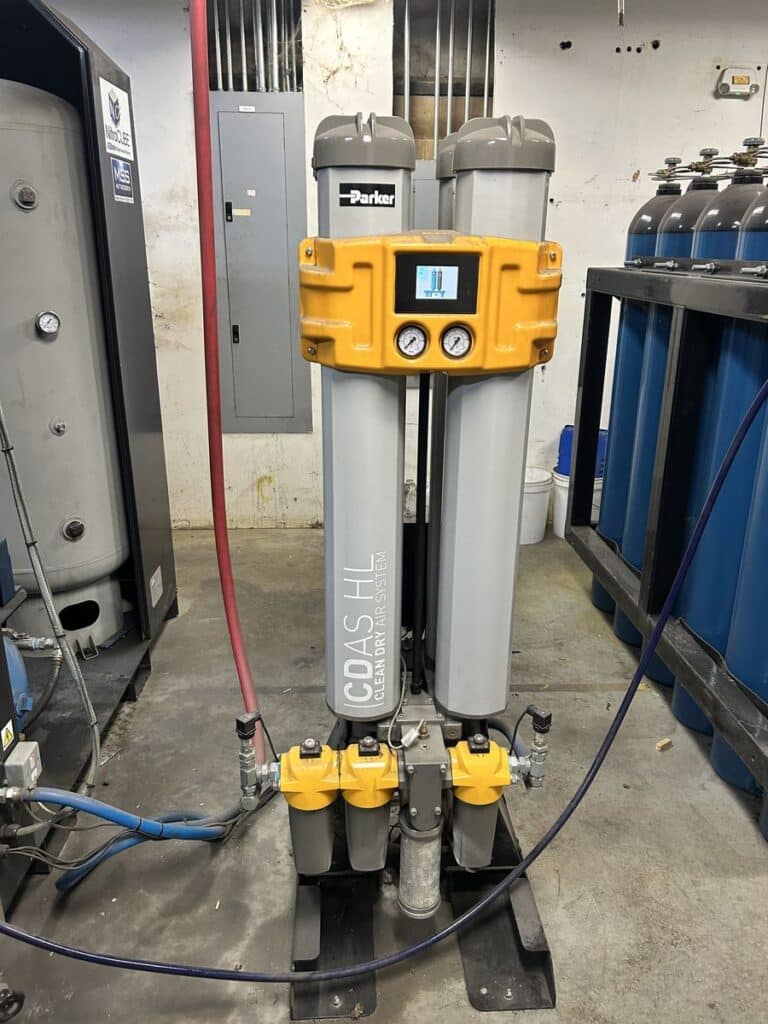

Desiccant Dryers, Oxygen Analyzer, De-ionizer Unit, Buffer Vessel, Low Pressure Feed Vessel, High Pressure (4350 psi) Boosters Lead/Lag Setting, Regulator & High Pressure Filters, Interconnecting Pipe Work, Skid Mounted with Canopy

Additional Info

System is currently under power supporting fiber laser system and is available for inspection.
