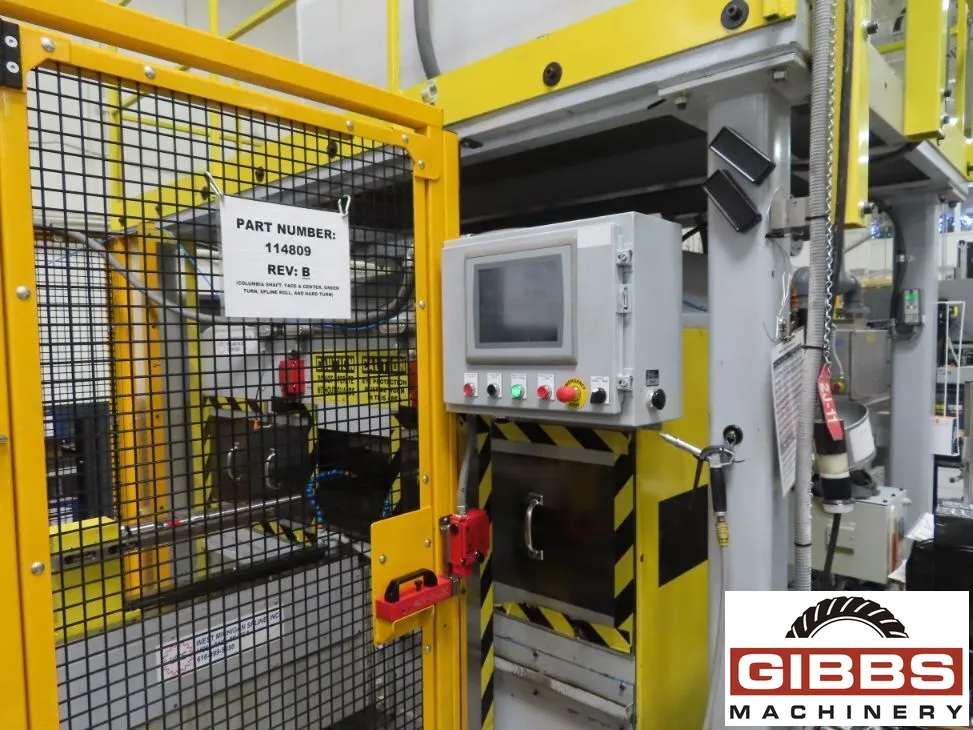

WEST MICHIGAN SPLINE 24 - Spline Roller

Manufacturer

WEST MICHIGAN SPLINE

Category

Gear Machines

Type

GEAR ROLLERS

Stock

25538

Model

24

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

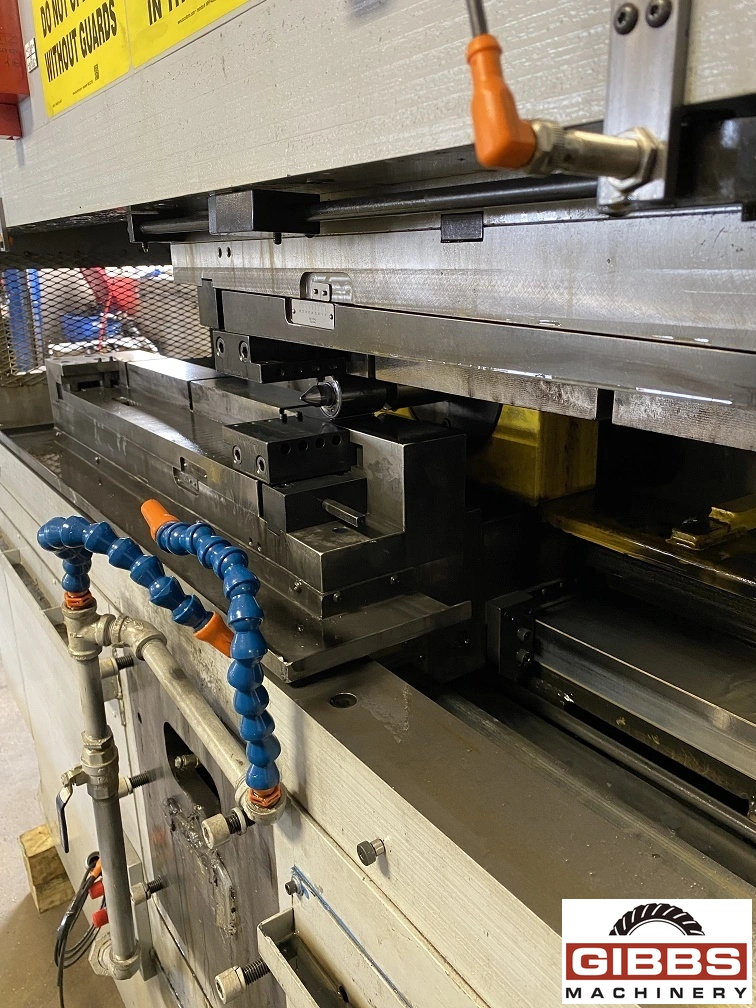

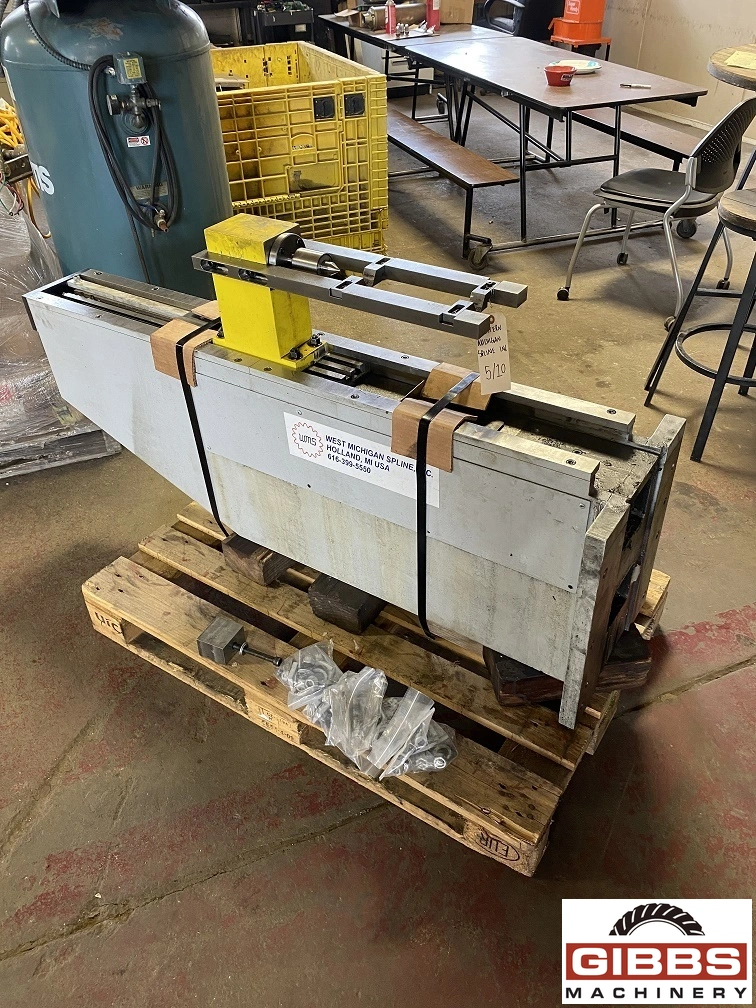

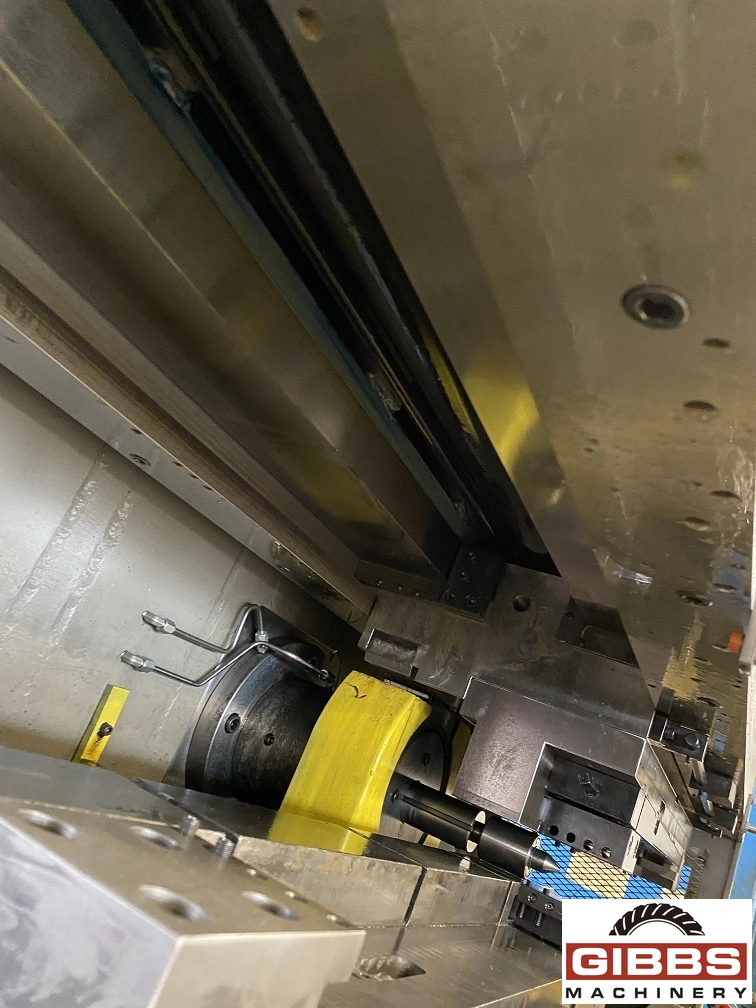

  • Under Arm Support W/Tailstock
  • One-Piece Welded Construction
  • Coolant System

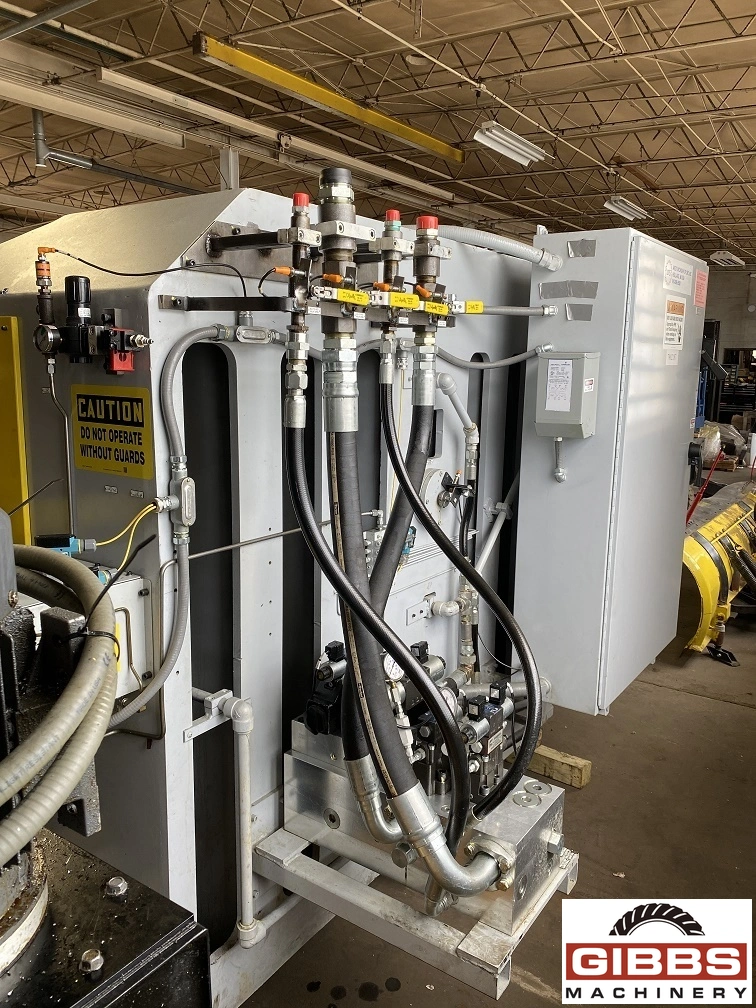

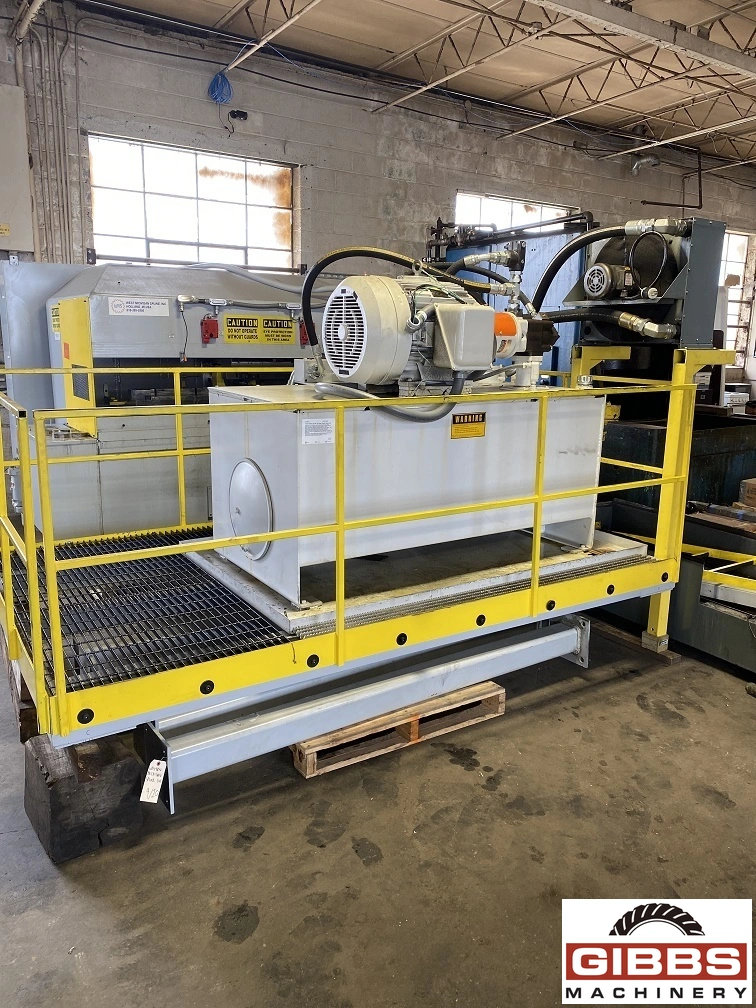

  • 50 Gallon Hydraulic Tank Reservoir
  • Cold Form Splines & Threads W/Out Tie Bars
,

Machine Specifications :

  • Year 2018
  • Manufacturer WEST MICHIGAN SPLINE
  • Maximum Workpiece Diameter 1.5"

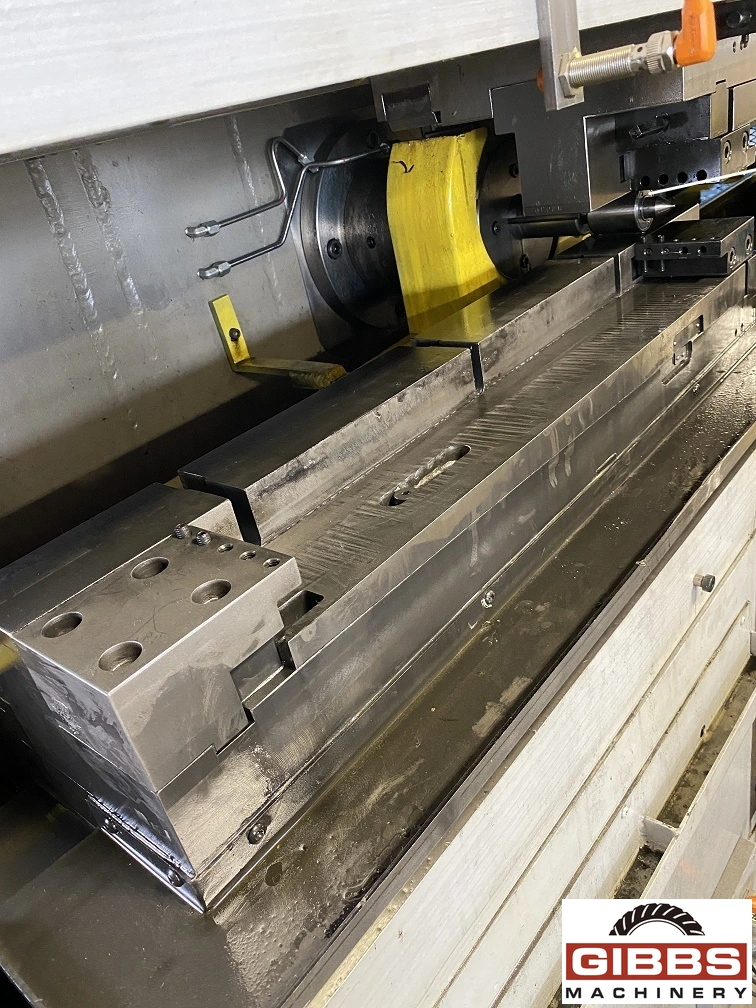

  • Rack Length 24.0"
,

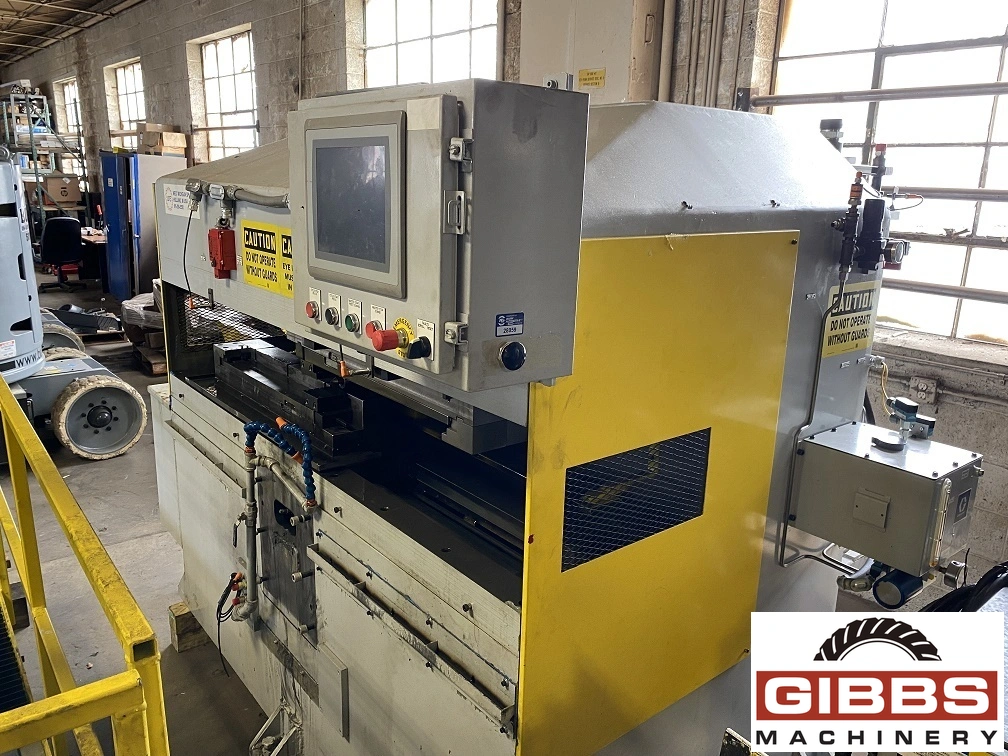

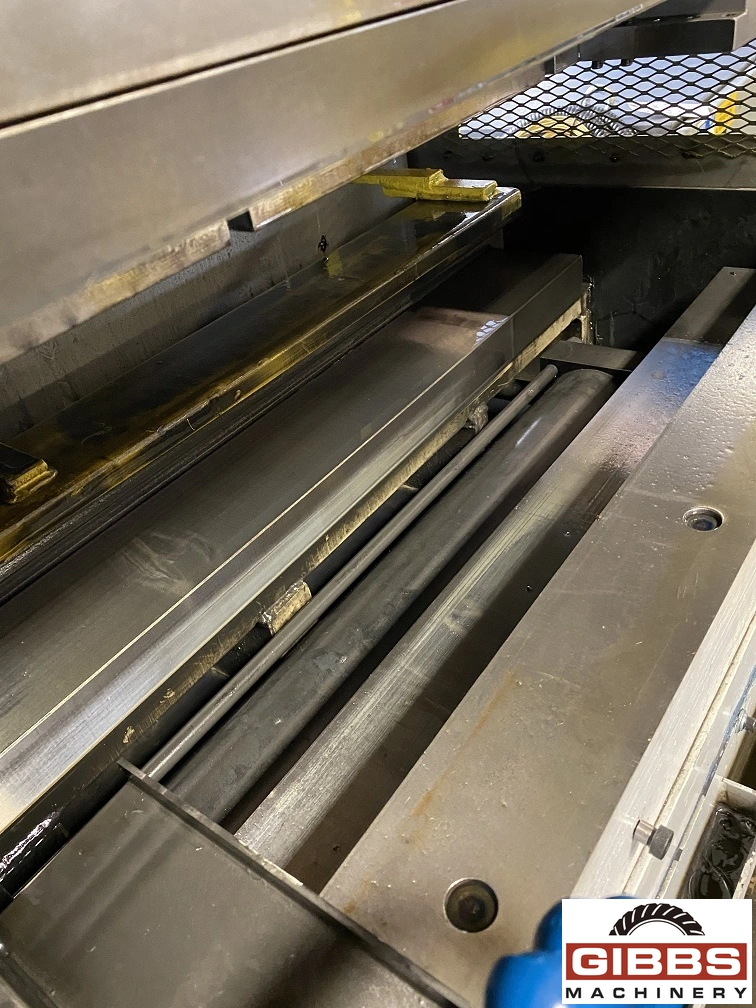

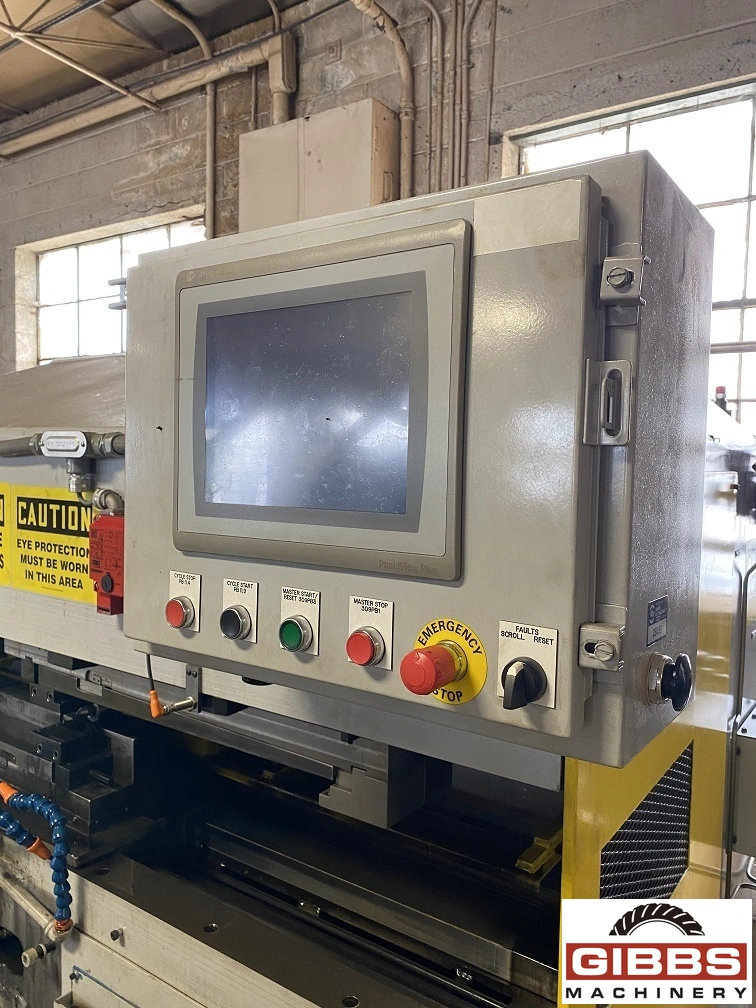

The West Michigan Spline Model 24 is a spline rolling machine used to cold form splines and threads on shafts. It features a 24" rack size, a maximum OD of 1.5", and a max rack box depth of 5.0". The machine uses a one-piece welded construction, under arm support, and a coolant system. It is designed to run various lengths without induced taper and does not require shimming for straightness.

    Specifications:

  • Rack Size: 24"
  • OD: 1.5"
  • Maximum Rack Box Depth: 5"
  • Opening: 5.5"
  • Overall Machine Dimensions (Approx.): 120" x 72" x 161" Tall
  • Machine Weight: 25,000#
  • Hydraulic Tank & Stand Weight: 5,700#
  • Hydraulic Tank Reservoir: 50 Gallon
