LIEBHERR LFS 380 - Gear Shaper

Manufacturer

LIEBHERR

Category

Gear Machines

Type

GEAR SHAPERS

Stock

25603

Model

LFS 380

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

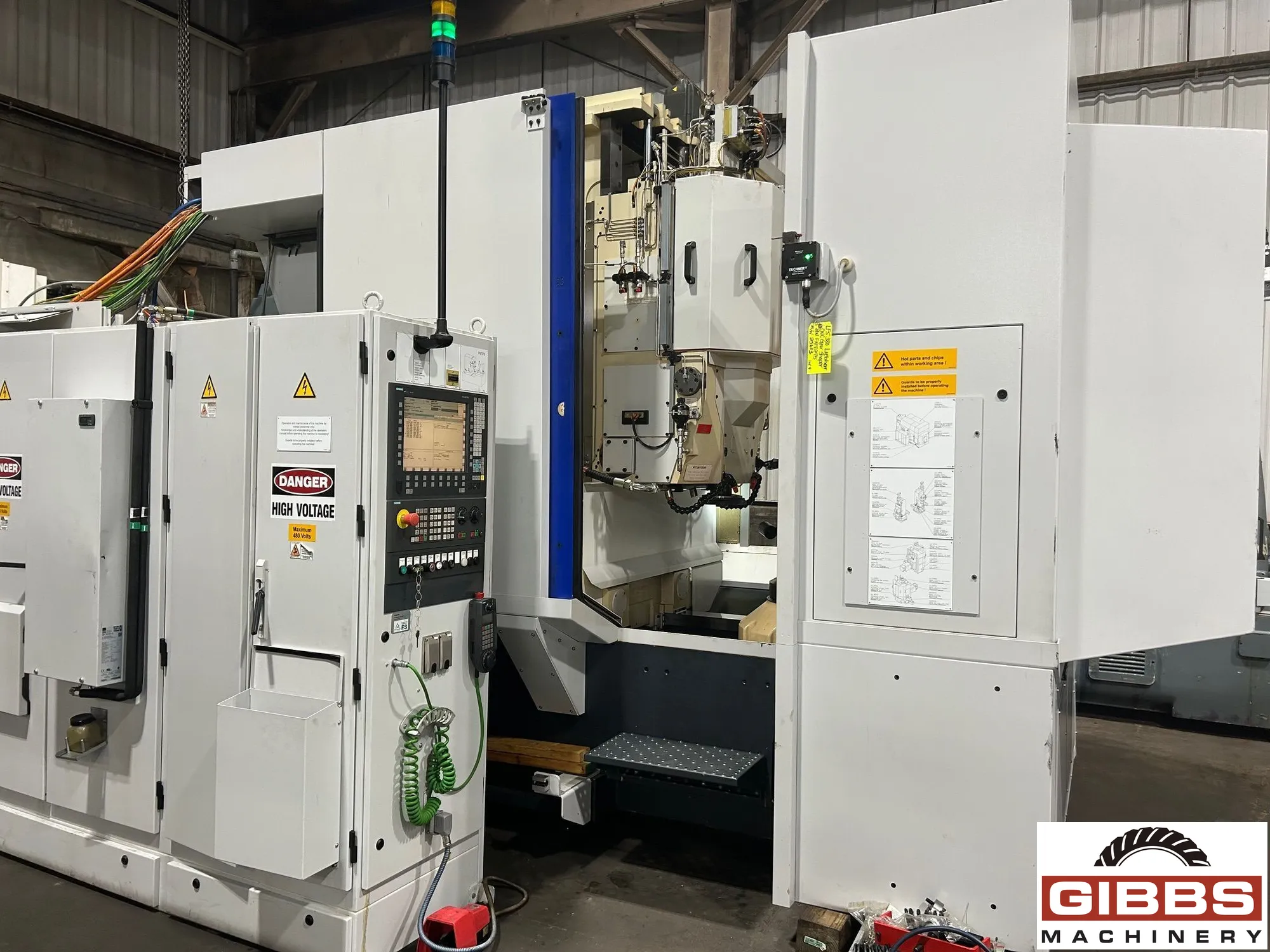

Highlights:

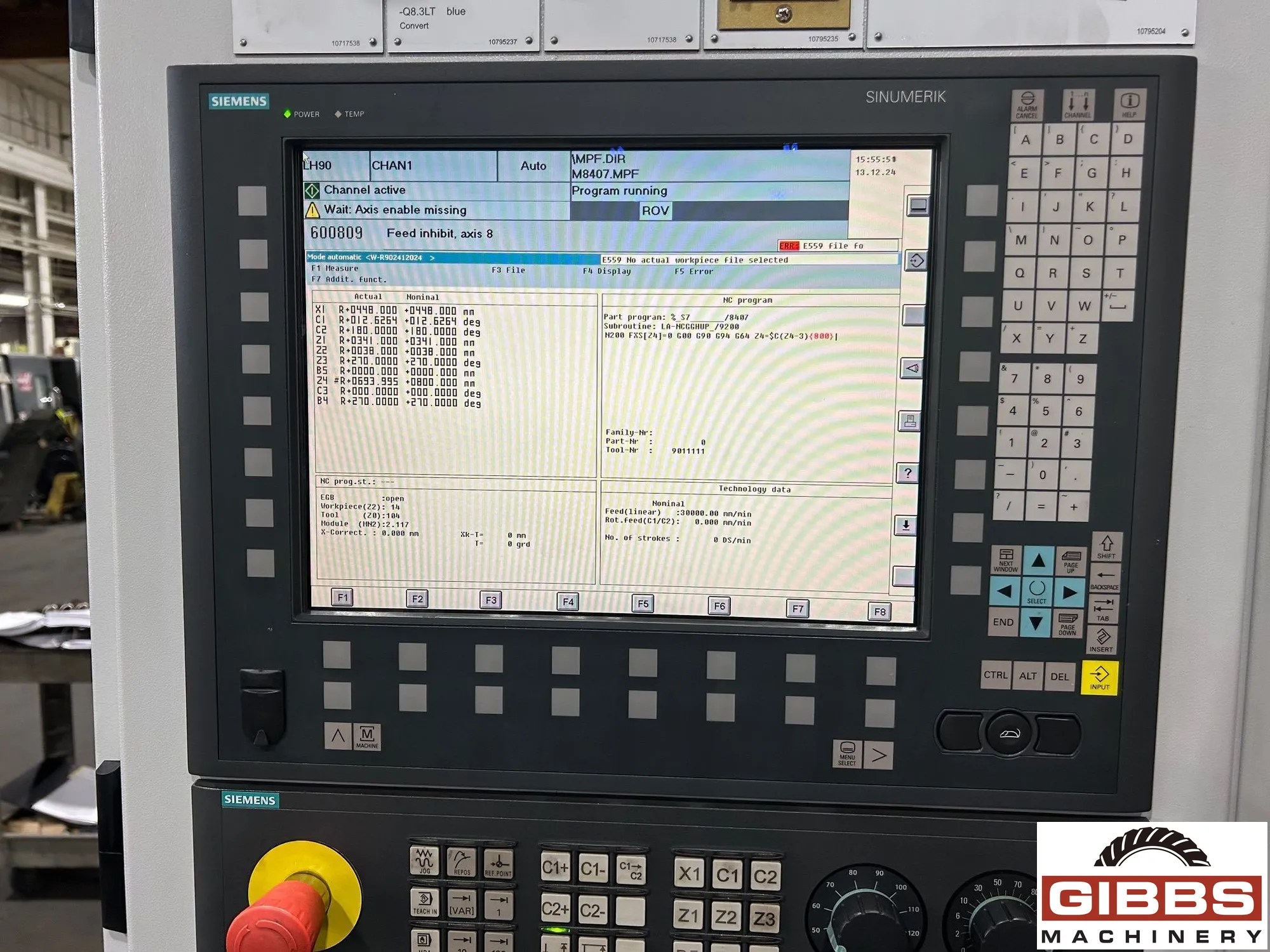

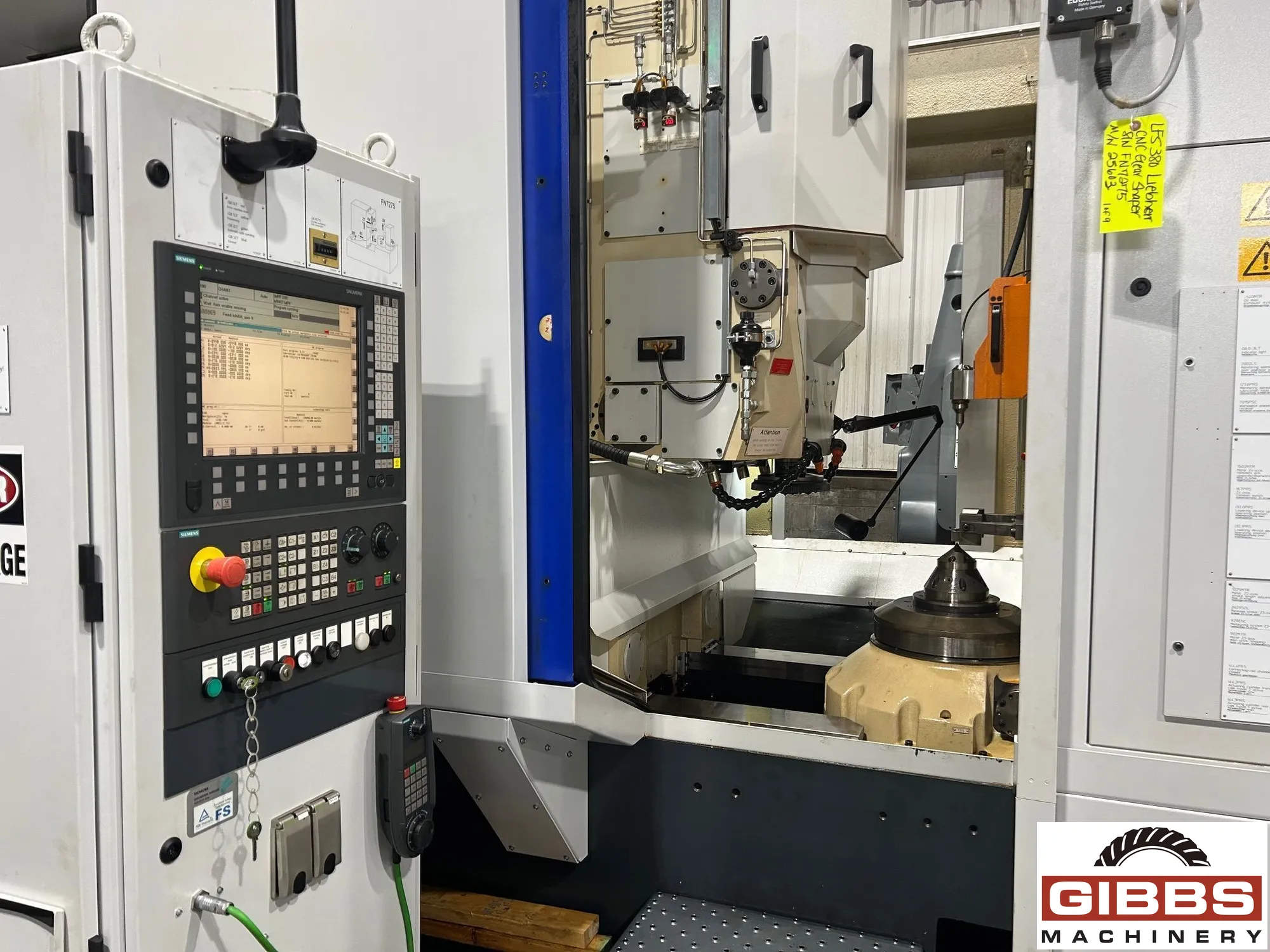

  • Siemens 840D SL Control
  • Spur Guide

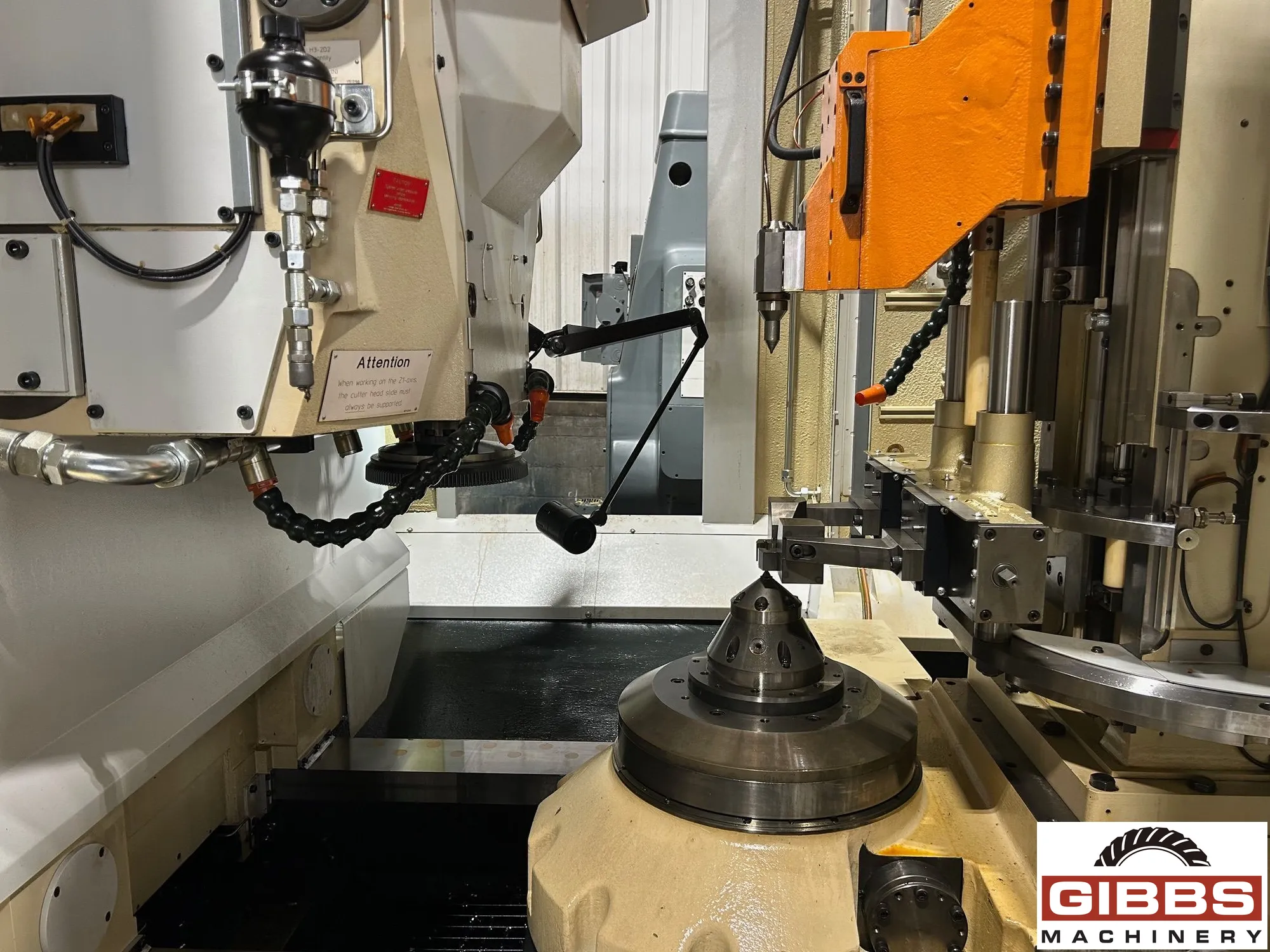

  • Extended Column Tailstock W/Center

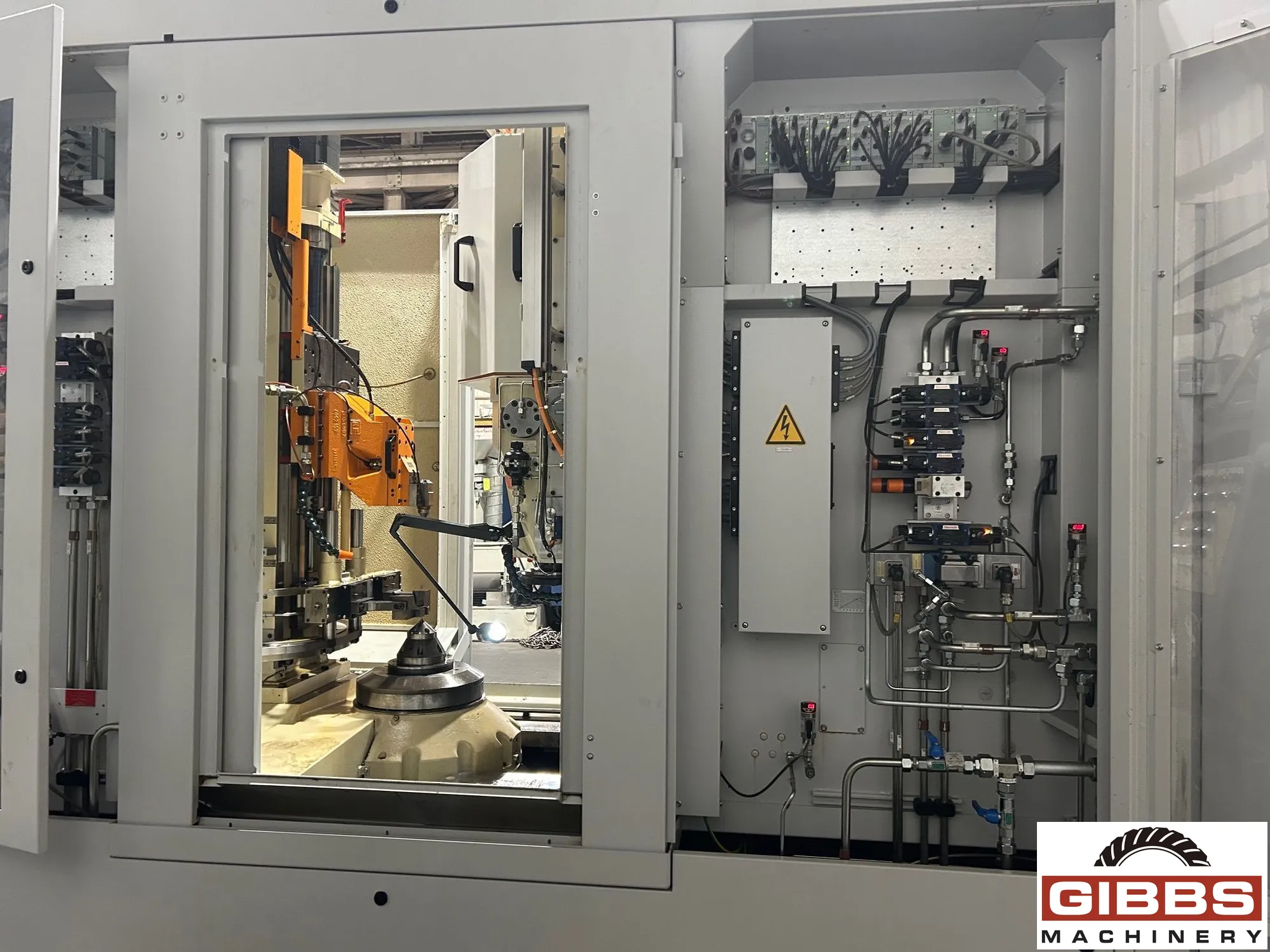

  • Tilting Column

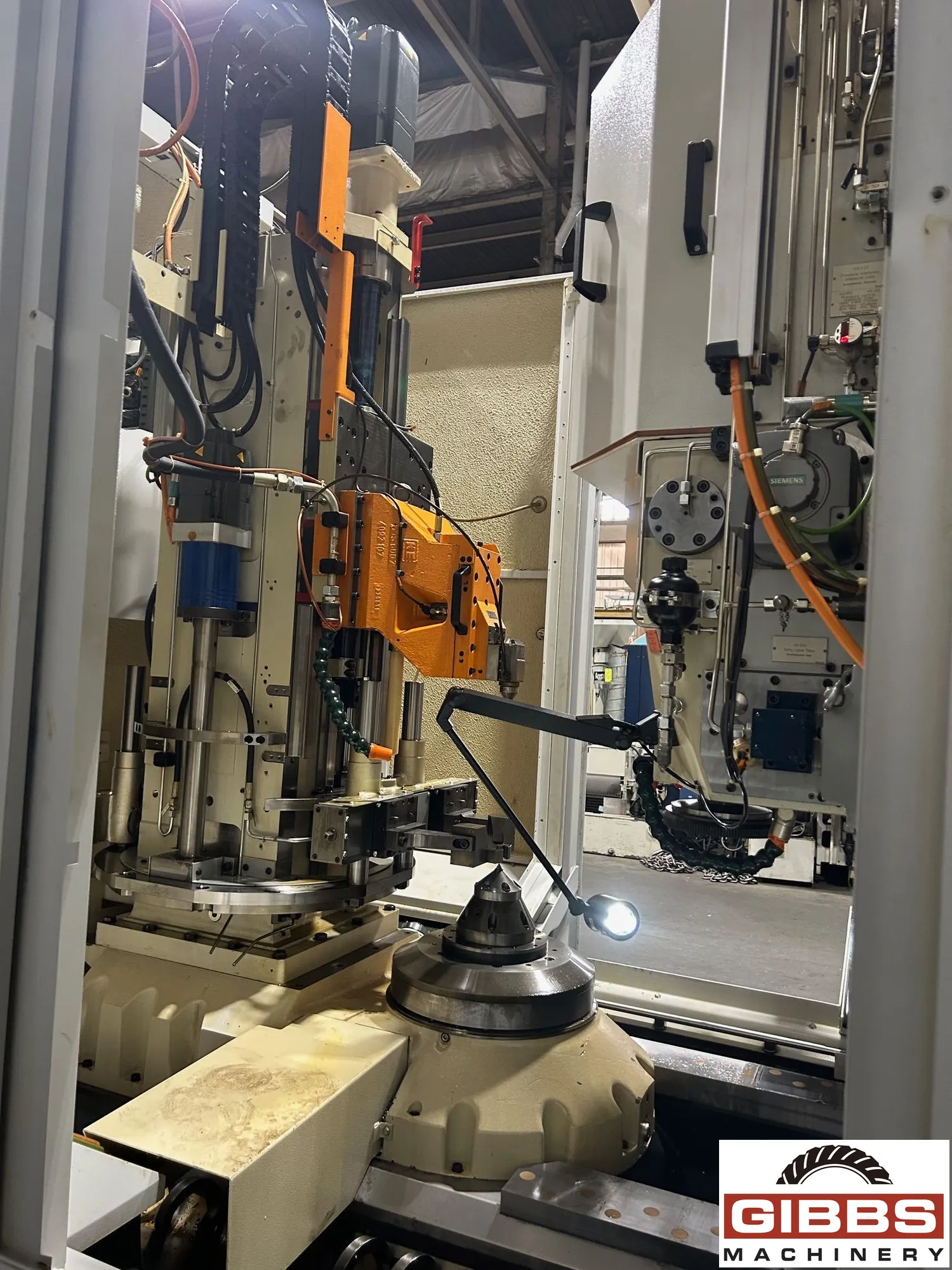

  • 180 Degree Ring Loader
  • Chip Conveyor

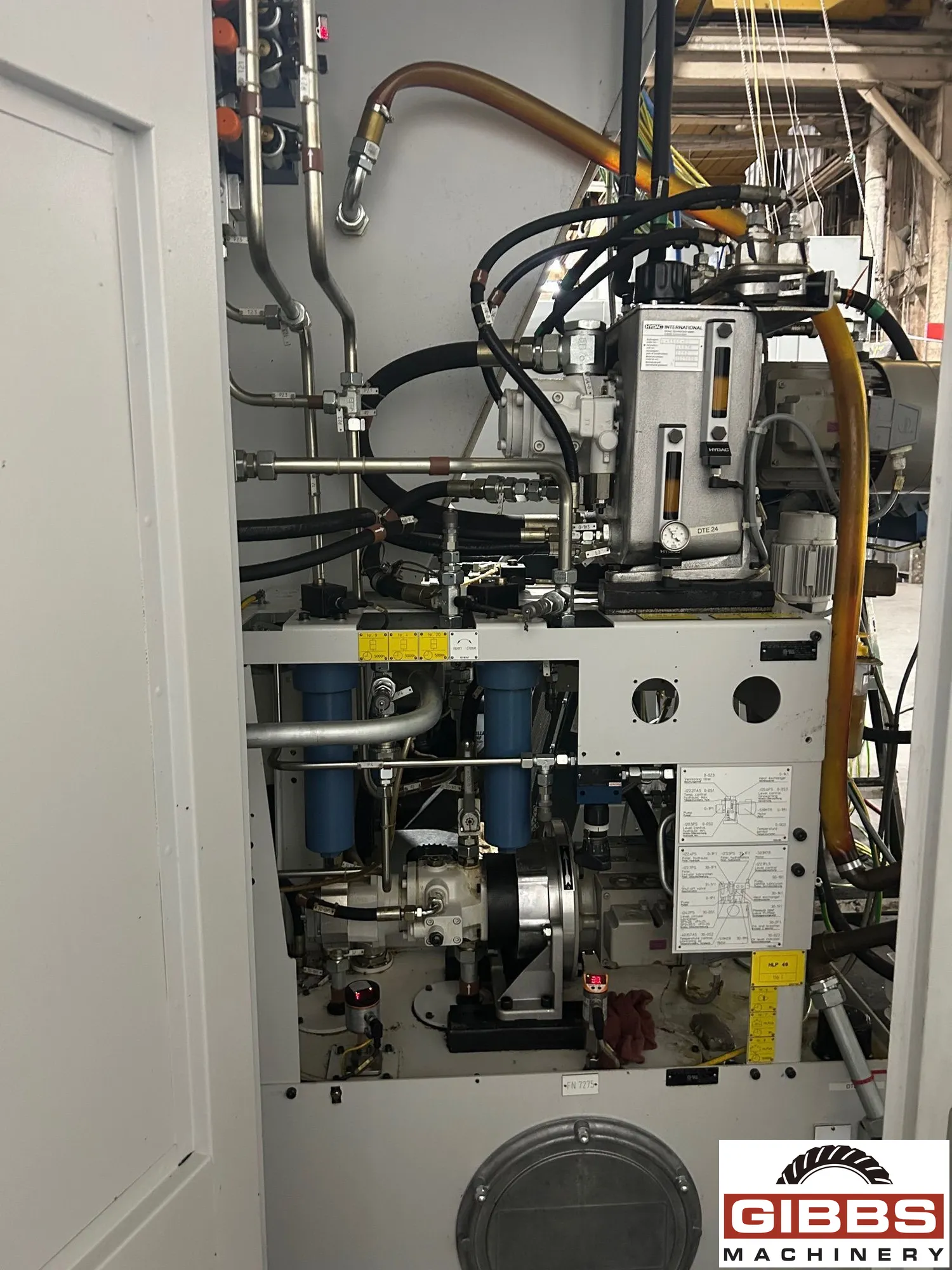

  • Hydraulic System
  • Coolant System
  • Mist Collector
  • Manuals
  • Stack Light
  • Work Lights
  • CE Mark

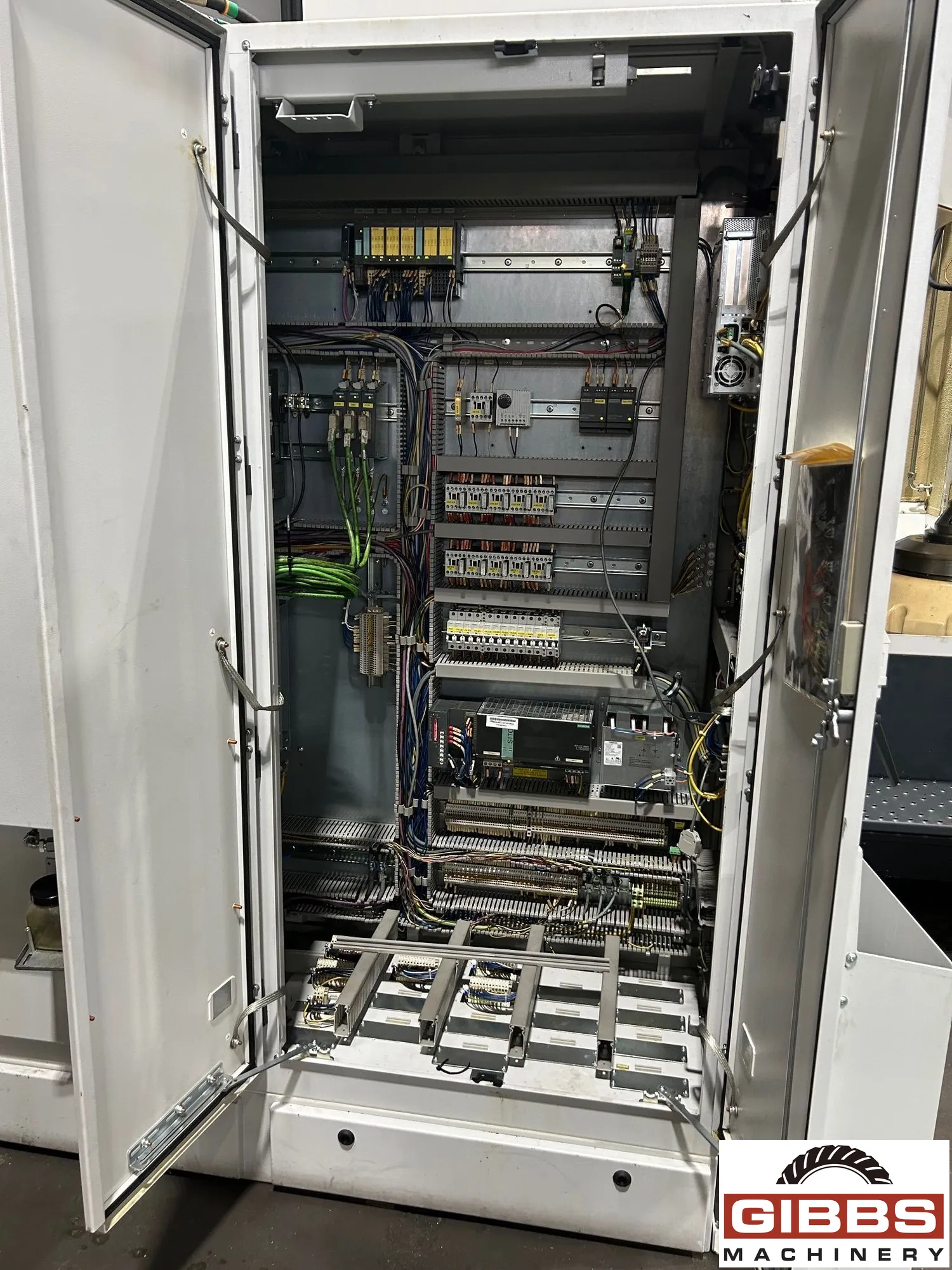

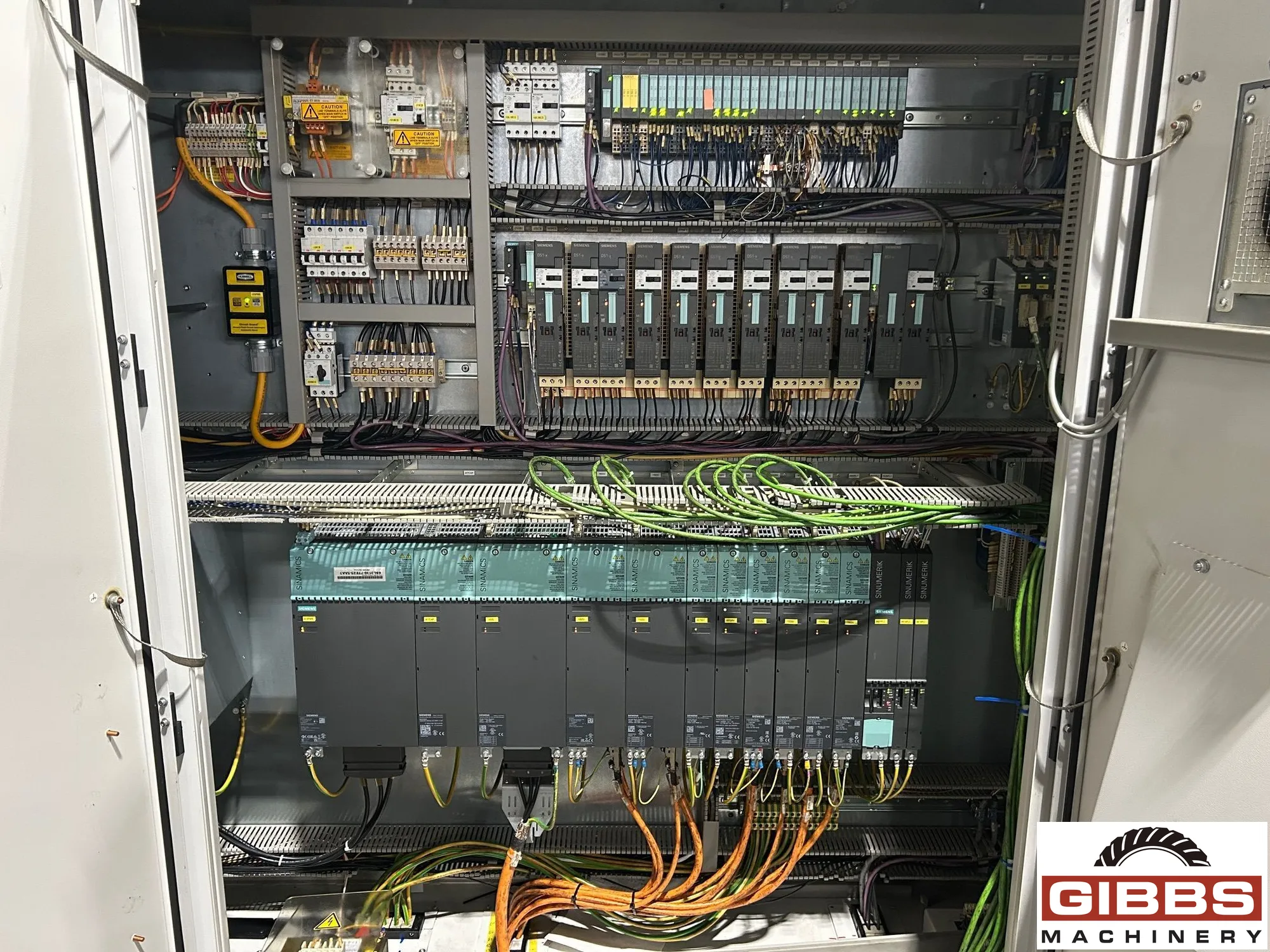

  • 480 Volt
,

Machine Specifications :

  • Year 2013
  • Manufacturer LIEBHERR
  • Module 8.0
  • Maximum Face Width 4.0"
  • Cutter Spindle Diameter 4.33"
  • Steady Column Axial Travel 9.84"
  • Control Manufacturer Siemens
  • Guide Spur
  • Maximum Workpiece Diameter 14.96"
  • Minimum Center Distance 1.96"
  • Maximum Center Distance 17.71"
  • Cutter Head Slide 9.84"
  • Stroke 4.0"
  • Maximum Stroke Speed 1500.0
  • Diametral Pitch 3.0"
  • Maximum Table Speed 30 RPM
  • Tiltable Column Range -5.0
  • Spindle Taper 40.0
  • Maximum Tool Diameter 240.0"
  • Table Diameter 12.68"
  • Table Bore Diameter 4.6"
,

The Liebherr LFS380 CNC gear shaper is a highly precise machine designed for cutting internal and external gear teeth. It is a 6-axis CNC machine equipped with a Siemens 840D control. The LFS380 features a tilting column, an 180-degree ring loader, and a tailstock. It is used in various manufacturing industries, including automotive, aerospace, and machinery manufacturing.

    Specifications:

  • Maximum Gear Diameter: 14.96"
  • Maximum Workpiece Outside Diameter: 14.96"
  • Maximum Gear Face: 8.26"
  • Maximum Center Distance: 17.71"
  • Minimum Center Distance: -1.96"
  • Maximum Spindle Stroke: 3.937"
  • Radial Speed Relating To 3.937" Diameter: 147.63 IPM
  • Column, Maximum Axial Travel: 9.84"
  • Cutter Spindle Diameter: 4.33"
  • Cutter Head, Maximum Normal Module: 0.23"
  • Cutter Head, Stroke Rate Range: 20 DS/MM-600 DS/MM
  • Cutter Head, Maximum Spindle Speed: 30 RPM
  • Cutter Head, Angular Setting/Vertical: +/-0,5 DEGREE
  • Cutter Head, Drive Motor: 48 HP
  • Cutter Head Slide, Stroke: 9.84"
  • Cutter Head, Angular Setting Vertical: +/- 0.5 DEGREES
  • Cutter Head Slide, Maximum Cutter Speed: 70.87 IPM
  • Cutter Spindle Speed, Maximum: 30 RPM
  • Tailstock, Maximum Travel: 21.25"
  • Maximum Normal Module:8
  • Maximum Number of Strokes: 600 DS/MM
  • Stroke Drive Motor: 50 HP
  • Approximate Machine Dimensions: 215" X 78" X 140"
  • Approximate Machine Weight: 32,000 LBS
