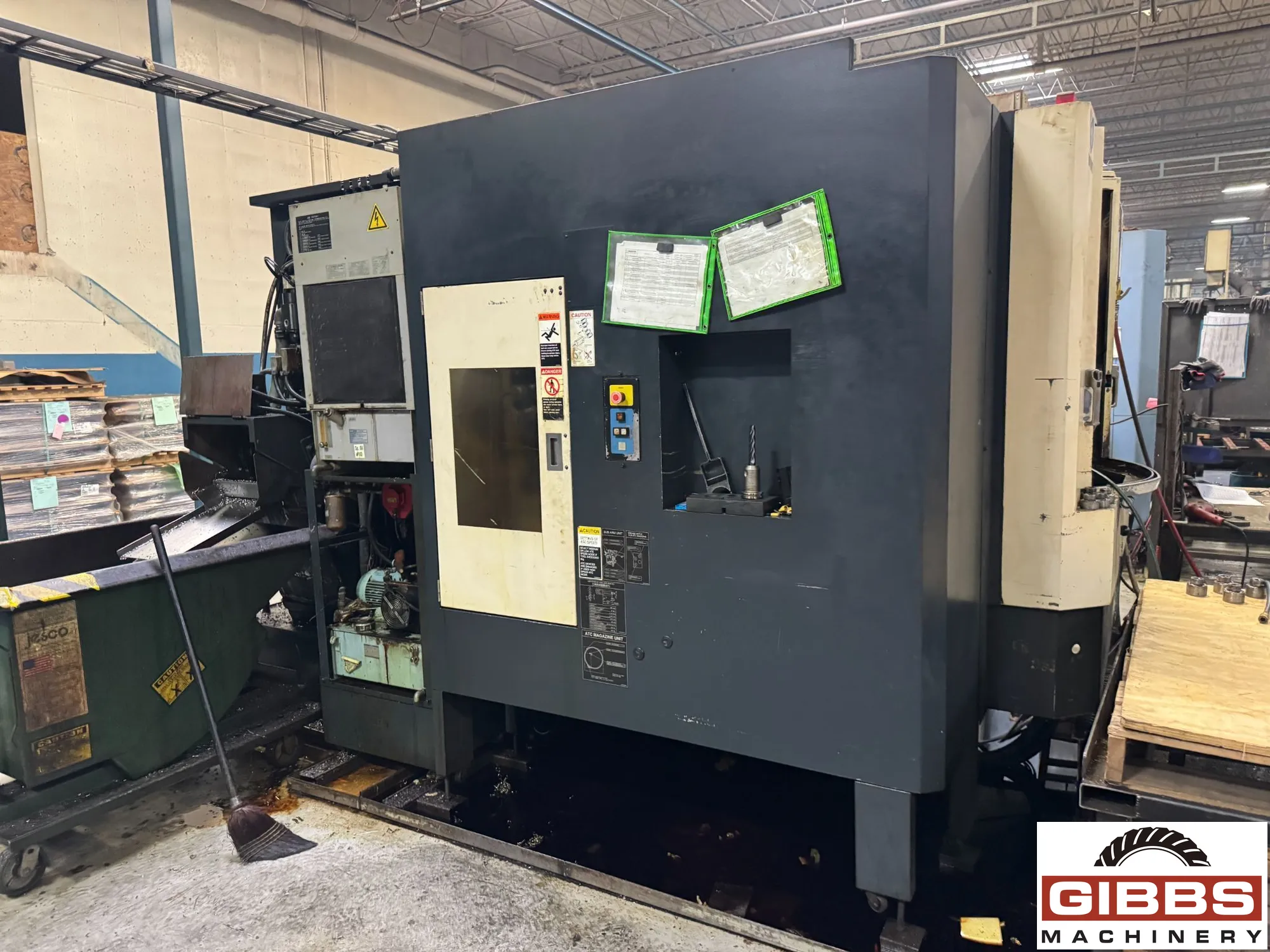

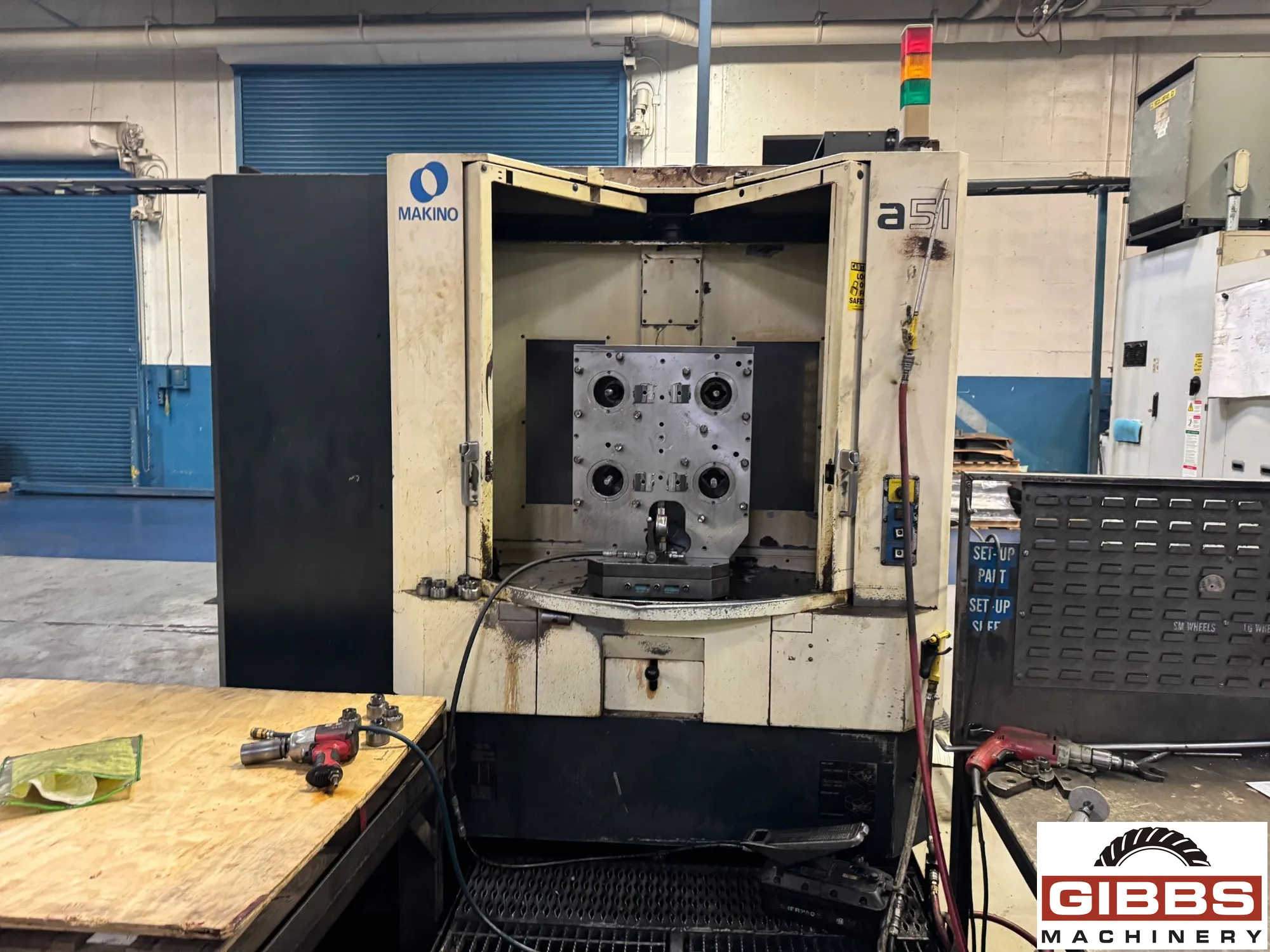

MAKINO A51 - Horizontal Machining Center

Manufacturer

MAKINO

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

25635

Model

A51

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year 2005
  • Manufacturer MAKINO
  • X 22.0"
  • Y 22.0"
  • Z 23.6"
  • Power 25.0 HP
  • RPM 14,000 RPM
  • # ATC 60.0
  • Taper CAT-40
  • Pallet-W 15.7"
  • Pallet-L 15.7"
  • # Axis 4.0
,

The Makino A51 is a CNC horizontal machining center designed for high-performance machining applications. It offers a robust casting design, roller-type linear guides, and features like a high-speed spindle, fast tool changes, and coolant systems.

    Specifications:

  • Number of Axis: 4
  • Pallet Length: 15.7"
  • Pallet Width: 15.7"
  • Pallet Capacity: 880 Lbs.
  • Pallet Indexing (B-Axis): 0.001 Degree
  • X-Axis Travel: 22"
  • Y-Axis Travel: 22"
  • Z-Axis Travel: 23.6"
  • Rapid Traverse Rate (X/Y/Z): 1,772 IPM
  • Spindle Taper: CAT40
  • Spindle Speed: 14,000 RPM
  • Spindle Motor (HP): 25 HP
  • Tool Changer Capacity: 60
  • Machine Dimensions (L x W): 152" x 102"
  • Machine Weight: 17,200#
