SMS EUMUCO KV180 - Crankshaft Machinery

Manufacturer

SMS EUMUCO

Category

Milling Machines

Type

CRANKSHAFT MILLING MACHINES

Stock

24898

Model

KV180

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year 2002
  • Manufacturer SMS EUMUCO
  • EXTERNAL Twisting Beam Torque Max (kNm) 115.0
  • INTERNAL Twisting Beam Torque Max (kNm) 115.0
  • Ram Ejector Force 80.0
  • Table Ejector Force 180.0
  • Return Force of the Main Ram 300.0
  • Pressing Force of the Main Ram 1800.0
  • Maximum Twisting Angle (+3) 60.0
  • Ram Ejector Stroke 2"
  • Table Ejector Stroke 7.1"
  • Ram Stroke with Installed Tools 23.6"
  • Ram Stroke (Stop) 24.4"
  • Shut Height (Ram Up) 78.3"
  • Depth of Ram (Effective) 19.7"
  • Width of Ram (Effective) 66.9"
  • Depth of Table 21.1"
  • Width of Table 66.9"
  • Clear Width Between Uprights 65"
  • Maximum Number of Crank Throws 8.0
  • Maximum Length of Crankshaft 64.2"
,

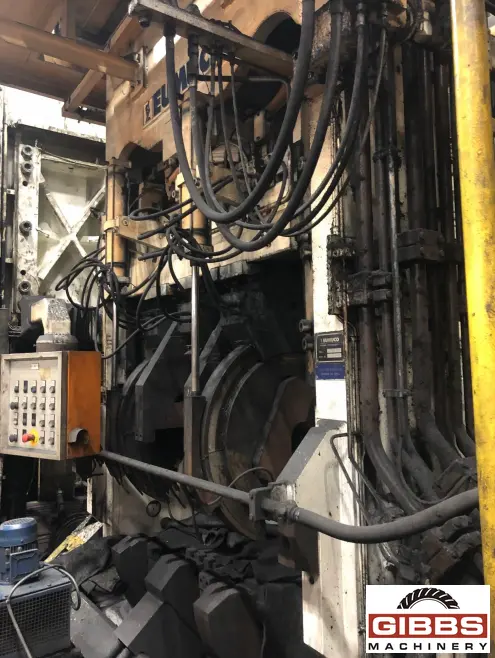

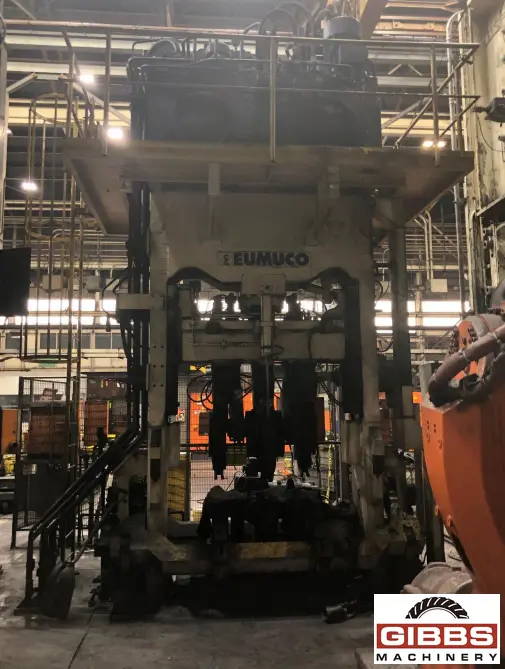

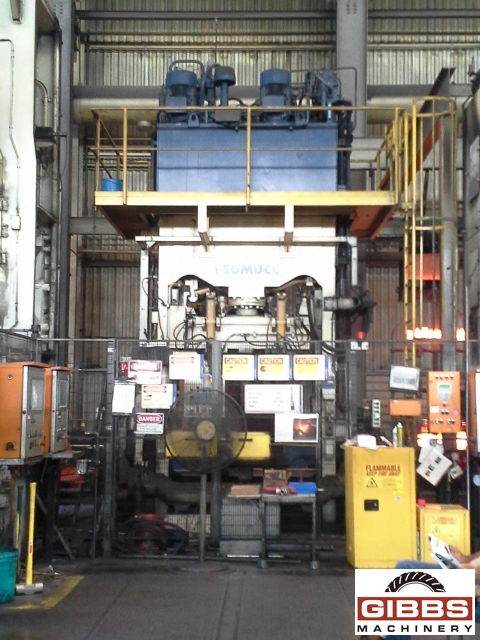

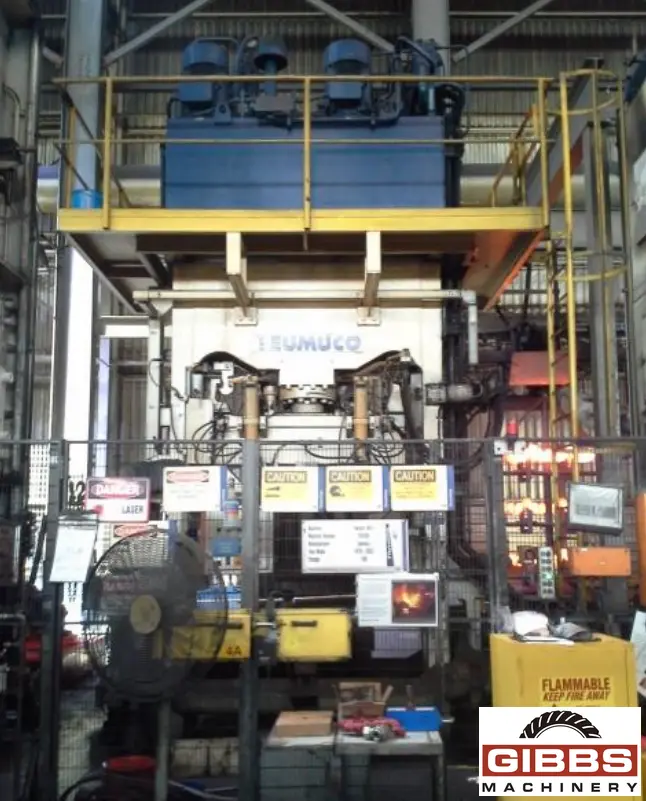

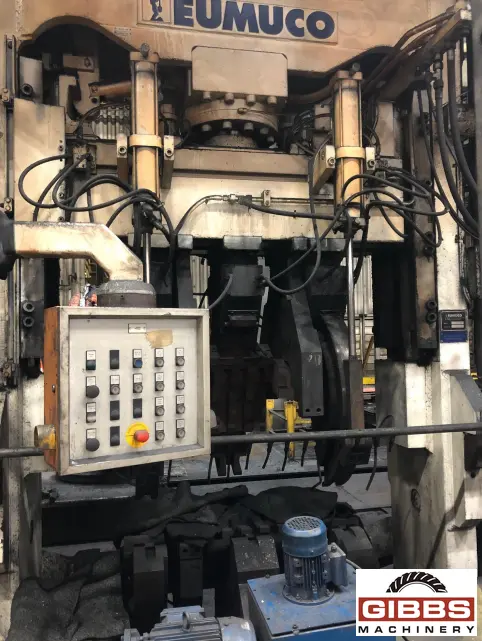

Used SMS Eumco KV180 Crankshaft Twisting Press

No Video Available
