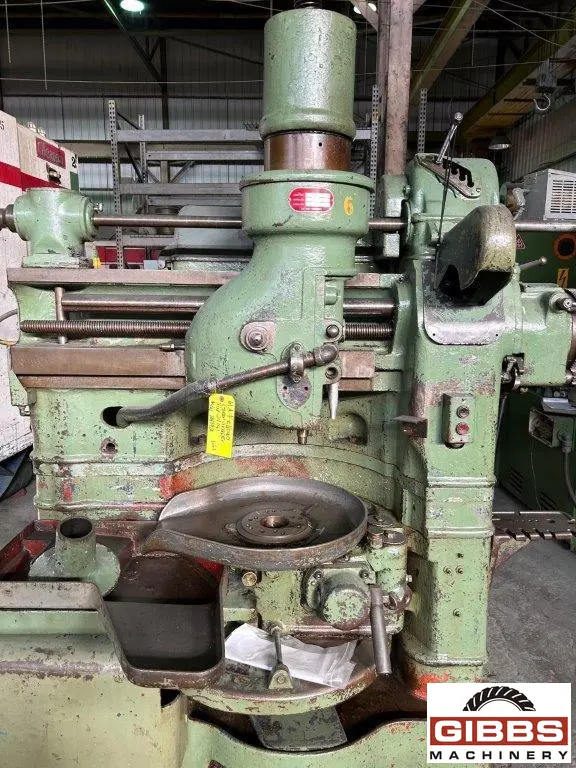

FELLOWS 61A - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

24842

Model

61A

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Spur Guide
  • 5" Riser
  • Coolant Pump
  • (1) Set-Up of Change Gears
,

Machine Specifications :

  • Year 1944
  • Manufacturer FELLOWS
  • Stroke 5.0"
  • Riser 5.0"
  • Diametral Pitch 3.0
  • Maximum Internal Gear Diameter 18.0"
  • Maximum External Gear Diameter 18.0"
  • Guide Spur
,

FELLOWS NO. 61A GEAR SHAPER

    Specifications:

  • Stroke: 5.12"
  • Maximum External & Internal Pitch Diameter: 18"
  • Maximum Face Width, External: 5"
  • Maximum Face Width, Internal: 5"
  • Maximum Diameteral Pitch, Spur: 3/4
  • Dimensions:
  • Maximum Overall Length of Machine: 5'3"
  • Maximum Overall Width of Machine: 4'
  • Maximum Overall Height of Machine (w/out raising blocks): 6'5"
  • Approx. Weight: 6800 lbs
