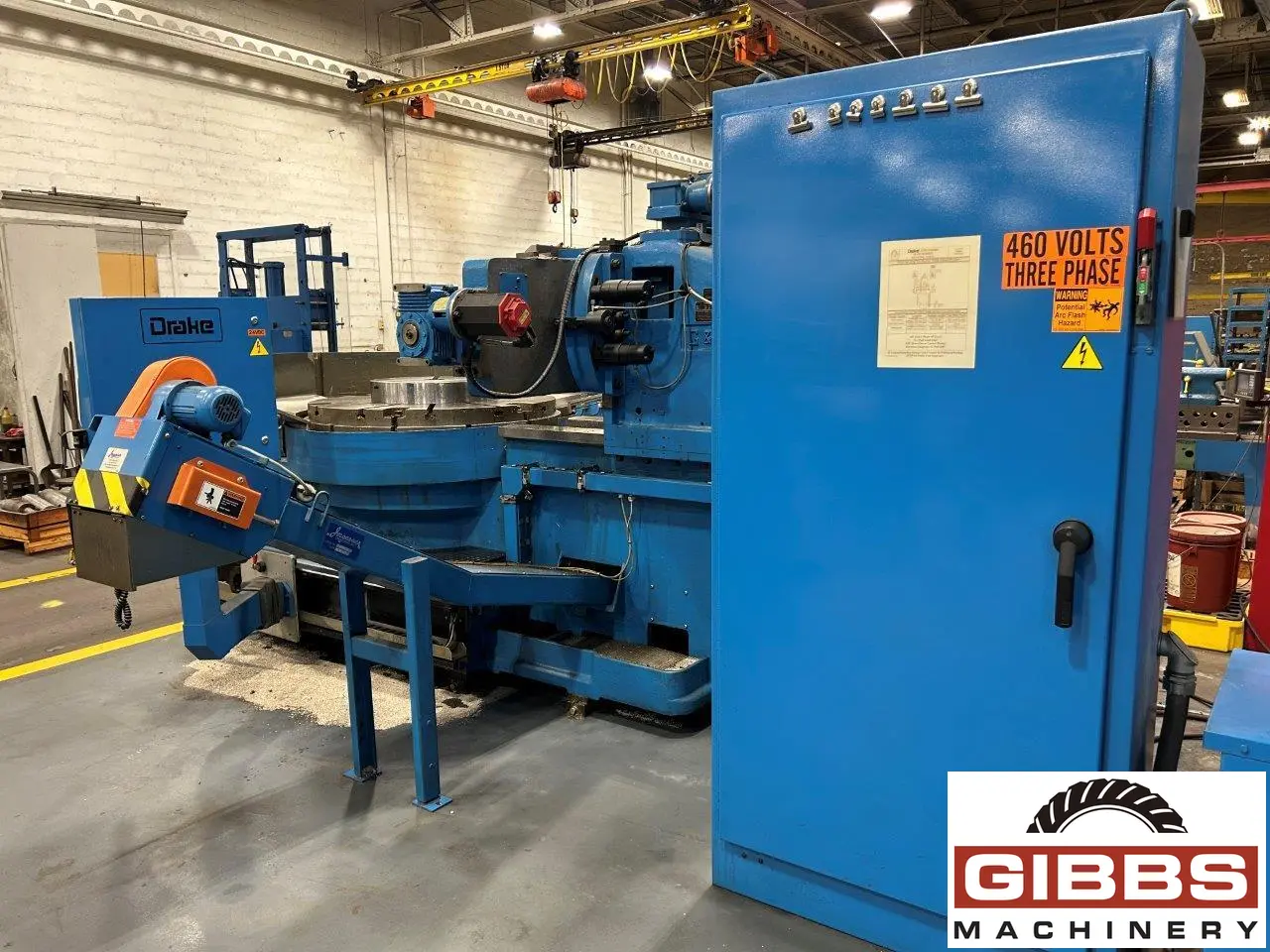

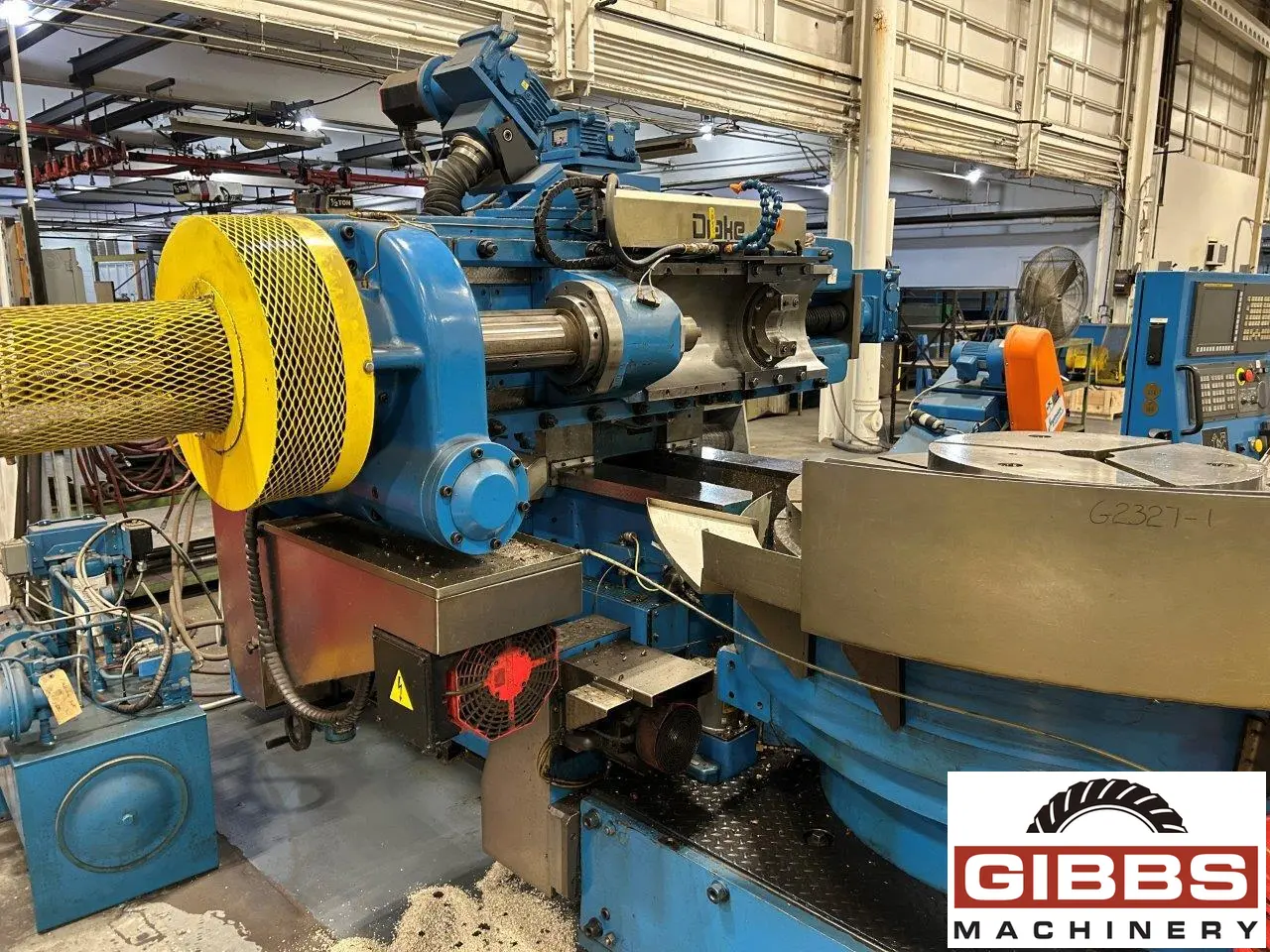

DRAKE G&E70TWG - Gear Hobber

Manufacturer

DRAKE

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

25775

Model

G&E70TWG

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

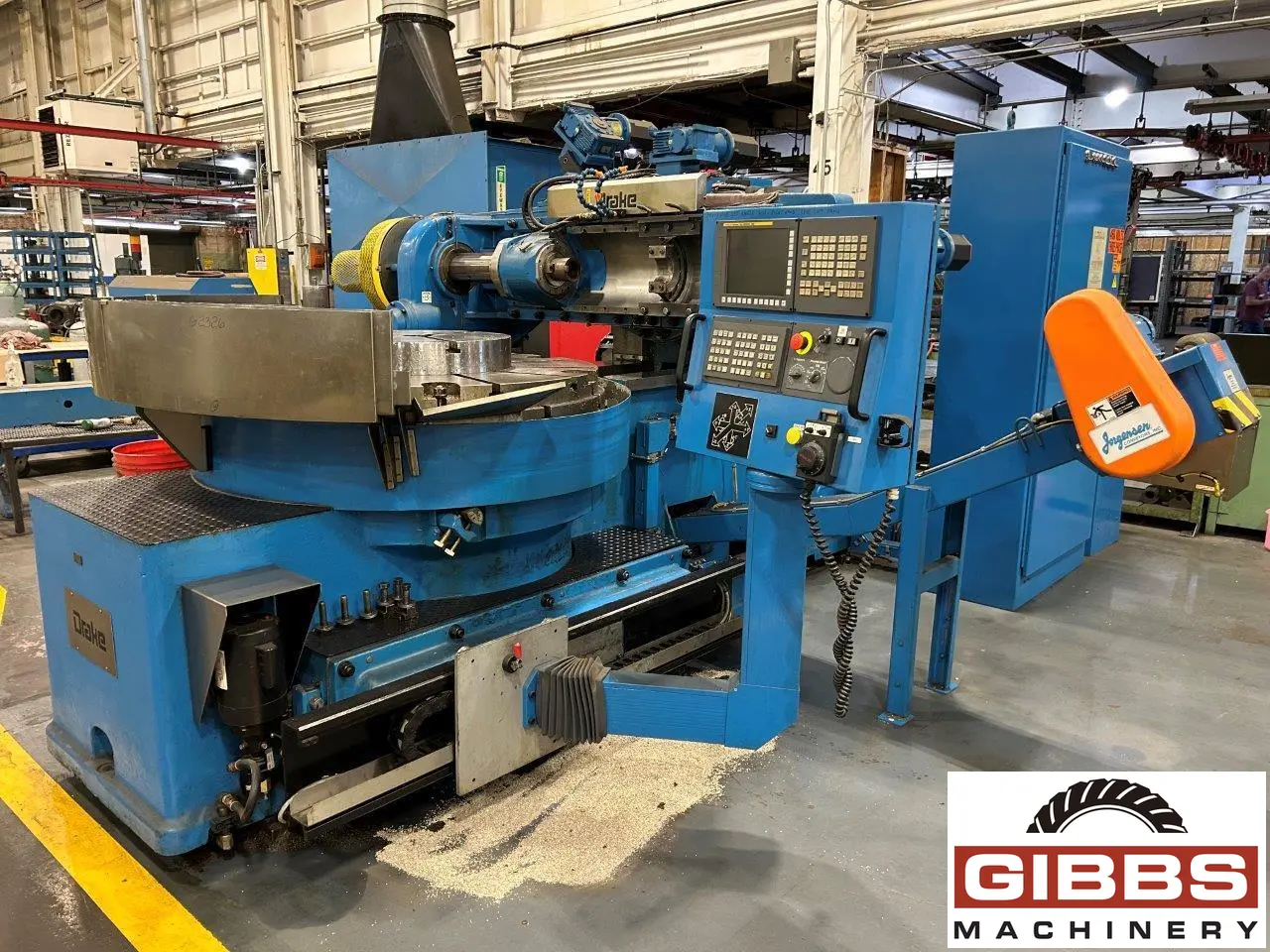

  • Fanuc 31i-B5 Control

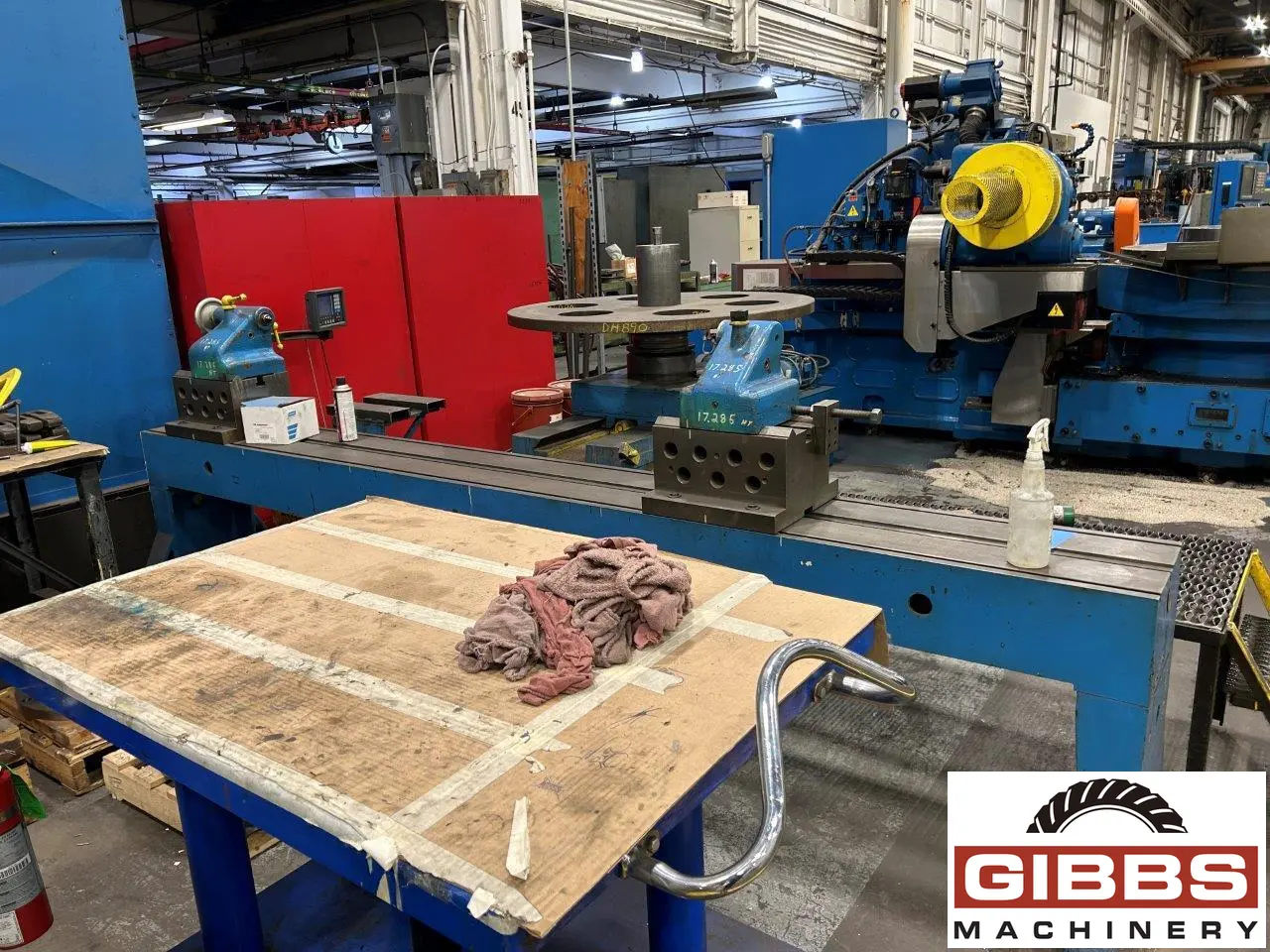

  • Cutter Arbors
  • 72" Table
  • Chip Conveyor
  • Coolant Pump
  • Bijur Lube

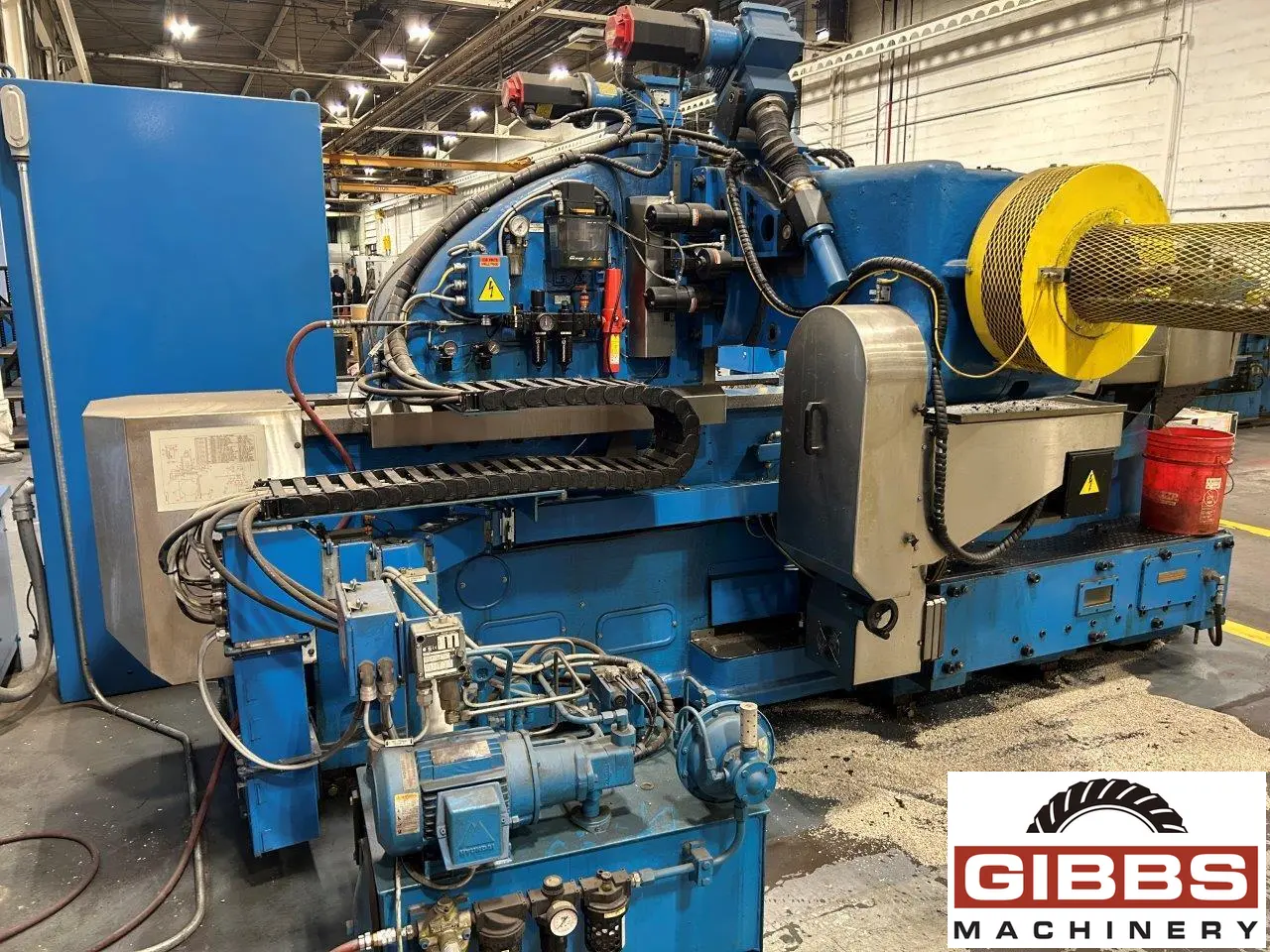

  • Hydraulic System
  • Transformer
,

Machine Specifications :

  • Year
  • Manufacturer DRAKE
  • Horz/Vert Vert
  • Maximum Workpiece Diameter 84.0"
  • Maximum Diametral Pitch 3.0
  • Module 8.0
  • Axial Travel 6.0"
  • Maximum Hob Diameter 10.0"
  • Table Diameter 72.0"
  • Control Manufacturer Fanuc
,

Optimize precision with the DRAKE G&E70TWG CNC Worm Gear Hobber. Capable of handling up to 84" worm gears and 22" of tangential feed. Equipped with Fanuc 31i-B5 Control and essential accessories. Robust 25 HP motor ensures reliable performance. .

    Specifications:

  • Rated Circular Pitch (Single Thread Hob): 3"
  • Maximum Diameter Wormgear: 84"
  • Minimum Centers, Work And Cutter Arbor: 8"
  • Tangential Travel: 22"
  • Vertical Adjustment of Head: 6"
  • Maximum Diameter Hob: 10"
  • Diameter Index Wormgear: 48"
  • Feeds - 32 Changes: .0007" - .200"
  • Hob Speeds (Number/Range): 18/7-300
  • Lead Range: .5" - 30"
  • Index Range W/Multiple Thread Index Wormgear: 3 - 400
  • Motor HP, Machine: 25 HP
  • Floor Space (W x L x H): 108" x 204" x 84"
  • Net Weight (Lbs.), Full Equipment: 28,000#
