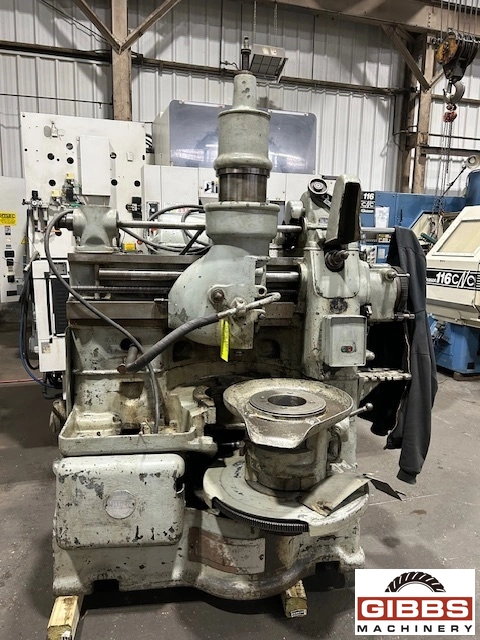

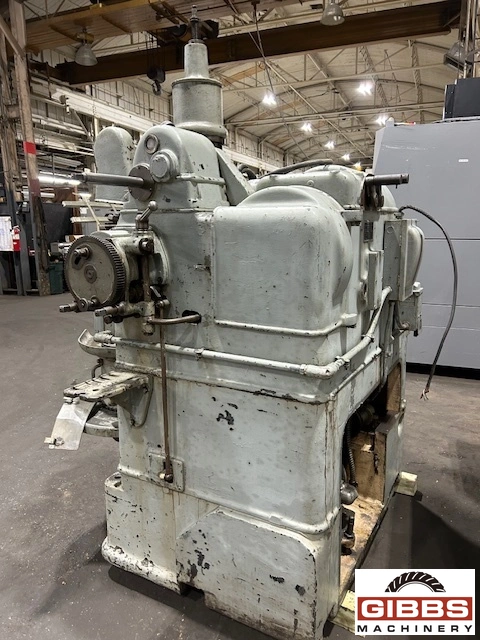

FELLOWS 645A - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

25419

Model

645A

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

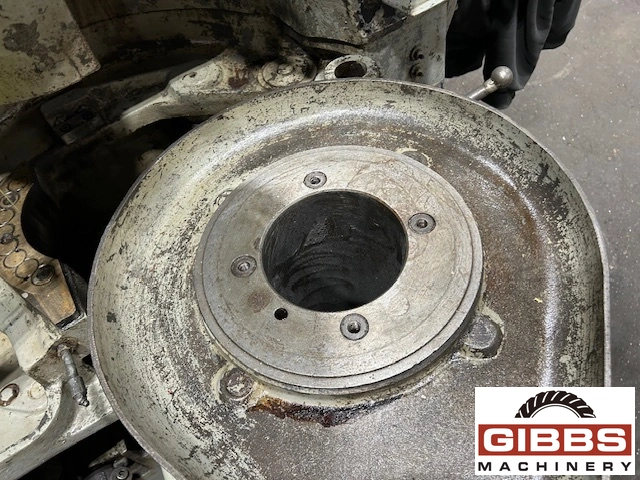

  • 5.875" work spindle bore

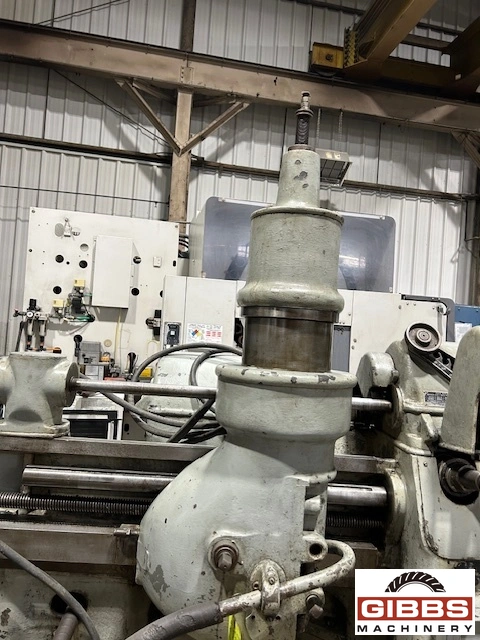

  • Hollow cutter spindle

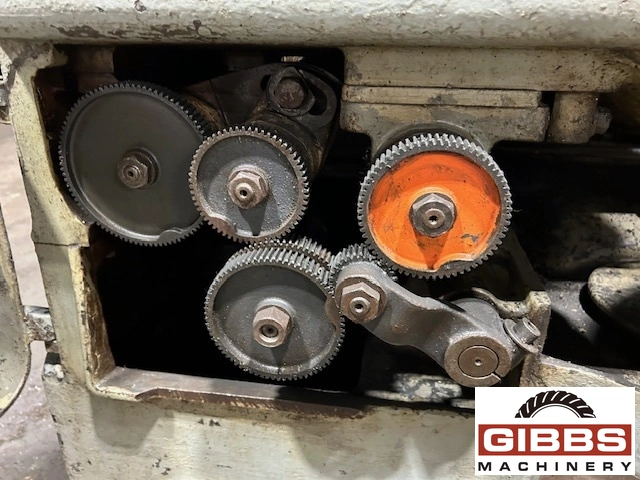

  • Change gear set up
,

Machine Specifications :

  • Year
  • Manufacturer FELLOWS
  • Maximum External Gear Diameter 18.0"
  • Maximum Internal Gear Diameter 18.0"
  • Diametral Pitch 4.0
  • Stroke 5.0"
  • Control Manufacturer Conventional
  • Guide Spur
,
The FELLOWS 645A gear shaper is a machine used for cutting gears. It can handle both external and internal gears with a maximum pitch diameter of 18 inches and a maximum face width of 5 inches. The machine is capable of shaping both spur and helical gears, with maximum diametrical pitches of 4 DP and 6 DP, respectively.
    Specifications:
  • Stroke: 5"
  • Maximum Pitch Diameter (External): 18"
  • Maximum Pitch Diameter (Internal): 18"
  • Maximum Face Width, External & Internal: 5"
  • Maximum Diametrical Pitch Spur: 4 DP
  • Maximum Diametral Pitch Helical: 6 DP
  • Bore Through Work Spindle: 5 7/8"
  • Maximum Clearance Height: 16"
  • Cutter Spindle Diameter: 2.875"
  • Maximum Helix Angle With Proper Guide: 30 degrees
  • Stroking Speeds: 50-300 SPM
  • Dimensions (L x H x W): 63" x 90" x 48"
  • Machine Net Weight, Approximate: 7,500#
