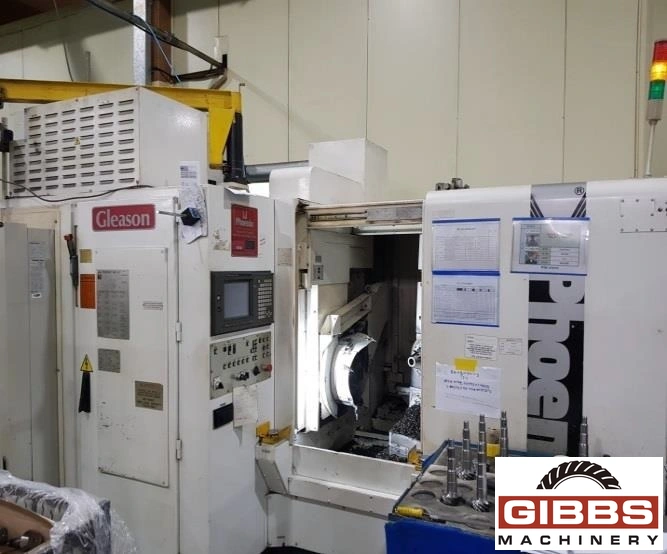

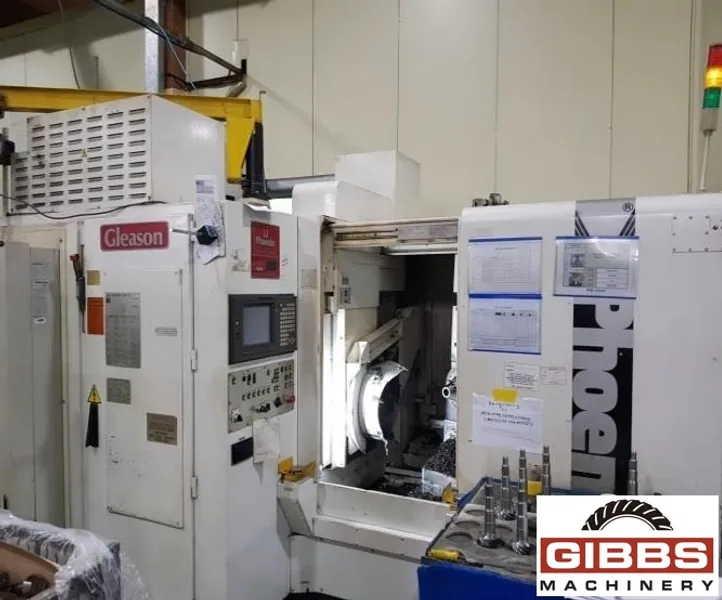

GLEASON 450HC - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

25511

Model

450HC

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc 150MB CNC Control
  • Dry Cutting
  • Cutter Shroud
  • Chip Evacuation System
  • Auto Doors
  • Hydraulic System
  • Lubrication System
  • Worklight
  • Stack Light
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Maximum Diameter Gear 17.7"
  • Maximum Face Width 2.6"
  • Extreme Ratio 10:1
  • Control Manufacturer Fanuc
,

The GLEASON PHOENIX 450HC is a CNC spiral bevel gear generator used for manufacturing high-precision spiral bevel gears. It is known for its accuracy and repeatability, particularly when producing small lot quantities.

    Specifications:

  • Largest Speed Ratio: 10:01
  • Work Area (Continuous):
  • Largest Depth of Teeth: 15.24 mm
  • Largest Width of Tooth Face: 50.8 mm
  • Work Area Axis:
  • Horizontal Movement X Axis: -114 - 178 mm
  • Vertical Movement Y Axis: -178 - 190 mm
  • Movement of the Carriage Baseplate Z-Axis: -10.16 - 500 mm
  • Workpiece Headstock Swivelling Range B-Axis: -3 - 90 Degree
  • Maximum Distance Machine Center to Spindle Side: 165 mm
  • Number of Teeth: 5-200 Inclusive
  • Max. Gear Pitch Dia. of Typical 35 Deg. Spiral Angle Gear Using
  • Max. Cutter Dia. 12" Cutter at the Following Ratios:
  • Face Milling
  • 1 x 1 - 13.5" - 342.9mm
  • 2 x 1 - 16.0" - 406.4mm
  • 5 x 1 - 17.7" - 450.0mm
  • Face Hobbing (210mm Dia. Cutter)
  • 1 x 1 - 10.560" - 268.22mm
  • 2 x 1 - 10.286" - 275.00mm
  • 5 x 1 - 11.810" - 300.00mm
  • Milling Head Diameter:
  • Helixact: 100,125,169,200,250,320mm
  • Continuous Gumption Procedure, Teichloroethylene: 102 - 210 mm
  • Workpiece Spindle:
  • Drilling of Large Diameters: 5 3/64"
  • Cone Upward Gradient on 304.8 mm (1 Foot): 21/32"
  • Deep One of the Cone: 5.29"
  • Diameter of the Whole Spindle Perforating: 3.35"
  • Speeds:
  • B-Axle Workpiece Headstock Drag Axis: 30 Degrees
  • A-Axle Workpiece Spindle Number of Revolutions: 0 83 min-1
  • X-Axis Horizontal: 80 mm/sec
  • Y-Axis Vertically: 80 mm/sec
  • Z-Axis Carriage Baseplate: 80 mm/sec
  • Space Requirement L x W x H (Approx): 4.75 x 3.40 x 2.54m
  • 188" x 134" x 100"
  • Machine Weight (approx): 10980 kg
  • 24,156 lbs
