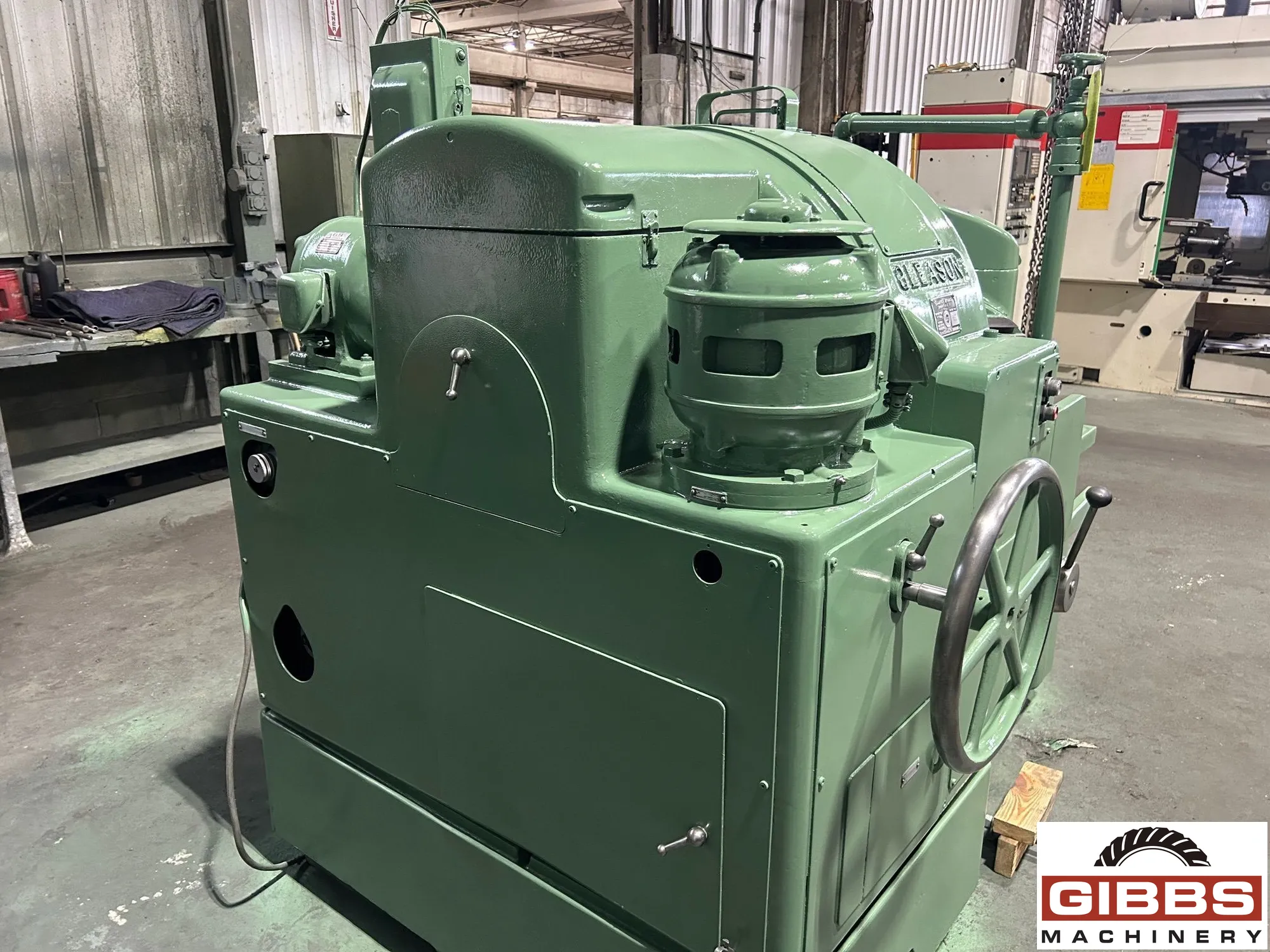

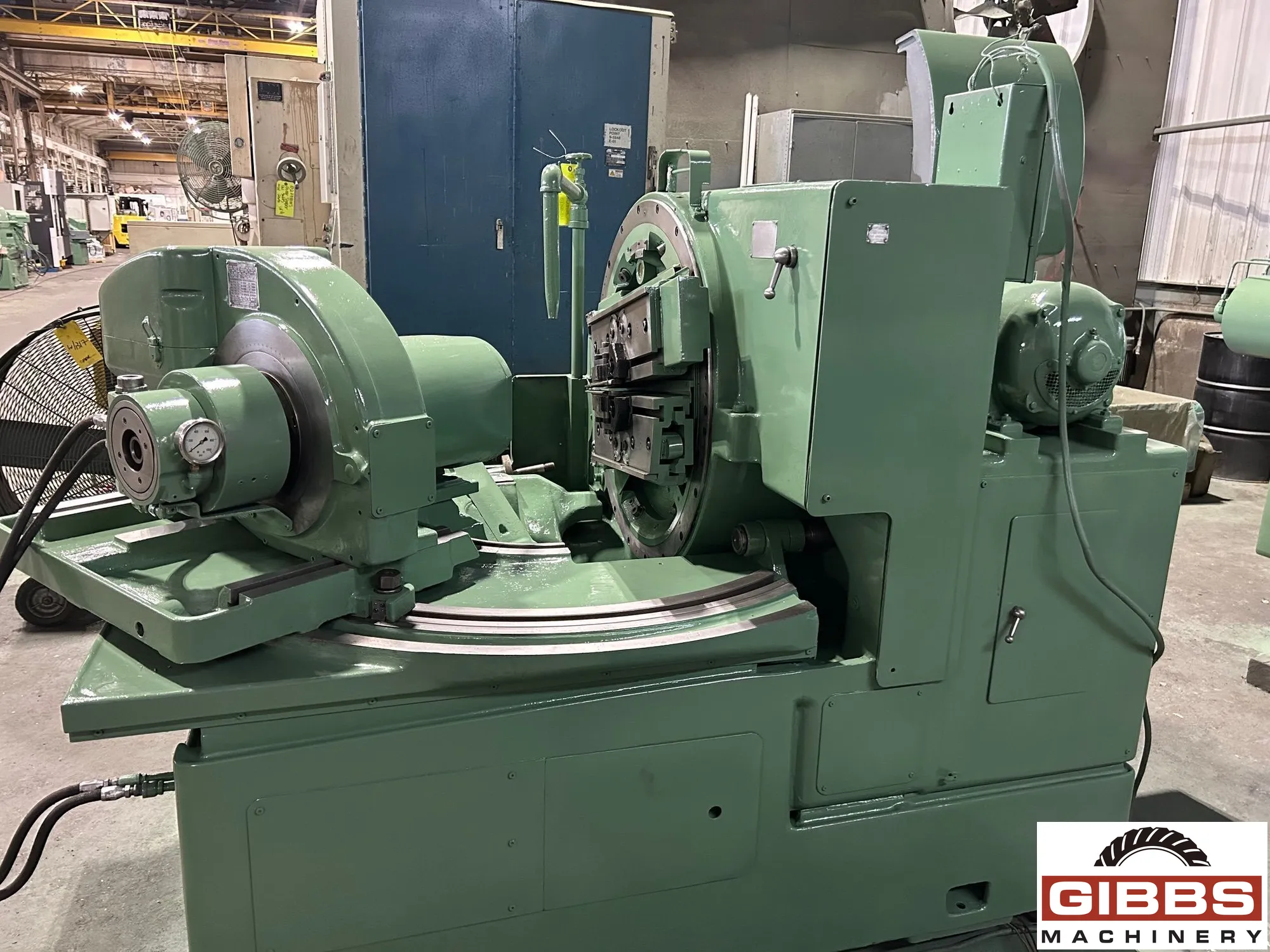

GLEASON 14 - Straight Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, STRAIGHT

Stock

25552

Model

14

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Coniflex
  • Gauges

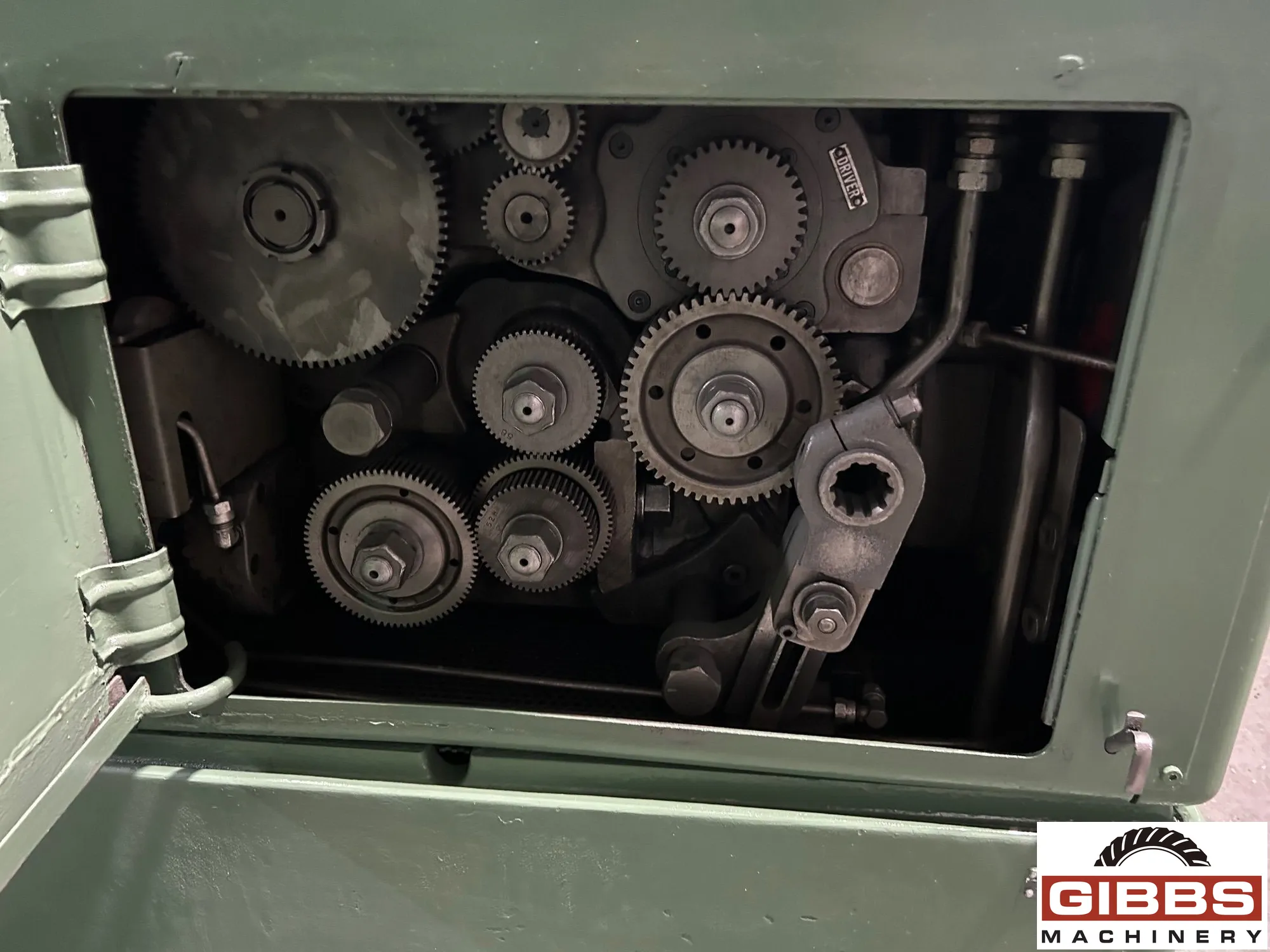

  • Change Gear Cabinet
  • Hydraulic Work Clamping
  • Stock Divider
  • Cutter Block
  • Rough/Finish Feed Cam
  • Draw Bar
  • Chip Basket
  • Hydraulic System
  • Coolant Pump
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Maximum Workpiece Diameter 24.0"
  • Diametral Pitch 3.0
  • Maximum Cone Distance 12.0"

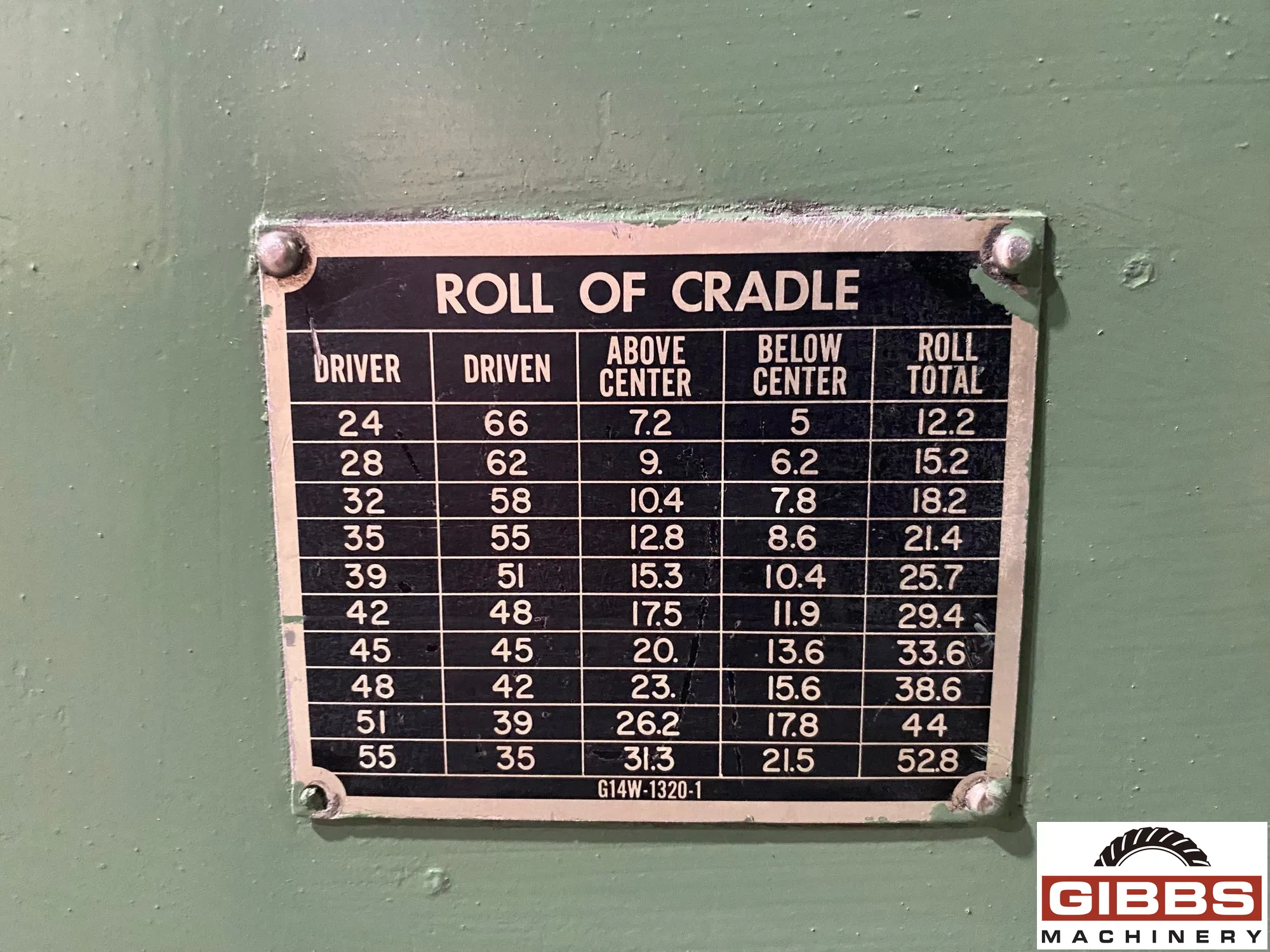

  • Extreme Ratio 101.0
  • Maximum Face Width 3.5"
  • Number of Teeth 0.0
  • Control Manufacturer Conventional
,

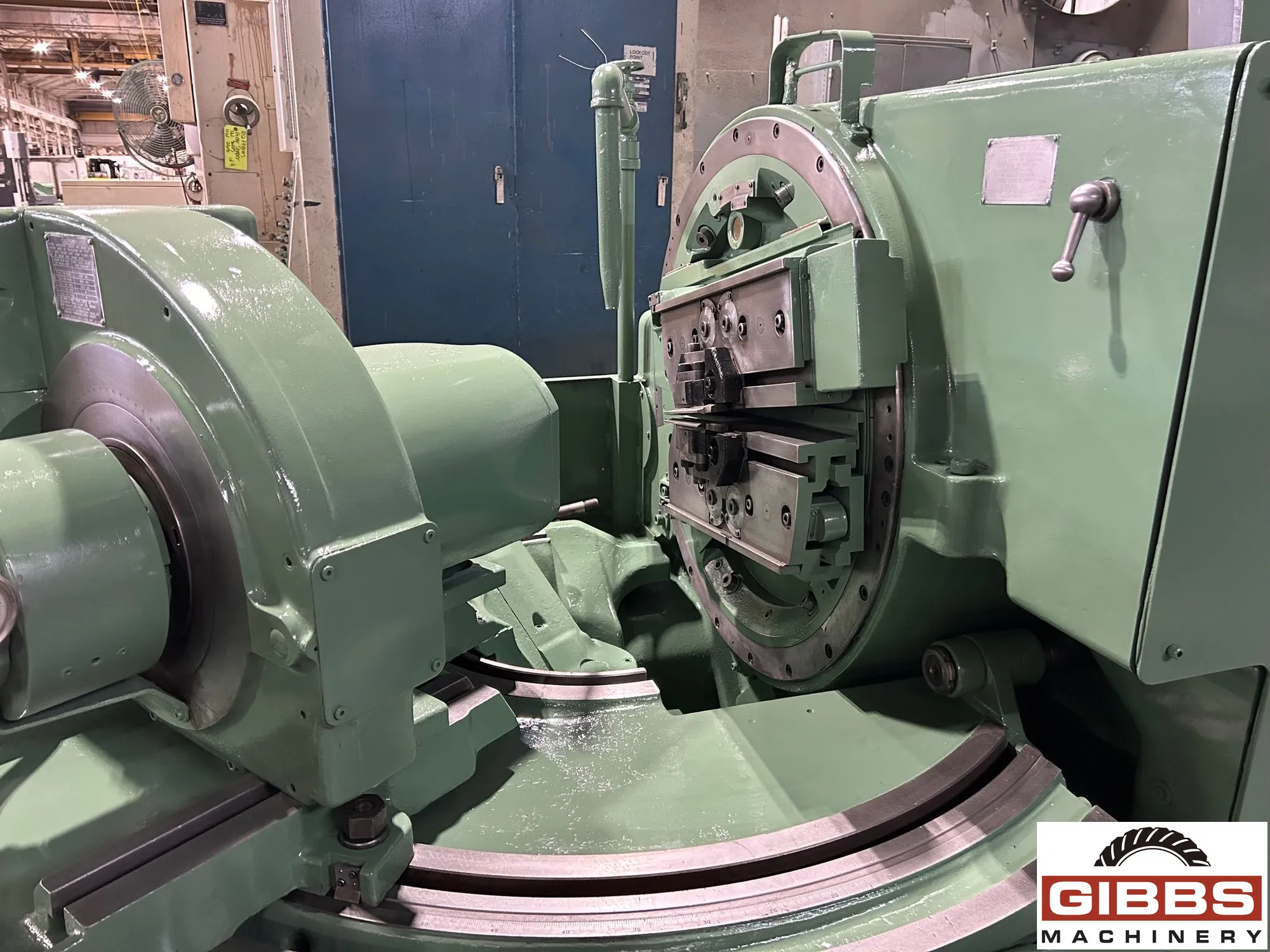

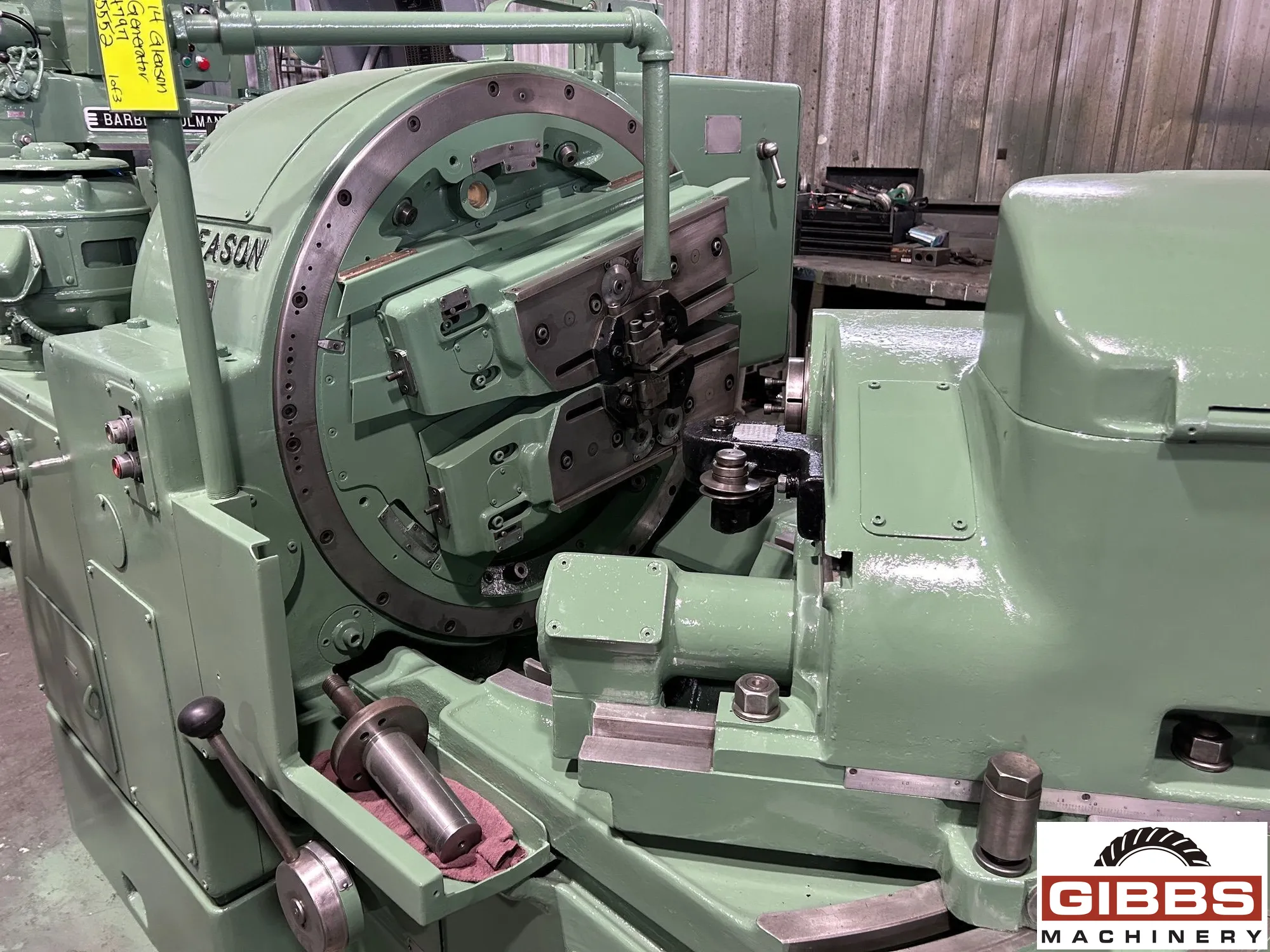

The No. 14 Straight Bevel Coniflex® Gener ator is an automatic machine for cutting straight bevel Coniflex gears. A wide range of work is covered - gears up to 24" in diameter at 10 to 1 ratio, 3 " face width and 3 diametral pitch. This generator is a two tool machine employing side -cutting tools, which operate alternately on op posite sides of the gear tooth being cut. The No. 14 Straight Bevel Coniflex Generator offers many advantages: improved quality of product, increased production, ease of setup and operation, and simplified calculations and development.

    Specifications:

  • Gear Diameter: up to 24"
  • Cone Distance (Maximum): 12"
  • Cone Distance (Minimum): 0
  • Extreme Ratio: 10:1
  • Diametral Pitch (coarsest): 3 DP
  • Index Range: 5 to 100 inclusive and most numbers up to 200
  • Diameter of Taper Hole at Large End: 3 29/32"
  • Taper per Foot: 39/64"
  • Depth of Taper: 6"
  • Diameter of Hole Through: 3 1/16"
  • Spindle Nose to Machine Center: 2 1/2" x 15"

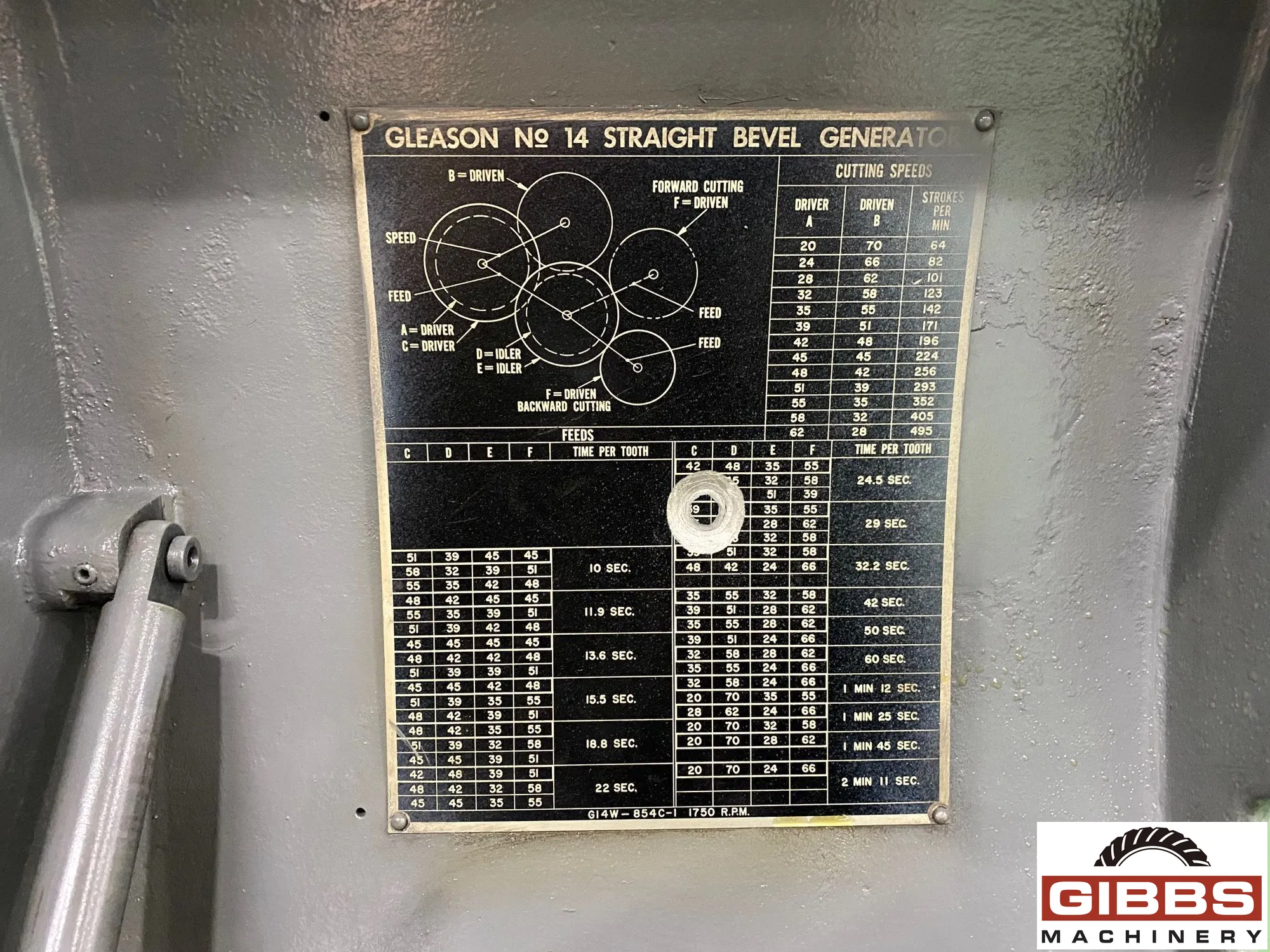

  • Cutter Speeds (Strokes per Minute): 64 to 495
  • Feeds (Seconds per Tooth): 10 to 131
  • Main Motor: 3 H.P., 1800 RPM
  • Floor Space: 76"x56"
  • Net Weight: 14,800 lbs.
