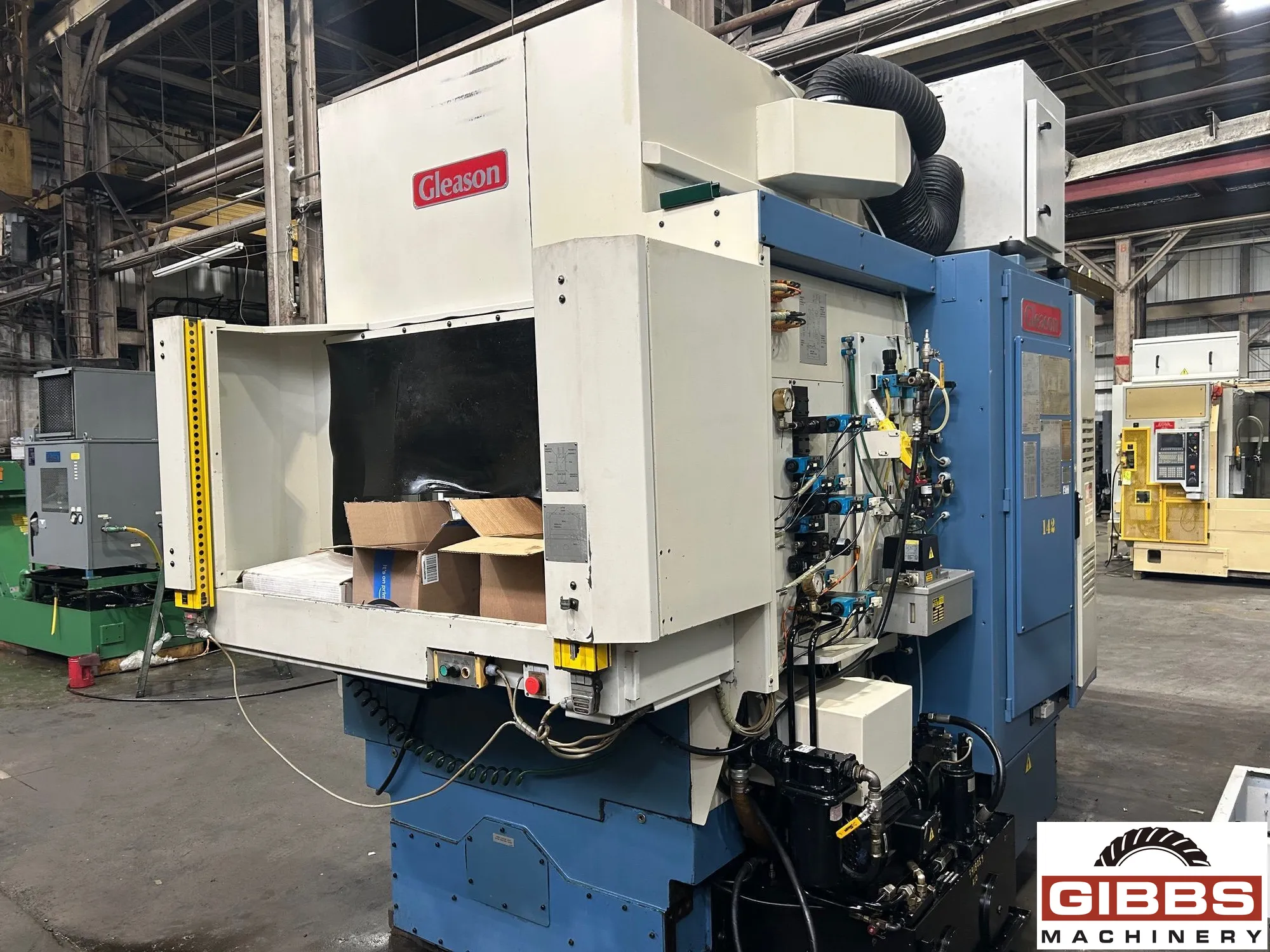

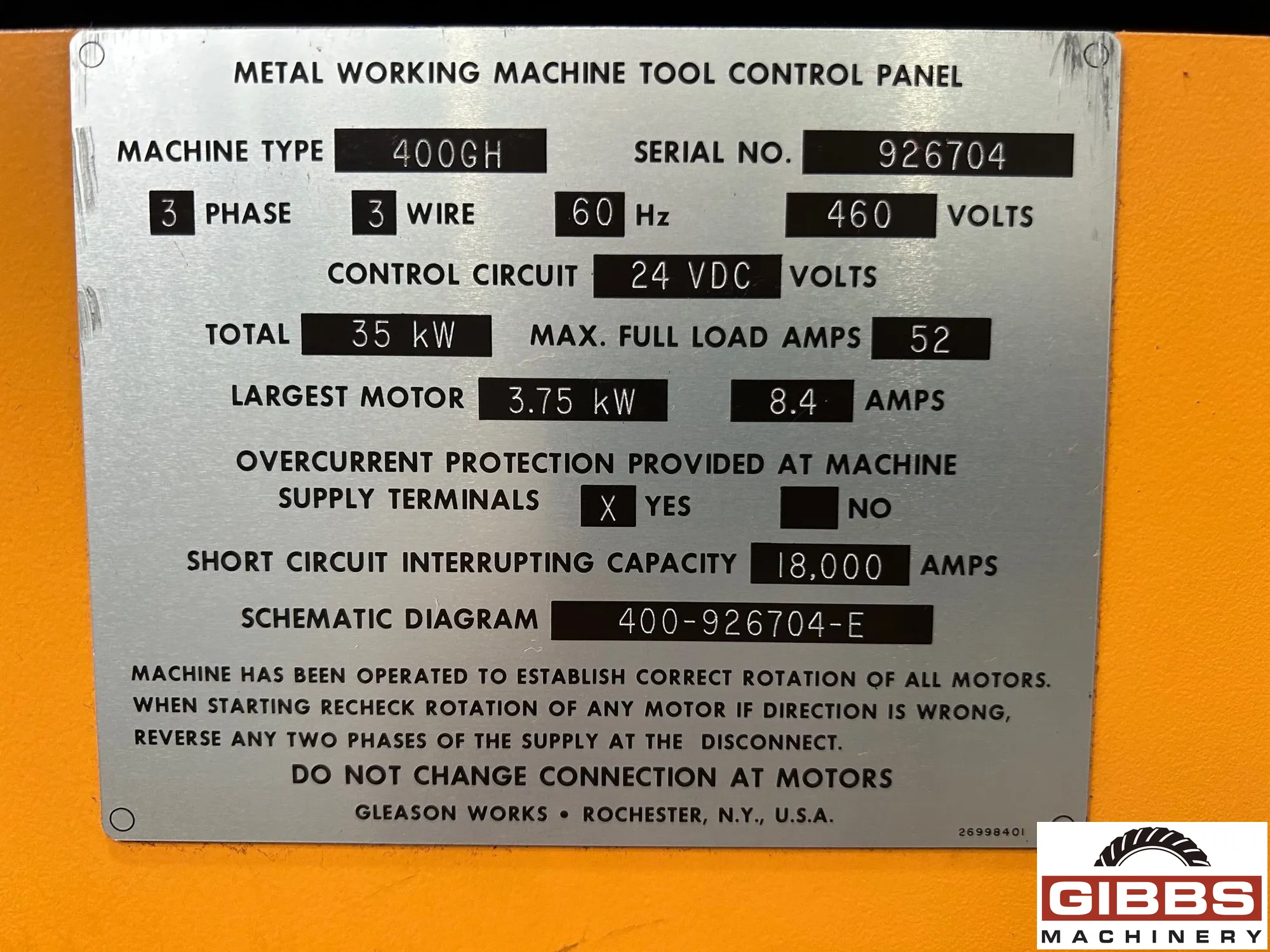

GLEASON PHOENIX 400GH - Gear Hobber

Manufacturer

GLEASON PHOENIX

Category

Gear Machines

Type

GEAR HOBBERS, CNC

Stock

25735

Model

400GH

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

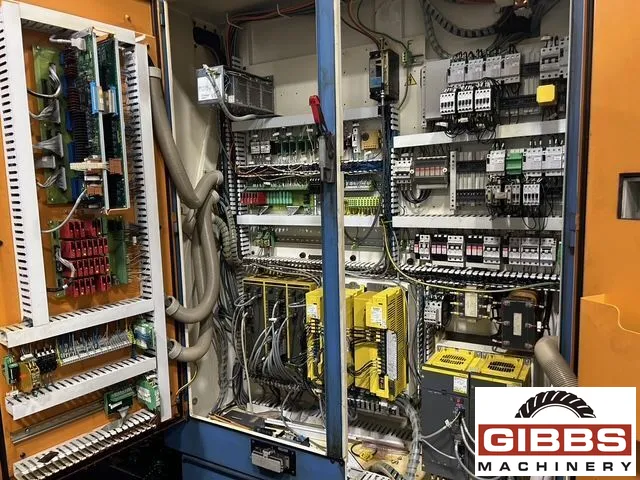

  • Fanuc 150MB Control
  • 1.25" Hob Arbor
  • Tailstock W/Center
  • 180 Degree Loader
  • Coolant System

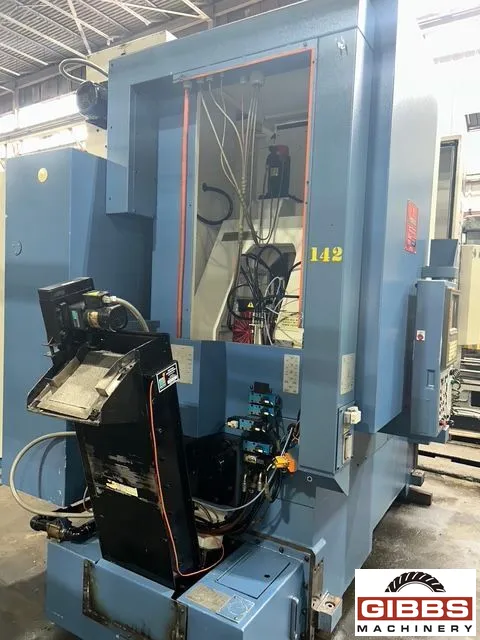

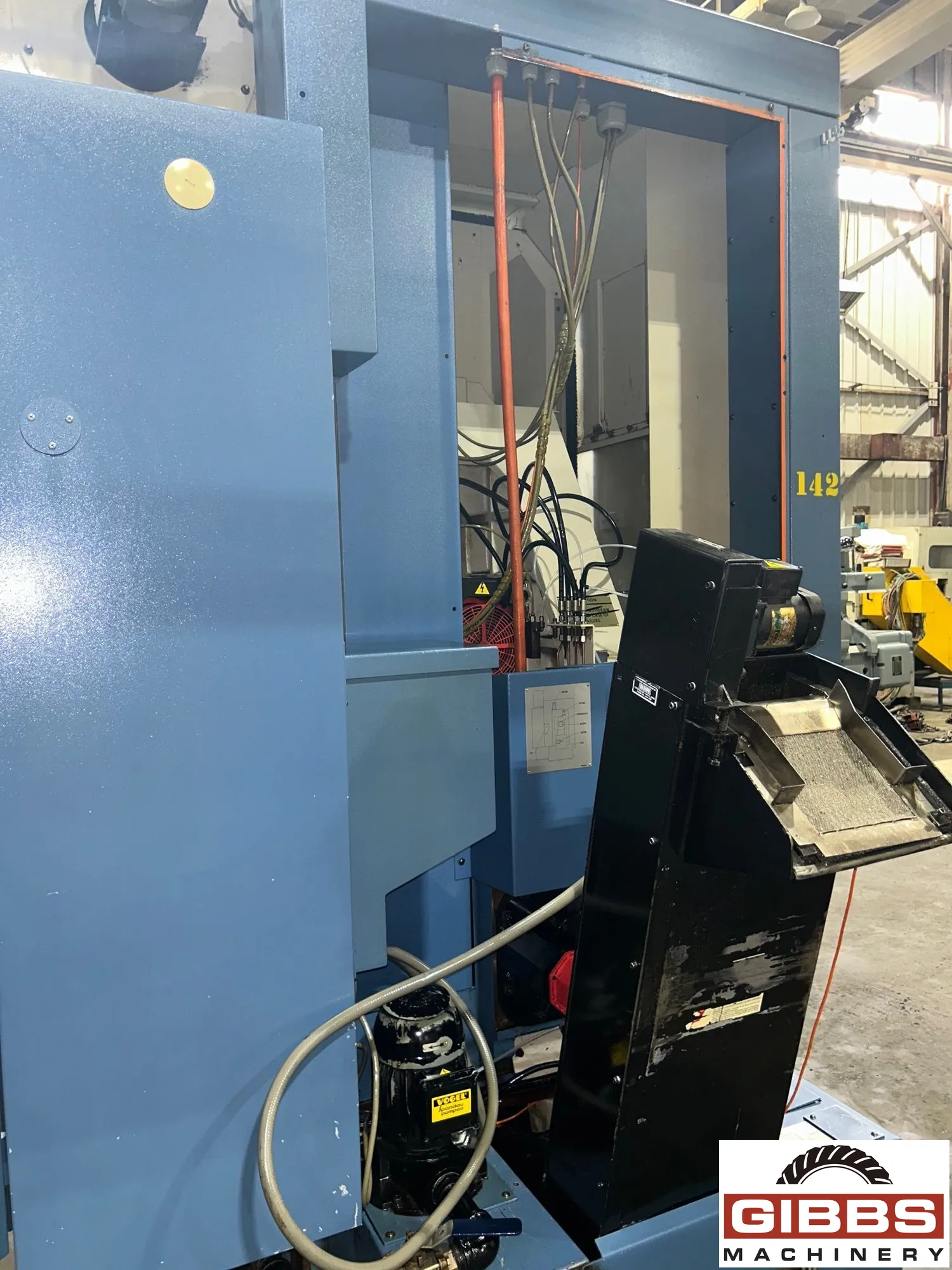

  • Chip Conveyor

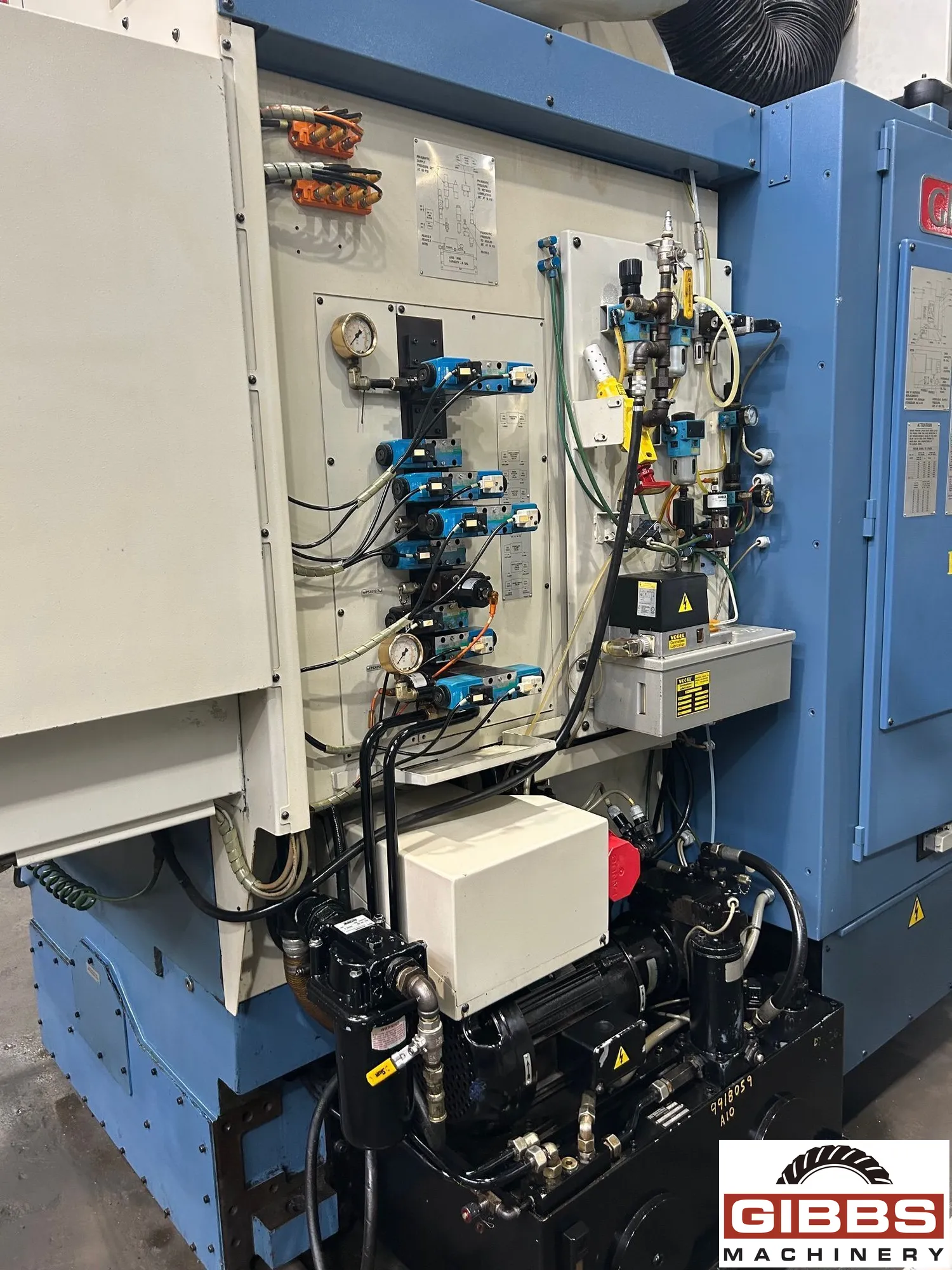

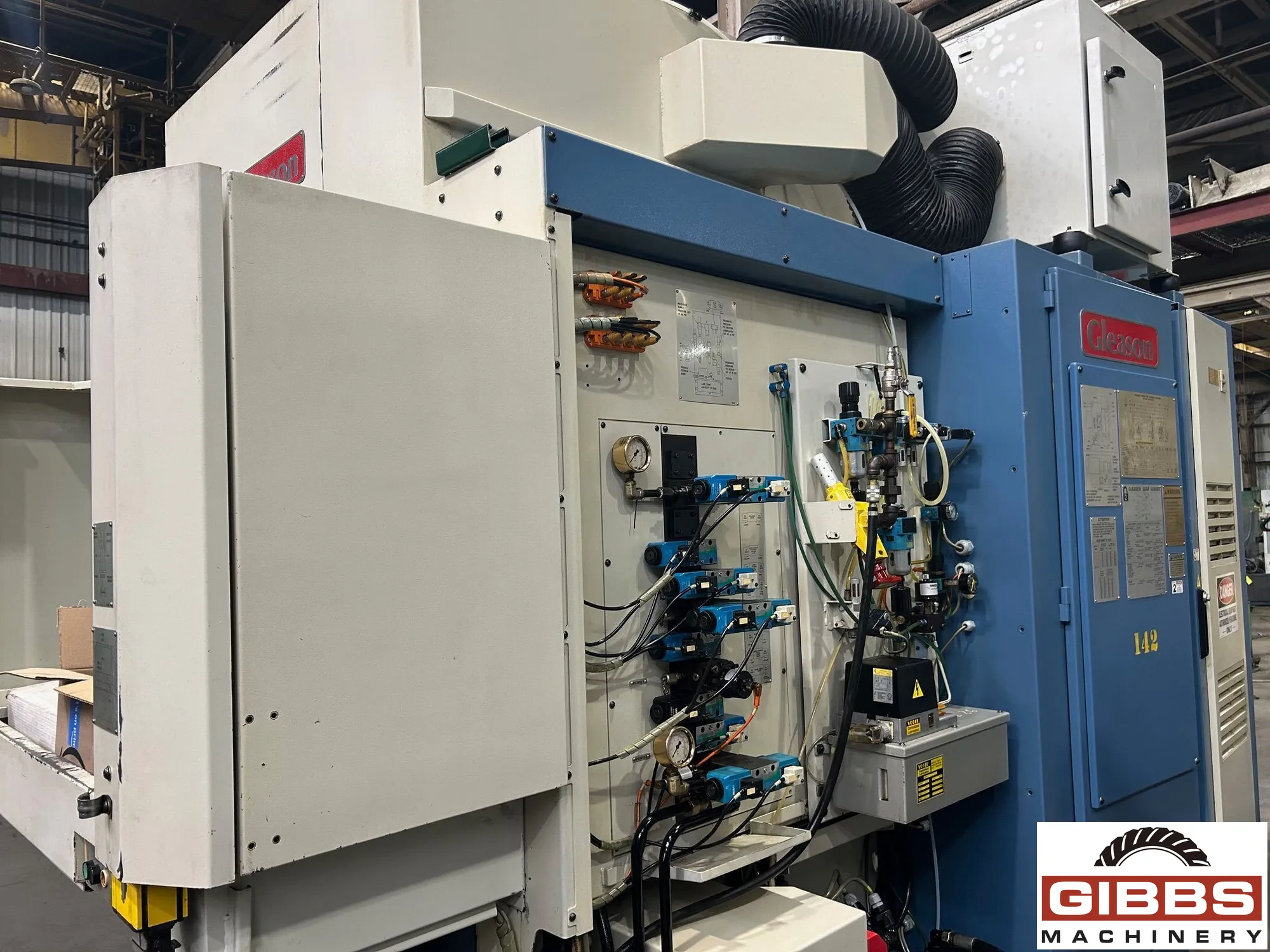

  • Hydraulic System
  • Power Door
  • Thermal Growth Compensation
  • Summary Storage Capacity for 100 Parts
  • Mist Collector
  • Work Light
  • Light Curtain
  • Manuals
,

Machine Specifications :

  • Year
  • Maximum Diametral Pitch 2.0
  • Maximum Workpiece Diameter 17.72"
  • Axial Travel 20.67"
  • Module 12.0
  • Maximum Hob Diameter 6.3"
  • Hob Speed 1,000 RPM
  • Horz/Vert Vert
  • Hob Arbor Size 1.25"
  • Table Diameter 15.0"
  • Control Manufacturer Fanuc
  • Manufacturer GLEASON PHOENIX
  • 15.75
  • 2.0
  • 12.0
  • 20.67
  • 6.3
  • 1000.0
,

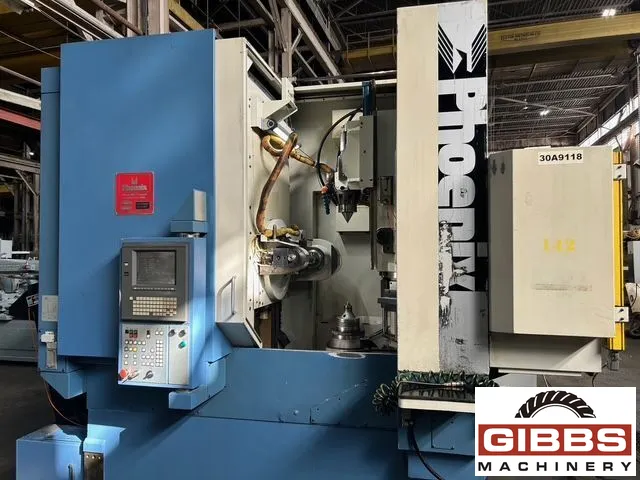

The Gleason Phoenix 400GH is a CNC gear hobbing machine, known for its high-performance capabilities and robust 2 DP design. It's a 6-axis machine specifically designed for hobbing various gear types, including spur, helical, and splined gears .

    Specifications:

  • Maximum Workpiece Diameter:
  • -w/Carousel Loader: 15.75"
  • -Manual Load/Unload: 17.72"
  • Maximum Diametral Pitch (Coarsest):
  • -Standard Hob Head (100-1000 RPM): 2 NDP (12 Module)
  • -Optional Hob Head (150-1500 RPM): 2.5 NDP (10 Module)
  • Maximum Hob Spindle Torque: 2500 in.lb.
  • Maximum Hob Setting Angle: +/- 45 Degrees
  • Total Swivel Motion: -165 Degrees/+45 Degrees = 210 Degrees
  • Minimum Number of Teeth: 2
  • Center Distance from Hob Spindle to Work spindle Min./Max.: 1.38"/12.20"
  • Height - Work Spindle to Center of Hob Spindle Min./Max.: 2.95"/23.62"
  • Maximum Axial Hob Slide Travel: 20.67"
  • Maximum Radial Slide Travel: 10.83"
  • Distance Between Work Spindle and Tailstock Face Min./Max.: 13.78"/38.47"
  • Work Spindle Mounting Diameter with Adaption: 14.96"
  • Work Spindle Dimensions:
  • -Depth of Hole: 5.98"
  • -Bolt Circle Diameter: 5.91" & 7.48"
  • -Size of Tapped Holes: M 10 x 1.5 x 20 mm Deep
  • Maximum Hob Diameter: 6.3"
  • Hob Arbor Diameter: 1.25"
  • Maximum Hob Length: 9.5"
  • Min. Hob Shift (Tangential Slide Travel): 8.66"
  • Hob Spindle Taper: ISO 40 x ISO 40
  • Hob Speed Range: 100-1000 RPM (150-1500 RPM with Option)
  • Work Spindle Speed: 1-75 RPM (5-150 RPM Optional)
  • Maximum Rapid Traverse Rate:
  • -Axial: 197 in/min
  • -Radial: 197 in/min
  • Hob Drive Motor: 20.1 HP
  • Hydraulic Pump Motor: 5 HP
  • Hydraulic Pump Capacity: 10 GPM
  • Height (without Mist Collector): 117"
  • Floor Space (width x length):
  • -Manual Load / Unload: 79" x 114"
  • Net Weight (Approximate): 26,000 lbs.
