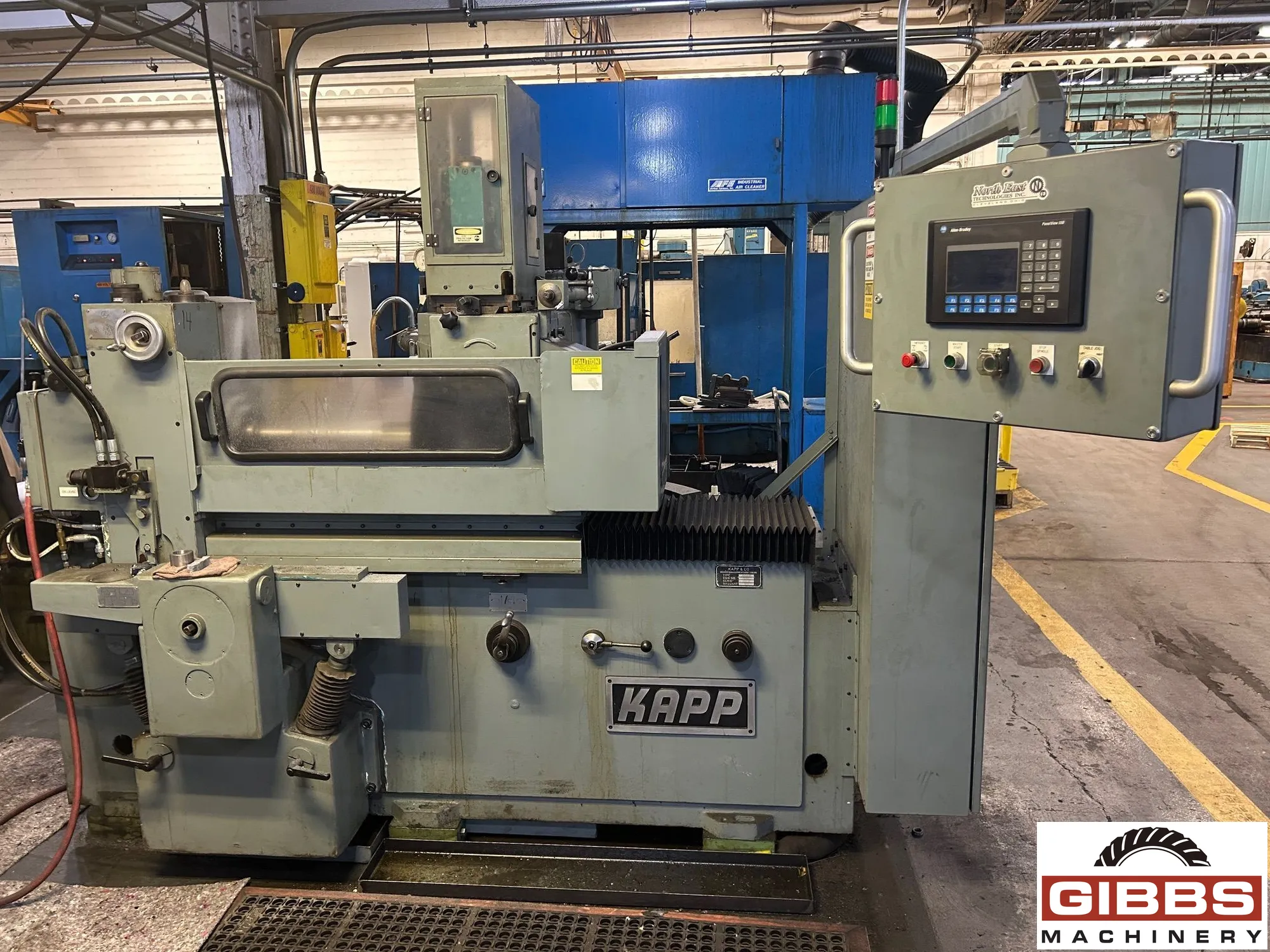

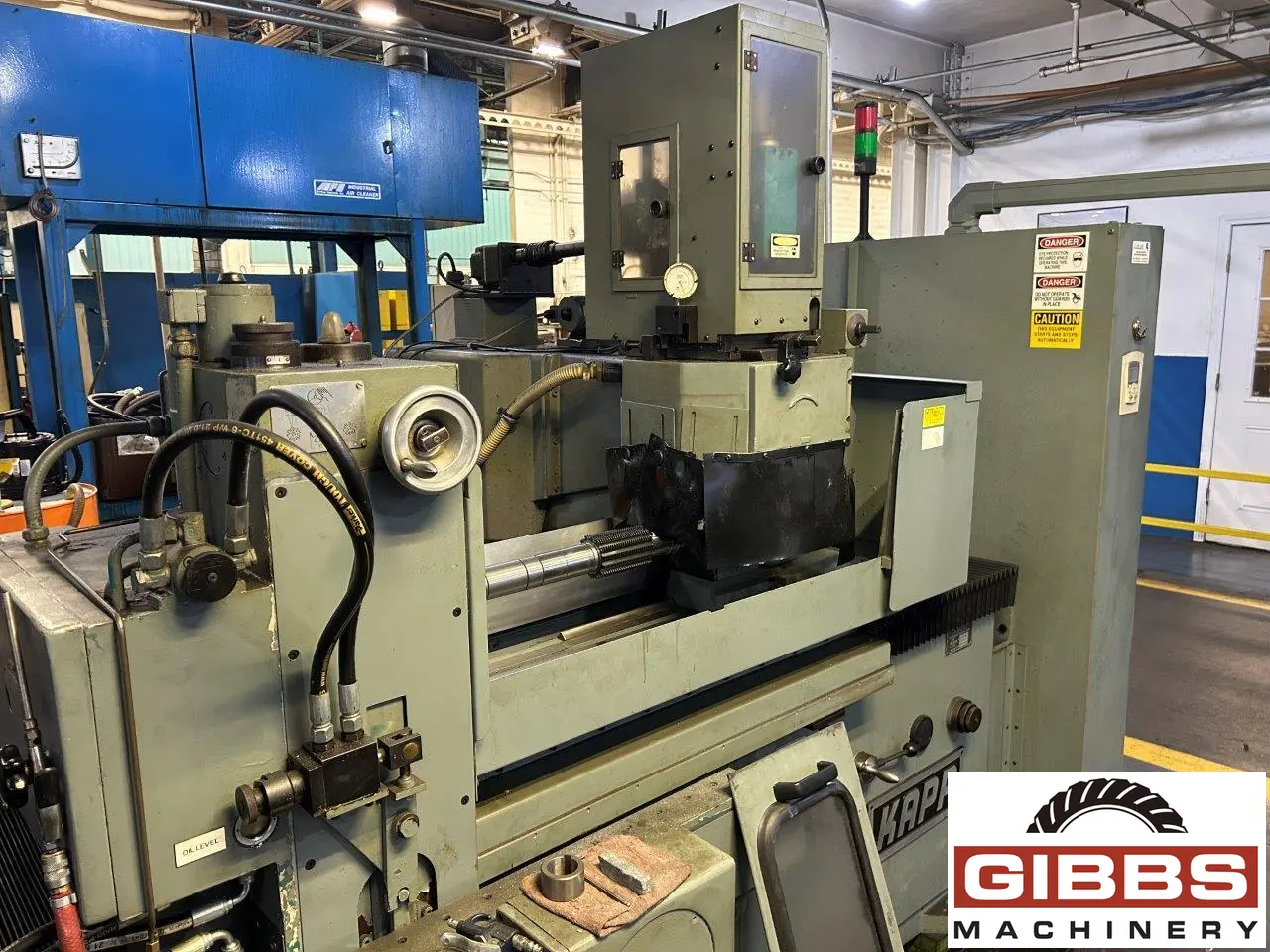

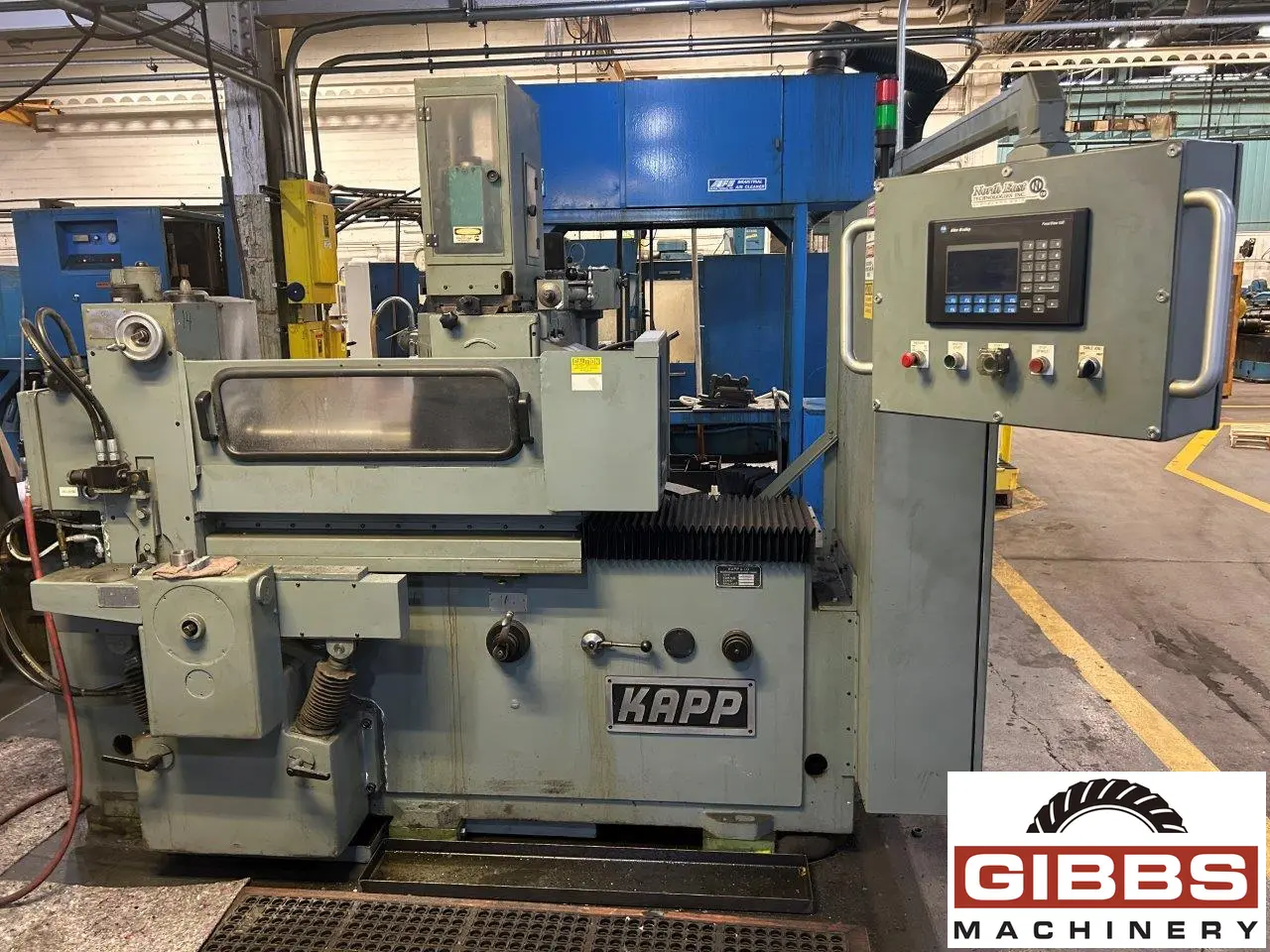

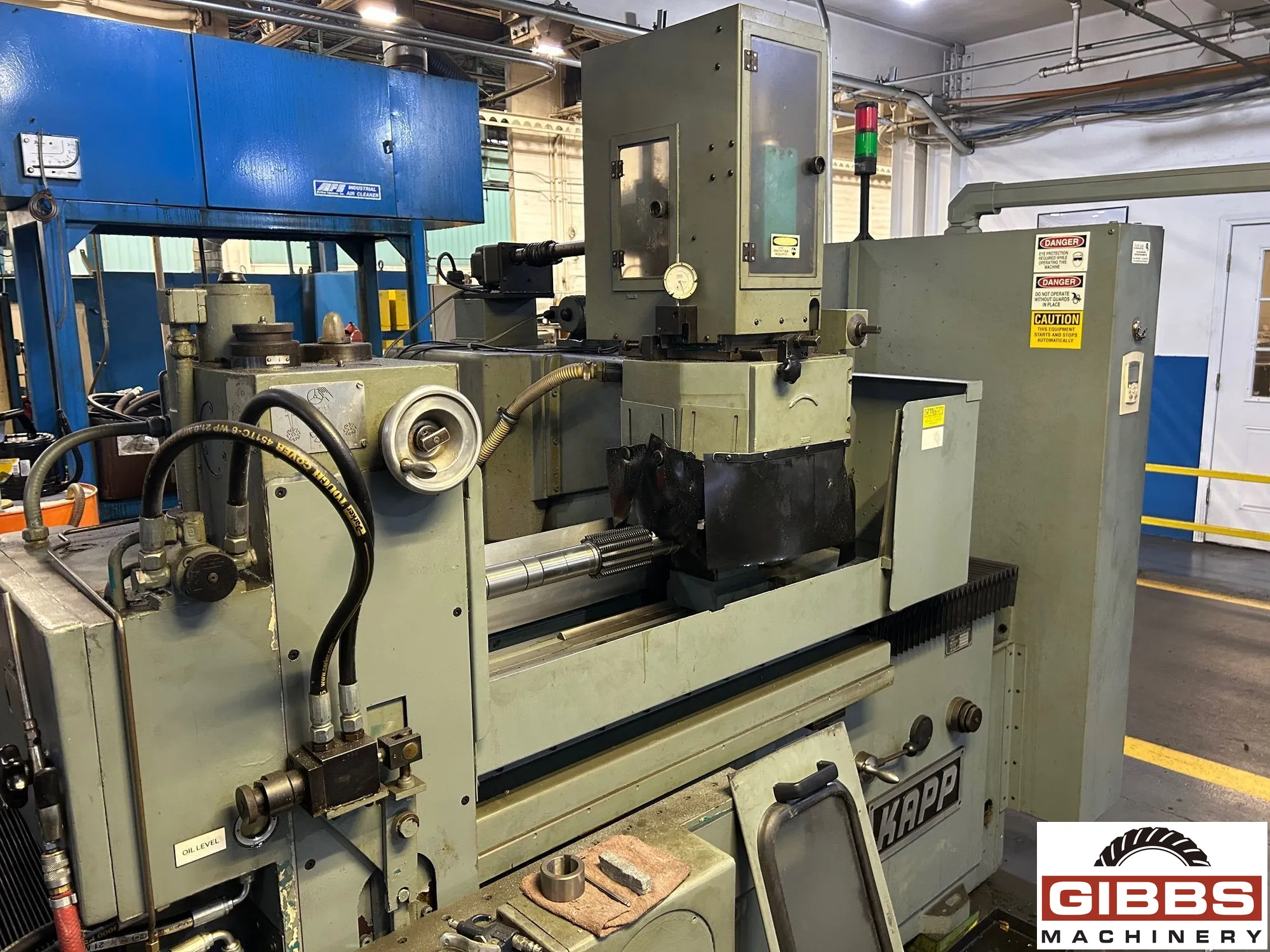

KAPP AST-305B - Gear Cutter Sharpener

Manufacturer

KAPP

Category

Grinding Machines

Type

HOB SHARPENERS

Stock

25764

Model

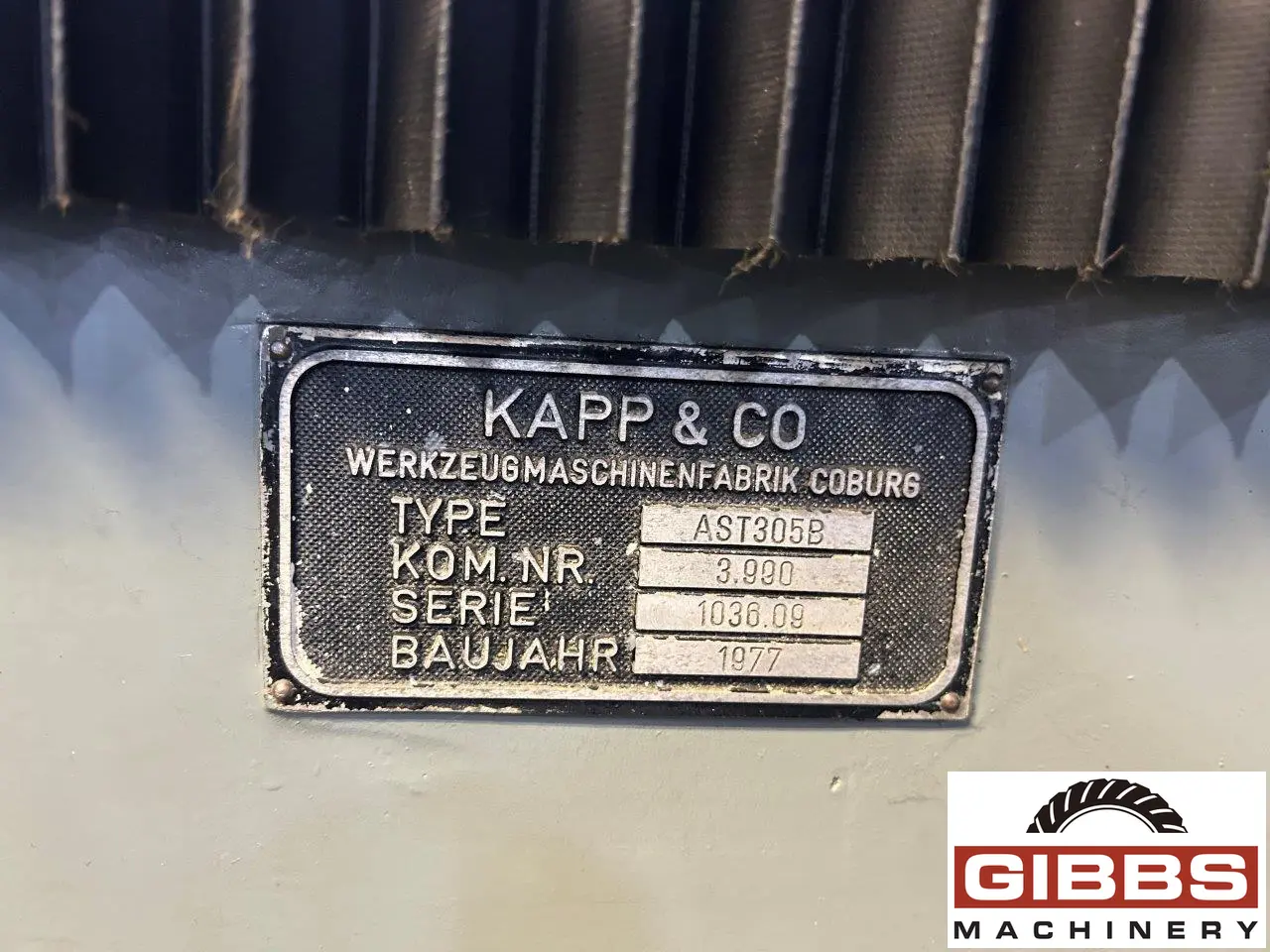

AST-305B

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

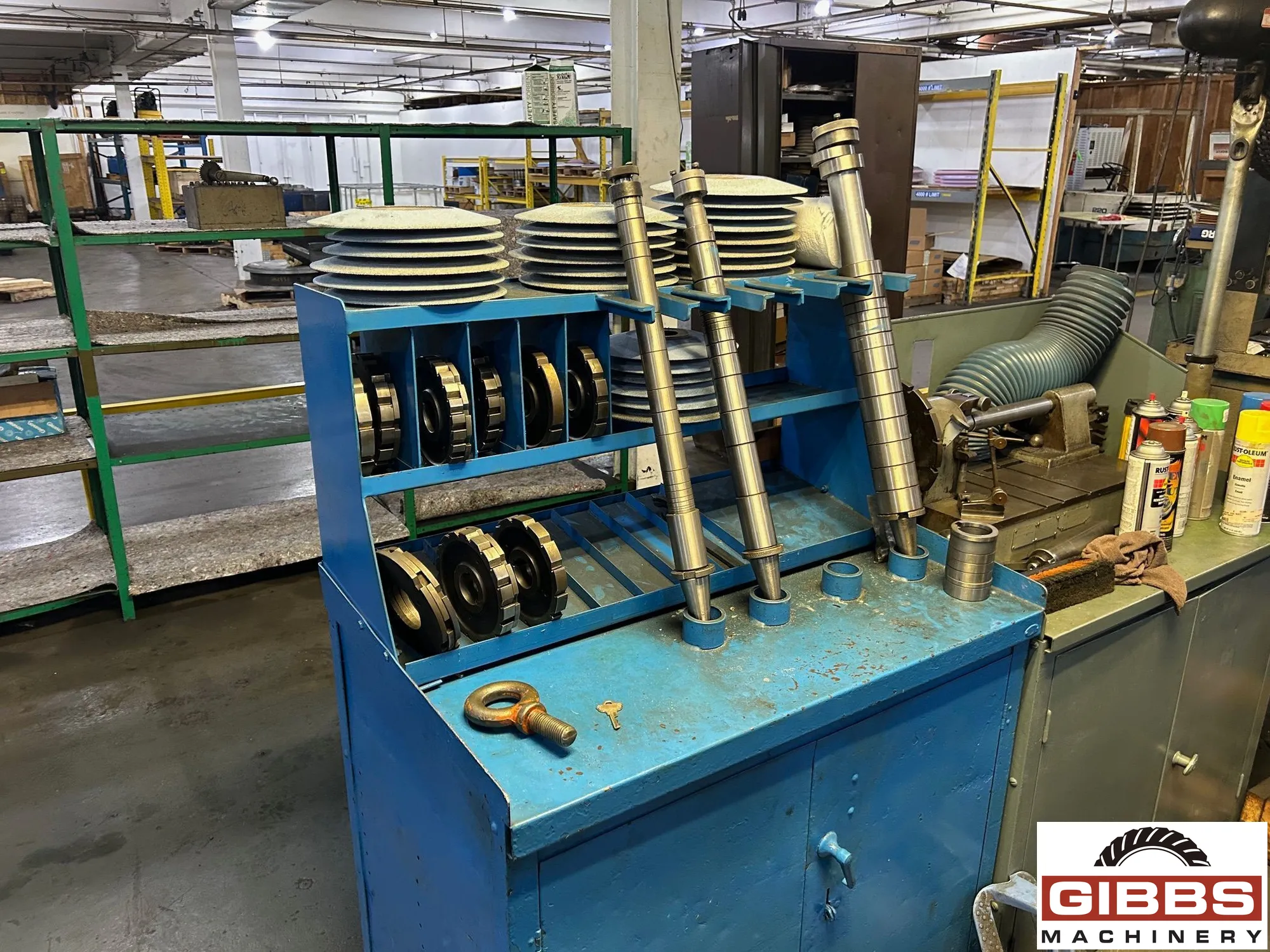

  • Index Plates

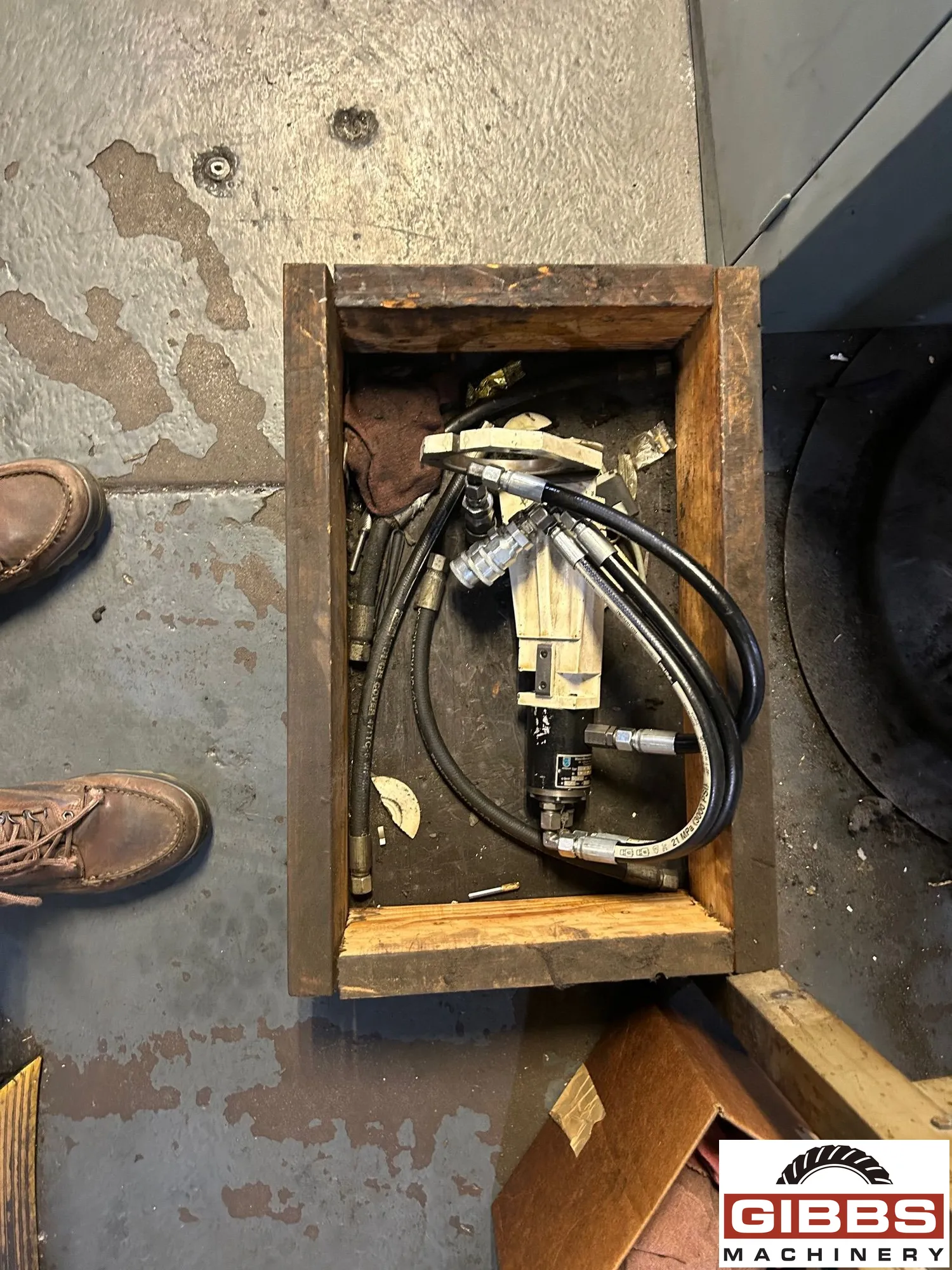

  • Arbors
  • Dresser
  • Coolant Systems
  • Spacers
  • Wheel Mounts
  • Wheels
,

Machine Specifications :

  • Year
  • Manufacturer KAPP
  • Maximum Hob Diameter 12.0"
  • Maximum Hob Length 27.56"
  • Maximum Grinding Wheel Diameter 12.0"
,

    Specifications:

  • Maximum Clamping Length: 27.56" / 700 mm
  • Maximum Workpiece Diameter Capacity: 11.8" / 300 mm
  • Maximum Table Traverse: 21.56" / 550 mm
  • Maximum Diameter Grinding Wheel: 12" / 300 mm
  • Maximum Center Height: 6.1" / 155 mm
  • Infinitely Variable Table Speed:
  • -For Deep Grinding: 30-1000 mm / min
  • -For Surface Grinding: 3-16 mm / min
  • Grinding Spindle Speed: 2200 rpm
  • Axial Grinding Spindle Adjustment: 16.54" / 420 mm
  • Vertical Grinding Head Adjustment: 11.81" / 300 mm
  • Indexing Spindle Taper Morse 4 Or Steeper: 40
  • Pre-Selectable Single Infeeds: 0-9999
  • Machine Dimensions (L x W x H): 118" x 82" x 93"
  • Machine Weight: 7500 Lbs./ 3000 kg
