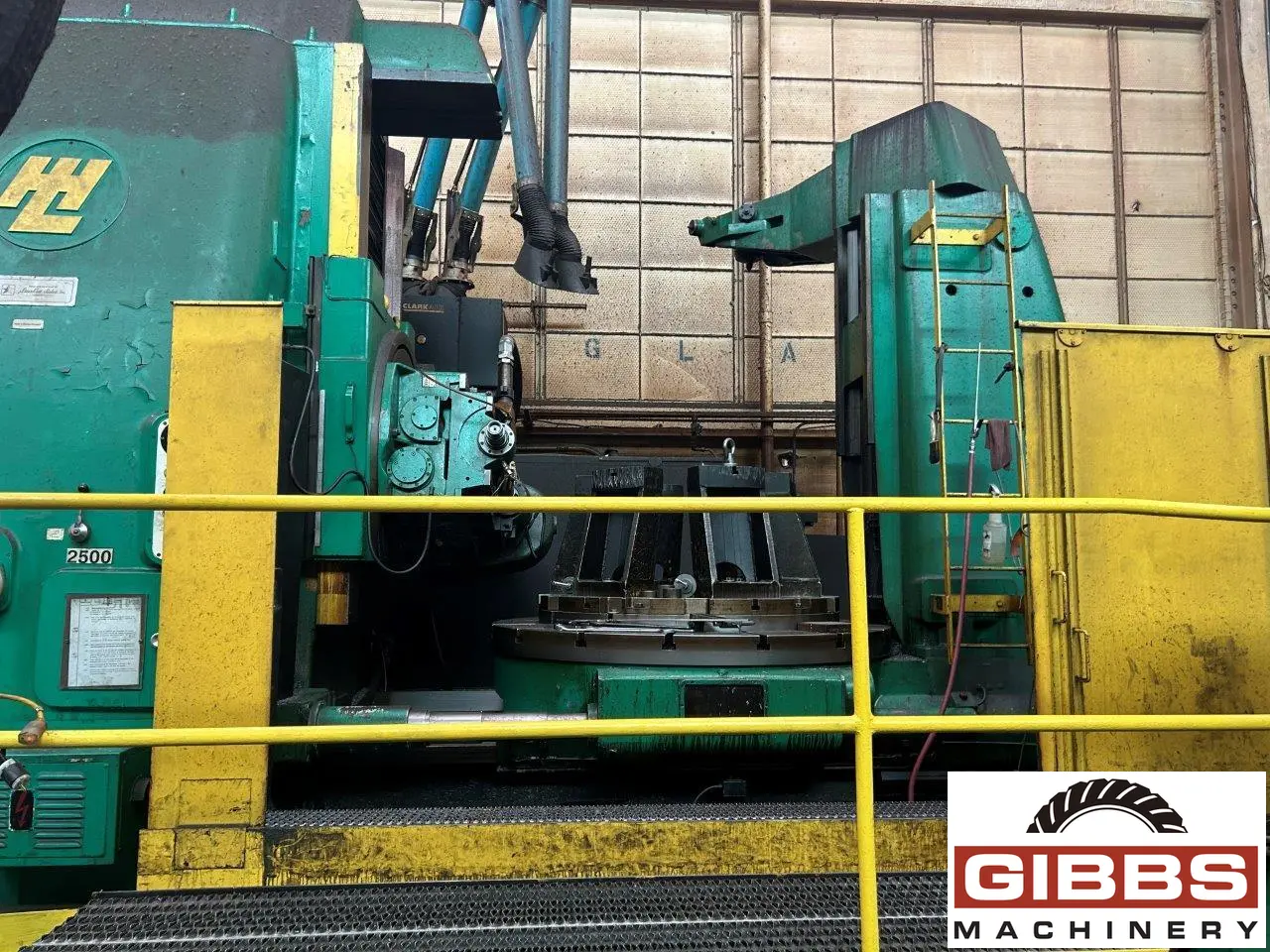

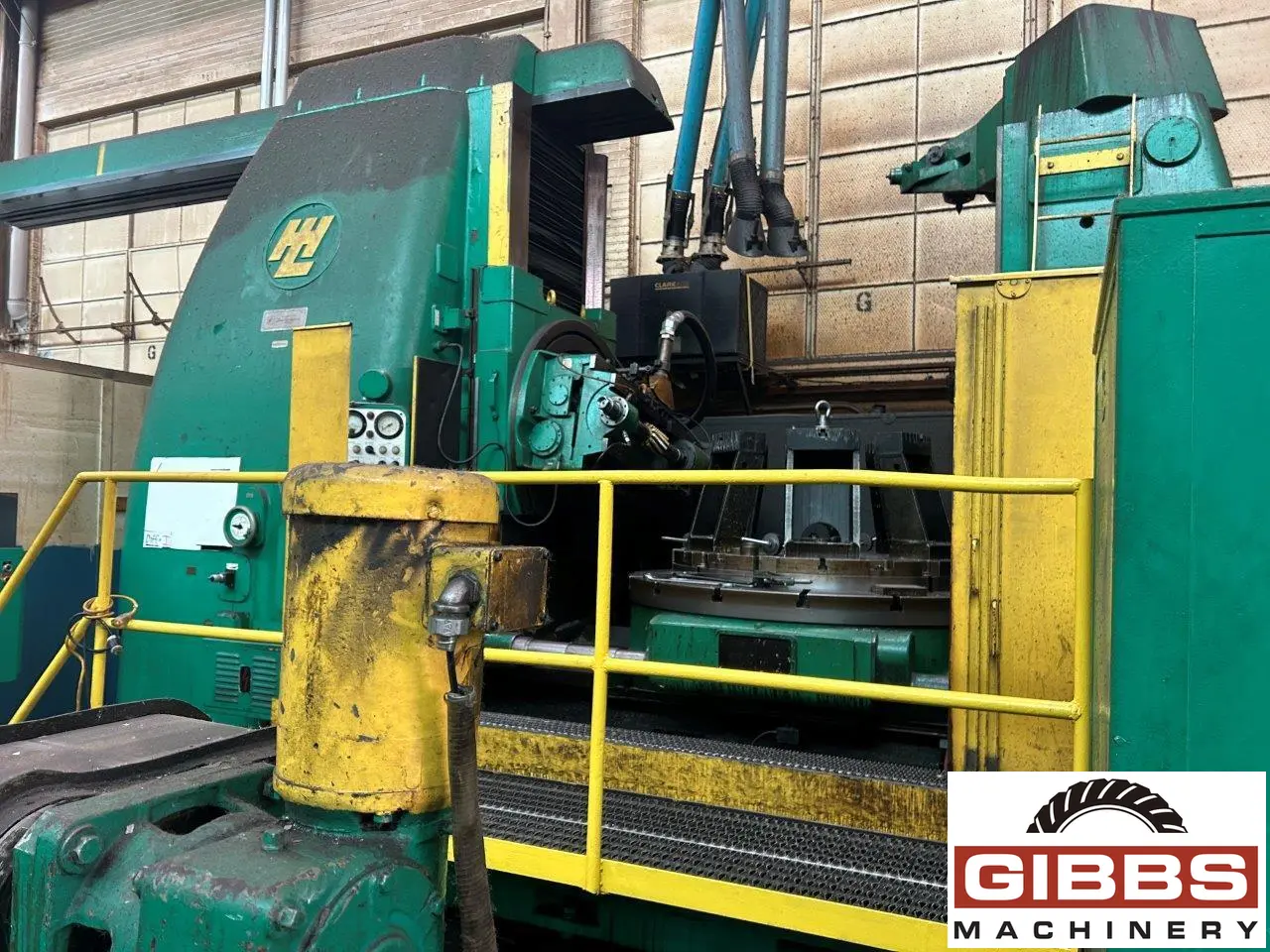

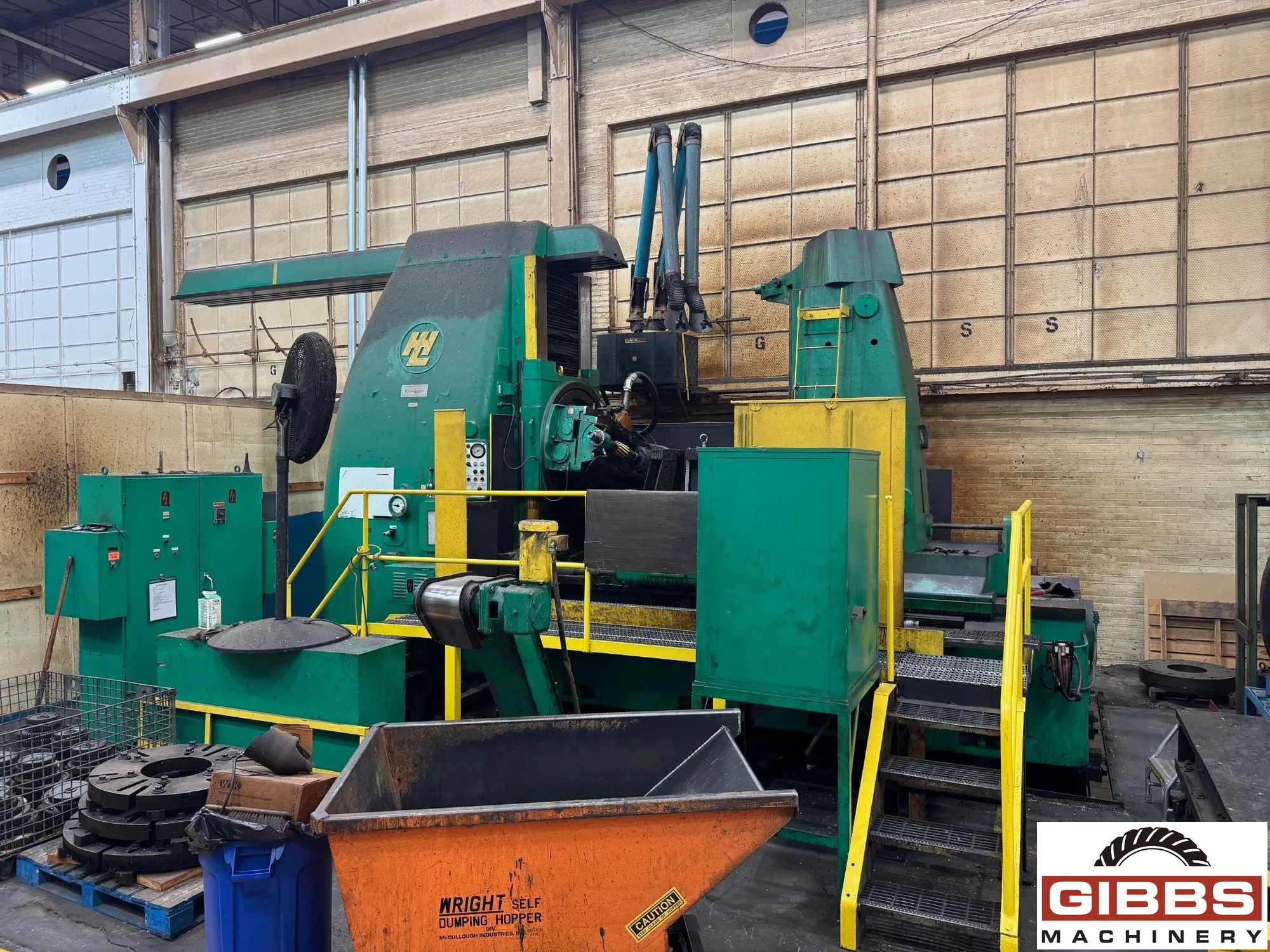

LIEBHERR L 2500 - Gear Hobber

Manufacturer

LIEBHERR

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL

Stock

25785

Model

L 2500

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

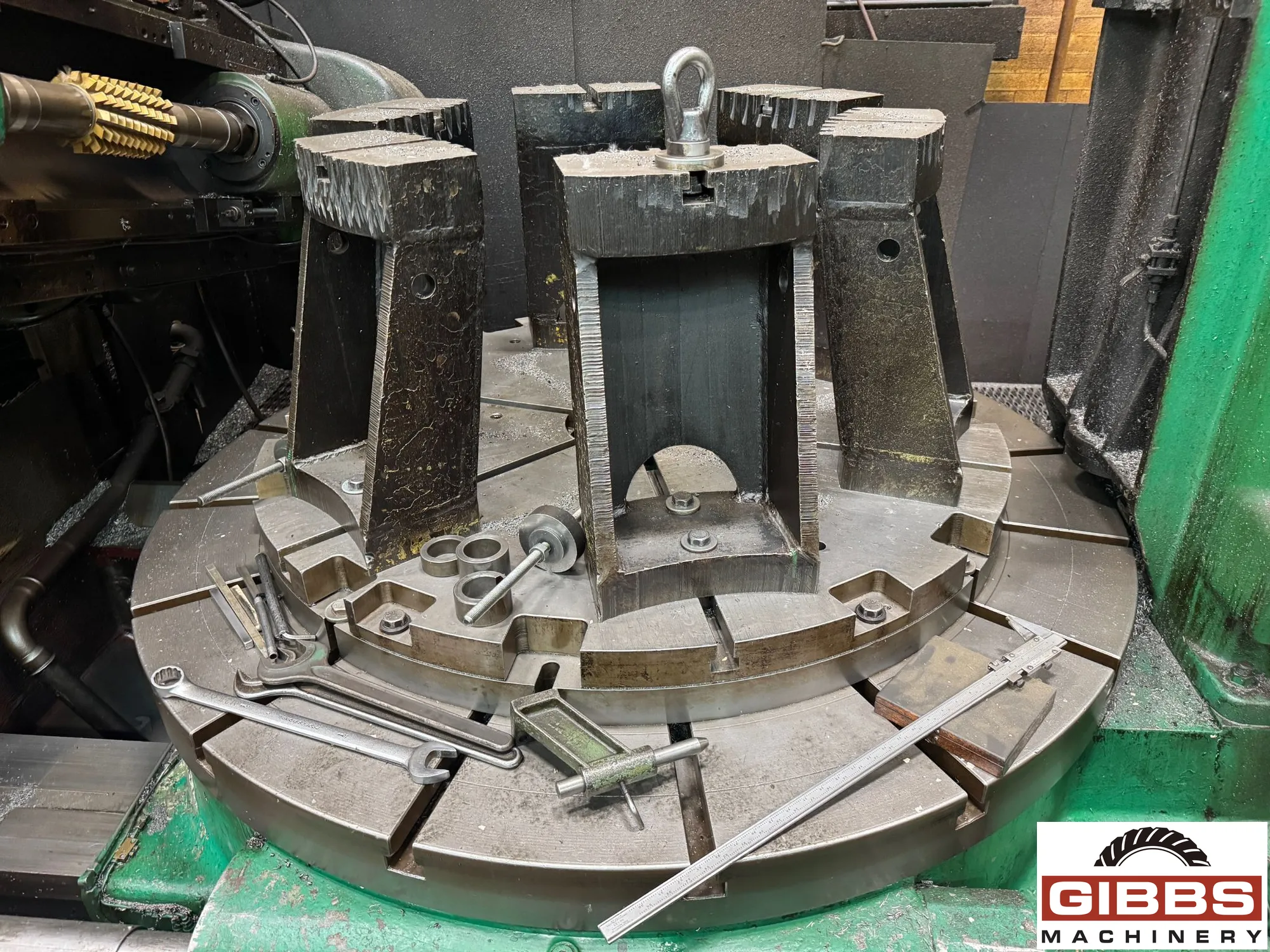

  • Spare Arbors & Fixtures

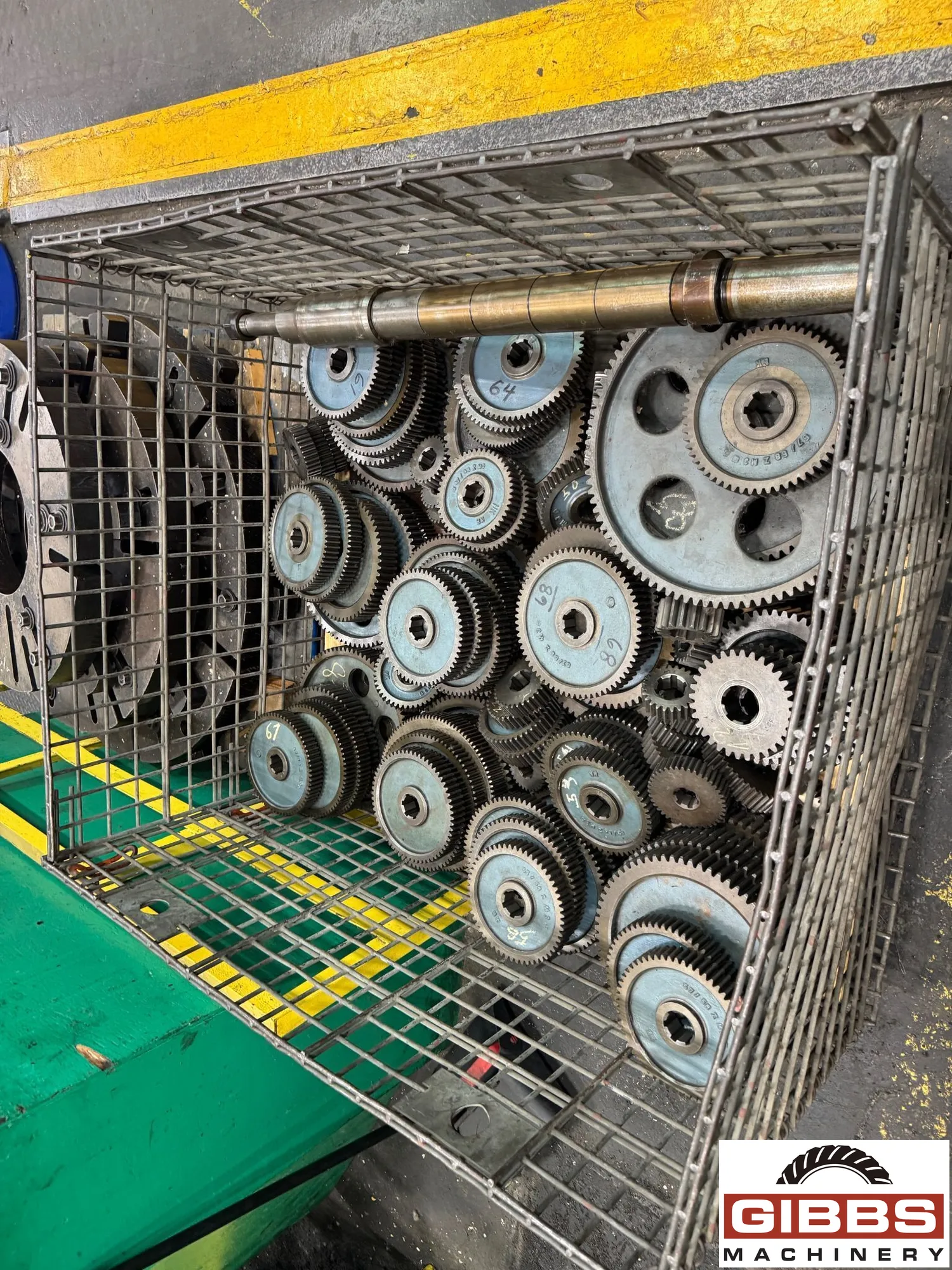

  • Change Gears
  • Tailstock W/Swing Center
  • Differential
  • Mist Collector
  • Chip Conveyor

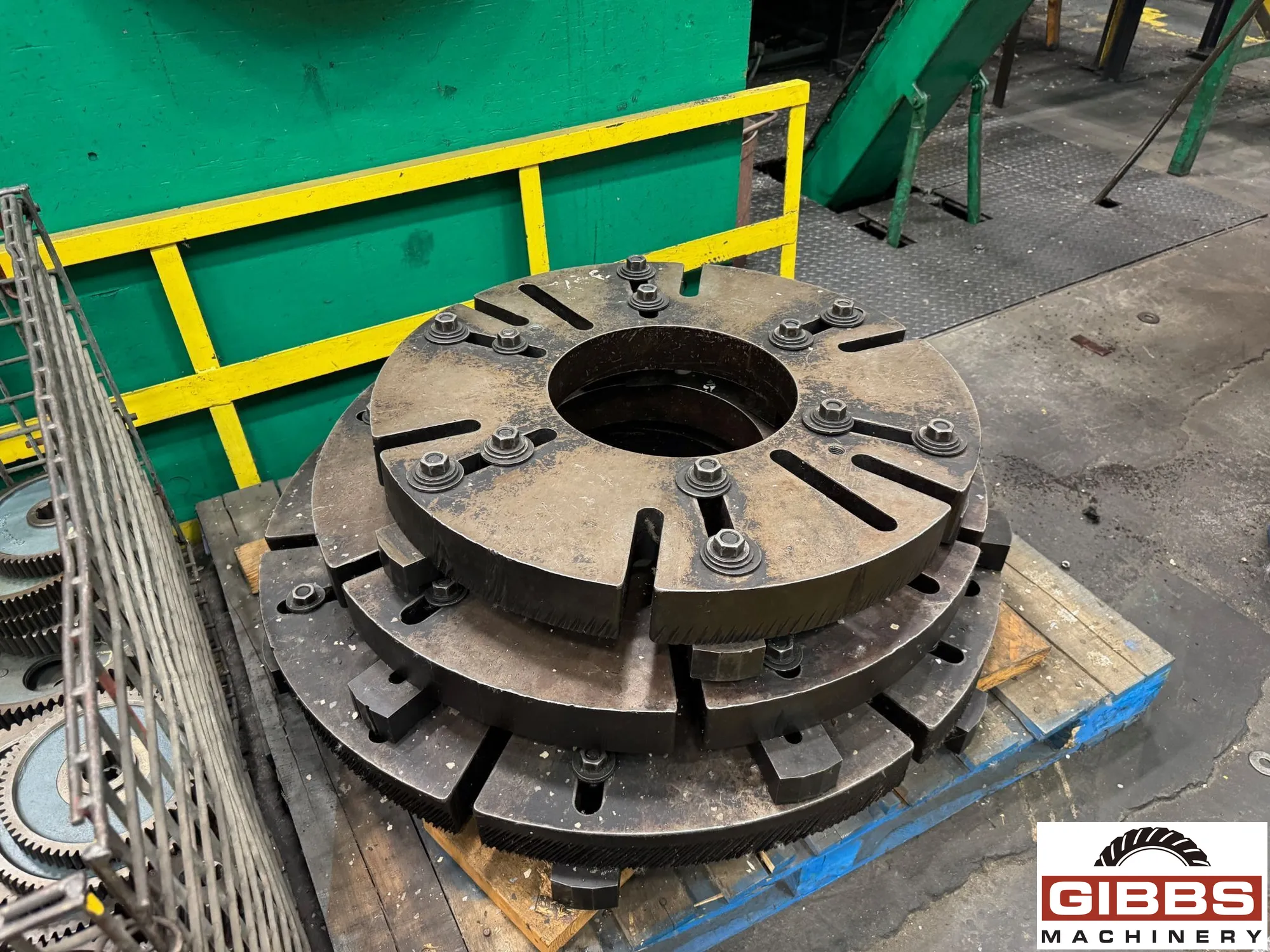

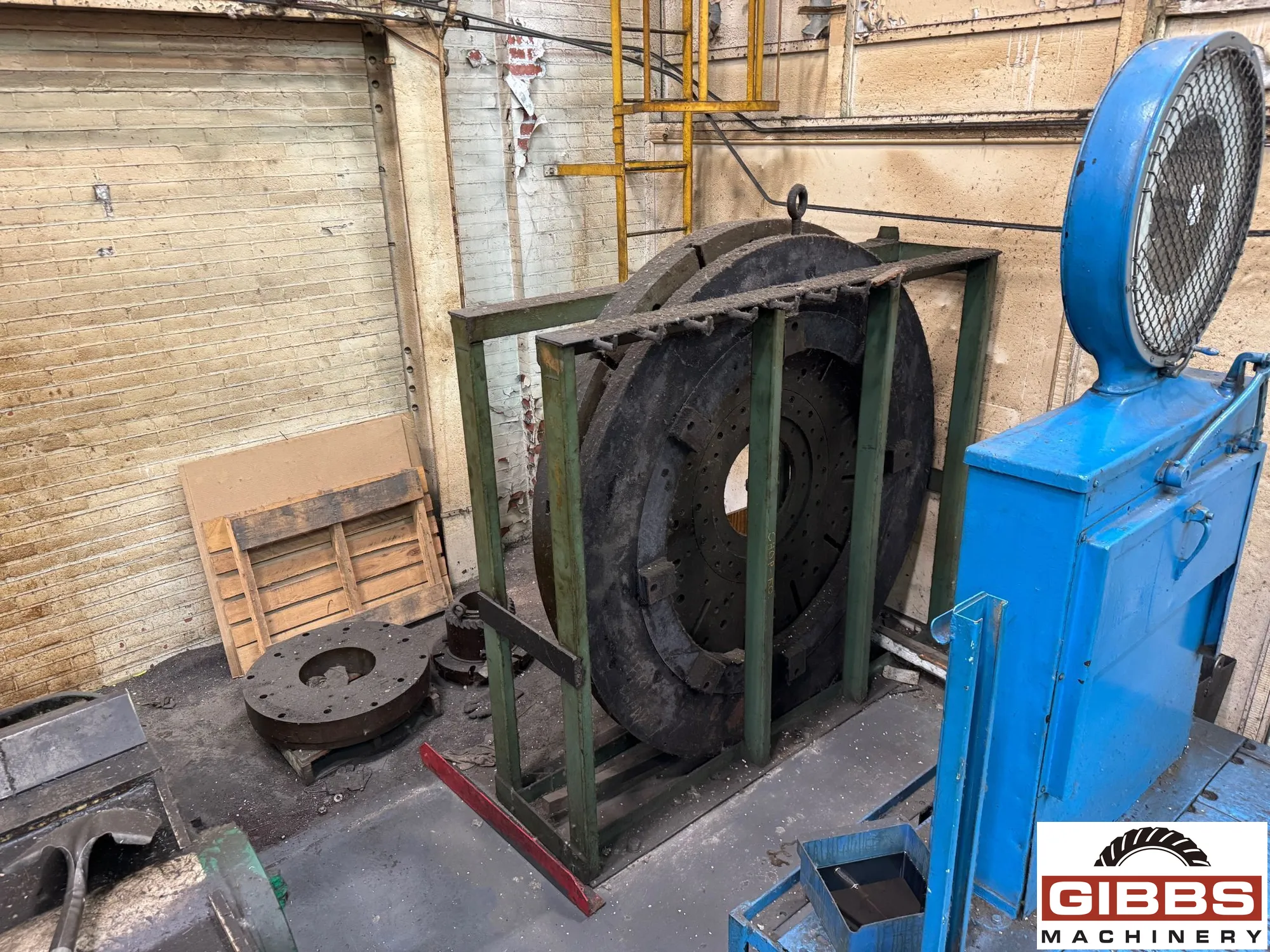

  • Extra Table Plates
  • Single Index
,

Machine Specifications :

  • Year
  • Manufacturer LIEBHERR
  • Maximum Workpiece Diameter 98.4"
  • Horz/Vert Vert
  • Maximum Diametral Pitch 1.4
  • Module 18.0
  • Axial Travel 44.5"
  • Maximum Hob Diameter 13.8"
  • Hob Arbor Size 13.8"
  • Hob Speed 250 RPM
  • Table Diameter 70.9"
  • Table Hole Diameter 16.1"
  • Control Manufacturer Conventional
,

LIEBHERR Model L2500 vertical gear hobber handles up to 2,500 mm diameter workpieces, hob speed of 250 RPM and single insex capability . Equipped with spare arbors, change gears, tailstock, mist collector, chip conveyor, and more.

    Specifications:

  • Maximum Workpiece Diameter: 2,500 mm
  • Maximum Gear Face Width: 1,130 mm
  • Maximum Module (Pitch): 18 Module
  • Hob Speed: Up to 250 min.-1
  • Hob Diameter (Maximum Length): 350 mm
  • Workpiece Table Diameter: 1,800 mm
  • Table Hole Diameter: 410 mm
  • Minimum Distance Between Tool And Workpiece Axes: 260 mm
  • Maximum Distance Between Tool and Workpiece Axes: 1,41 mm
  • Dimensions (L x W x H): 6,500 x 2,900 x 4,200 mm
  • Approximate Weight: 45 Tons
