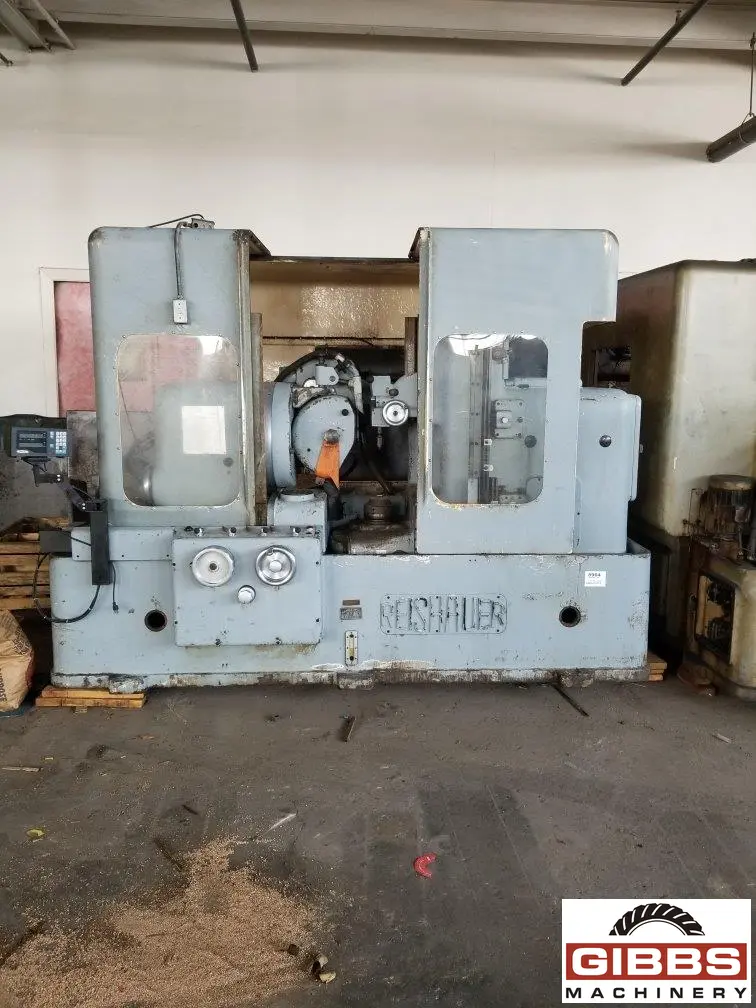

REISHAUER ZB - Gear Grinder

Manufacturer

REISHAUER

Category

Gear Machines

Type

GEAR GRINDERS

Stock

19220

Model

ZB

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

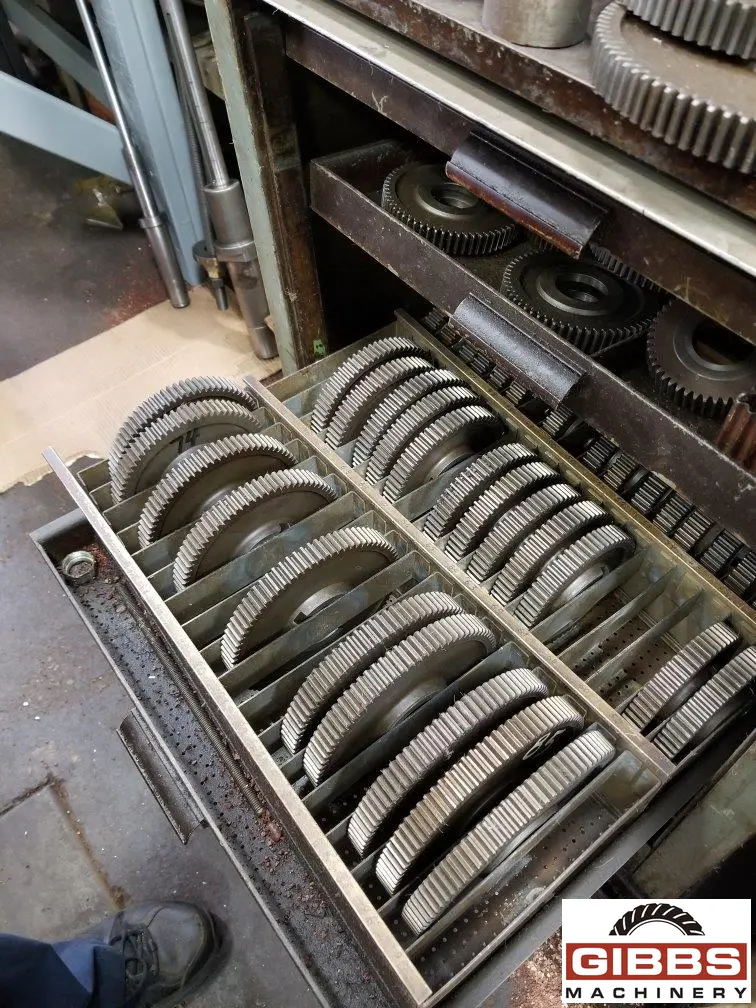

  • Change Gears
  • Coolant System

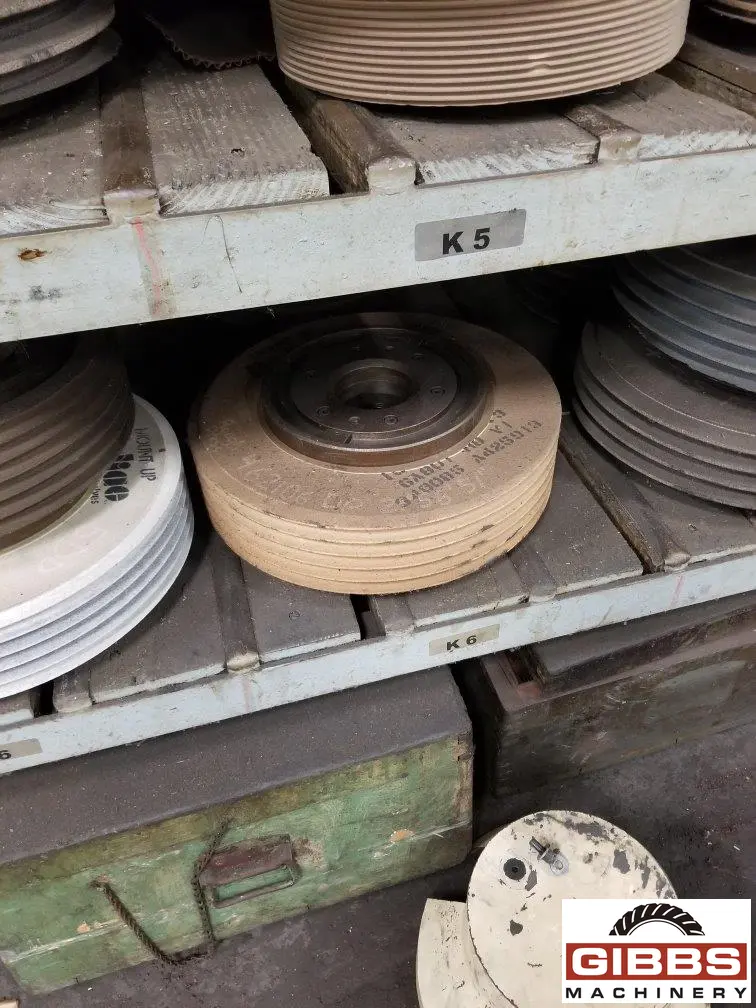

  • Wheel Mounts
  • Worklight
,

Machine Specifications :

  • Year
  • Manufacturer REISHAUER
  • Control Manufacturer Conventional
  • Grinding Wheel Diameter 15.75"
  • Grinding Spindle Speed 1,650 RPM
  • Diametral Pitch 3.5
  • Axial Travel 11.0"
  • Maximum Workpiece Diameter 27.5"
,

MODEL ZB REISHAUER GEAR GRINDER

    Working Range:

  • -Max. Workpiece Diameter:27.5"
  • -Min. Workpiece Diameter:2"
  • -Max. Number Of Teeth:240
  • -Min. Number Of Teeth:16
  • -Max. Pitch:DP 3,5
  • -Min. Pitch:DP 18
  • -Max. Grinding Length:11"
  • -Max. Clamping Length:22.5"
  • -Speed Of The Grinding Worm:1650 RPM
  • -Automatic Infeed Per Work-Slide Stroke, Adjustment Between:0.0004"-0.0032"
  • -Gringing Worm Dimensions:
  • -Maximum Diameter:15-3/4"
  • -Minimum Diameter:11"
  • -Bore:6.3"
  • -Weight of the Machine,Net Approx:17,000Lbs.
