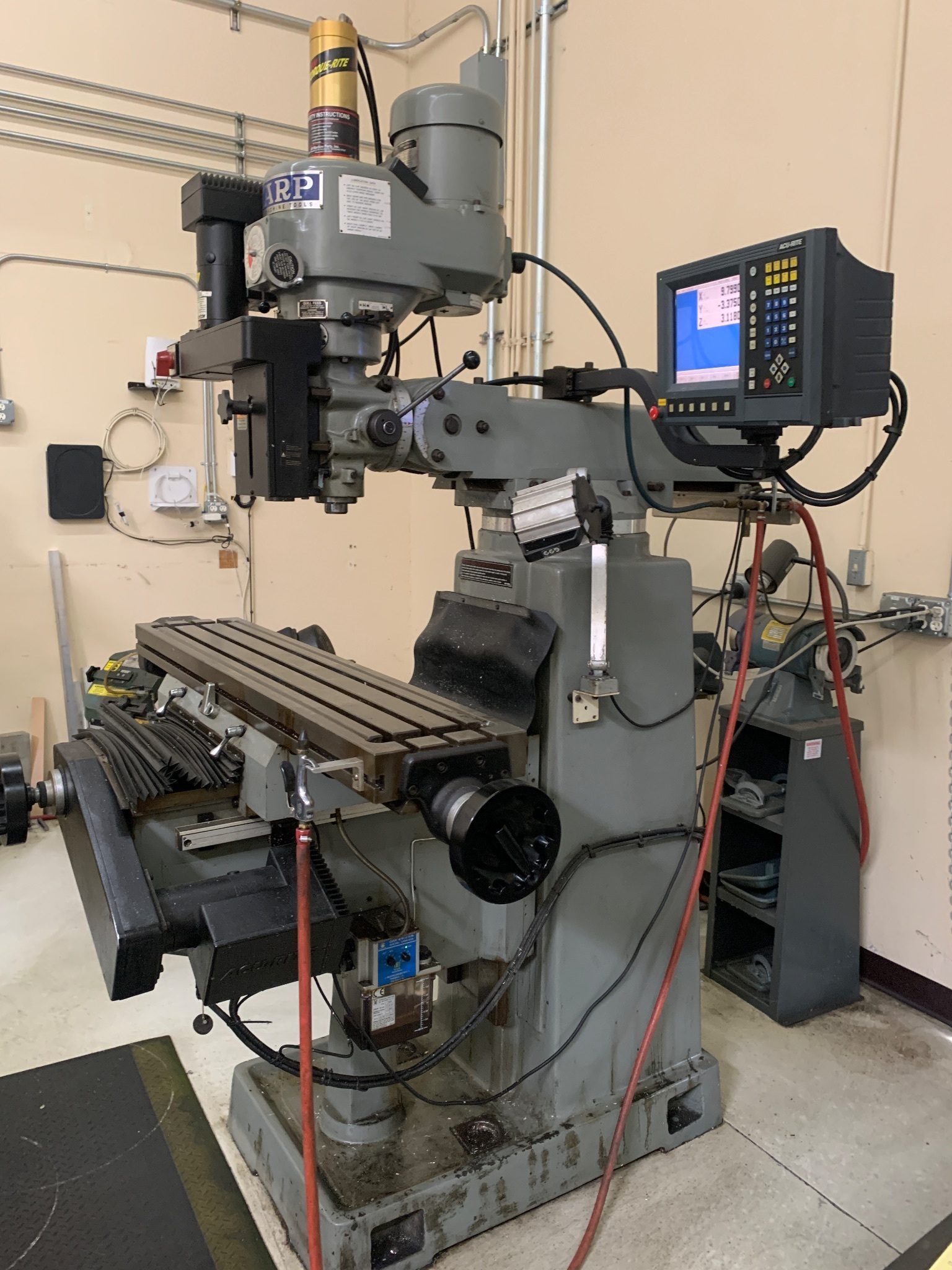

2009 Sharp TMV with 3 Axis Act-Rite MILLPWR CNC Control Vertical Mill Very low hour and usage machine. Need to clear space for new CNC Mill. In excellent working condition and available for inspection. under power.

Manufacturer

SHARP

Category

Milling Machines

Type

MILLERS, KNEE, CNC

Stock

81089175

Model

TMV

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

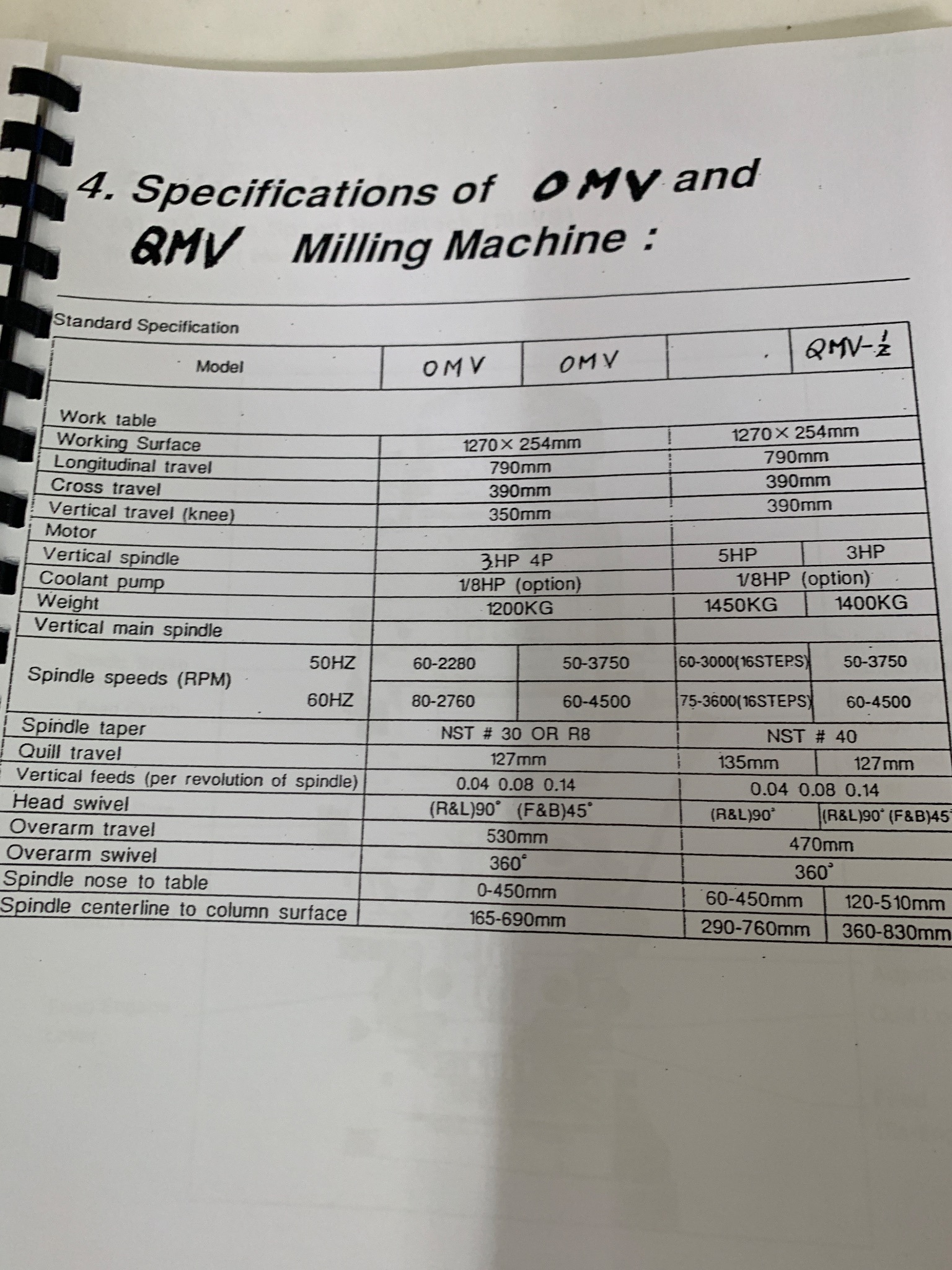

Spec Sheet

Table-W 10"
Table-L 50"
Travel-Long 35"
Travel-Cross 16.3"
Power 3 hp
RPM 60 RPM
Taper R-8
Precision ground ball screws with preloaded ballnut assembly • Digital servo drive system for each axis
• 3 axes digital readout
• Safety hand wheel
• Automatic lube system
Programming:
Program in/out, position/drill, mill lines, mill arc, blend (corner radius) Holes (bolt circle,
rectangular array, rectangular fram, line),
Circle (pocket, fram, ring), rectangle (pocket, frame, slot, facing) Special features:
Custom pockets, repeat, rotate, mirror image.
Run options:
Single step, dry run, graphics only, manual positioning.
Calculator functions:
Geometry, trig.

EQUIPPED WITH

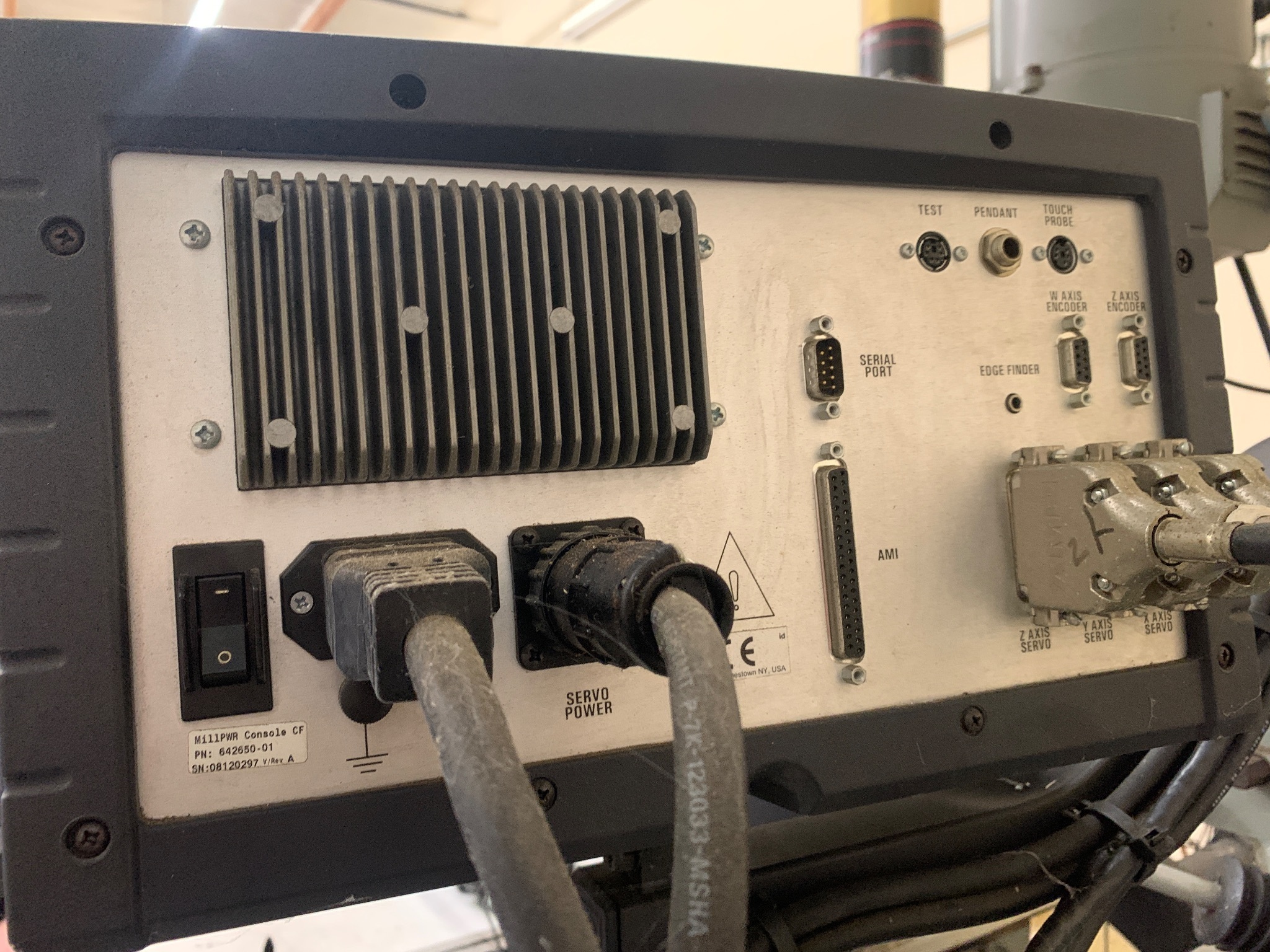

Acu-rite MILLPWR 3 Axis CNC Control

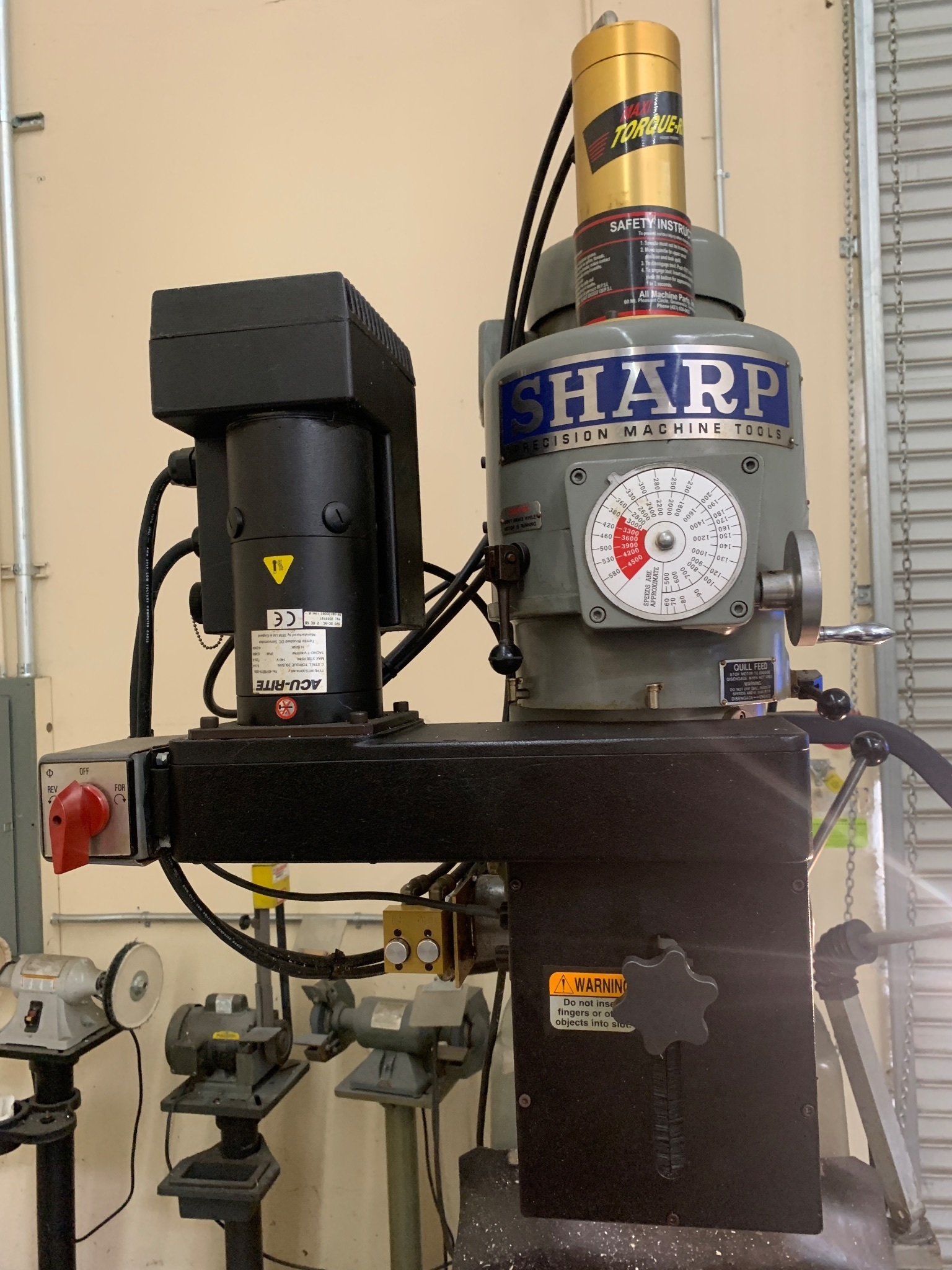

Power Draw Bar

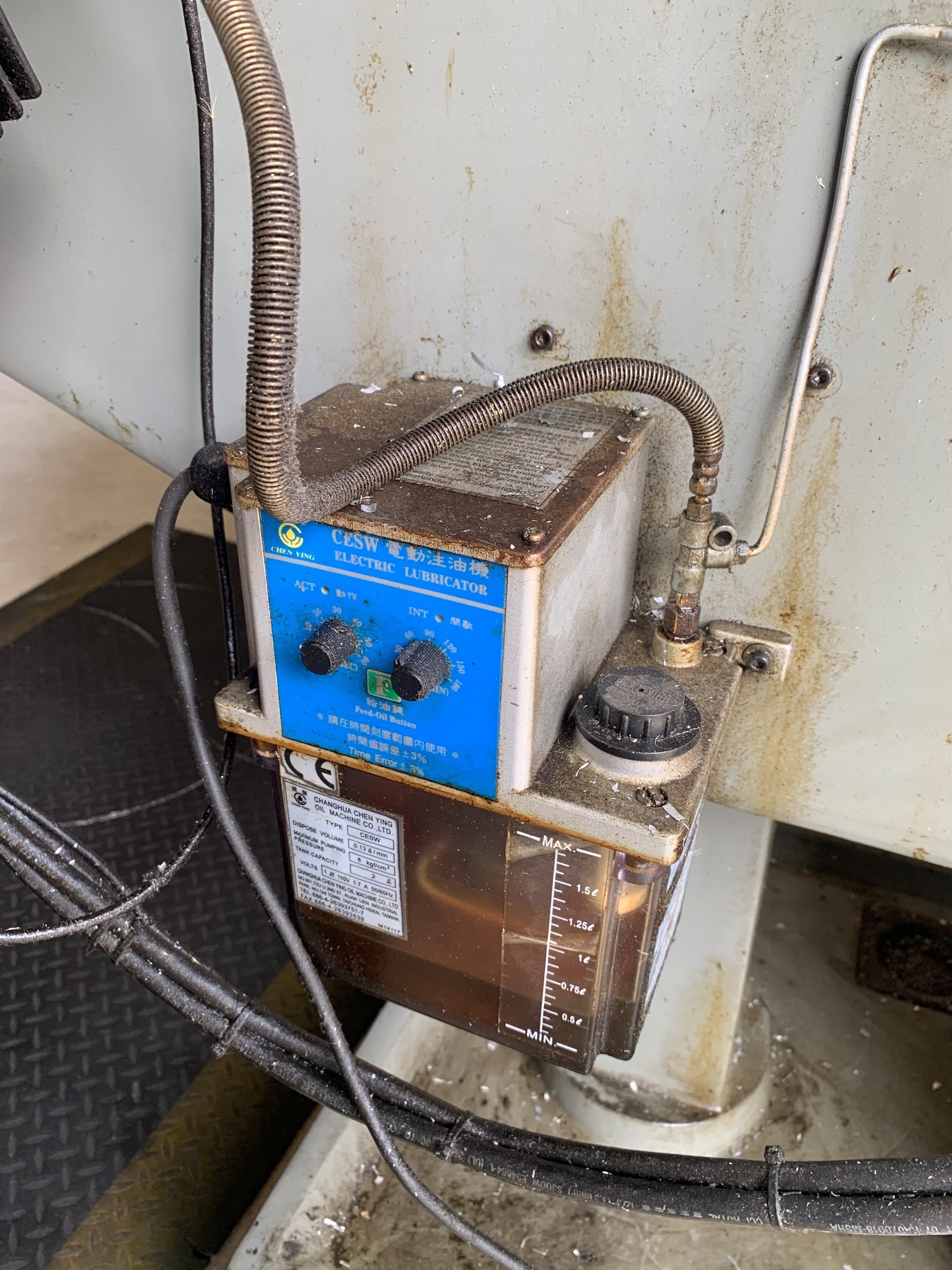

Automatic Oiler

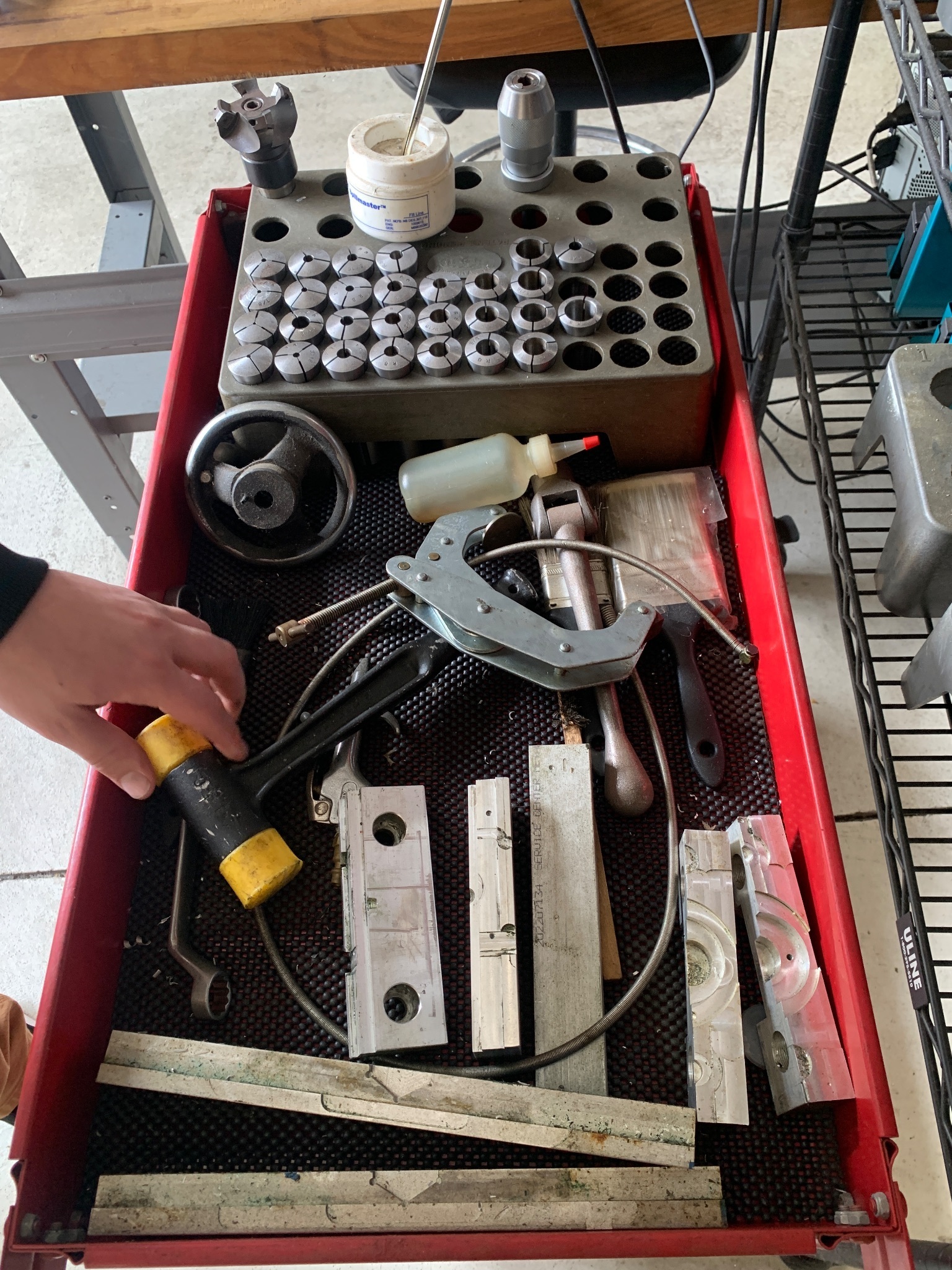

Assorted Tooling and Collets
Micro SD Connector

Watch Video On Our Youtube Channel
www.youtube.com/@pmmmachines

Buyer Is Responsible For Scheduling Transportation Of All Items, As Well As All Cost To Move It. We Can Provide You With Shipping And Rigging Quotes If You Need Help. Please Contact Us And We Will Assist You With Any Questions You May Have.

All Items Are Sold "As Is, Where Is”. Specifications, Options, And Additional Accessories Are Quoted To The Best Of Our Knowledge And Are Subject To Buyer's Verification And Correction.
