DMG MORI TAIYO KOKI VERTICAL MATE 85 - Internal Grinder

Manufacturer

DMG MORI TAIYO KOKI

Category

Miscellaneous Machines

Type

MOTORS, A.C., SQUIRREL CAGE, 3 PHASE, (25 Cycle)

Stock

25861

Model

VERTICAL MATE 85

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

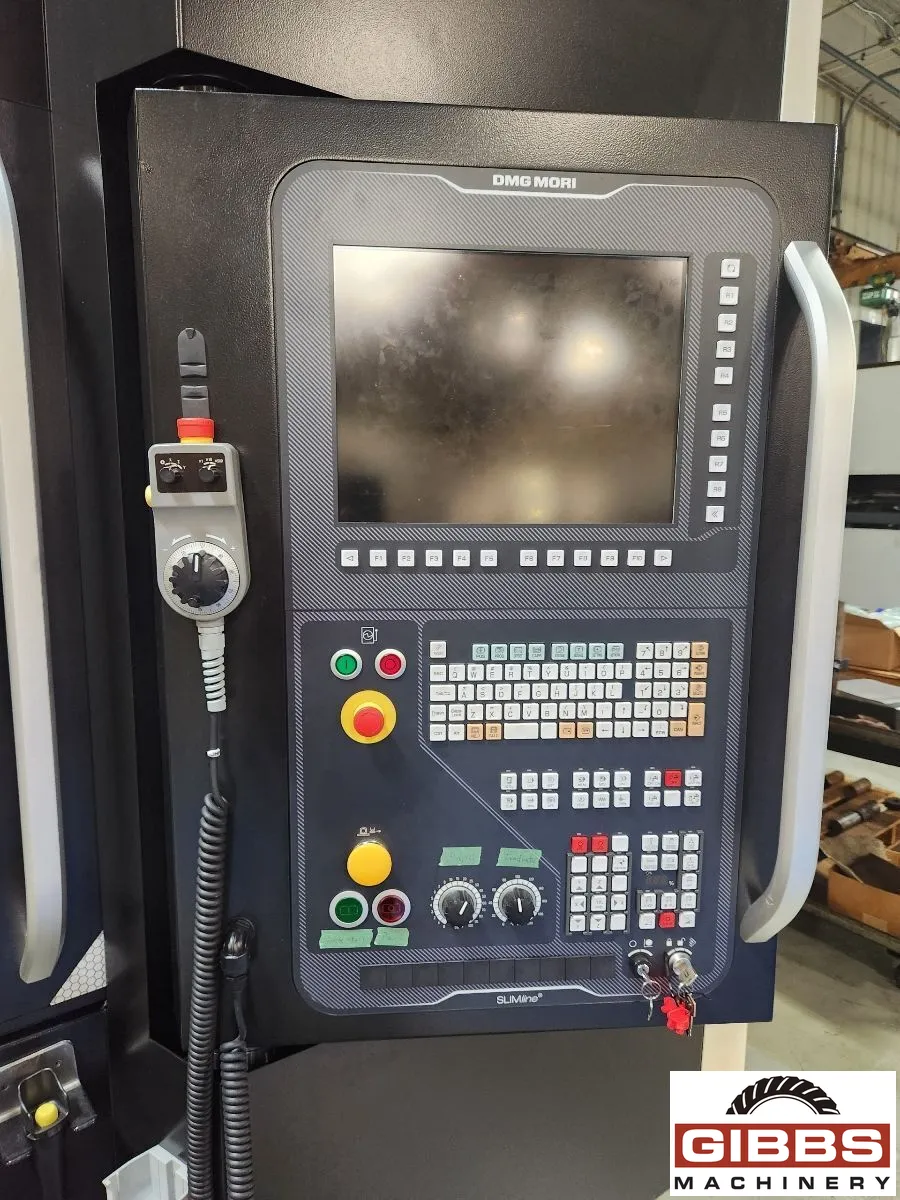

  • Celos Ergoline F32iB Control
  • 2-position turret
  • X-axis scale
  • Work spindle fixed position stop (Sensor type)
  • Single point dresser (for OD/face/back face)
  • ATC unit (6 tools)
  • Grinding tool (6 tools with conventional wheel)
  • Coolant temperature control device
  • Grinding spindle cooling device
  • Slideway lubrication unit (Automatic grease lubrication)
  • Winding-type top cover (Left and right) (Left side: open/close by cylinder)
  • High-power magnetic separator (120L/min)
  • Coolant level switch (Lower limit)
  • Bed flushing
  • Coolant gun
  • Front door interlock
  • Signal tower (3-tier,without buzzer)
  • Gap eliminator
  • Work light
  • Earth leakage breaker
  • Registerable programs (1000 pcs.)
  • Program memory (2Mb)
  • Standard tools (for maintenance)
  • Instruction manual (Online)
  • Rotary dresser (with diamond for OD/Face)
  • Wheel Rear Face Dresser
  • Paper filter 80L/min (Secondary coolant separator) (Sumitomo Heavy Industries Finetec: SP-8-1)
  • Automatic measuring system (for measuring ID, OD, face / Touch sensor by RENISHAW MP250)
  • Scale feedback control for Z-axis (Resolution 0.1μｍ)
  • Table for master gauge(Not including master gauge)
  • Master gauge (Ø190mm)
  • Rotary diamond (Spare)
  • Tool nose radius offset
  • Mist collector zeroFOG (Side mount) *1
,

Machine Specifications :

  • Year 2024
  • Manufacturer DMG MORI TAIYO KOKI
  • Swing 33.5"
  • Max Grinding Bore 31.5"
  • Stroke 19.1"
  • Travel-Long 19.7"
  • Workhead Power 15.0 HP
  • Dresser (Yes/No) Yes
,

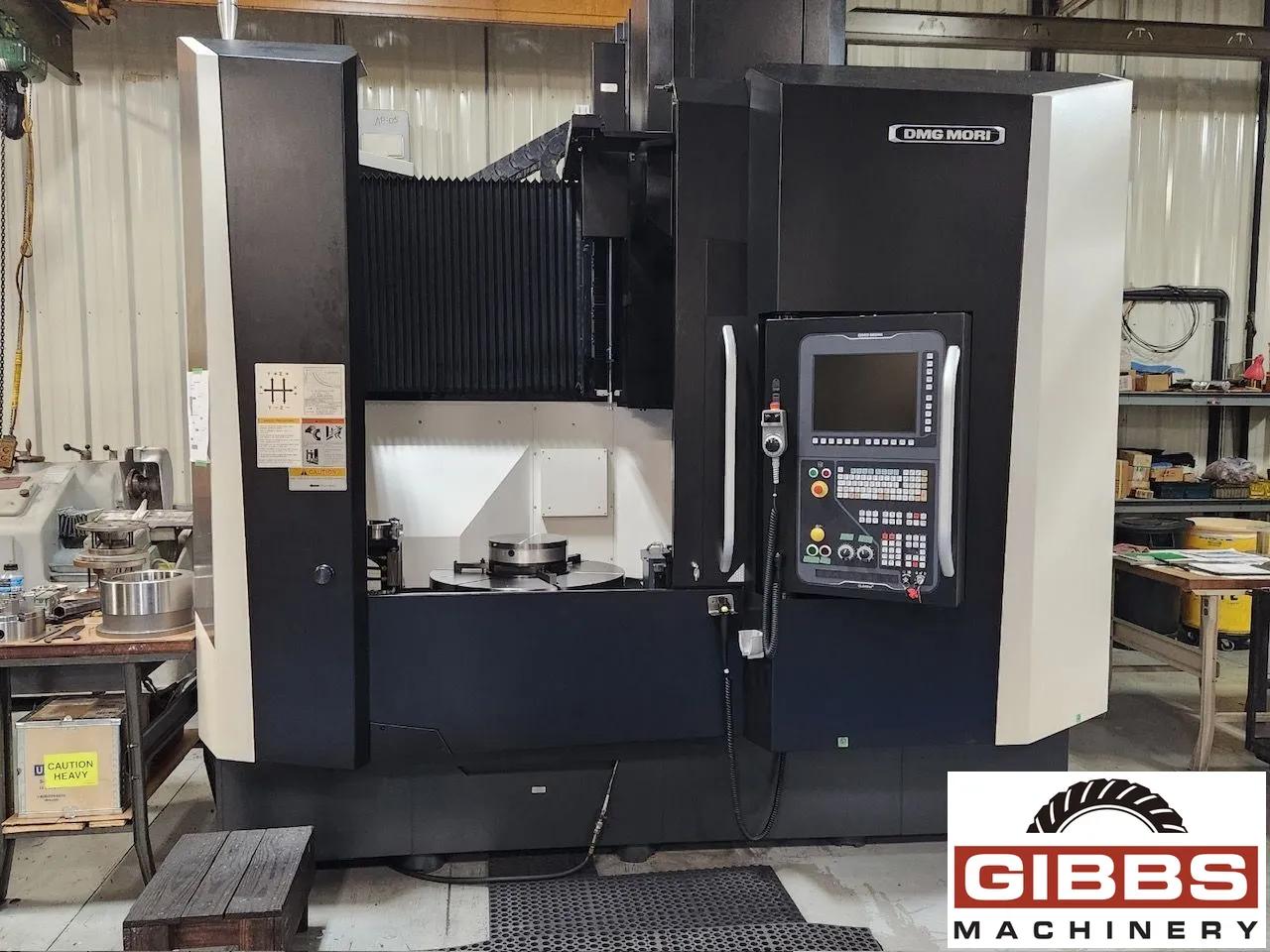

2024 DMG MORI TAIYO KOKI VERTICAL MATE 85 CNC Grinder: Used condition, swing 850 mm, max bore 800 mm, 15 hp workhead. Features Celos Ergoline F32iB Control and 2-position turret. Equipped with automatic measuring and cooling devices.

    Capacity

  • Range of internal grinding diameter mm (in.) 50 – 800 (2.0 – 31.5)
  • Range of external grinding diameter mm (in.) - 800 (- 31.5)
  • Grinding length :
  • - Ø250 (Ø9.8) or less mm (in.) 325 (12.8)
  • - Ø250 (Ø9.8) or more, quill length 350 (13.8) mm (in.) 485 (19.1)
  • Grinding length :
  • - Plain grinding, quill length 350 (13.8) mm (in.) 500 (19.7)
  • - Angular grinding for same dia. part mm (in.) 150 (5.9)
  • Swing of work spindle mm (in.) Ø850 (33.5)
  • Workpiece height mm (in.) 600 (23.6)
  • Max. load on work table kg (lb.) 700 (1,540)
  • Grinding Spindle
  • Tool specification HSK-E100
  • Power kW (HP) 11 (15)
  • Wheel spindle speed min-1 2,800 - 9,000
  • Wheel diameter mm (in.) 45 – 305 (1.8 – 12.0)
  • Work spindle
  • Table size mm (in.) Ø750 (29.5)
  • Work spindle speed min-1 8 – 200

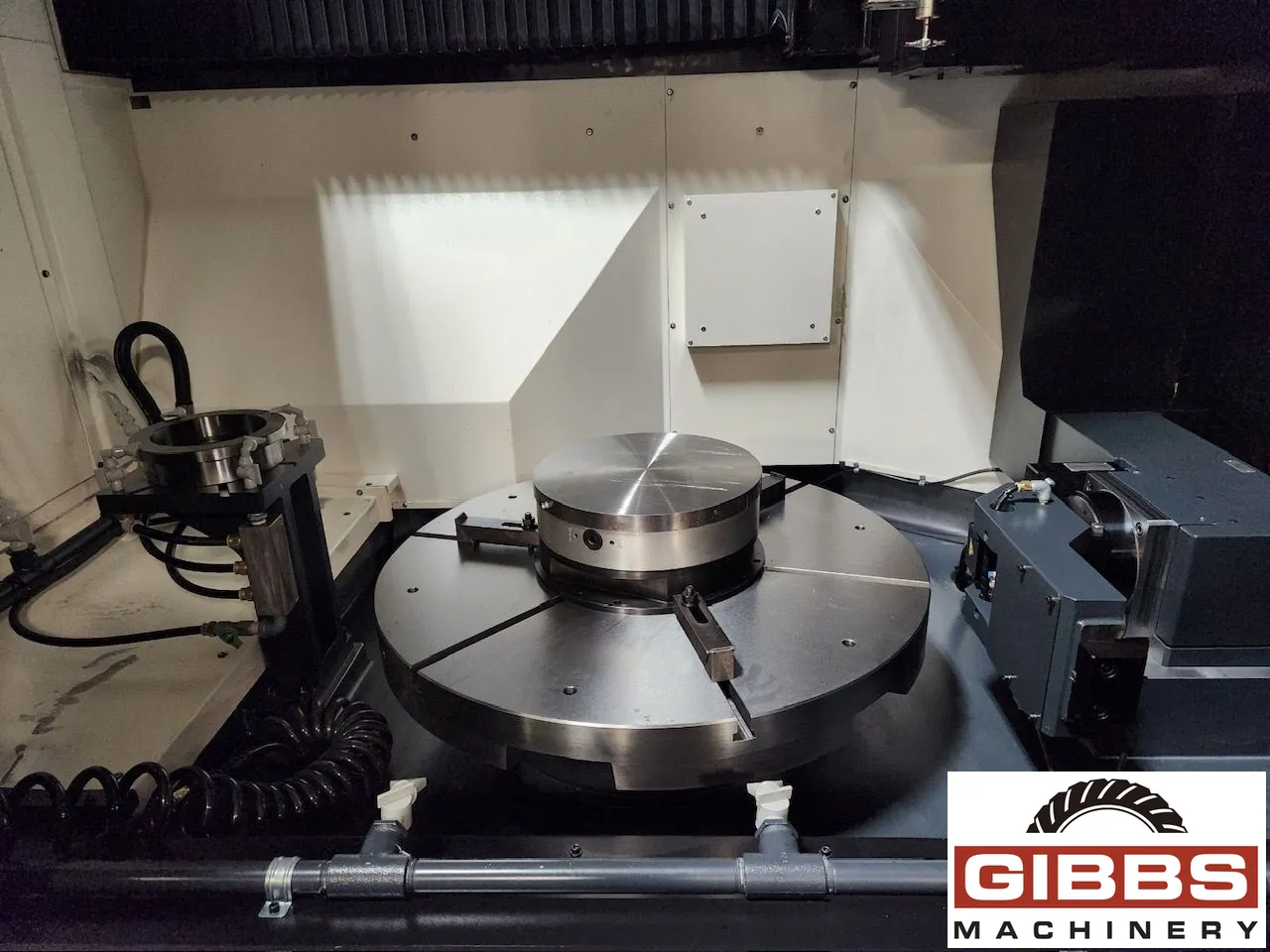

  • Turret table
  • Indexing position deg 0, 22.5
  • X-axis
  • Travel mm (in.) 1,400 (55.1)
  • Minimum setting unit mm (in.) Ø0.0001 (0.00001)
  • Z-axis
  • Travel mm (in.) 700 (27.6)
  • Minimum setting unit mm (in.) 0.0001 (0.00001)
  • Machine size
  • Machine height mm (in.) 3,240 (127.6)
  • Floor space mm (in.) 3,015 x 4,130
  • (118.7 x 162.6)
  • Table height mm (in.) 950 (37.4)
  • Mass of machine kg (lb.) 13,000 (28,600
