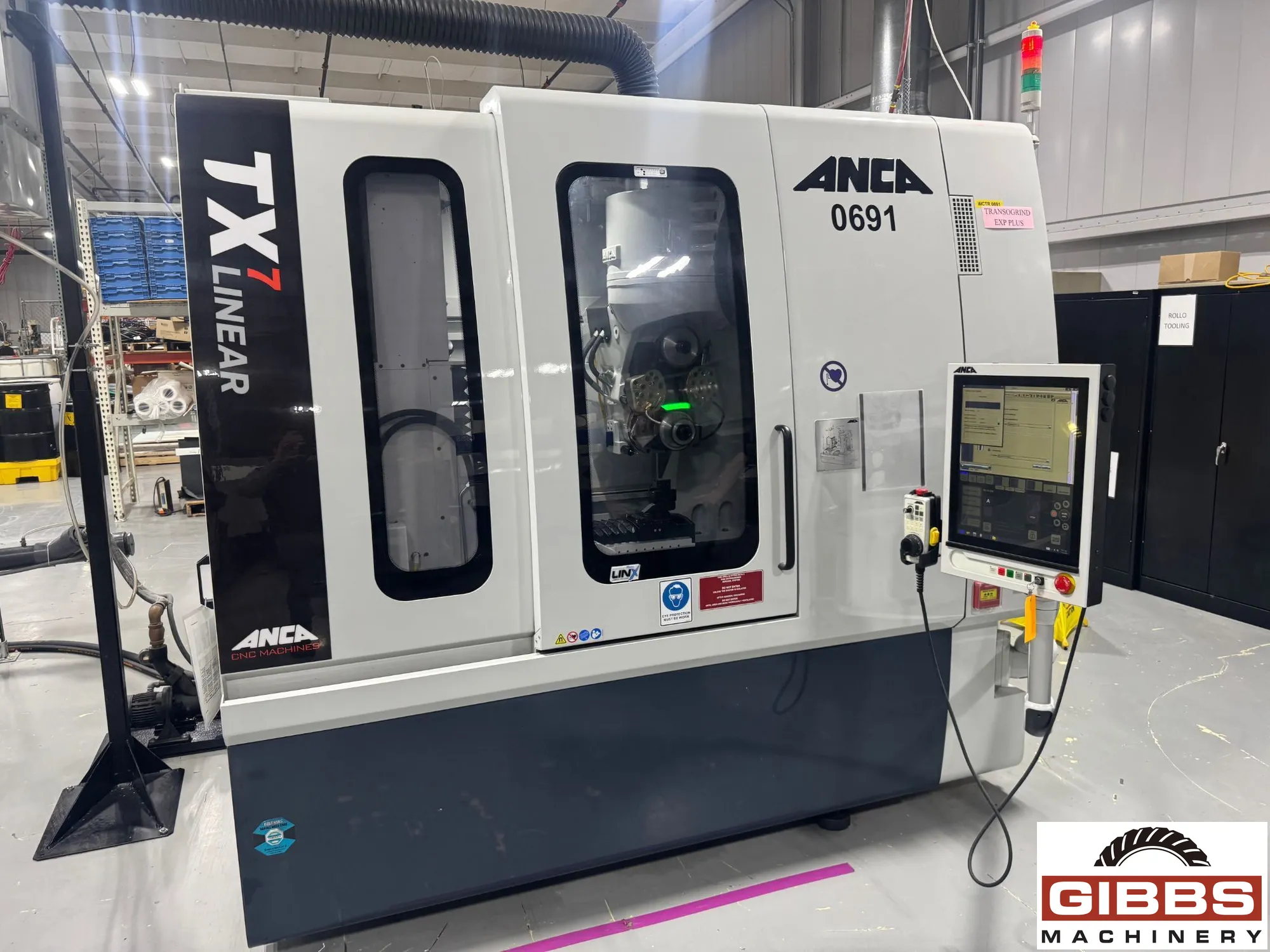

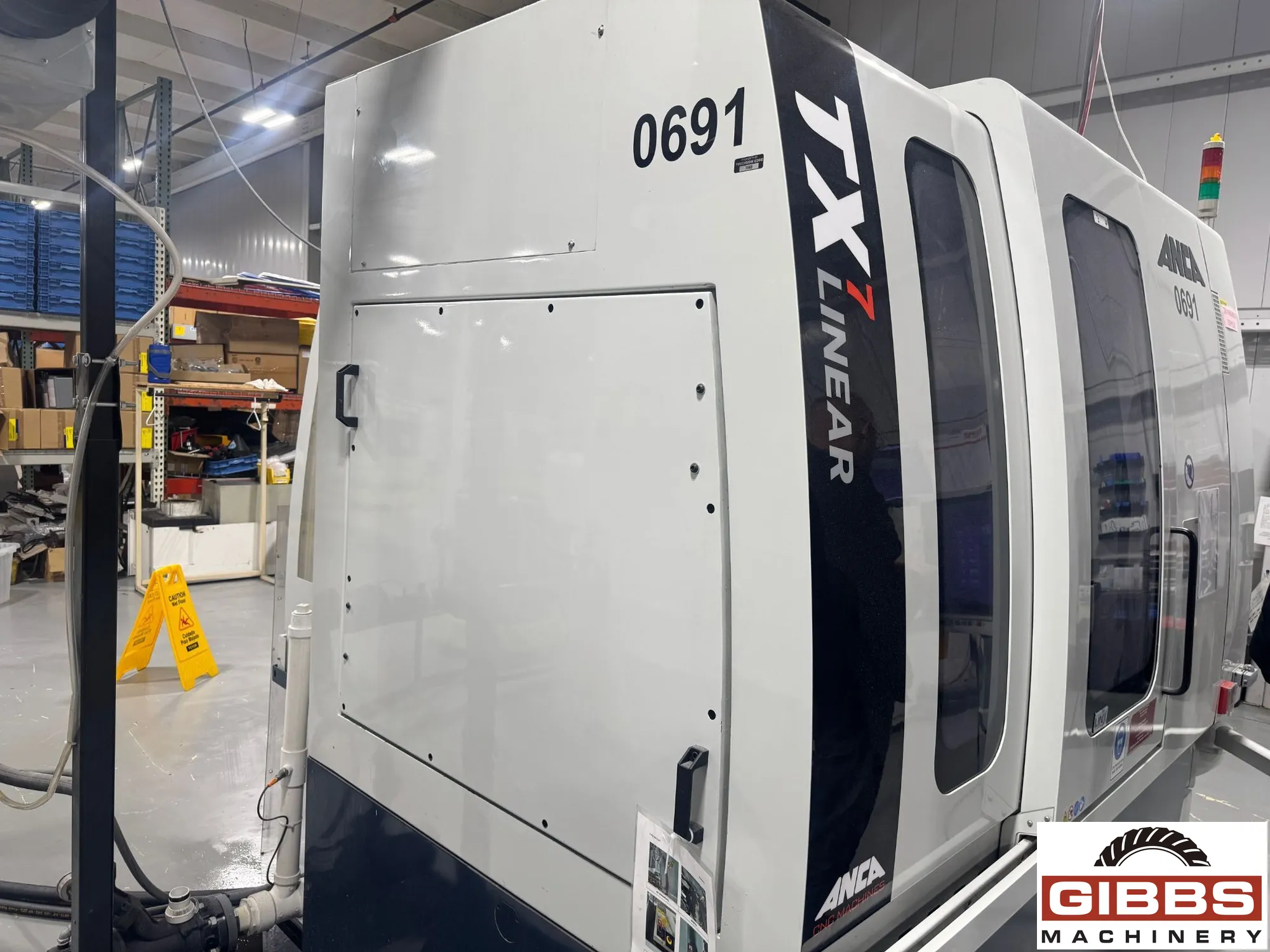

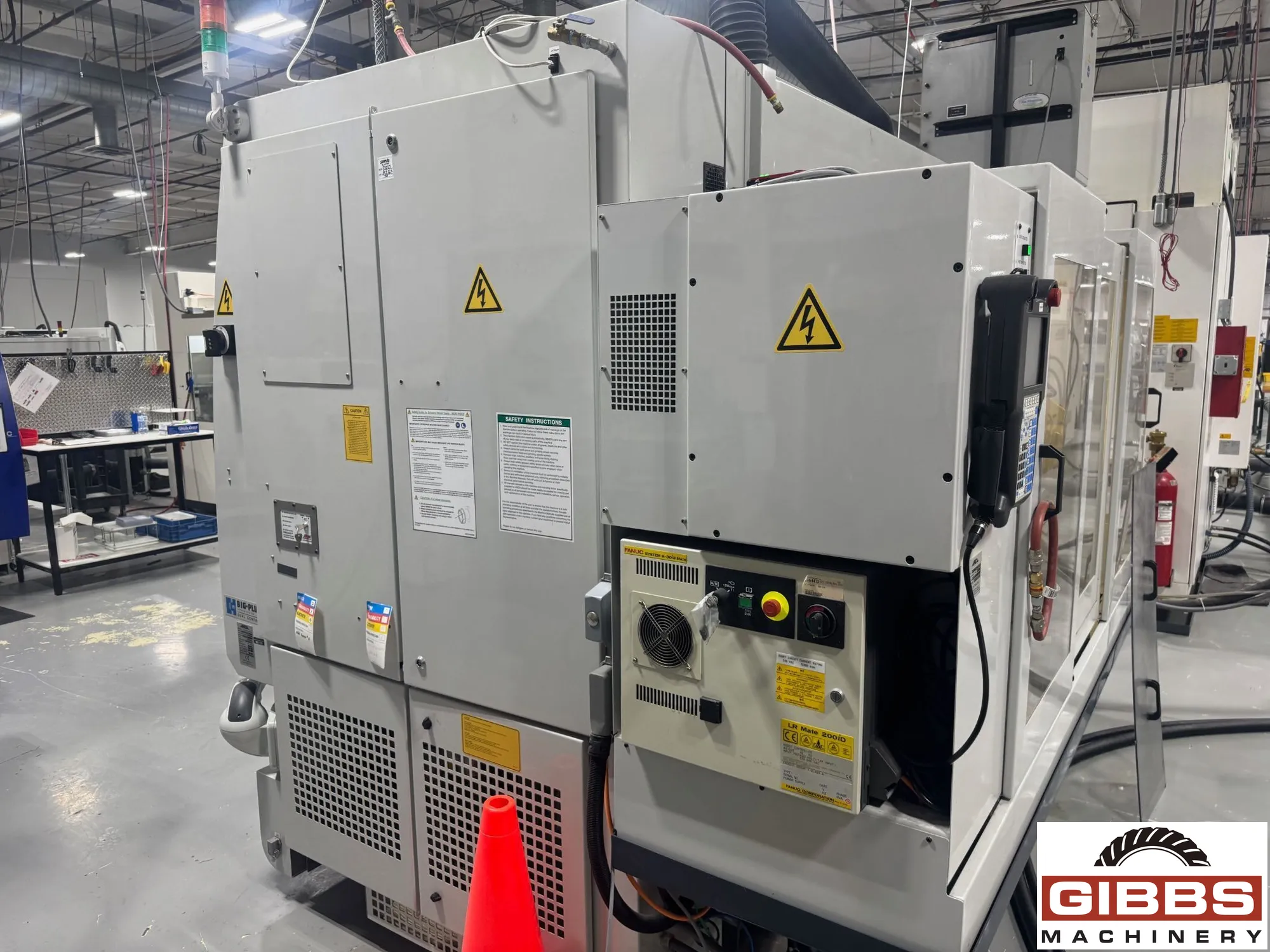

ANCA TX7 Linear - Tool & Cutter Sharpener

Manufacturer

ANCA

Category

Grinding Machines

Type

GRINDERS, TOOL & CUTTER, CNC

Stock

25848

Model

TX7 Linear

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

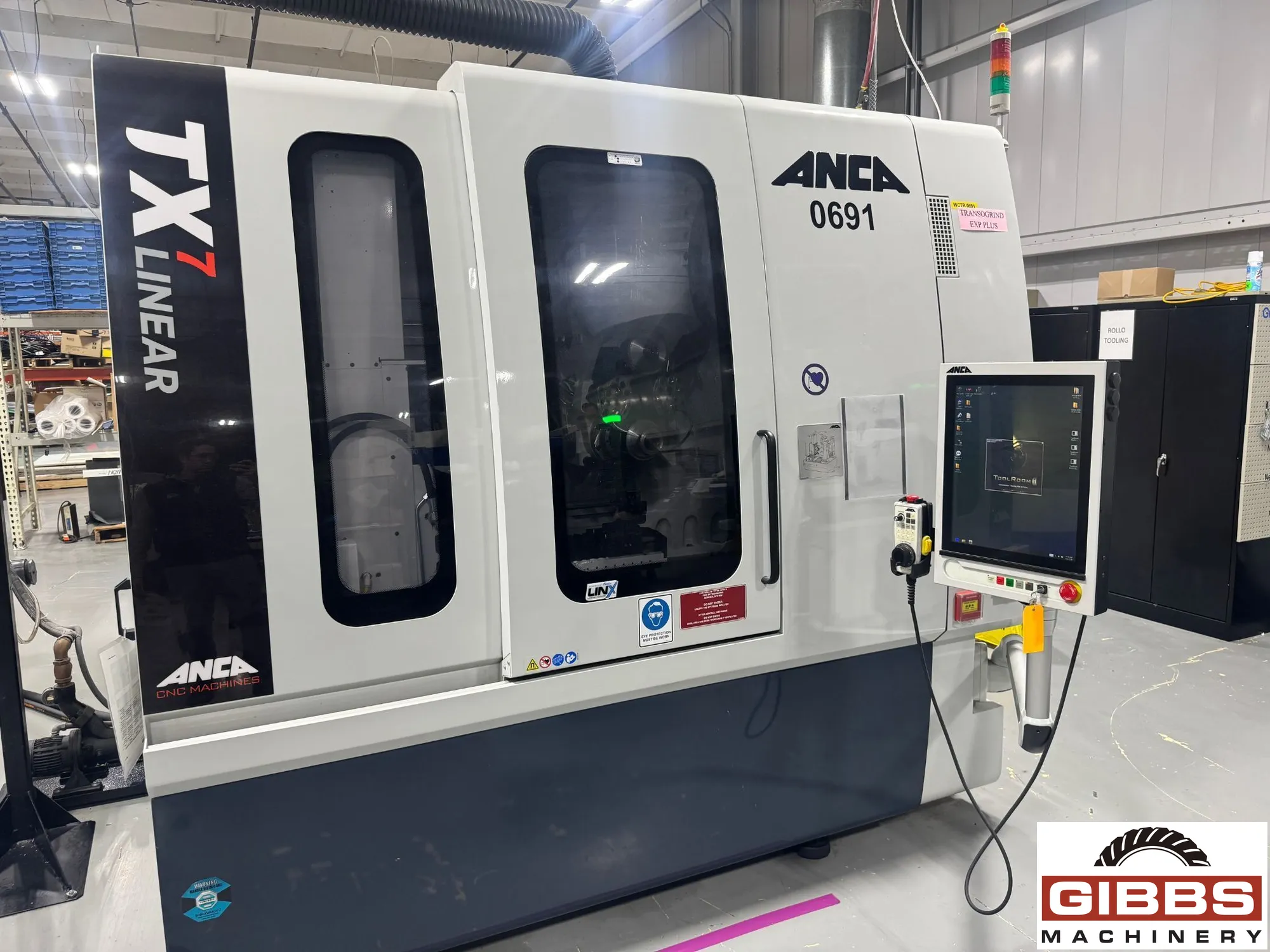

  • Anca AMC5 CNC Touchscreen Control
  • Tool Room Software
  • Linear Motors X/Y/Z Axes
  • 37kW Direct Drive Spindle
  • (2) Wheel Pack Changer
  • BigPlus (BT40) Arbor
  • Pendant Control
  • Touch Probe

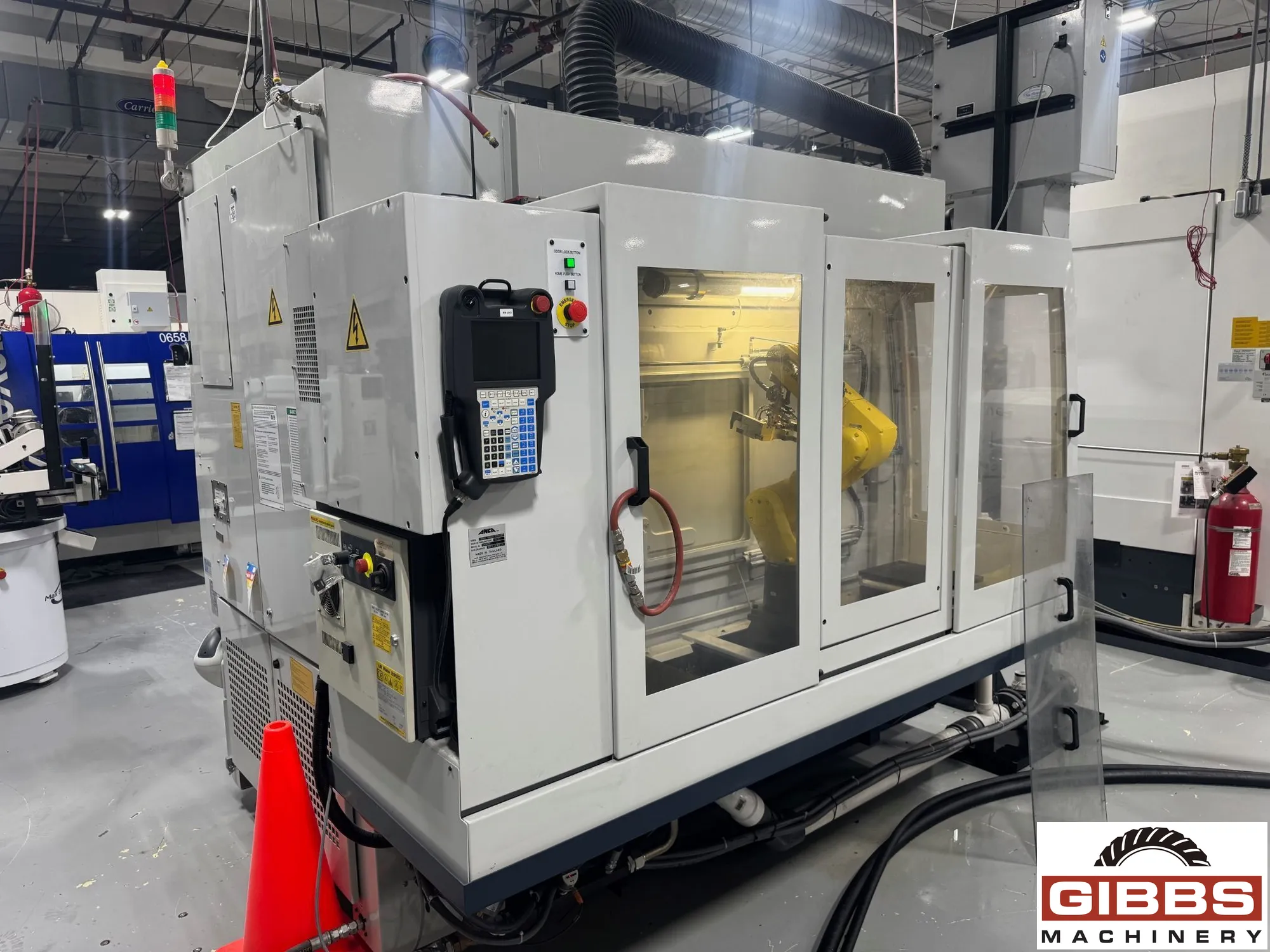

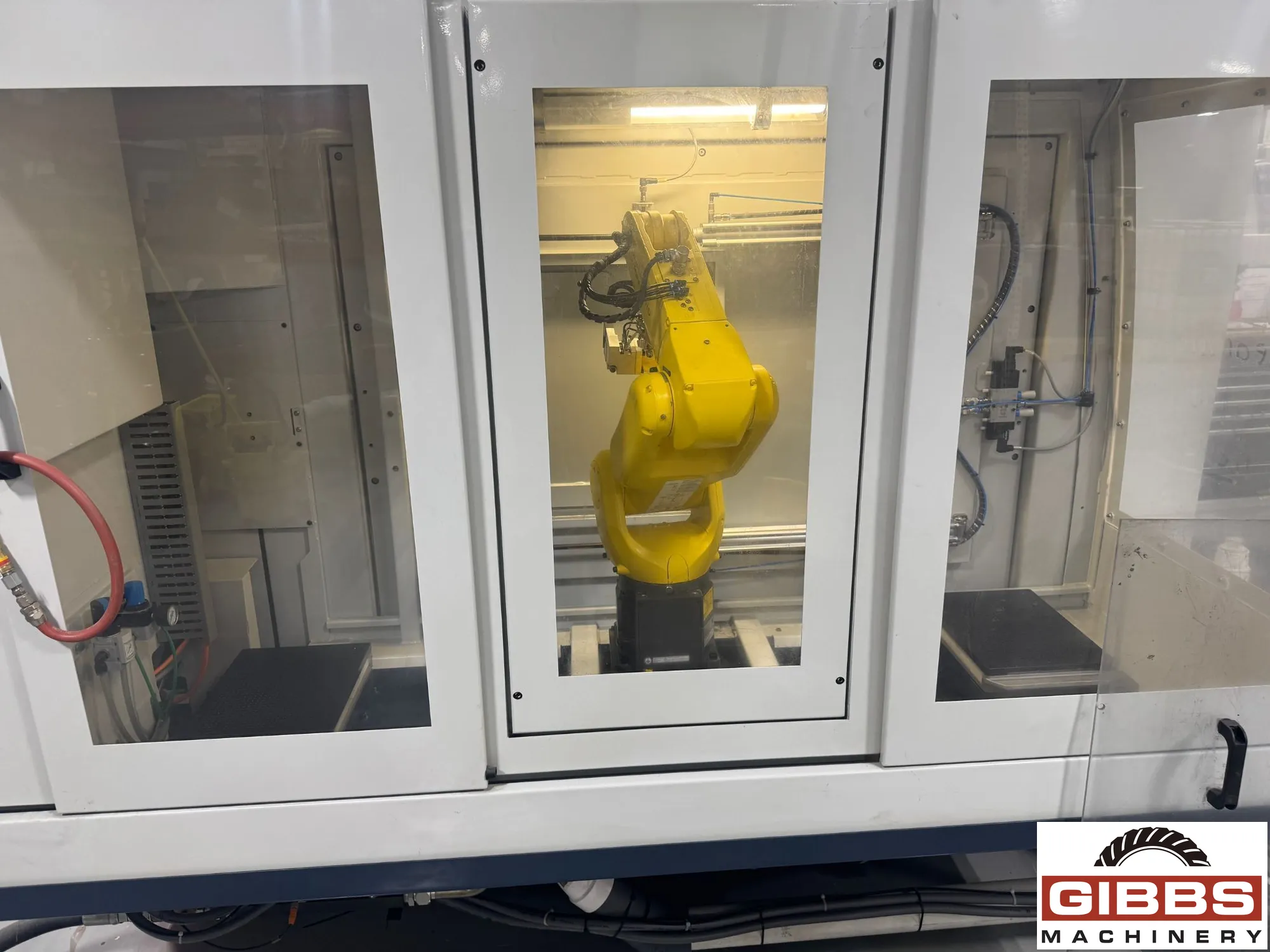

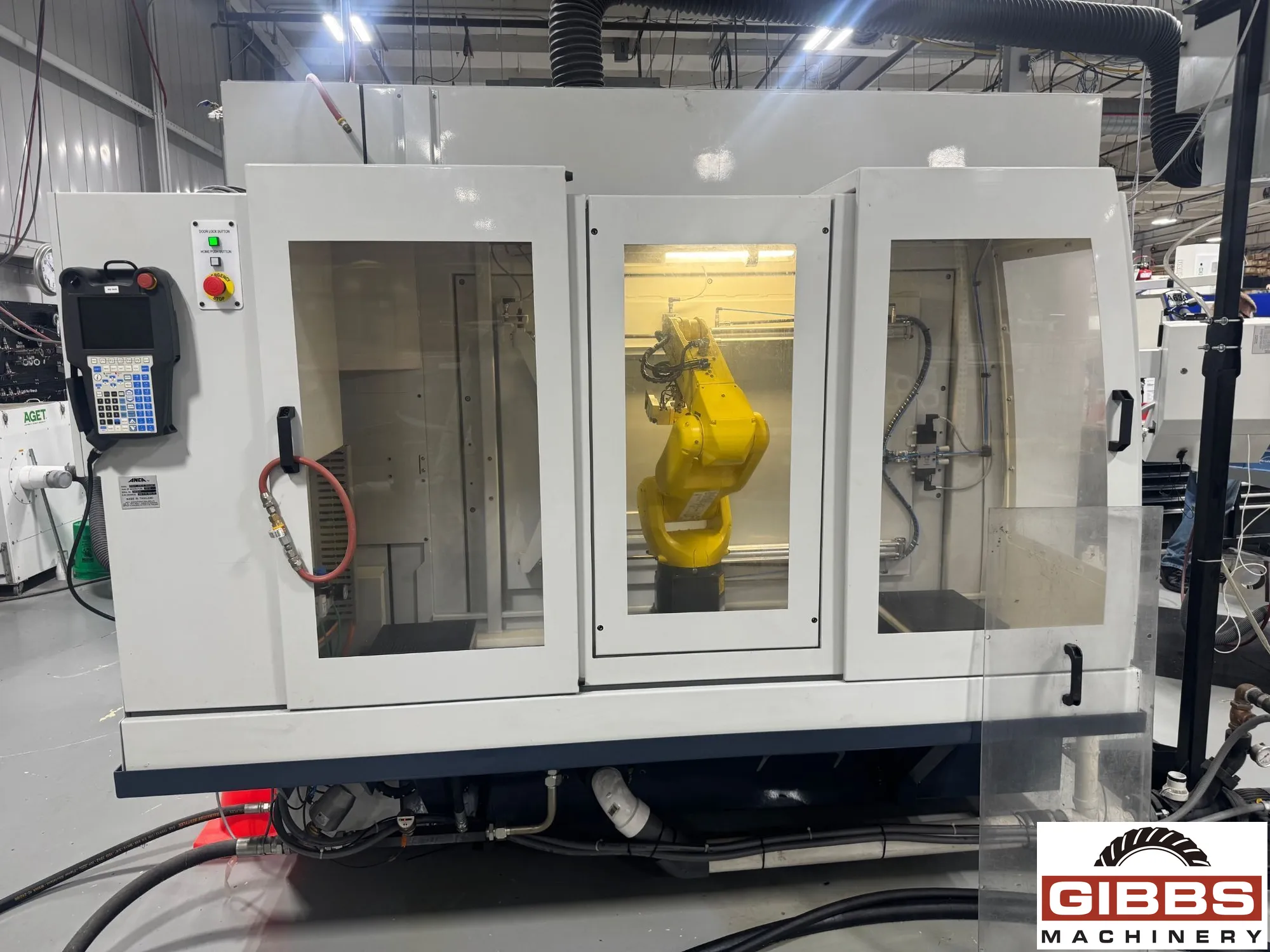

  • Fanuc LR Mate 200iD RoboMATE Loader
  • Fanuc Control Pendant
  • Auto Steady Rest
  • Stacklight
  • Worklight
,

Machine Specifications :

  • Year 2019
  • Manufacturer ANCA

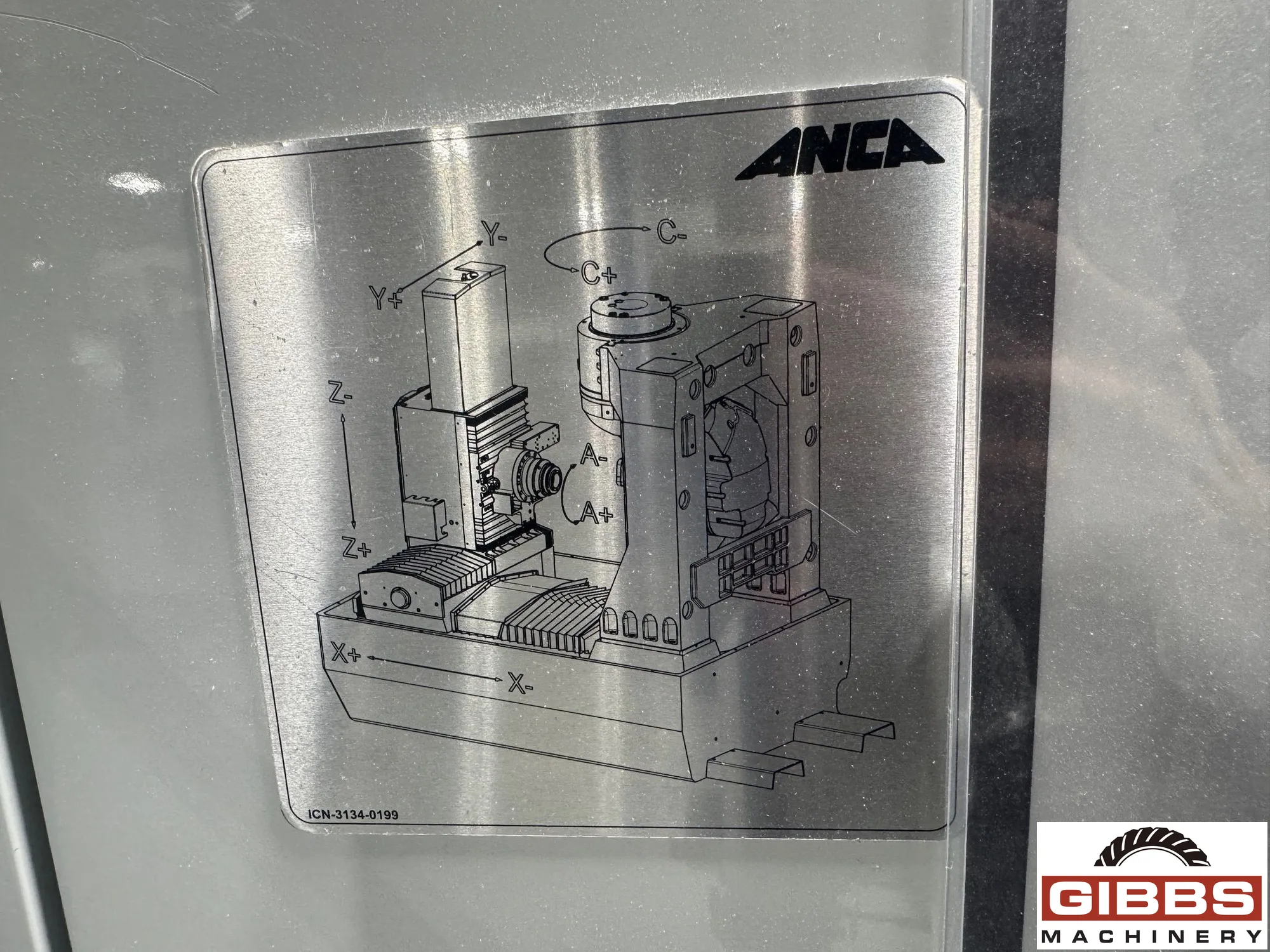

  • # Axis 5.0
  • Swing 12.0"
  • Centers 15.75"
  • Grinding Wheel Dia. 8.0"
  • Power 37.0
  • Max RPM 8,000 RPM
,

    Machine Structure: Bi-Symmetrical Gantry

  • Spindle Power: 37 kW (49 HP) Peak, 15 kW (25 HP) S1
  • Maximum Tool Capacity with Loader:
  • 2520 x Ø 3 mm 1560 x Ø 6 mm
  • 462 x Ø 16 mm 189 x Ø 25 mm
  • 105 x Ø 32 mm
  • Wheel Packs: 2 x Ø 203 mm (8”) max
  • Tool (Shank) Diameter: Productive up to Ø 32 mm (1¼”)
  • Tool Length (Max) - flute length may vary depending on tooling (if applicable) 400 mm (16”)
  • Loader Type: RoboMate
  • Drive System: Linear Motor
