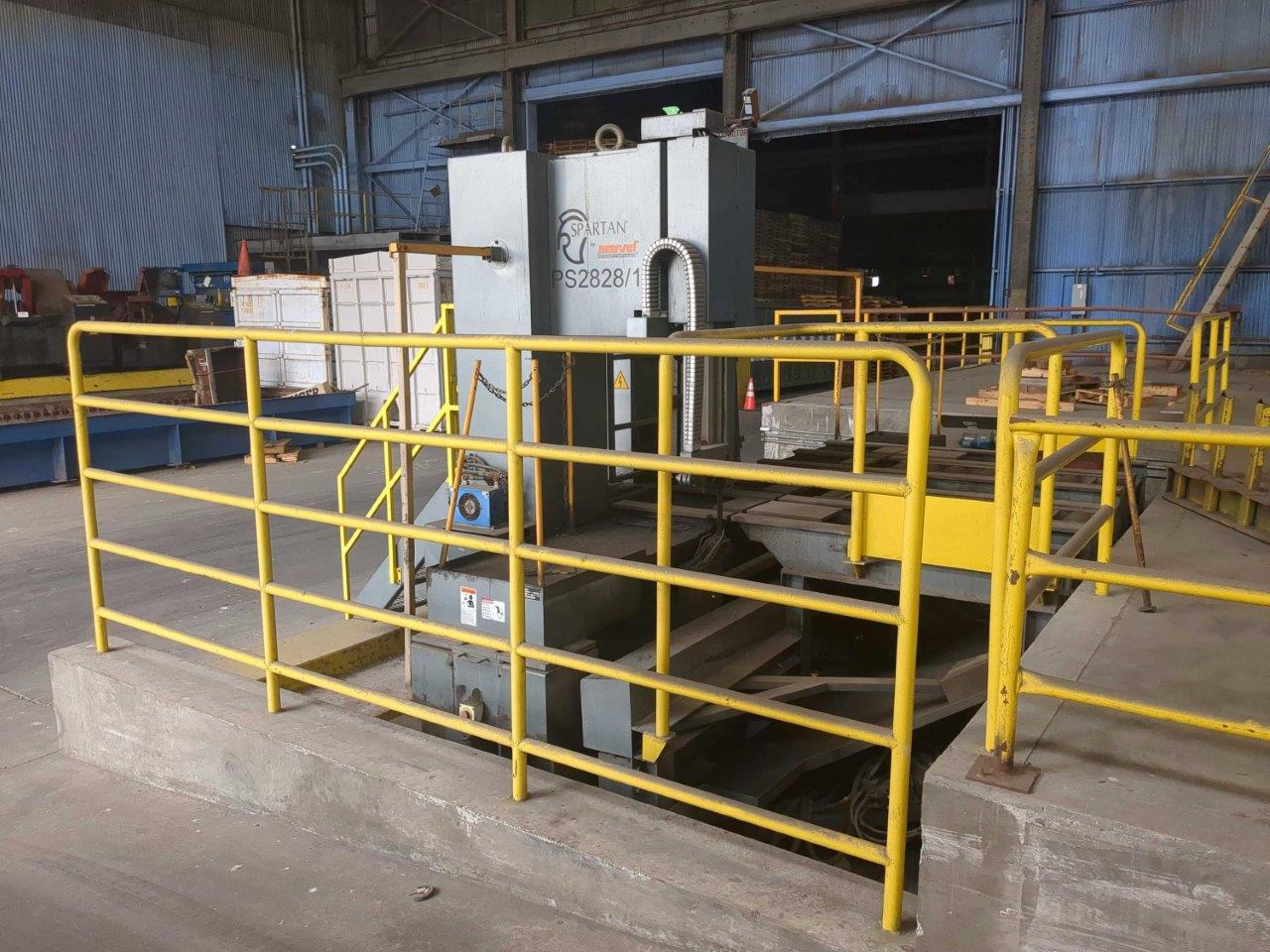

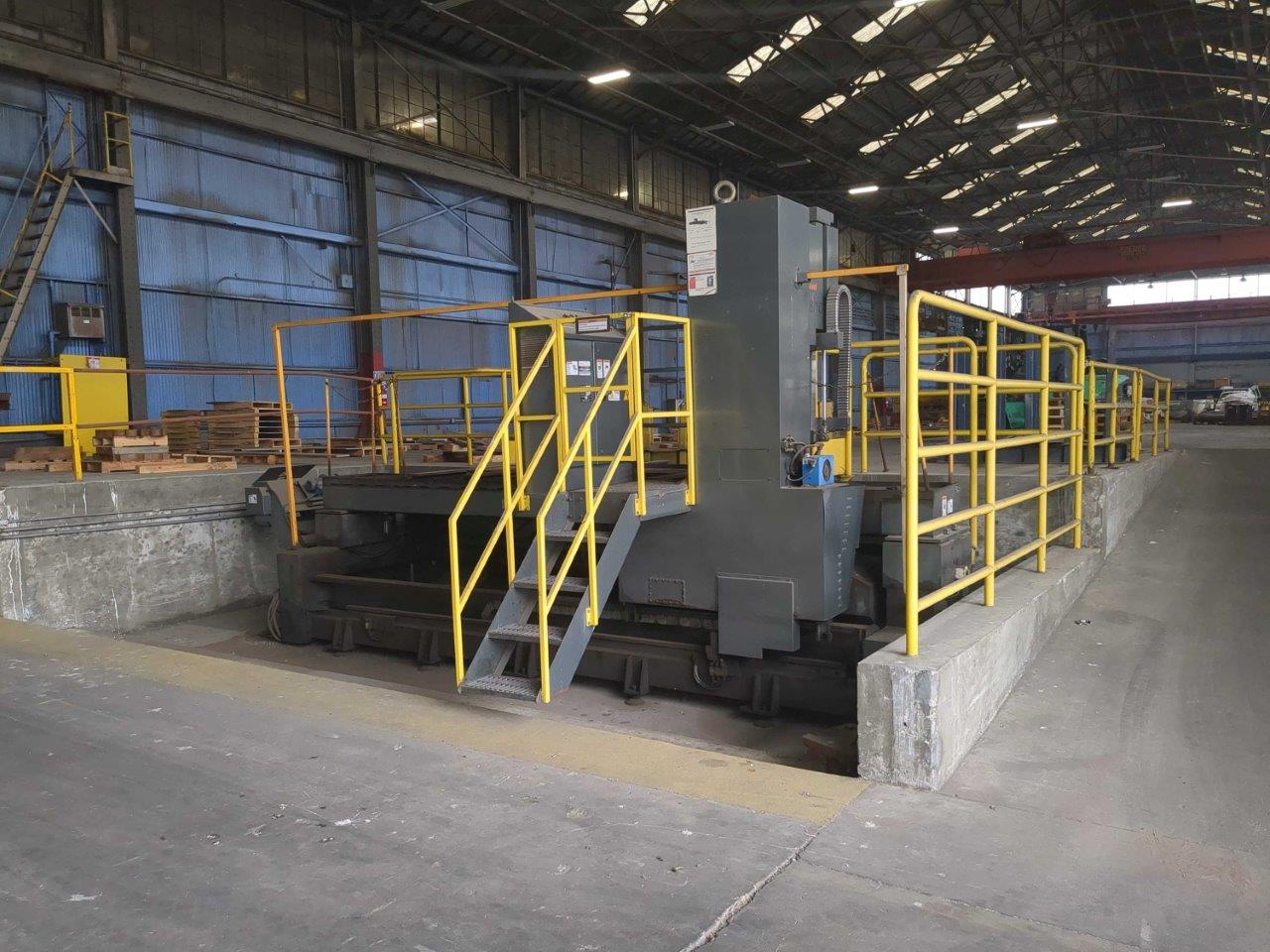

118" X, 27" Throat, 27.5" Ht. MARVEL SPARTAN PM2828/10 Vertical Plate Saw, 2" Blade, Chip Auger, 7.5 HP, 2012

Manufacturer

MARVEL

Category

Saws

Type

SAWS, PLATE

Stock

20085

Model

PM2828/10

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

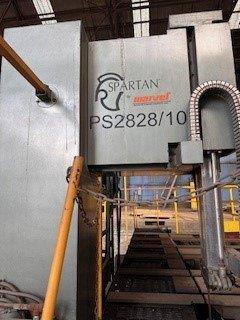

MARVEL SPARTAN PS2828/10 PLATE SAW
NEW 2012

CUTTING DEPTH ------------------------ 27.5"
CUTTING HEIGHT ----------------------- 27.5"
CUT-WIDTH ------------------------------- 118.1"
BLADE SIZE ------------------------------ 2" X .063" X 22' 3.75"
TABLE SIZE: 124" LONG
63" WIDE TO THE BLADE
28" WIDE BLADE TOWARD THE COLUMN
SPEED ----------------------------------- 50-250 FPM ( 15-75 M/MIN. )
RATE ------------------------------------ .080 - 20"/MIN ( 2-500 MM/MIN )
BLADE DRIVE MOTOR ------------- 7.5 HP ( 5.5 KW )/460 VOLT/3/60
HYDRAULIC PUMP MOTOR ------- 2 HP ( 1.5 KW )
COOLANT PUMP MOTOR --------- 1 HP ( 0.7 KW )

EQUIPPED WITH ---

MOVEMENT VIA HYDRAULIC CYLINDER ON GROUND SQUARE WAYS
HYDRAULICALLY CLAMPED CARBIDE BLADE GUIDES WITH HYDRAULIC
CONTROLLED UPPER BLADE GUIDE ARM
SPACE SAVING MOVEABLE SAW HEAD
SAW HEAD TRAVELS ON GROUND SQUARE WAYS
BUILT IN POSITIONING SCALES ON INNER TABLE
2 SETS OF INFEED AND OUTFEED HYDRAULIC ROLLERS AND MANUAL
CLAMPING DEVICE FOR TABLE WORK POSITIONING
HYDRAULICALLY POSITIONED GUIDE ARM
HYDRAULIC BLADE TENSION
HYDRAULIC MOVEMENT OF SAW HEAD
RAPID APPROACH AND RETURN OF SAW HEAD
MOTION DETECTOR FOR BLADE BREAKAGE OR STALLING
HYDRAULIC BLADE FEED WITH COMPENSATION VALVE
WORK LIGHT
LASER BEAM
HYDRAULICALLY CLAMPED TUNGSTEN CARBIDE BLADE GUIDES
POWERED CHIP BRUSH

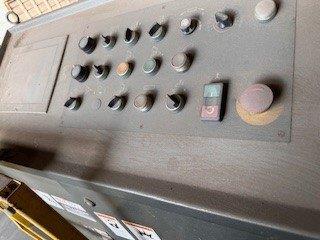

INDEPENDENT CONTROL PANEL
INVERTER CONTROLLED BLADE SPEEDS
FLUSHING HOSE

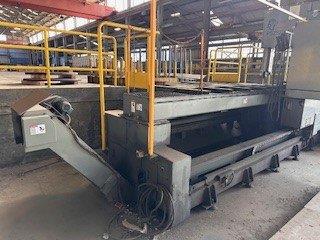

CHIP CONVEYOR

TO VIEW VIDEO, PLEASE CLICK ON EACH LINK BELOW, HIGHLIGHT THE LINK,
AND THEN DOUBLE CLICK ON THE HIGHLIGHTED LINK.

https://youtube.com/shorts/ebw8fg8cZZo?feature=share
https://youtube.com/shorts/yS7_ZdzI0yQ?si=mvnpam6Y4c_lqFaI
