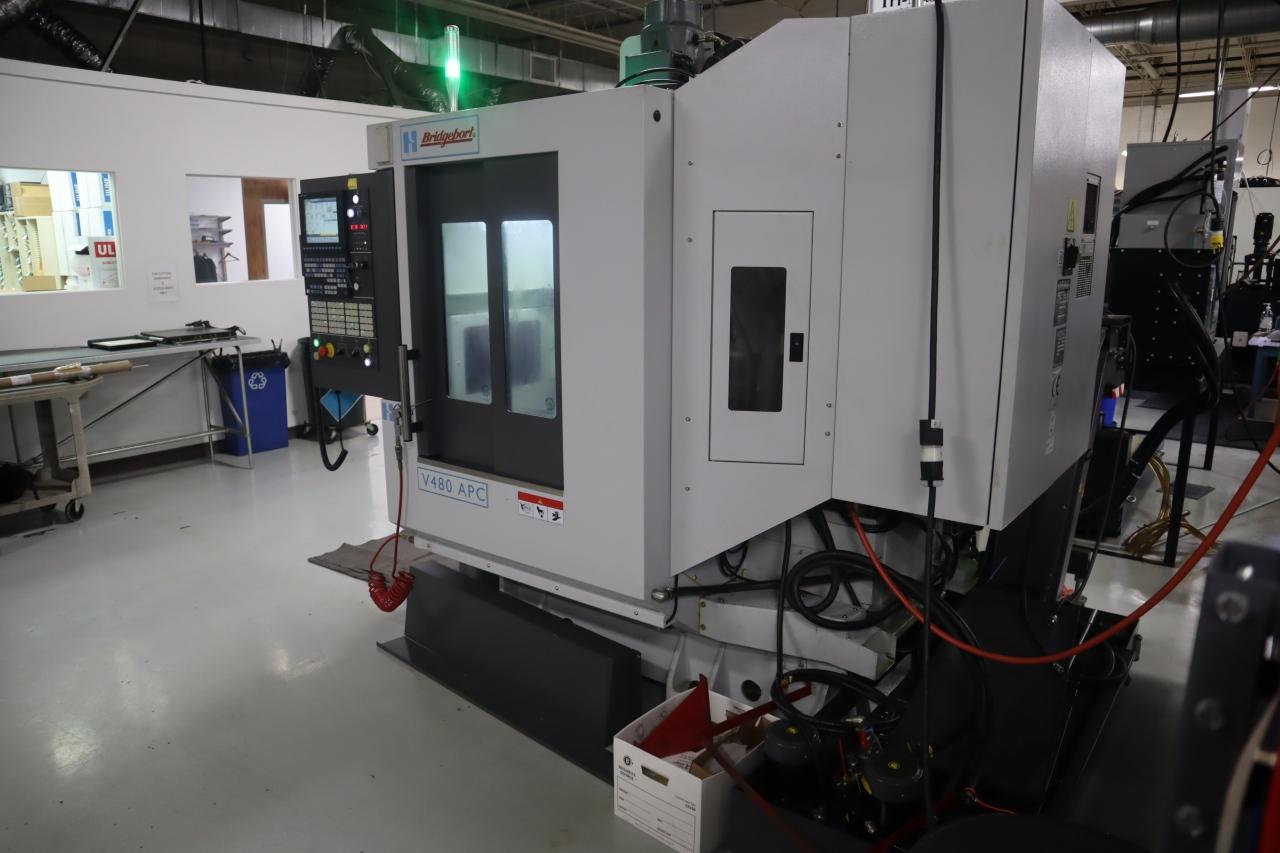

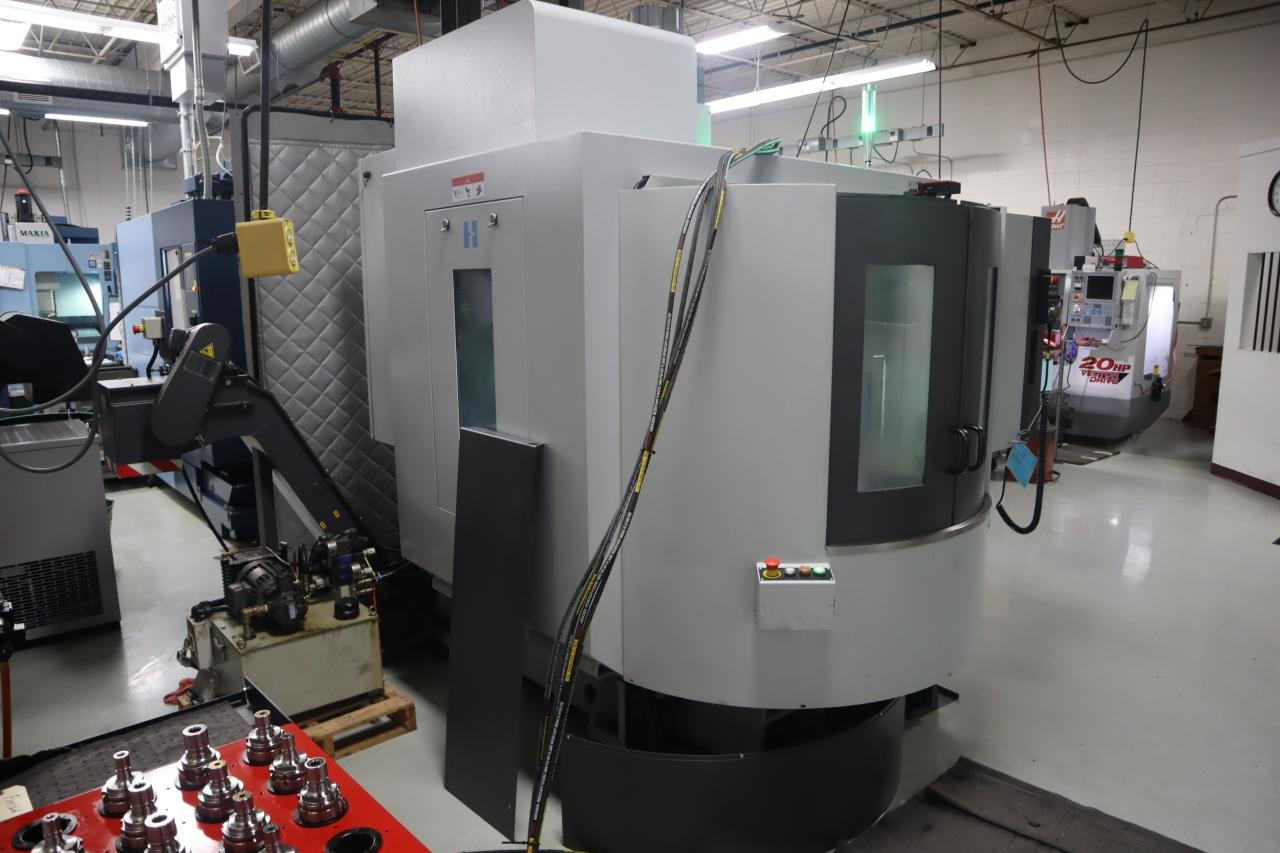

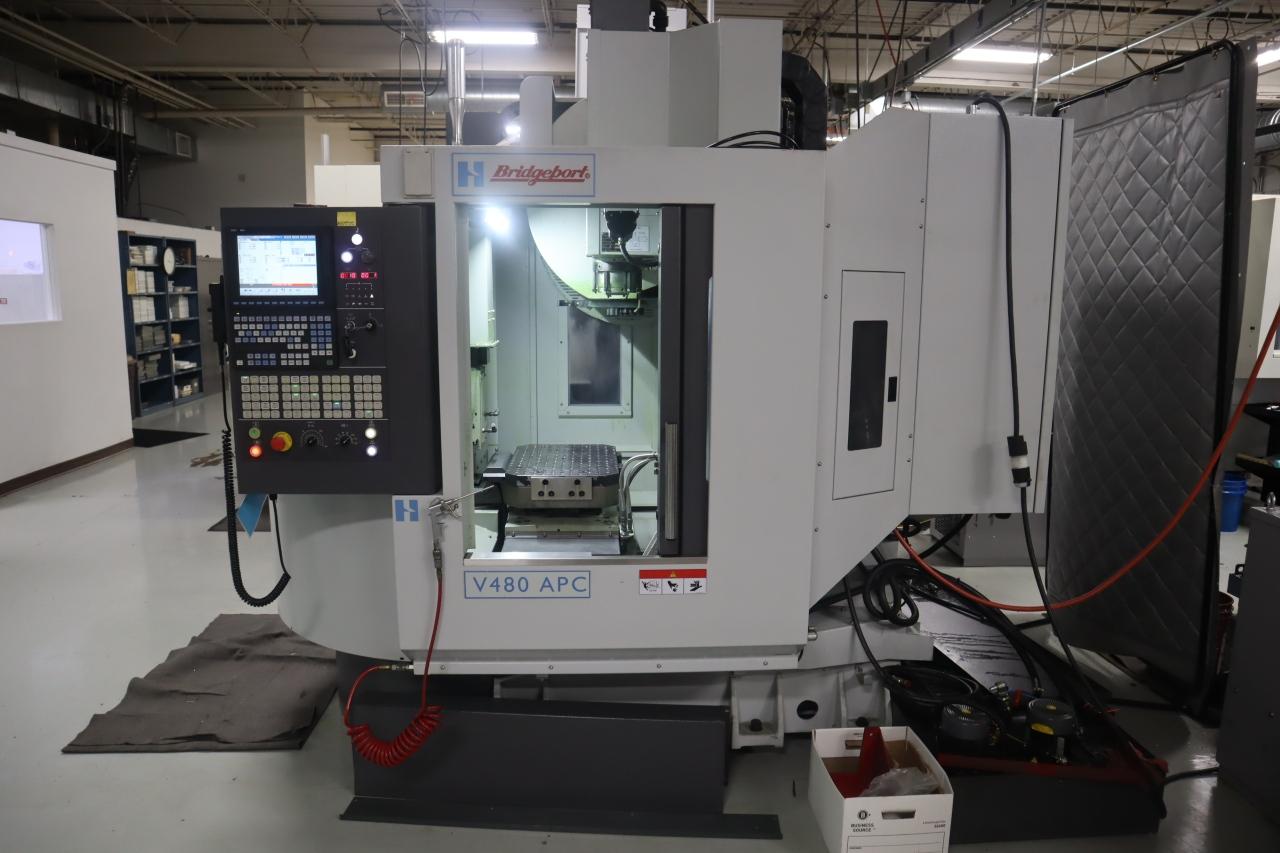

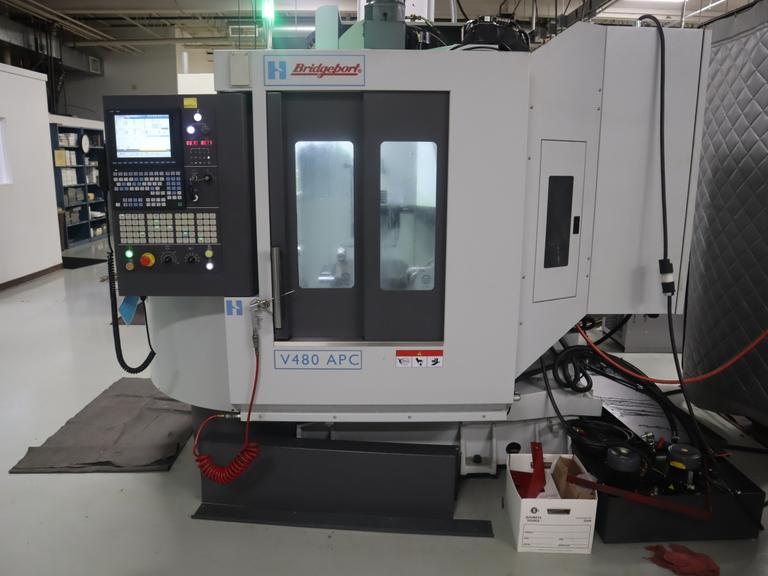

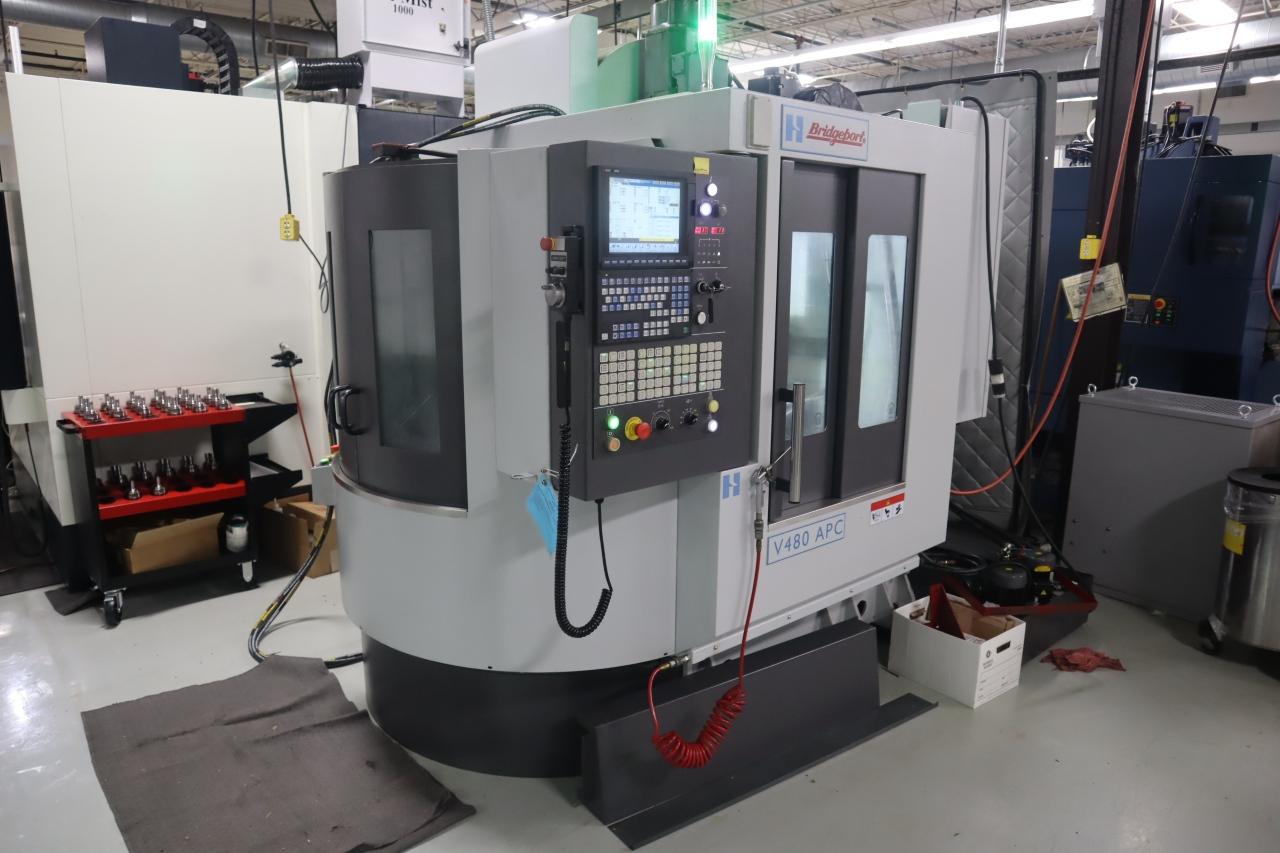

Lot 20: Hardinge-Bridgeport Model V480 APC Vertical Machining Center with 2-Station Automatic Pallet Changer, 10K Spindle, Probing System, Chip Conveyor
Equipped With:

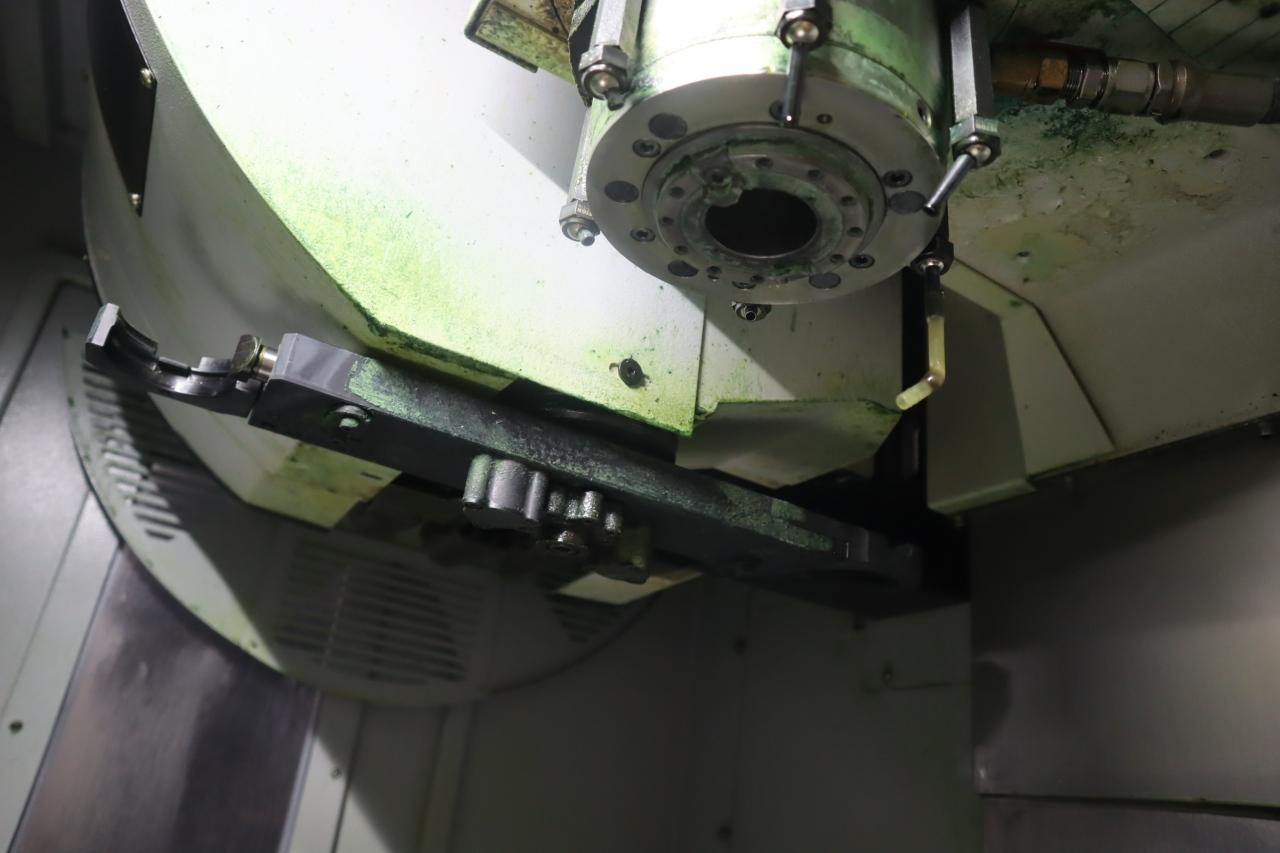

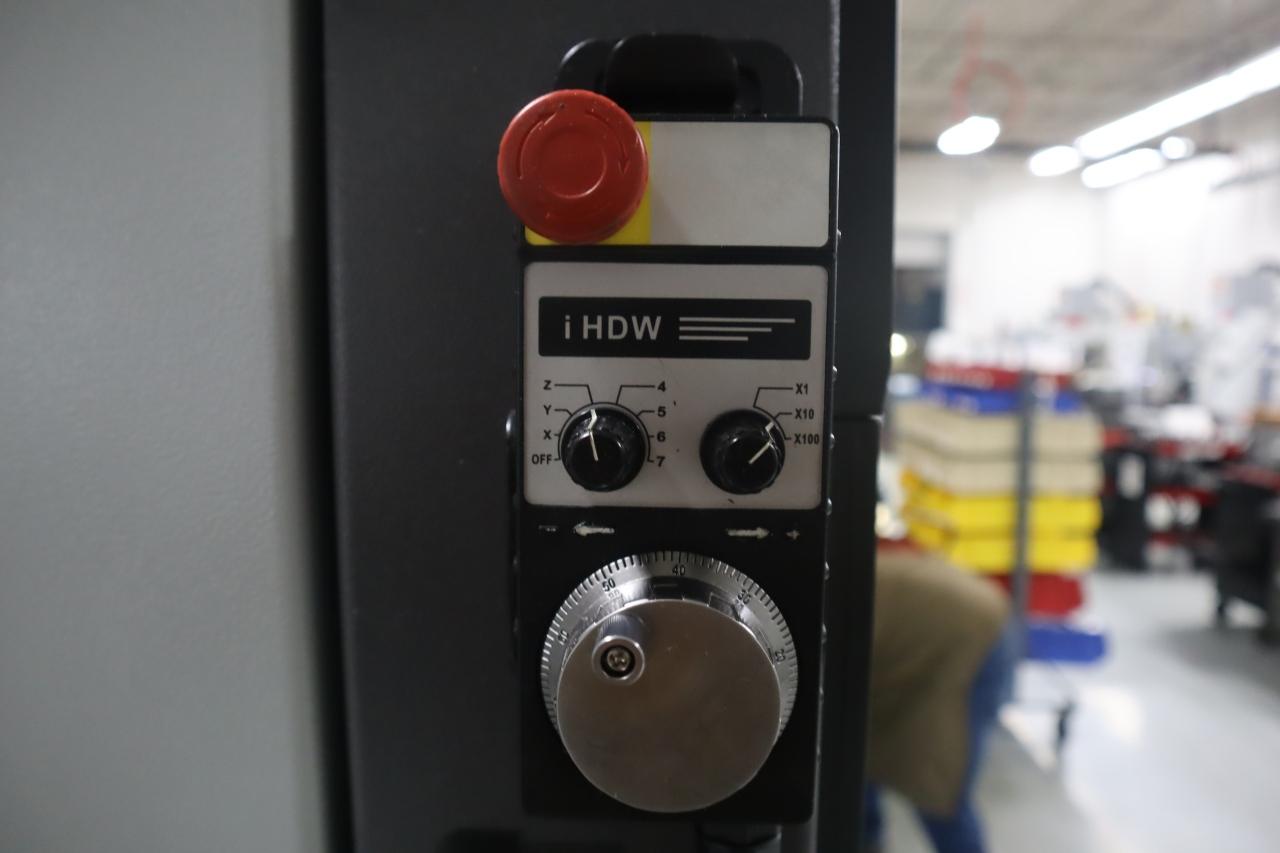

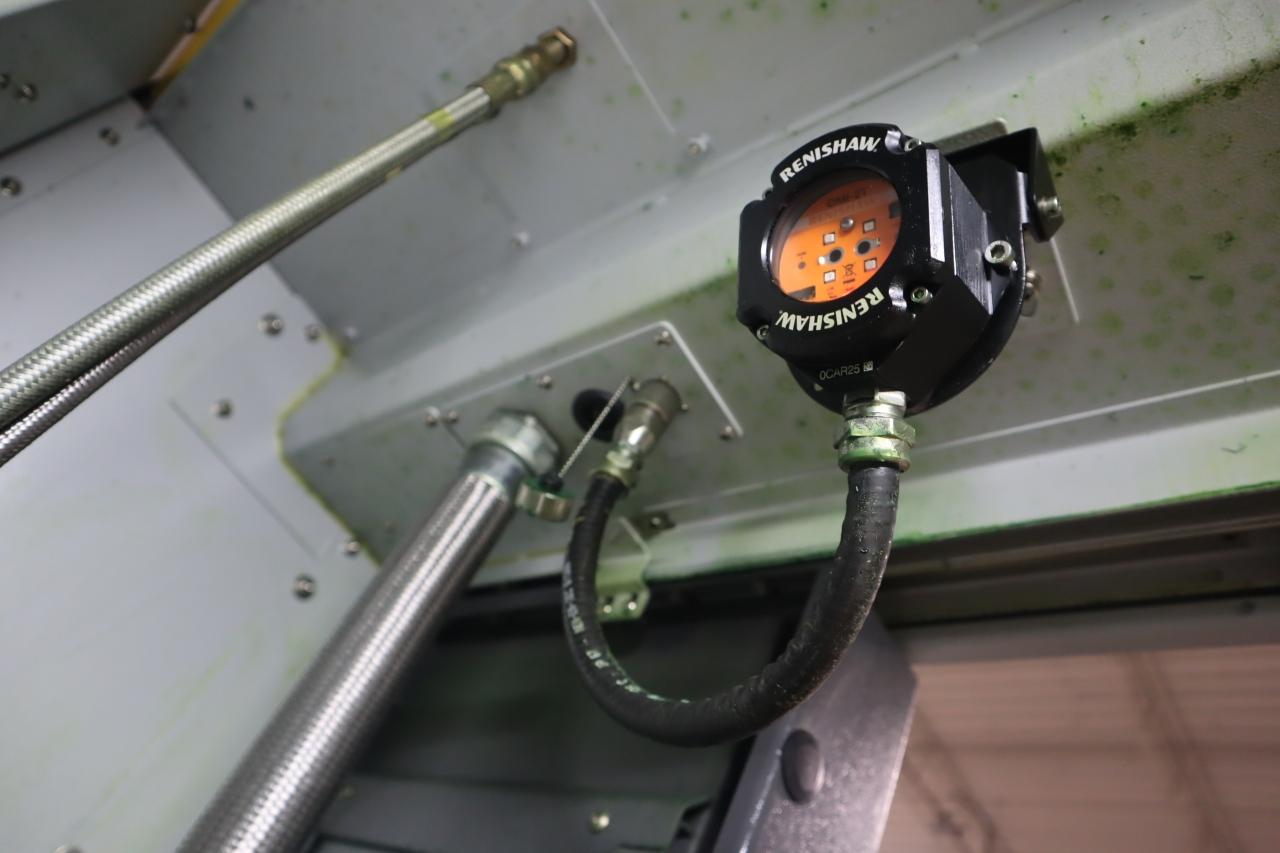

Mitsubishi M70 CNC Control, 10,000 RPM Spindle, CAT 40 Spindle Taper, 20 Station Side Mount Twin Arm ATC, Renishaw Tool and Parts Probing System, Chip Conveyor, Remote Jog Handwheel, 2-Station Pallet Changer with Pallets(2), Coolant Pumps and Tank, RS232 port, Ethernet, Flashcard, USB Port, Manuals

Electrics:

220 Volt, 3 Phase

Manufacturer: Hardinge-Bridgeport Model: V480 APC Year: 2017 Serial Number: CVLB7L0065
Main Unit Approx Weight: 9832.52 lbs
Main Unit Dimensions (in inches): Length: 107.00"  Width: 70.00"  Height: 96.00"
Components:
Chip Conveyor/ Coolant Tank: Length: 108.00"  Width: 28.00"  Height: 63.00"
Hydraulic Unit: Length: 29.00"  Width: 20.00"  Height: 23.00"
Specs:
Control: Mitsubishi M70 CNC Control
Machine Travels (X/Y/Z): (480/400/430 mm) or 18.9"/15.75"/16.9"

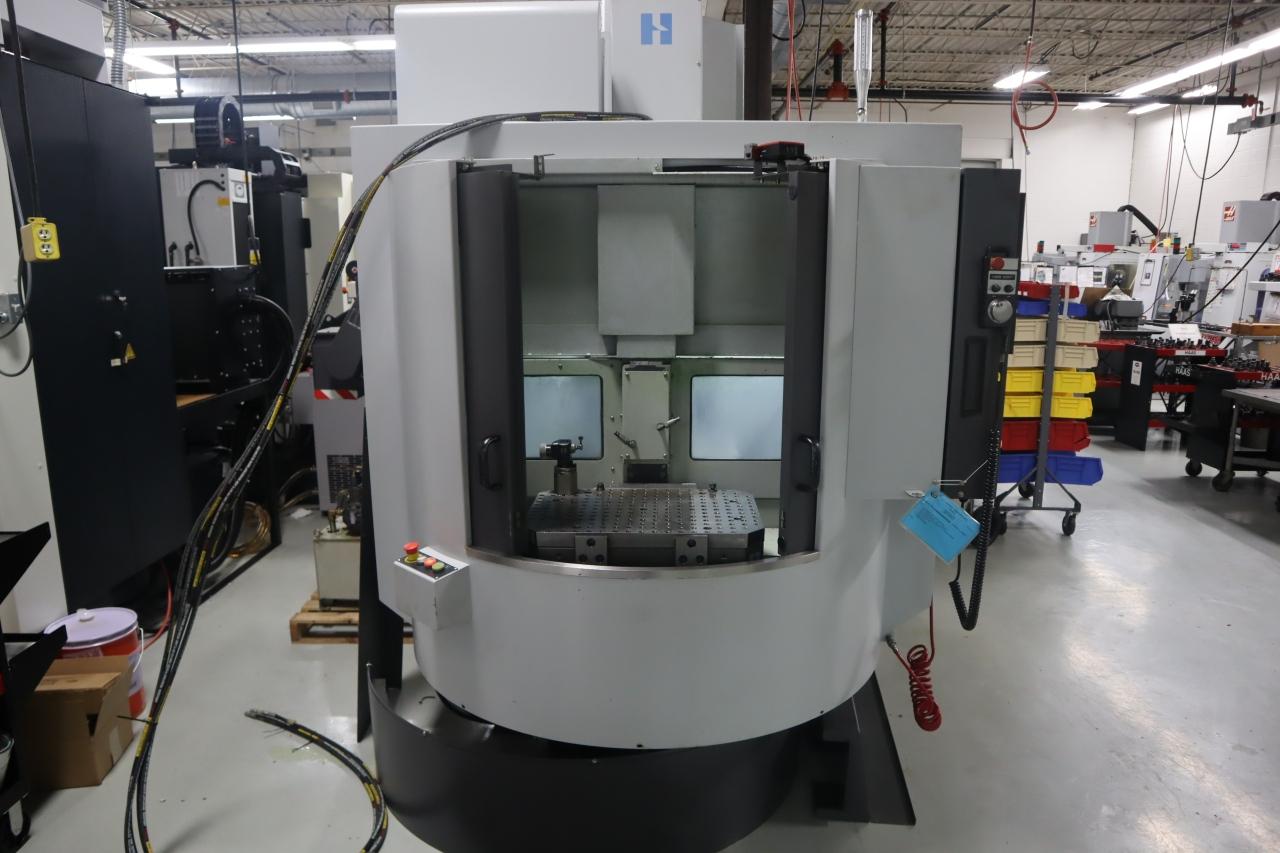

Number of Pallets: 2
Max Distance Spindle To Pallet Surface: (25 - 655 mm) / 8.86" - 25.79"

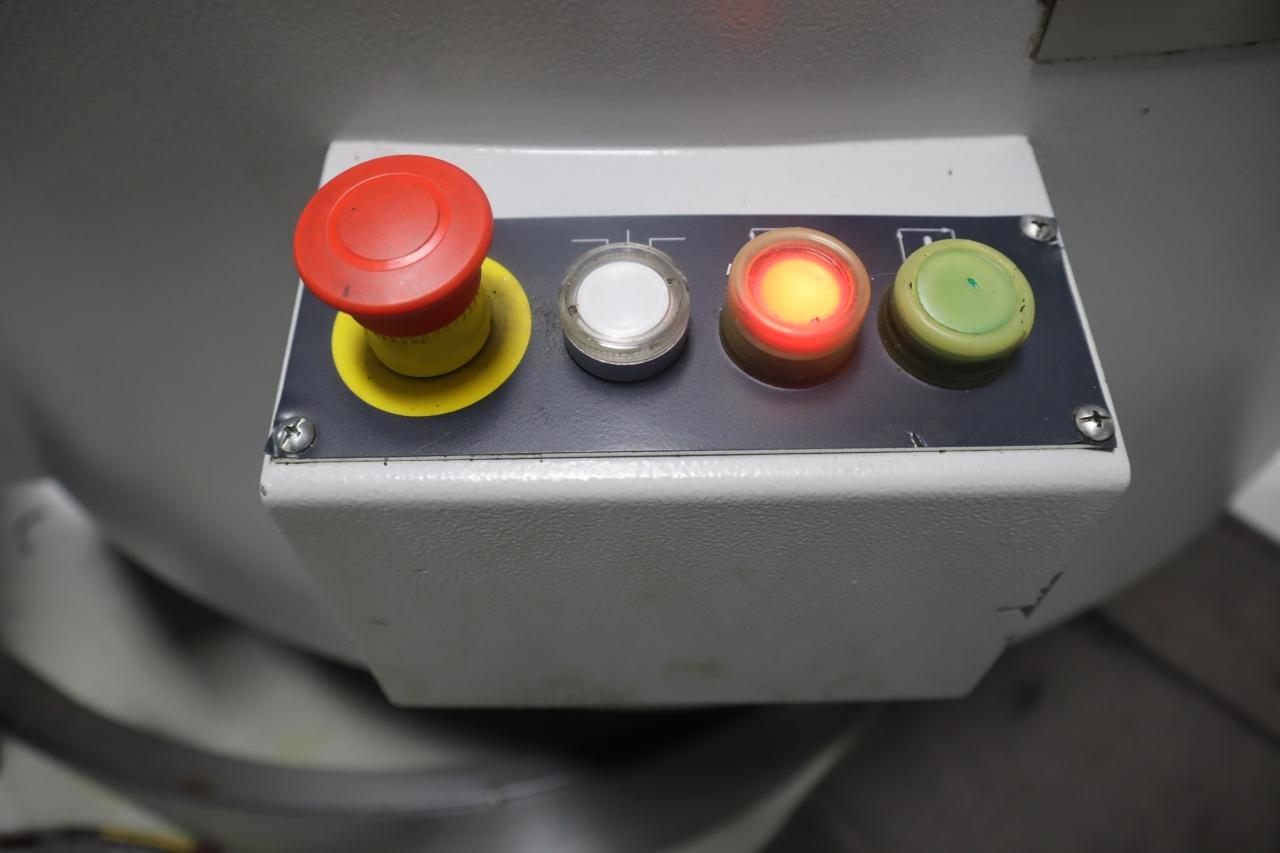

Pallet Change Style: Front Type

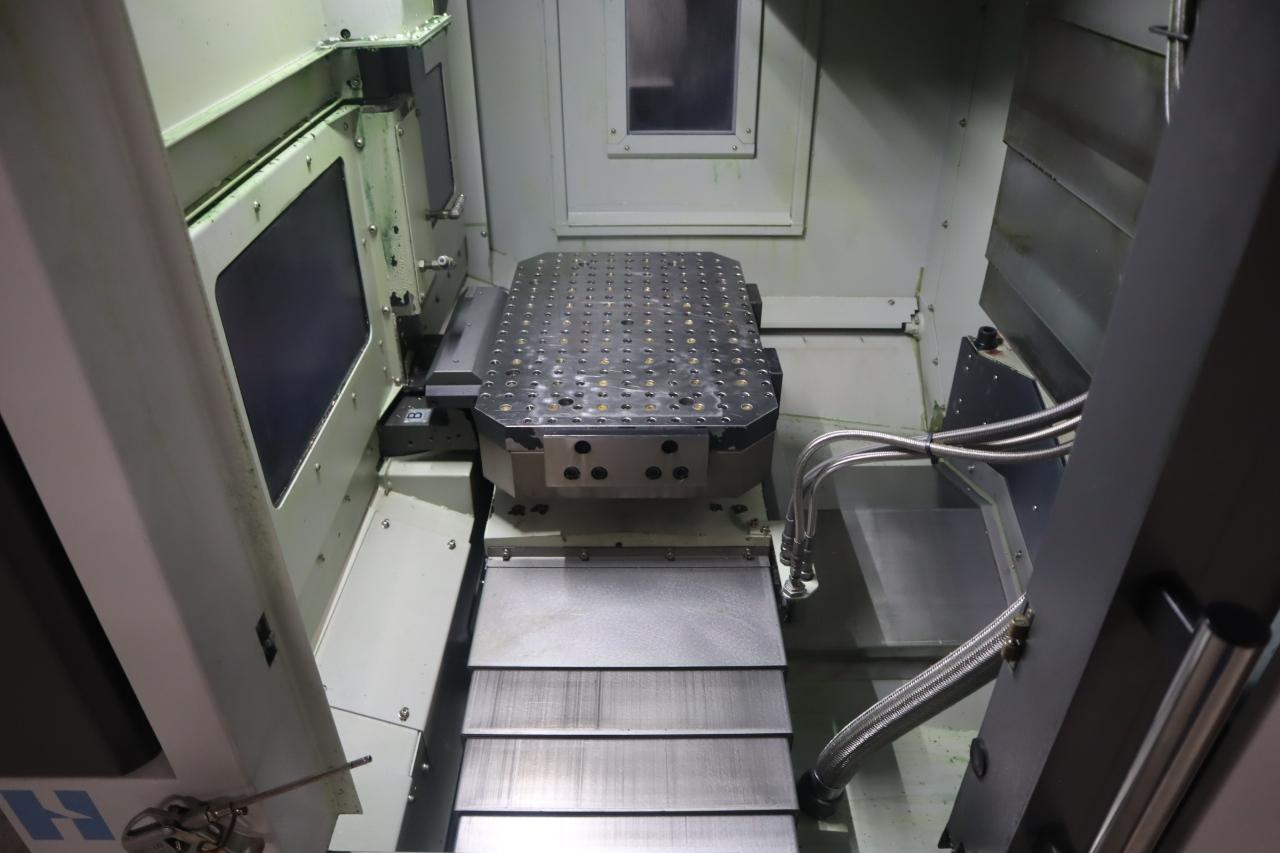

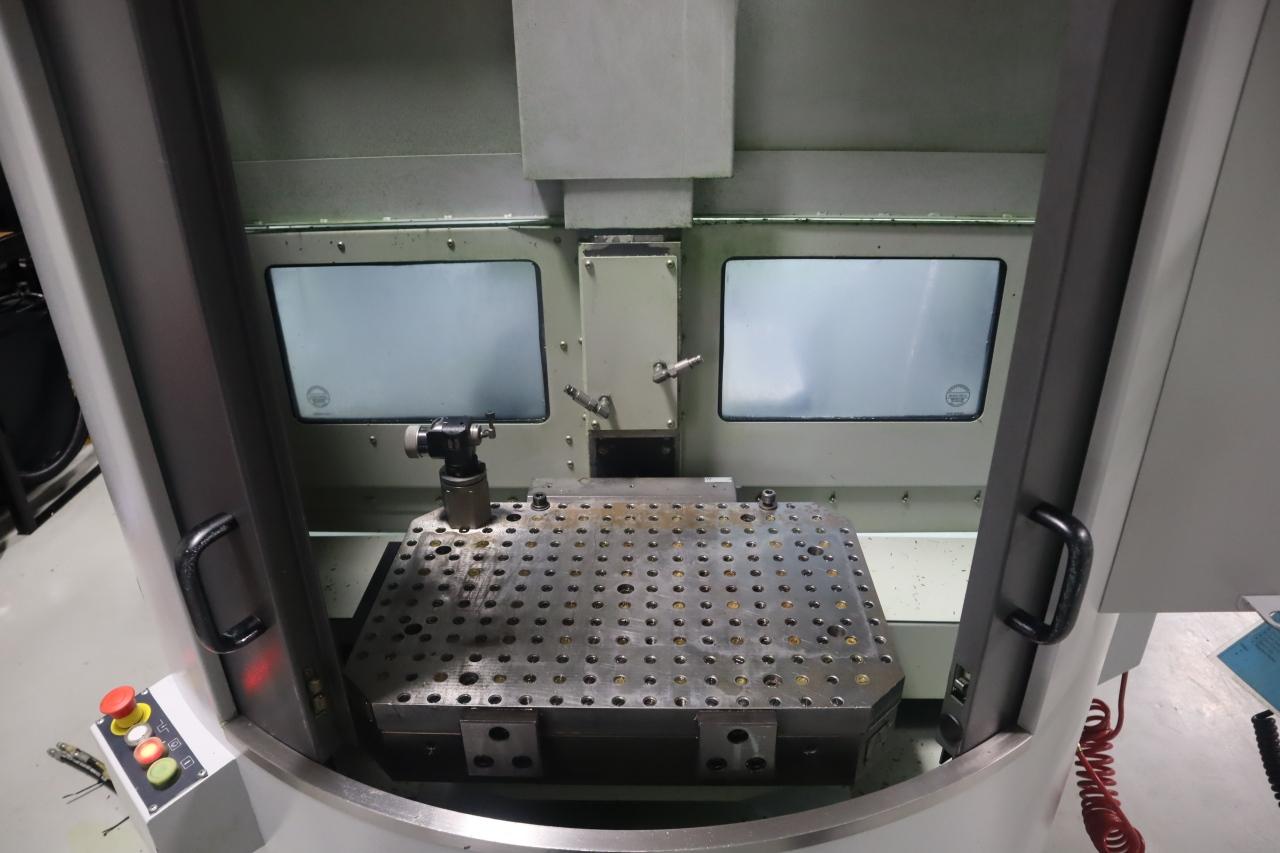

Pallet Size: (600 x 400 mm) / 23.6" x 15.75"
Max Part Height Thru Pallet Door: 400 mm / 15.75"
Spindle Taper: CAT 40
Spindle Speeds: 0-10000 RPM
Spindle Drive: 10 HP
Rapid Traverse (X/Y/Z): 36 m/min
Pallet Change Time: 8 - 10 Seconds
Toolchanger Style: Side Mount , Twin Arm
Toolchanger Capcity: 20 Stations
Max Tool Weight: 15.4 lbs
Max Tool Length/Diameter: 185 mm / 7.28"
Tool Change Time: 2.5 (4.5 Chip to Chip) Seconds
Seller Company: Graham Research
Seller Contact: JOHN HUSTON Phone: (763) 553-1339
Item Location: Graham Research, 13305 Industrial Park Blvd., Plymouth, MN 55441
Location Contact: JOHN HUSTON Phone: (763) 553-1339
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 20'W x 16'H Ground / 9' x 10' Truck Door
Loading Dock: Ground & Truck Level Doors, Concrete Lot
Removal Dates and Times: This item must be removed between Tuesday, March 17, 2026 and Friday, March 27, 2026
