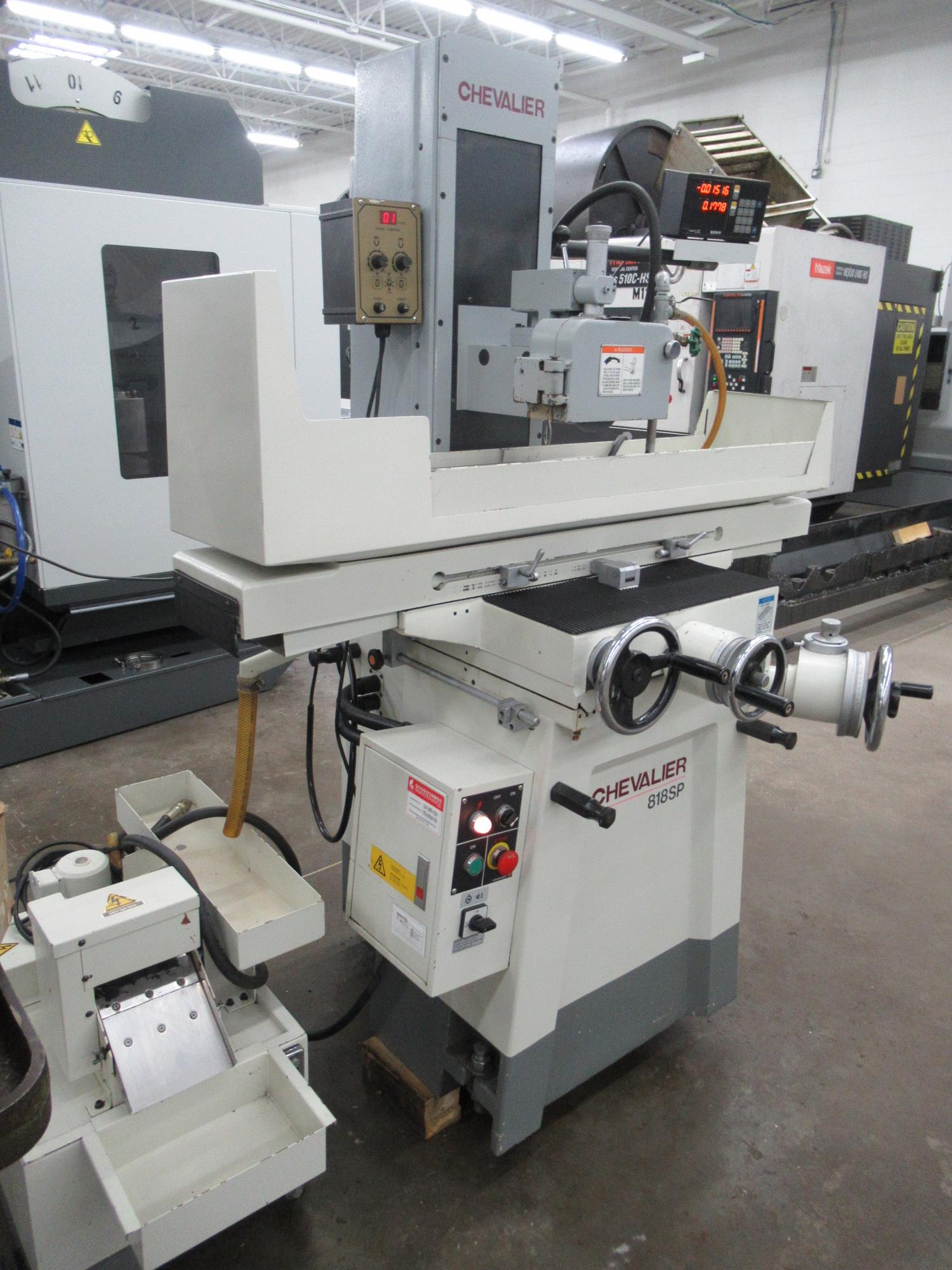

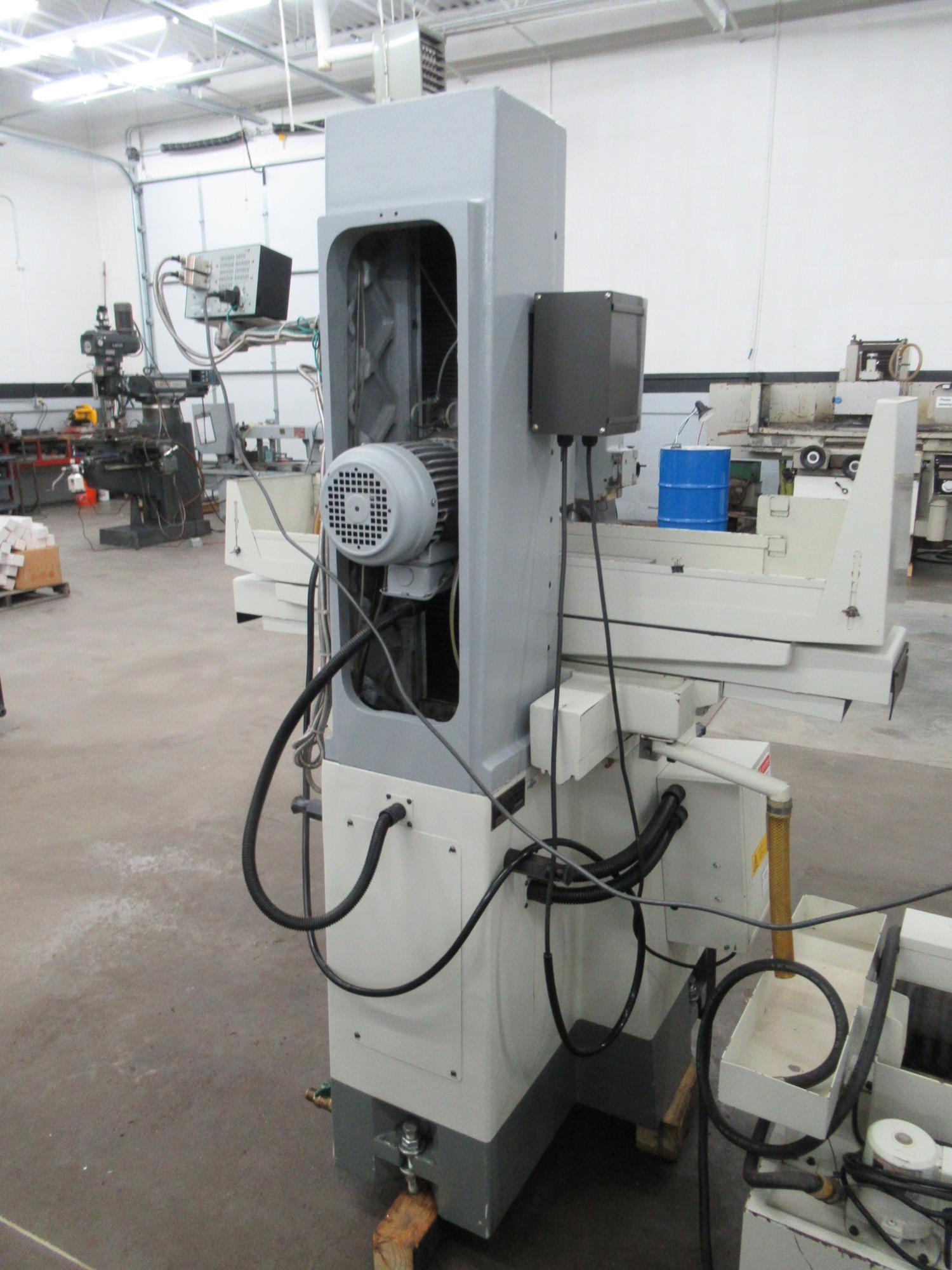

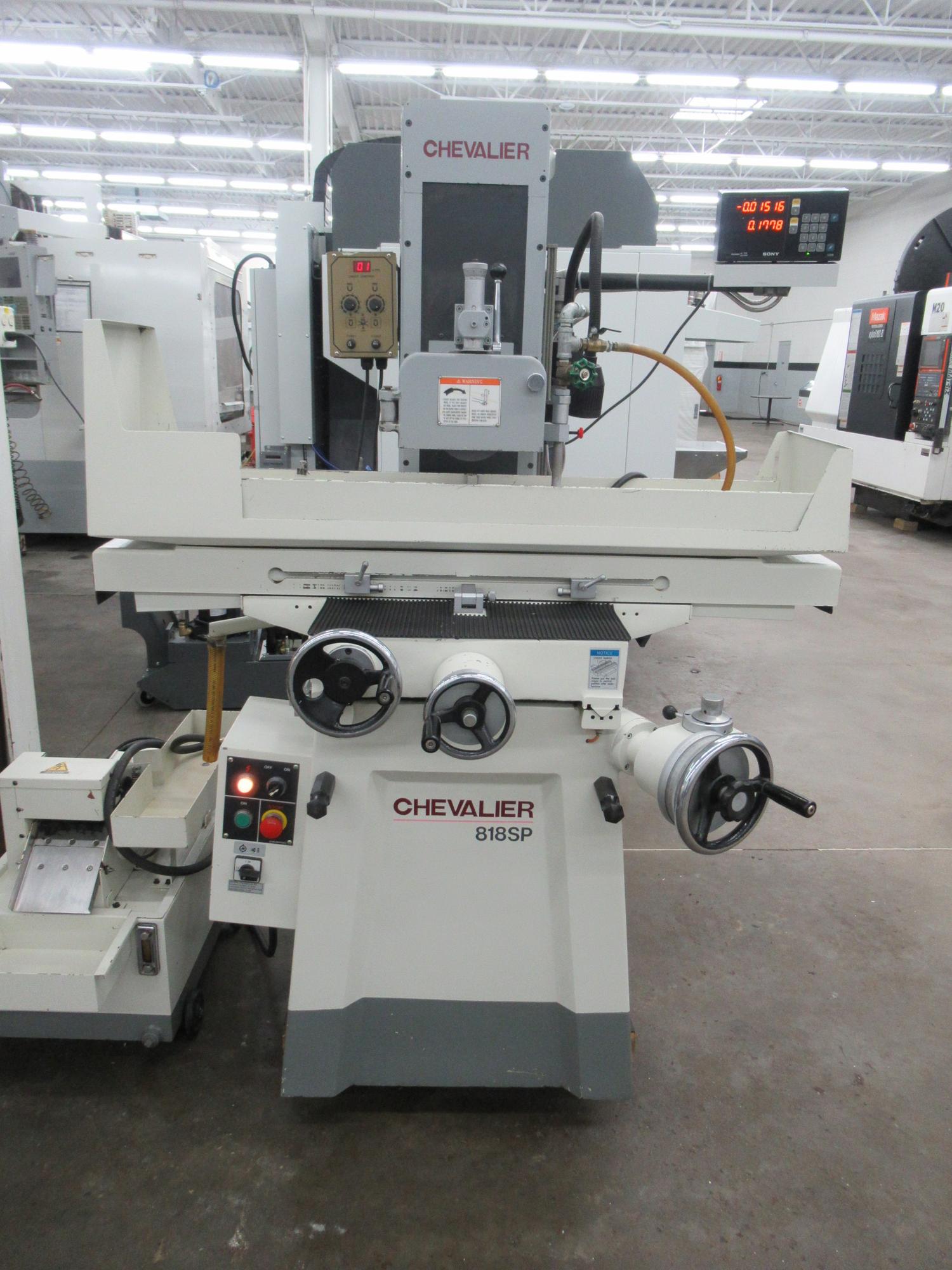

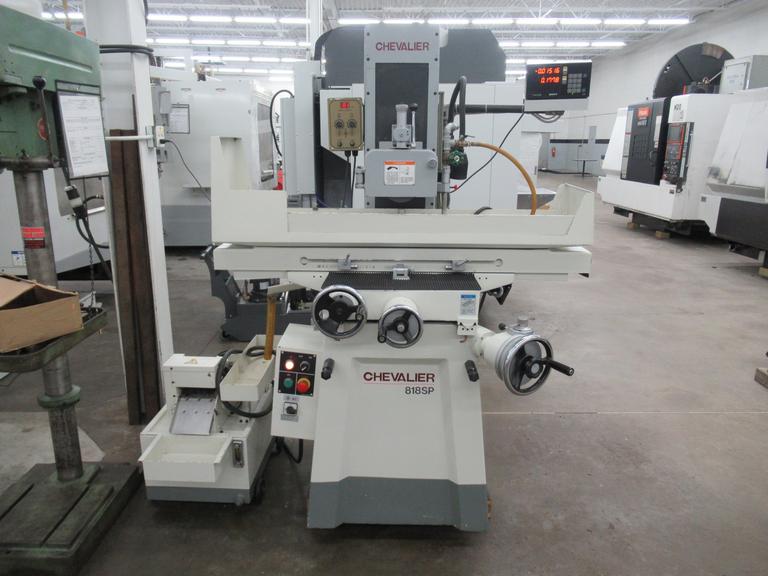

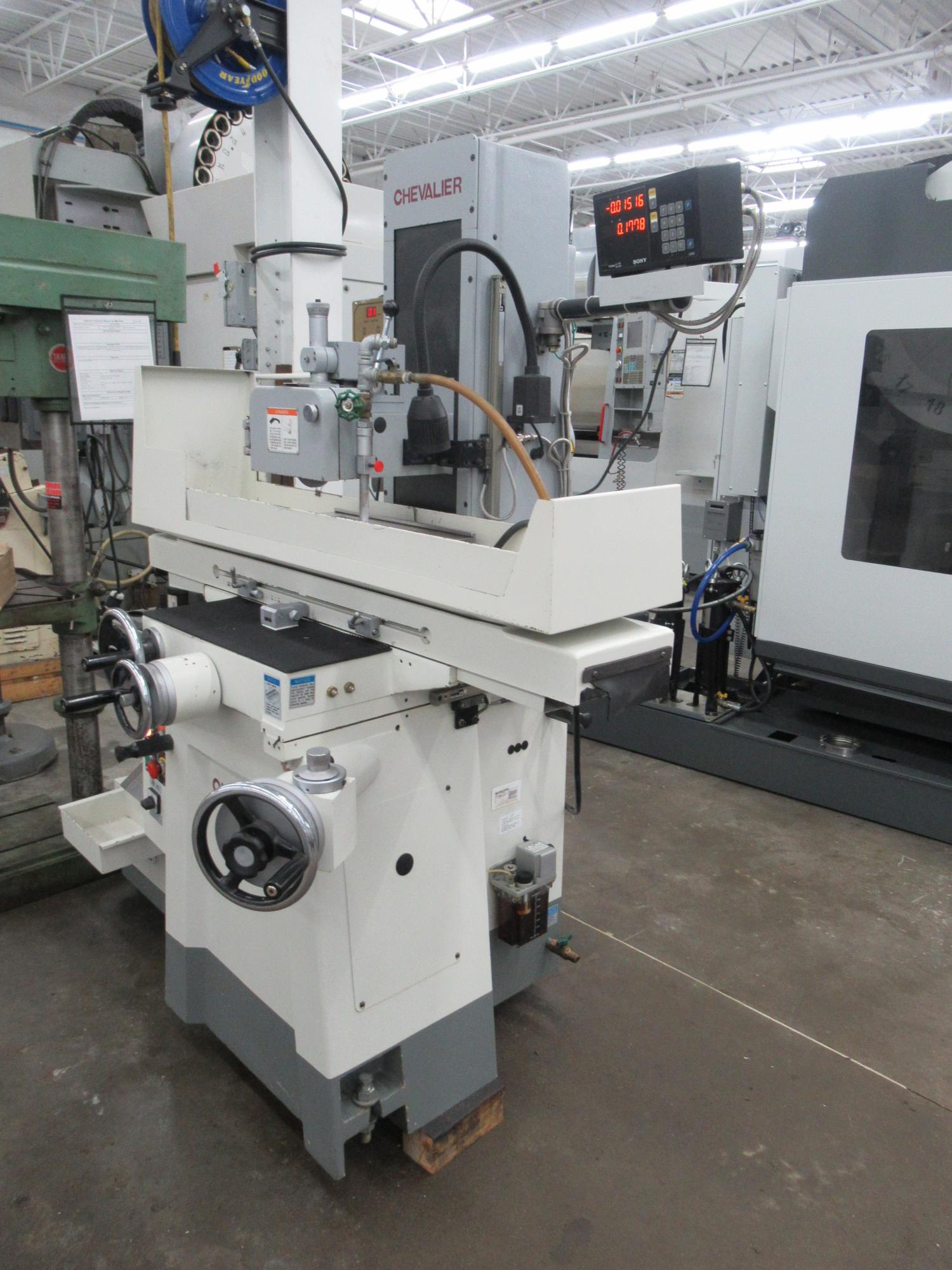

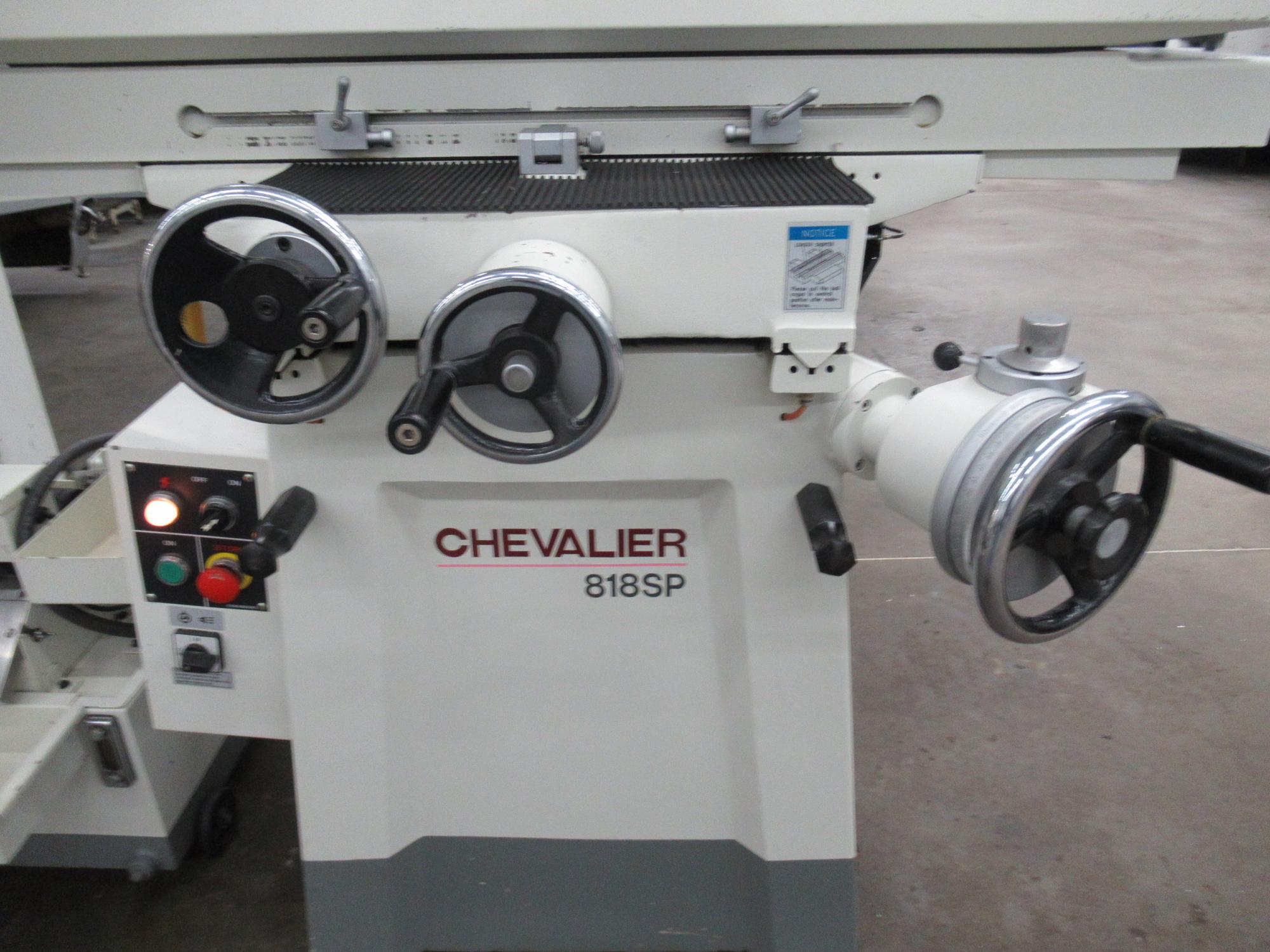

Chevalier FSG-818SP Hand Feed Surface Grinder, 2-Axis SONY DRO, Micro- Feed, Coolant Pump and Tank

Manufacturer

Chevalier

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

7334

Model

FSG-818SP

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Chuck Size: 8x18"

Table Size: 8"x18.9"

Max Carriage / Table Movement: 20.1"

Longitudinal Feed Rate: Hand Feed

Motion of Wheel Head Per Handwheel Revolution: .05"

Graduation of Hand Wheel Dial: 0.0001" / Micro Feed Dial: .0001" Increment

Max Height Spindle Center To Table: 19.7"

Wheelhead Feed Increments: 0.0001" / Micro Feed Dial: .0001" Increment

Wheelhead Rapid Feedrate: Manual

Cross Feed Movement Per Handwheel Revolution: 0.2"

Table Load Capacity: 462 lbs

Max Wheel Size: 8"x .5"x1.25"

Spindle Speed: 3450 RPM

Spindle Drive: 2 HP

Description:

The Chevalier FSG-818SP Surface Grinder is a precision manual surface grinder designed for accuracy, repeatability, and smooth operation in toolroom and production grinding applications. Known for its rigid cast iron construction and dependable spindle design, the FSG-818SP delivers consistent surface finishes and tight tolerances across a variety of materials. With an 8" x 18" magnetic chuck capacity, the Chevalier FSG-818SP is well suited for job shops, maintenance departments, and toolrooms requiring dependable flat-surface grinding capability. The manual table travel and robust saddle assembly provide excellent control and stability during grinding operations, making it ideal for both experienced machinists and training environments. Chevalier’s attention to hand-scraped ways, quality spindle bearings, and vibration-dampening machine design ensures long service life and reliable performance. The FSG-818SP is commonly used for precision part finishing, tool sharpening, fixture grinding, and general surface grinding tasks. MachinesUsed.com regularly offers Chevalier surface grinders for sale, including the FSG-818SP, through direct listings, consignment, and online auctions.

Equipped With:

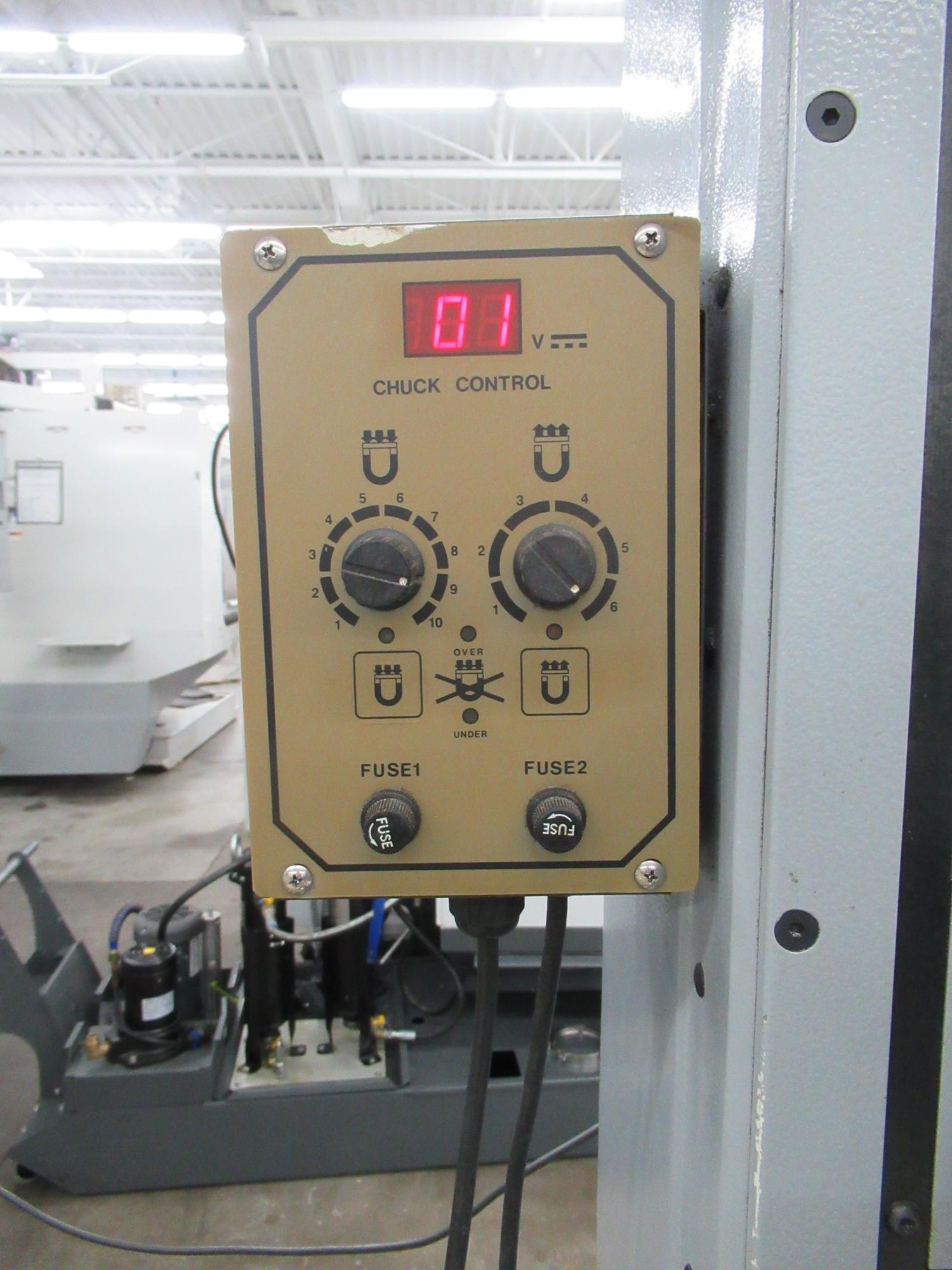

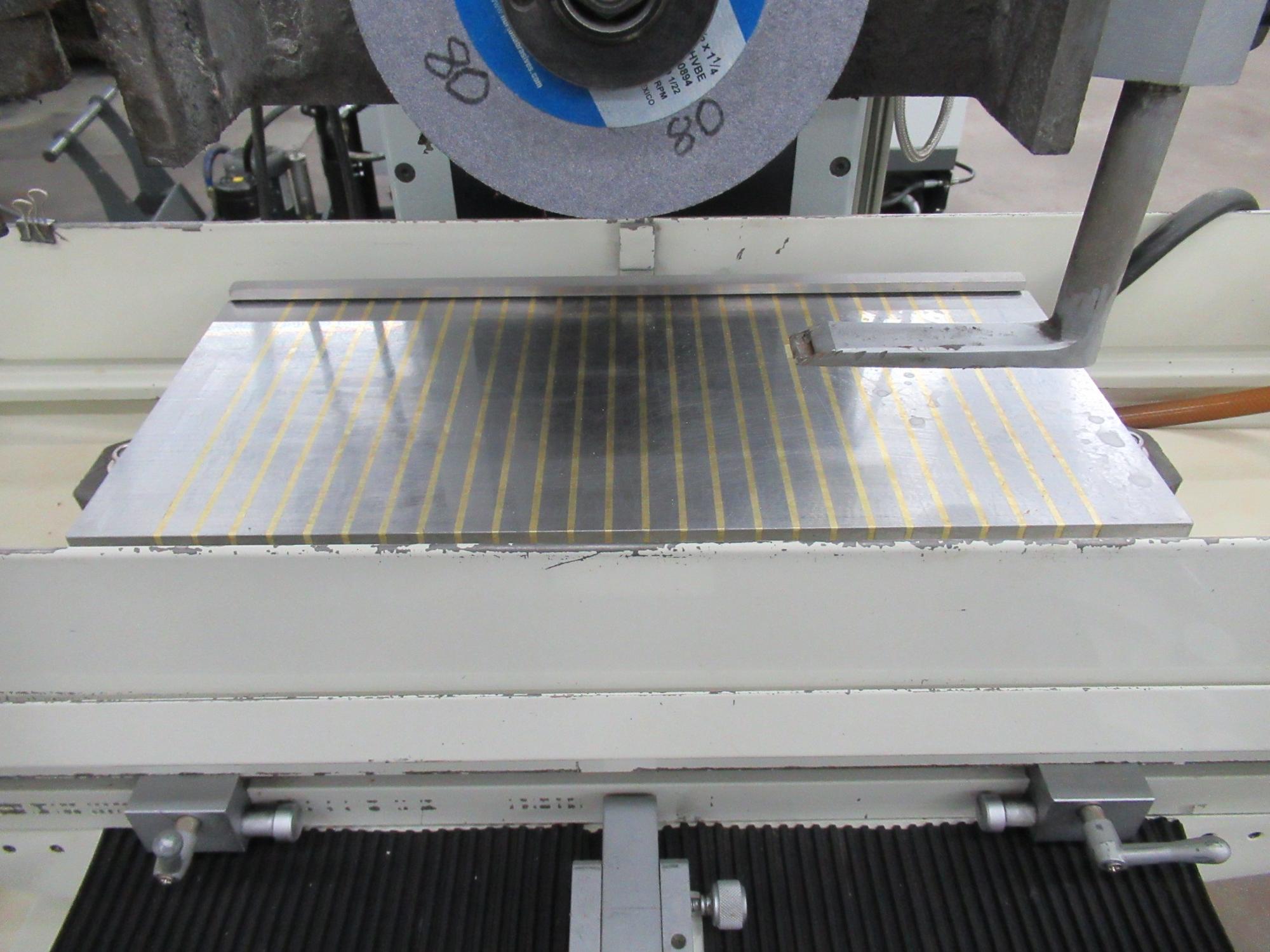

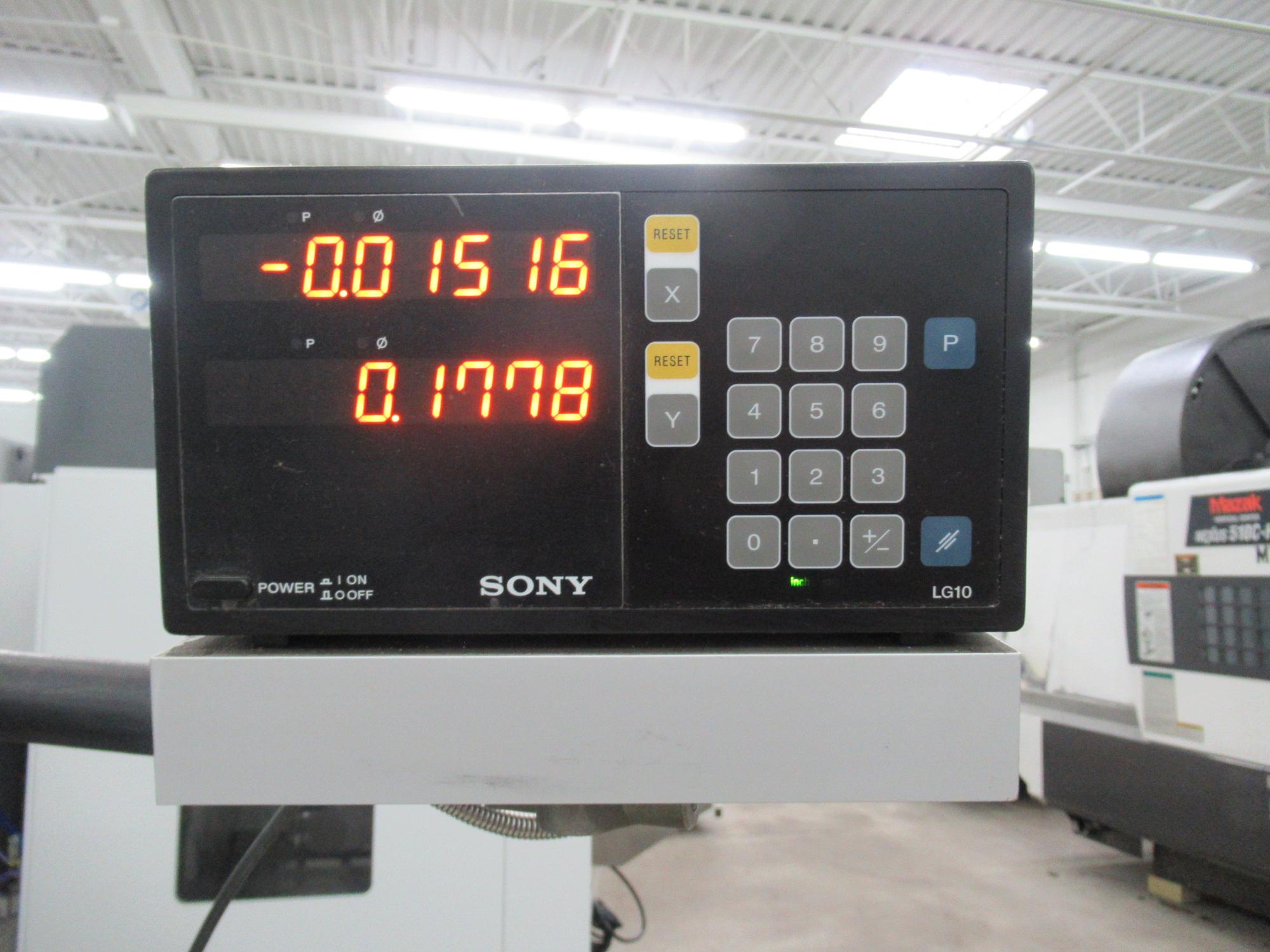

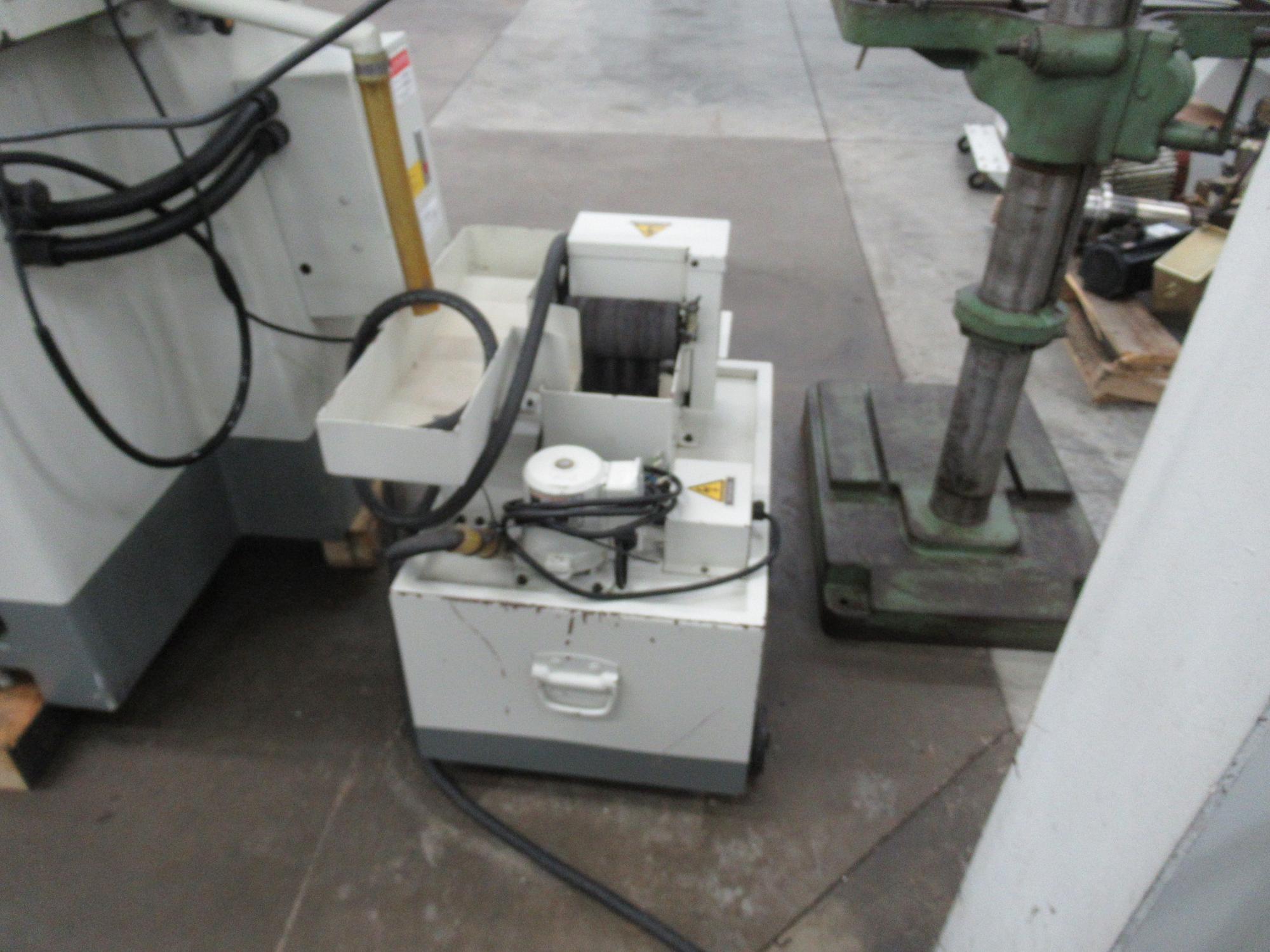

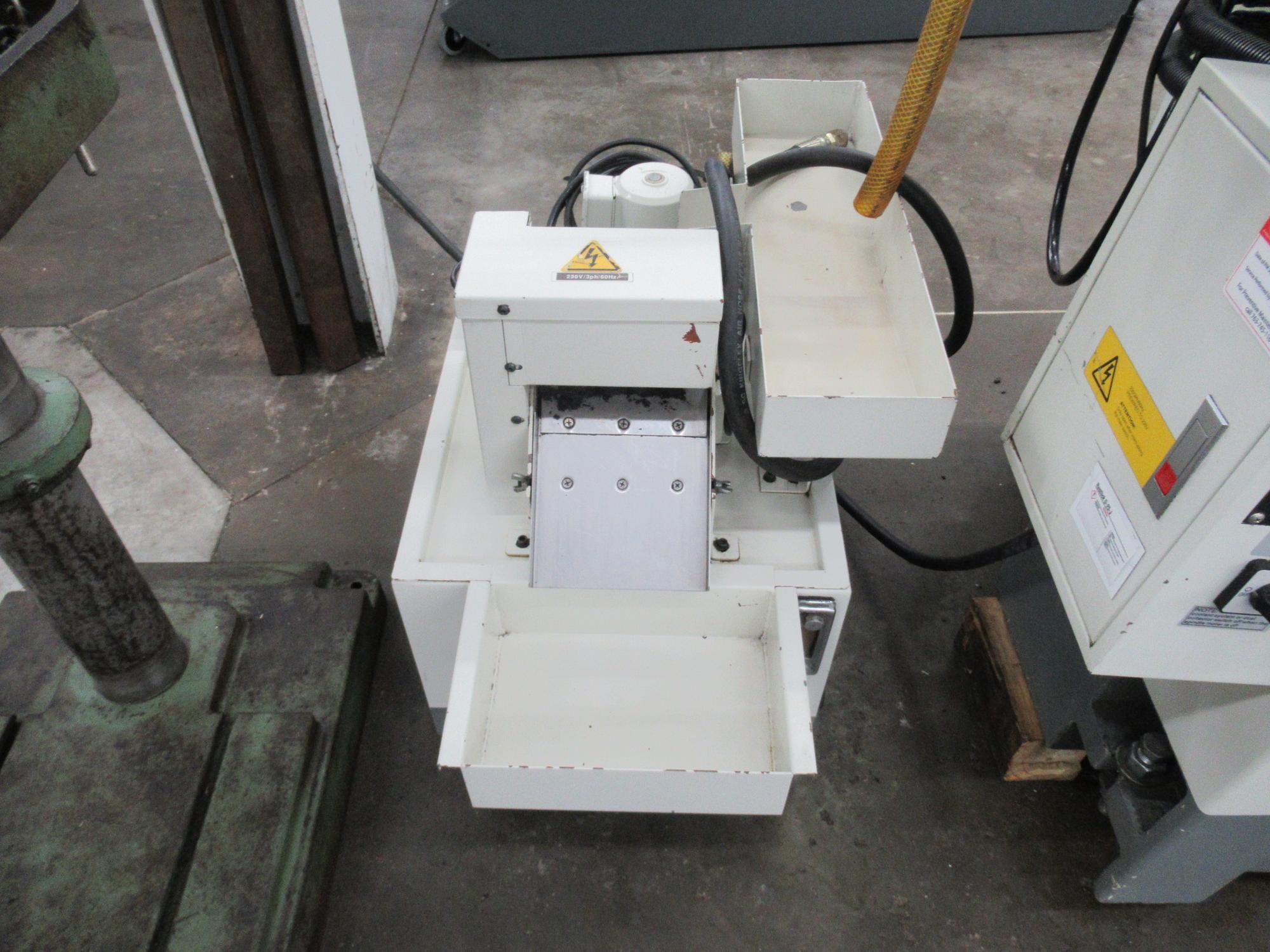

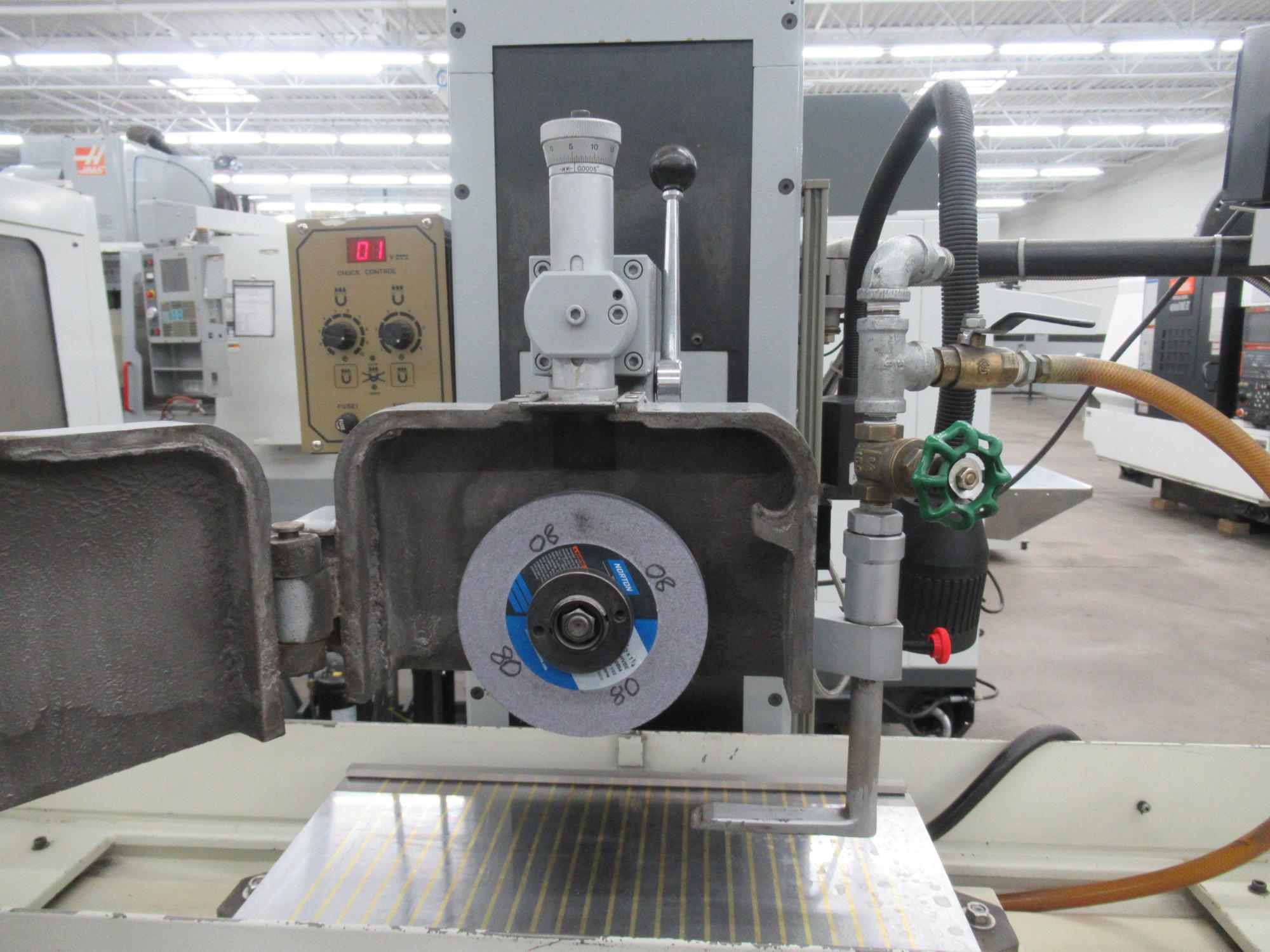

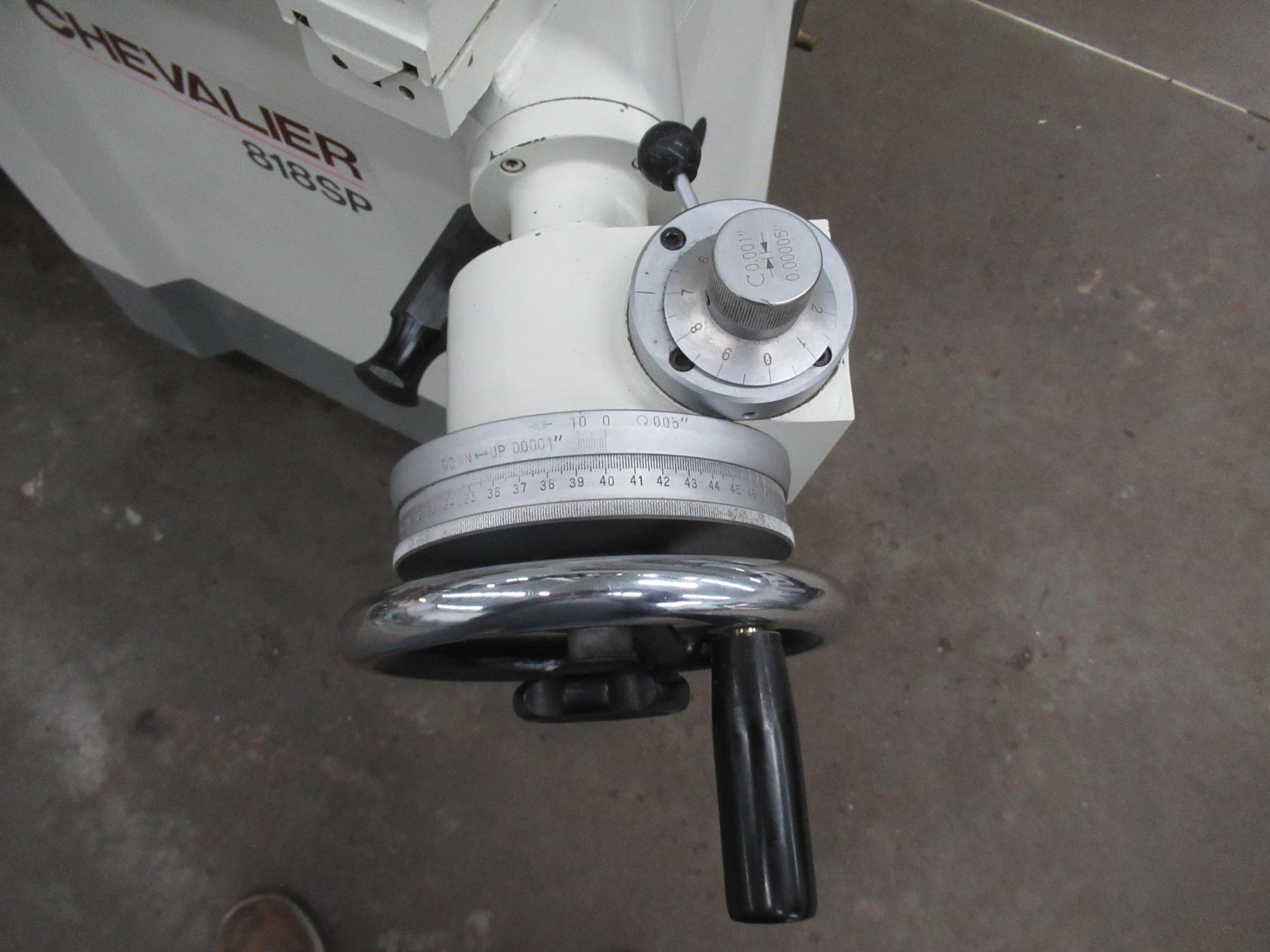

8" x 18" Kanetsu Electromagnetic Chuck w Variable Control, Wheel Hub & Nut and Wrench, Coolant Pump and Tank w Seperator, Sony Model LG10 2-Axis Digital Readout on Cross (0.0000 Resolution) and Down (0.00000 Resolution) Feeds, Vertical Micro Feed Adjustment (.0005 Increment Dial), Manual Over the Wheel Dresser, (3) Machine Pads, Work Light

Electrics:

230 Volt, 3 Phase
