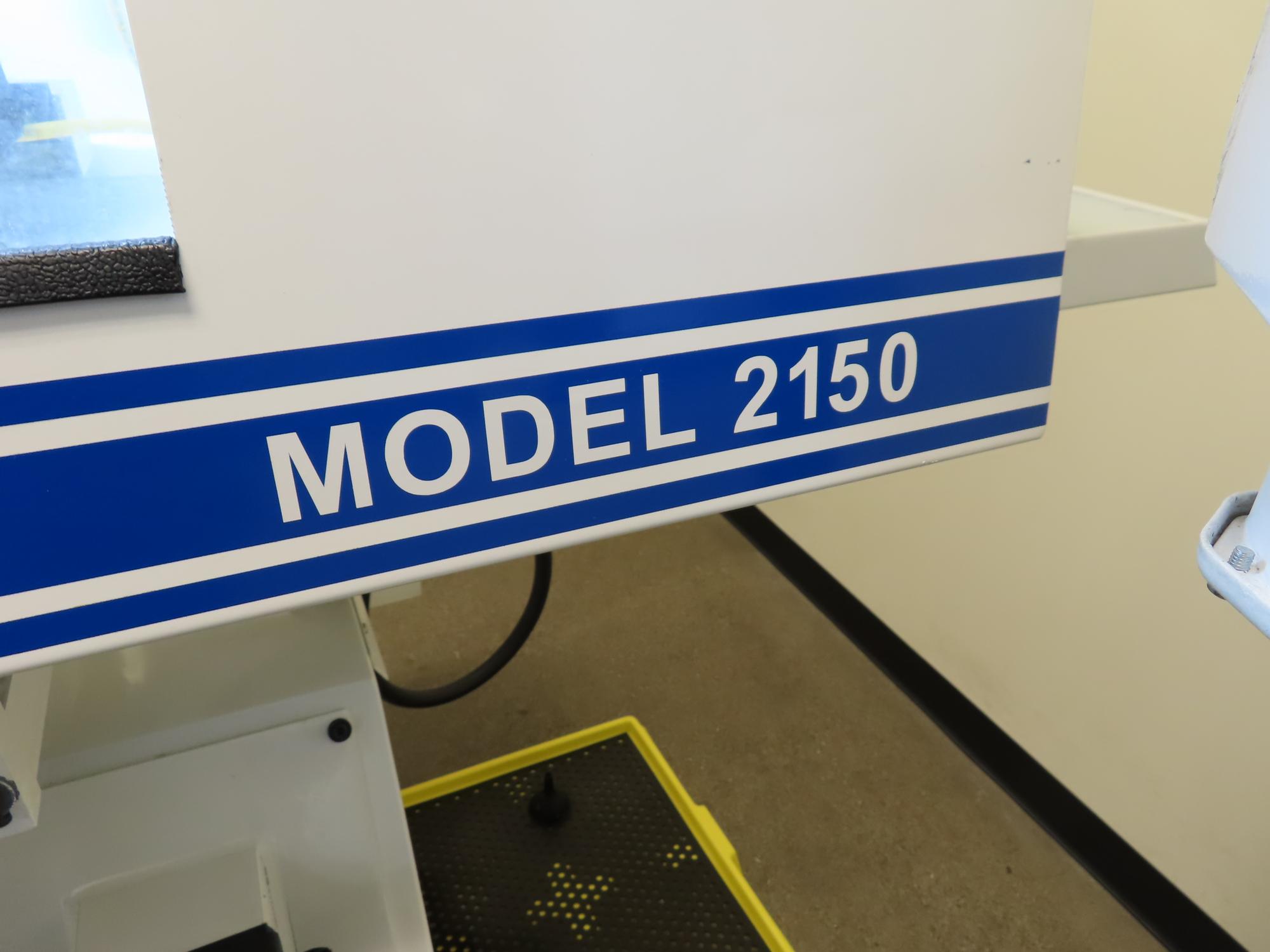

Unison Dedtru Flexible Grinding System Model 2150 CNC Centerless Grinder

Manufacturer

Unison Dedtru

Category

Grinding Machines

Type

GRINDERS, CENTERLESS, CNC

Stock

None

Model

2150

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

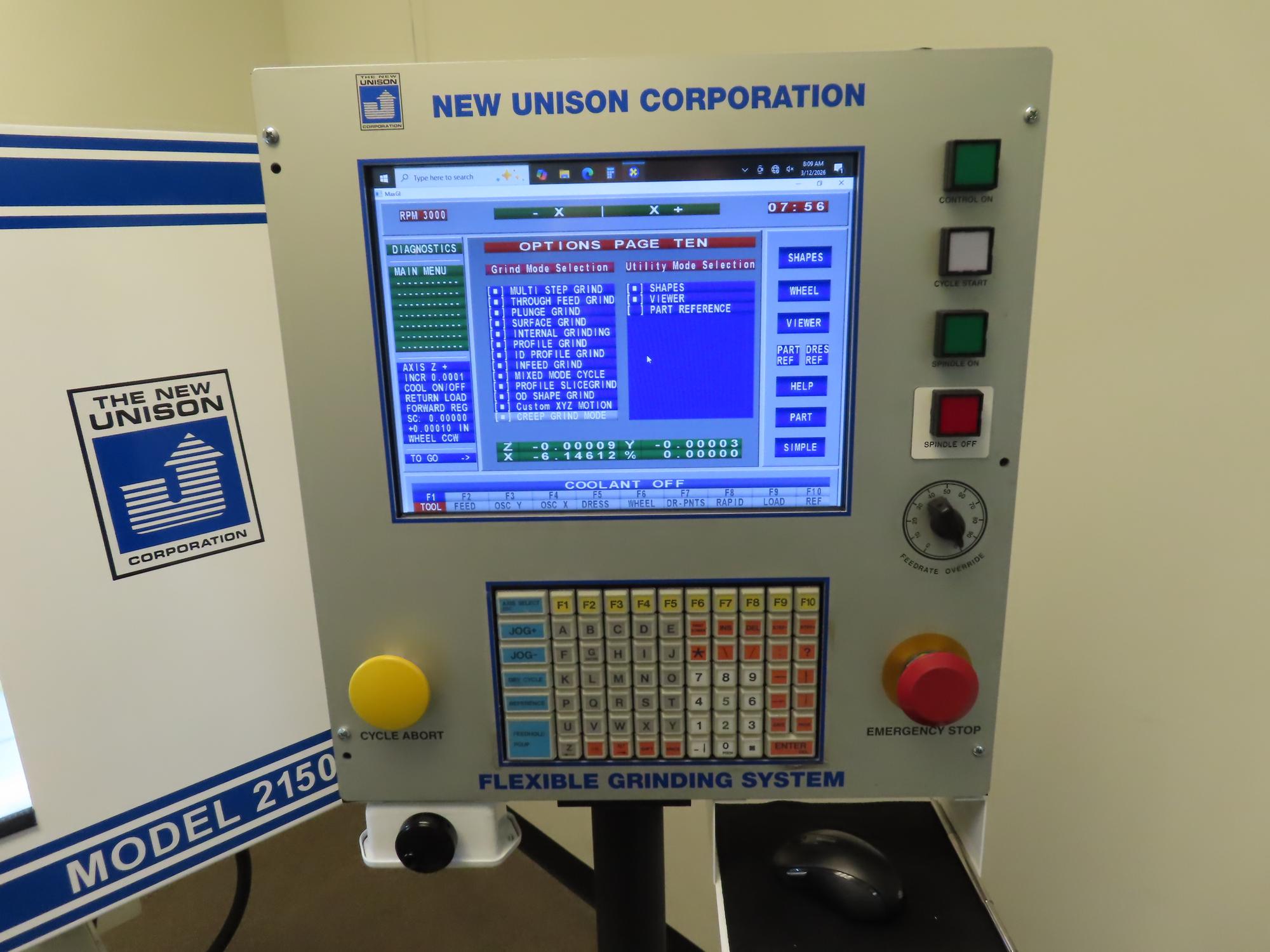

Control: New Unison Corp CNC Touch Screen Control

Longitudinal (X-Axis) Travel: 18"

Cross (Y-Axis) Travel: 5"

Vertical (Z-Axis) Travel: 5"

Max Wheel Diameter: 8"

Max Wheel Width: 1"

XYZ Drive: AC or DC Servo Motor. Precision Ballscrew

Feedback (X): Rotary Encoder .00002" resolution. Closed Loop

Feedback (Y & Z): Glass Scale .00002" resolution. Closed Loop

Feedrates (X & Y): 0-6.0 ips [0-150 mps]. Programmable

Feedrates (Z): 0-3.0 ips [0-75mps]. Programmable

Description:

Unison's CNC DedTru Grinding Systems are constructed on a cast iron base which has been hand scraped to insure the highest level of accuracy. The Model 2150's are designed with a hole through the column housing for easy removal of completed parts as well as allows for the grinding of longer parts. All Model 2150's are constructed with precision ballscrews to increase both the accuracy and longevity of our machines. A closed loop positioning system is standard on all our FGS (Flexible Grinding System) machines which provide feedback to the motion control to maintain accuracy at all times. Over the years, as the machine's components wear, this system automatically compensates for such wear allowing you to consistently grind accurate parts. Our FGS machines have the capability to dress grinding wheels on the machine with a wide range of dressing options and, as an added benefit, our software automatically compensates as the grinding wheel wears. The software also allows you to dress forms in the grinding wheel using a Single Point Diamond, Dual Point Diamond and/or Electric Roll Dresser. Unison's software is easy to learn and a complete package is installed on every machine which allows our customers to use the Model 2150's for additional applications at a later date without incurring any further software charges. Our software package is highly versatile and includes applications for ID Grinding, ID Profile Grinding, Surface Profile Grinding, Plunge Grinding, Mulitistep Grinding, OD Profile Grinding, Throughfeed Grinding, Standard Surface Grinding and the ability to mix these modes in one cycle start.

Equipped With:

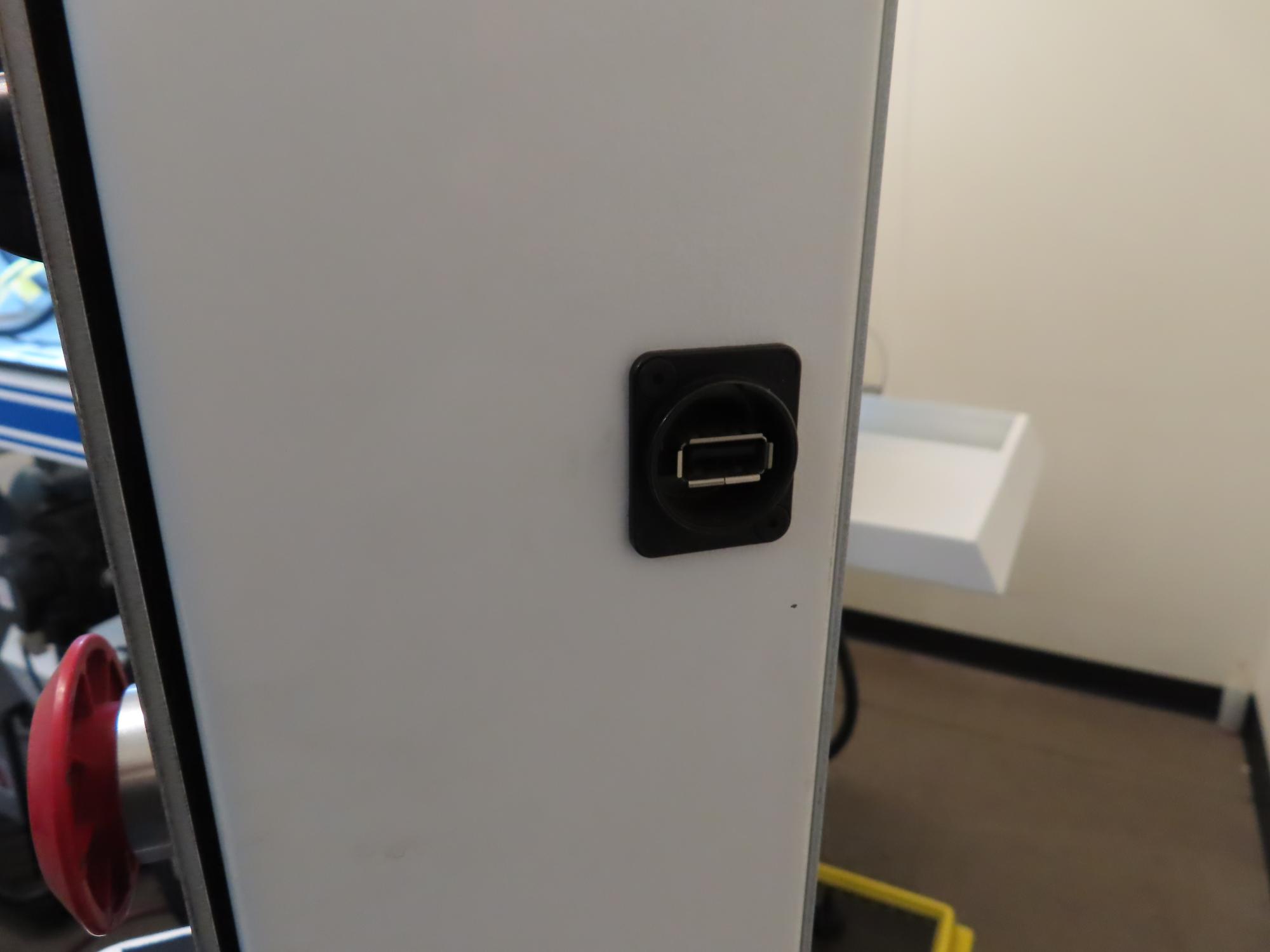

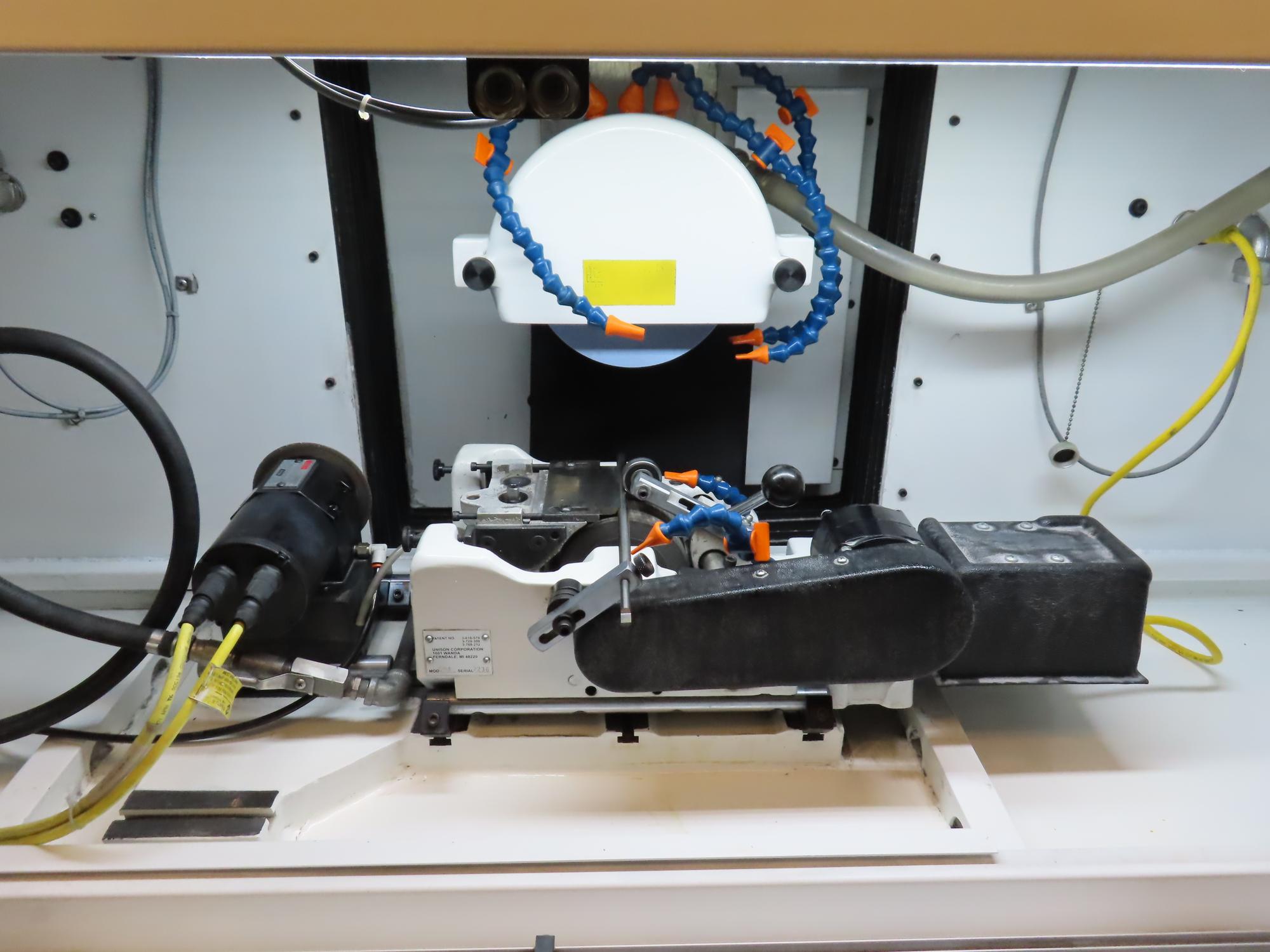

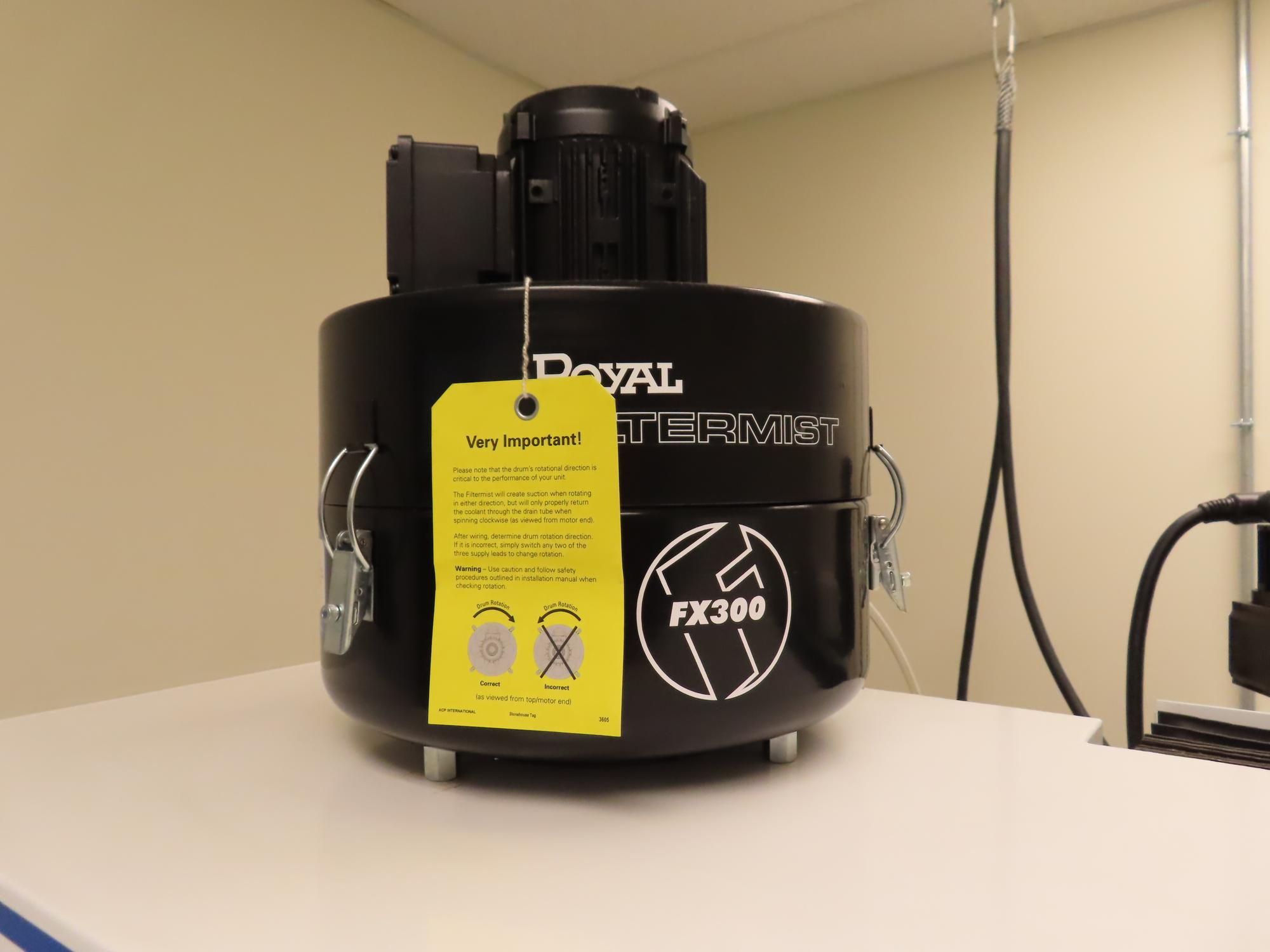

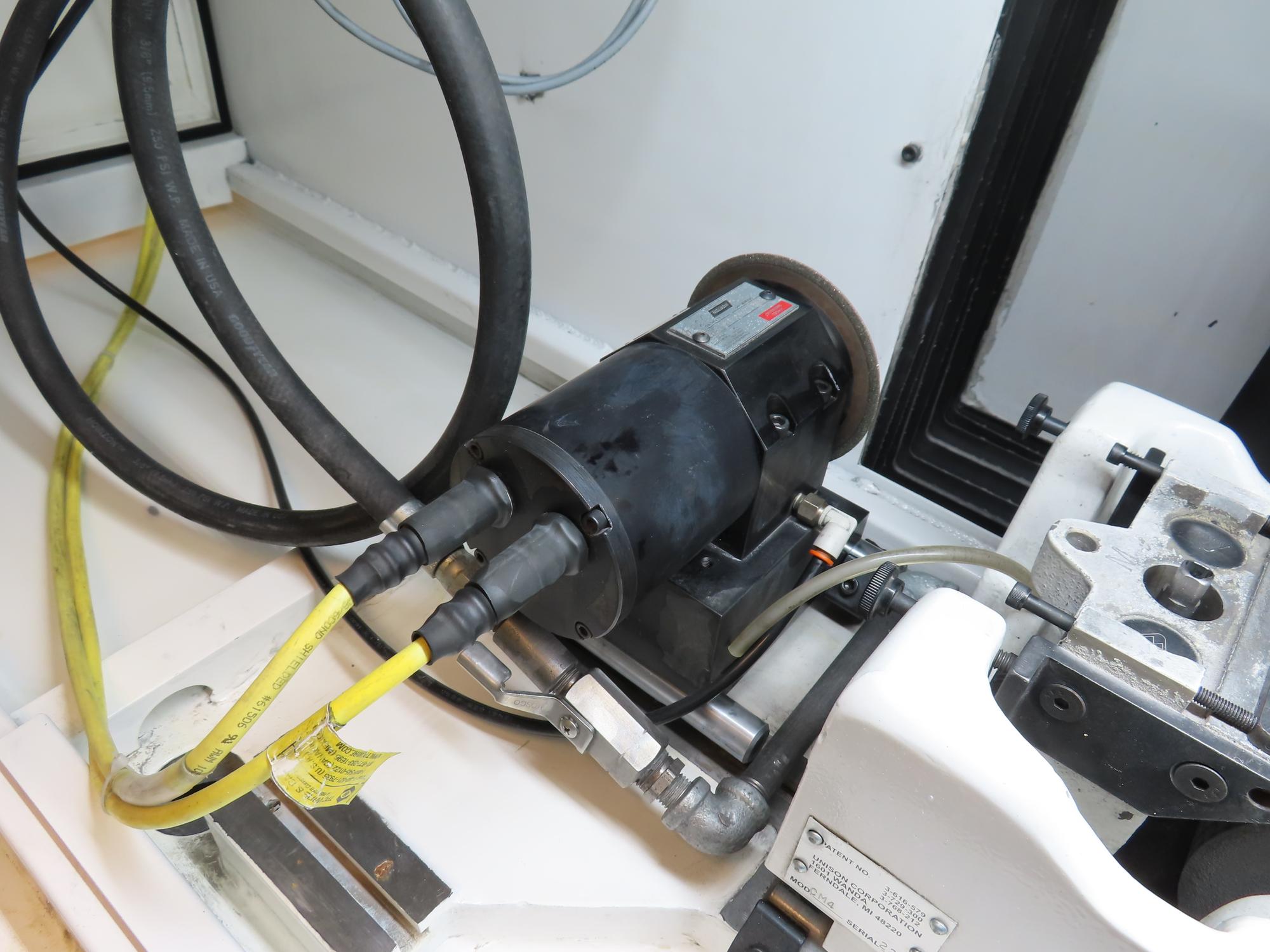

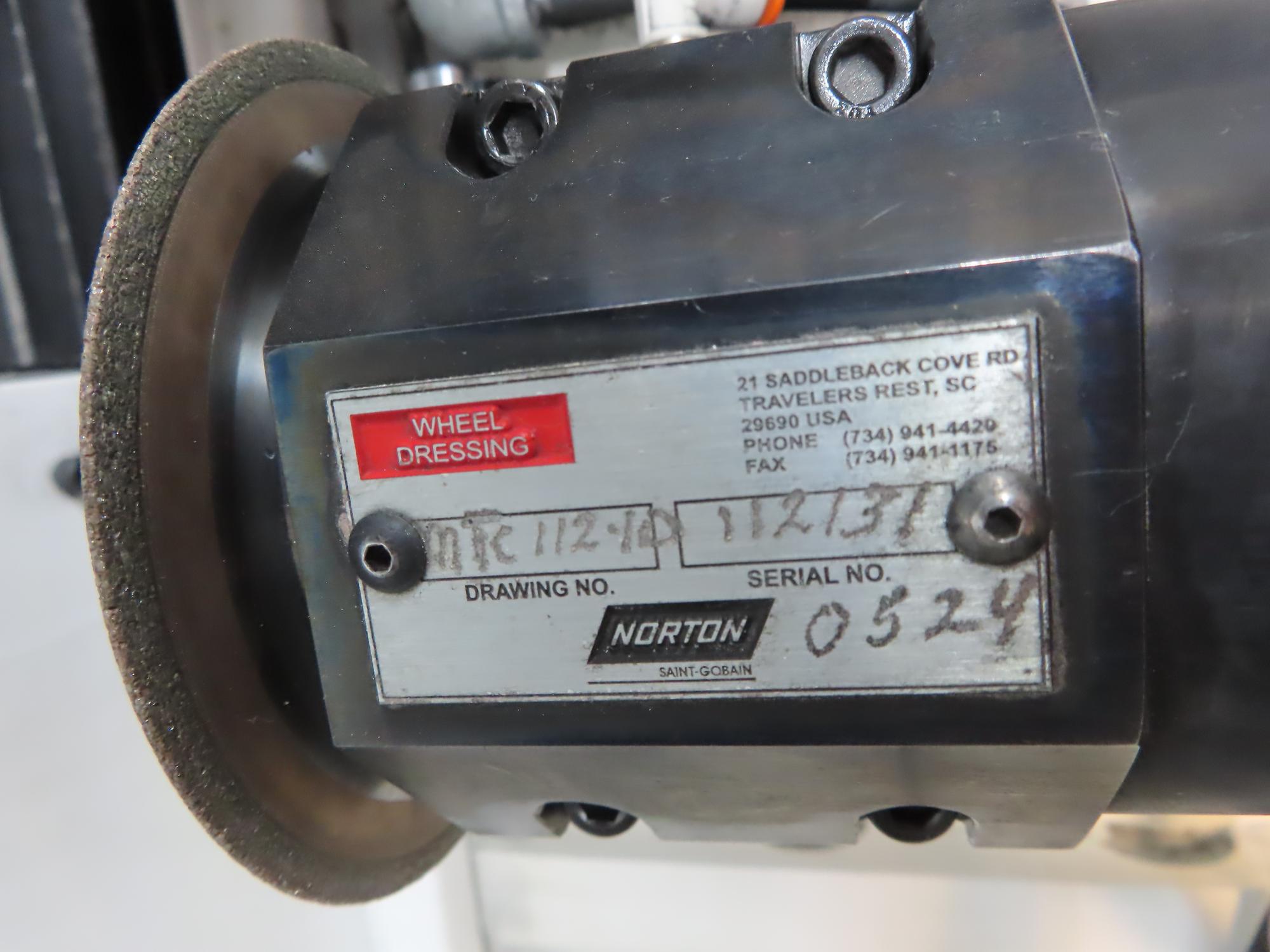

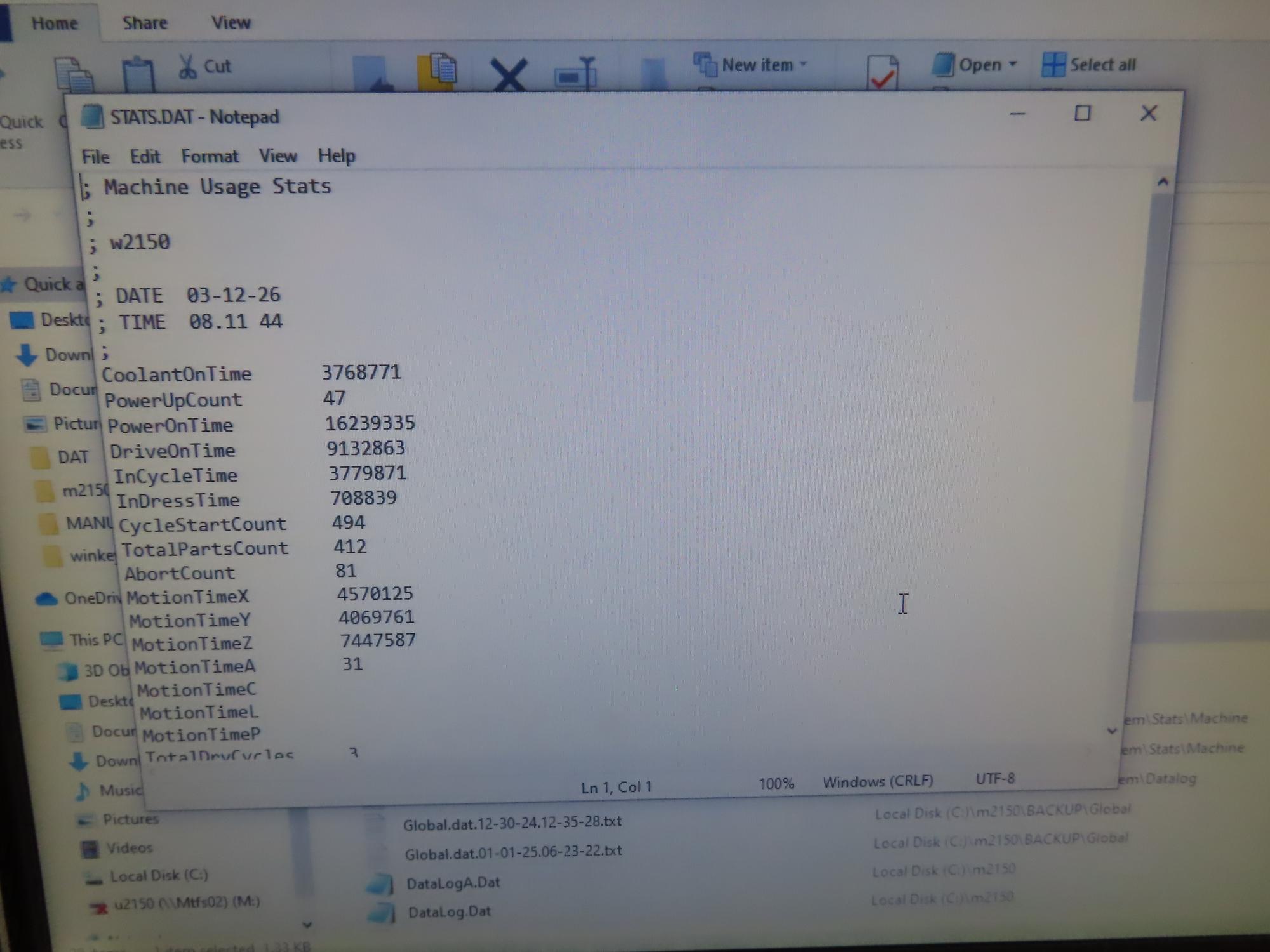

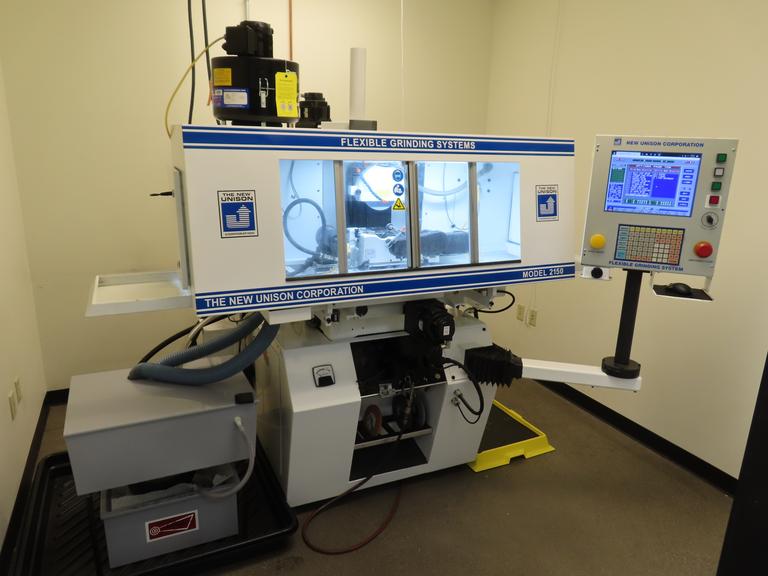

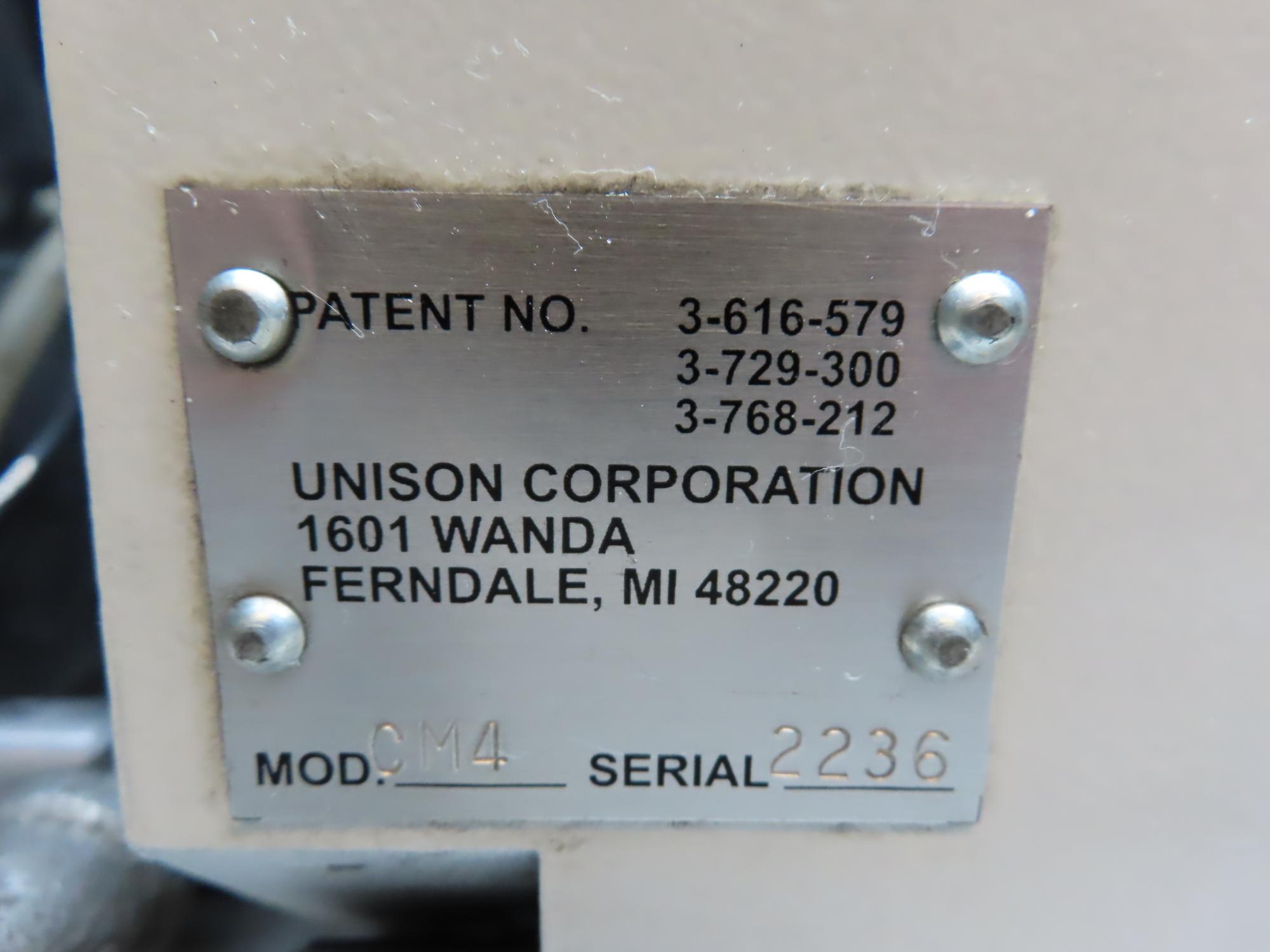

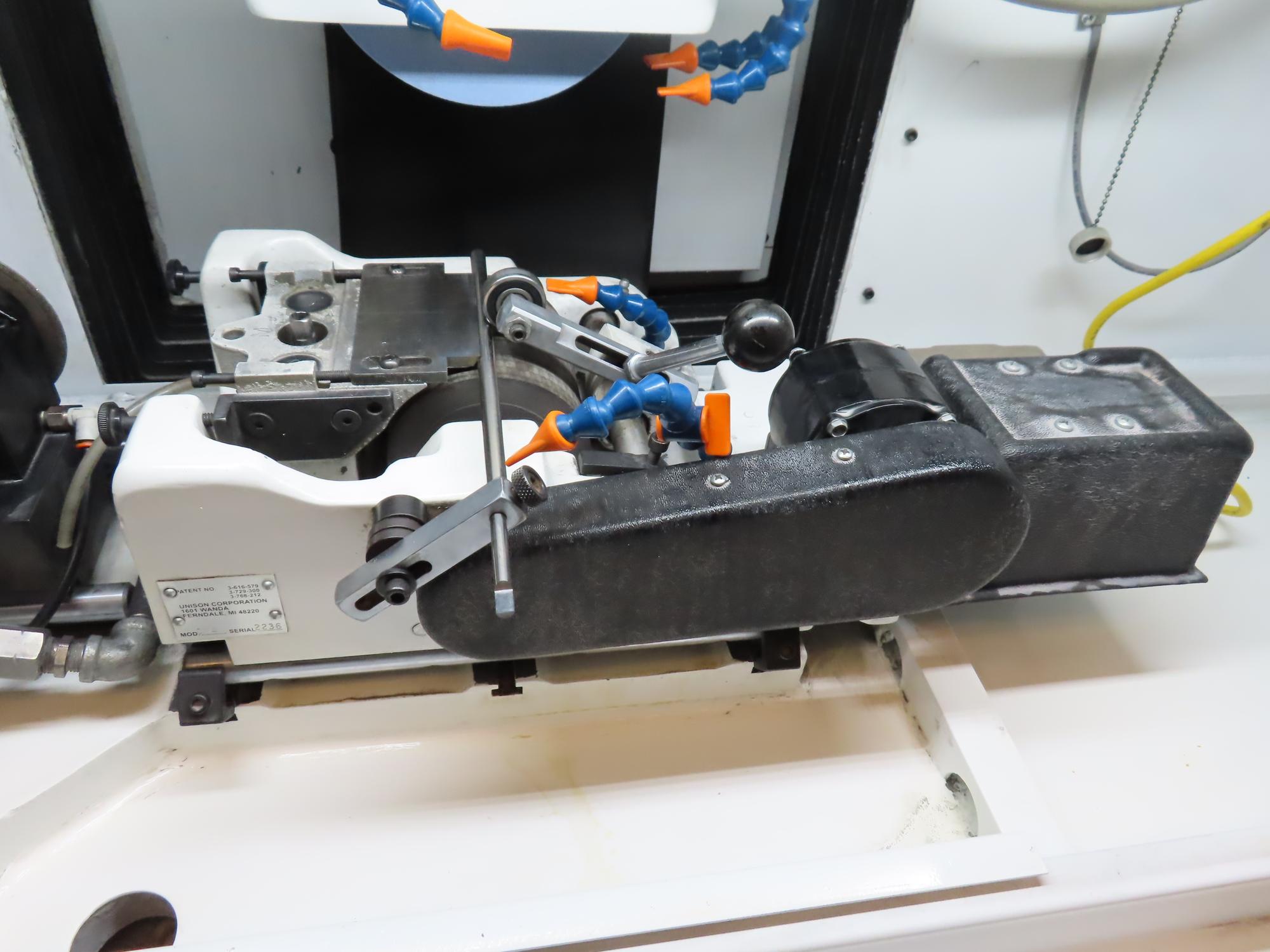

New Unison Corp CNC Touch Screen Control, DedTru Model C (CM4) Centerless Grinding Fixutre (serial number: 2236), Rotary Profile Dresser, Blades and Guides Set, Regulating Roll Dresser, Wheel Balancing Stand and Arbor, Royal Filtermist FX300 Mist/Smoke Collector, USB, Approximately 105 InCycle Hours (See pic for usage meter measuring in 1/10 seconds)

Electrics:

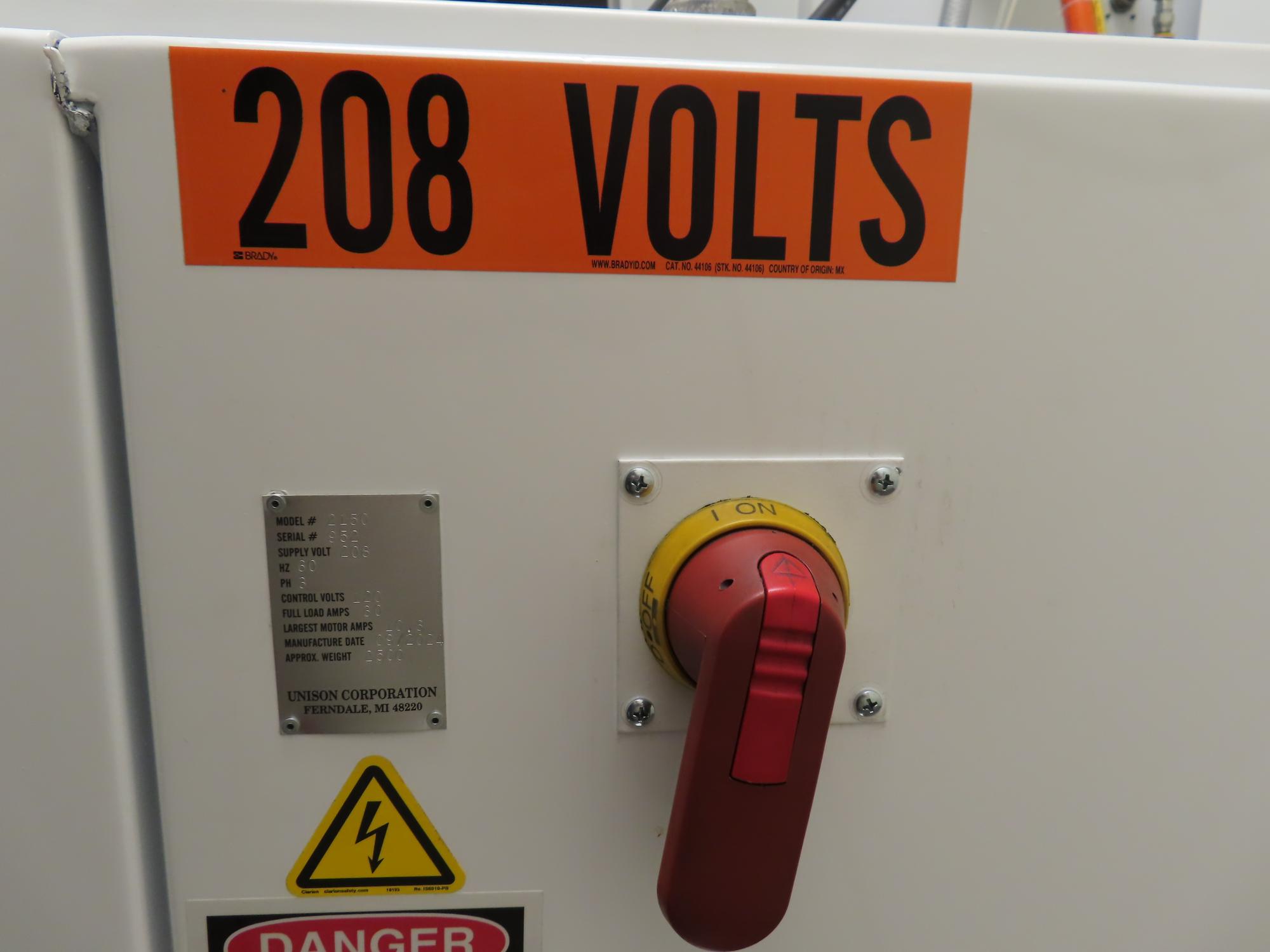

208 Volt, 3 Phase
