2013 Amada HDS 8025NT Servo-Hydraulic Press Brake #8158 #2

Stock

8158

Model

HDS-8025NT

Dealer Location

California

Spec Sheet

Overview

Manufacturer:
AMADA
Model:
HDS-8025NT
Year:
2013
Stock #:
8158
Status:
For Sale
Serial #:
82530749
Country:
United States

Description

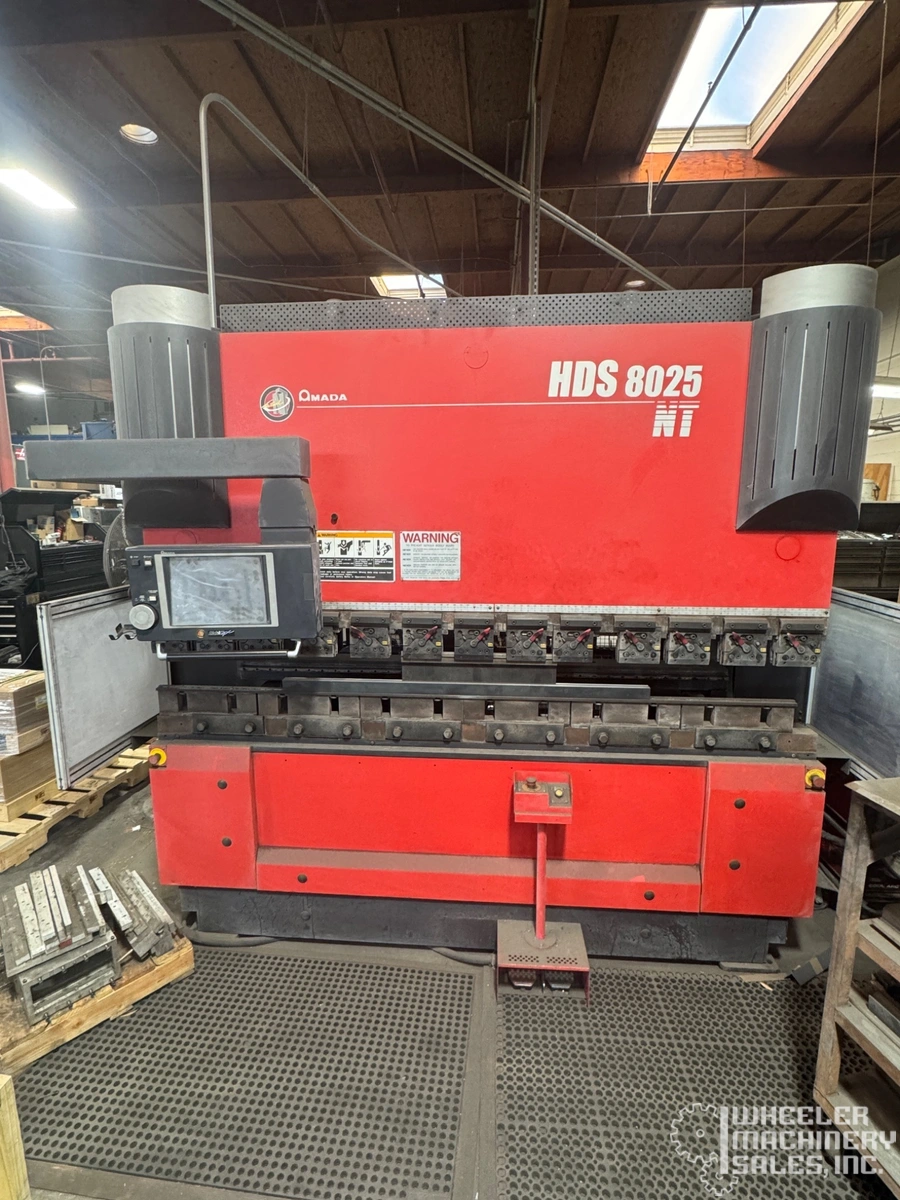

2013 Amada HDS 8025NT Servo-Hydraulic Press Brake, used. 80-ton CNC with 2,500 mm length, 8-axis control, AMNC-PC controls, and a 5-axis backgauge. Features fast speeds and hybrid drive system. Compact dimensions at 161" x 89" x 107", 14,770 lbs.

2013 Amada HDS 8025NT Servo-Hydraulic Press Brake #8158 #2

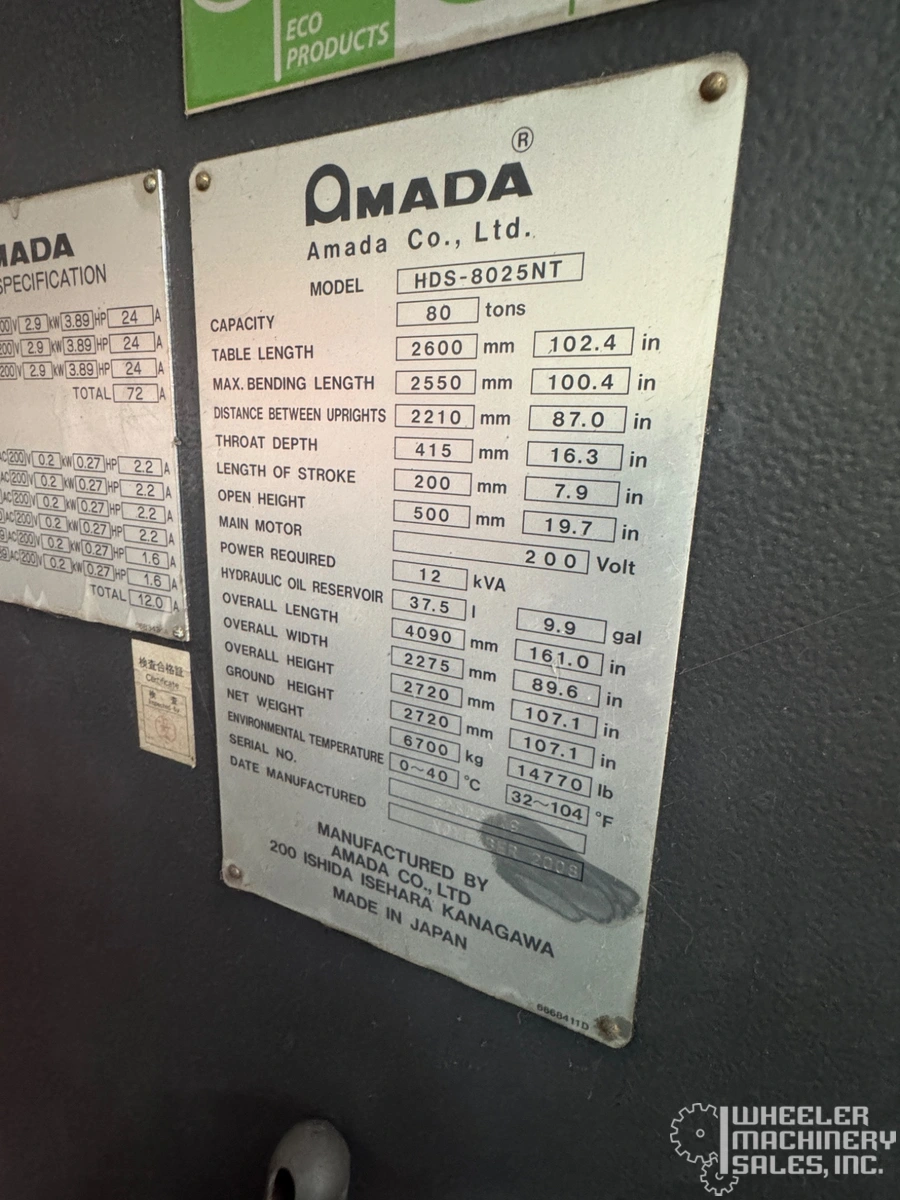

GENERAL SPECIFICATIONS
Table Length: 102.4”
Maximum Bending Length: 100.4”
Distance Between Housings: 8”
Throat Depth: 16.3”
Length of Stroke: 7.9”
Open Height: 19.7”
Backgage Travels: 7.55”
Fast Approach Speed: 472 IPM
Slow Bend: 47 IPM
Fast Return: 474 IPM
Approximate Dimensions: 161” X 89” X 107” H
Approximate Weight: 14,770 Lbs

EQUIPPED WITH:

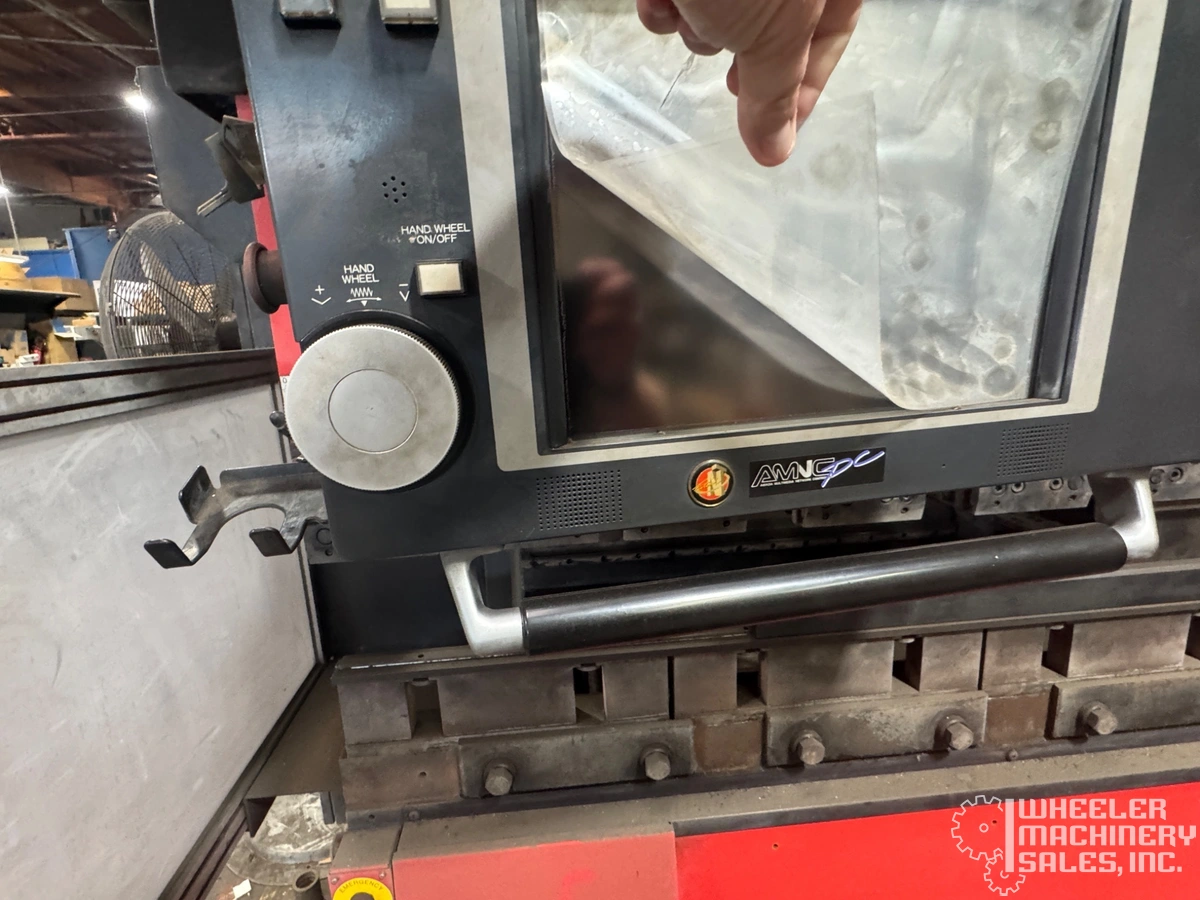

AMNC-PC Controls
5 - Axis Backgauge with 4 Input Methods (2-D Graphics Mode, Angle Mode Depth Mode and 3-D Mode)
Hybrid Drive System Incorporating AC Servo Motor & High-Efficiency Pump System

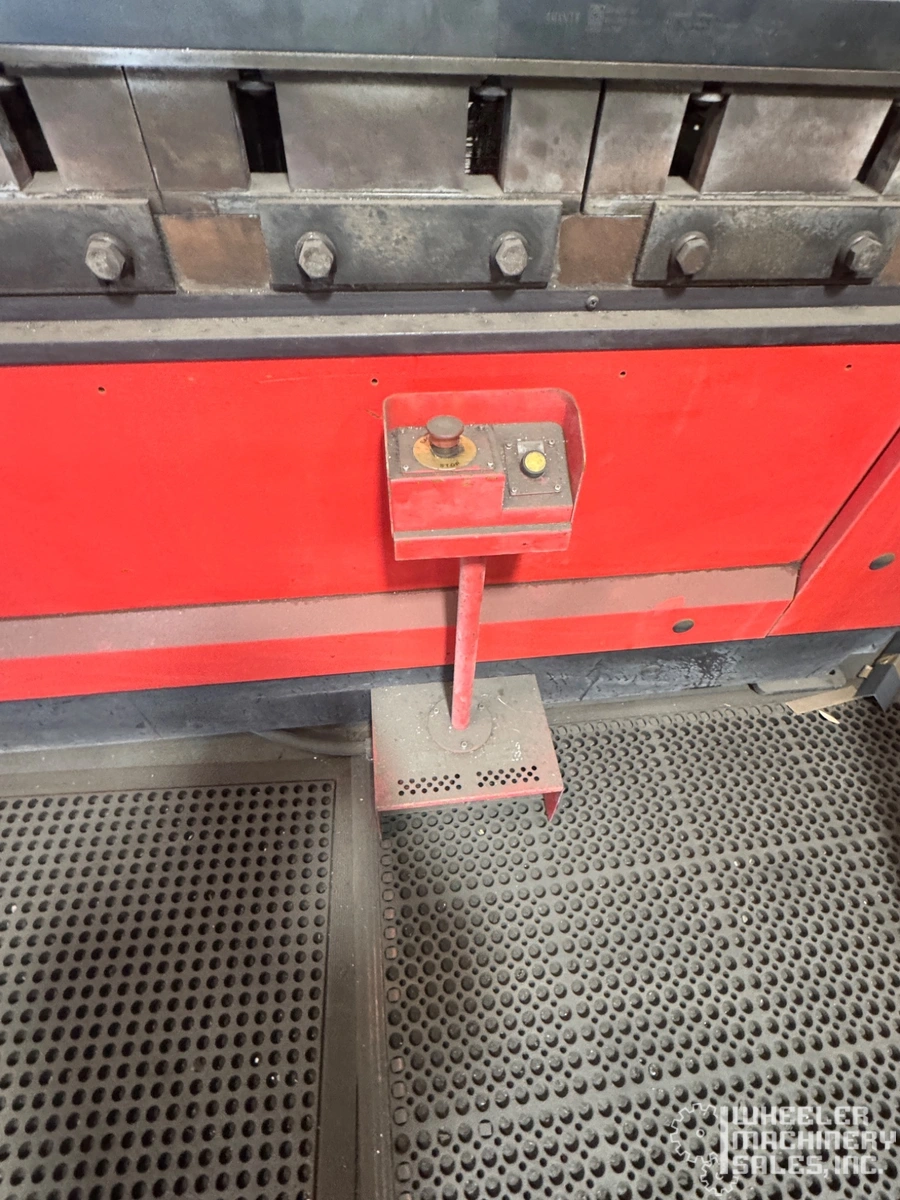

Portable Foot Pedal w/ Emergency Stop and Upper Die Clamps
