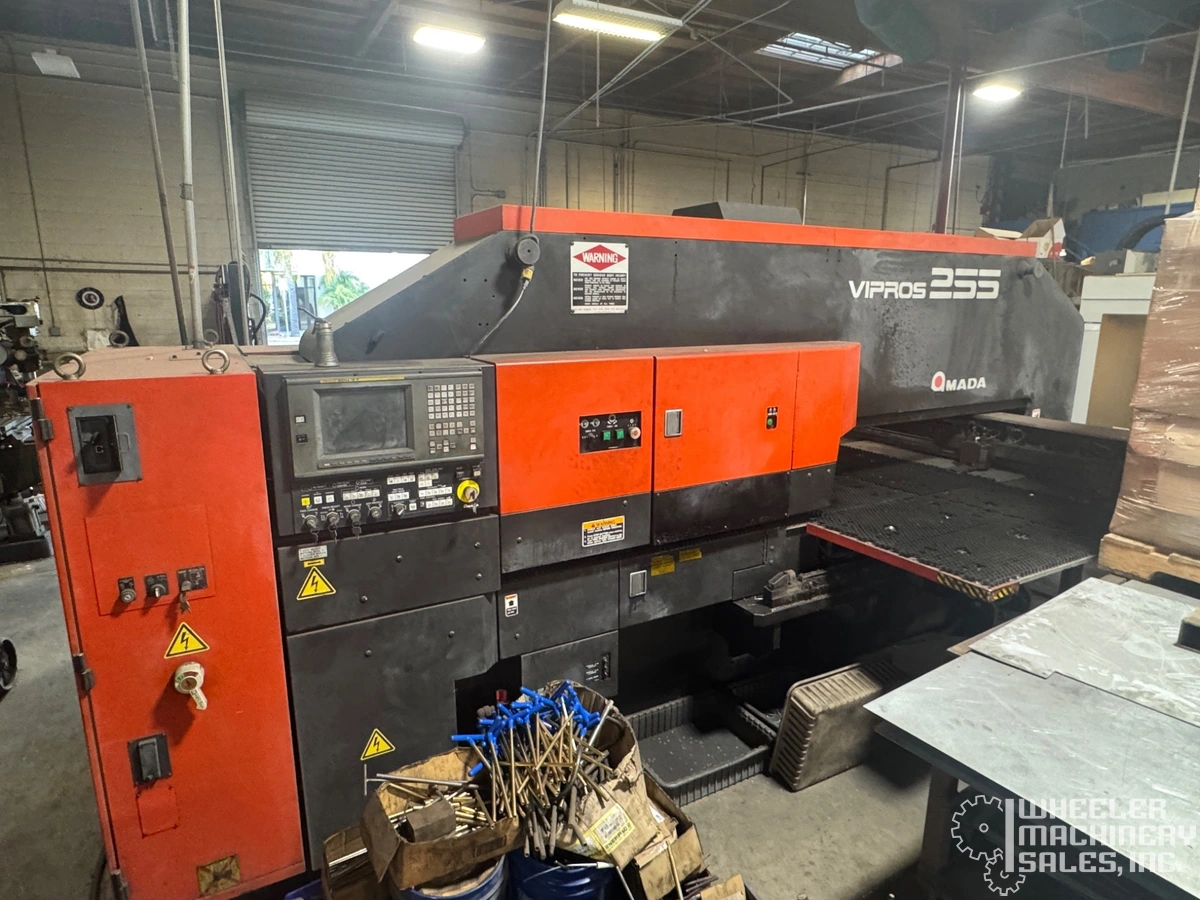

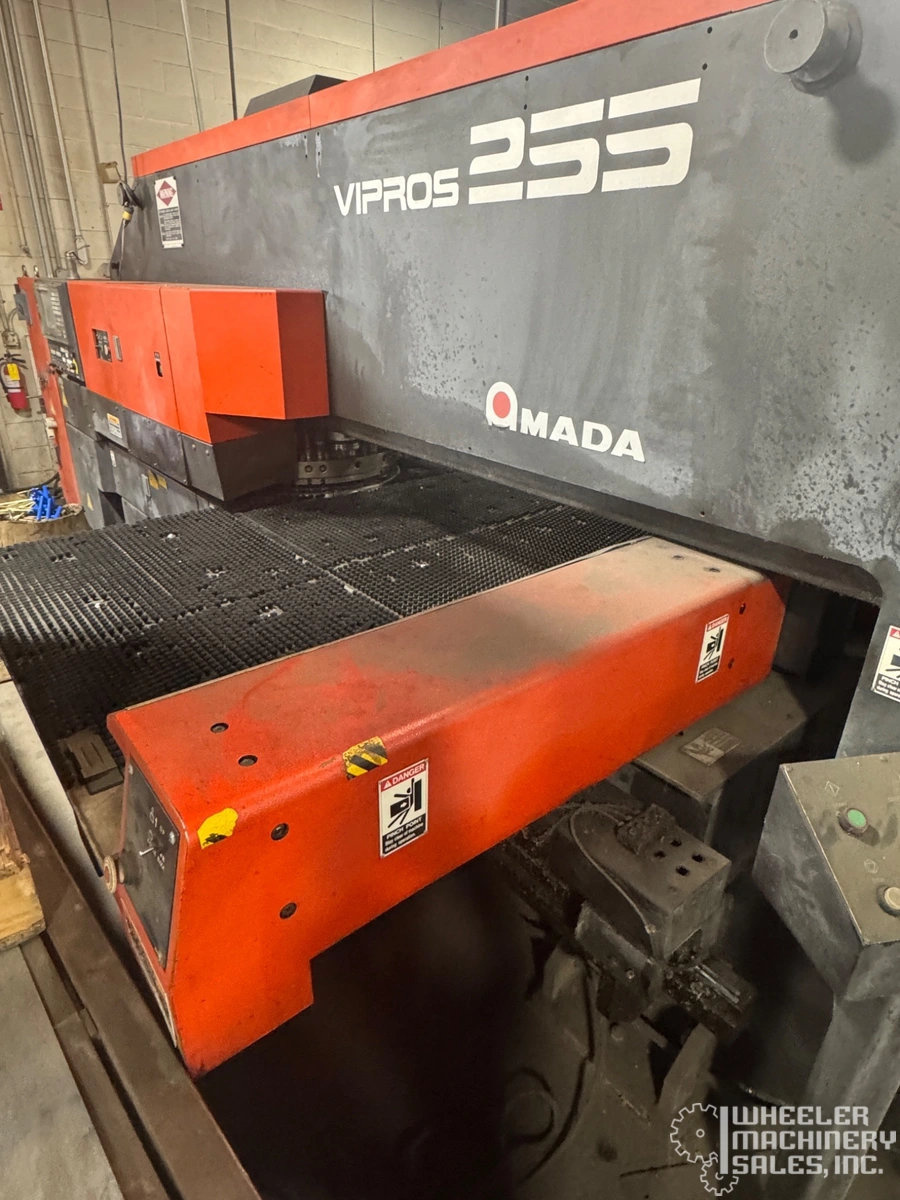

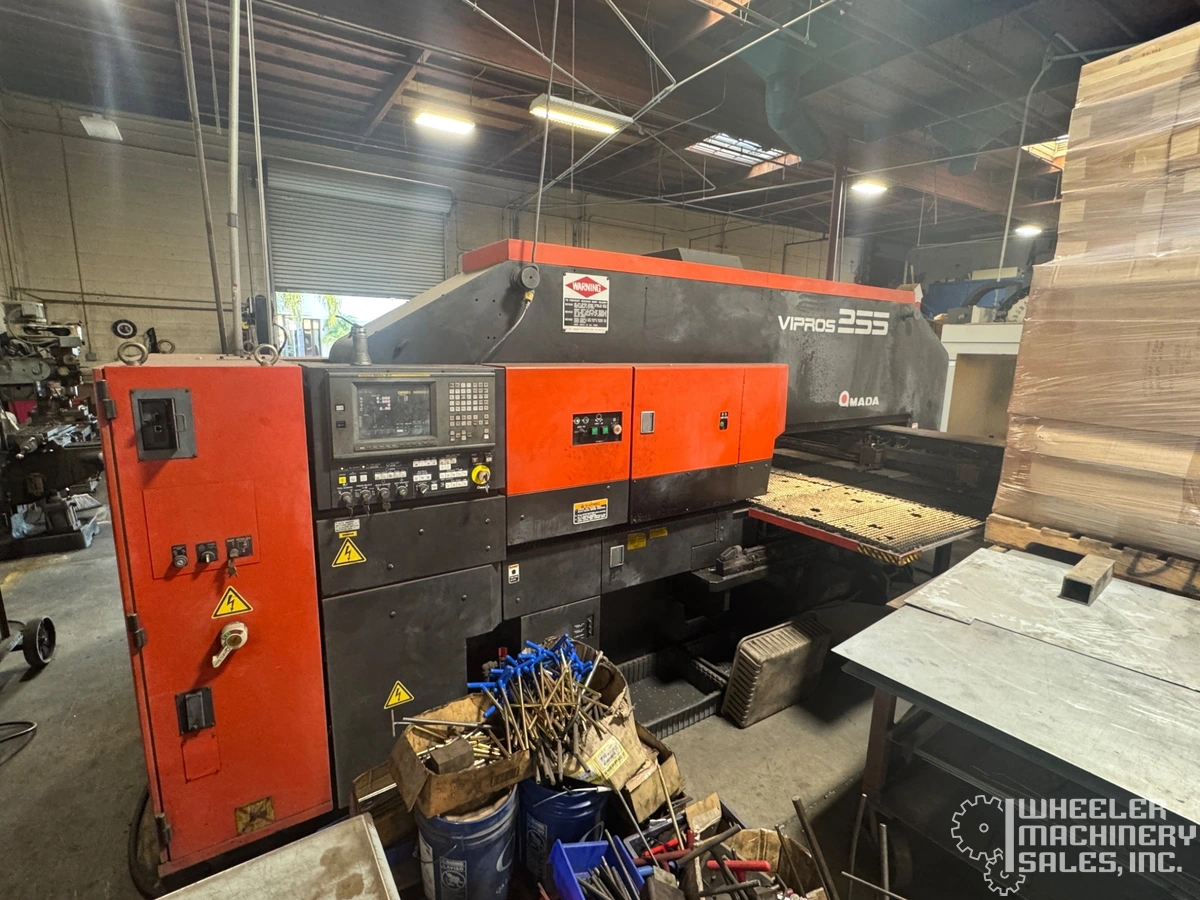

1999 AMADA VIPROS 255 CNC Turret Punch #8159

Manufacturer

AMADA

Category

Punches

Type

PUNCHES, TURRET, CNC (Fms Systems)

Stock

8159

Model

VIPROS 255

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
PUNCHES, TURRET, N/C & CNC
Manufacturer:
AMADA
Model:
VIPROS 255
Year:
1999
Stock #:
8159
Status:
For Sale

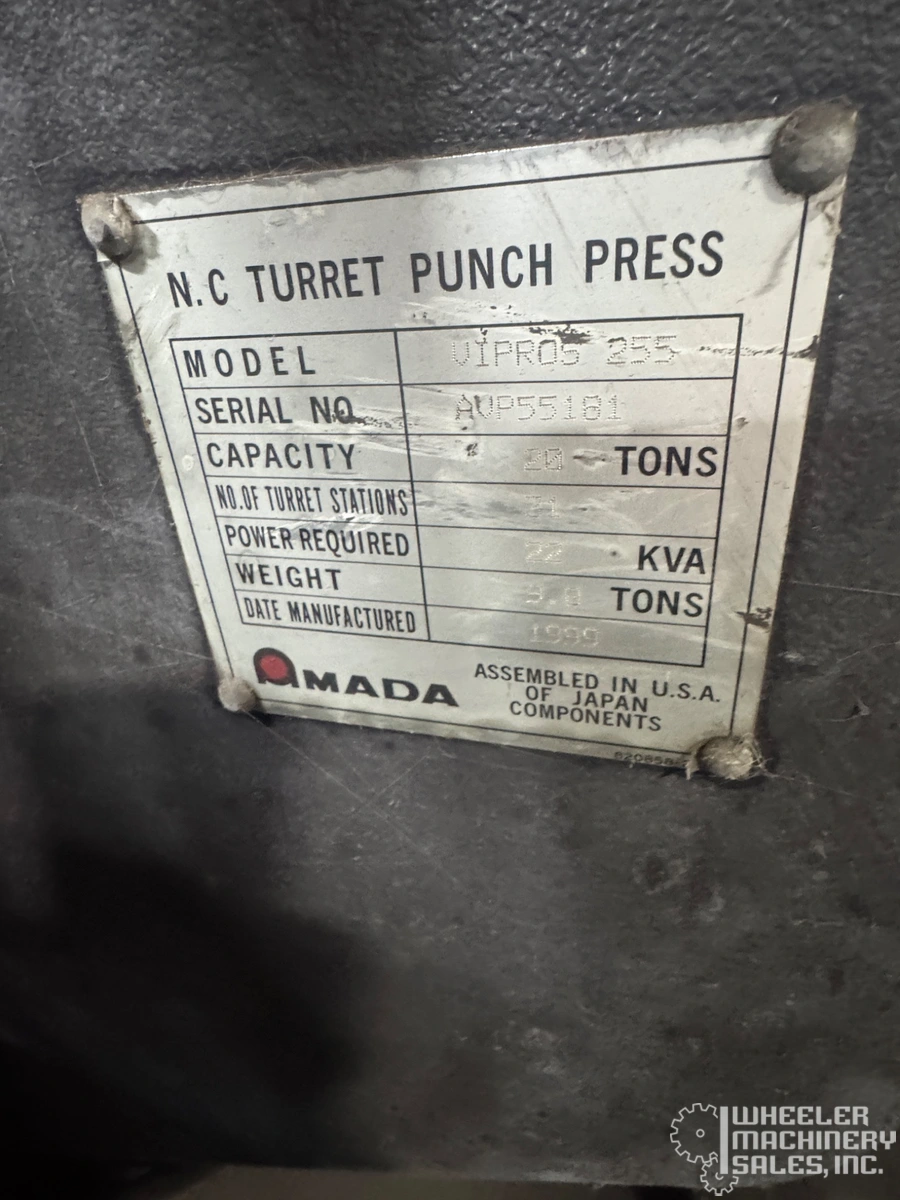

Serial #:
AVP55181
Country:
United States

Description

1999 AMADA VIPROS 255 CNC Turret Punch available. Ideal for precision fabrication tasks, this machine offers reliable performance. Manufactured by AMADA, known for quality and innovation in CNC technology. Perfect for enhancing your production line.

1999 AMADA VIPROS 255 CNC Turret Punch #8159

SPECIFICATIONS:
Sheet Size: 50″ x 50″
Max Hole Diameter: 305″
Number of Turret Stations: 31 w/ 2 A/I
X/Y Hit Rate (.079″ pitch)(.118″ stroke): 720/510 HPM
X/Y Hits per Min. 1″ centers (.315″ stroke): 340/280 HPM
Capacity: 22 Tons
Max Forming: 1/2″ Flange

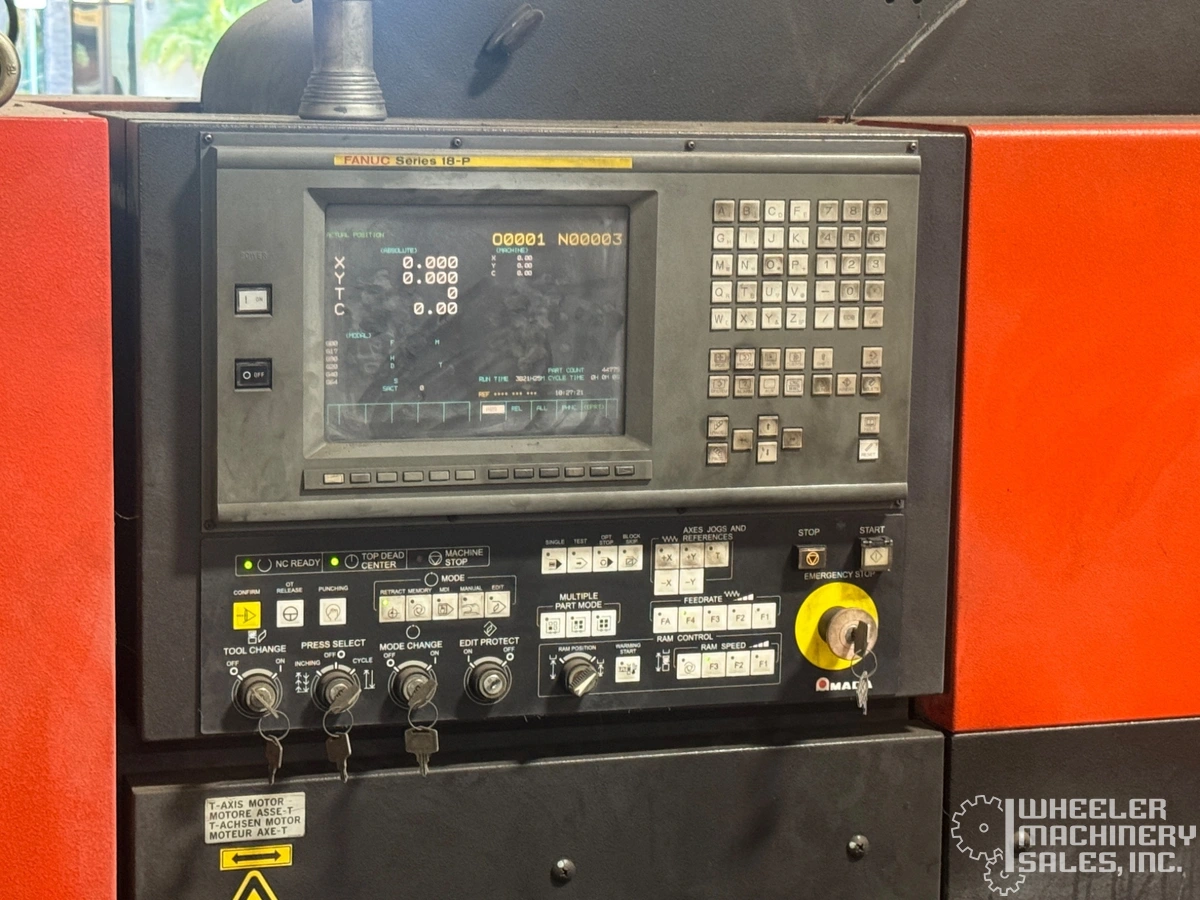

Control Model: Fanuc 18P
Drive Motors: AC Servo
Linear Positioning Speed: 3229 IPM
Smallest Programmable Increment: .001″
Power Requirements: 230/460/60/3 Phase

EQUIPPED WITH:

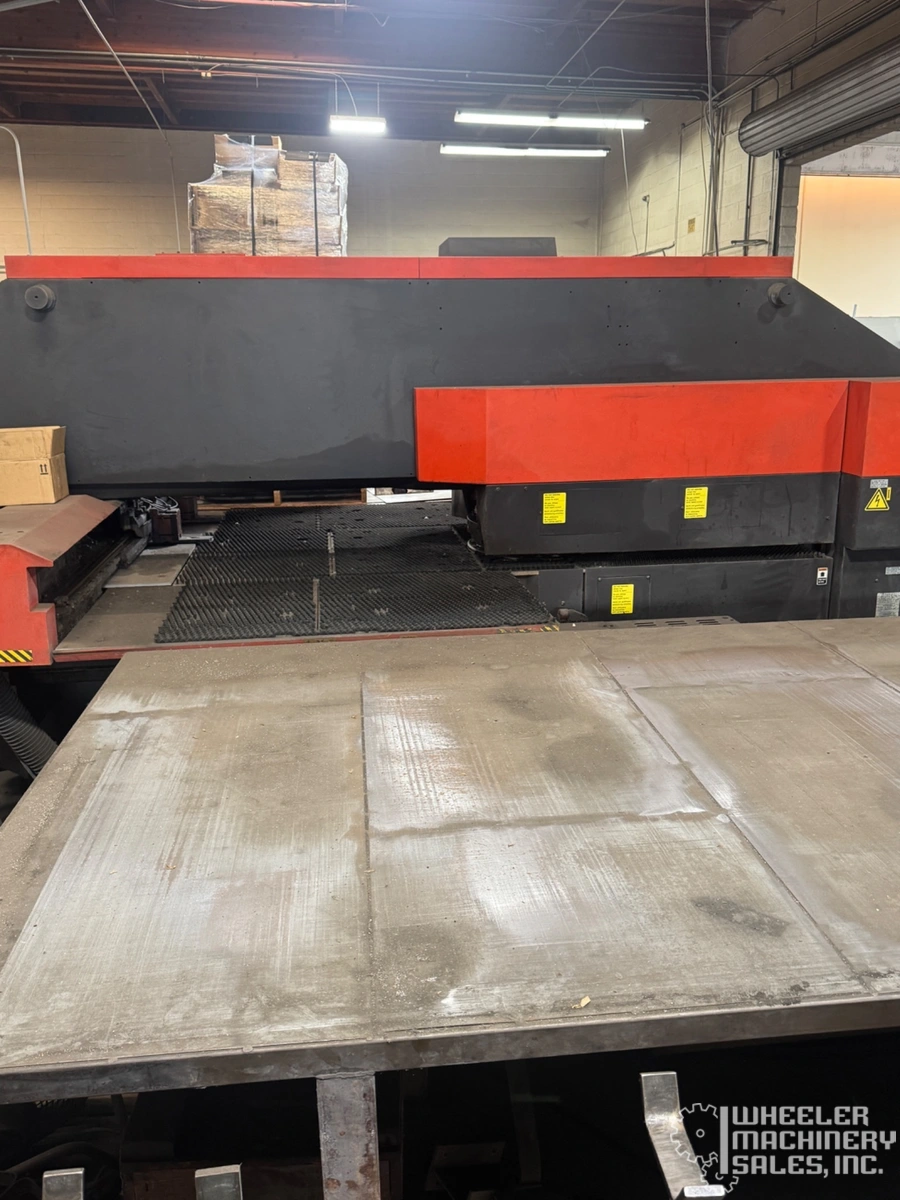

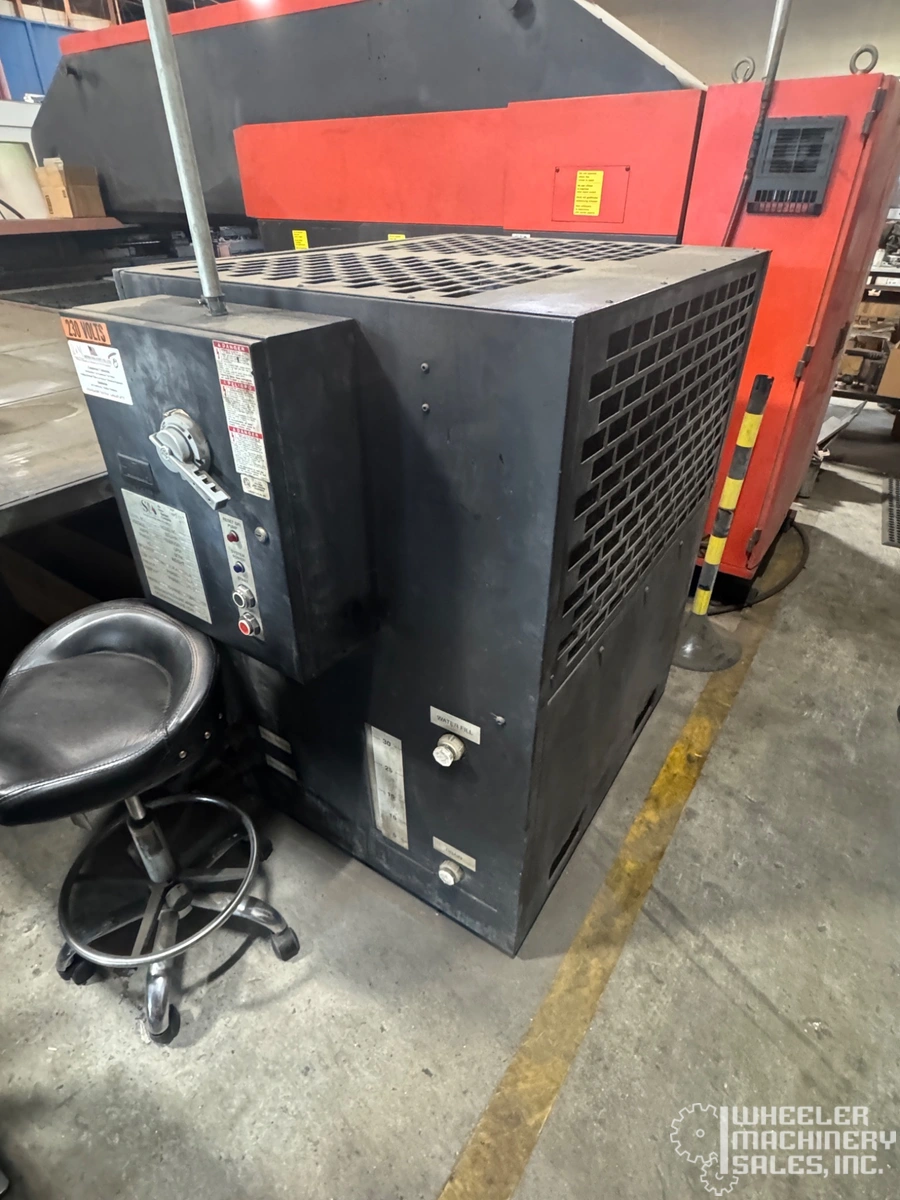

Built-in Microprocessor – Standard software included for programming a comprehensive set of patterns used in punching, nibbling, and notching operations. Diagnostic System – Extensive diagnostic system indicates programming errors and pinpoints machine and control malfunctions. Stripping Sensor – Automatically halts machine operation if tool does not strip. Automatic Repositioning – Heavy duty work holders secure material during repositioning. Hydraulic Drive System – Adjustable Stroke. Metric or inch dimensional programming. Precision ground recirculating ball lead screws for X and Y Axis. Crash proof clamp sensors. Hardened and ground turret index pins and bushings. Safety interlocks and overrun protectors with all step control prevents accidents. 31 station turret for thick tooling. (2 Auto Index Stations). Fanuc 18P control with software for pattern forming, beading, extruding and embossing with dwell cycle program at bottom of stroke. Adj. Forming Capabilities. Variable Ram stroke patterns for maintaining 75 dba in thick material. Air Blow / Oil Mist System For Tool. Brush Table.
