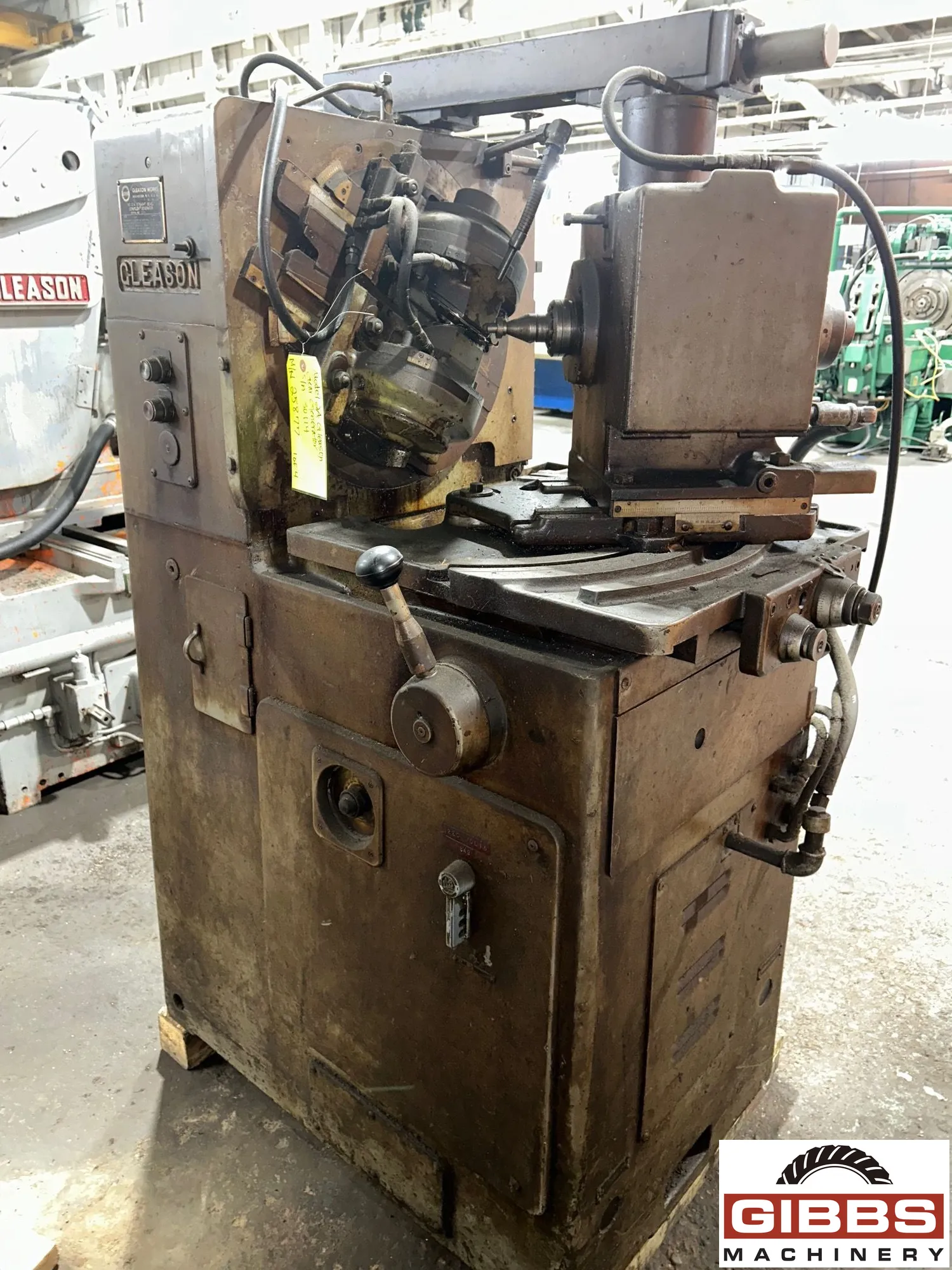

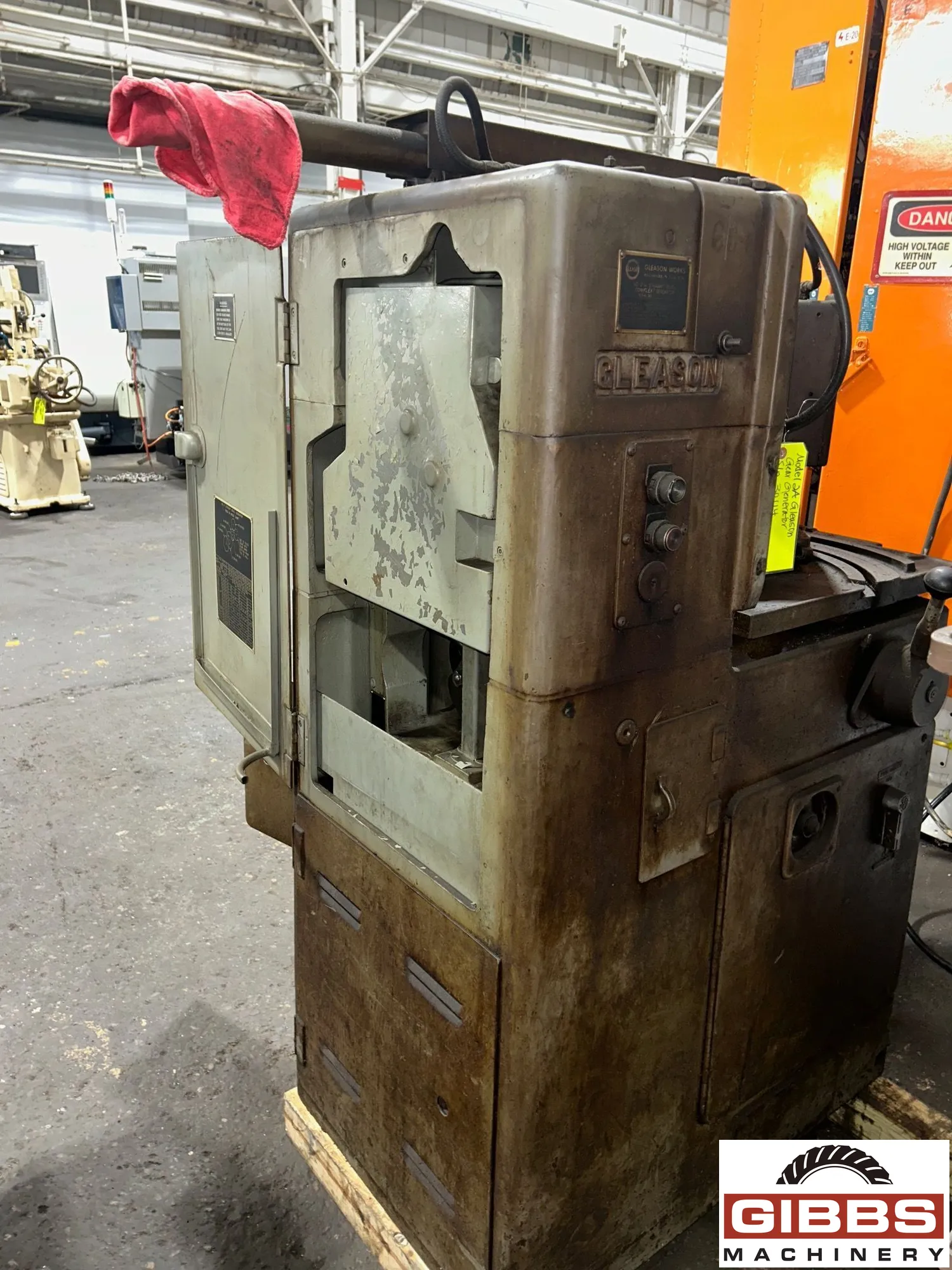

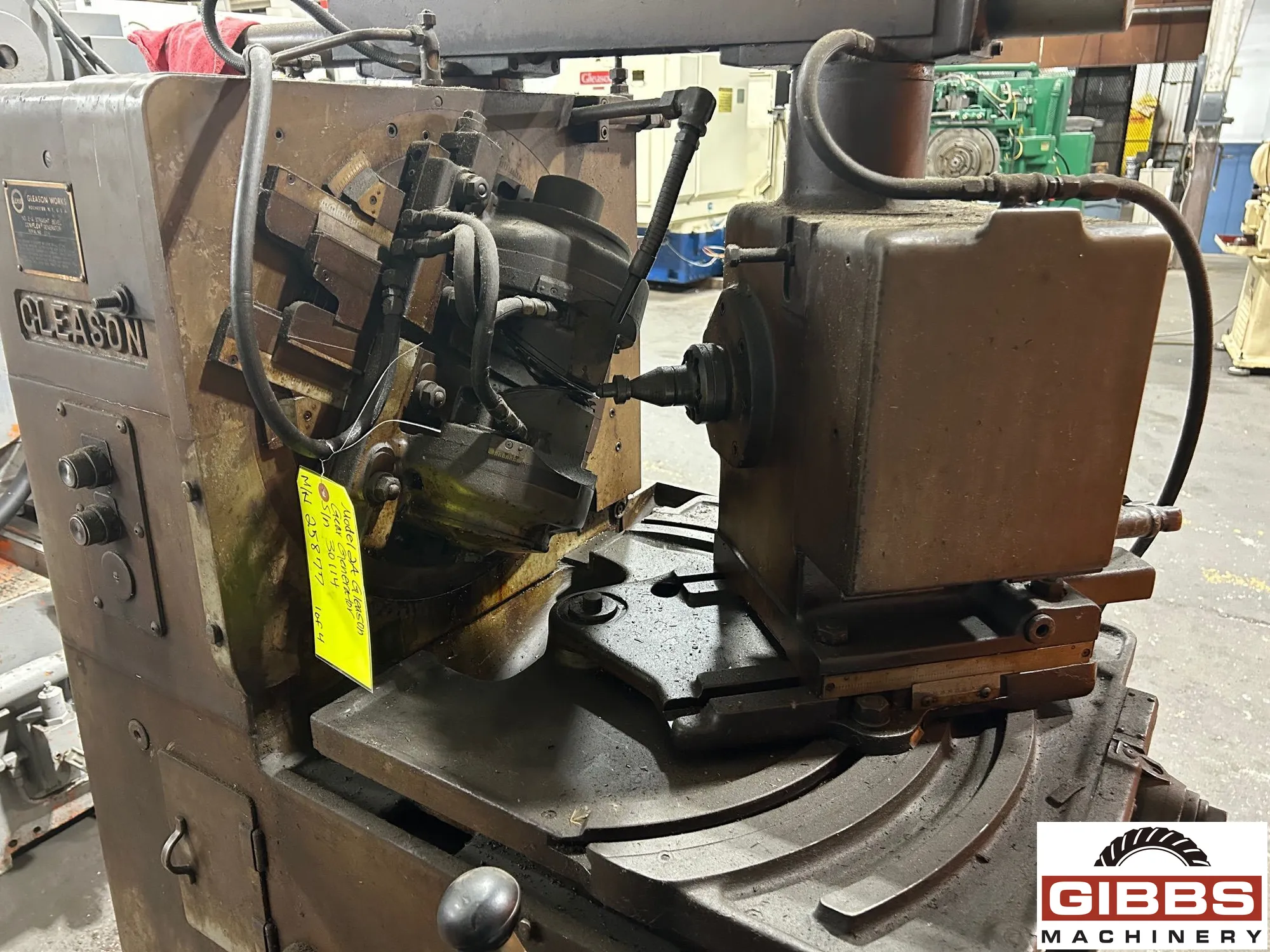

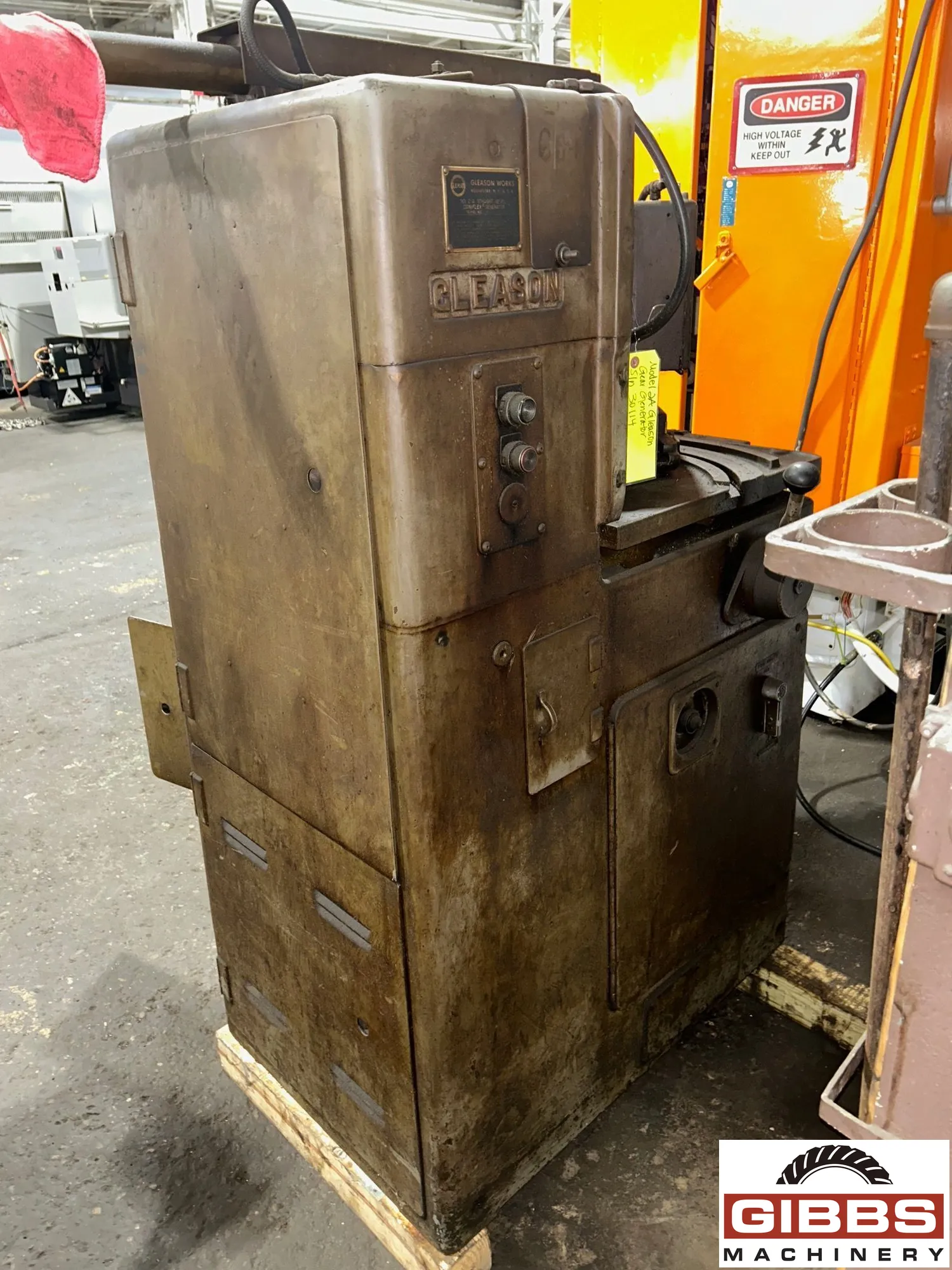

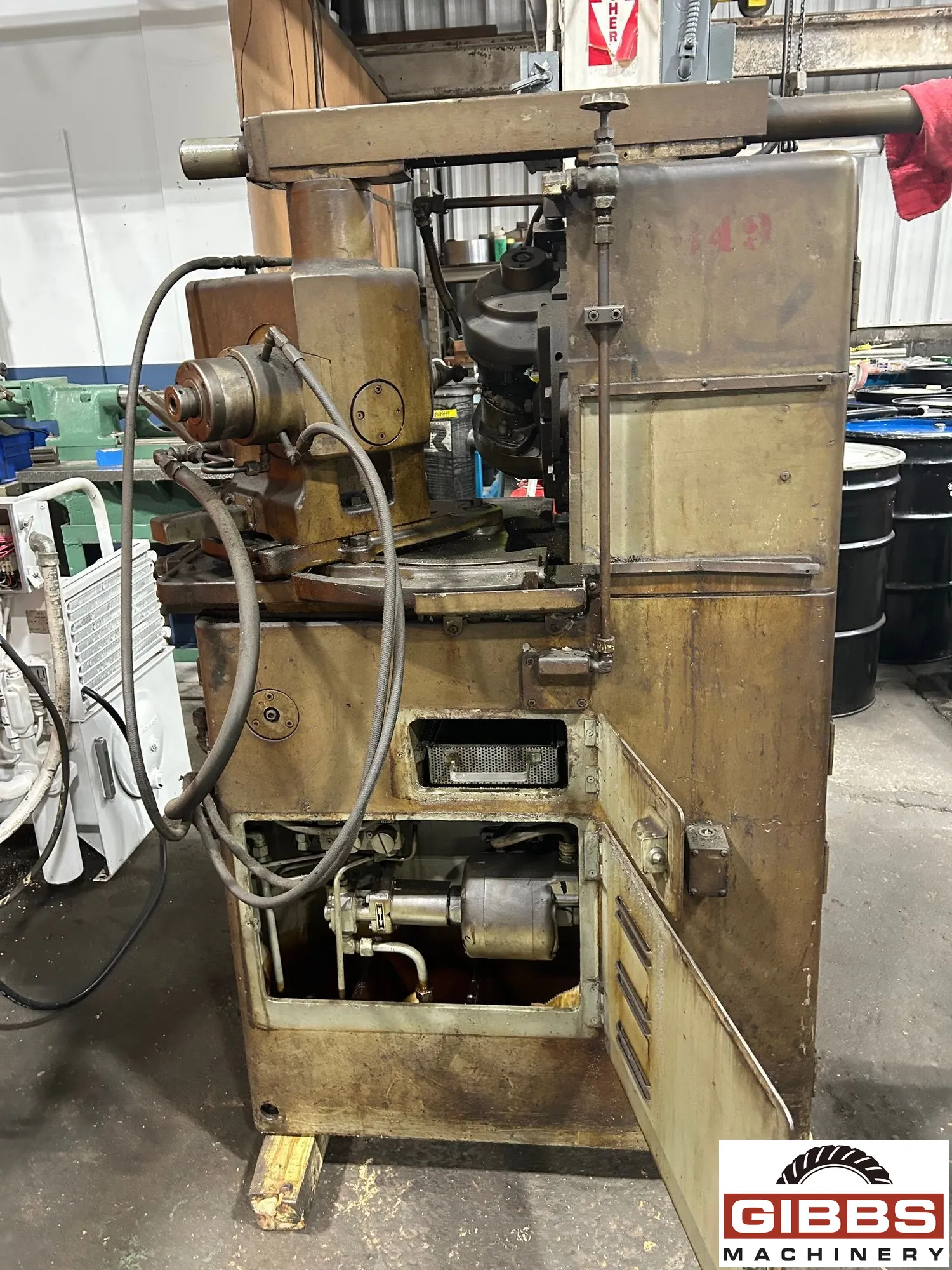

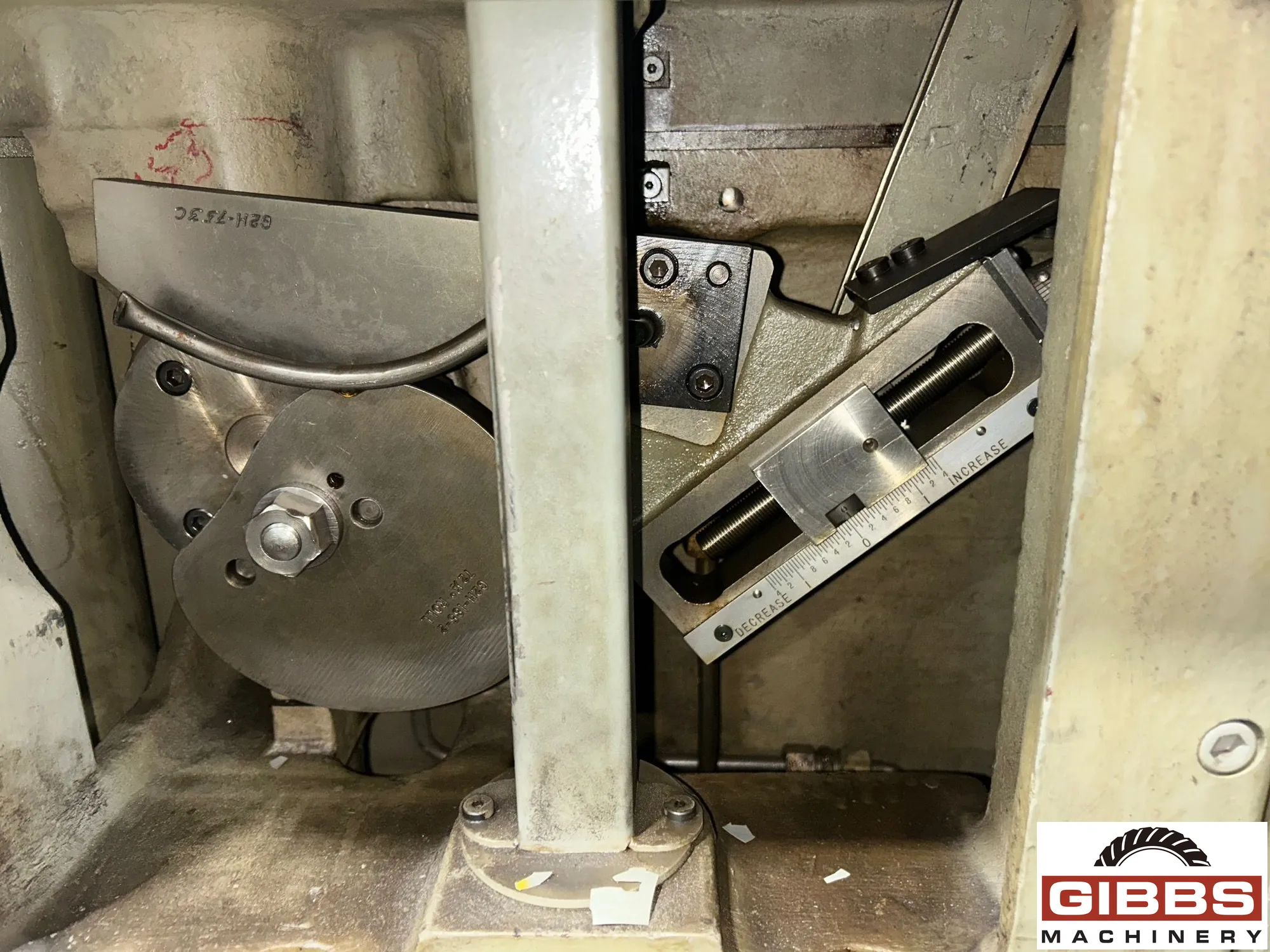

GLEASON 2A CONIFLEX - Straight Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, STRAIGHT

Stock

25877

Model

2A CONIFLEX

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Coniflex

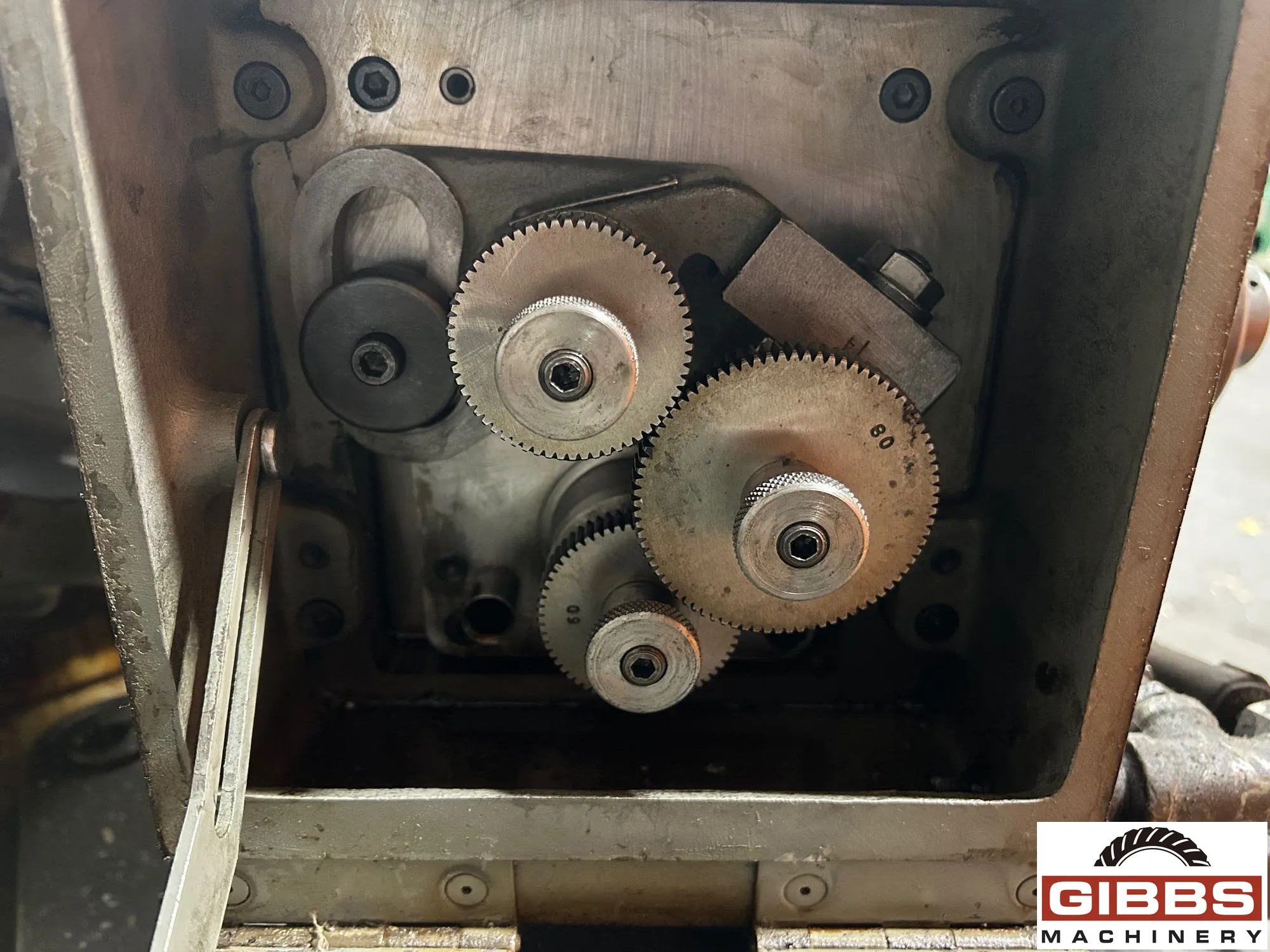

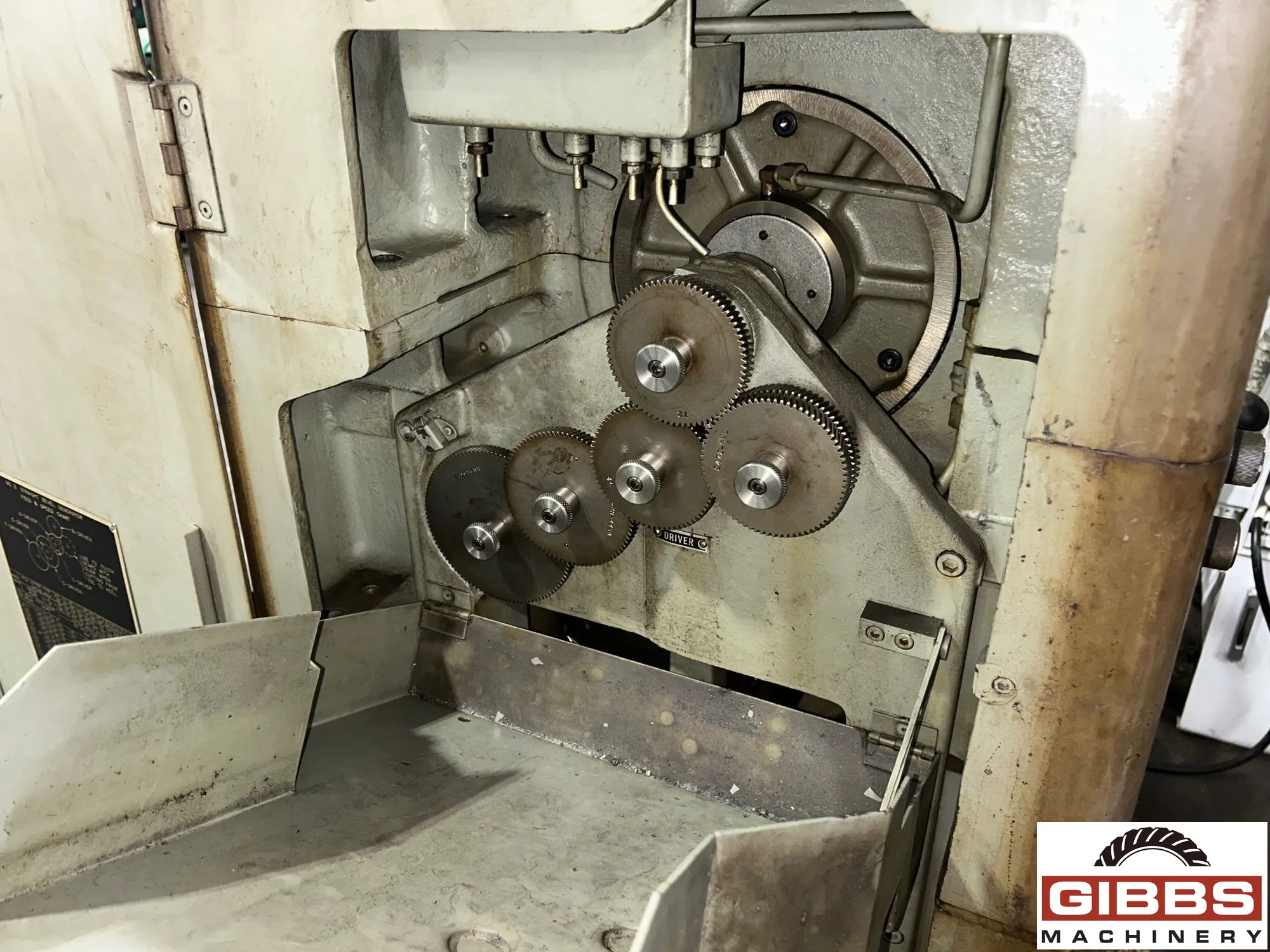

  • Change Gears

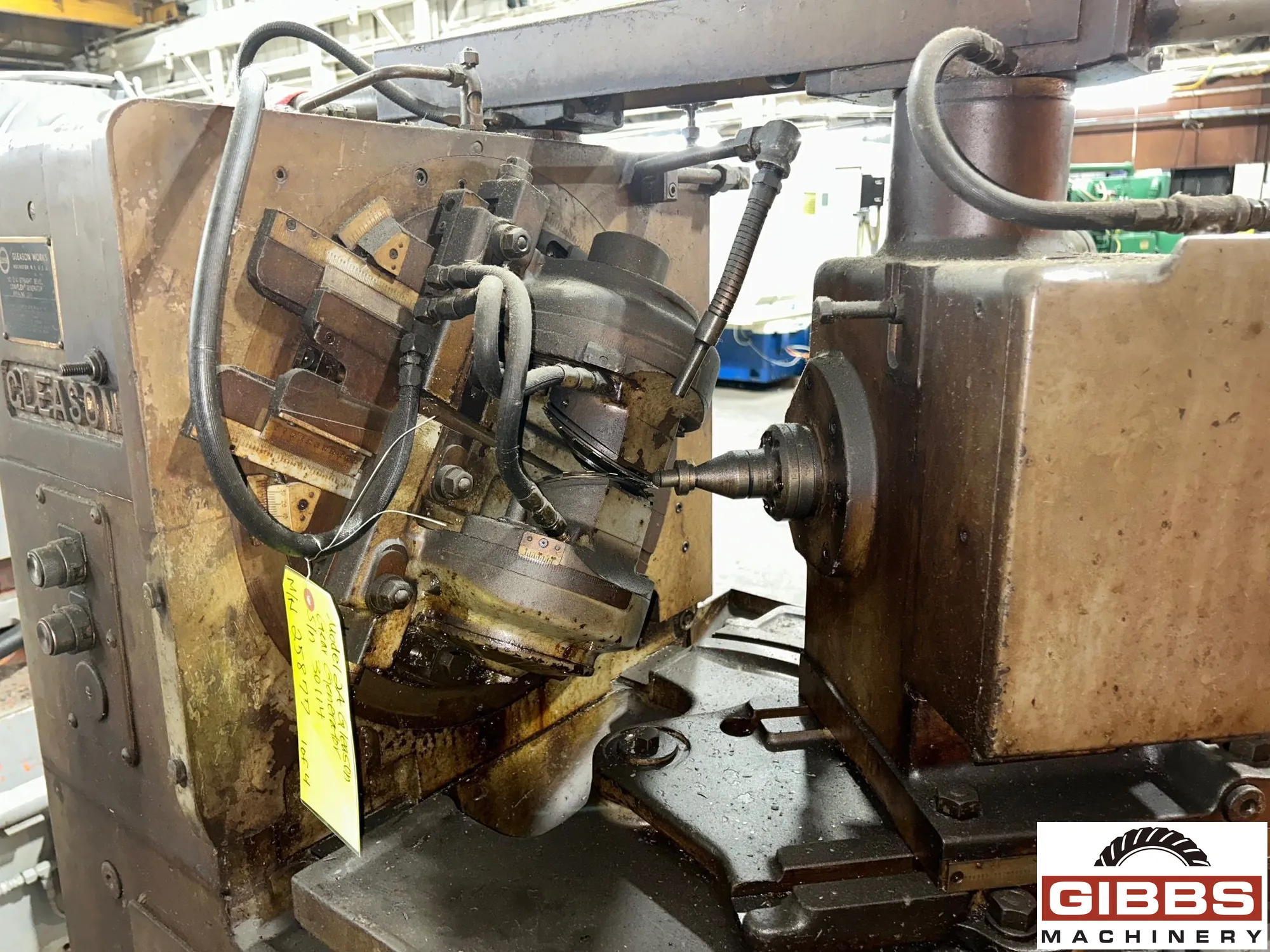

  • Cutter Adapters
  • Cutters
  • Coolant Pump
  • Hydraulic Chucking
  • Hydraulic System
  • Lube System
  • Work Holding
  • Gages
,

Machine Specifications :

  • Year 1956
  • Manufacturer GLEASON
  • Type GEAR GENERATORS, BEVEL, STRAIGHT
  • Maximum Workpiece Diameter 4.5"
  • Maximum Face Width 0.43"
  • Diametral Pitch 16.0
  • Maximum Cone Distance 2.25"
  • Extreme Ratio 101.0
  • Number of Teeth 128.0
  • Control Manufacturer Conventional
,
GLEASON MODEL 2A CONIFLEX bevel gear generator. Max workpiece diameter 4.5", face width 0.43", cone distance 2.25". Features conventional control, 0.75 HP motor. Cutter speed 63-559 Ft./Min. Ideal for precision gear beveling.
    Specifications:
  • Maximum pitch diameter: 4.5 (114mm)
  • Maximum cone distance: 2.25" (57mm)
  • Maximum face-width: .43" (11mm)
  • Work head angle: 0 to 90 degrees
  • Coarsest Diametral Pitch (Module): 16 DP (1.59 Module)
  • Diameter of taper hole in work-spindle at large end of taper: 1.496" (38mm)
  • Work spindle taper (per ft.): .5" (12.7mm)
  • Depth of taper: 3" (76.2mm)
  • Maximum distance, spindle nose to machine center: 5" (127mm)
  • Minimum distance, spindle nose to machine center: 1.25" (31.75mm)
  • Index range: 10 to 120
  • Pressure angle: 20 degrees
  • Cutter speed: 63 to 559 Ft./Min.
  • Feed per second (per tooth): .72 to 24

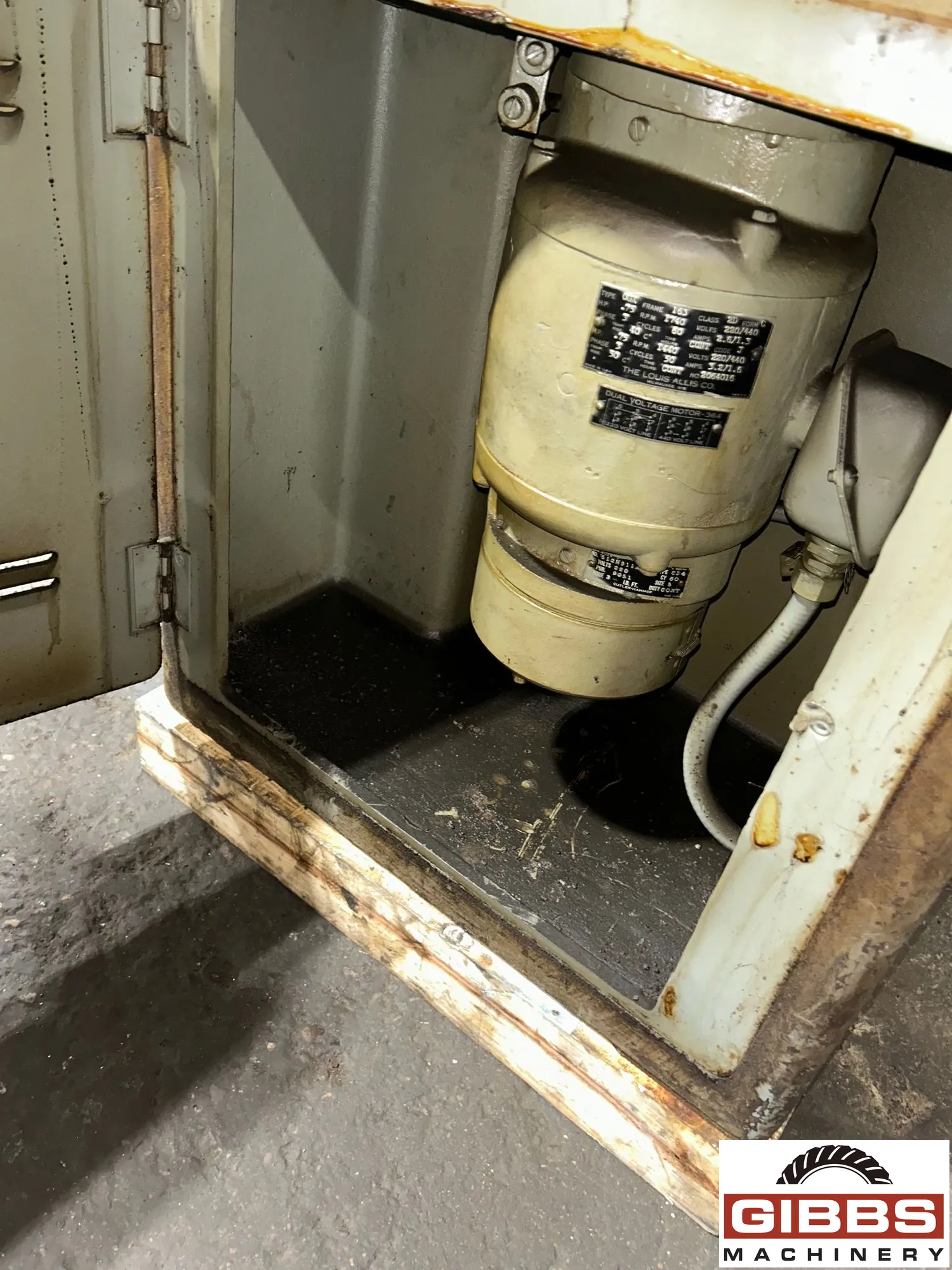

  • Main drive motor: .75 HP/1800 rpm
  • Overall machine length: 39.5" (1003mm)
  • Overall machine width: 26.5" (673mm)
  • Overall machine height: 60" (1524mm)
  • Approximate machine net weight: 3,425 Lbs. (1553 kGs)
