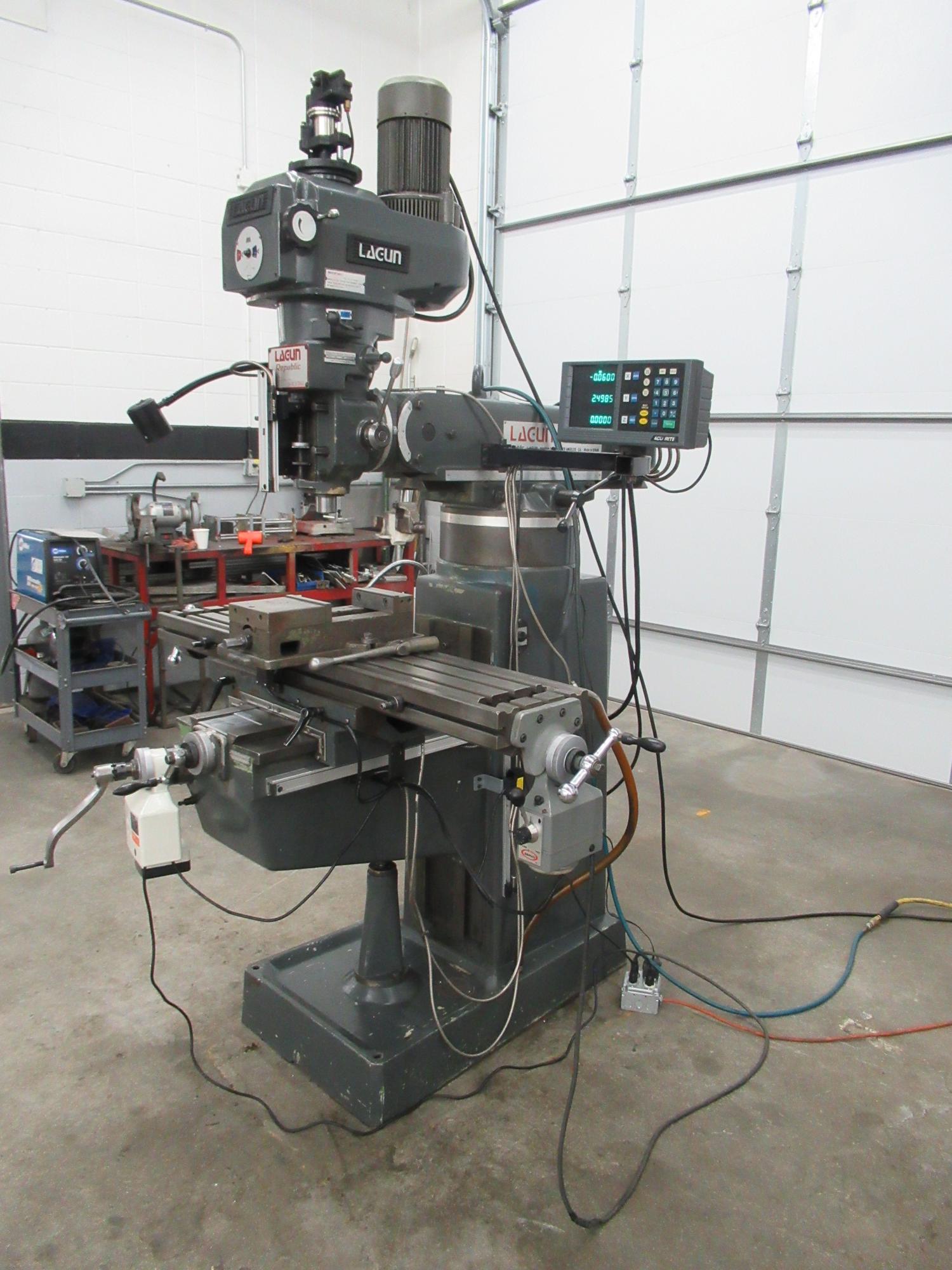

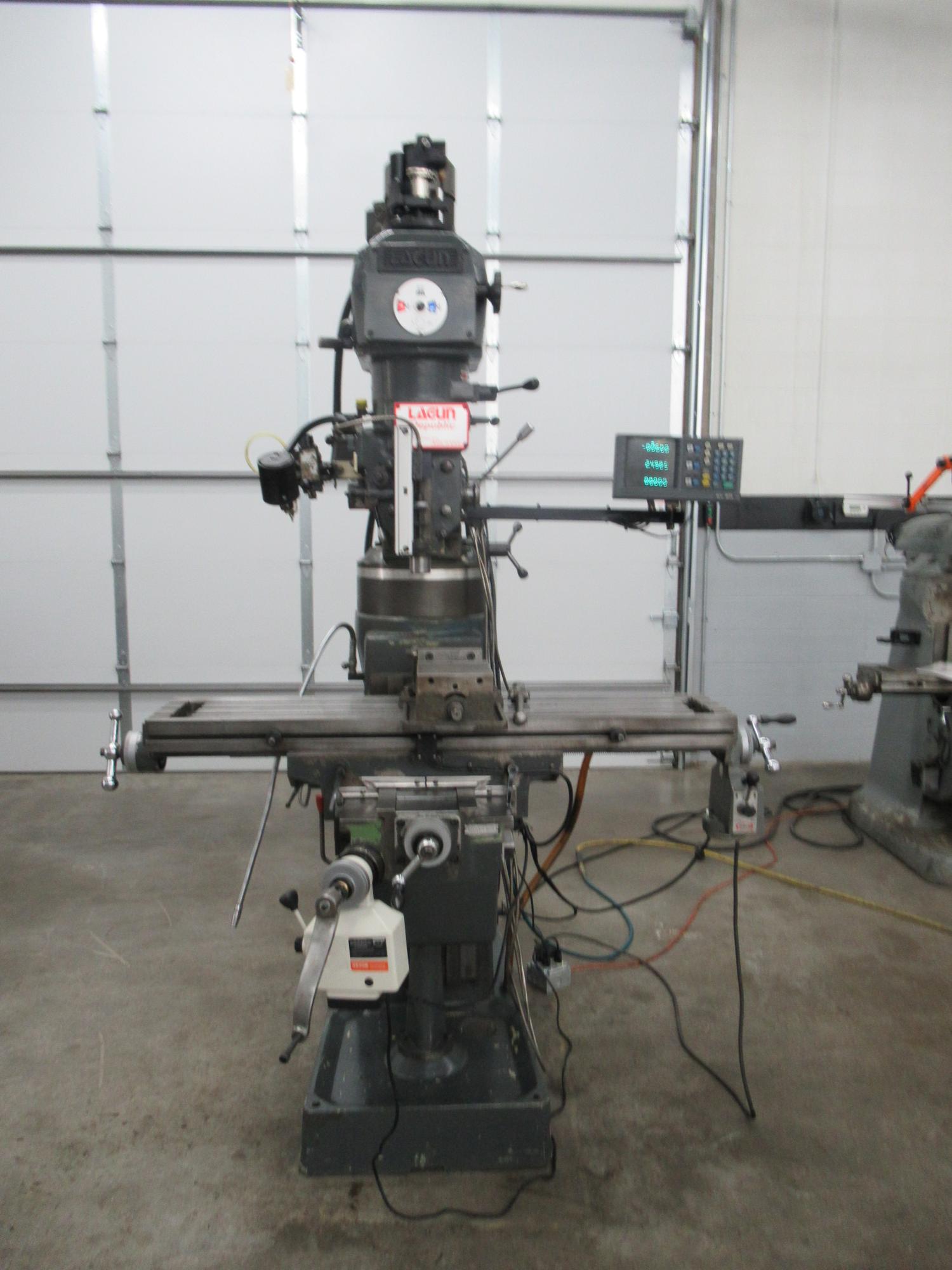

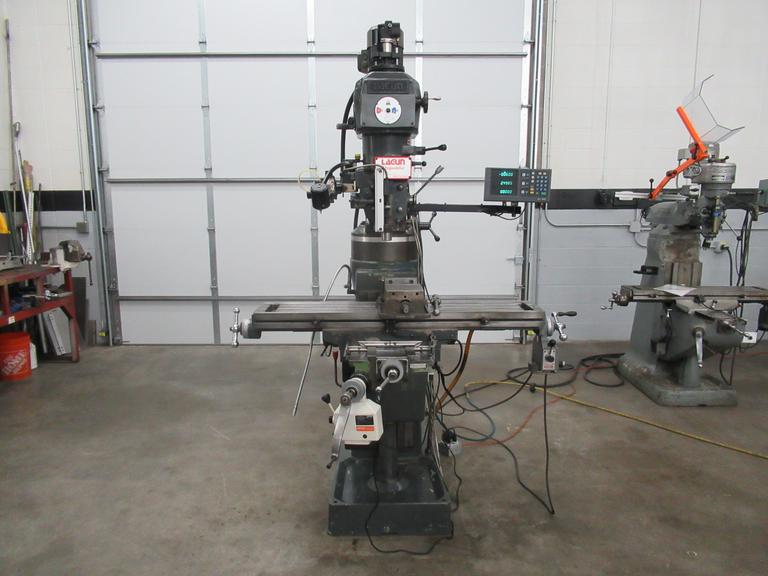

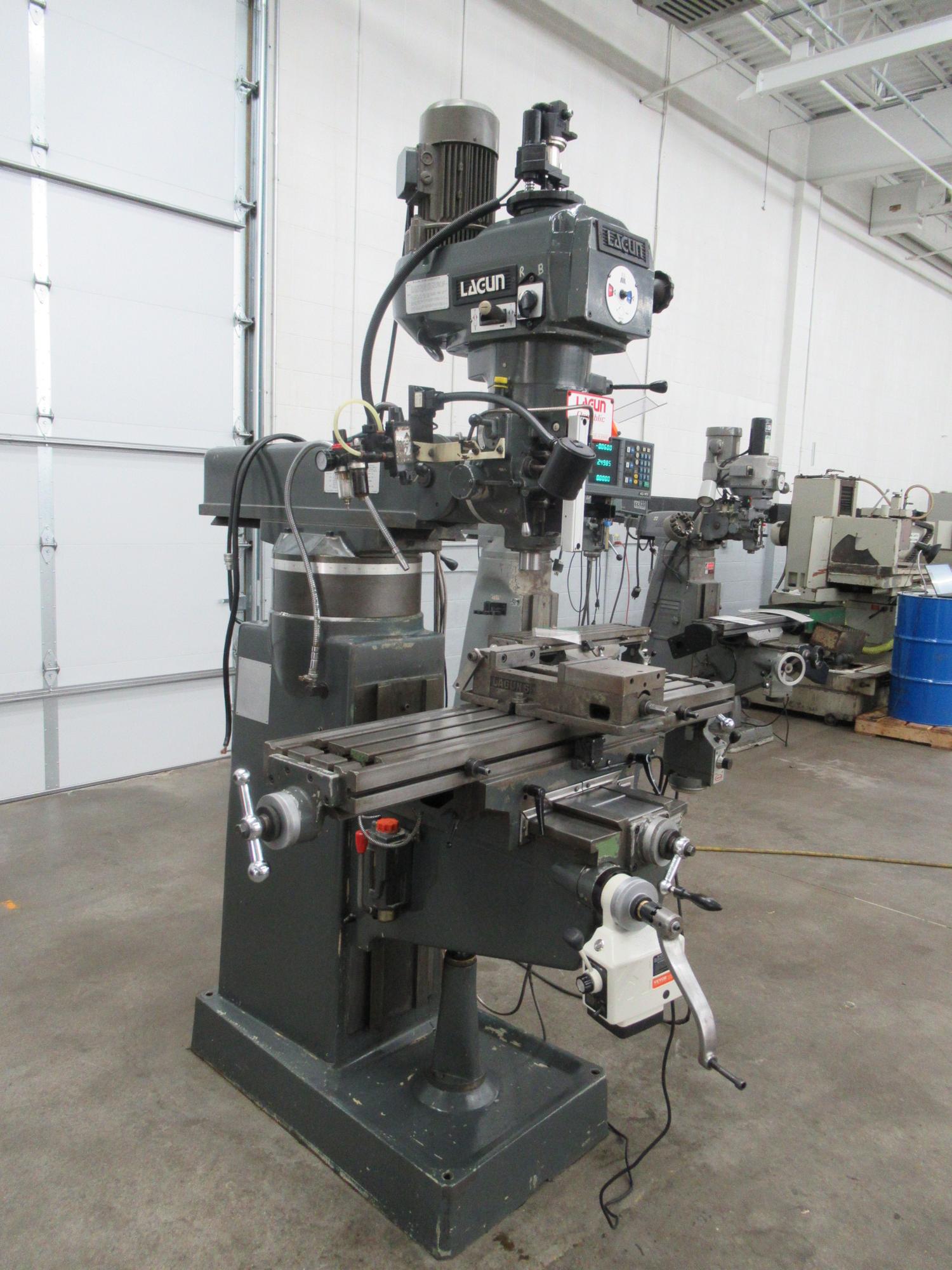

Lagun FTV-2 Vertical Knee Mill, 10" x 50" Table, Variable Speed, 3-Axis DRO, Power Feeds

Manufacturer

Republic Lagun Machine Tool

Category

Milling Machines

Type

MILLERS, KNEE, CNC

Stock

7345

Model

FTV-2

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

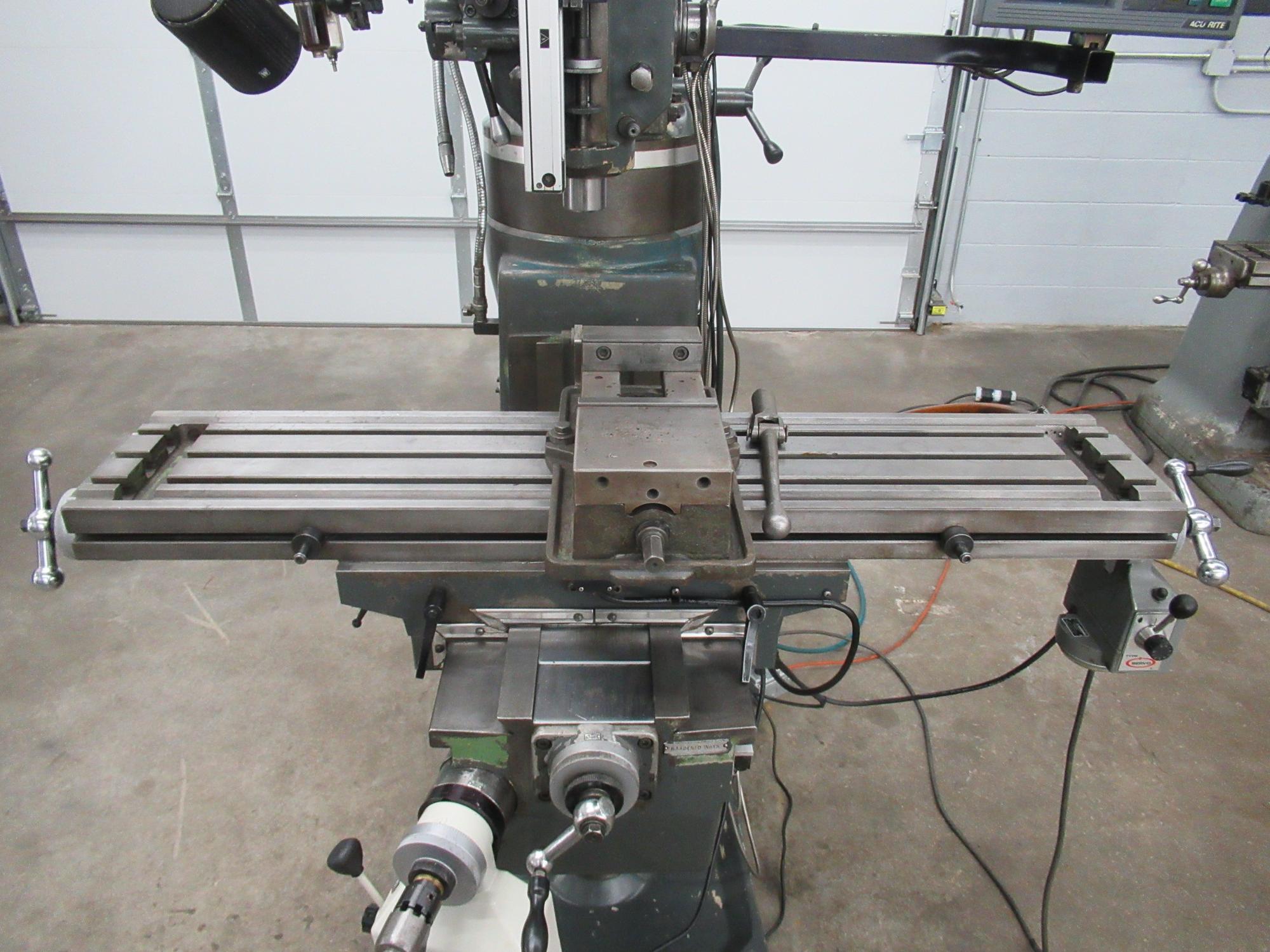

Table Size: 10" x 50"

Longitudinal Travel: 33"

Quill Travel: 5" Power Feed and Manual

Cross Travel: 16"

Spindle Taper: R8

Power Quill Feeds: (4) 0.0015″/rev, 0.003″/rev & 0.006″/rev

Spindle Speeds: 55-4250 RPM Variable

Knee Travel: 16"

Spindle Nose to Table Min-Max: 18" + 4" Riser = 22"

Spindle Center to Column Distance: 5" - 27"

Overarm Ram Adjustment: 22-3/16" Manual Adjust

Head Swivel Left to Right: + /- 90 Degrees

Head Tilt Front to Back: +/- 45 Degrees

Spindle Drive: 3HP Motor

Description:

The Republic Lagun FTV-2 CNC Vertical Milling Machine delivers reliable precision, rigid construction, and smooth performance for job shops and toolrooms. Known for durability and accuracy, the FTV-2 is ideal for milling, drilling, and contouring a wide range of materials. Available used and inspected for quality.

Equipped With:

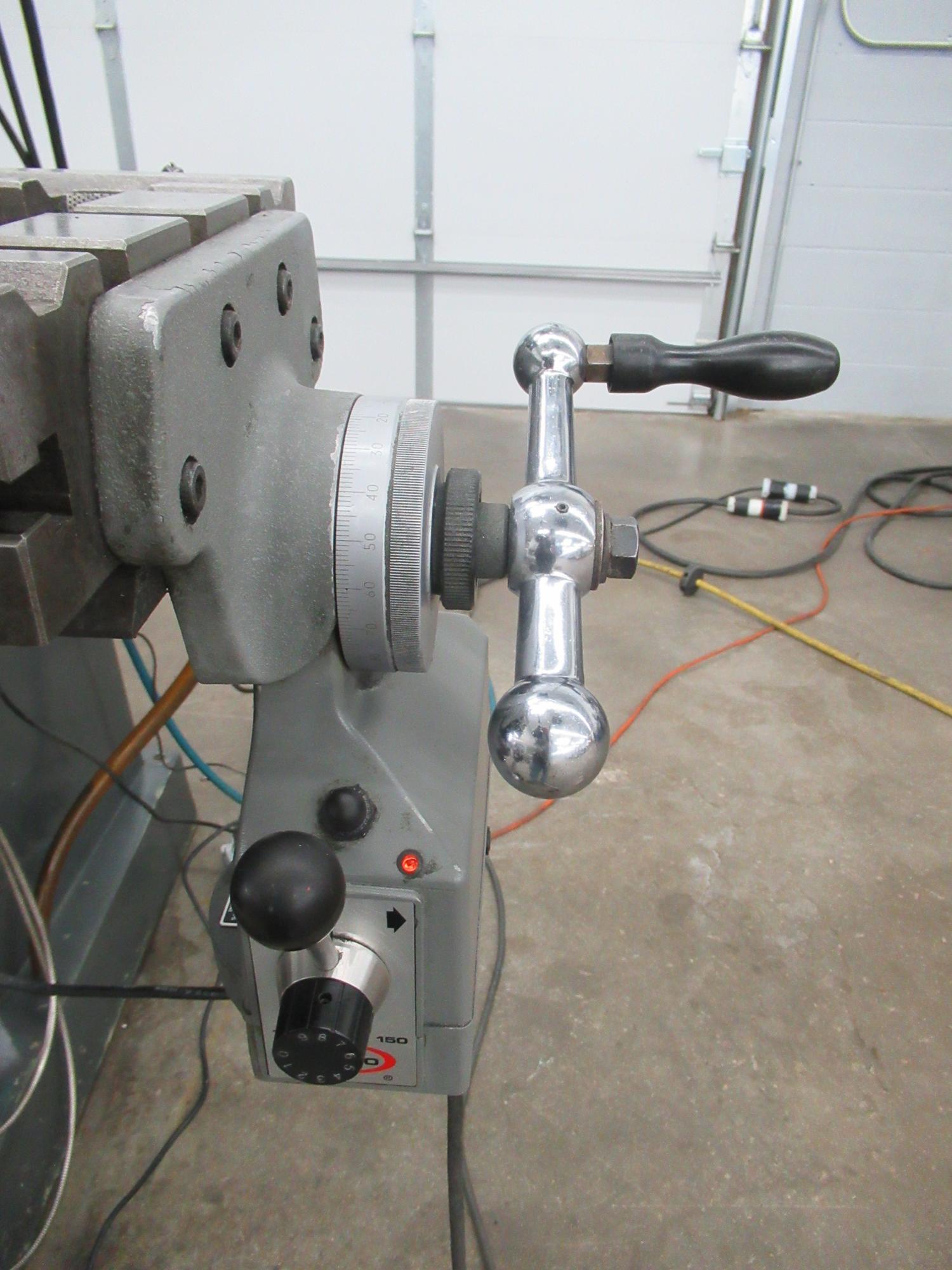

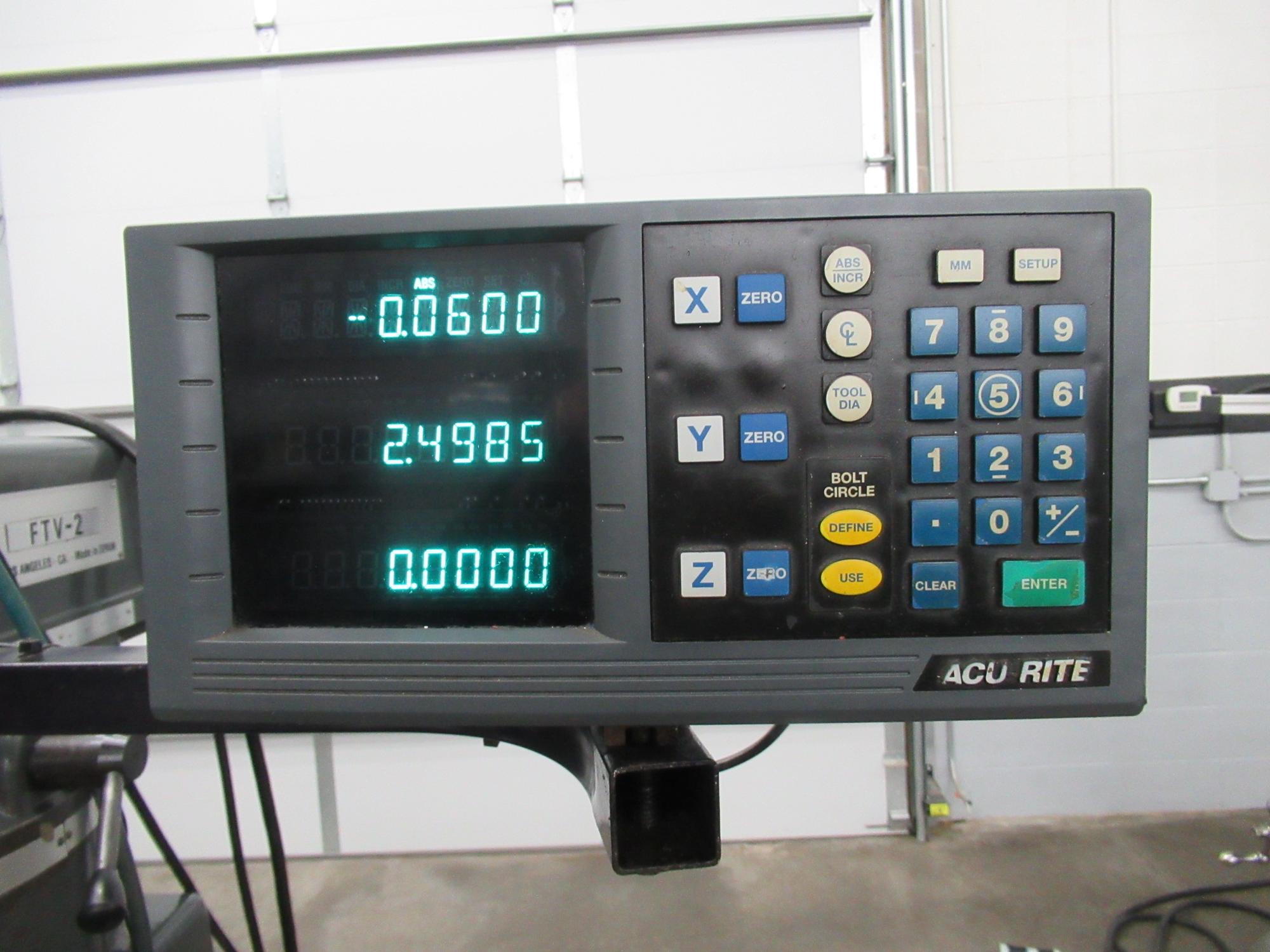

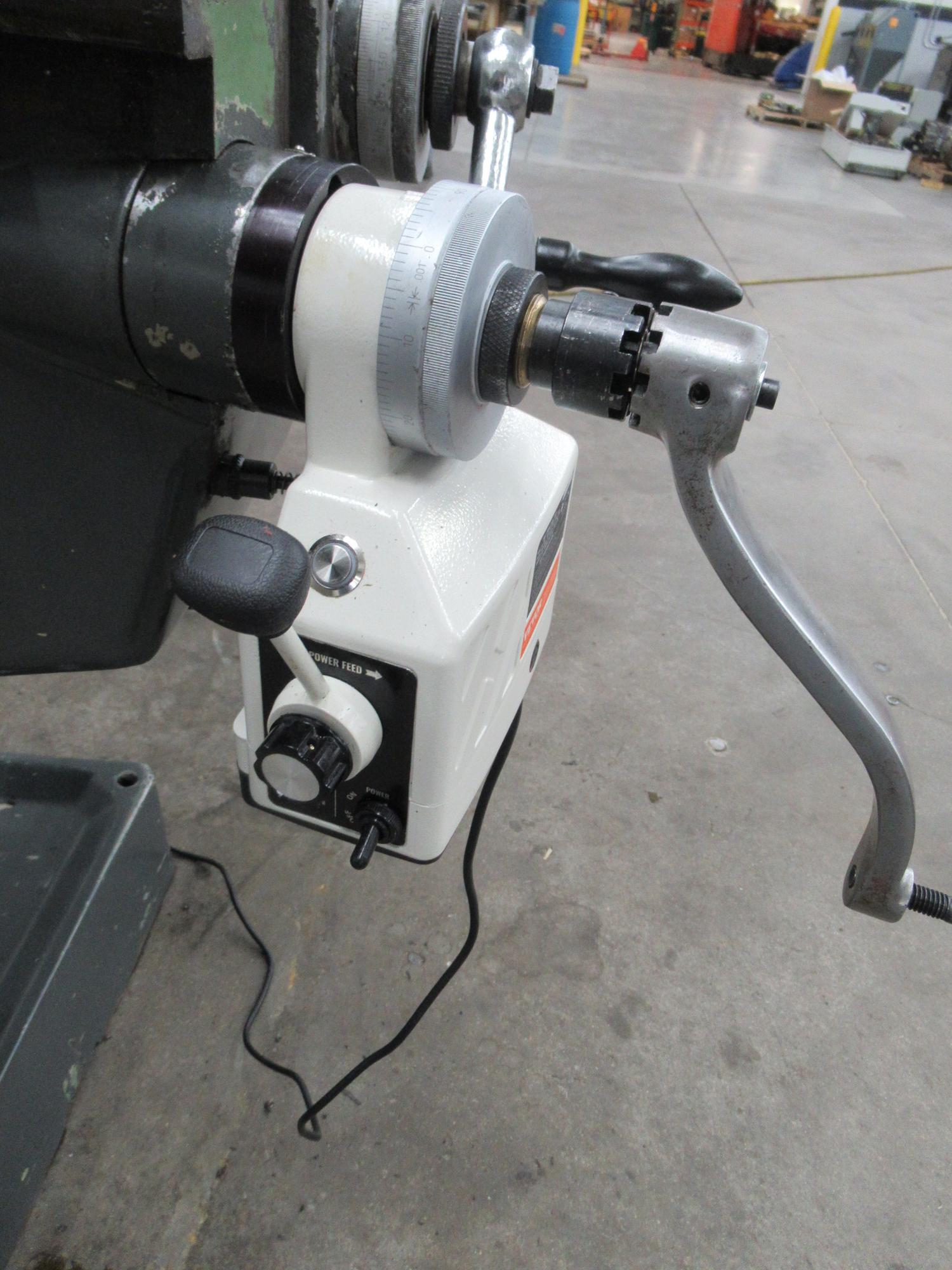

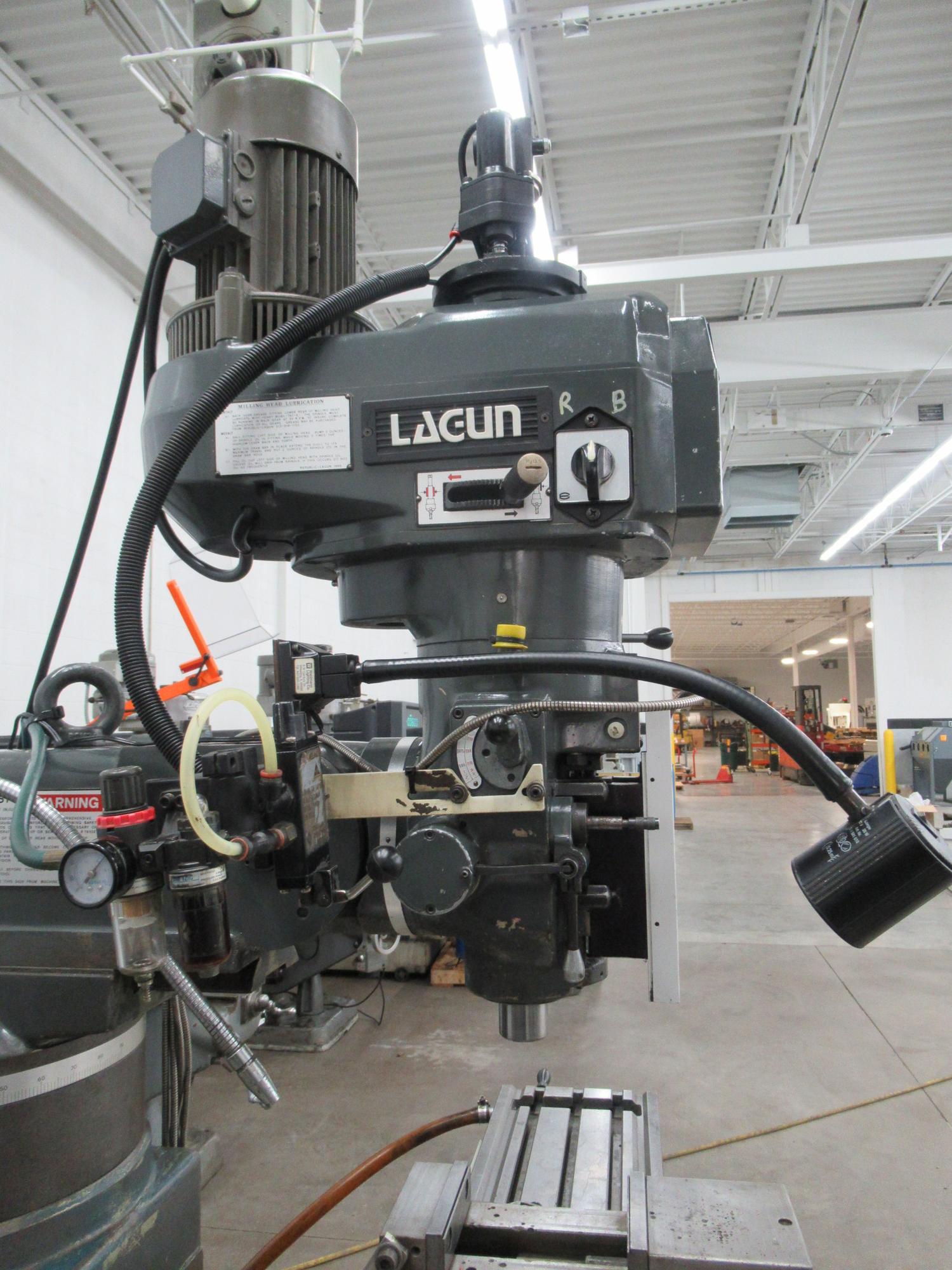

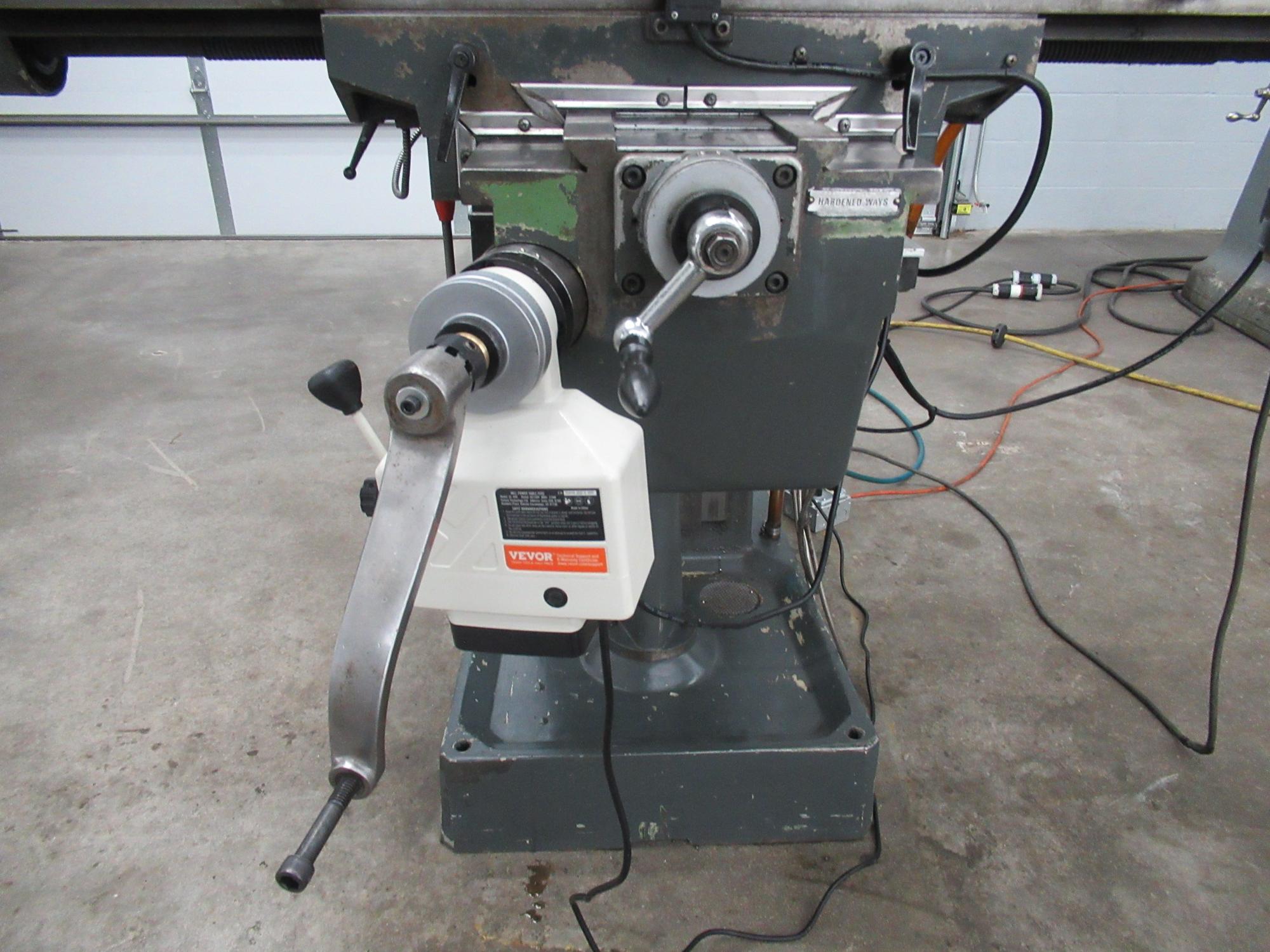

10" x 50" Table, Variable Speed Spindle, R8 Spindle Taper, Acu-Rite D200 3-Axis Digital Readout, Power Quill Feed, Servo Variable Speed Power Table Feed, NEW Vevo Variable Speed Knee Feed, 4" Riser, Pneumatic Power Draw Bar, 3 HP Motor, 6.5" Lagun Machine Vise.



Electrics:

220/440 Volt 3 Phase, Currently Wired 220 Volt
