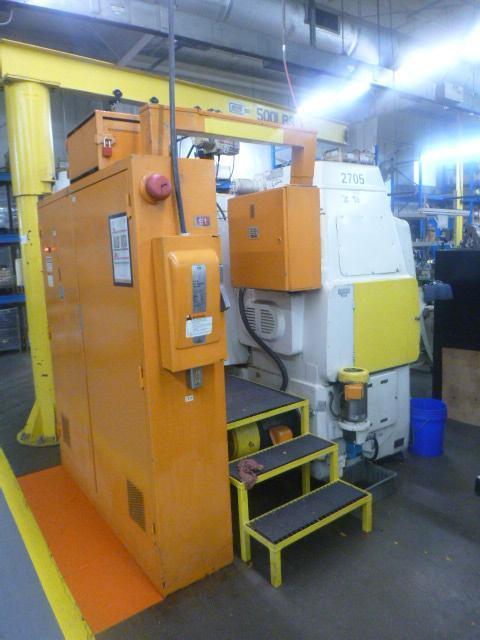

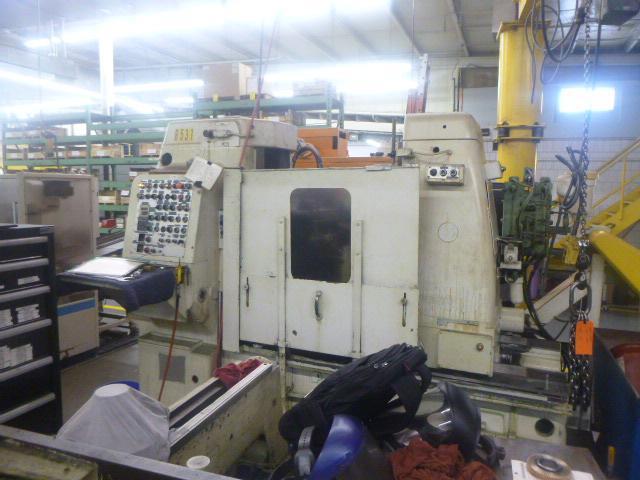

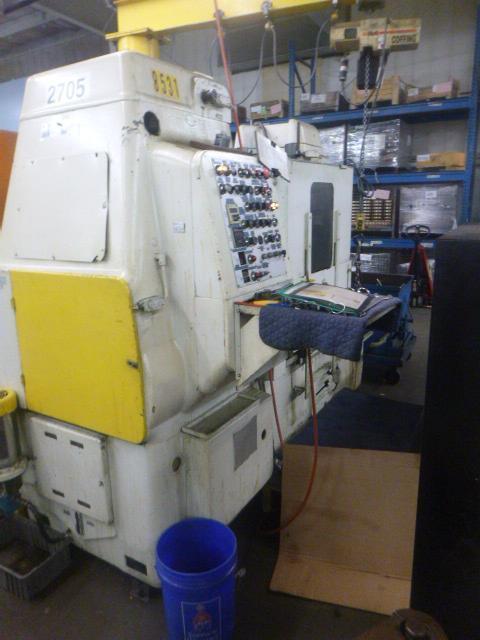

Pfauter Model P630 Gear Hobbing Machine

Manufacturer

PFAUTER

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

GHP6301X

Model

P630

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet




Maximum Workpiece Diameter 24"
Max. Module - Pitch at 57% Machinability 2.5 DP
Maximum Axial Travel 17"
Maximum Number of Teeth: Standard (Single Start Index Drive) 8
Center Distance Workpiece/Hob Minimum 1.97"
Center Distance Workpiece/Hob Maximum 16.73"

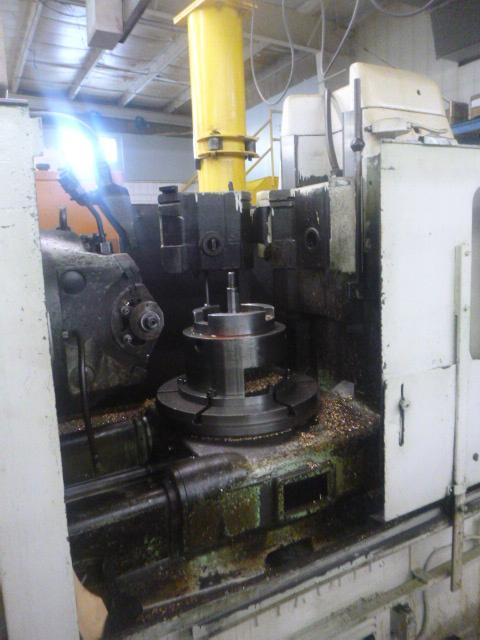

Diameter of Table 21.65"
Diameter of Table Bore 4.92"
Diameter of Work Arbor 1.41"
Adaptor Taper of Hob Arbors Morse 5

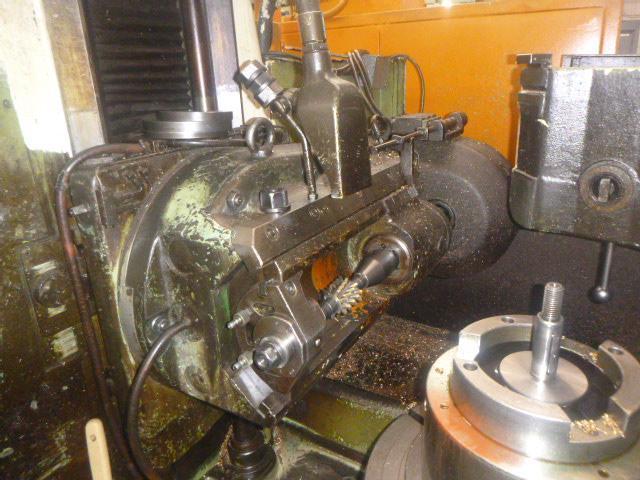

Maximum Dimensions of Hob: Standard Head 7" Dia. x 8.5"L

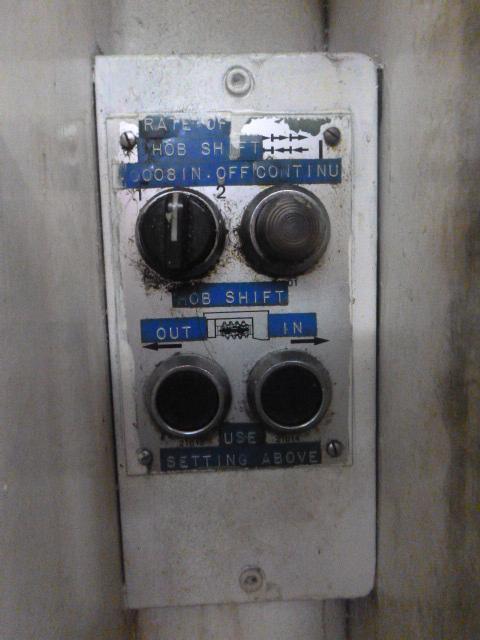

Maximum Dimensions of Hob: Hob Shift Travel 8"
Hob Speed (Infinitely Variable) 62 - 390 RPM
Axial Feed .016 - .268
Radial Feed (Infinitely Variable) .004 - .070 IPR
Tangential Feed (Infinitely Variable) .006 - .090 IPR
Main Motor 10 HP
Axial Rapid Traverse Motor 5 HP
Radial Rapid Traverse Motor 1.5 HP

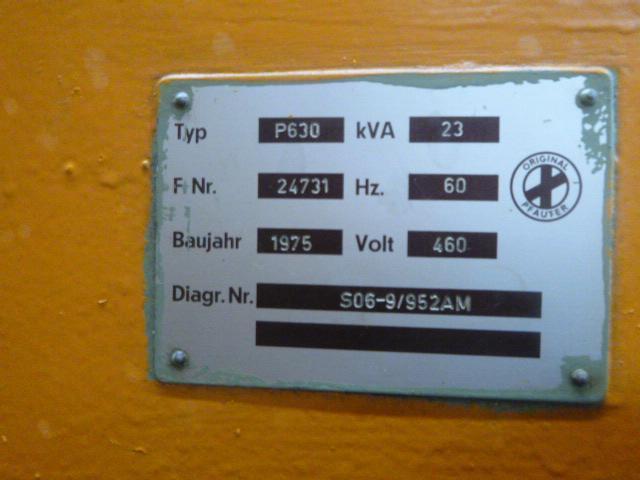

Electrics 3/60/460 Volt
Approximate Machine Weight 18,081 lbs.

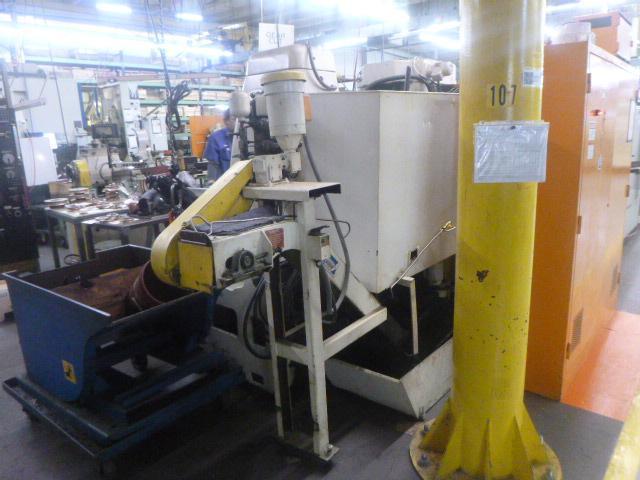

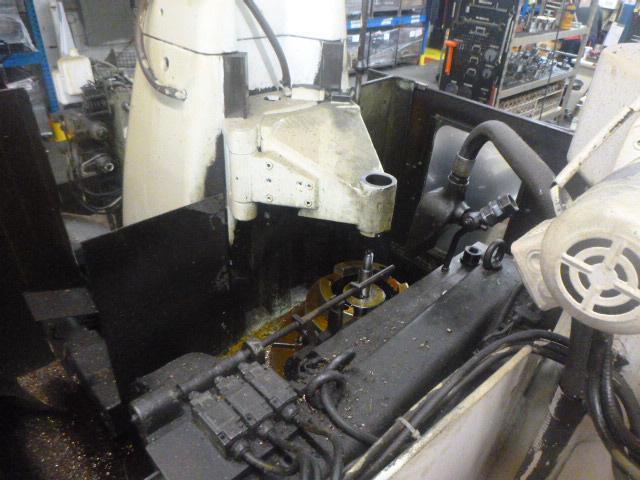

Equipped with Tailstock. Automatic Hob Shift. Slat Type Chip Conveyor. Change Gears.

**The Above Specifications are Subject to Verification**
