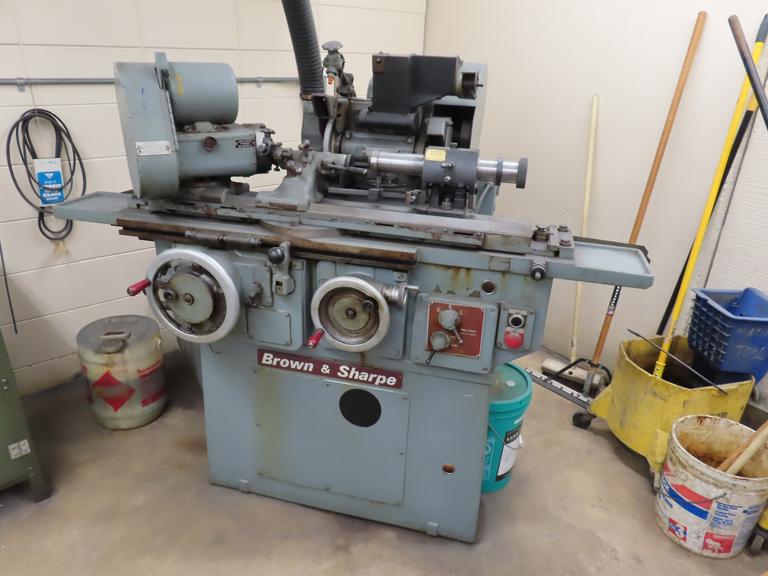

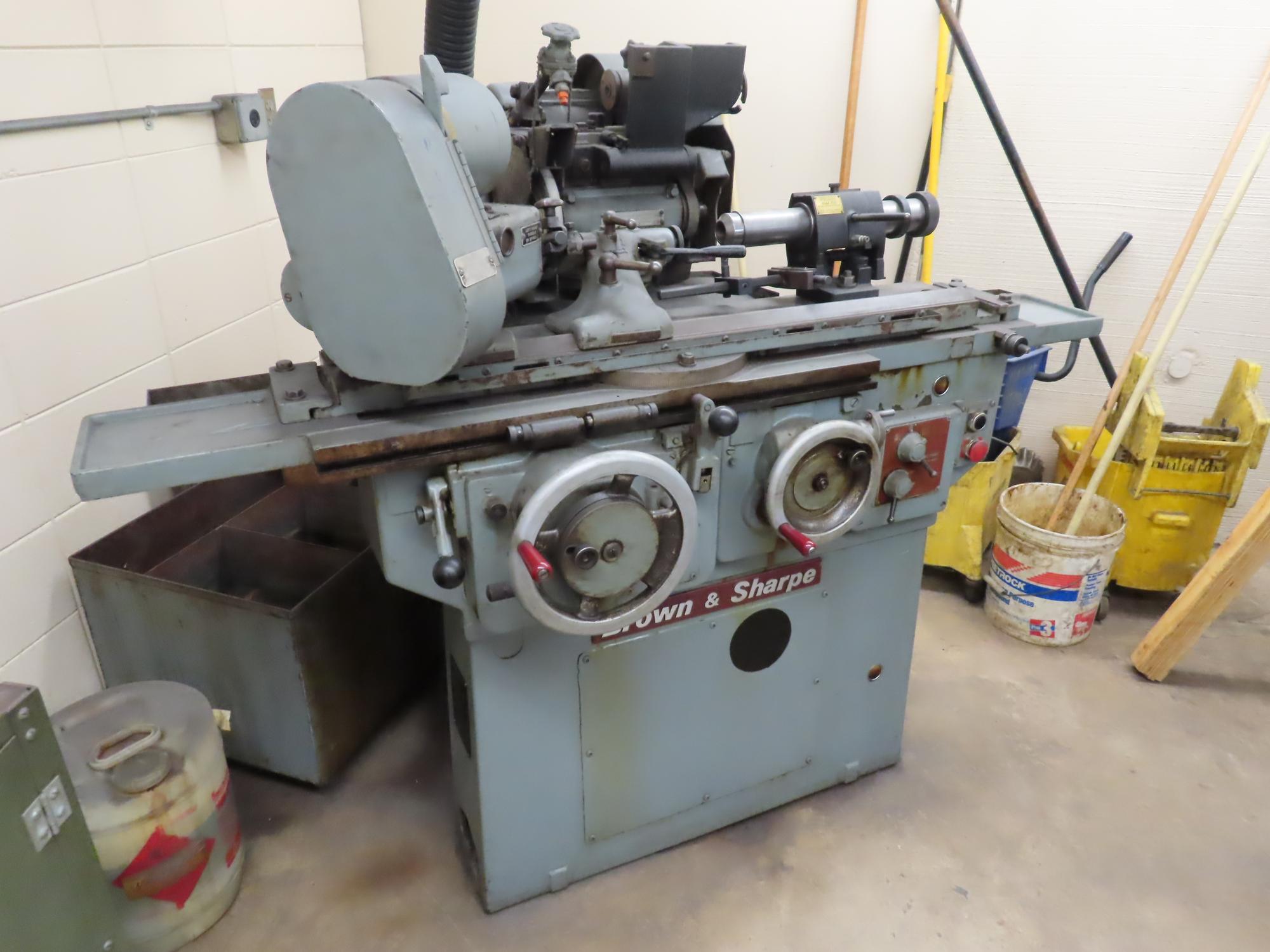

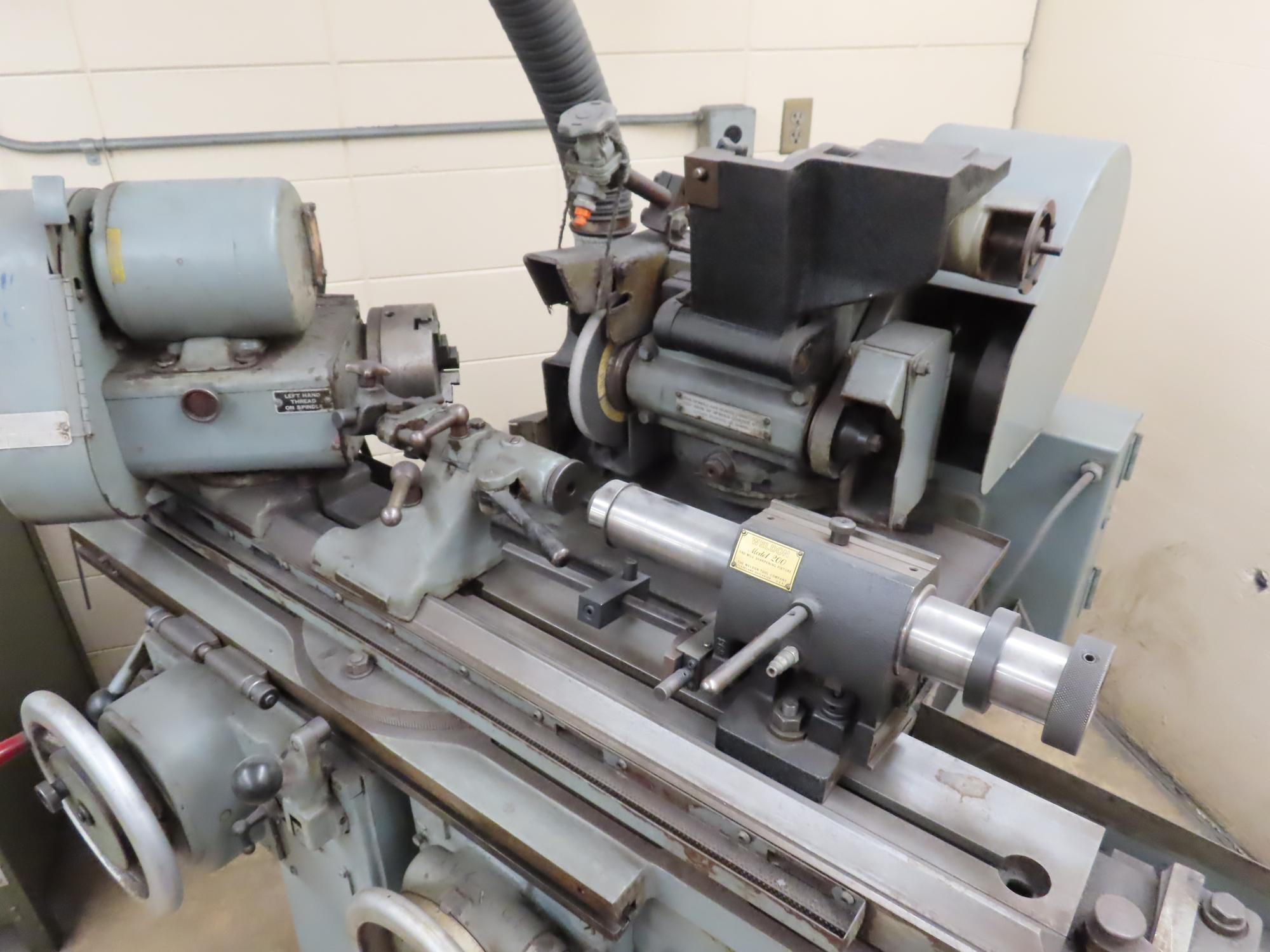

Lot 65: Brown & Sharpe #13 Universal Tool and Cutter Grinder, Motorized Workhead, ID Attachment
Equipped With:

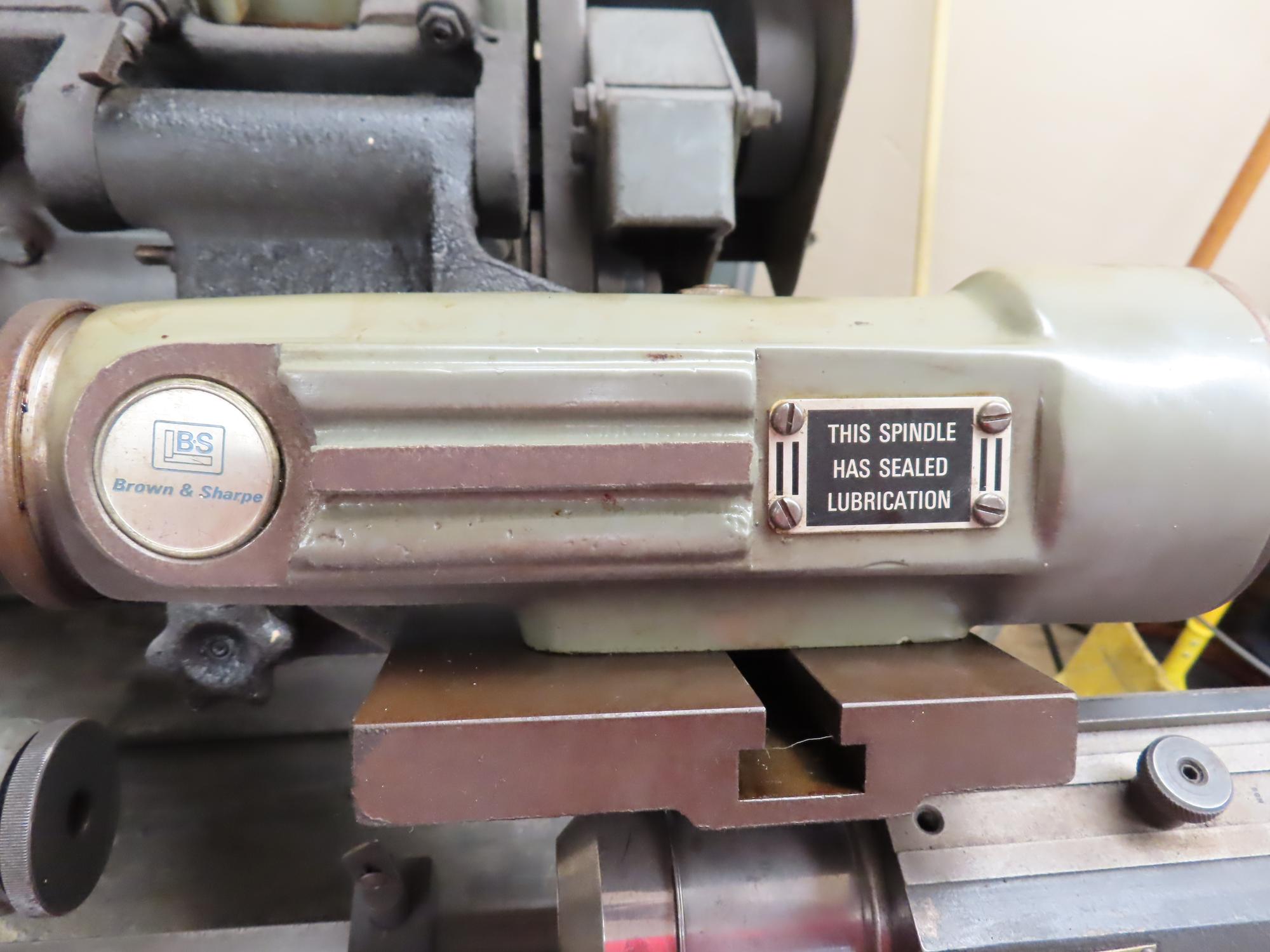

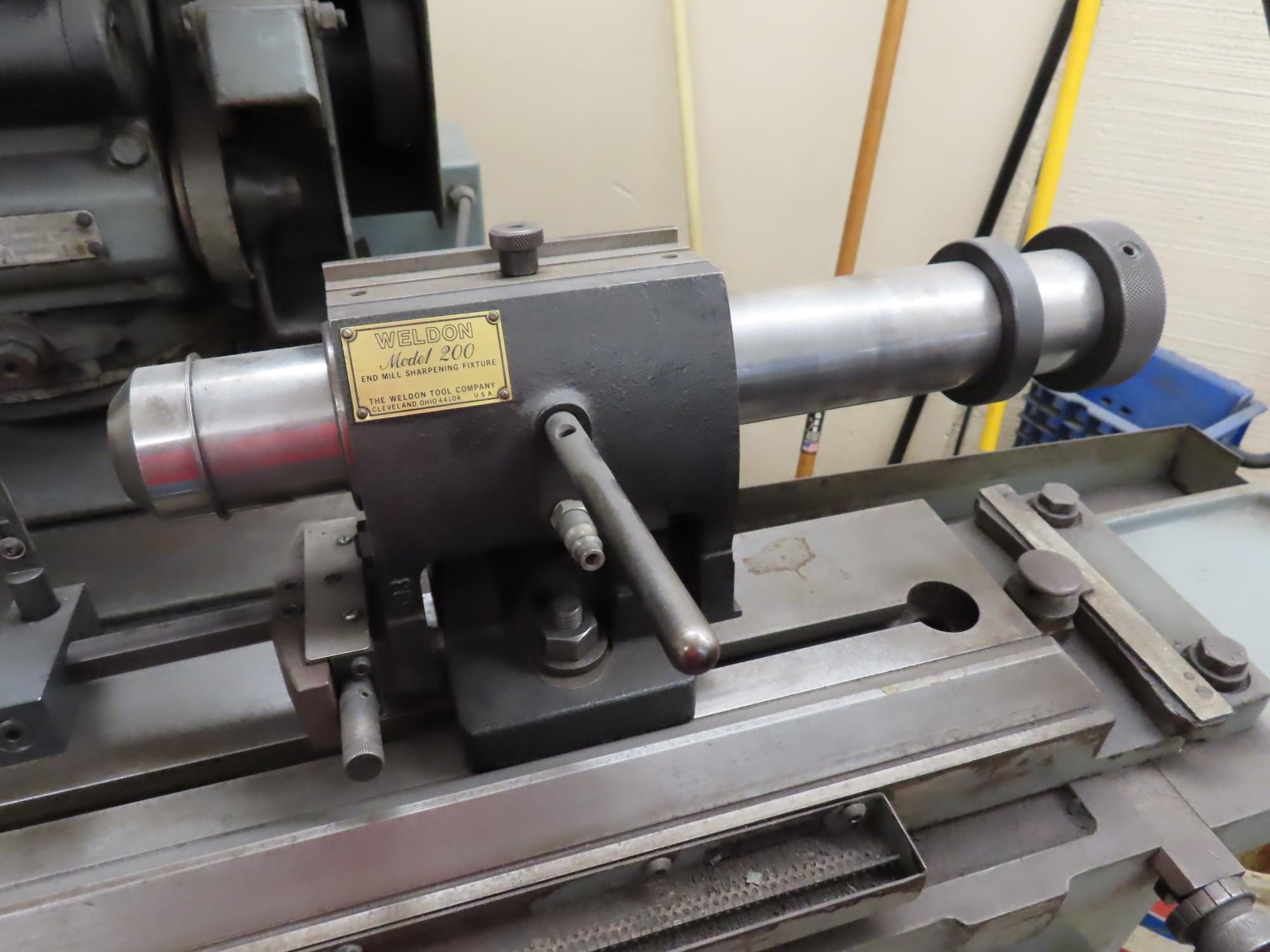

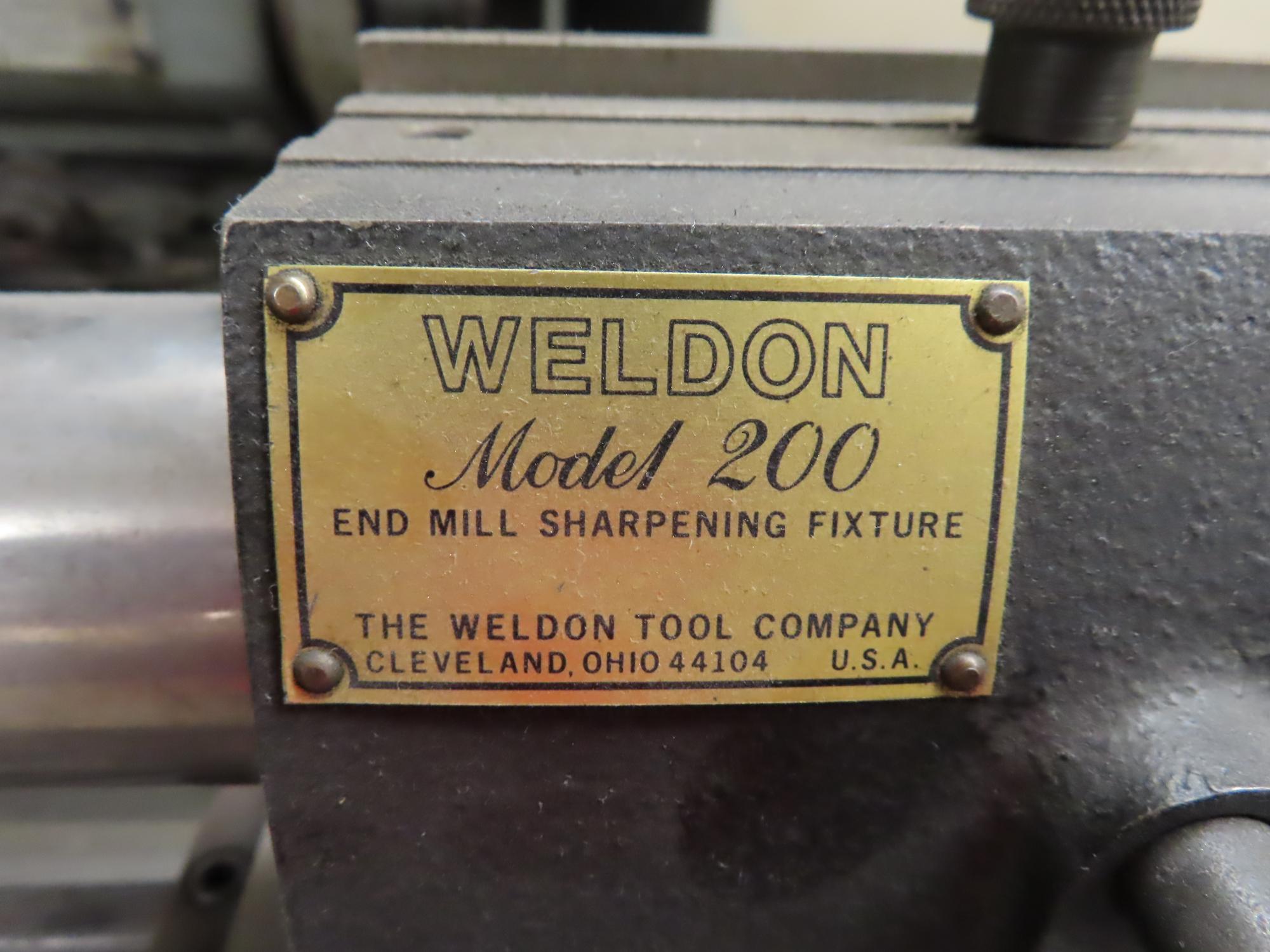

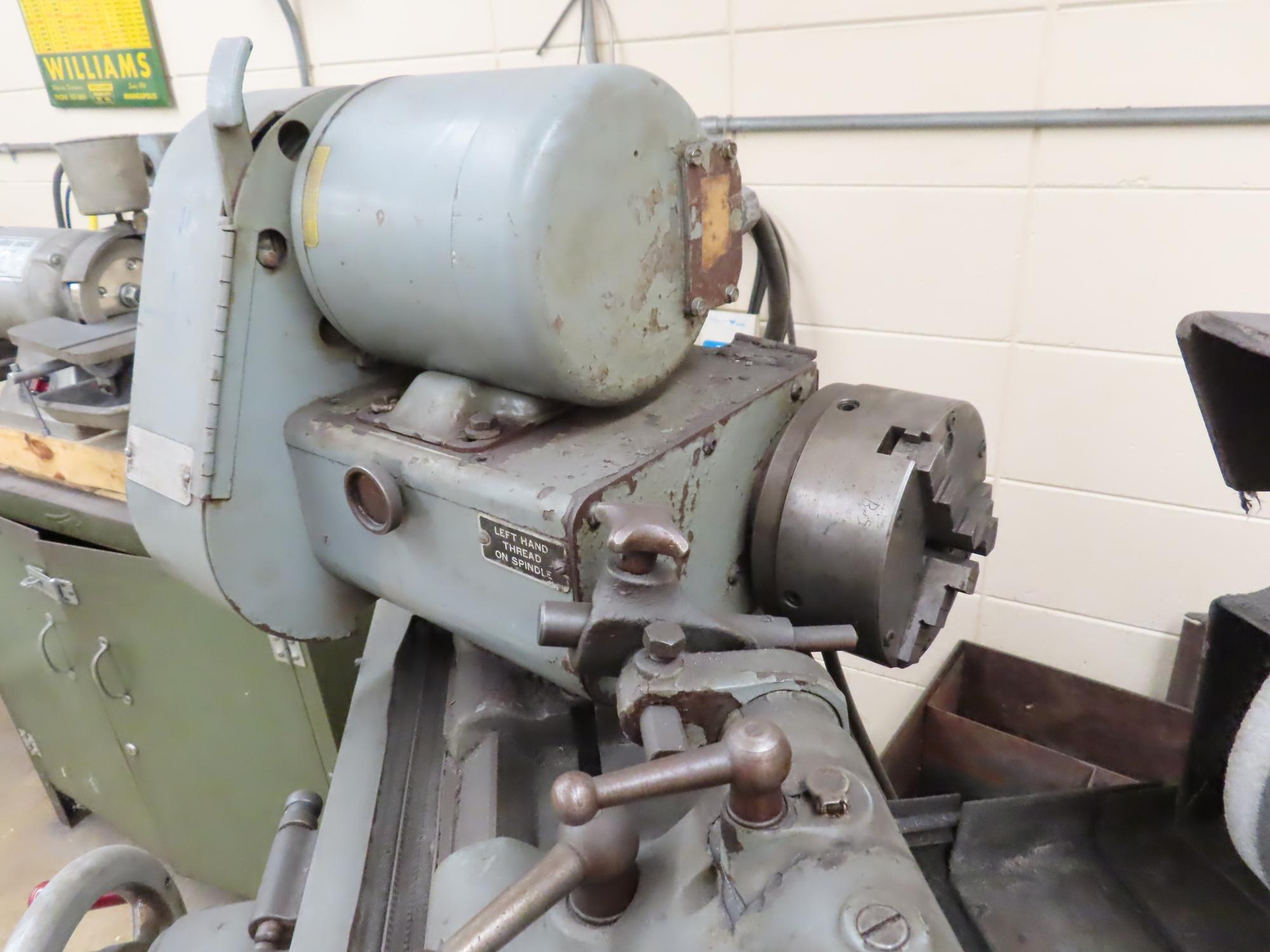

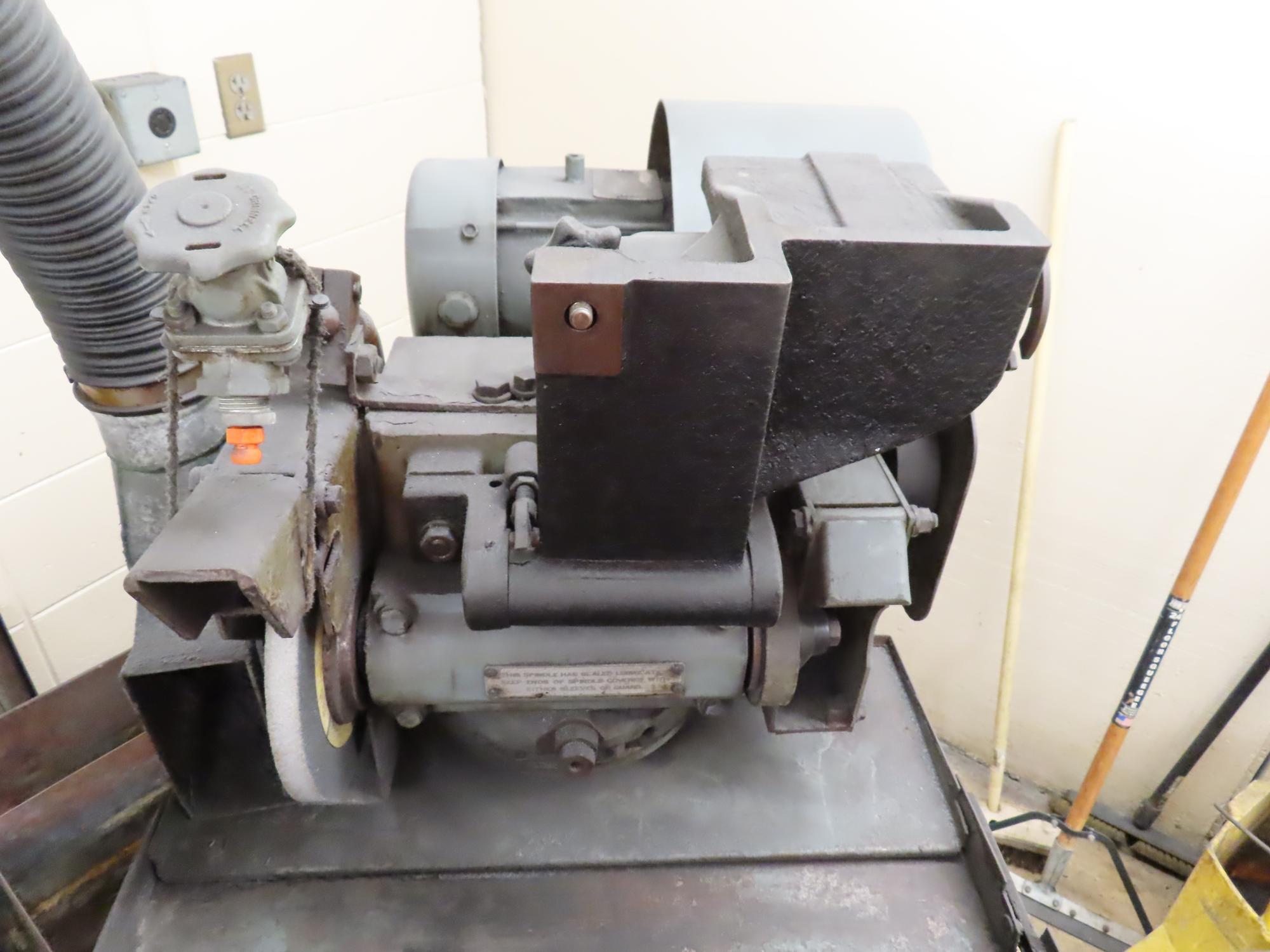

Motorized Work Head with 6” 3-Jaw Chuck, Double Ended Wheelhead Spindle, Swing Down ID Grinding Attachment, Weldon 200 End Mill Sharpening Fixture, Coolant Tank & Pump

Electrics:

Currently Wired 460V, 3 Phase

Wheel Head Motor: 230/460 Volt, 3 Phase 1 HP
Work Head Motor: 208-220/440 Volt, 3 Phase 1/6 HP

Manufacturer: Brown & Sharpe Model: #13 Serial Number: 525-8144-2818
Main Unit Approx Weight: 2750.00 lbs
Main Unit Dimensions (in inches): Length: 65.00"  Width: 54.00"  Height: 65.00"
Components:
Tank: Length: 24.00"  Width: 21.00"  Height: 20.00"
Specs:
Swing: 8"
Distance Between Centers: 24"
Workhead Speeds: (4) 128 to 540 RPM
Grinding Wheel Size: 7" x 3/4"
Grinding Wheel Speeds: (3) 2500 to 5150 RPM
Max Grinding Length: 14"
Grinding Wheel Size: 7″ X 1/2″W X 1-1/4B”
Grinding Wheel Speeds: 2730, 3600 & 5150 RPM
Wheelhead Cross Travel: 8-3/8"
Vertical Wheelhead Adjustment: 8-3/8"
Wheelhead Swivel: +/- 110 Degrees
Table Travel: 22"

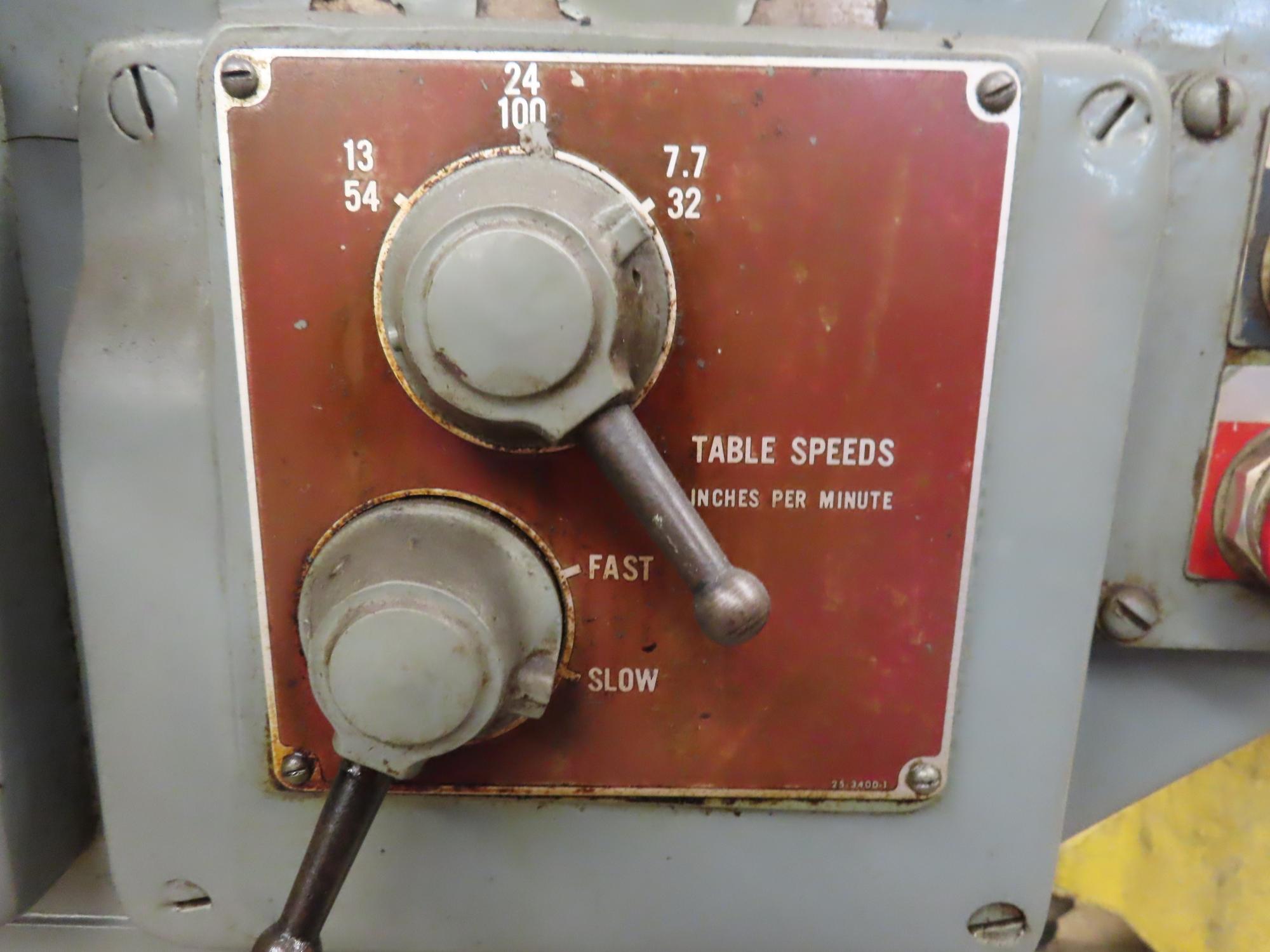

Power Table Feed Speeds: (6) 7.7 - 100 IPM

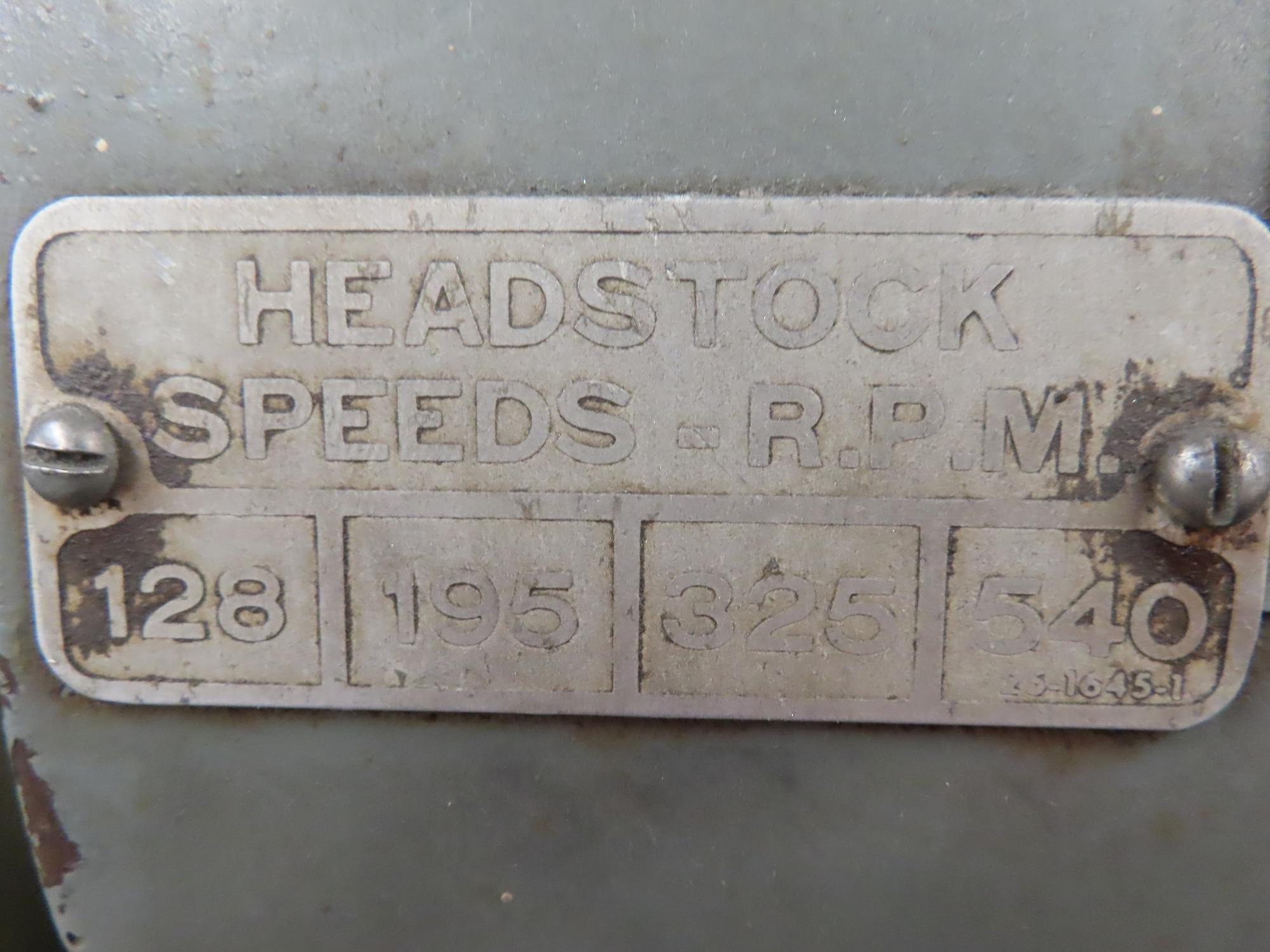

Motorized Workhead Speeds: (4) 128-540 RPM
Workhead Swivel: +/- 90 Degrees
Grinding Wheel Motor: 1 HP
Workhead Motor: 1/6 HP
Seller Company: Hennepin Technical College
Seller Contact: CRAIG BARRINGER Phone: (952) 995-1569
Item Location: Hennepin Technical College, 9000 Brooklyn Blvd, Brooklyn Park, MN 55445
Location Contact: CRAIG BARRINGER Phone: (952) 995-1569
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 14' x 14' Door, Ground Level, Paved Lot
Removal Dates and Times: This item must be removed between Wednesday, April 29, 2026 and Friday, May 8, 2026
