GLEASON GP200S - Gear Shaper

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR SHAPERS

Stock

25900

Model

GP200S

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Hydrostatic Spindle
  • Spur Guide
  • Column Inclination

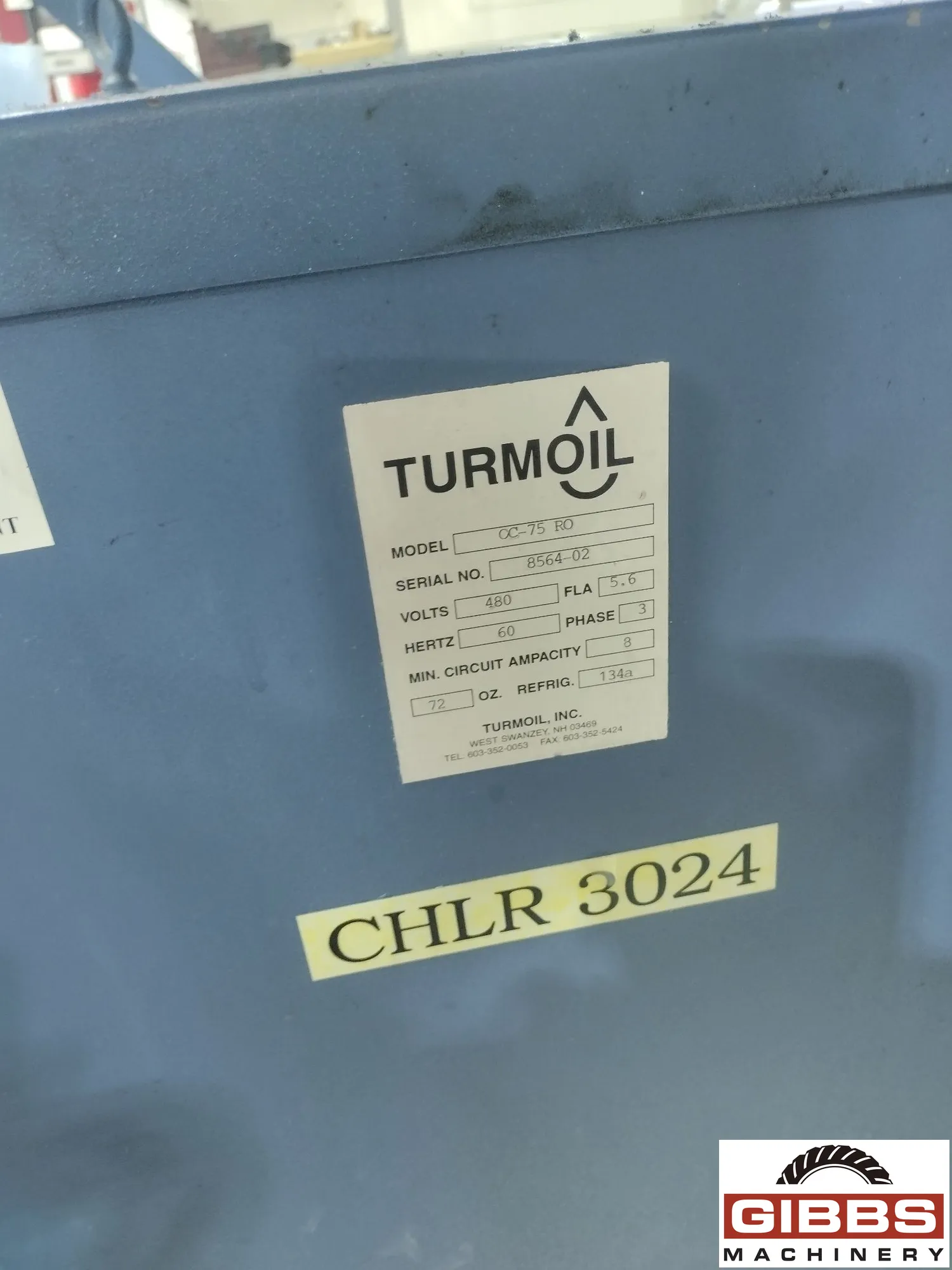

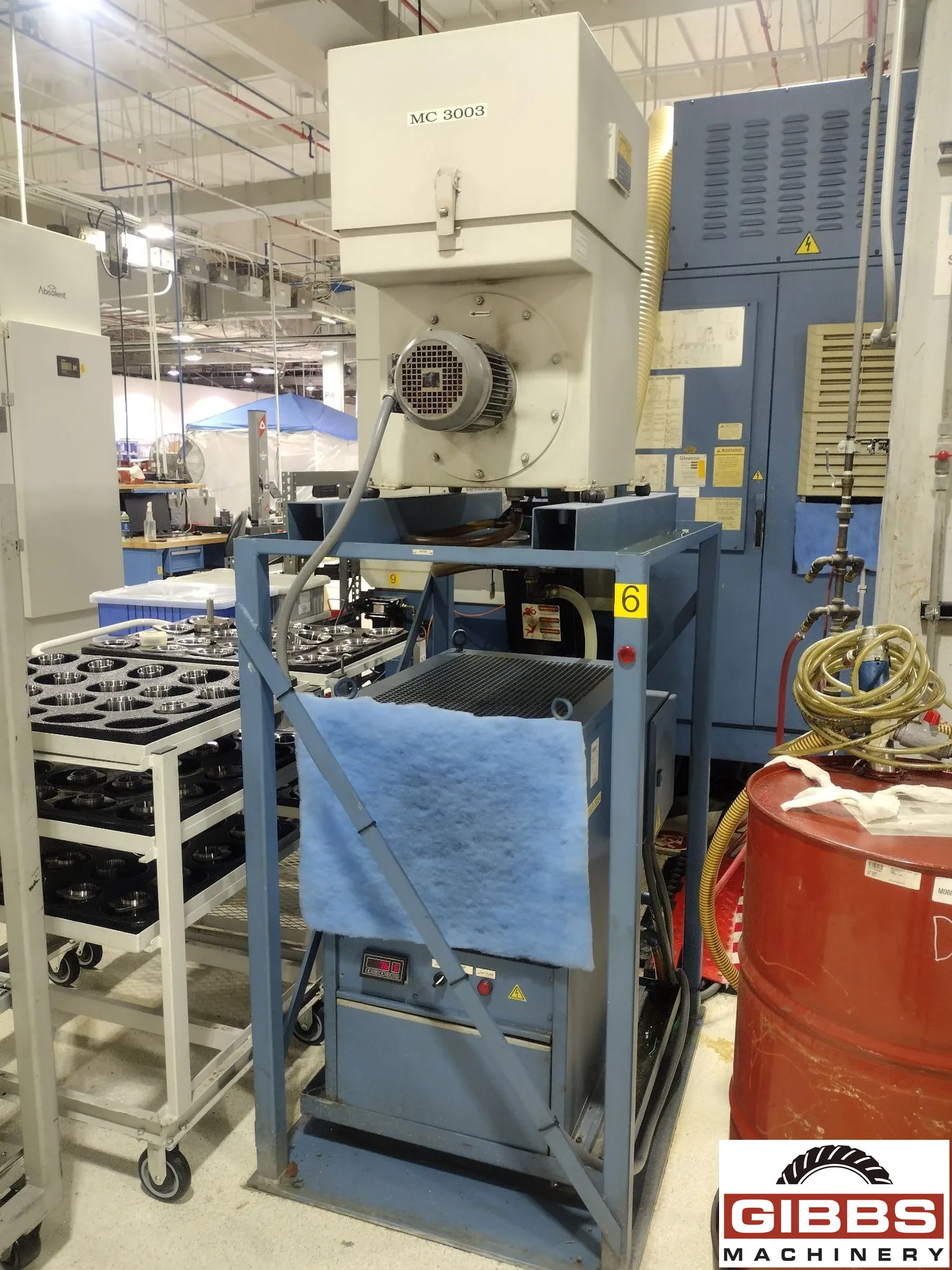

  • Coolant System
  • HSK 63 Taper
  • Hydraulic System
,

Machine Specifications :

  • Year 2002
  • Manufacturer GLEASON
  • Guide Spur
  • Maximum Workpiece Diameter 7.9"
  • Module 6.0
  • Maximum Face Width 4.333"
  • Cutter Spindle Diameter 3.3465"
  • Stroke 4.33"
  • Maximum Stroke Speed 1500.0
  • Spindle Taper 63.0
  • Control Manufacturer Other
,

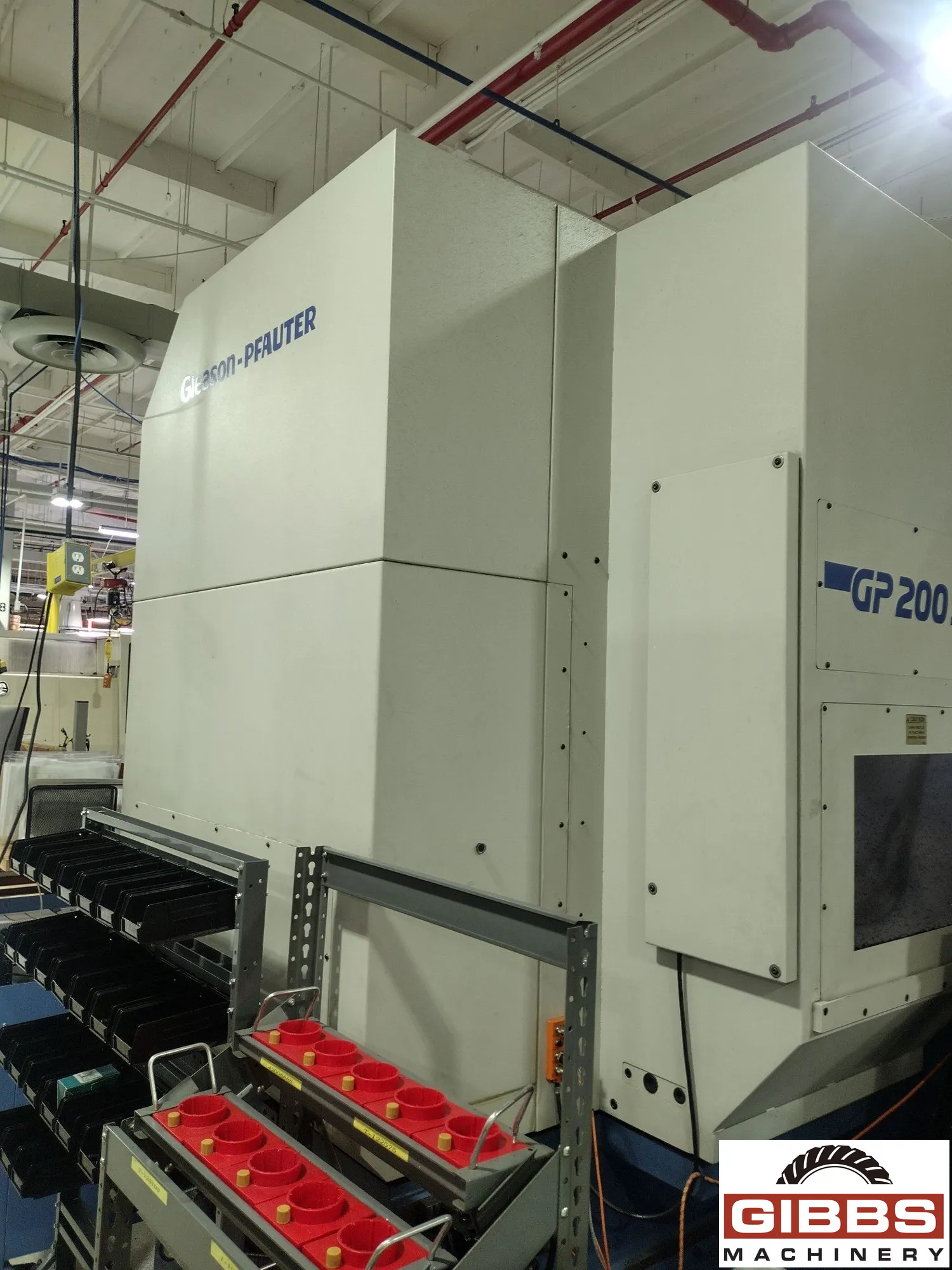

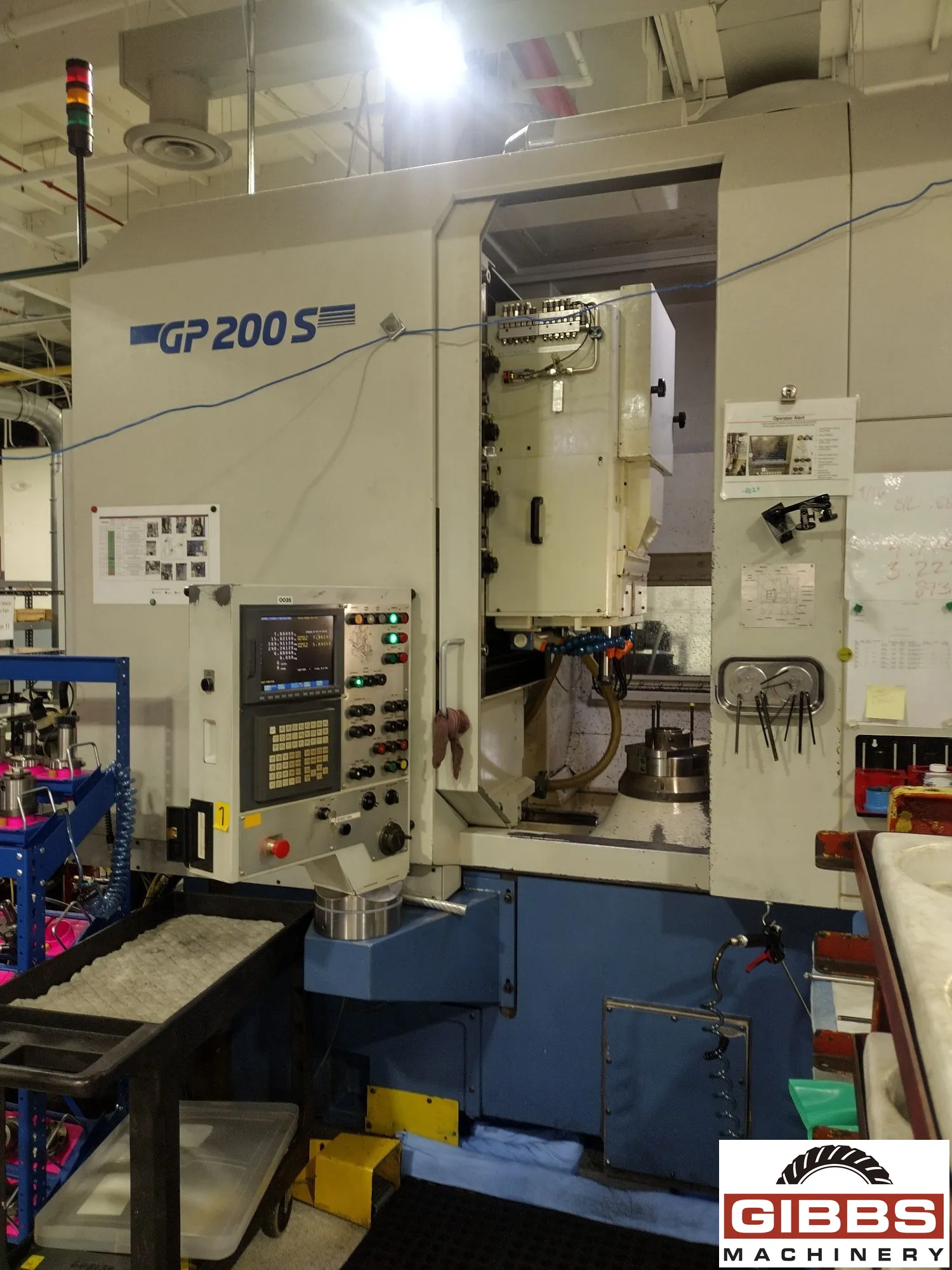

The Gleason Pfauter GP200S is a high-performance CNC gear shaping machine designed for the precise production of internal and external spur and helical gears. Part of the Gleason GP series, it is engineered for flexibility and high productivity in a compact design, making it suitable for both large-batch manufacturing and small-lot production in industries like automotive and aerospace.
    Specifications:
  • Nominal Workpiece Diameter: 200 mm
  • Maximum Workpiece Swing: 350 mm
  • Maximum Face Width: 50 mm
  • Nominal Module: 6 mm
  • Maximum Stroke Length: 55 mm
  • Cutter Spindle Diameter: 85 mm
  • Maximum Cutter Spindle Stroke Speed: 1,500 1/min
  • Radial Slide Position Range: -50/+225 mm
  • Axial Slide Position Range: 350 mm
  • Tool Taper: B63 HSK
  • Maximum Feed and Rapid Traverse Rates:
  • -Axial: 2,000 mm/min
  • -Radial: 5,000 mm/min
  • Cutter Spindle Drive Motor: 12 kW
  • Approximate Dimensions (L x W x H): 112" x 91" x 115"
  • Approximate Machine Weight: 10,000 Kg
