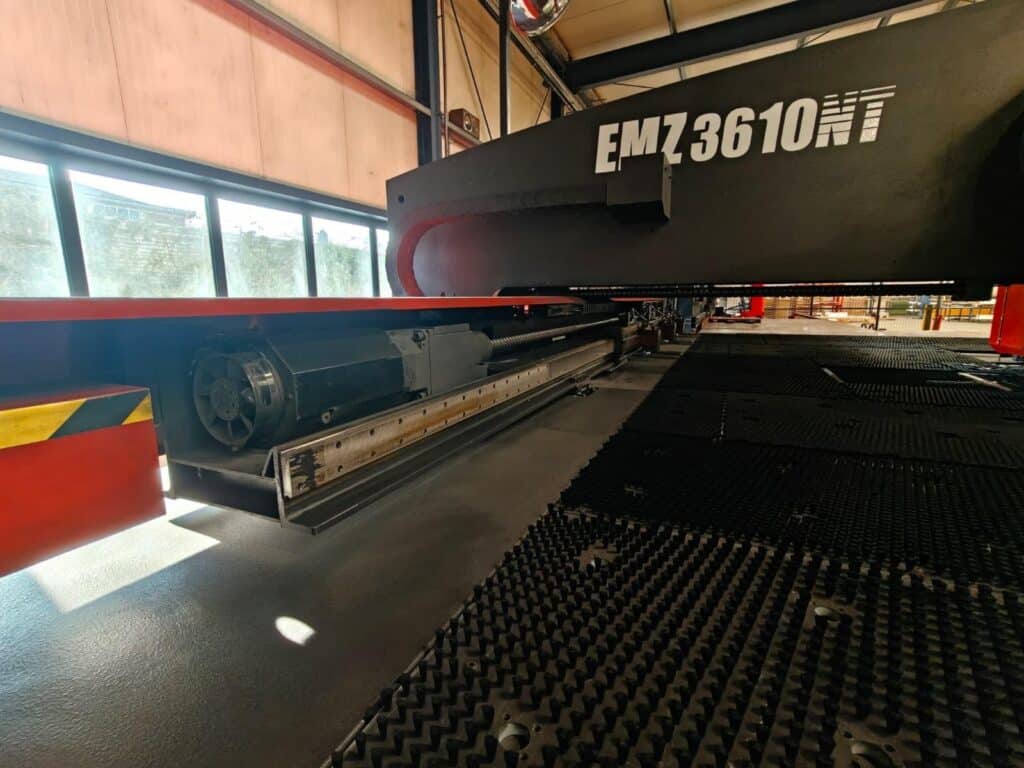

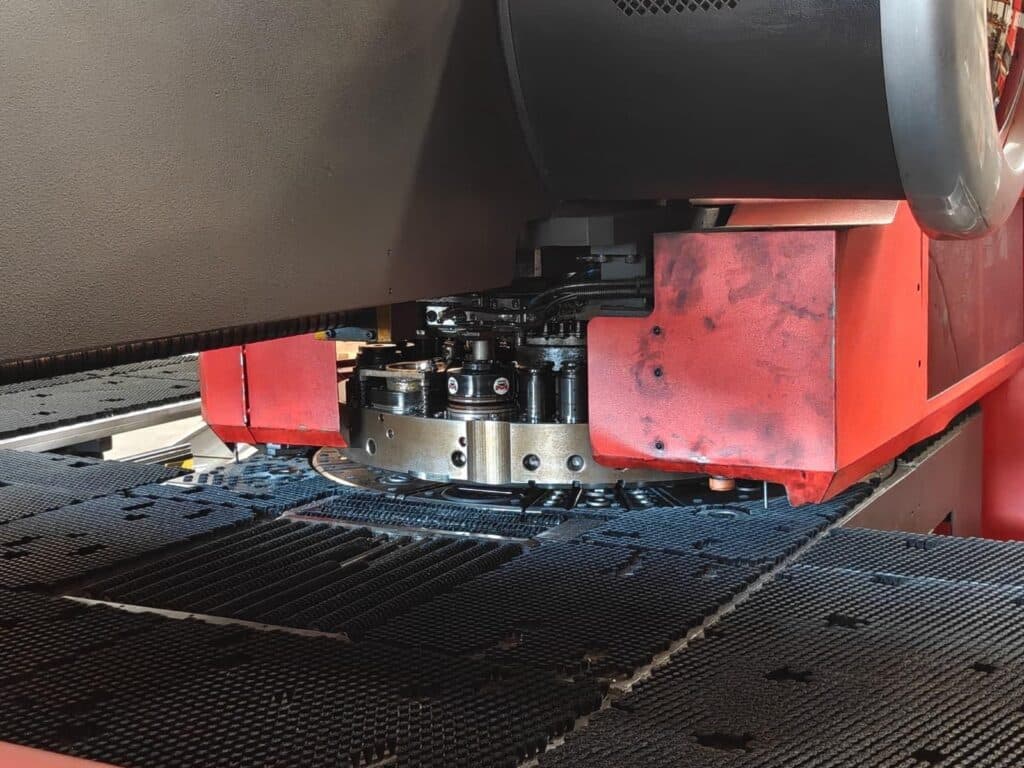

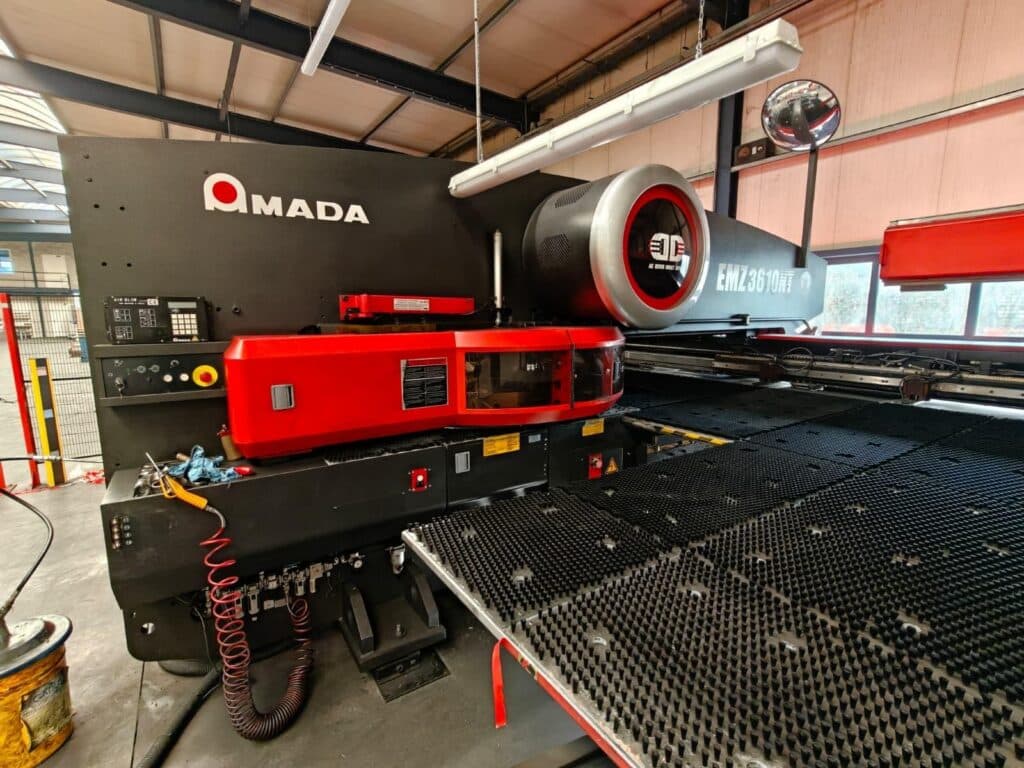

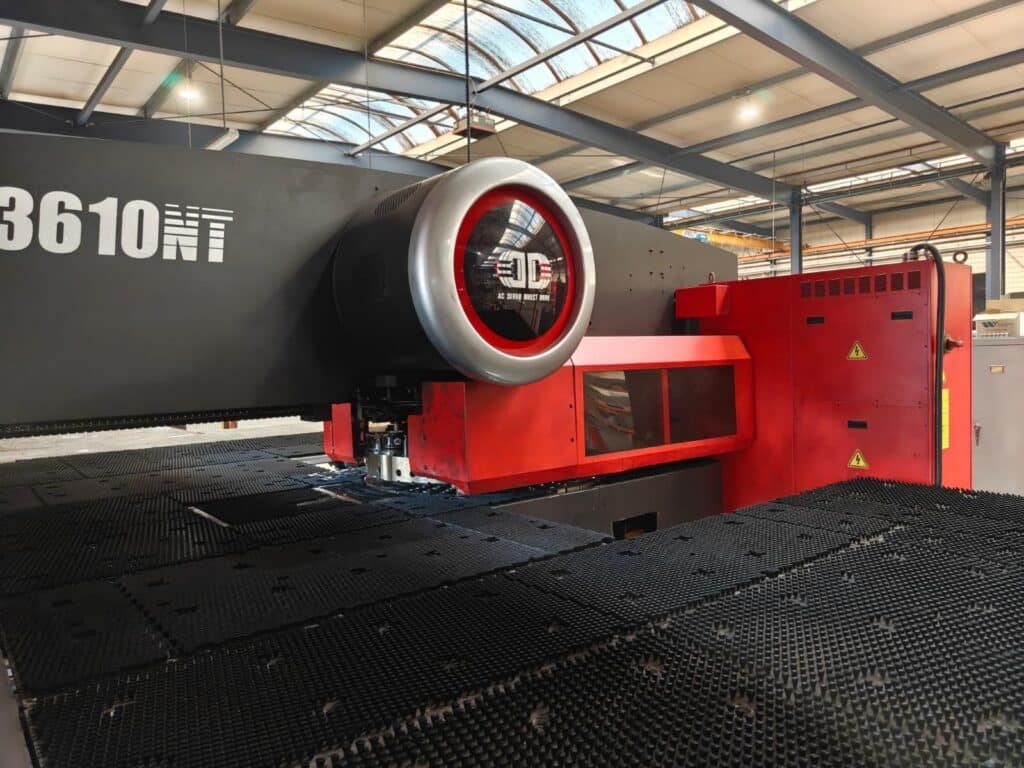

Amada EMZ 3610NT 33 Ton Electric Servo CNC Turret Punch

Manufacturer

Amada

Category

Punches

Type

PUNCHES, TURRET

Stock

163260008

Model

EMZ 3610NT

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 163260008
  • Location: NY
  • Brand: Amada
  • Model: EMZ 3610NT
  • Year: 2006

Specifications

  • Punching Capacity: 33 Tons

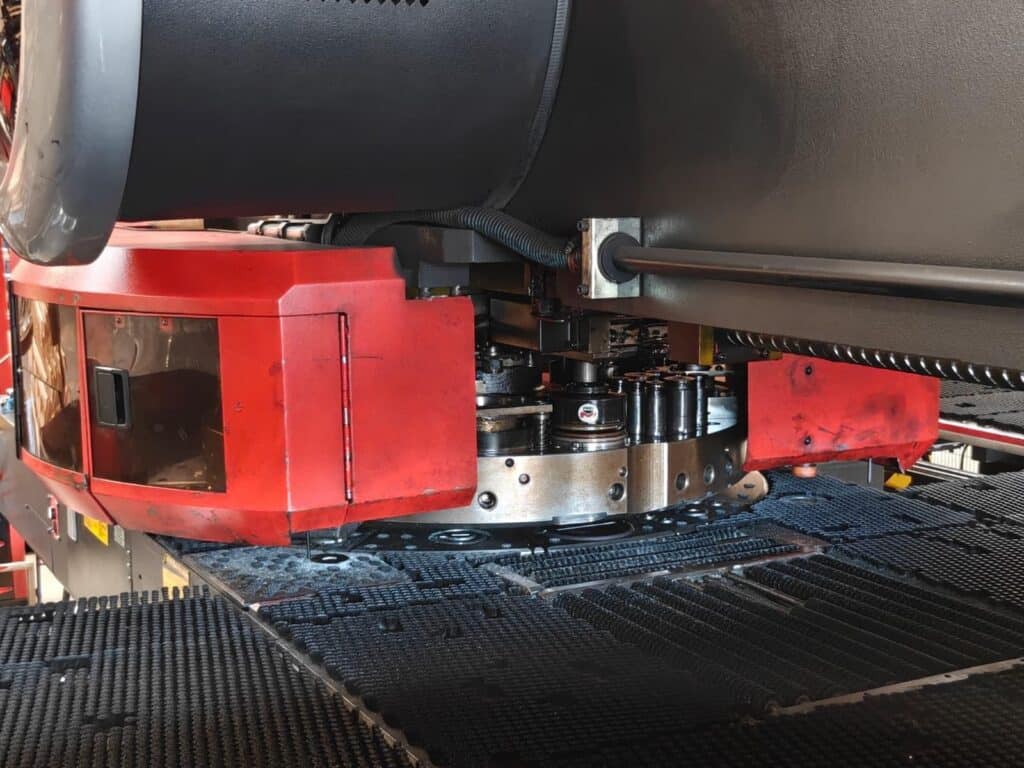

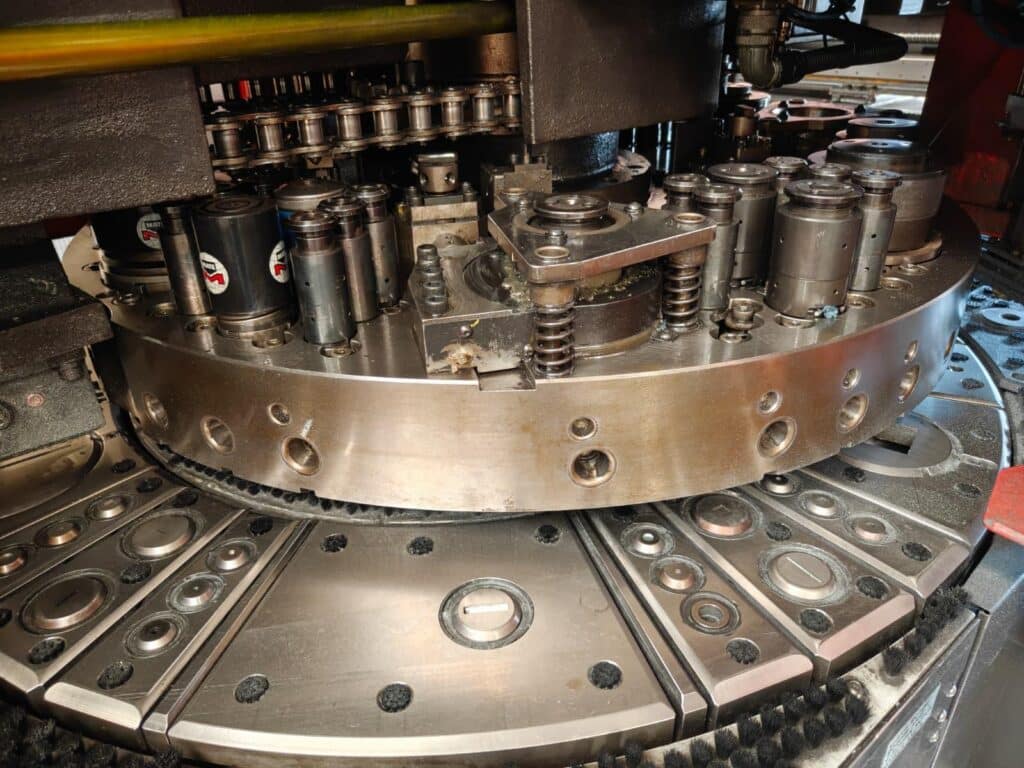

  • Turret Capacity: 45 Stations
  • Max Sheet Size: 1525mm x 3000mm
  • Max Sheet Size (with re-positioning): 1525mm x 5000mm
  • Max Sheet Thickness: 4.5mm
  • Max Sheet Weight: 50kg (feed speed F1) / 150kg (feed speed F4)
  • Y-Axis Travel: 1525mm
  • X-Axis Travel: 2500mm
  • Positioning Accuracy: +/- 0.07mm
  • Strokes Per Minute (1mm pitch, 5mm stroke): 780 strokes/min
  • Strokes Per Minute (25.4mm pitch, 5mm stroke – X-axis): 500 strokes/min
  • Strokes Per Minute (25.4mm pitch, 5mm stroke – Y-axis): 330 strokes/min
  • Max Stroke Length: 37 mm
  • Max Feed Speed: X: 100m/min Y: 80m/min
  • Turret Rotation Speed: 30 RPM
  • Power Supply: 27 kVA
  • Air Supply: 250 L /min (8.8 Cu Ft / min
  • Operating Air Pressure: 6 bar

Equipped With

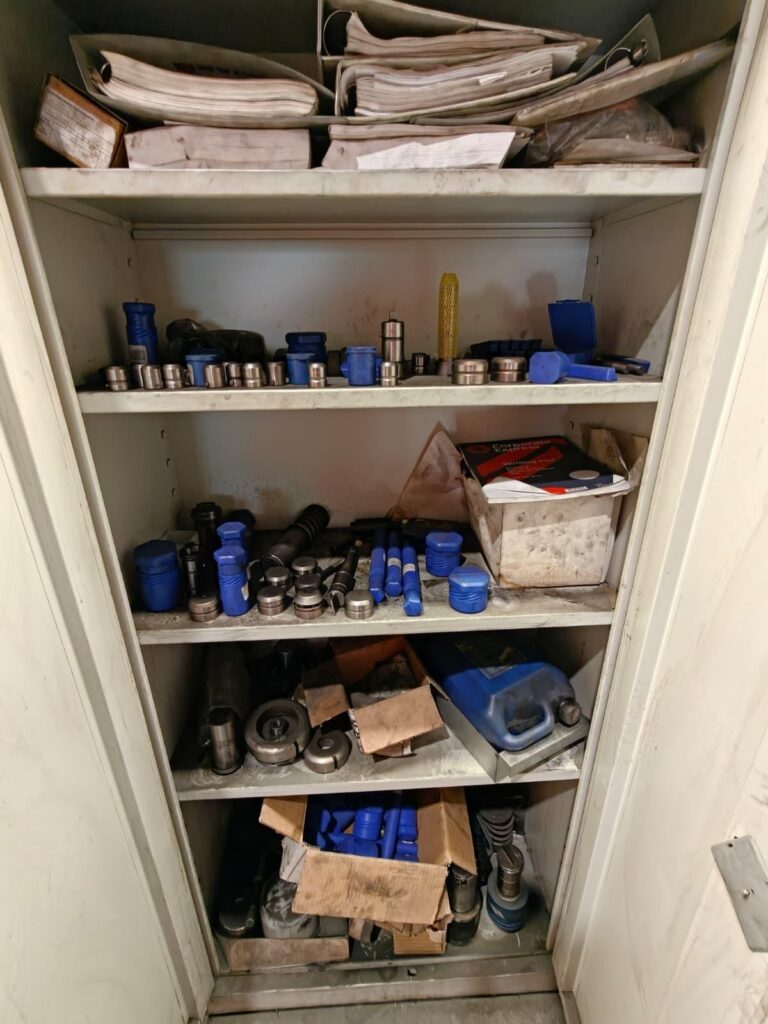

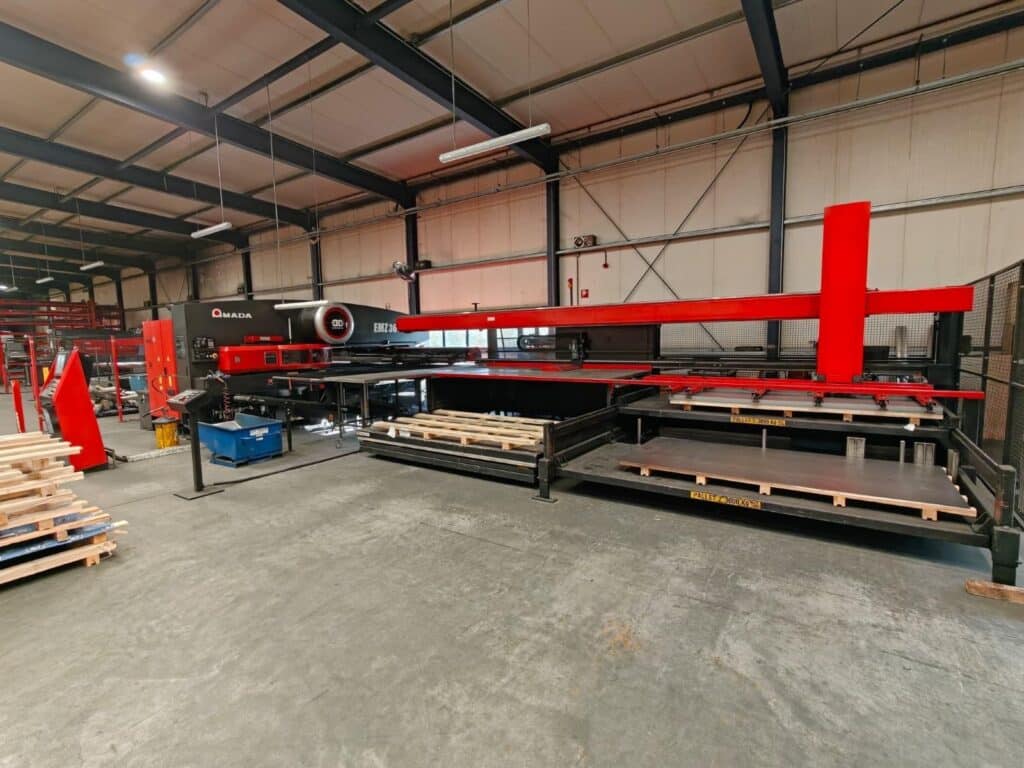

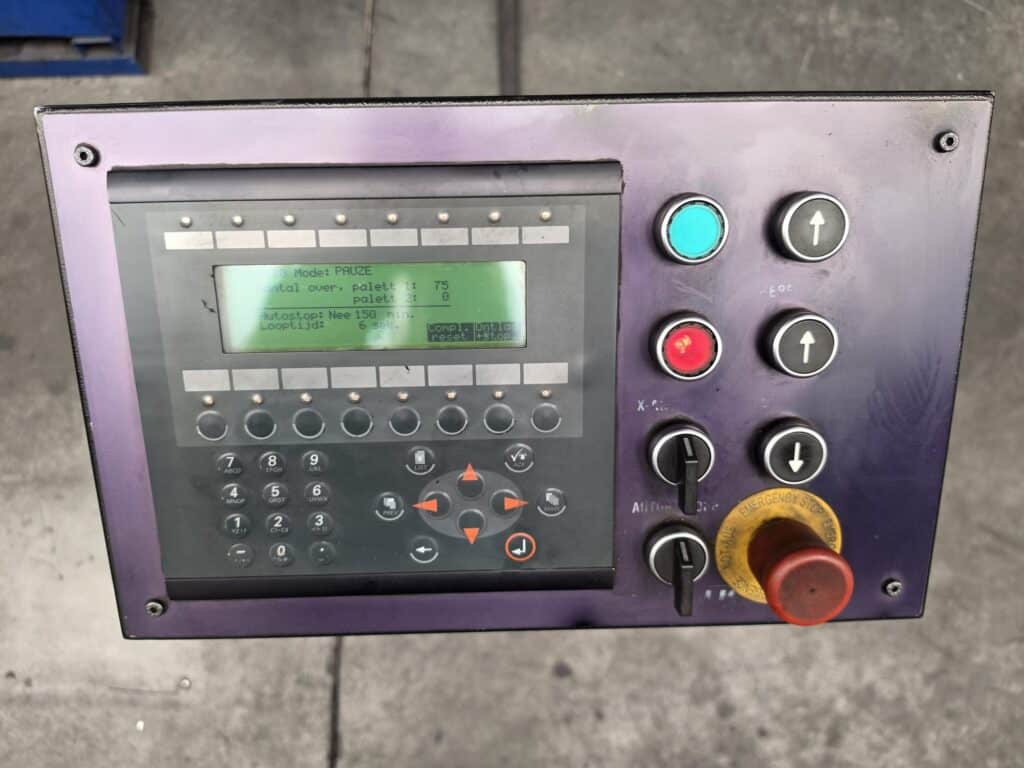

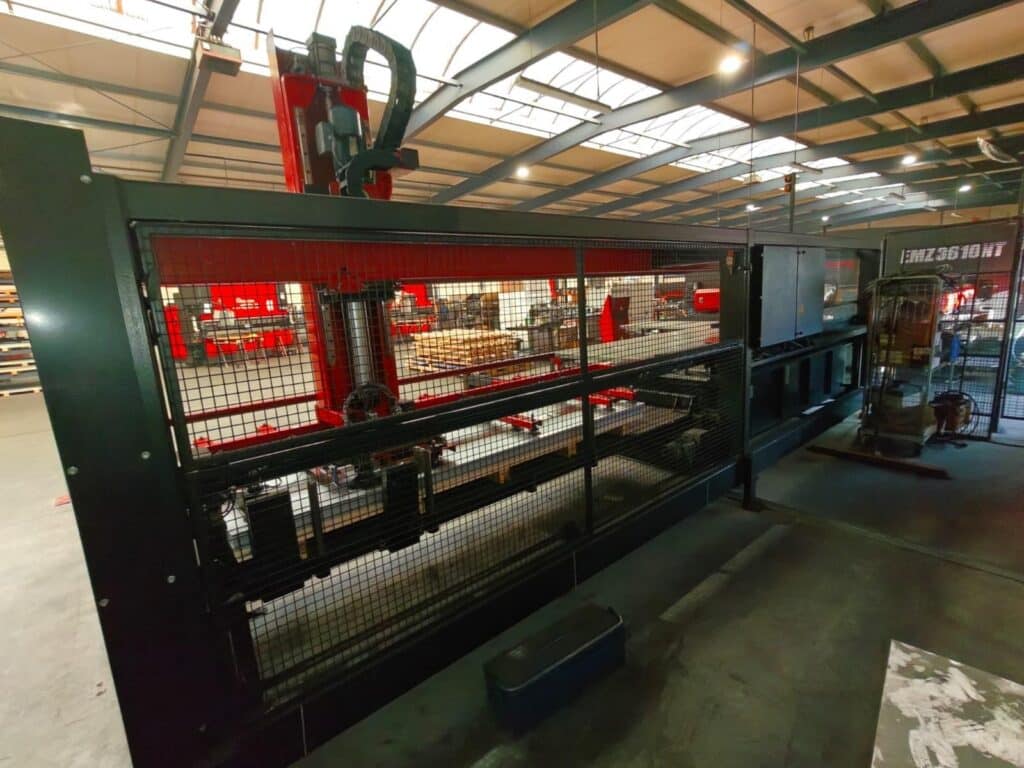

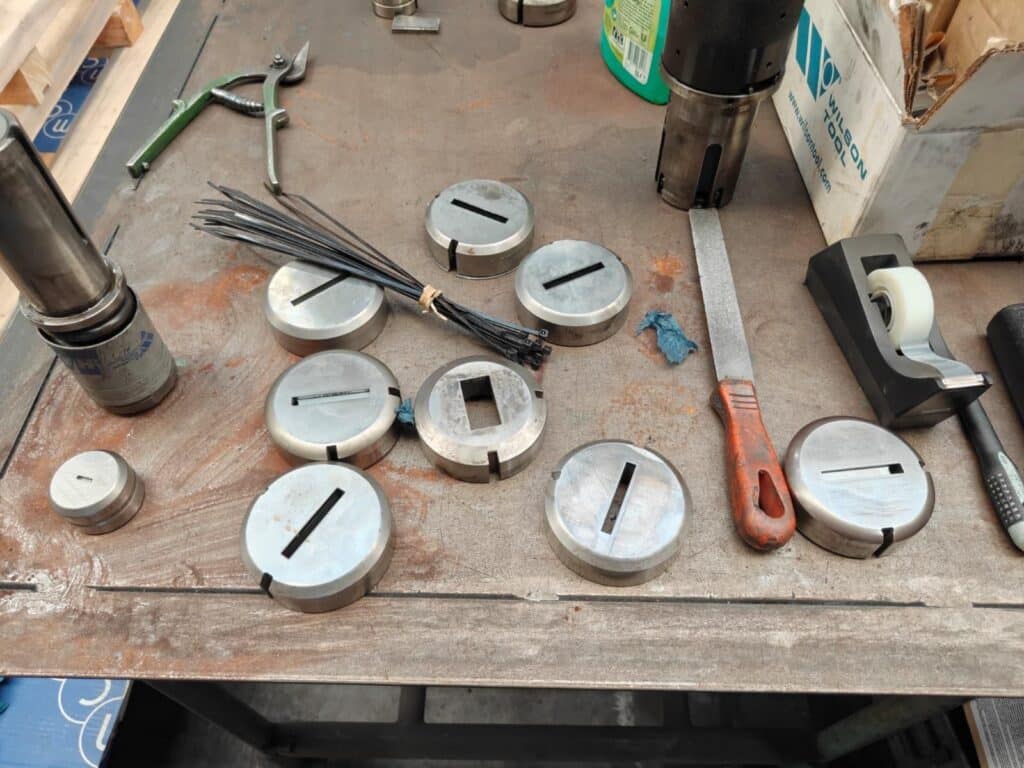

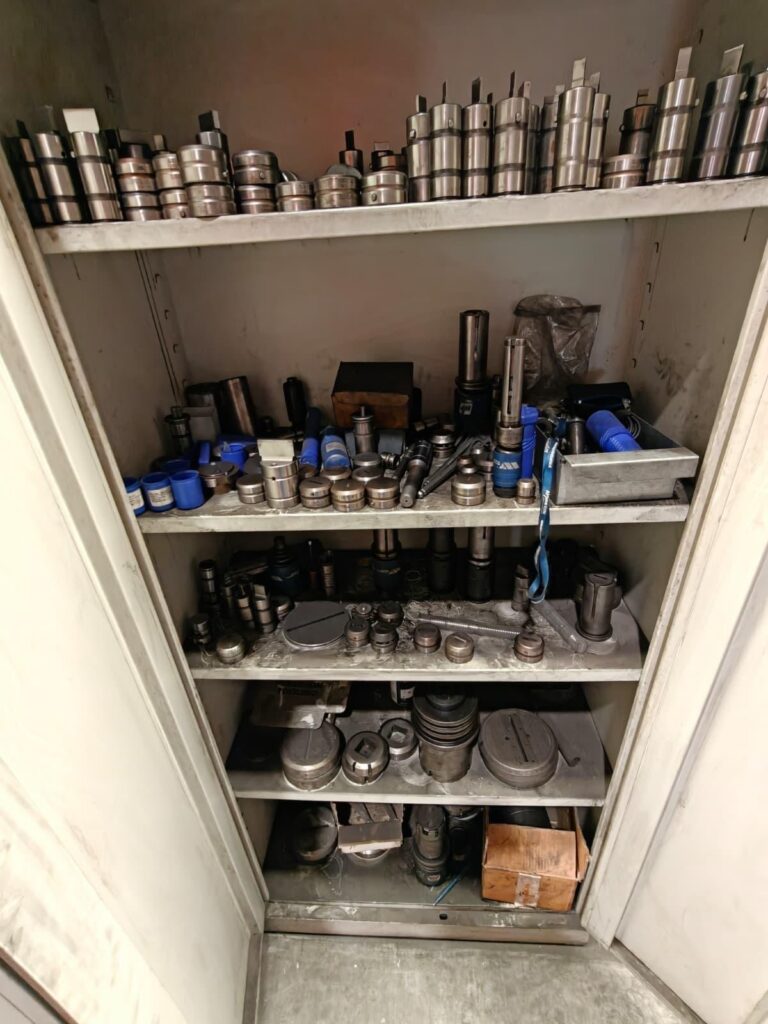

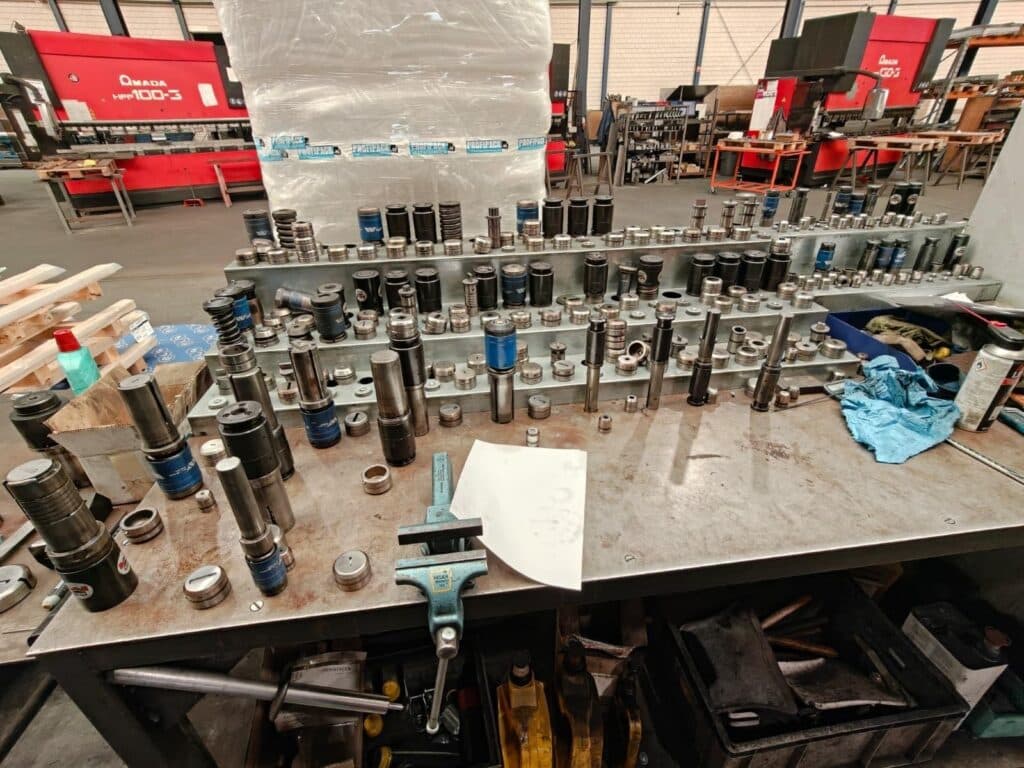

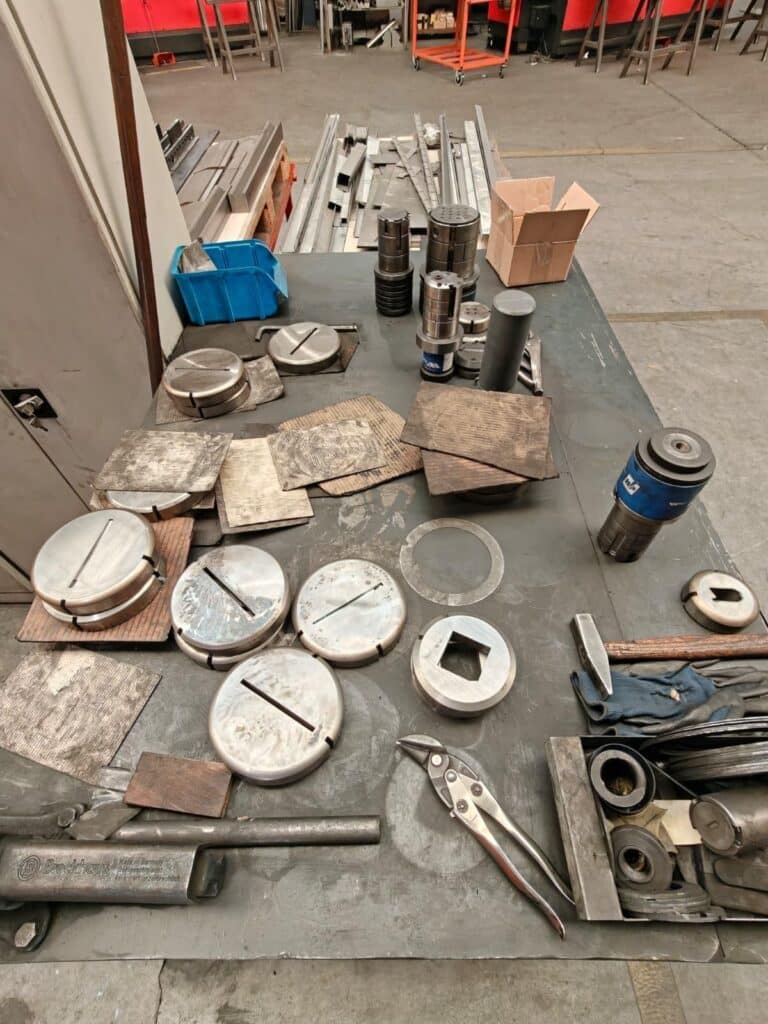

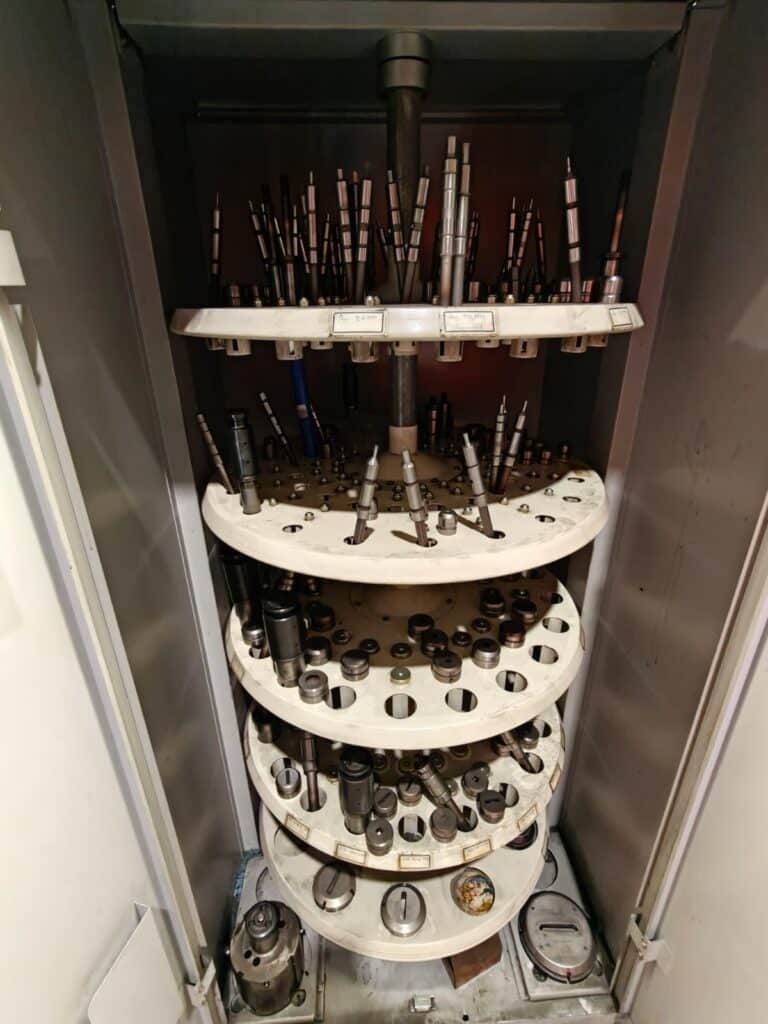

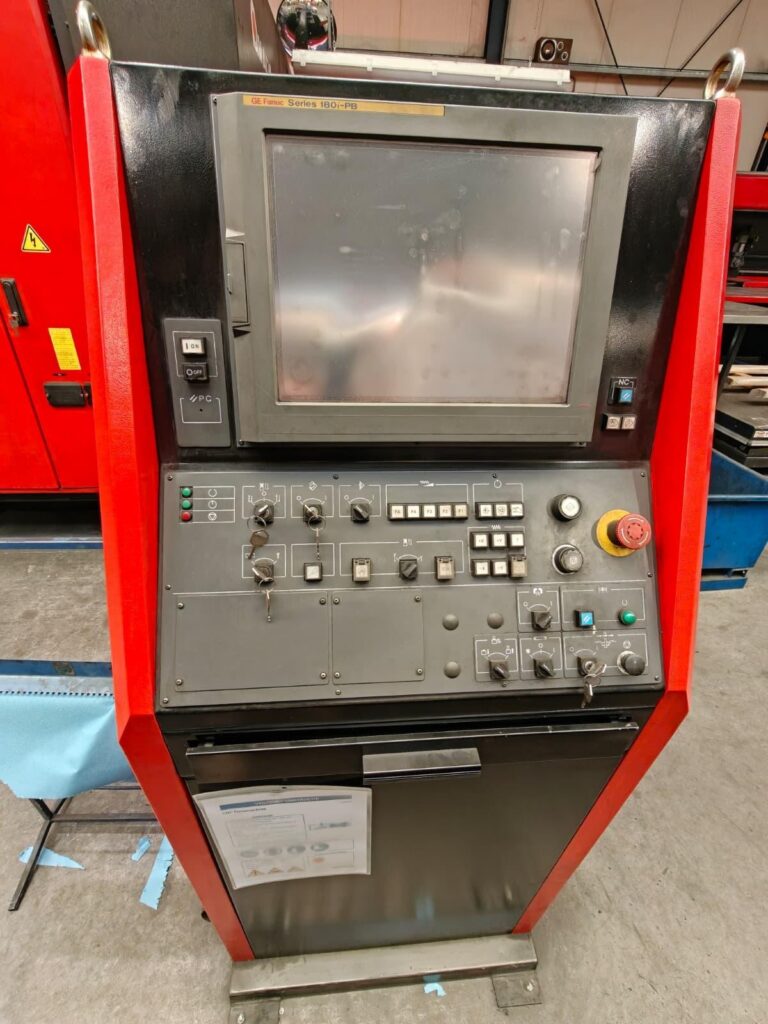

Fanuc AMNC-F Control (180i-PB) , Optional LKI Loading System (1999), Wide Range of Tooling

Additional Info

This machine will be available for shipment end of May 2026. It is currently in plant and can be seen under power.
