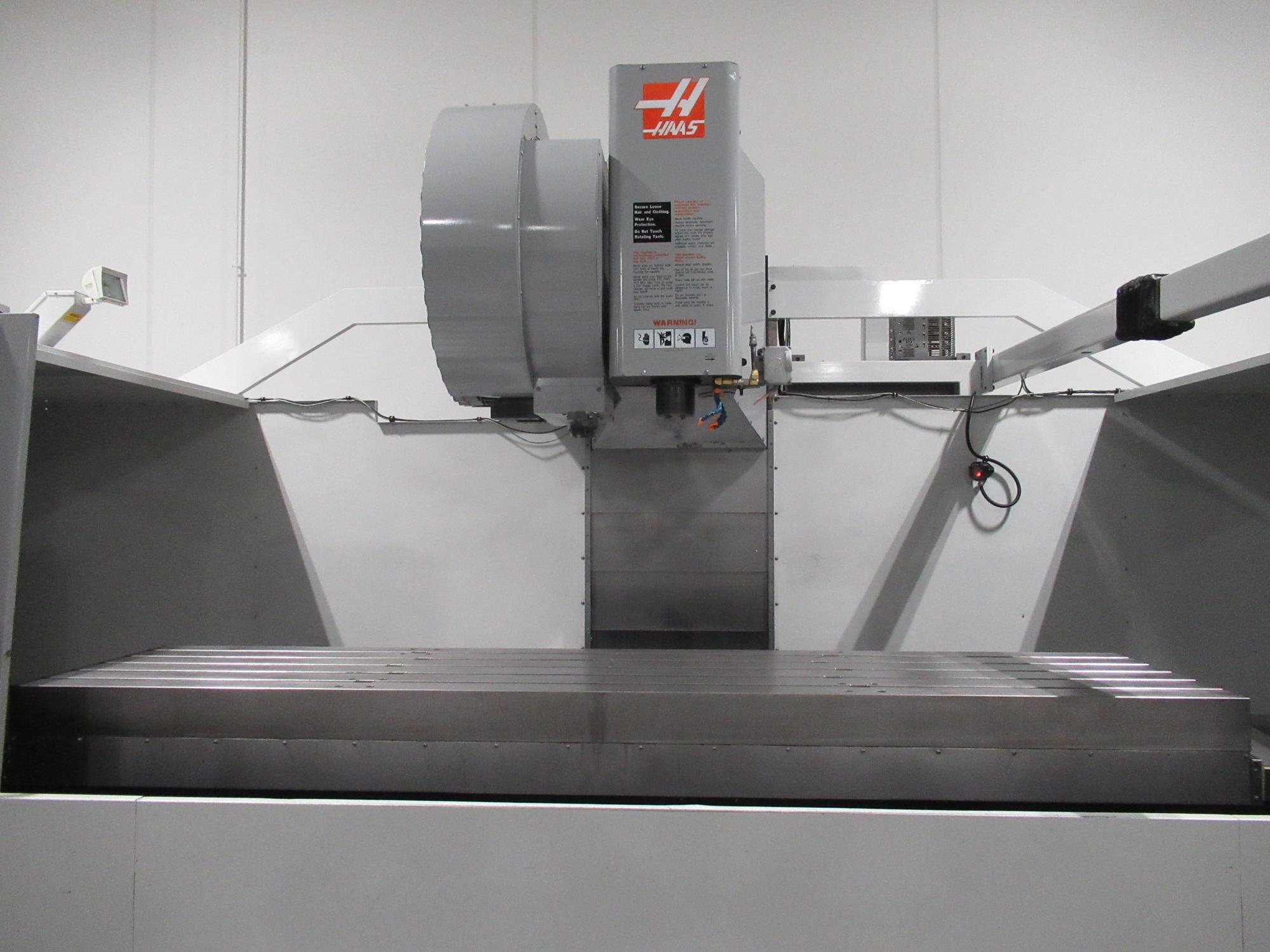

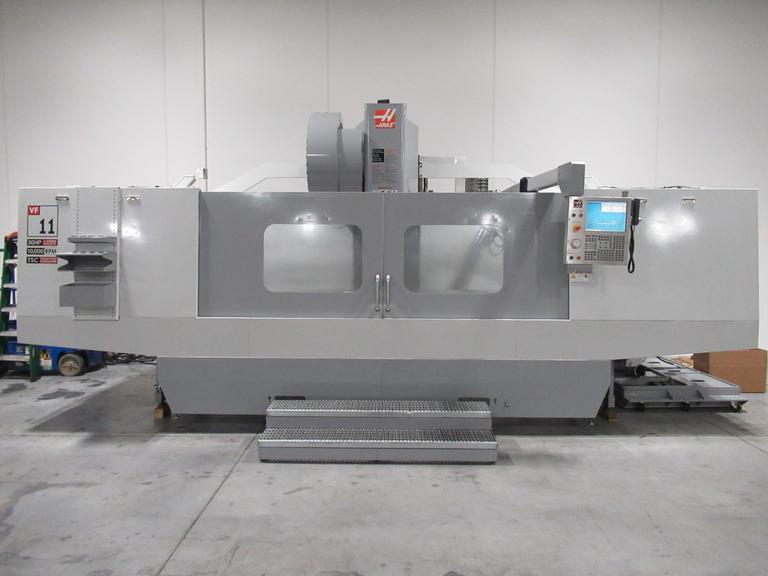

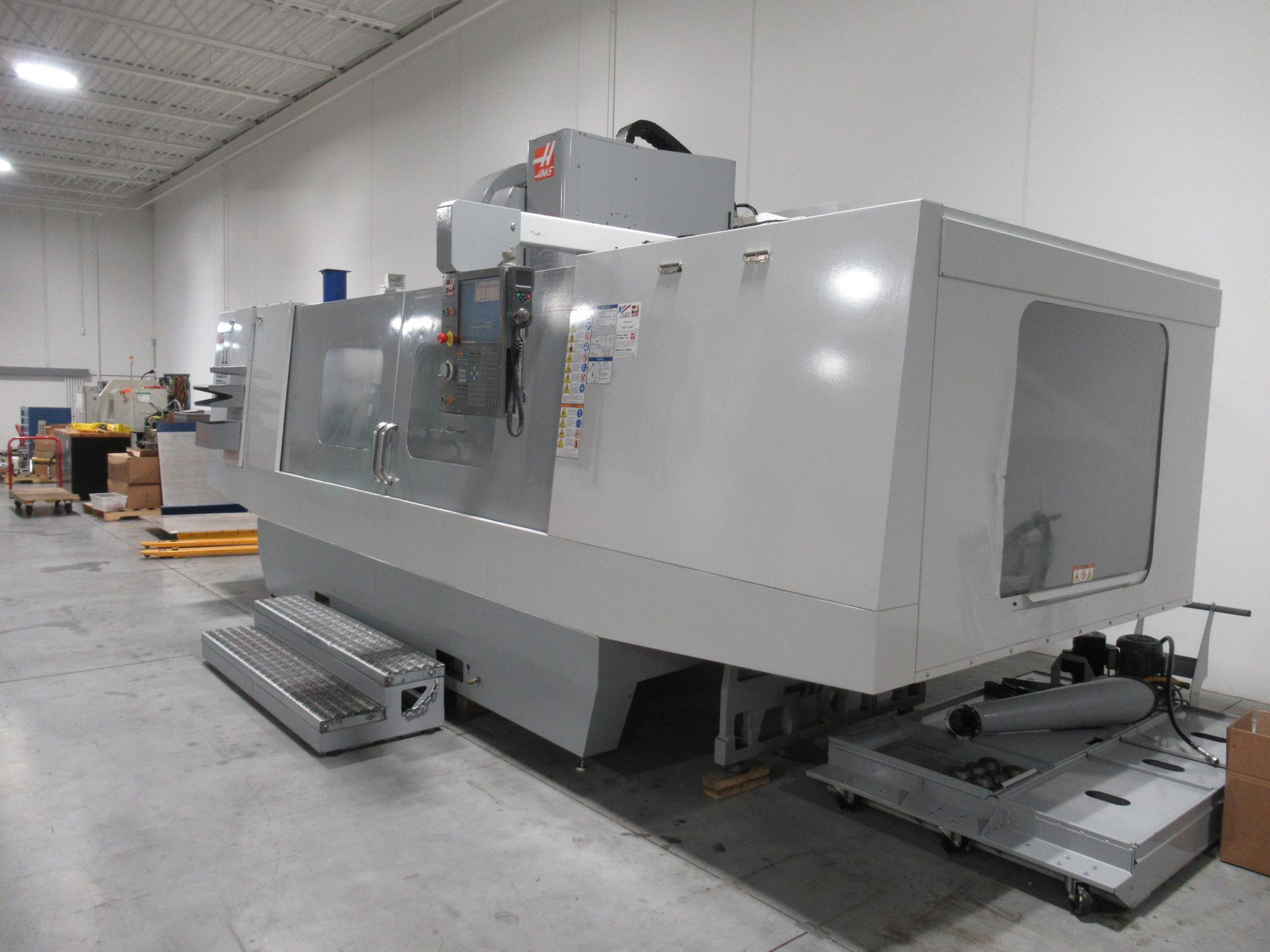

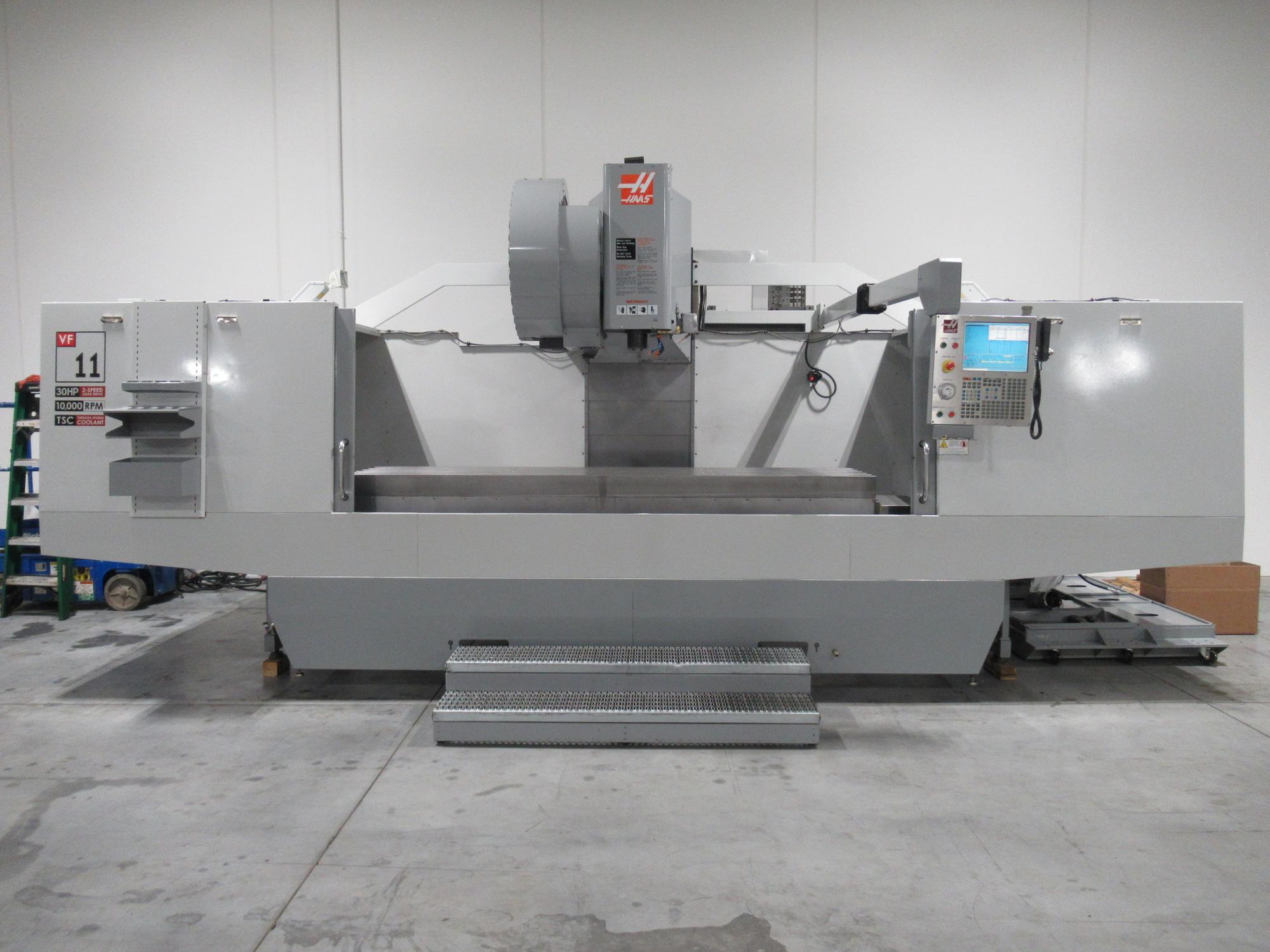

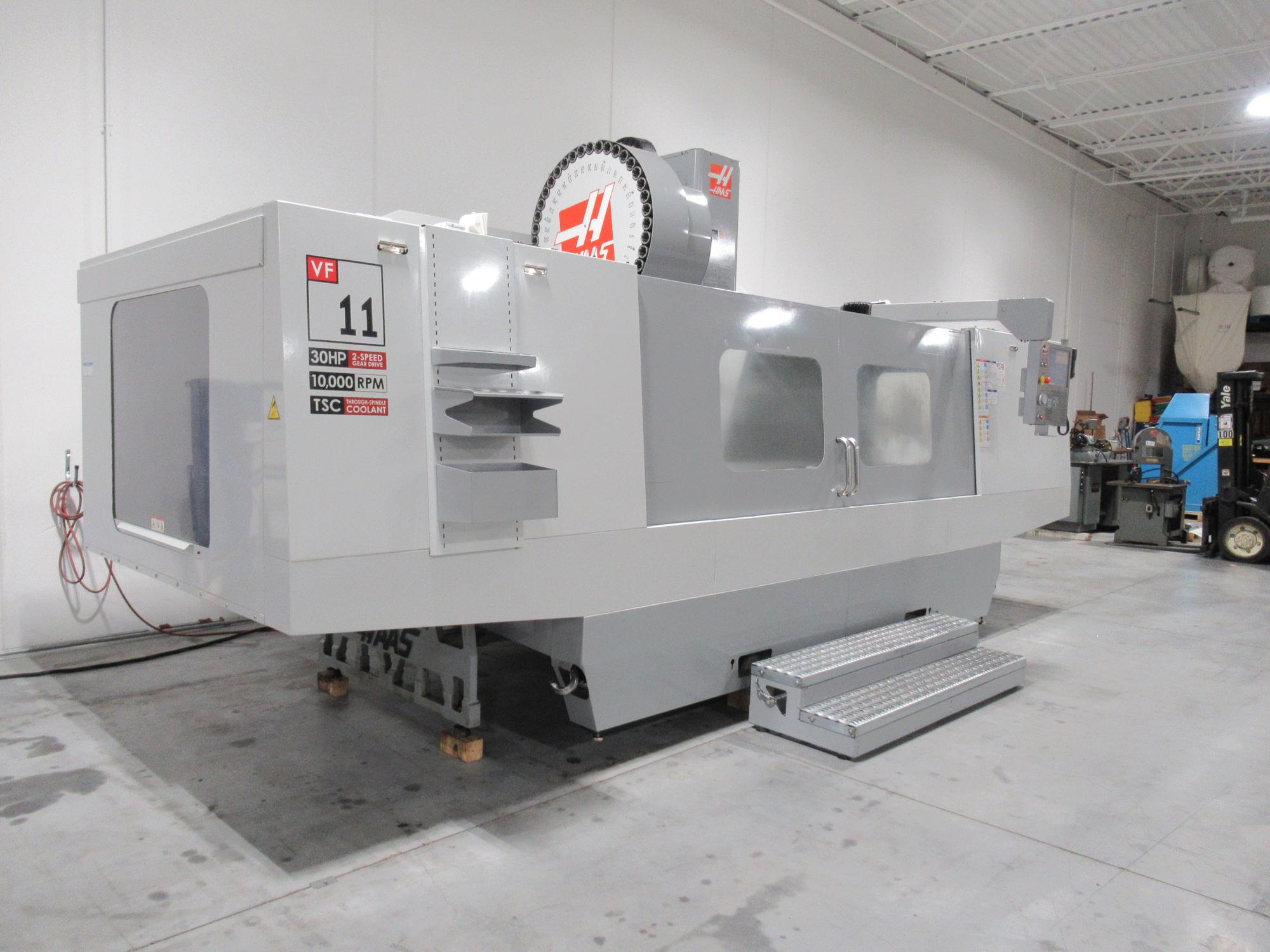

Haas VF-11 CNC Vertical Machining Center, 120" x 40" x 30", CT40 40 ATC, 10K RPM, Probing, Thru-Spindle Coolant

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

7346

Model

VF-11

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

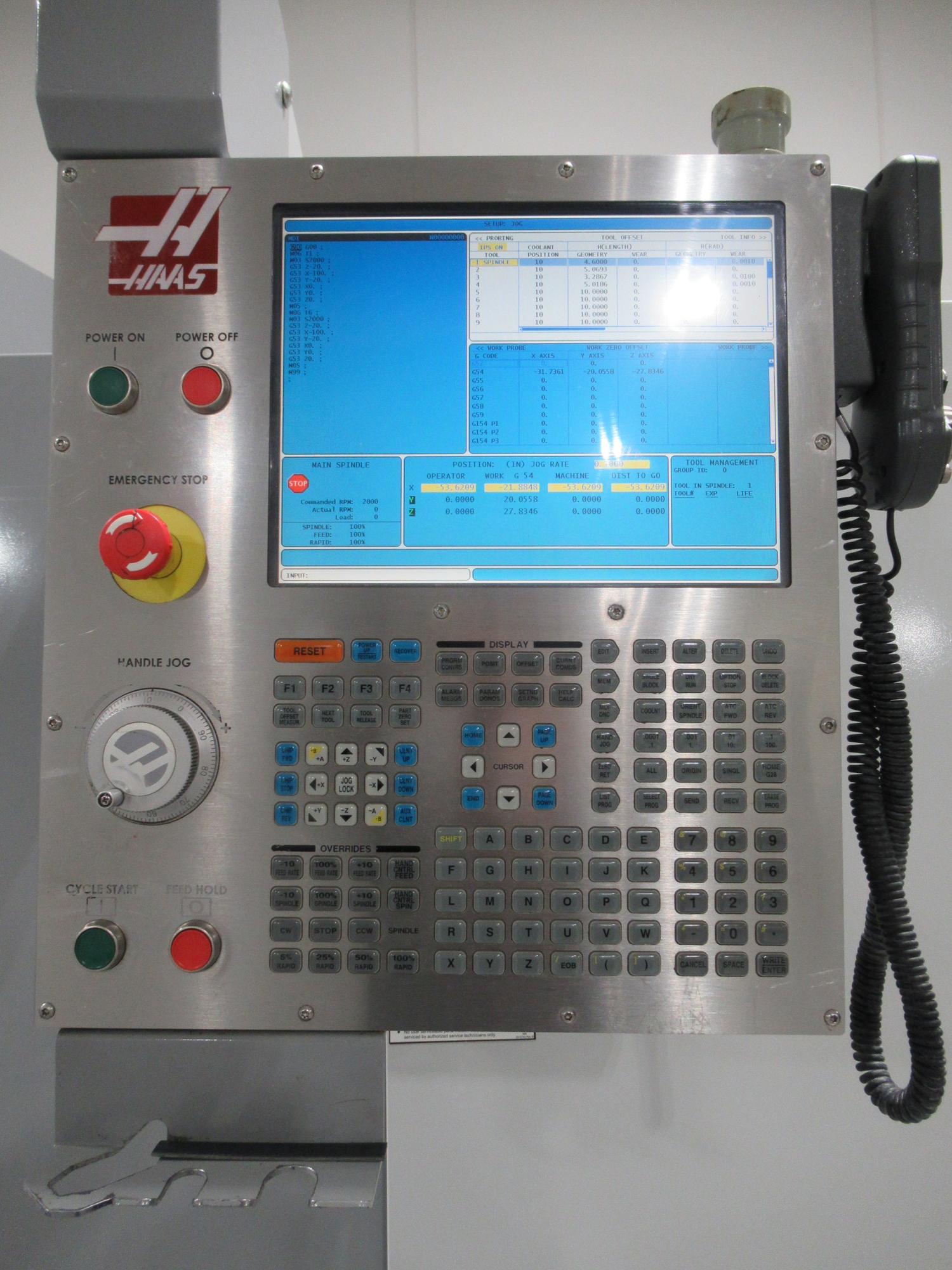

Machine Control: Haas CNC with Coldfire 2 Processor

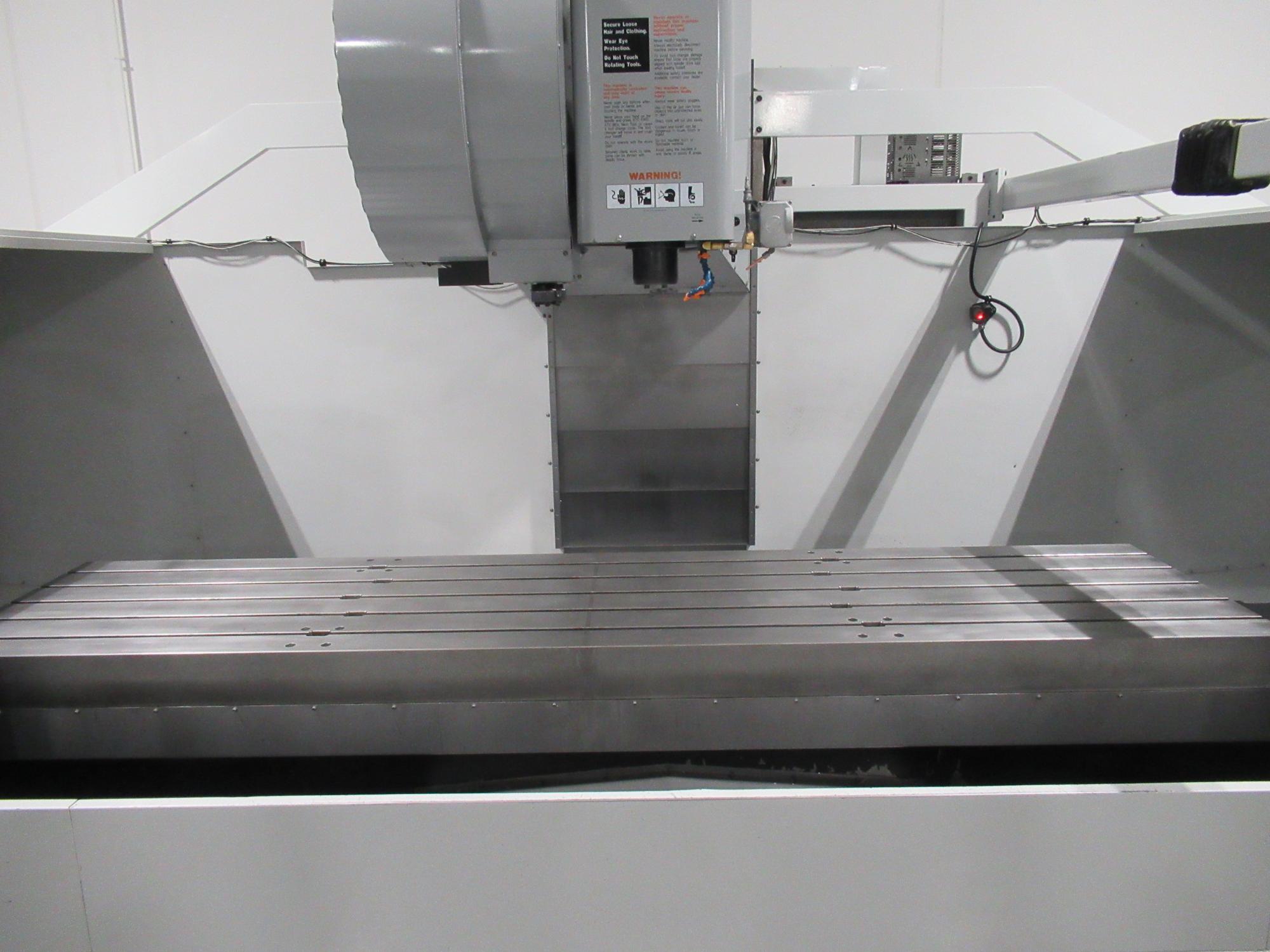

Table Size: 120" x 28"

Machine Travels (X/Y/Z): 120" x 40" x 30"

Spindle To Table Distance: 4" - 34"

Table Capacity: 4,000 lbs

Spindle Taper: CT 40

Spindle Speeds: 10,000 RPM Max Spindle Speed

Transmission: 2-Speed Gearbox

Rapid Traverse Rate (X/Y/Z): 360 / 600 / 600 ipm.

Maximum Cutting Feed Rate: 360 ipm.

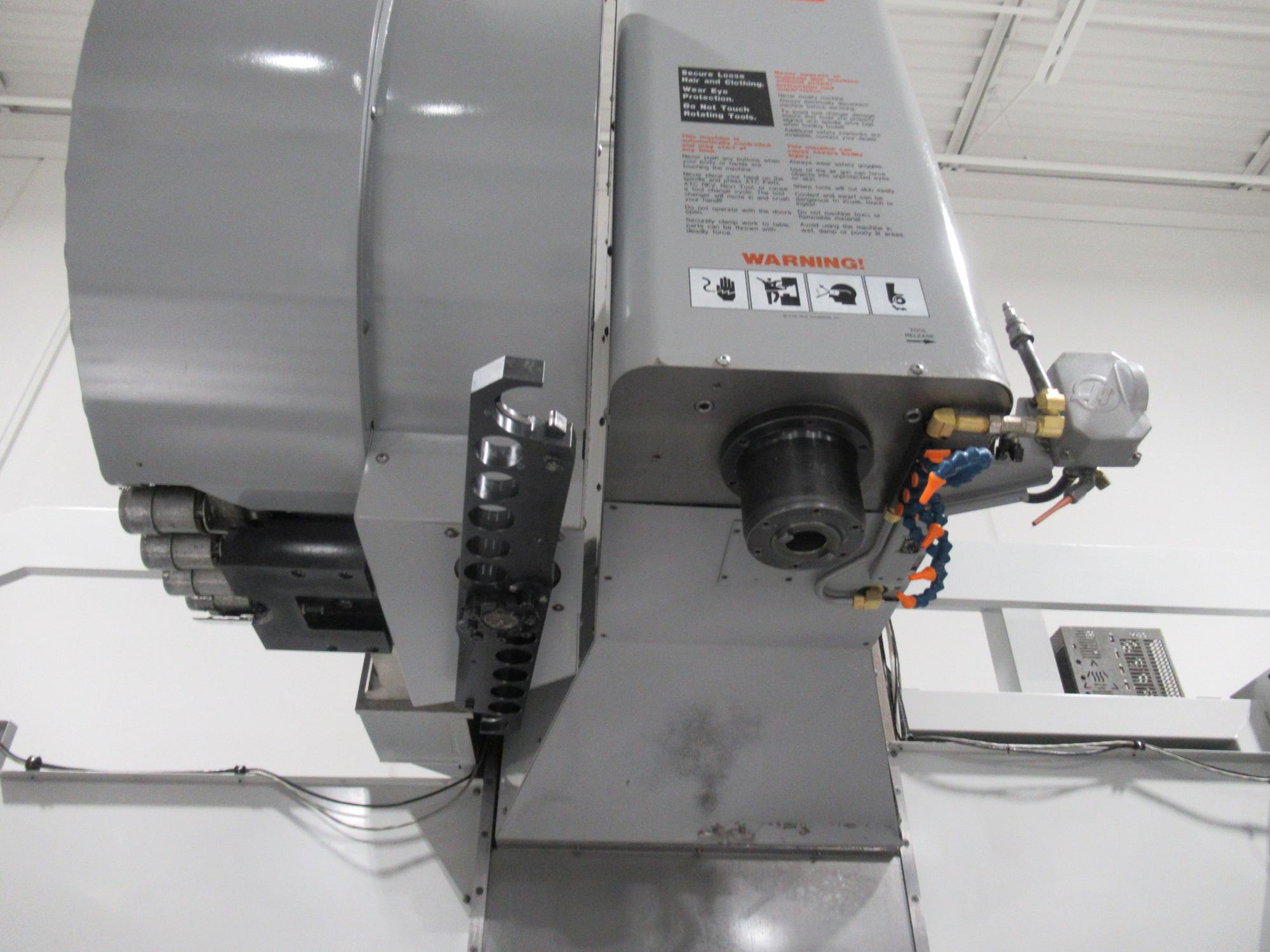

Tool Changer Style: Side Mount, Twin Arm

Tool Changer Capacity: 40 + 1 Stations

Tool Change Time: 2.8 Sec. Tool to Tool

Max Tool weight: 12 Lbs.

Spindle Drive: 30 HP Vecto Spindle Drive

Description:

The Haas VF‑11 is a heavy‑duty, large‑frame CNC vertical machining center designed for machining oversized workpieces that require long travels, high rigidity, and reliable spindle performance. With one of the largest XYZ travel envelopes in the Haas VF Series, the VF‑11 is ideal for aerospace components, large plates, structural parts, molds, and dies. Built with a robust cast‑iron structure, precision box‑way design, and a high‑torque 40‑taper spindle, the Haas VF‑11 delivers excellent surface finishes and consistent accuracy even in demanding applications. The spacious work envelope allows operators to machine long or bulky parts in a single setup, improving productivity and reducing handling time. Equipped with the industry‑proven Haas CNC Control, the VF‑11 provides a user‑friendly interface, fast processing speeds, and extensive programmability. Optional features such as high‑speed machining, through‑spindle coolant, extended tool changers, and rotary tables allow the VF‑11 to be configured for a wide range of production and job‑shop requirements. The Haas VF‑11 is a trusted solution for shops that need a dependable, American‑made large‑travel VMC capable of handling heavy cuts, long workpieces, and high‑mix machining environments.

Equipped With:

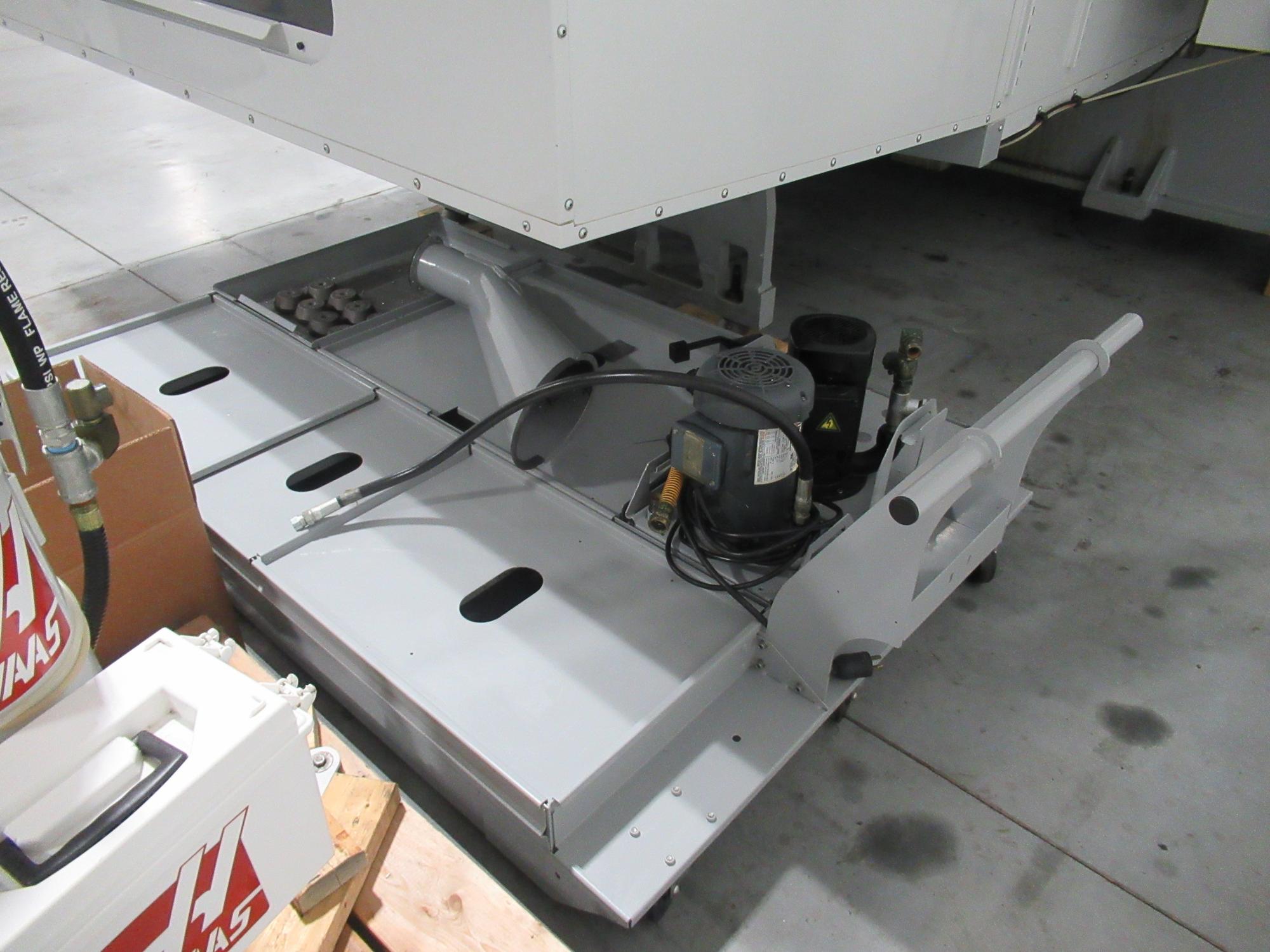

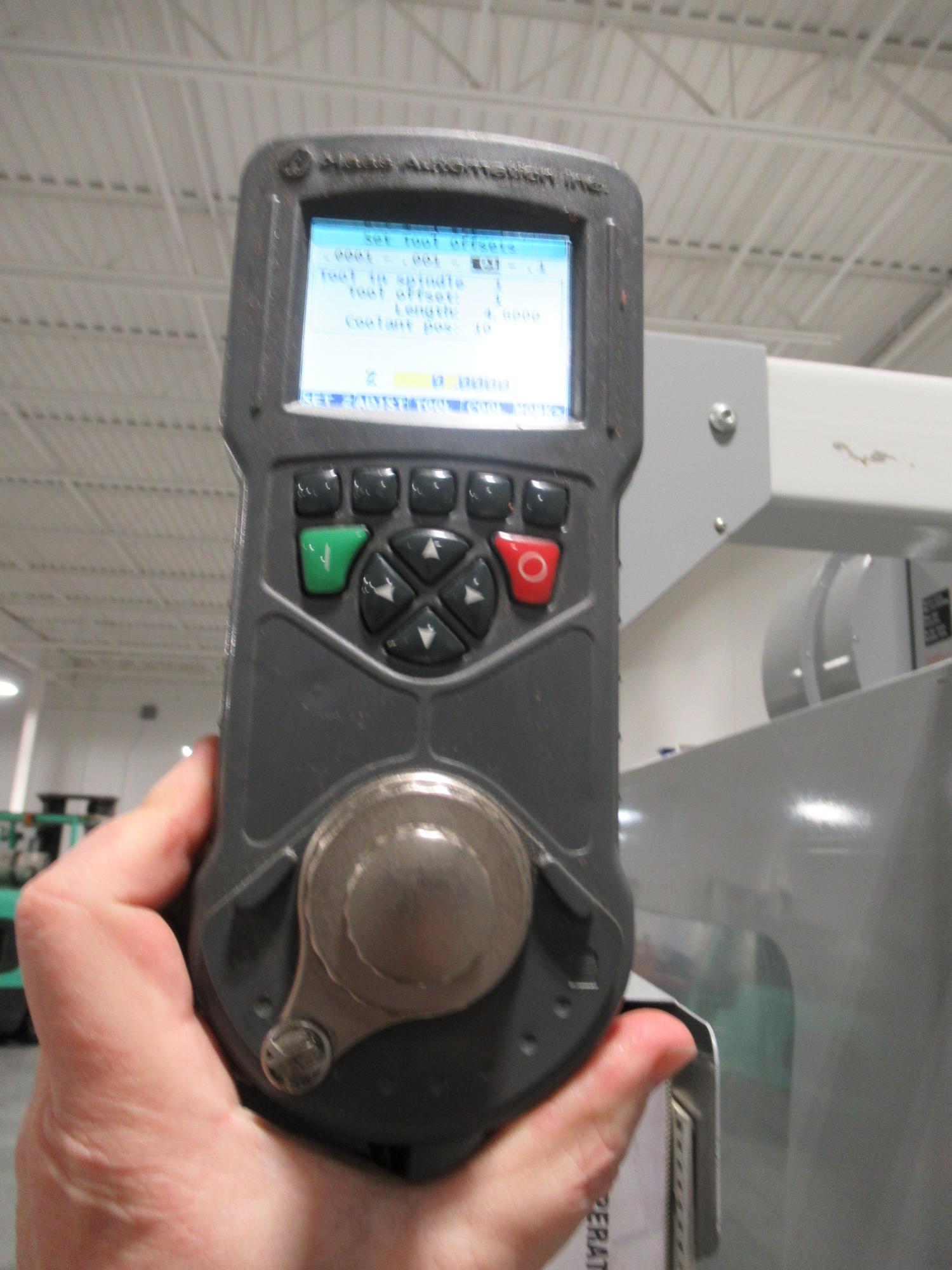

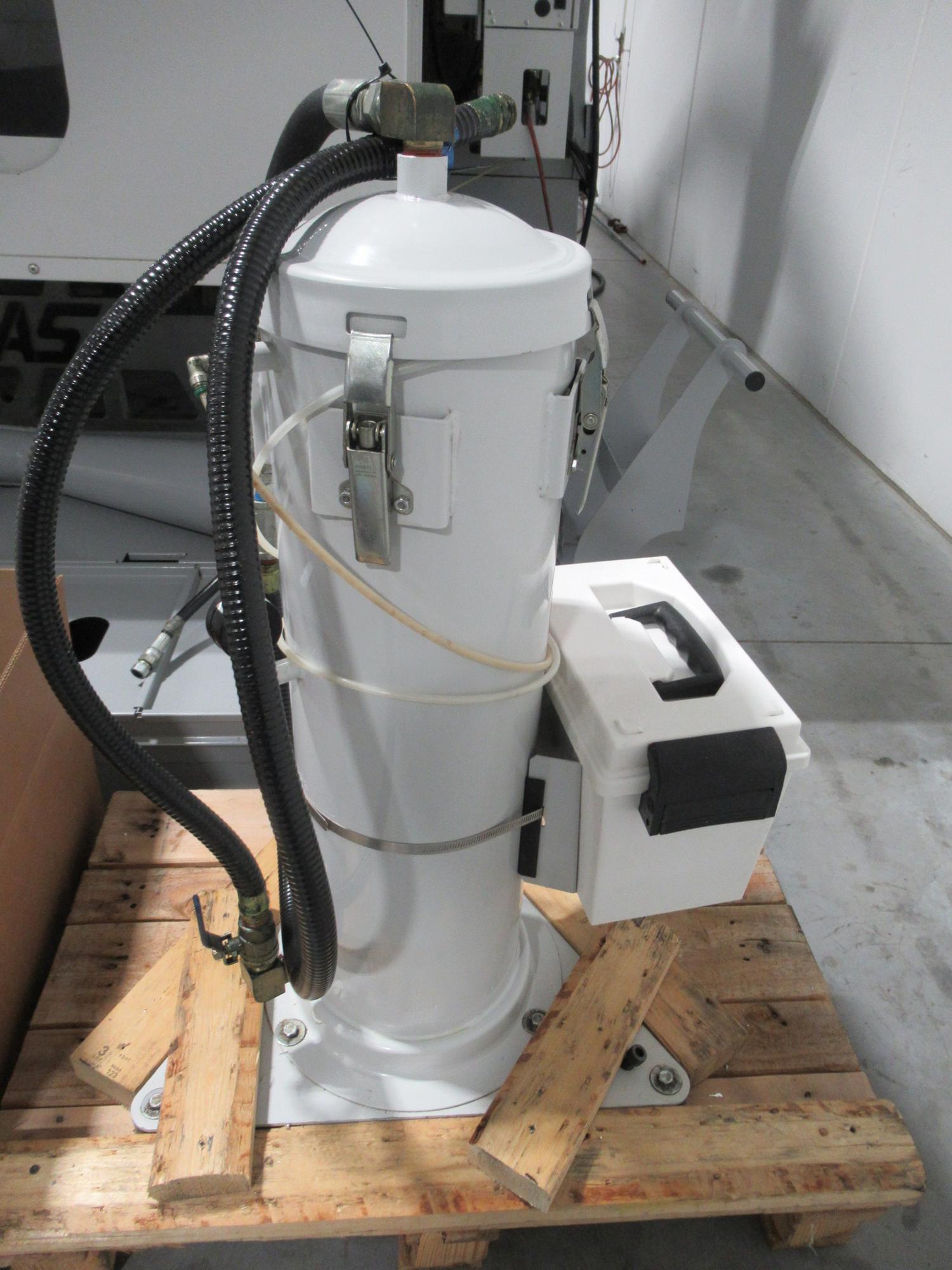

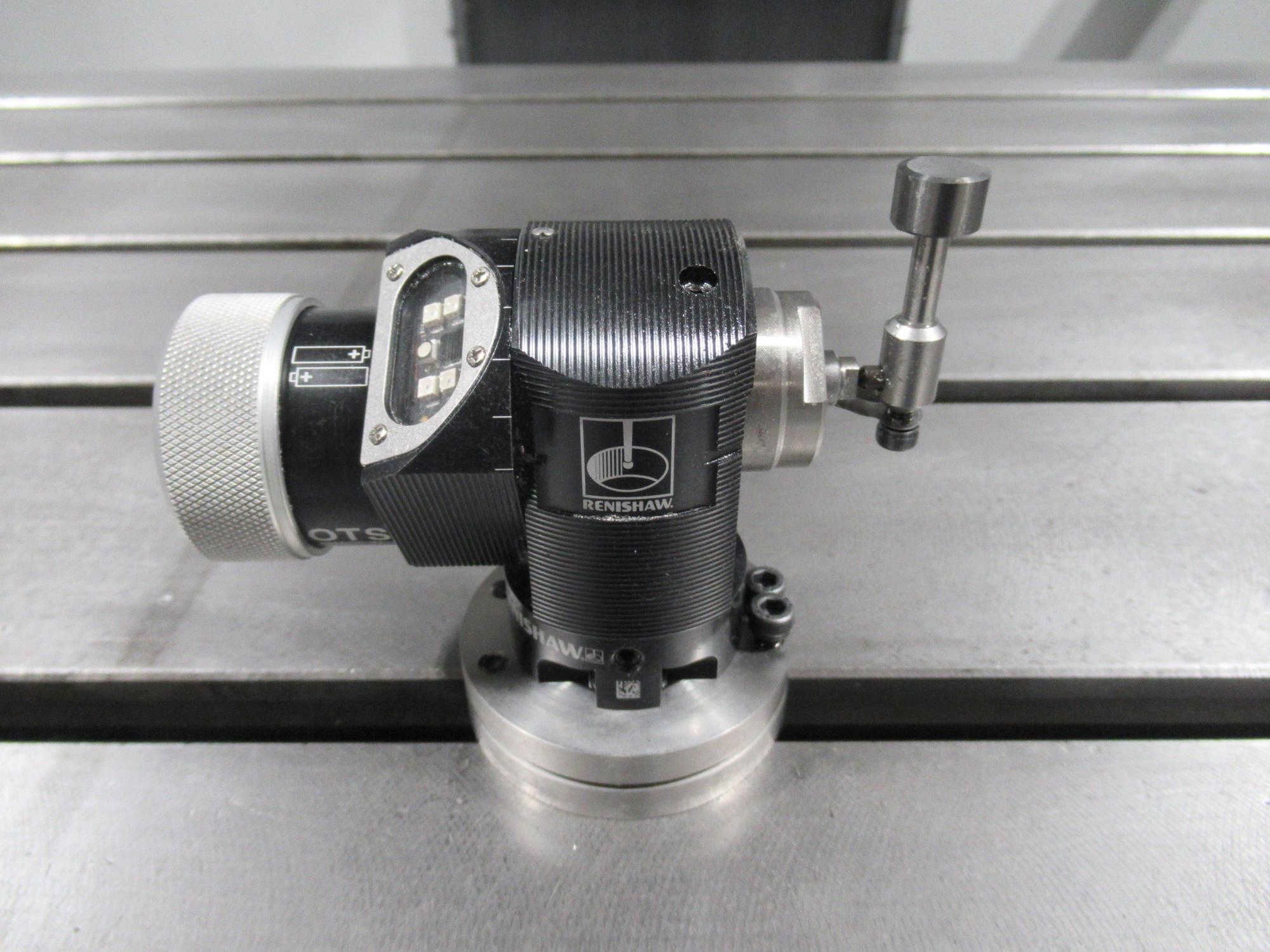

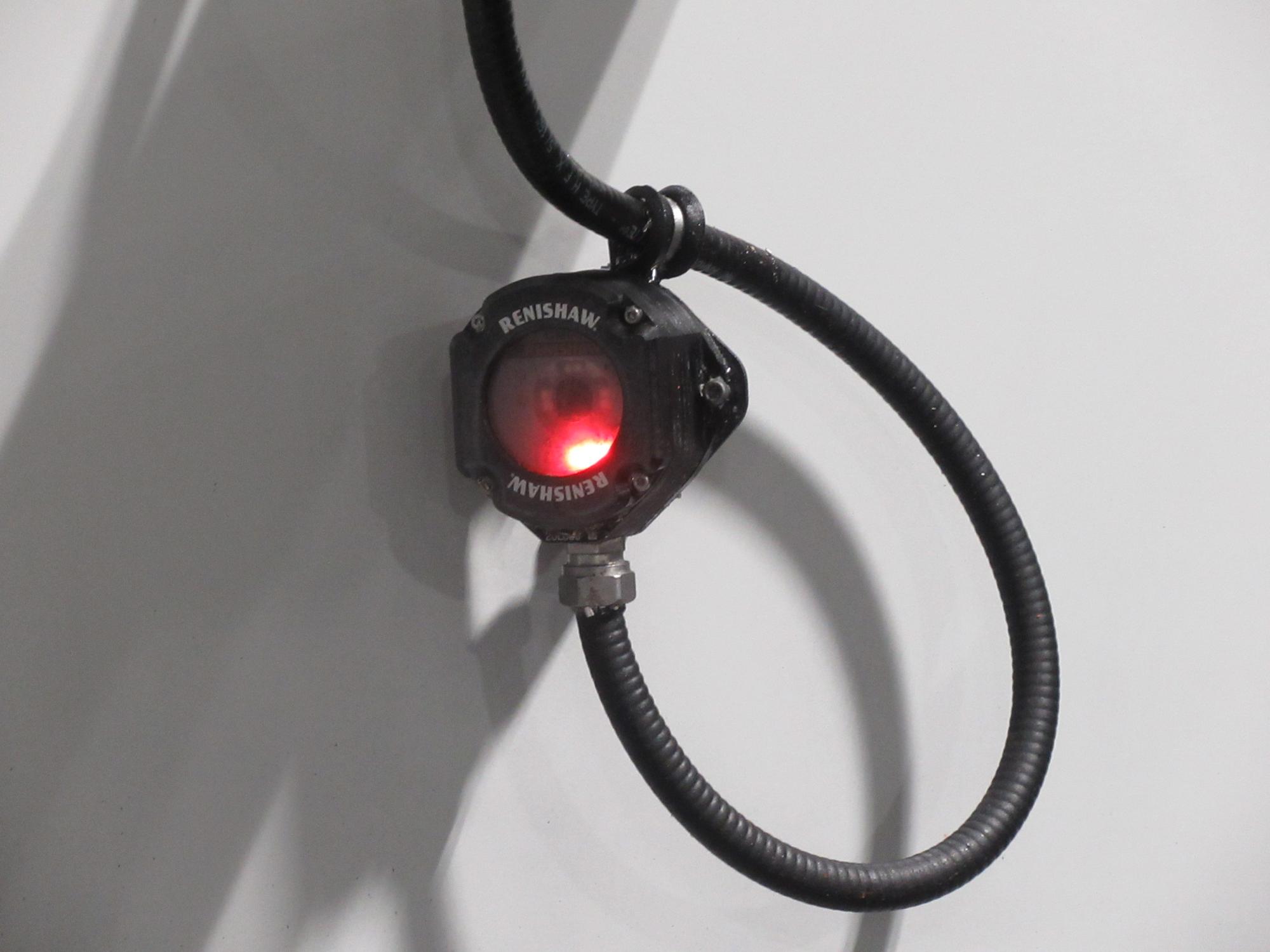

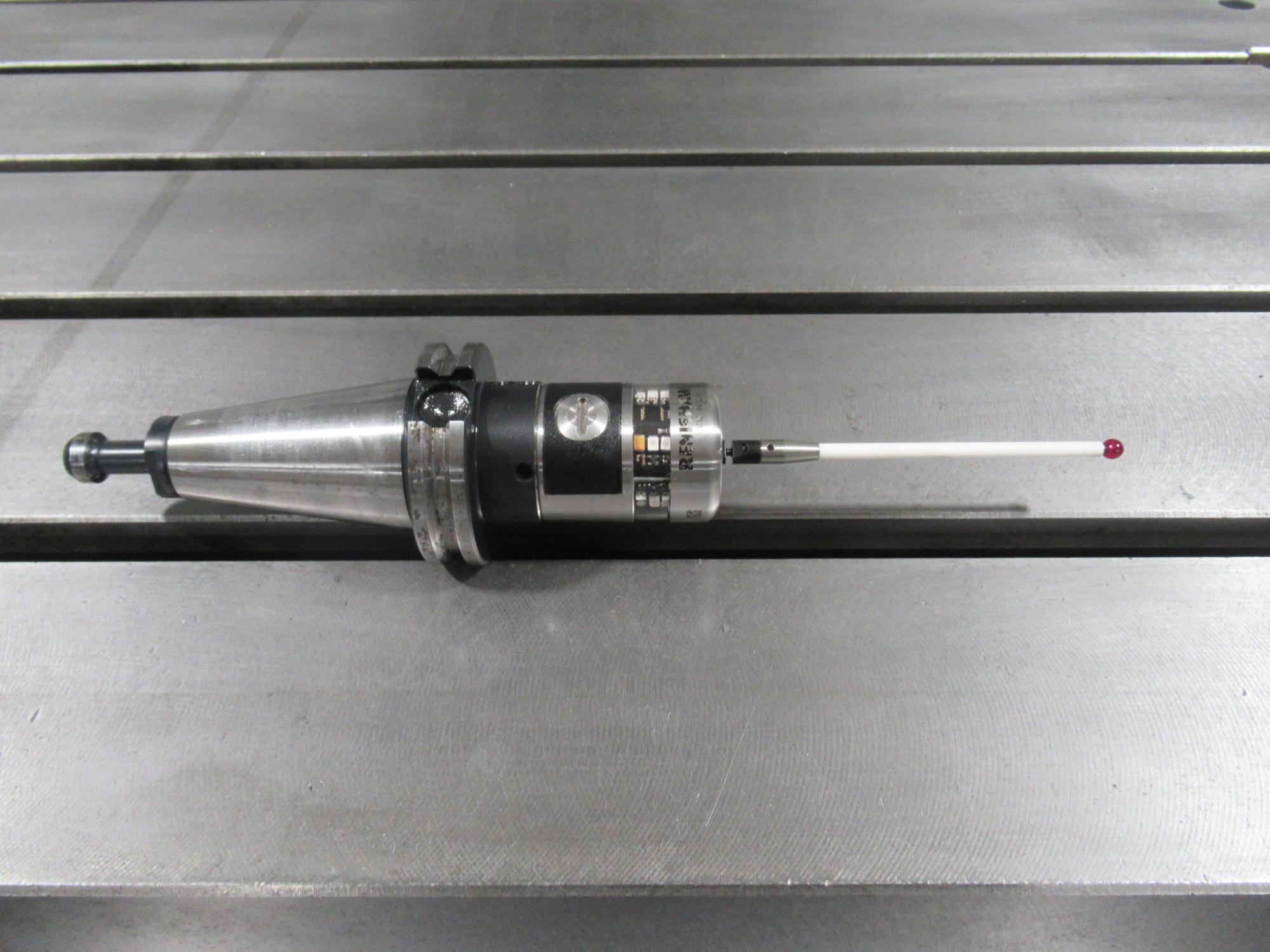

Haas CNC Control w Coldfire 2 Processor, 10,000 RPM Max Spindle Speed, 2-Speed Gearbox, CT40 Taper Spindle, 40 Station Twin-Arm Automatic Tool Changer, 4th Axis Drive (Brushless Sigma-1), Thru-Spindle Coolant 300 PSI, Haas Probing System with Renishaw Tool and Parts Probes, Programmable Coolant Nozzle, Chip Auger, 95 Gallon Coolant Tank and Pump System, Auxiliary Coolant Filter, Remote Jog Handwheel, USB Port, Rigid Tapping, High Speed Machining, Coordinate Rotation and Scaling, Spindle Orientation, Macros

Electrics:

195-260 Volt, 3 Phase
