Sodick AD35L CNC EDM Sinker Electrical Discharge Machine, 4 Electrode Changer, Sytem 3R Head, LN2 Control, C (U) Axis- Auction Item

Manufacturer

Sodick

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, CONVENTIONAL, (Ram Type, Sinker)

Stock

Lot No.: 100

Model

AD35L

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/50391">,

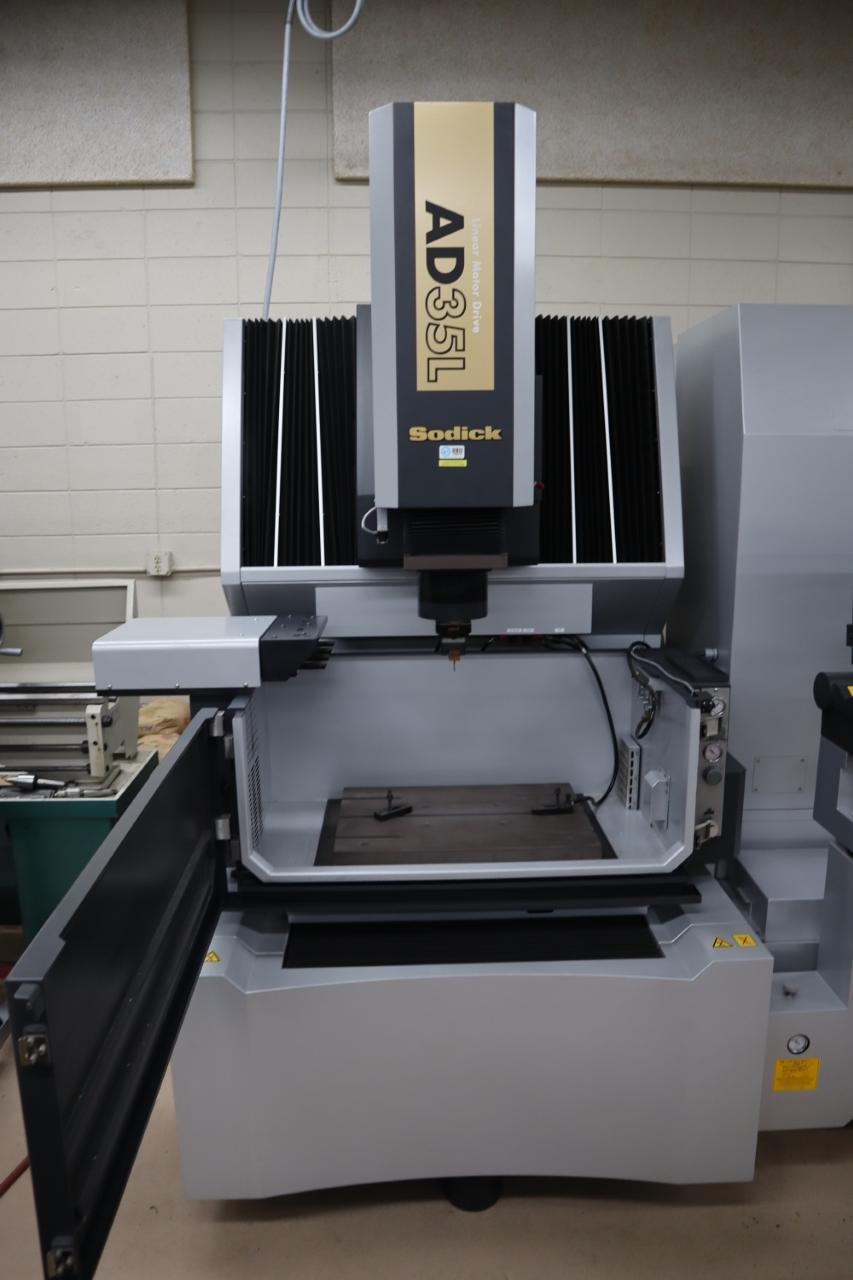

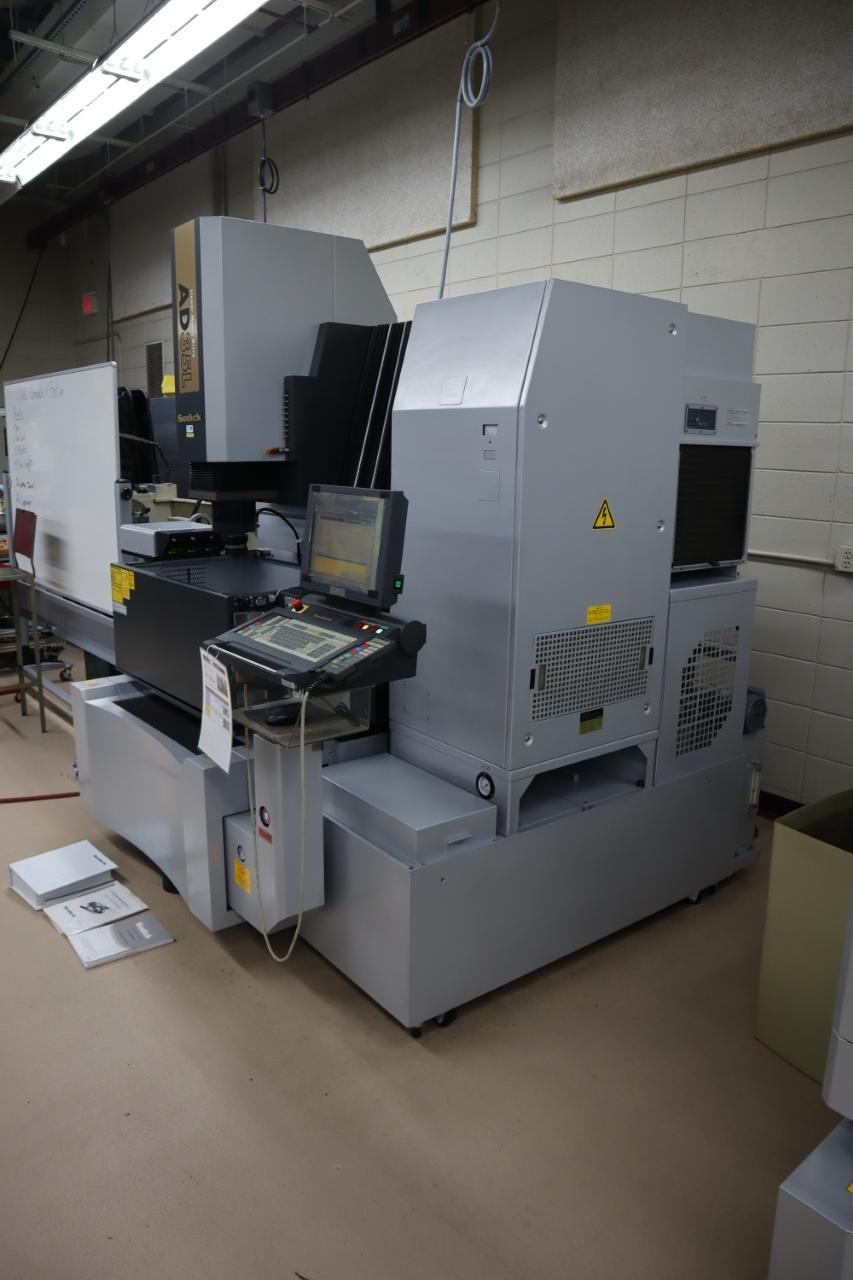

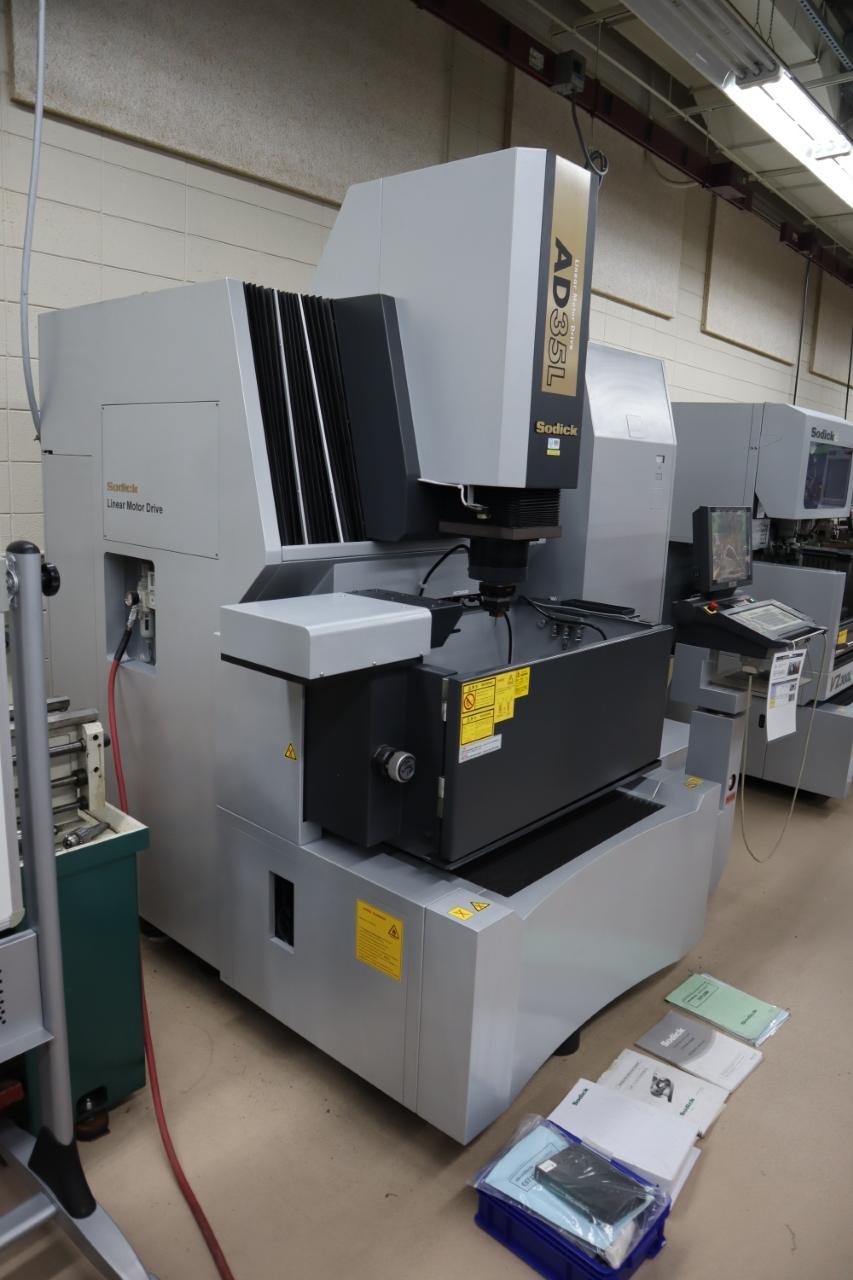

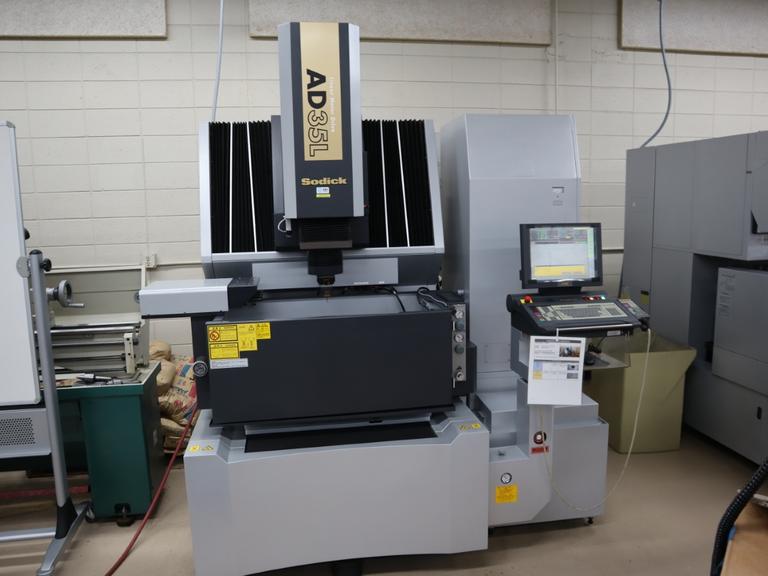

Lot 100: Sodick AD35L CNC EDM Sinker Electrical Discharge Machine, 4 Electrode Changer, Sytem 3R Head, LN2 Control, C (U) Axis
Equipped With:

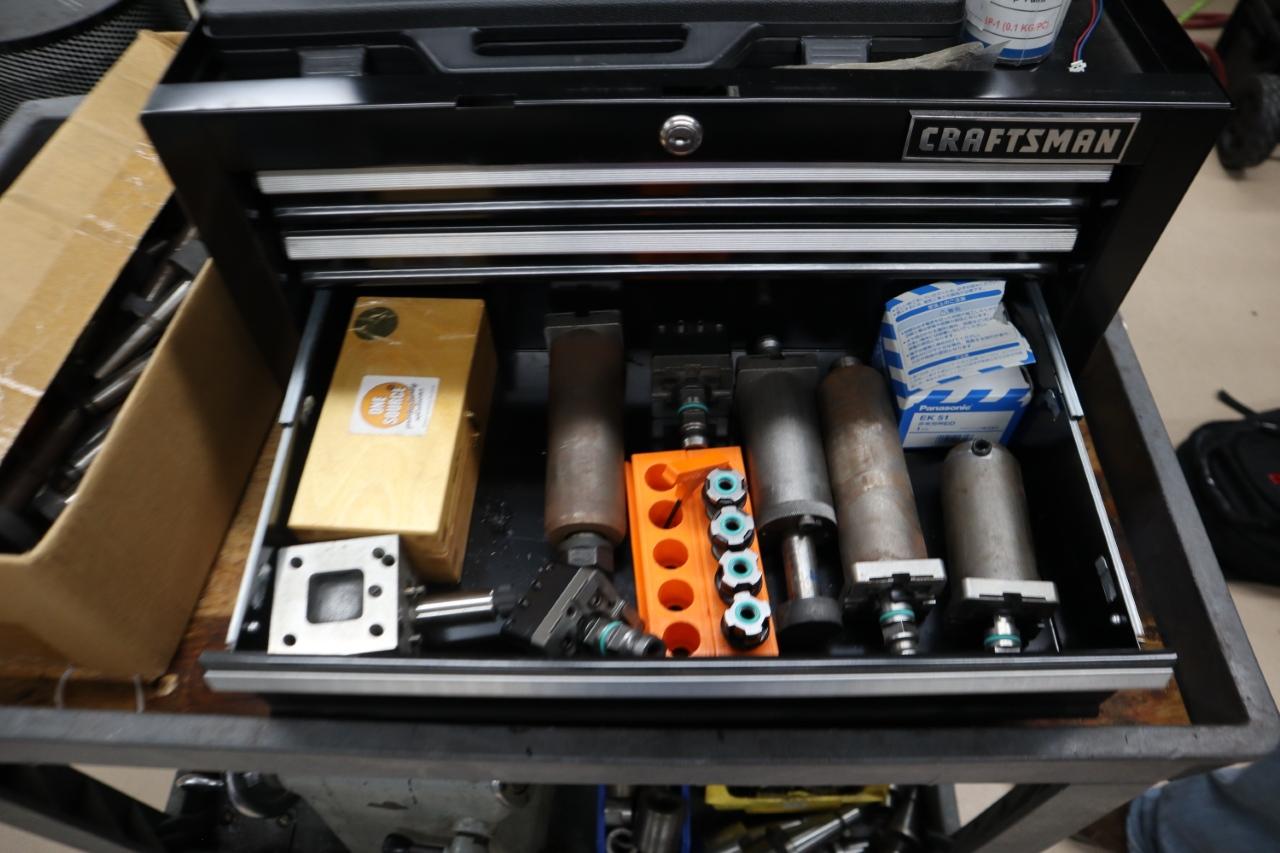

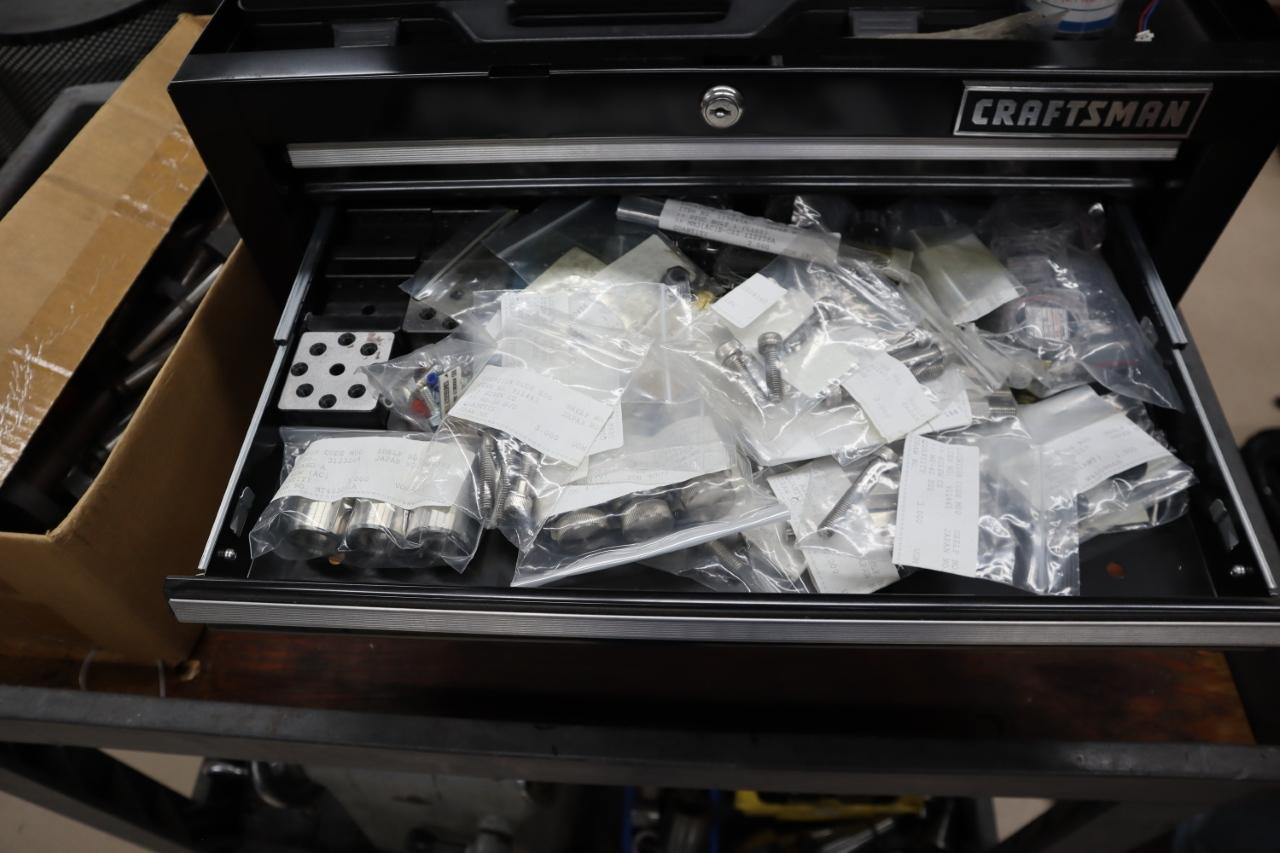

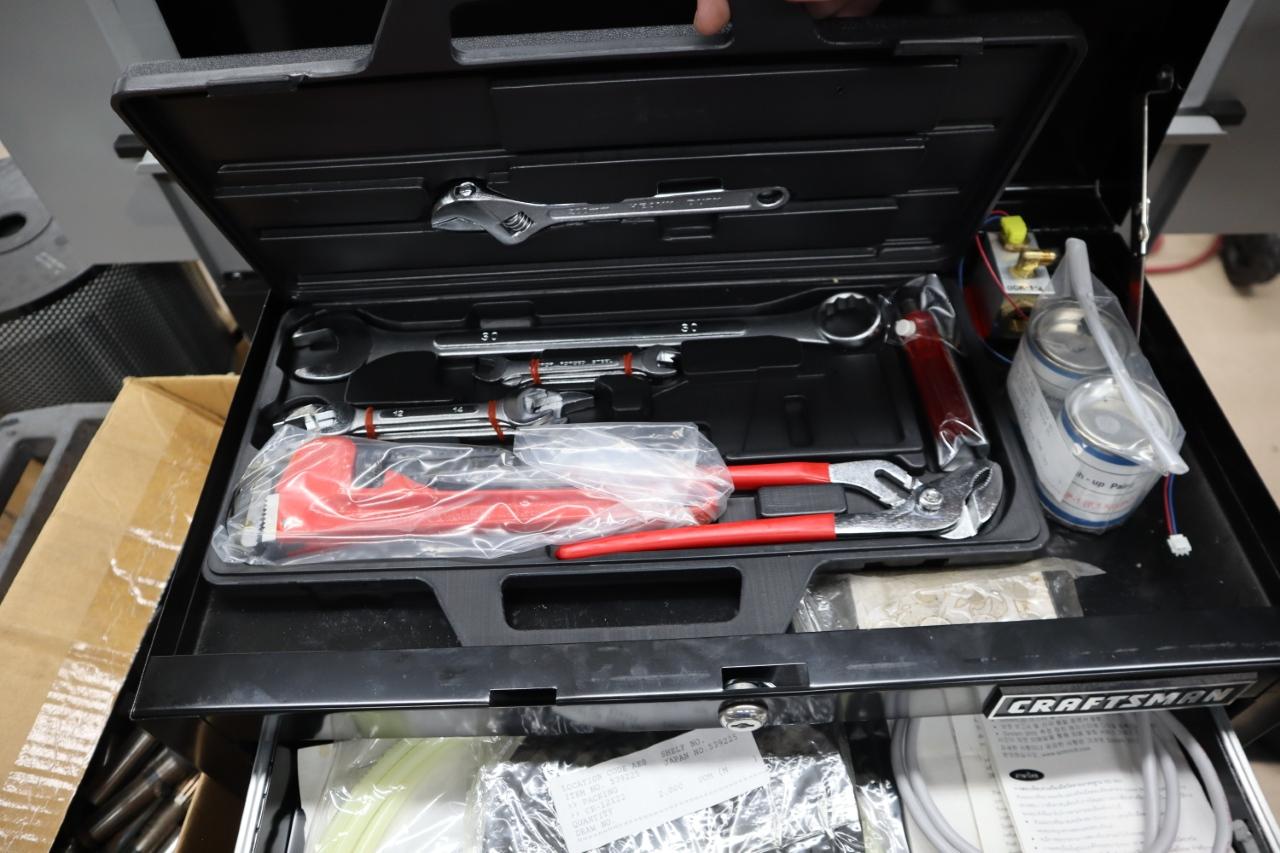

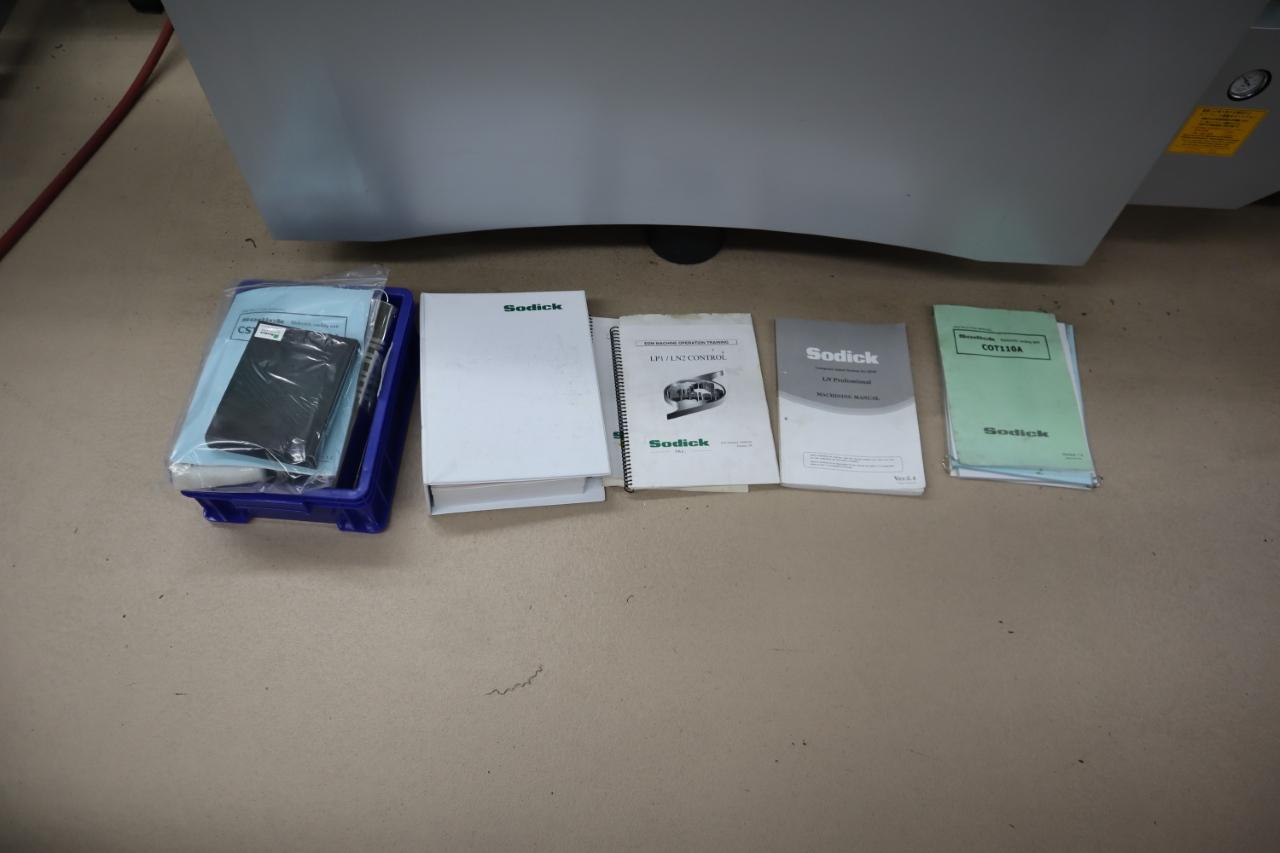

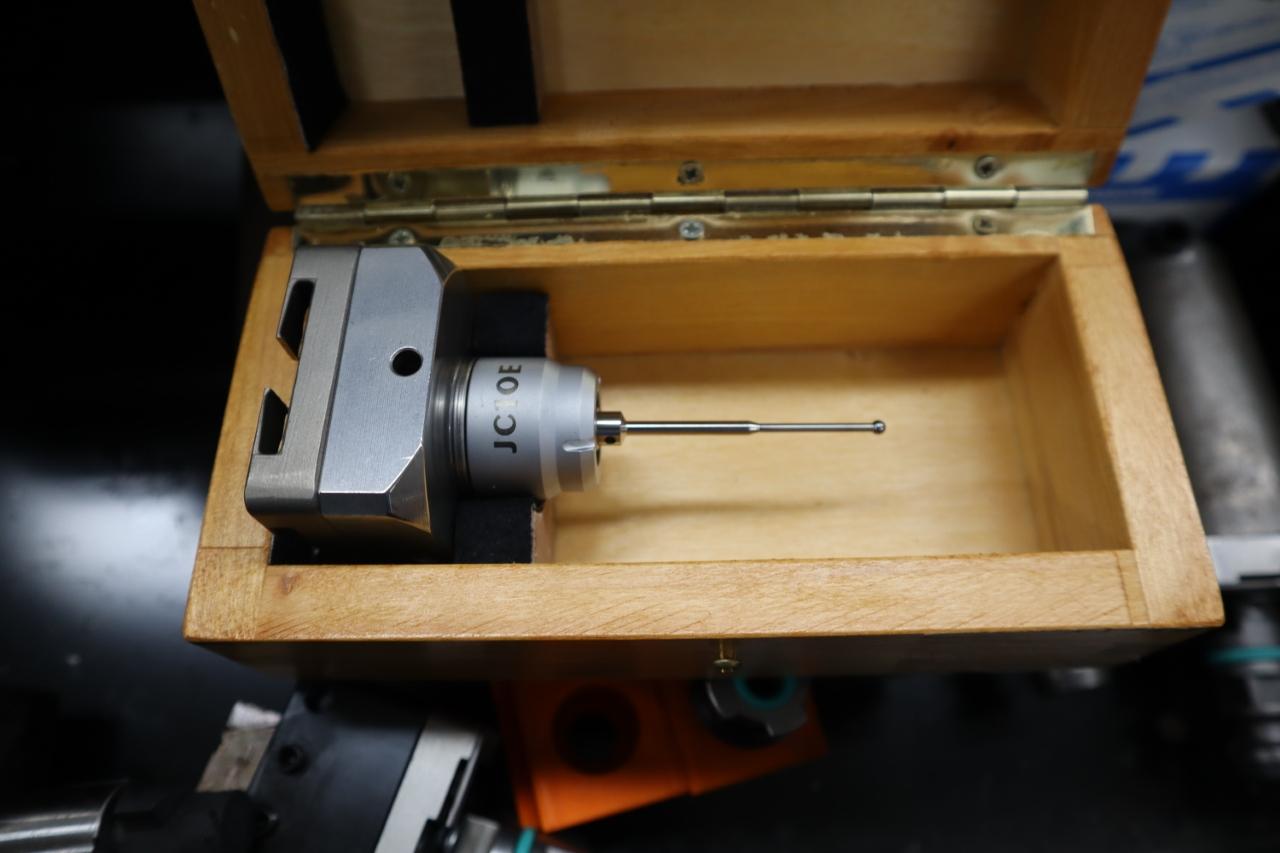

Sodick LN2 CNC Control, Linear Drive Motors, System 3R Head, 4 Statio Electrode Changer, U-Axis (C) Programmable, Dielectric System with Chiller, Remote Control Pendant, Machine and Control Manuals, System Disk,  Assorted Tooling and accessories, Shipping Brackets have been installed on this machine.  NOTE: Requires service tech to disconnnect wiring from Machine to Dielectric system.

Description:
The Sodick AD35L CNC EDM Sinker is a high‑precision die‑sinker EDM machine designed for demanding mold, die, and precision tooling applications. Built with Sodick’s advanced linear motor technology, the AD35L delivers exceptional accuracy, surface finish quality, and long‑term thermal stability. Manufacturers rely on the Sodick AD35L for consistent performance in tight‑tolerance environments where repeatability and reliability are critical. MachinesUsed.com specializes in buying, selling, appraising, consigning, and auctioning used Sodick AD35L EDM sinkers worldwide.
Electrics:

200 V, 3 Phase

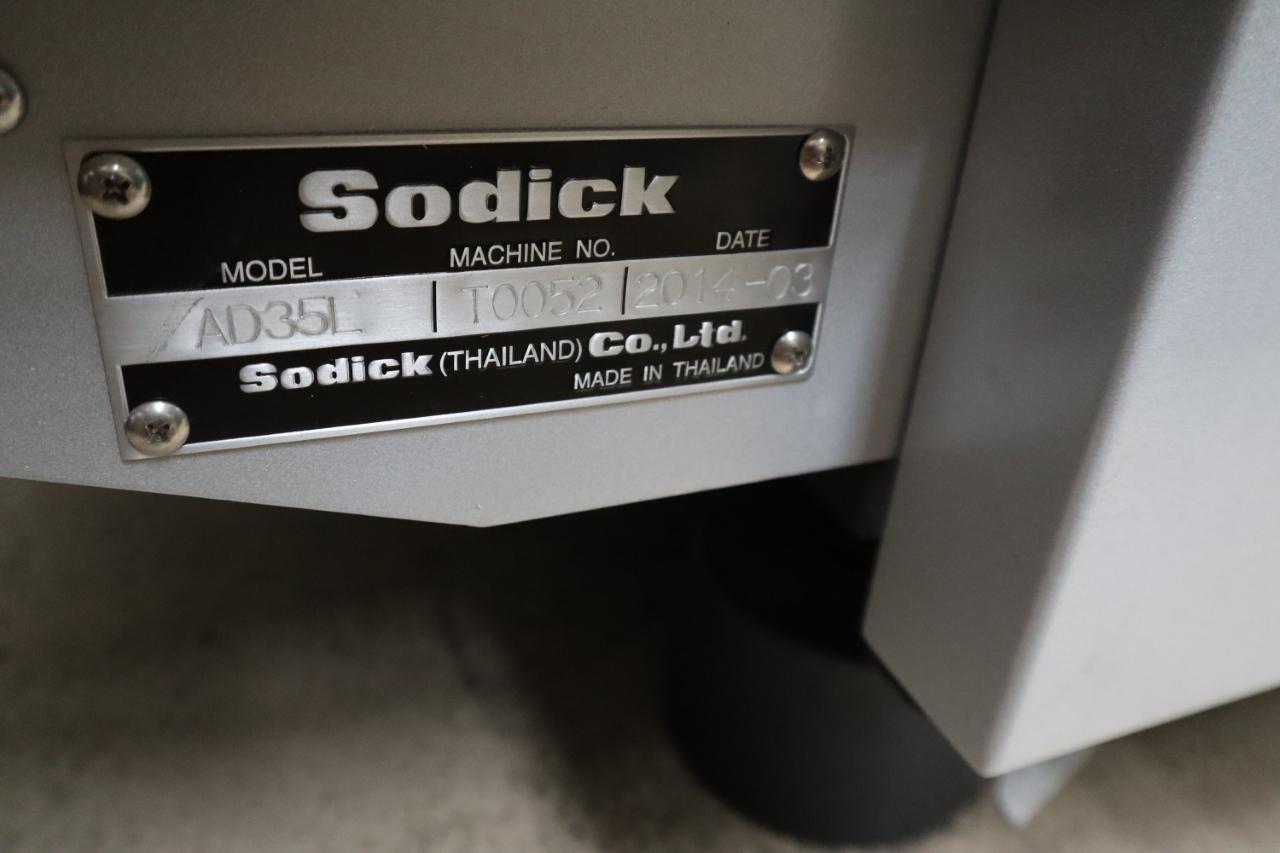

Manufacturer: Sodick EDM Model: AD35L Year: 2014 Serial Number: t0052
Main Unit Approx Weight: 7100.00 lbs
Main Unit Dimensions (in inches): Length: 85.00"  Width: 82.00"  Height: 94.00"
Components:

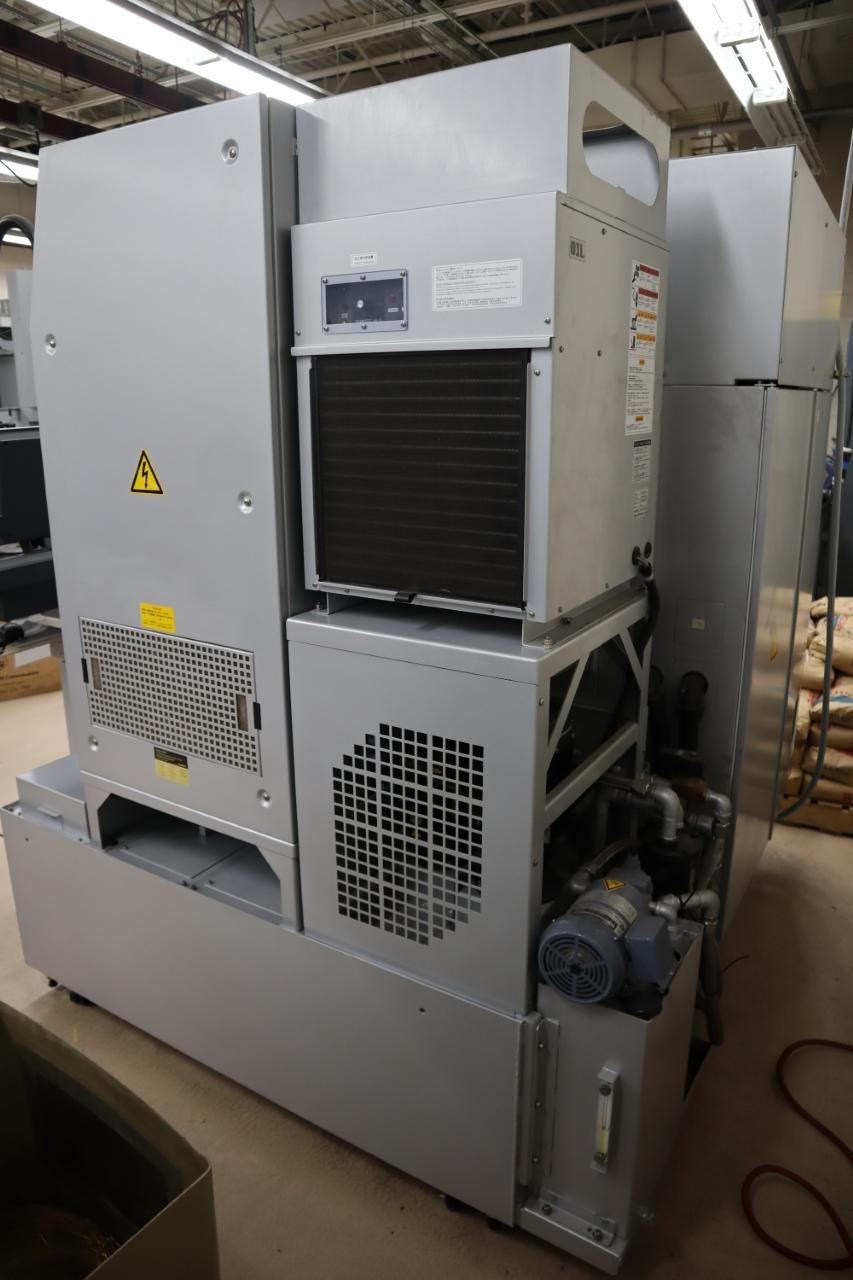

Dielectric System: Length: 34.00"  Width: 70.00"  Height: 81.00"
Specs:

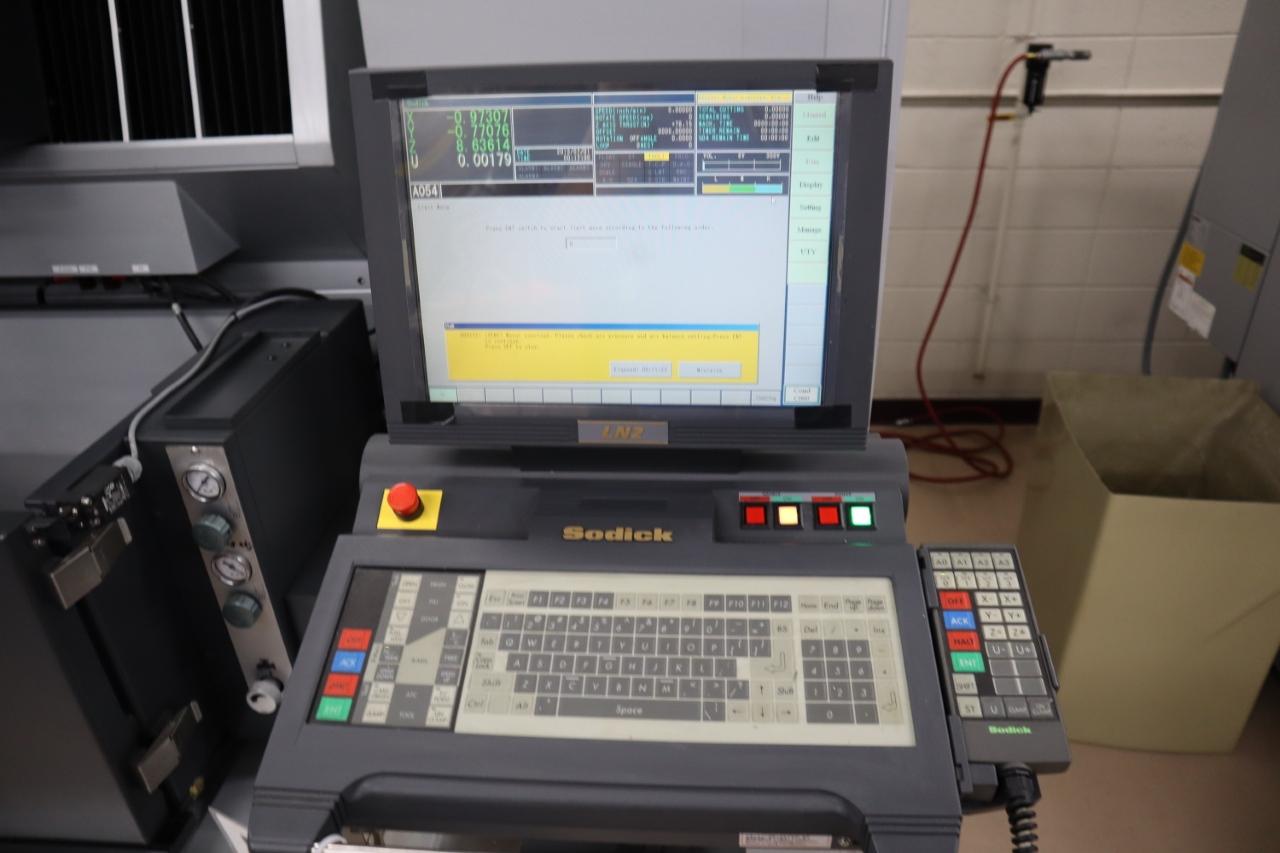

Control: Sodick LN2 CNC Control

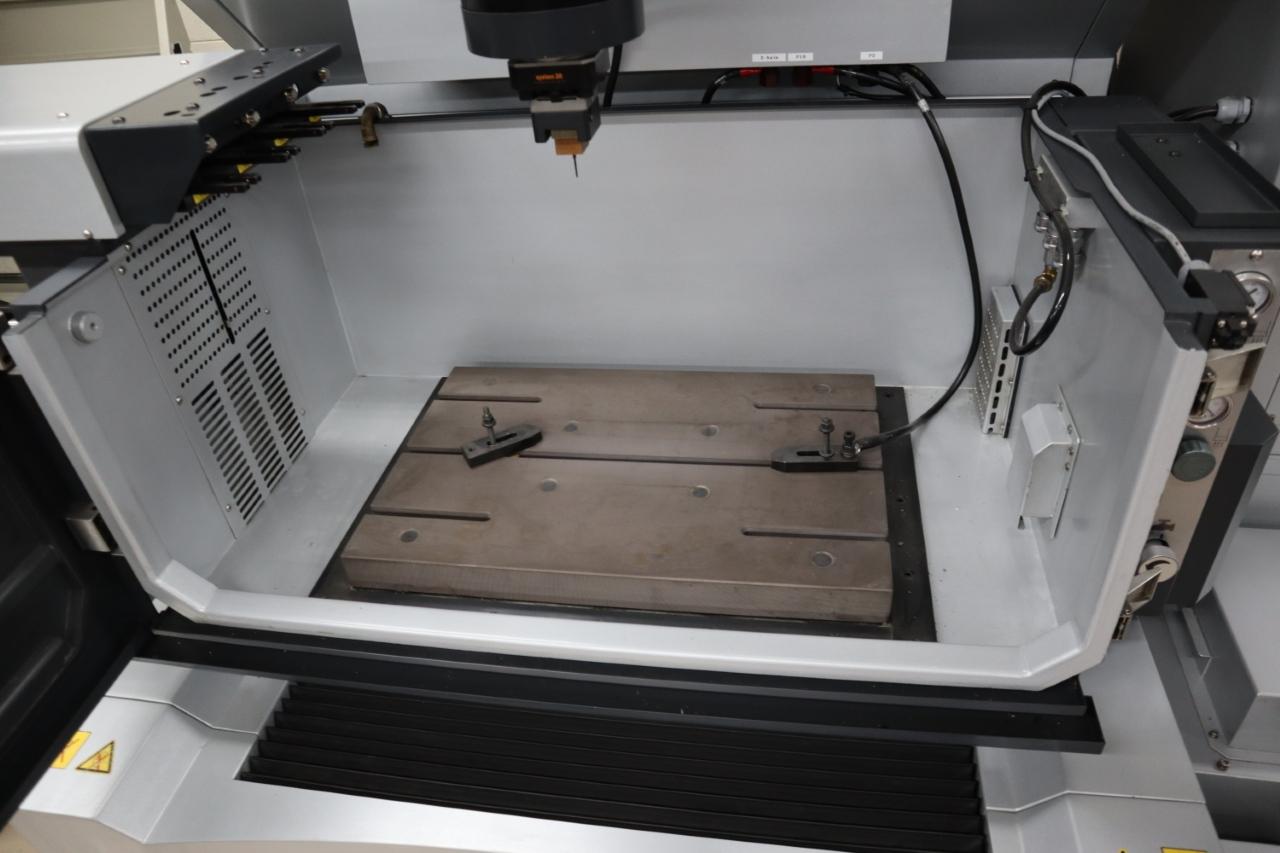

Tank Size: 38.39" x 21.85" x 13.78"H
Table Size: 23.62" x 15.75"
Max Table Load: 1,210 Lb / 550 kg
Travels (X/Y/Z): 13.78" x 9.84" x 10.63"
Spindle C-Axis Positioning: U-Axis Programmable (c)
Generator Output: 40 Amps
Tool Changer Capacity: 4 Station Electrode Changer

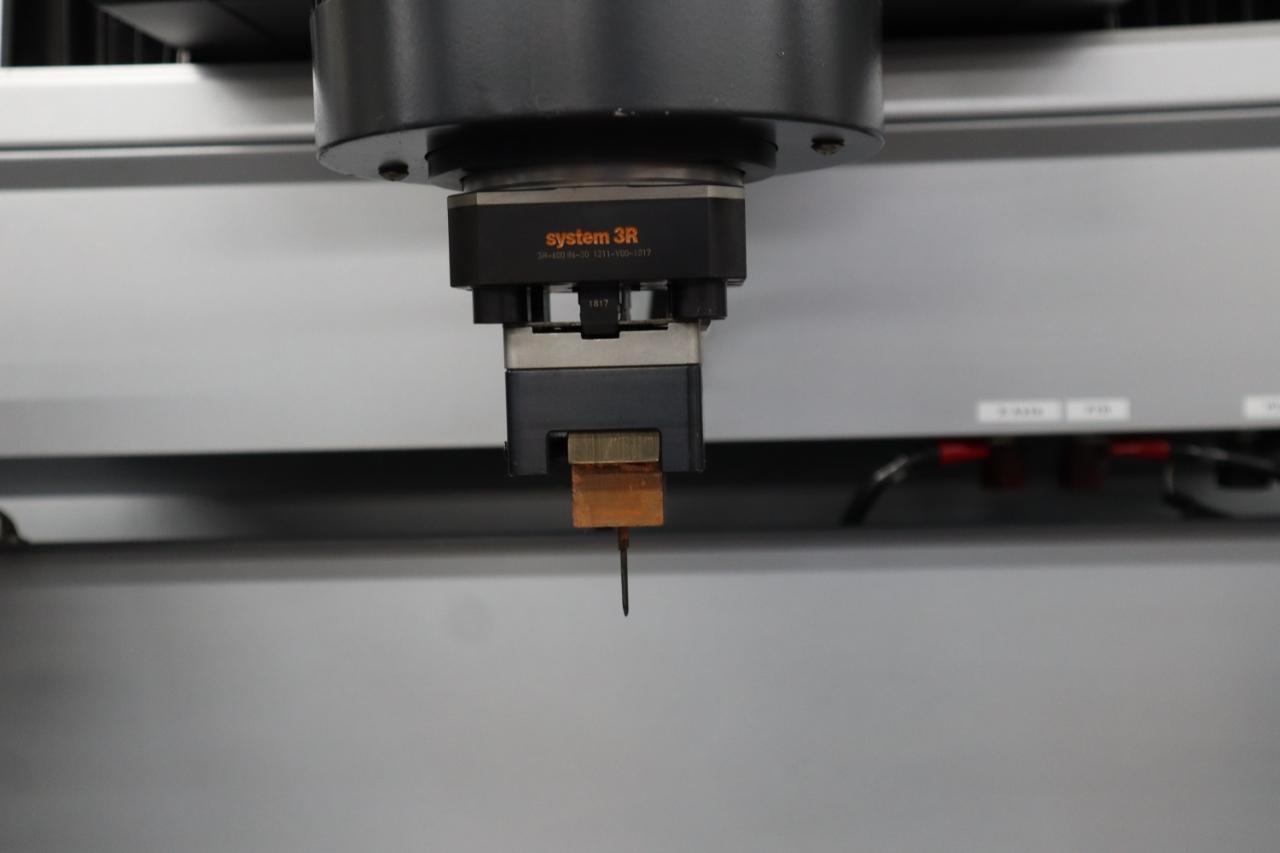

Spindle / Head Tooling Type: System 3R
Max Electrode Weight: 110 Lbs.
Dielectric Reservoir Capacity: 400 Liters
Work Tank Volume Capacity: 180 Liters
Seller Company: Pine Technical College
Seller Contact: Darren Lund Phone: (320) 629-4562
Item Location: Pine Technical College, 900 4th Street S. E., Pine City, MN 55063
Location Contact: Todd Swanson Phone: (320) 629-4507
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 110"w x 119"H
Loading Dock: Ground Level, Paved Lot
Removal Dates and Times: This item must be removed between Tuesday, April 28, 2026 and Friday, May 8, 2026
