Sodick VZ300L CNC Wire EDM Electrical Discharge Machine, LN2W Control, Auto Wire Threader- Auction Item

Manufacturer

Sodick

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, WIRE, CNC

Stock

Lot No.: 110

Model

VZ300L

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/50390">,

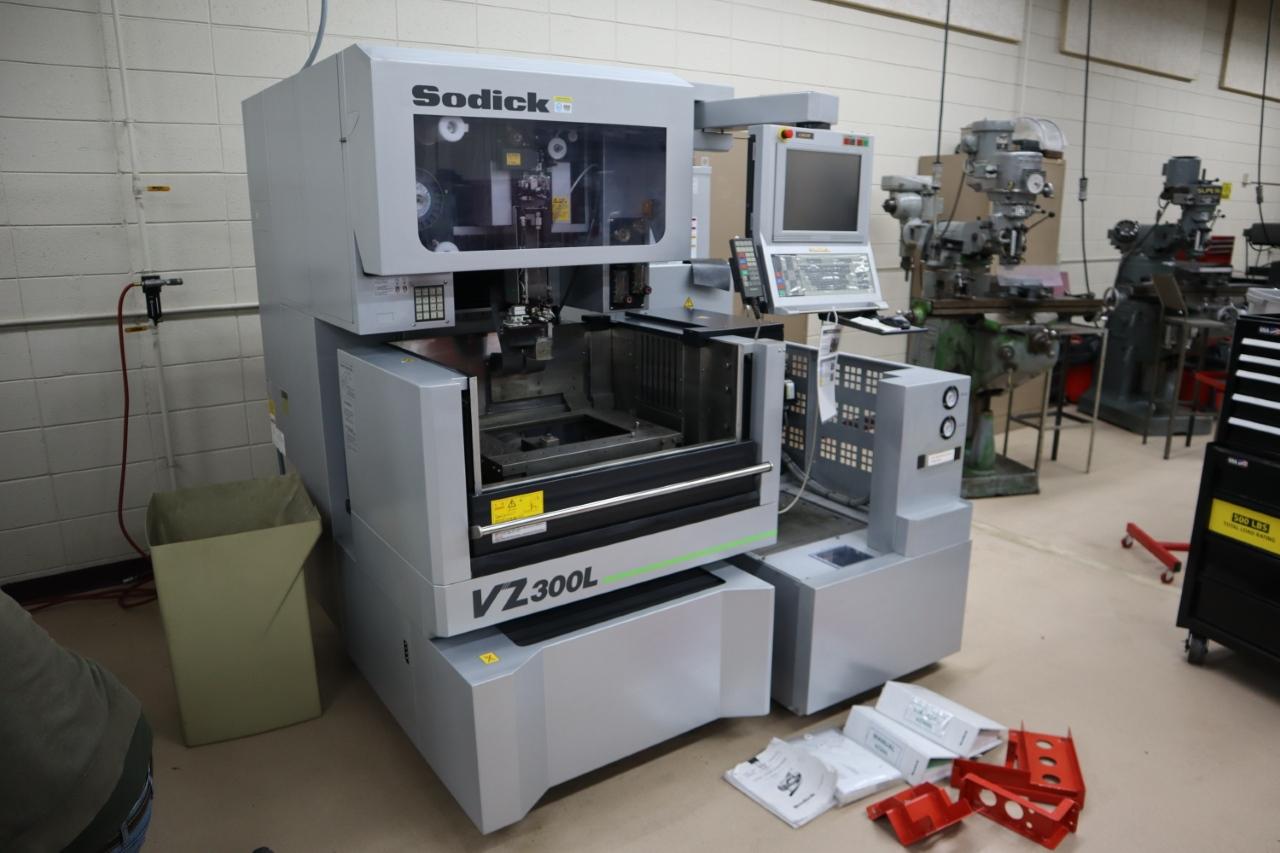

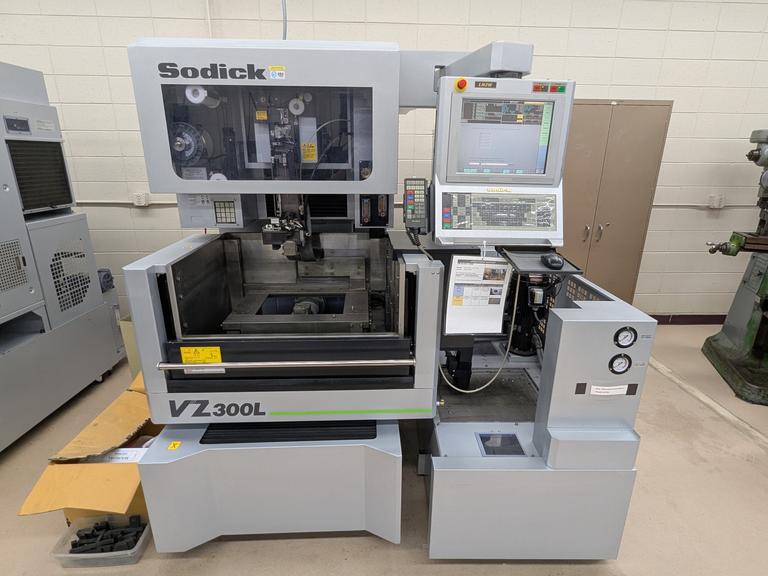

Lot 110: Sodick VZ300L CNC Wire EDM Electrical Discharge Machine, LN2W Control, Auto Wire Threader
Equipped With:

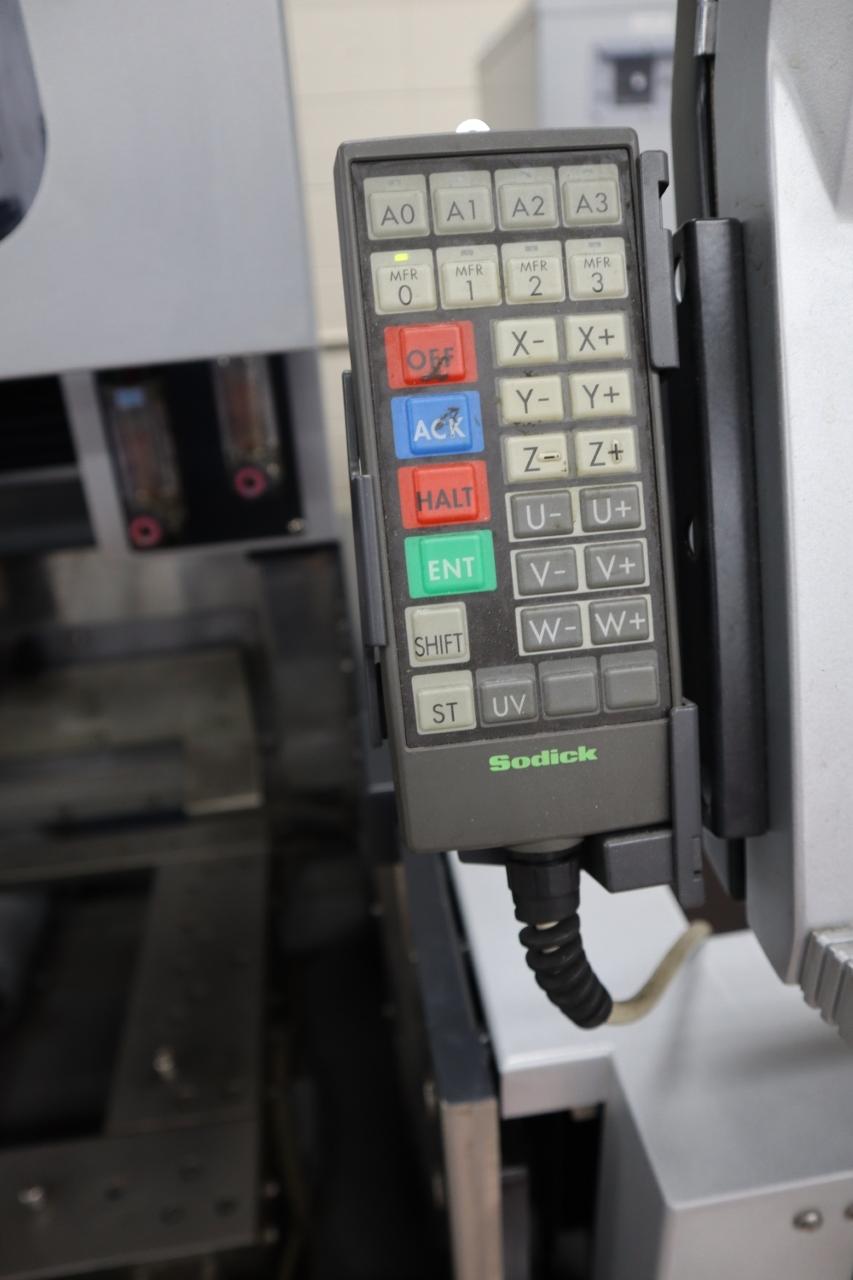

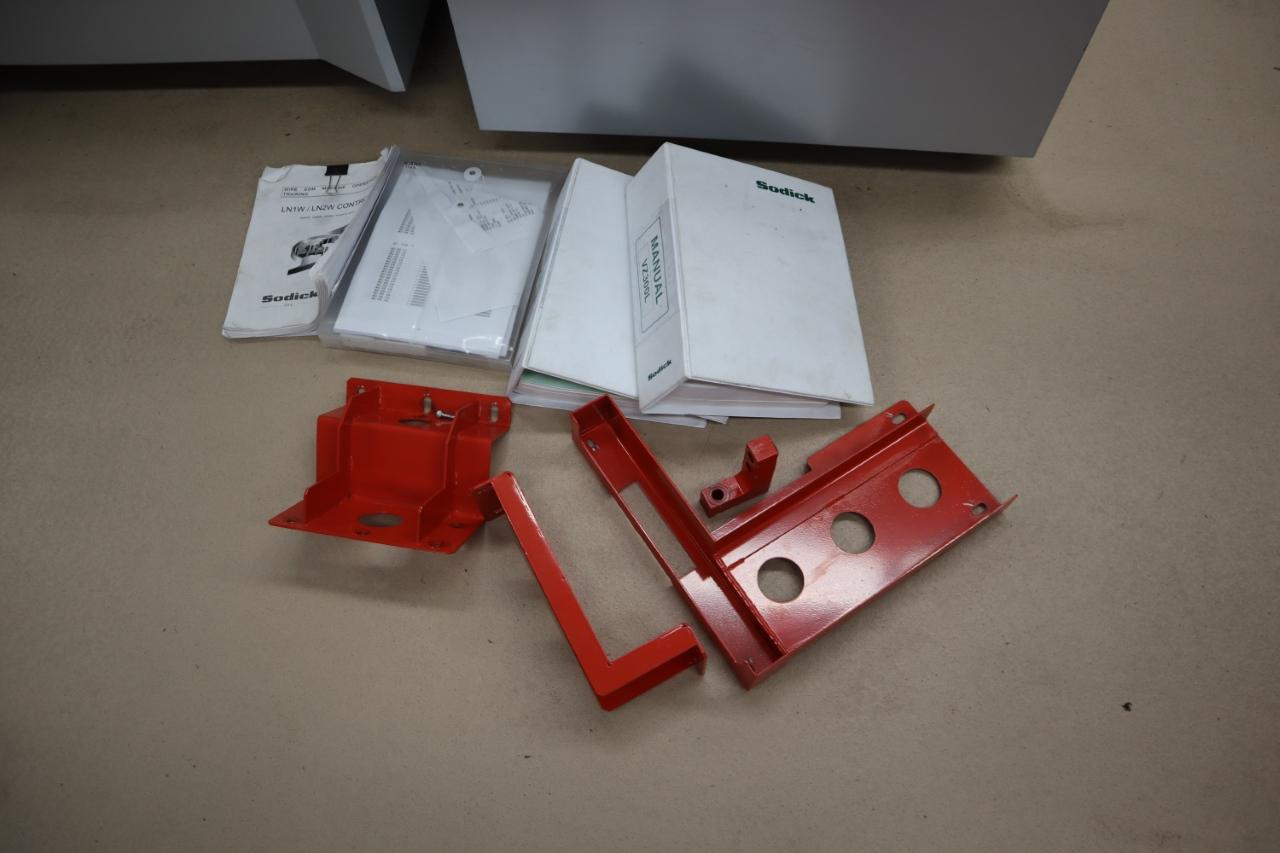

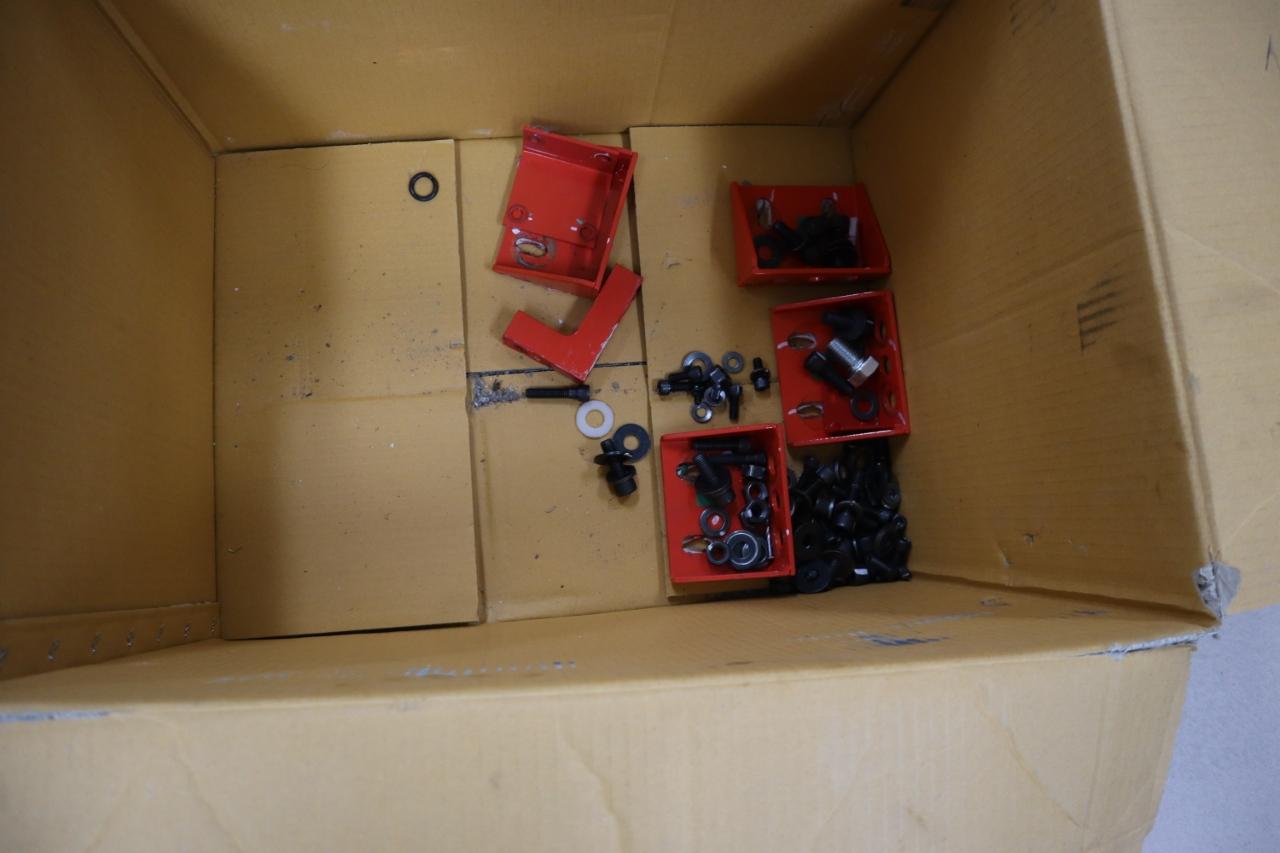

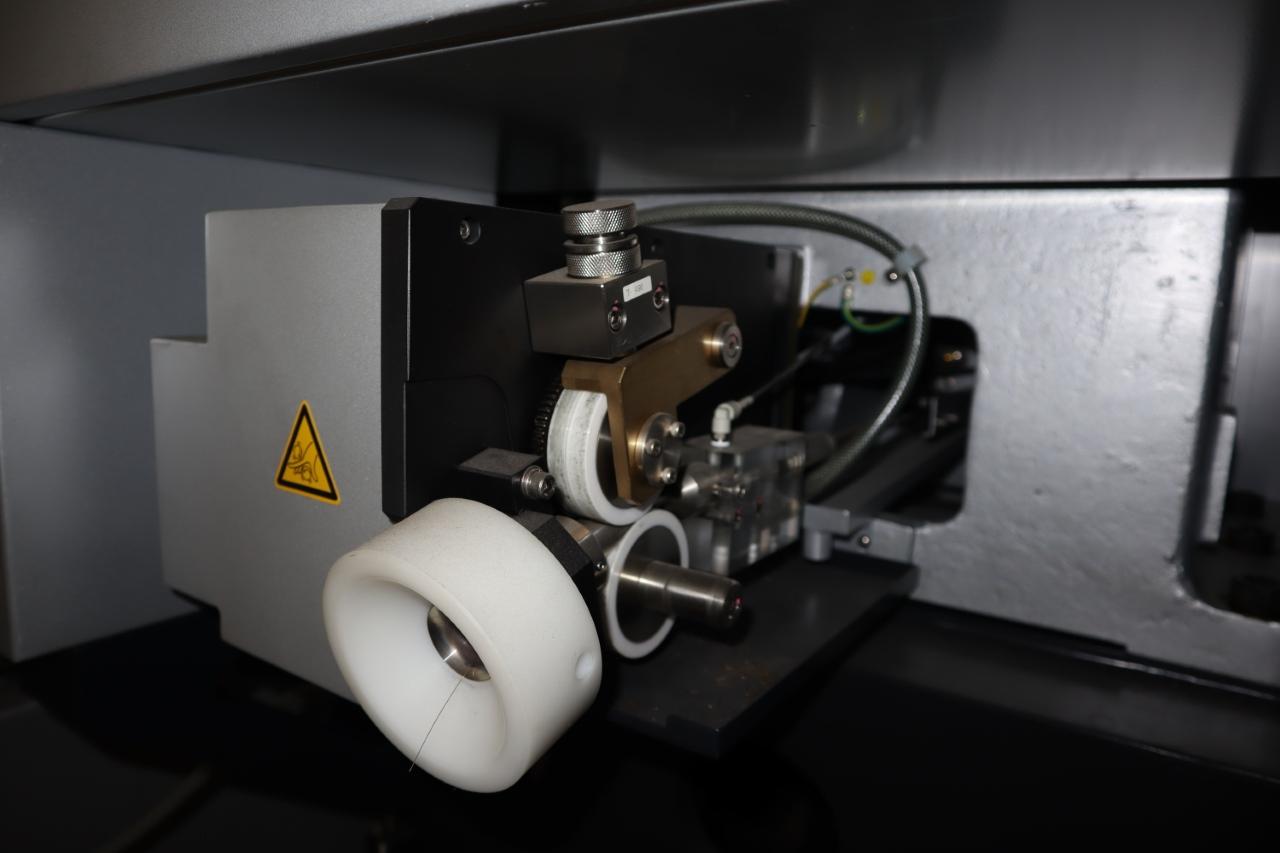

LN2W CNC Control, Auto Wire Threader, Dielectric System with Chiller, Remote Control Pendant, Spent Wire Crimper and Basket, Shippping Brackets, Control Manuals  NOTE: Machine will require Service Tech to Install Brackets and Disconnect Wiring from Machine to Dielectric System to Prep for Shipment.

Description:

The Sodick VZ300L CNC Wire EDM is a high‑precision wire electrical discharge machining system engineered for exceptional accuracy, surface finish, and thermal stability. Featuring Sodick’s advanced linear motor drive technology, the VZ300L delivers consistent performance for demanding, tight‑tolerance applications. This model is widely used in toolrooms and production environments requiring reliable precision cutting of hardened materials. MachinesUsed.com specializes in buying, selling, appraising, consigning, and auctioning used Sodick VZ300L wire EDM machines.

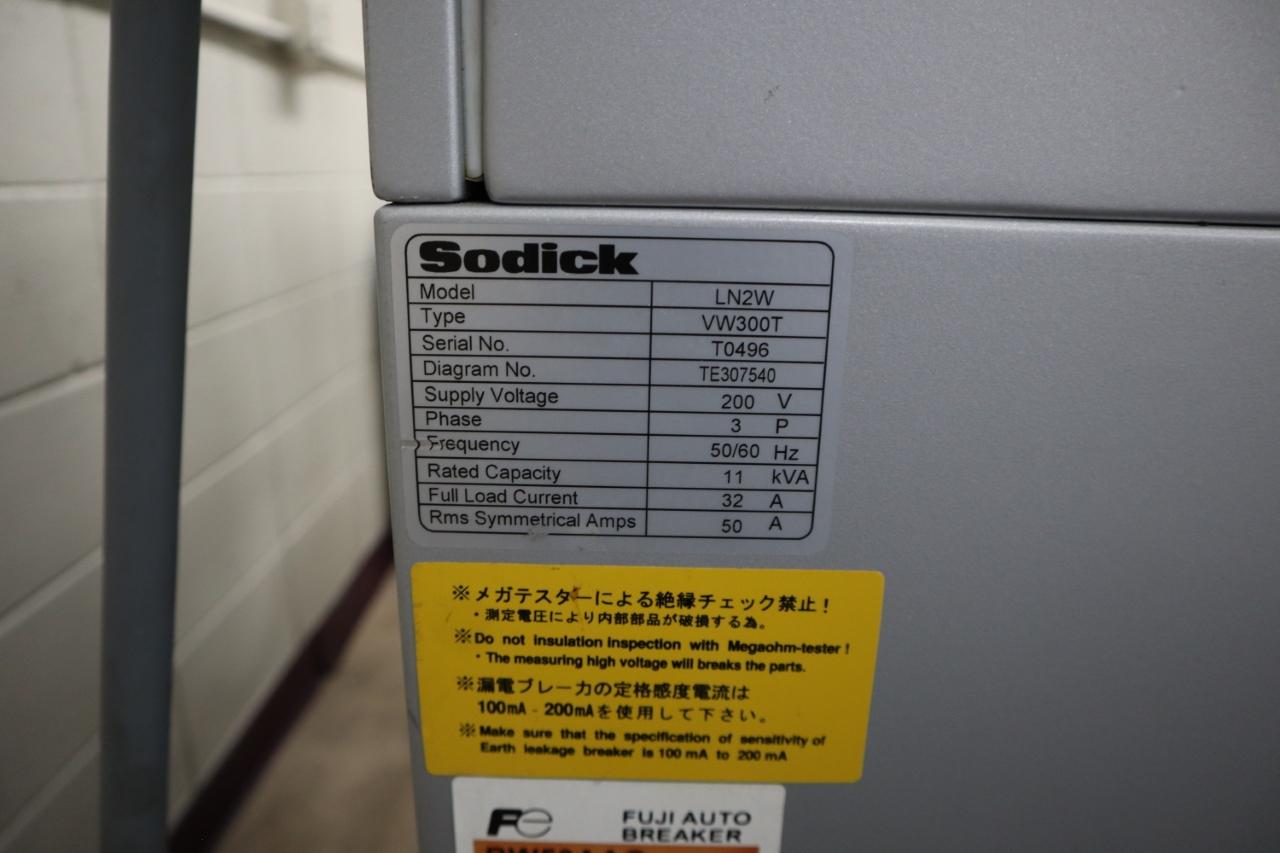

Electrics:

200 Volts, 3 Phase

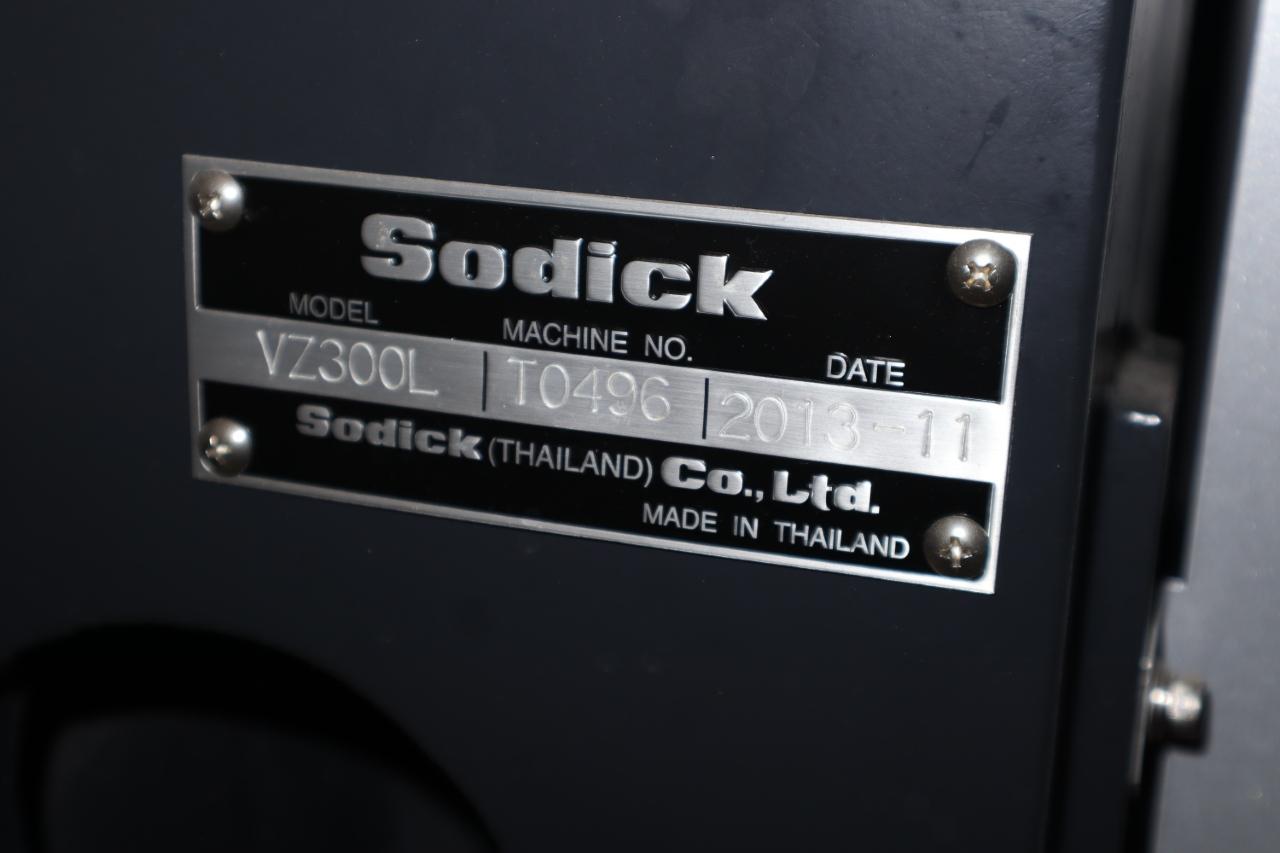

Manufacturer: Sodick EDM Model: VZ300L Year: 2013 Serial Number: T0496
Main Unit Approx Weight: 5280.00 lbs
Main Unit Dimensions (in inches): Length: 62.00"  Width: 79.00"  Height: 78.00"
Components:

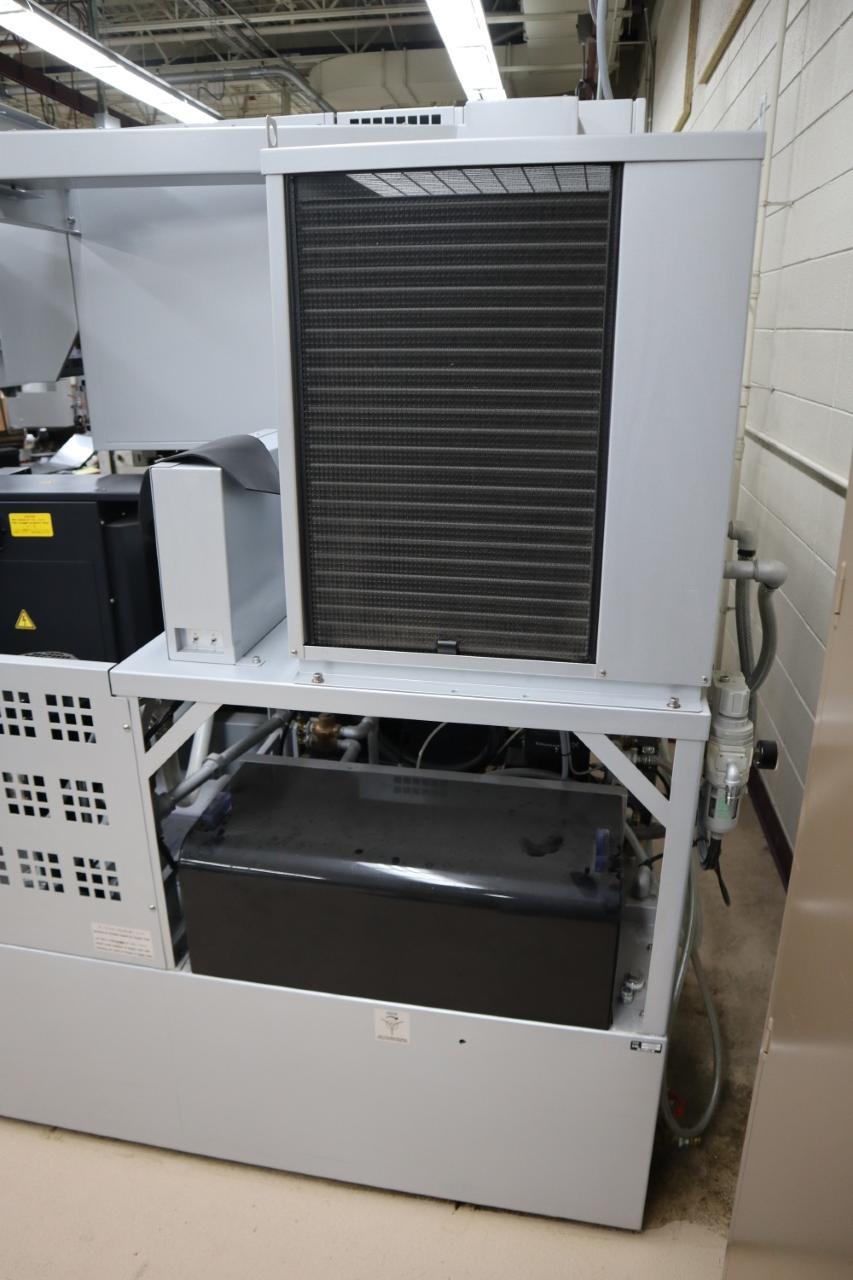

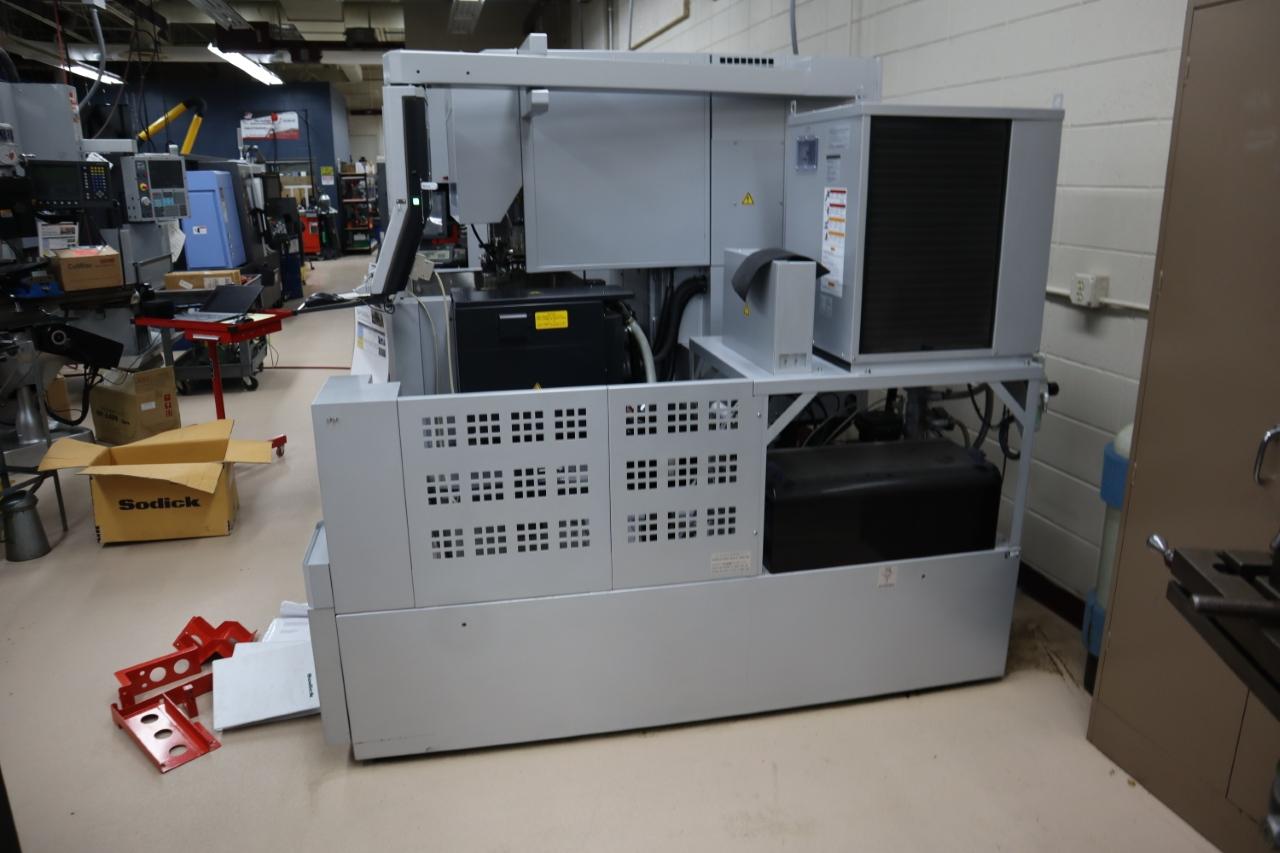

Dielectric System and Chiller: Length: 30.00"  Width: 76.00"  Height: 72.00"

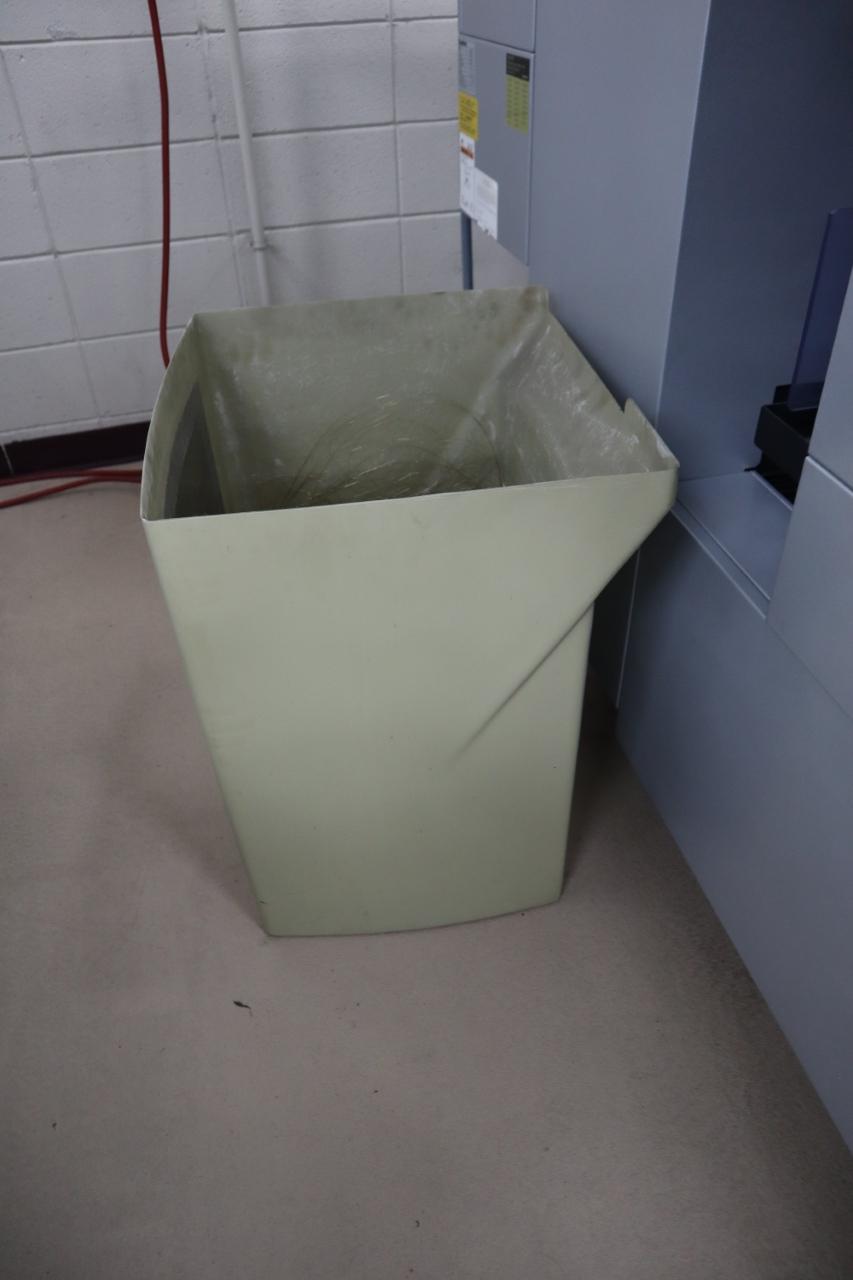

Spent Wire Bin: Length: 22.00"  Width: 20.00"  Height: 29.00"
Specs:

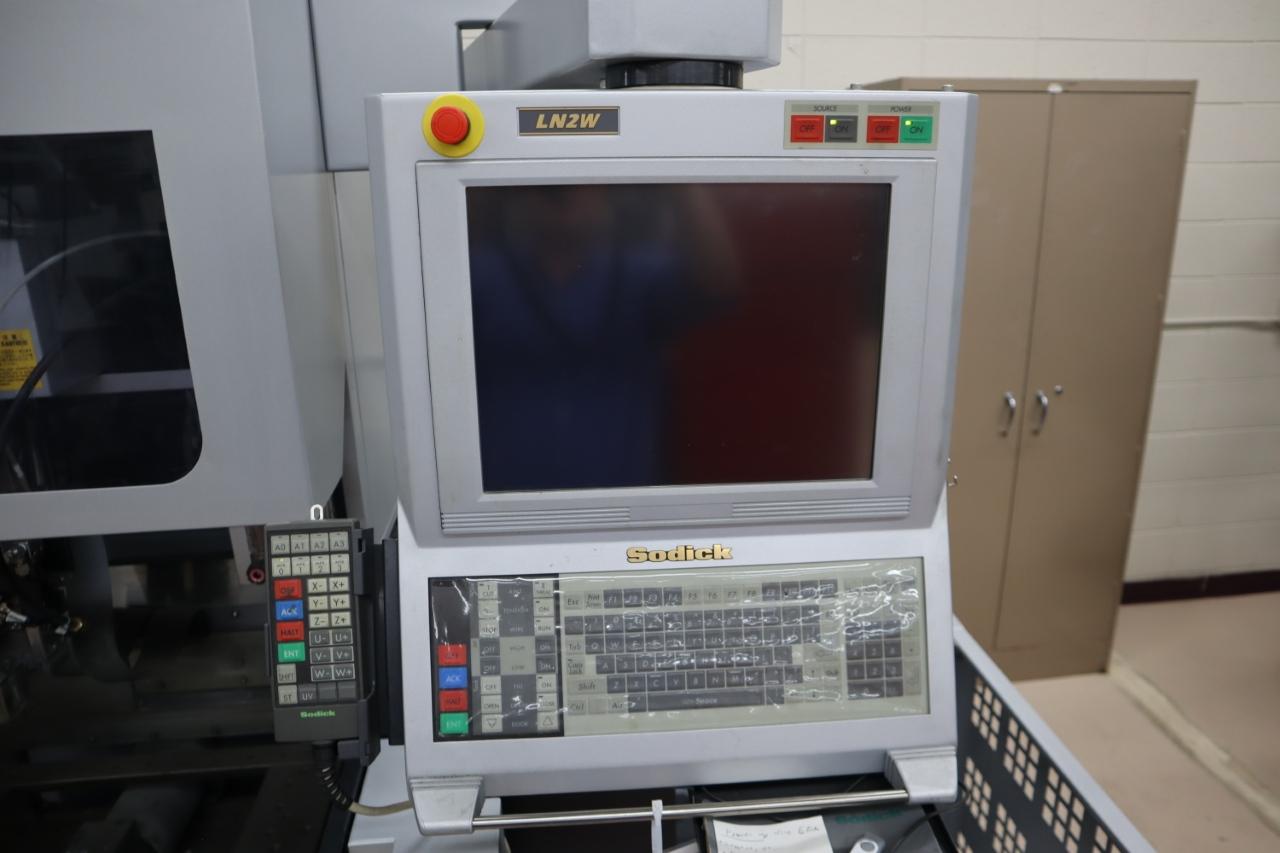

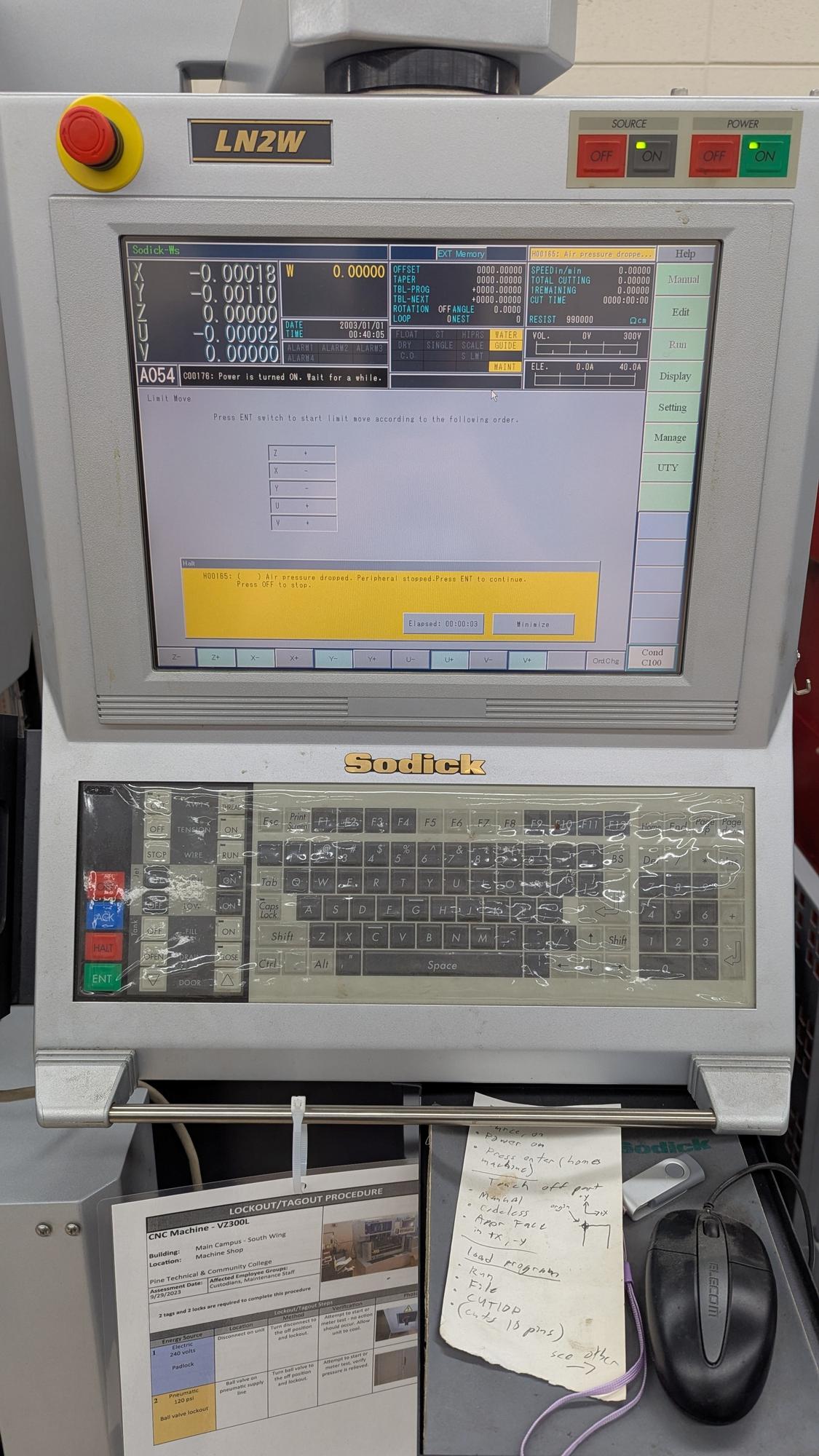

Control: Sodick LN2W CNC Control and Generator

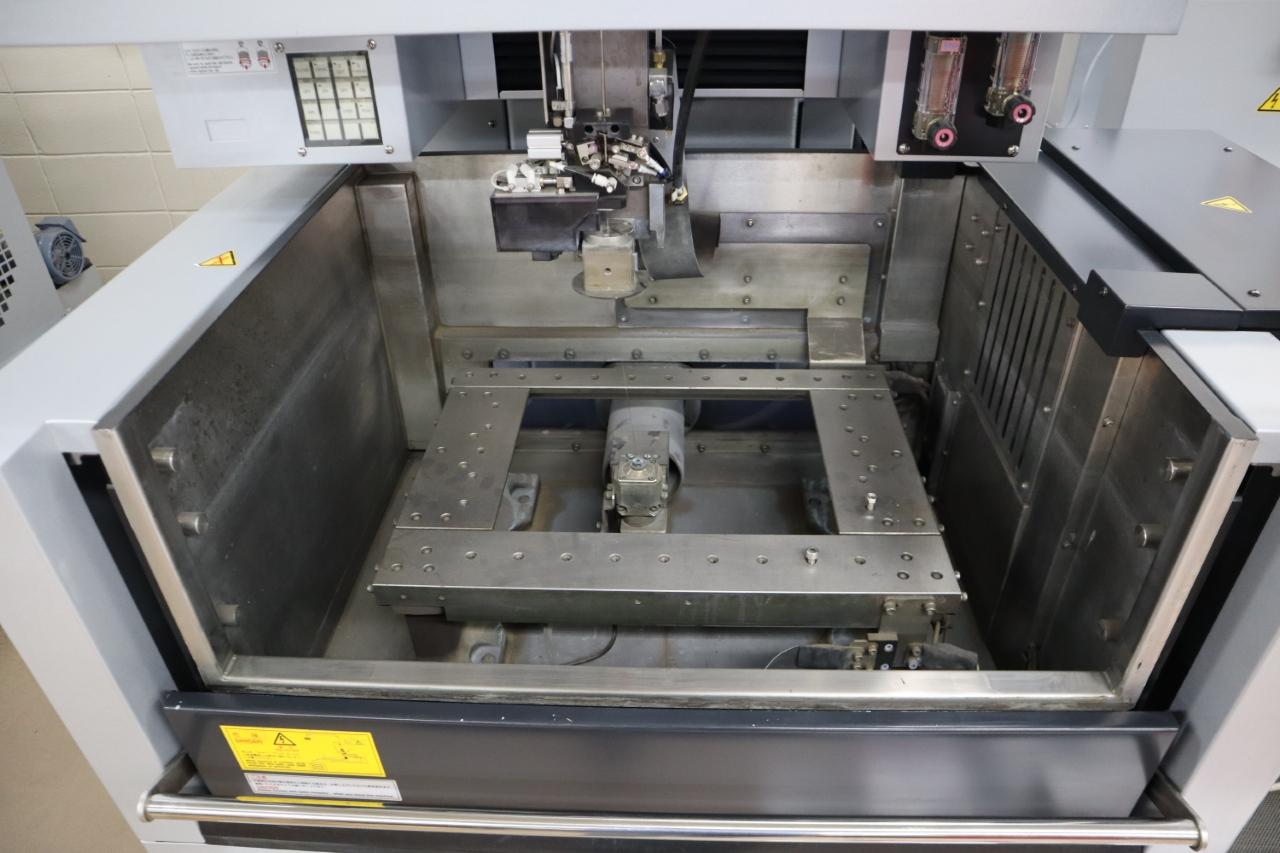

Max Workpiece Size: 30.7" x 22.44" x 8.46"
Travels (X,Y,Z): 13.78" x 9.84" x 8.66"
UV Travels: 3.15" x 3.15"
Taper Angle: +/- 15 Degrees
Max Workpiece Weight: 1,100 Lbs.
Wire Diameter: .15 - .3mm (.006 - .012")
Wire Speed: 420mm/second Max / 16.54 IPS Max
Dielectric Fluid Capacity: 550 liters
Wire Bobbin Weight Cap: 17.6 Lbs.
Seller Company: Pine Technical College
Seller Contact: Darren Lund Phone: (320) 629-4562
Item Location: Pine Technical College, 900 4th Street S. E., Pine City, MN 55063
Location Contact: Todd Swanson Phone: (320) 629-4507
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 110"w x 119"H
Loading Dock: Ground Level, Paved Lot
Removal Dates and Times: This item must be removed between Tuesday, April 28, 2026 and Friday, May 8, 2026
