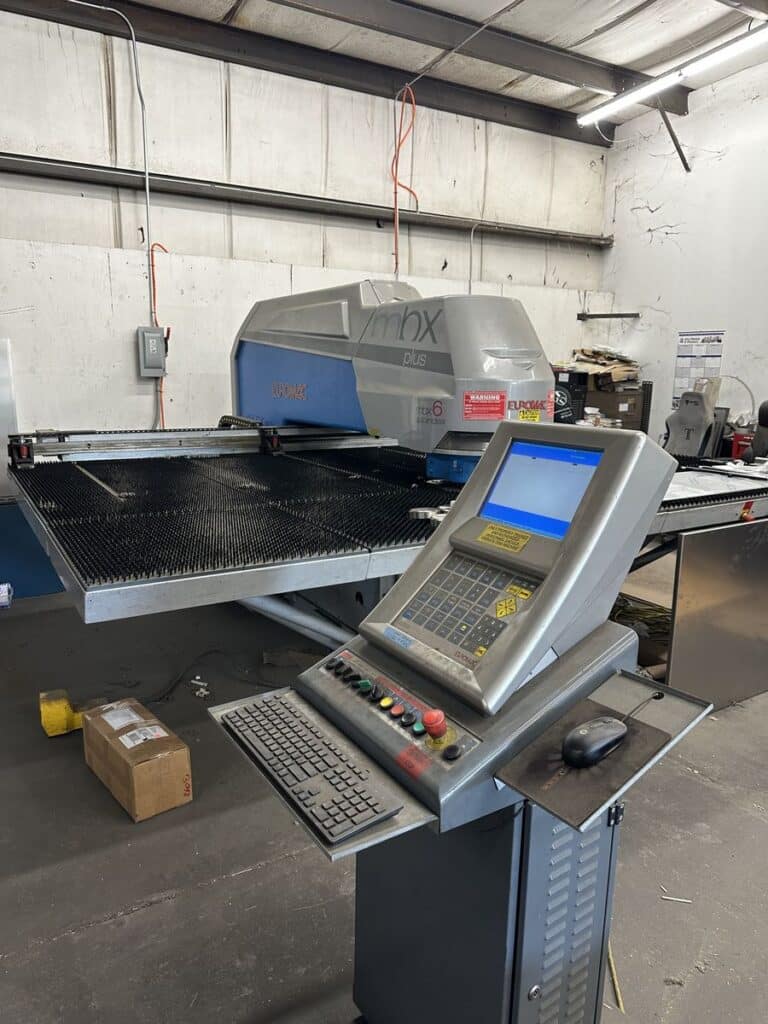

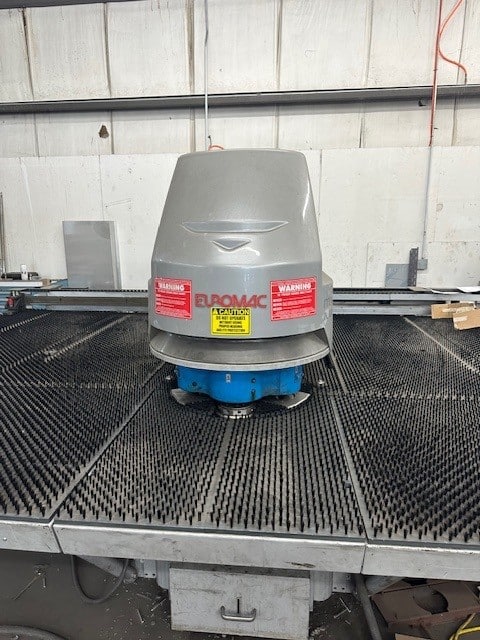

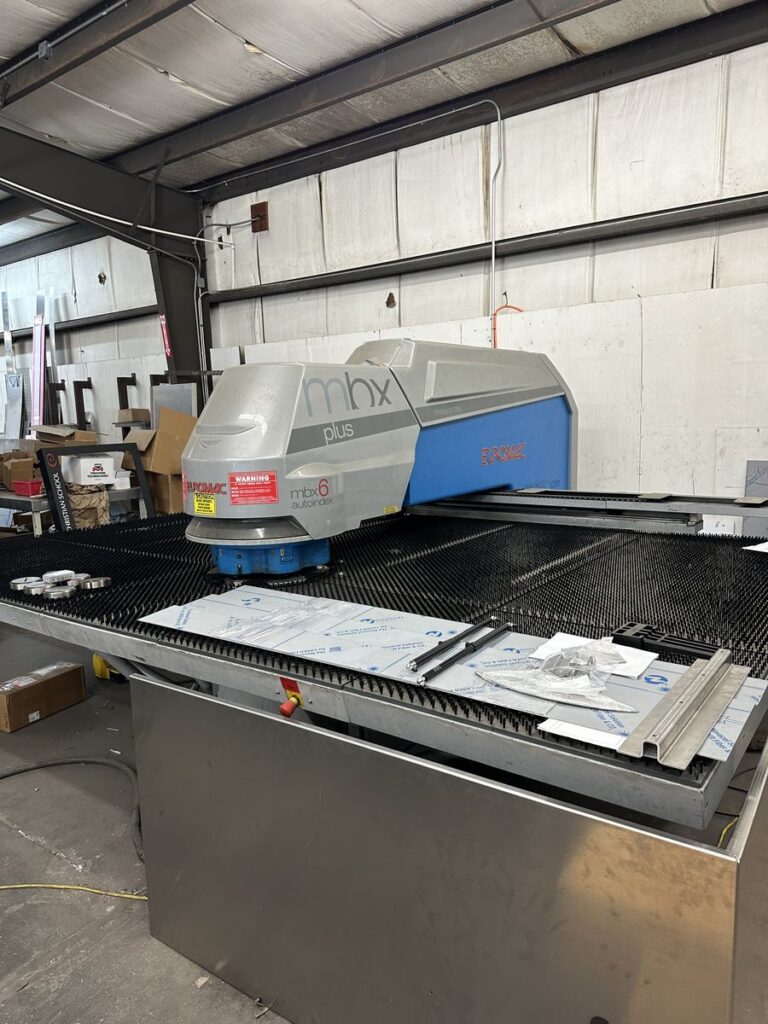

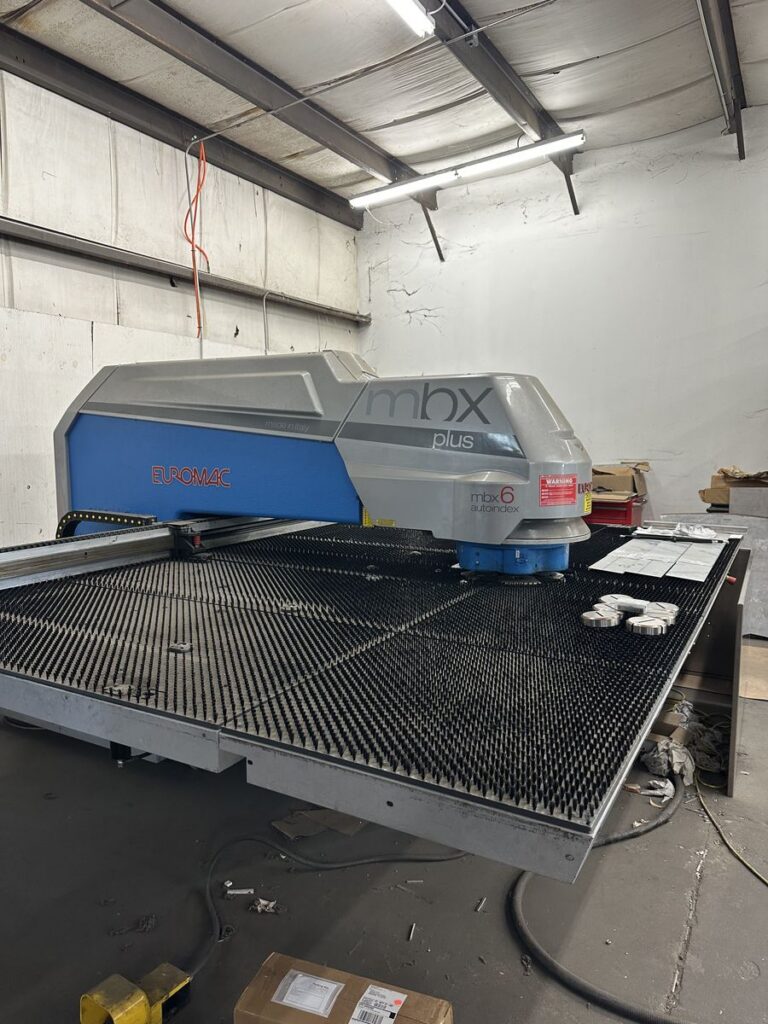

Euromac MBX 6 Plus 30 Ton Multitool CNC Turret Punch

Manufacturer

Euromac

Category

Punches

Stock

131260015

Model

MBX 6 Plus

Dealer Location

Georgia

Spec Sheet

  • Stock #: 131260015
  • Location: FL
  • Brand: Euromac
  • Model: MBX 6 Plus
  • Year: 2016
  • Loading Fee: Decommissioning and Rigging Required

Specifications

  • Max Punching Force: 300kN
  • Y-Axis with Multitool/Unipunch: 1300mm / 1250mm
  • X-Axis with Multitool/Unipunch: 2250mm
  • Bidirectional Auto Index Stations: 3
  • Opening of Clamps: 11mm
  • Automatic Positioning Clamps: 2
  • Punching with 20mm Pitch: 300
  • Nibbling with 1mm Pitch: 625
  • Thickness Range: 0.6mm – 6mm
  • Max Weight: 330 lbs

Additional Info

Machine can be demonstrated upon request.
