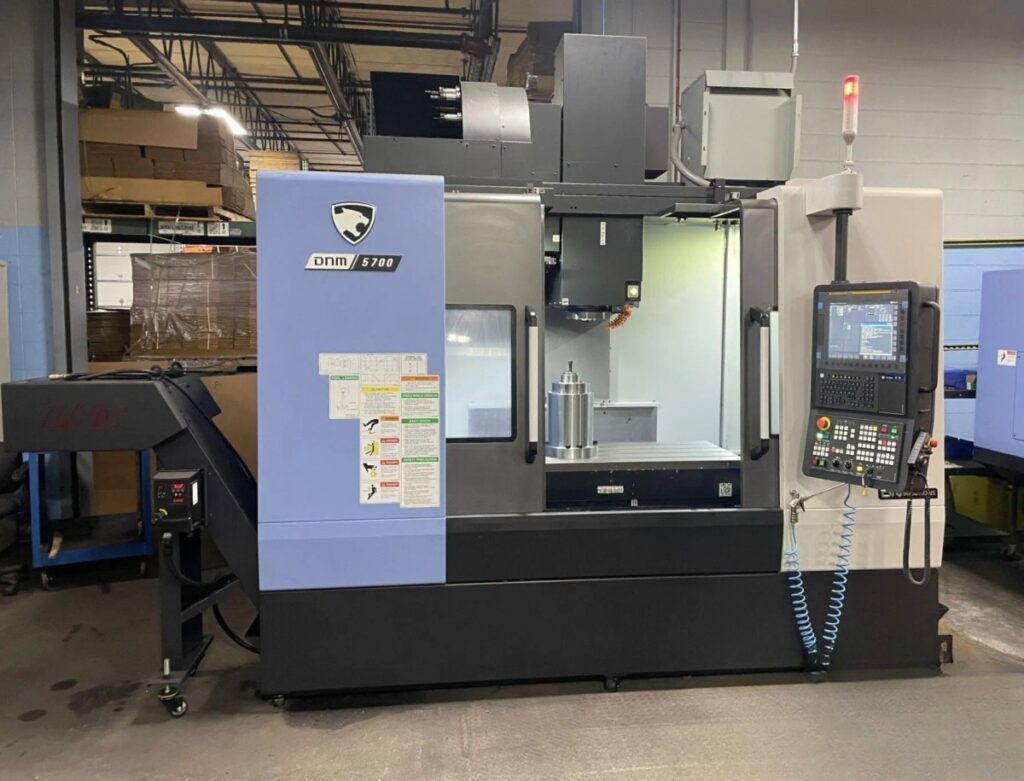

DN Solutions DNM 5700 CNC Vertical Machining Center w/ Samchully Rotary Table (2023)

Manufacturer

DN SOLUTIONS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

113260013

Model

DNM 5700

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 113260013
  • Brand: DN SOLUTIONS
  • Model: DNM 5700
  • Year: 2023
  • Approx. Shipping Weight: 14330 lb
  • Approx. Shipping Dimensions: 132" x 122" x 118"

Specifications

  • Table Length: 51"
  • Table Width: 22"
  • Table Capacity: 2205 lb
  • X-Axis Travel: 41"
  • Y-Axis Travel: 22"
  • Z-Axis Travel: 20"
  • Spindle Speed: 12000 RPM
  • Spindle Motor: 25 hp
  • Spindle Taper: CAT 40 (Big Plus)
  • Tool Capacity (ATC): 30
  • Rapid Traverse – X Axis: 1417 in/min
  • Rapid Traverse – Y Axis: 1417 in/min
  • Rapid Traverse – Z Axis: 1181 in/min
  • Rotary or Trunnion: Yes

Equipped With

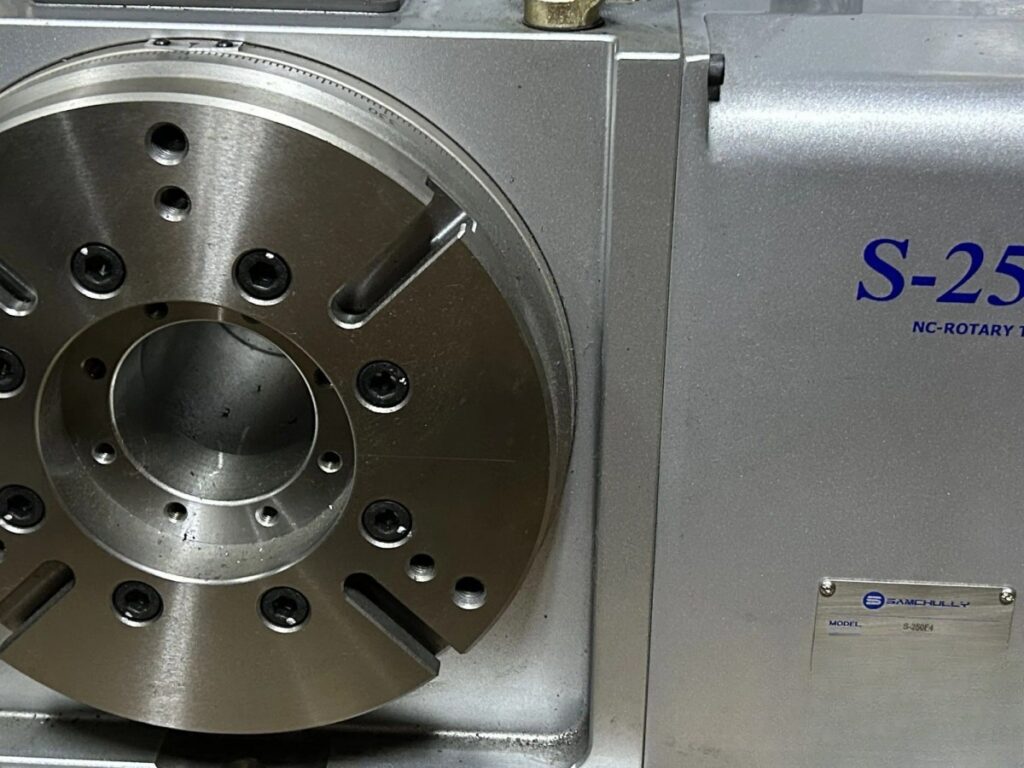

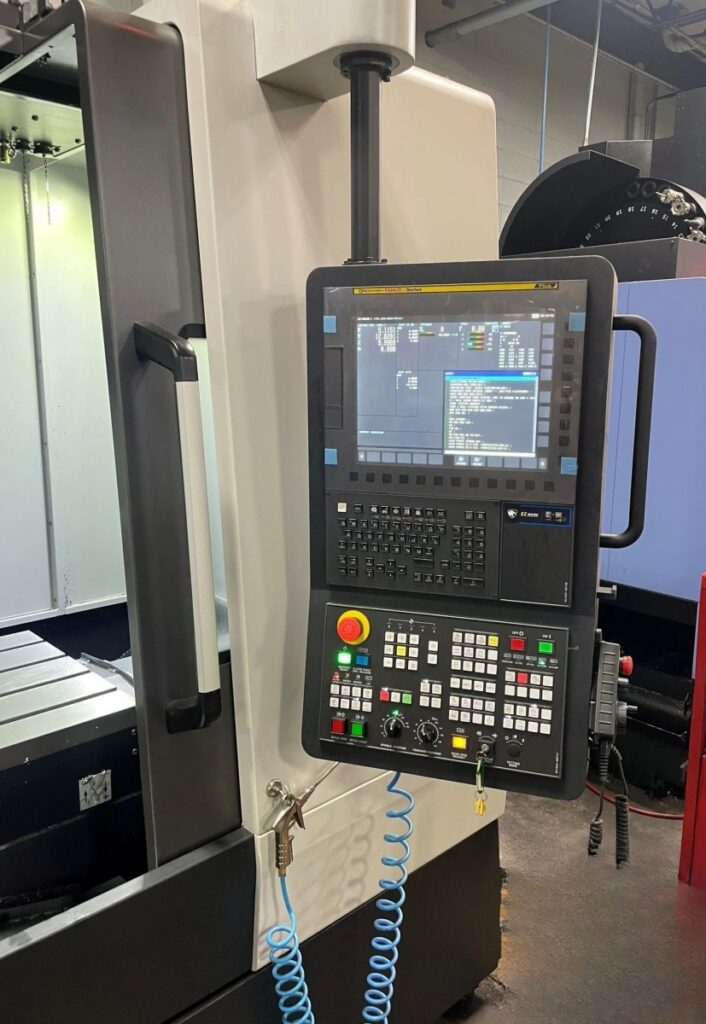

DN SOLUTIONS – FANUC i-Series CNC Control, Samchully S-250F4 4th Axis Rotary Table, OMP60 Renishaw Probing System, Through-Spindle Coolant, Through-Spindle Air, LNS Chip Conveyor

Additional Info

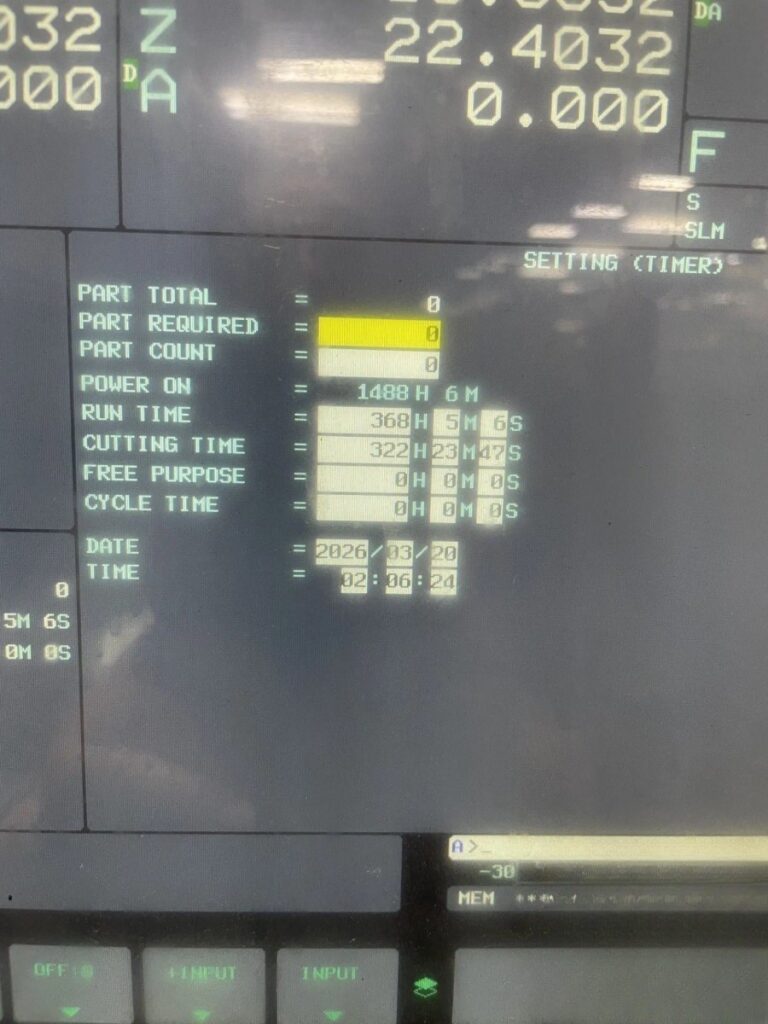

Like New, Only 500 Cutting Hours, Purchased and installed new in 2025, In plant, under power, available immediately, Machine manufactured date: July 2023, Machine cutting primarily aluminum, As of March 2026 – Cutting time: 322 hours
