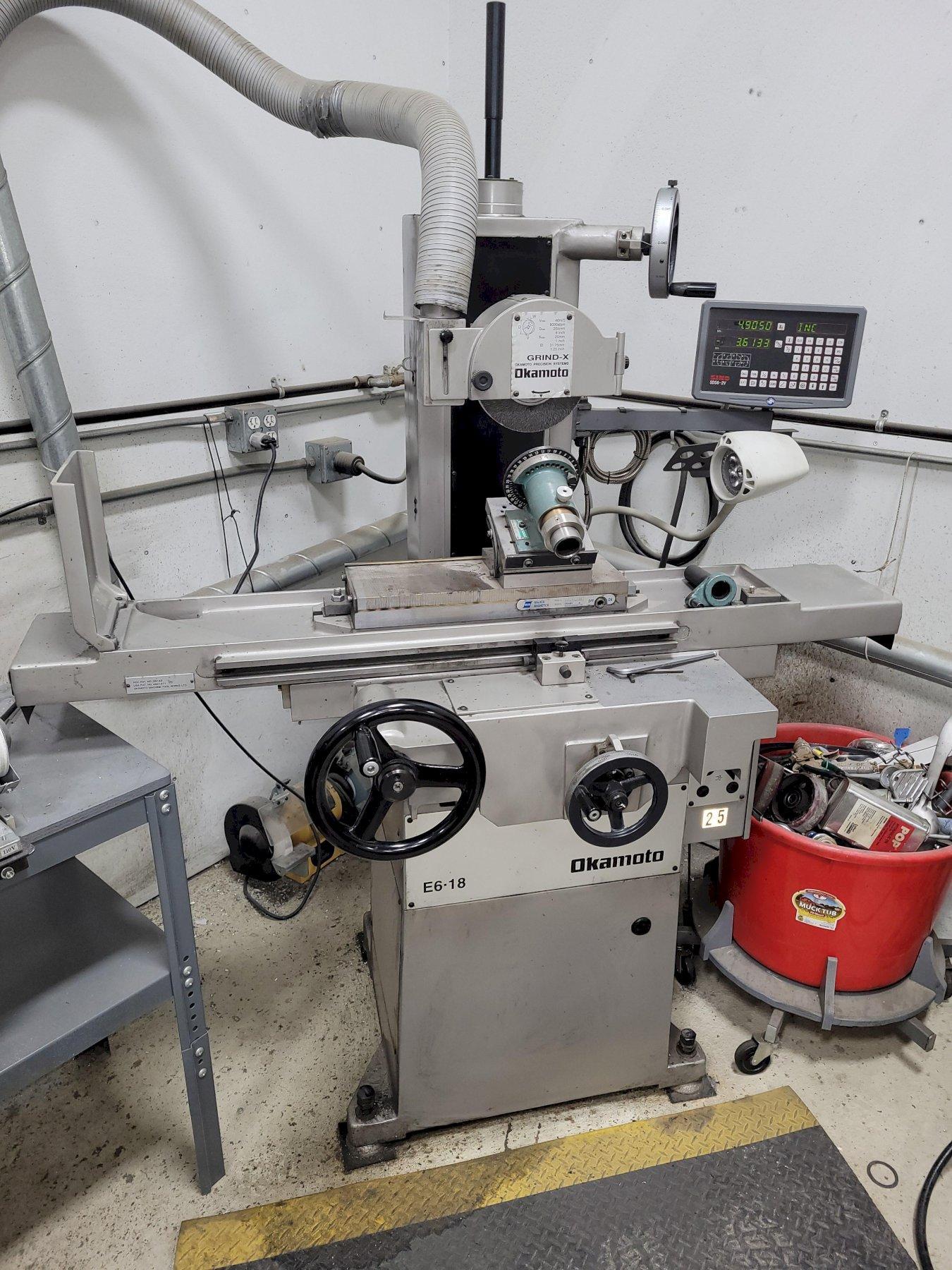

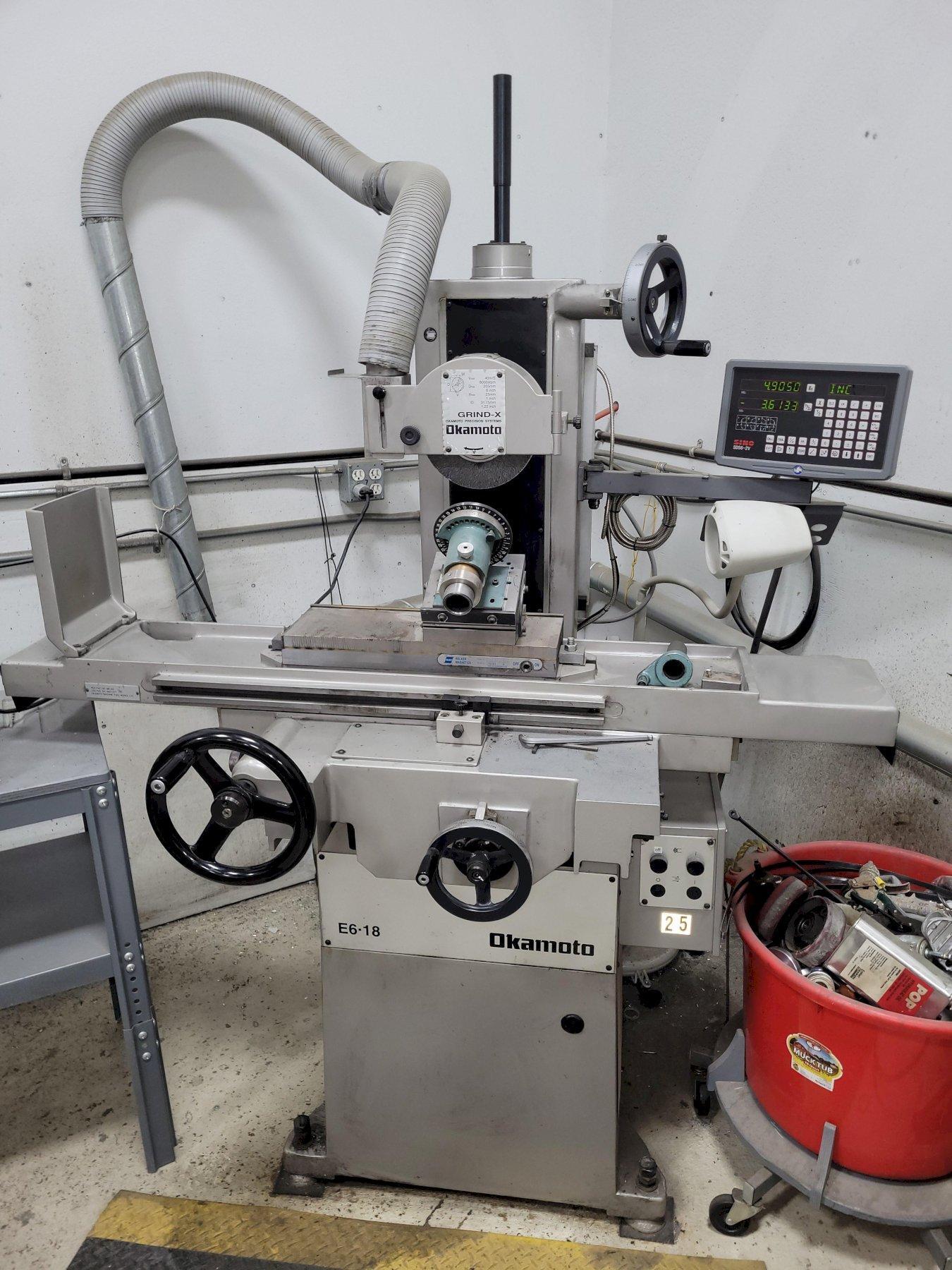

Okamoto 6" X 18" E6-18 Hand Feed Surface Grinder W/D.R.O.

Manufacturer

OKAMOTO

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Stock

G2011MT

Model

E6-18

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Max. Grinding Width - 5.9 inches
Max Grinding Length - 17.7 inches
Permanent Chuck Size - 5.9" X 17.7"
Table Surface W X L - 5.9" X 18.3"
Maxim Longitudinal Travel - 20.9 inches
Maximum Cross Travel - 6.9 inches
T-Slot (no. / Width) - 1 / 0.67"

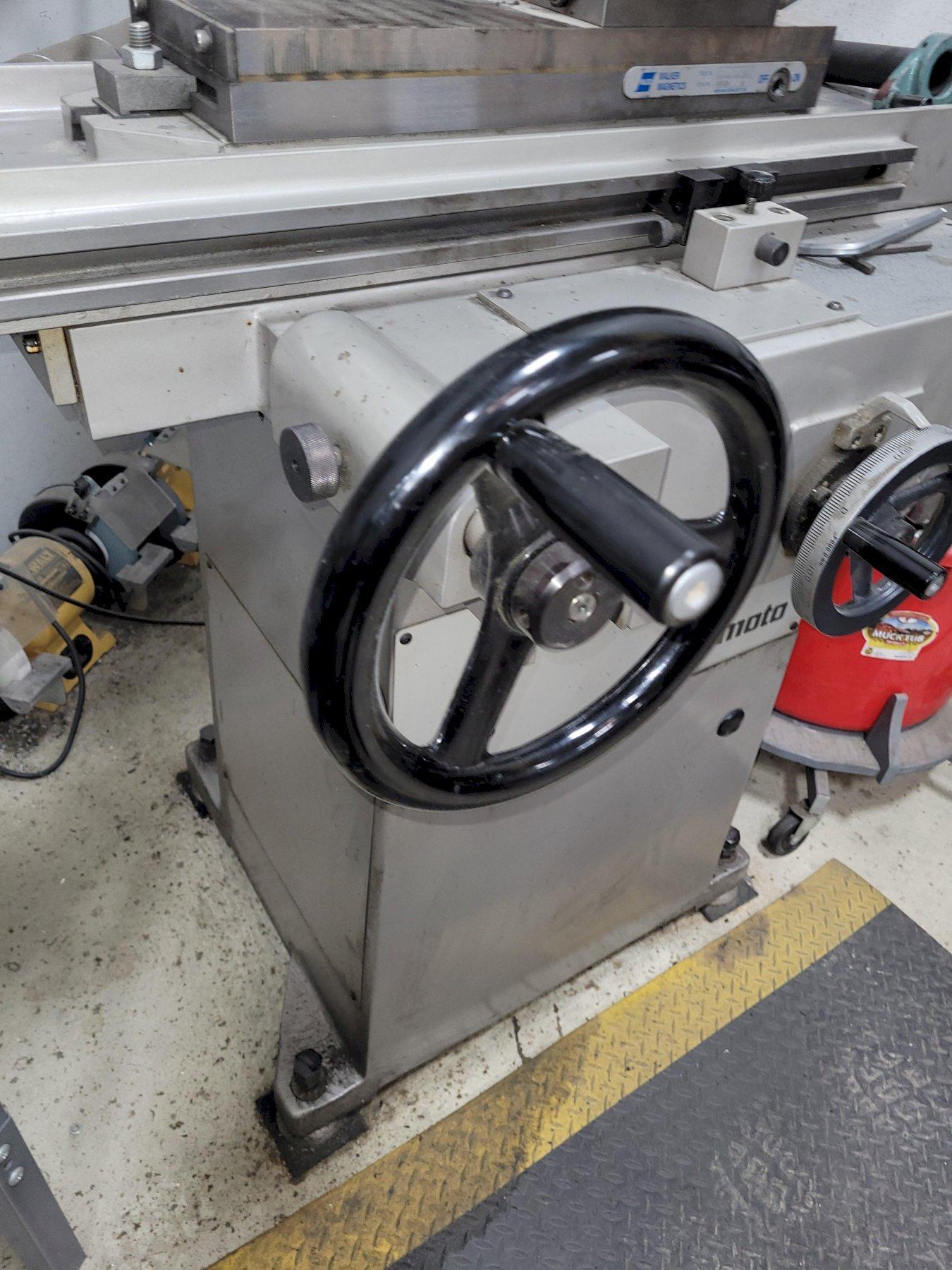

Longitudinal Movement of Table per Revolution - 3.94 inches
Cross Movement of Saddle per Revolution - 0.1 inches

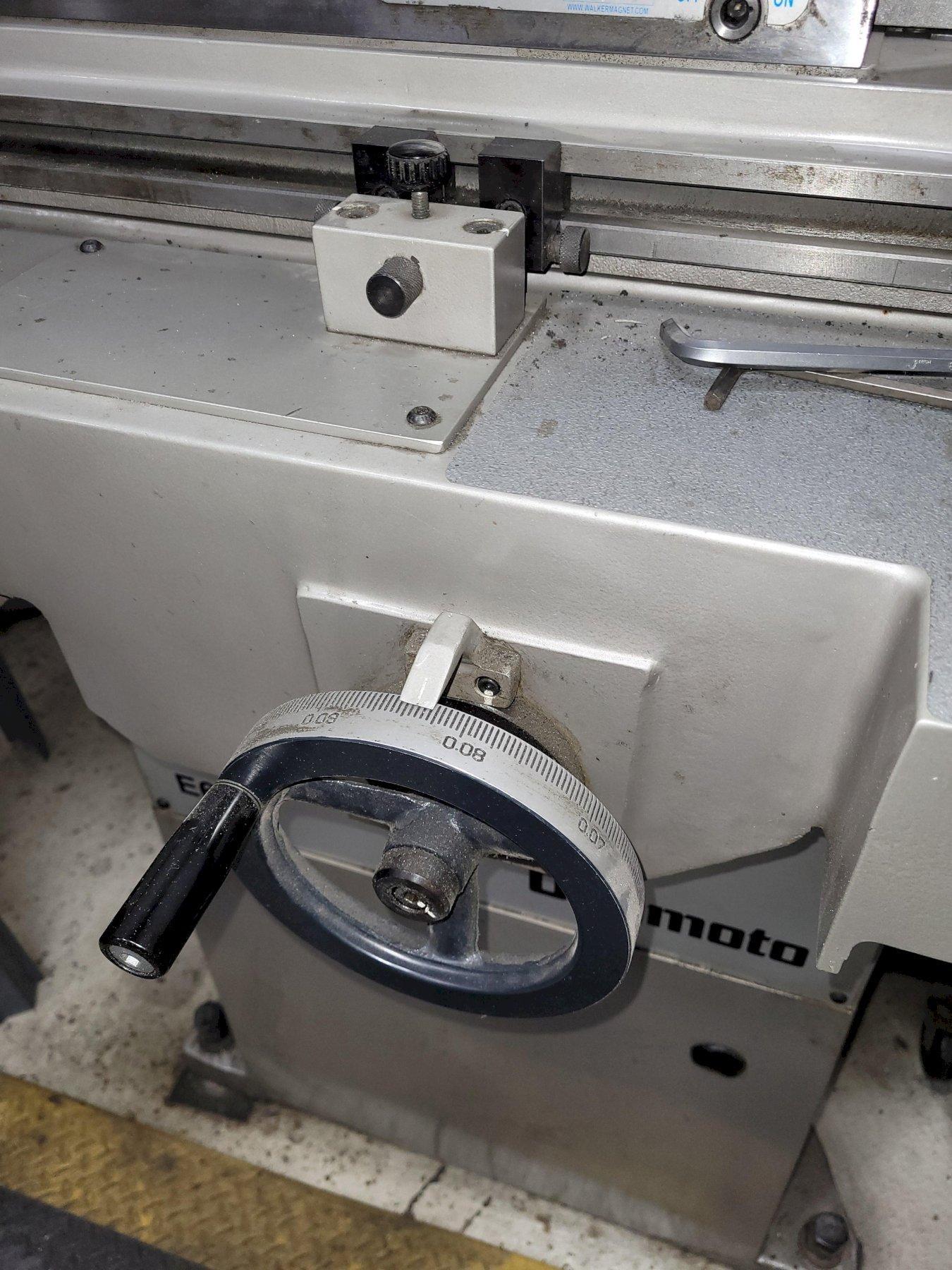

Cross Feed Handwheel Graduation - 0.0004 inches
Vertical Movement per Revolution - 0.05 inches

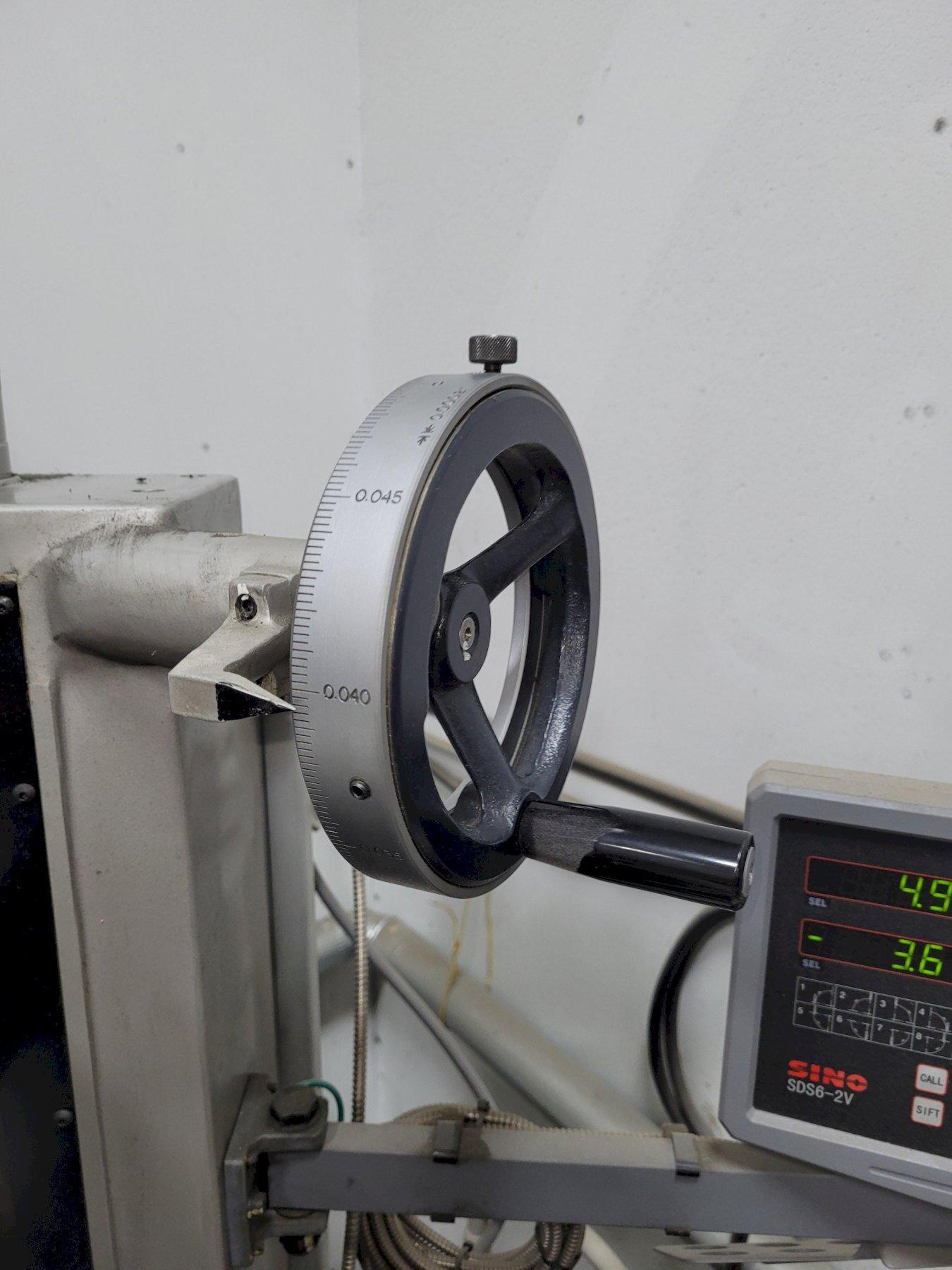

Elevator Handwheel Graduation - 0.0002 inches

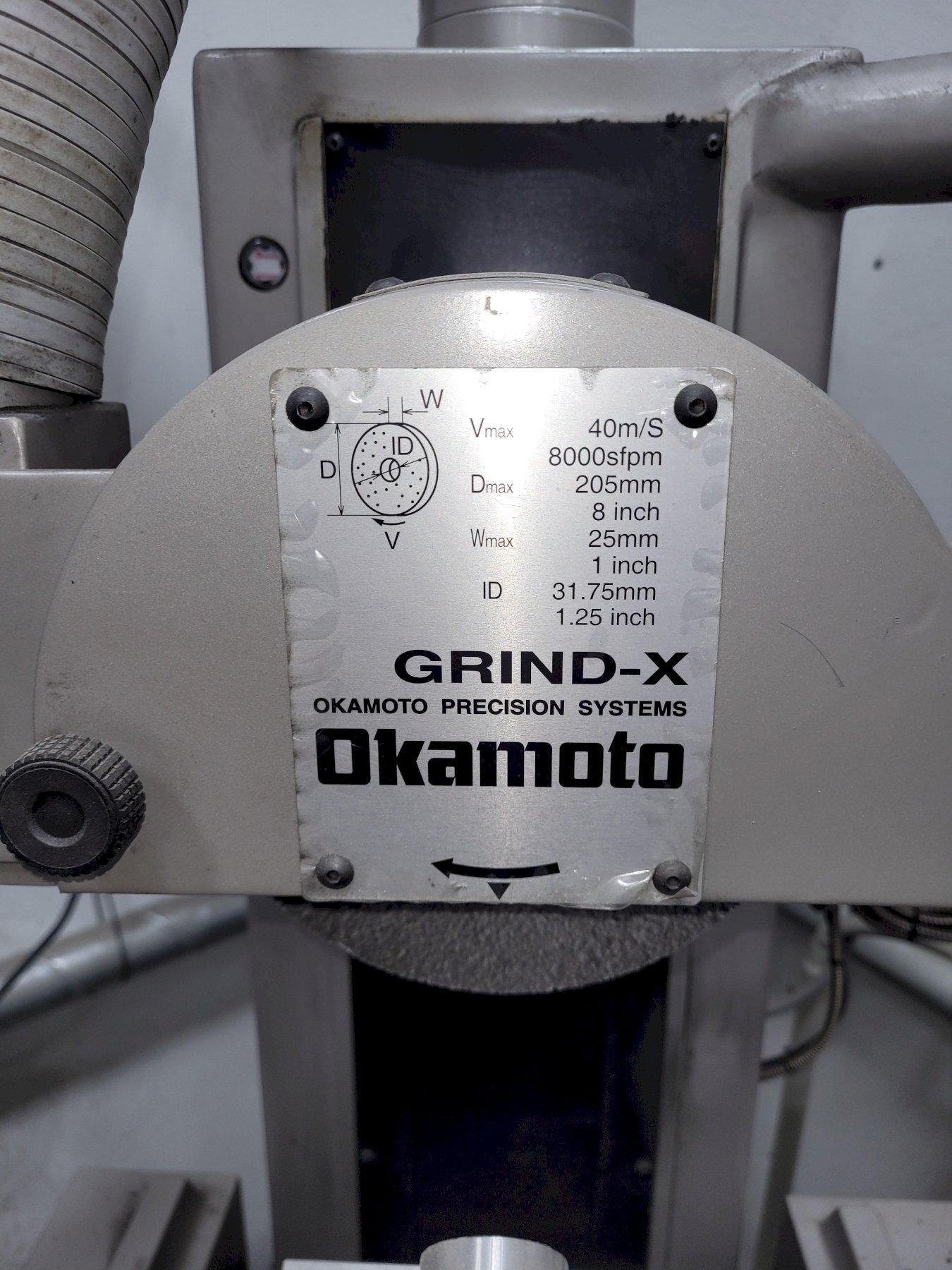

Grinding Wheel (D X W X Bore) - 8" X 1" X 1.25"
Speed @ 60HZ - 3600 R.P.M.

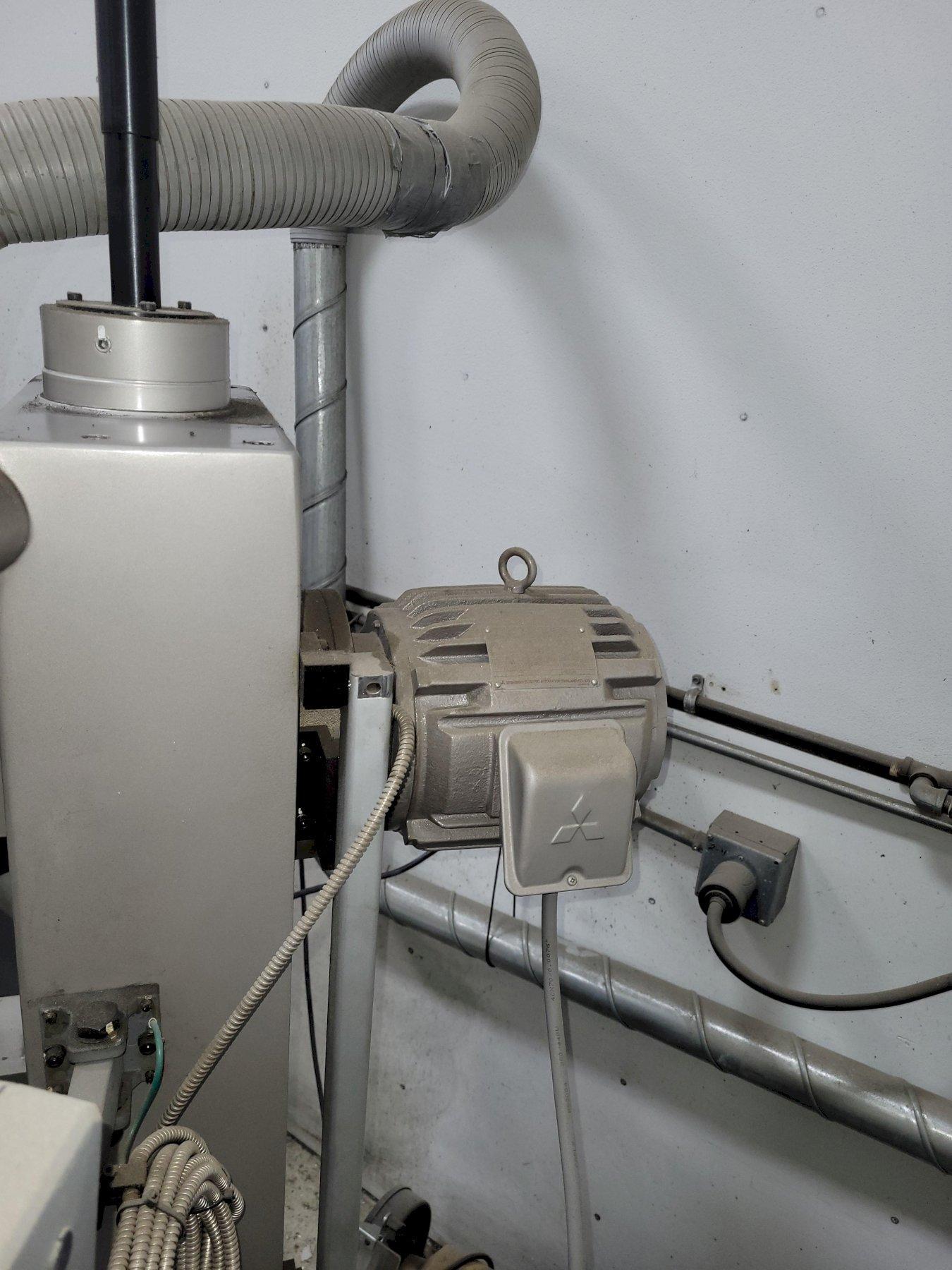

Motor Grinding Wheel Spindle - 2 H.P.
Approximate Floor Space - 78.5" X 47.8" X 81.48"
Net Weight - 1540 pounds


  • Walker 6" X 18" Fine Line permanent Magnetic Chuck.

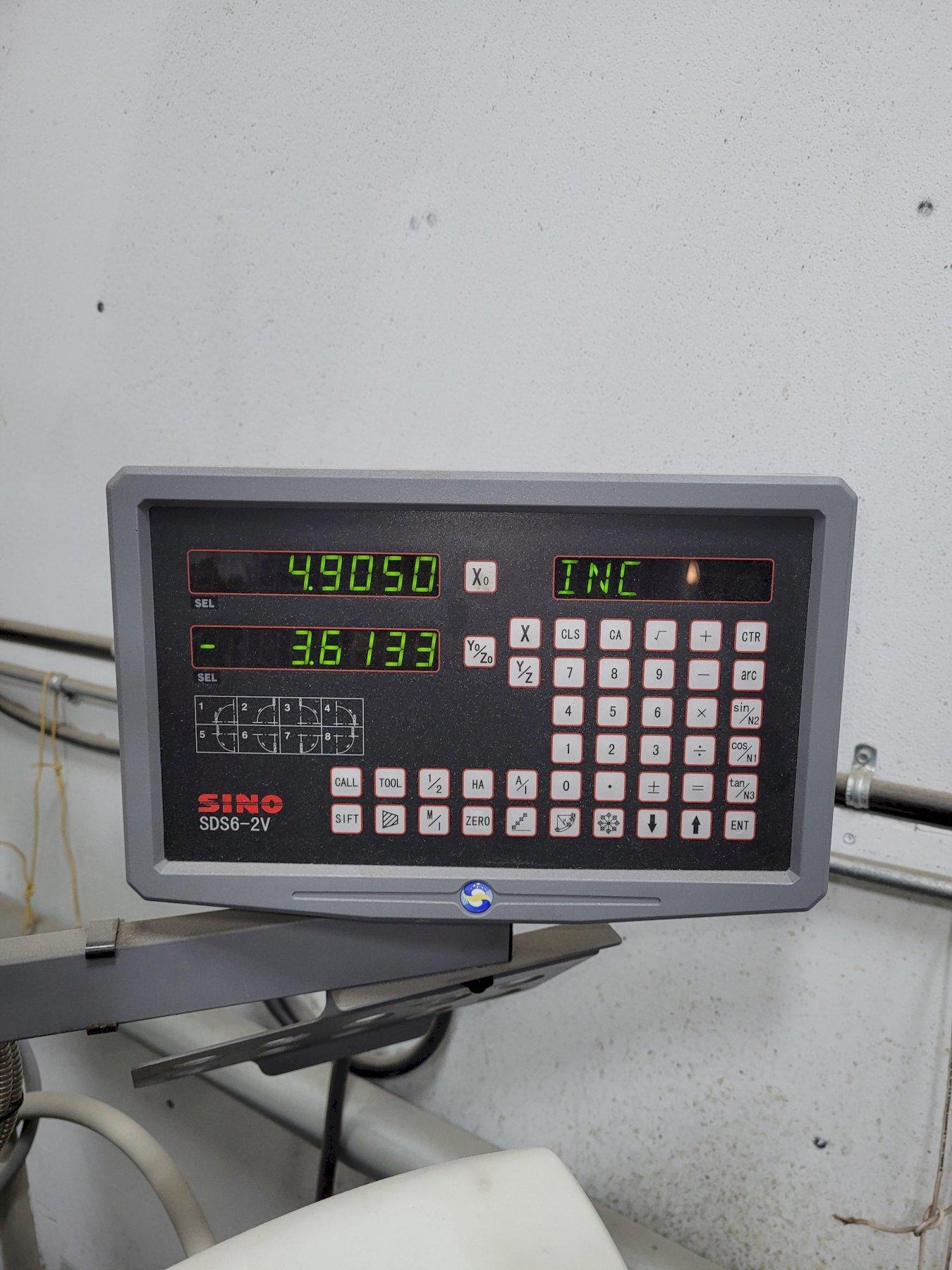

  • Sino 2-Axis Model SDS6-2V Multi Function Digital Read Out

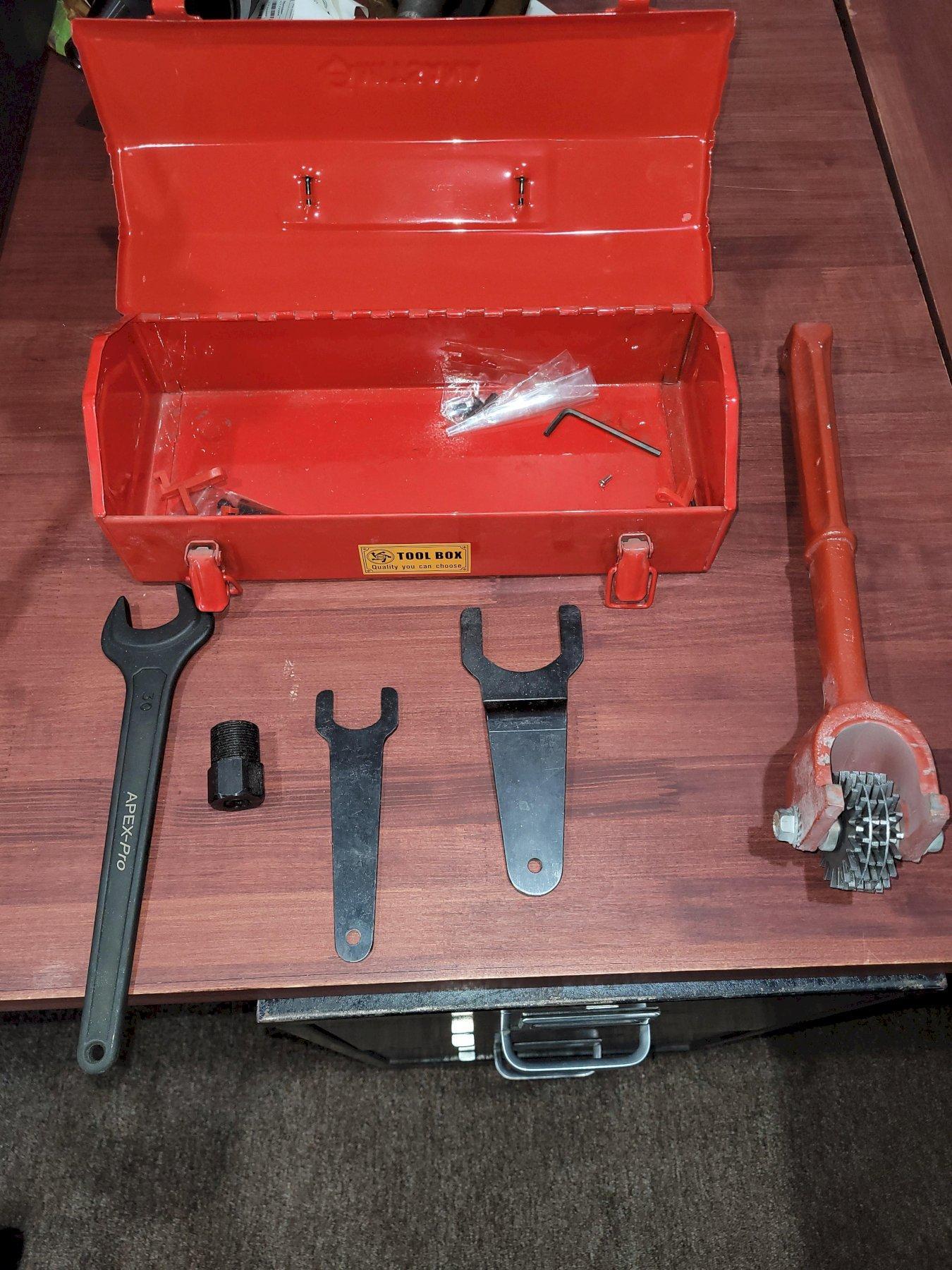

  • Okamoto Wrenches and tool box
  • Hand Held Dressing Tool
