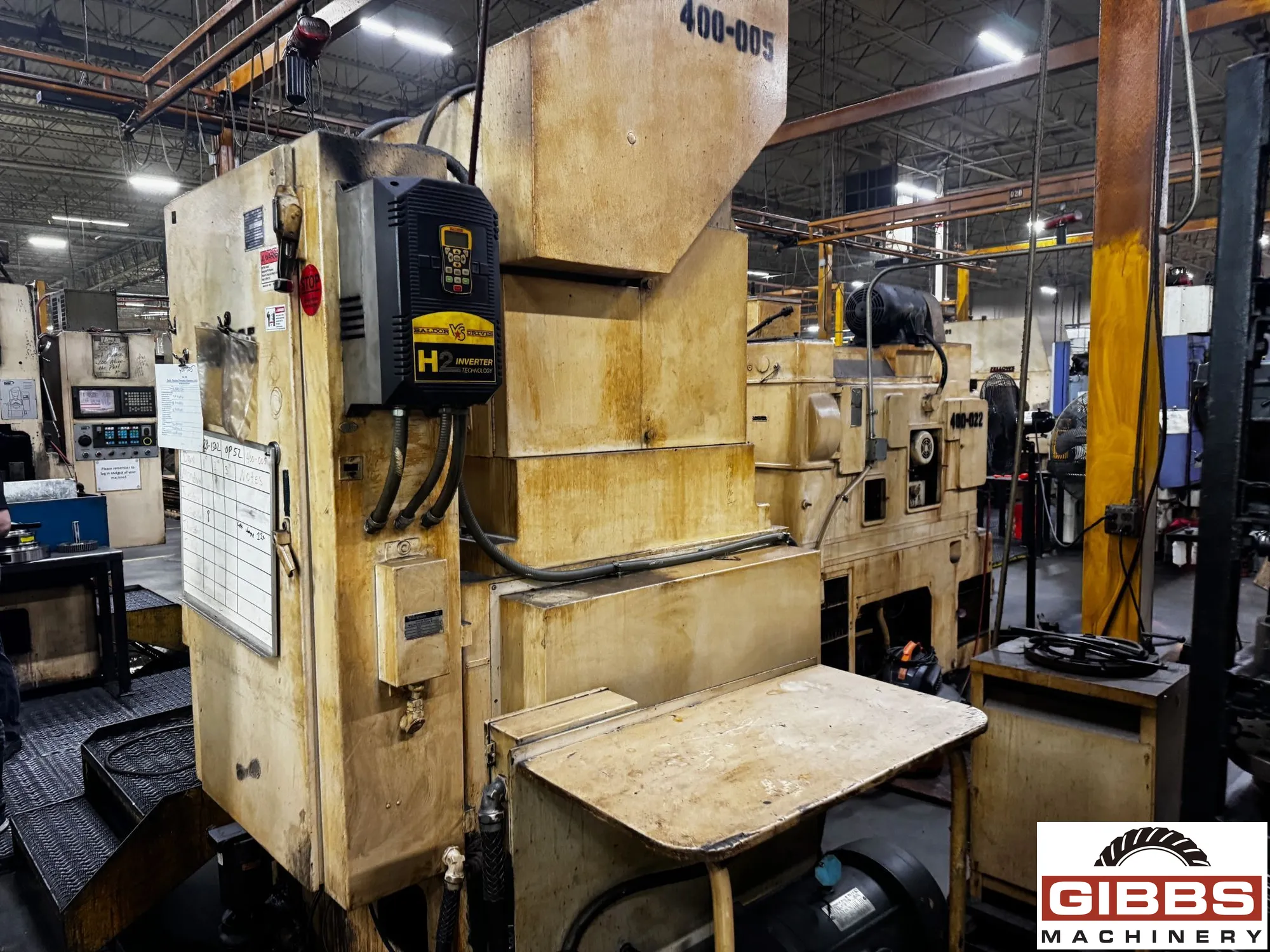

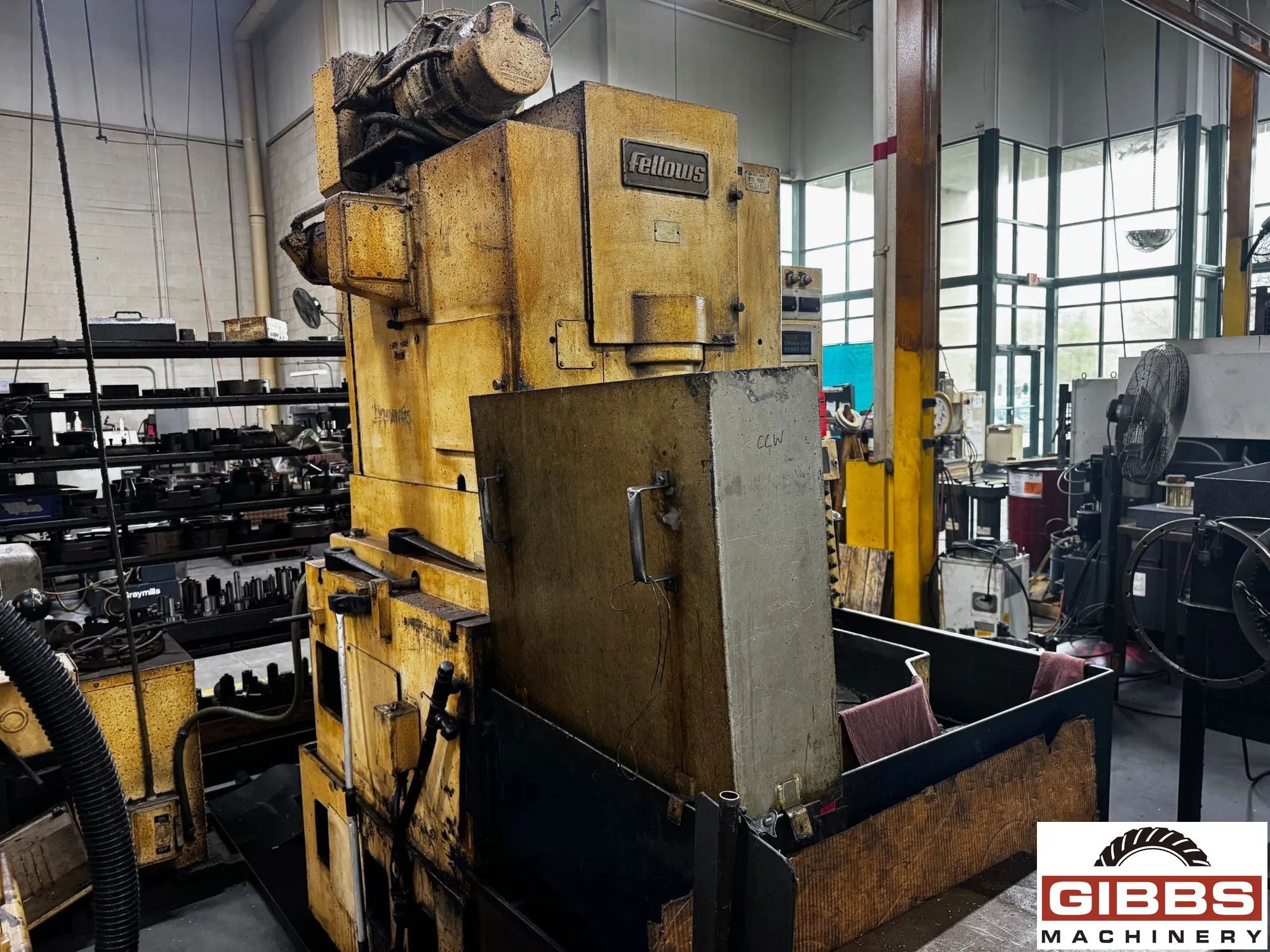

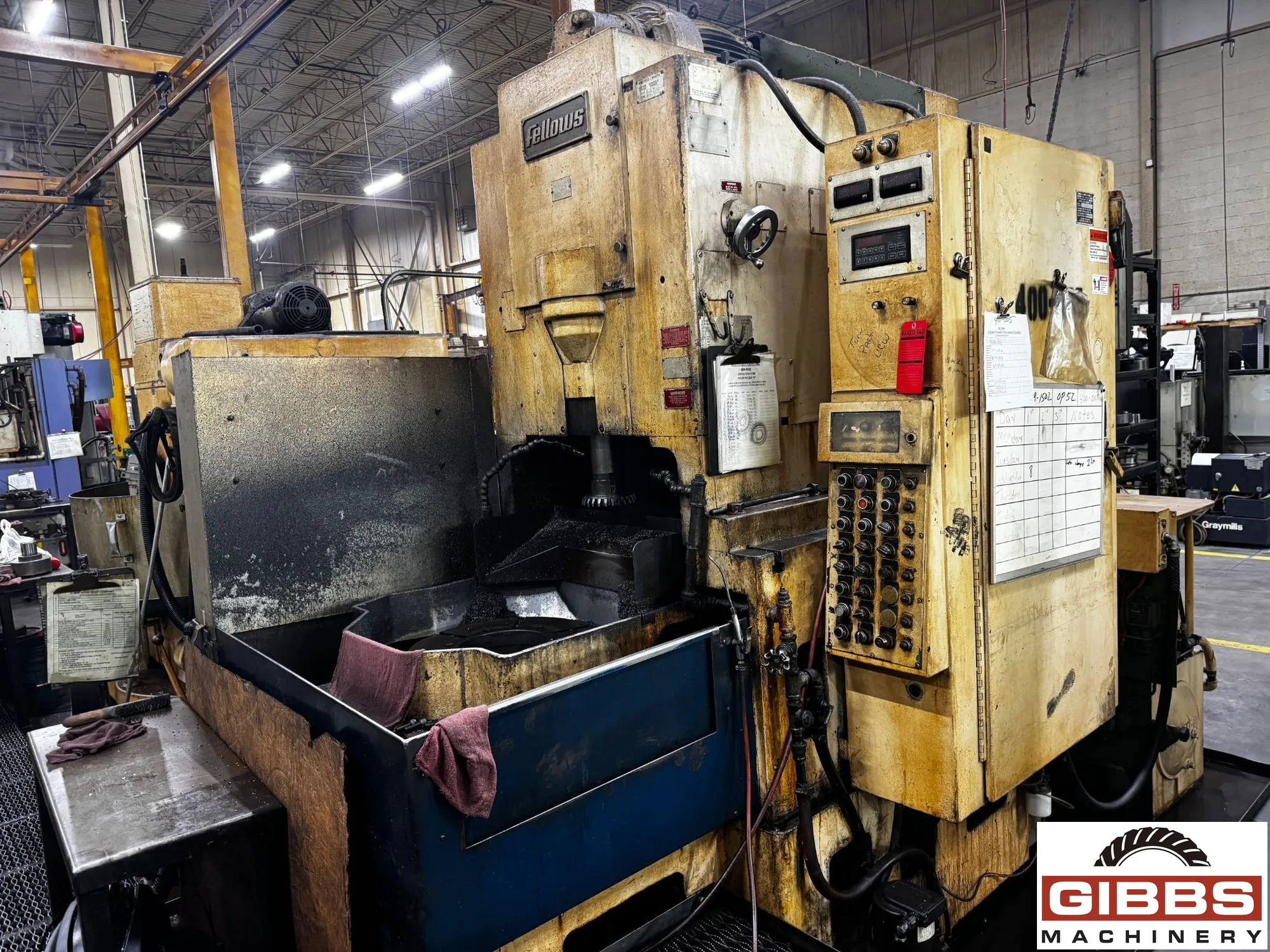

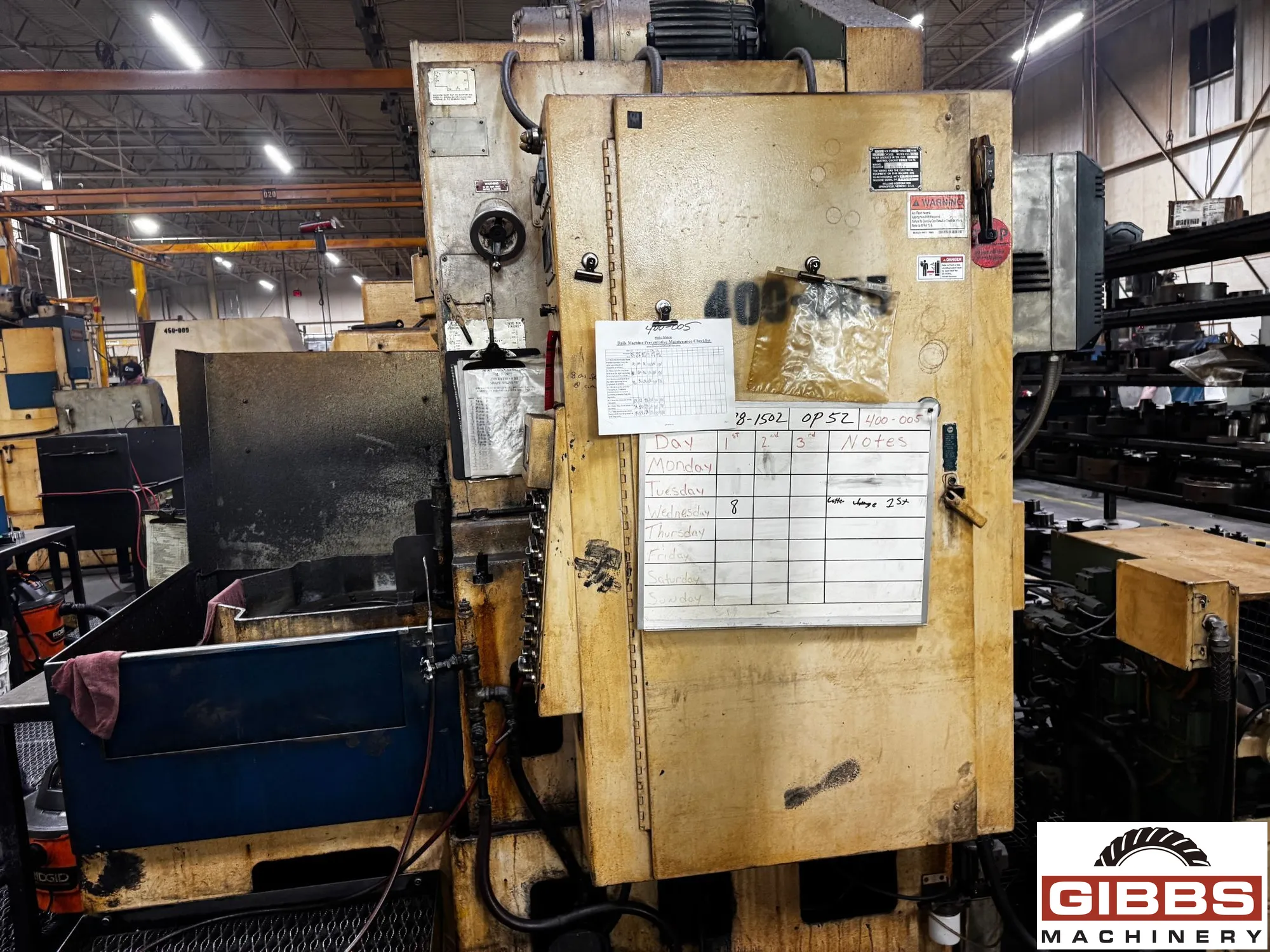

FELLOWS 20-4 - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

25909

Model

20-4

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Spur Guide
  • Coolant System
  • Cutter Adapter

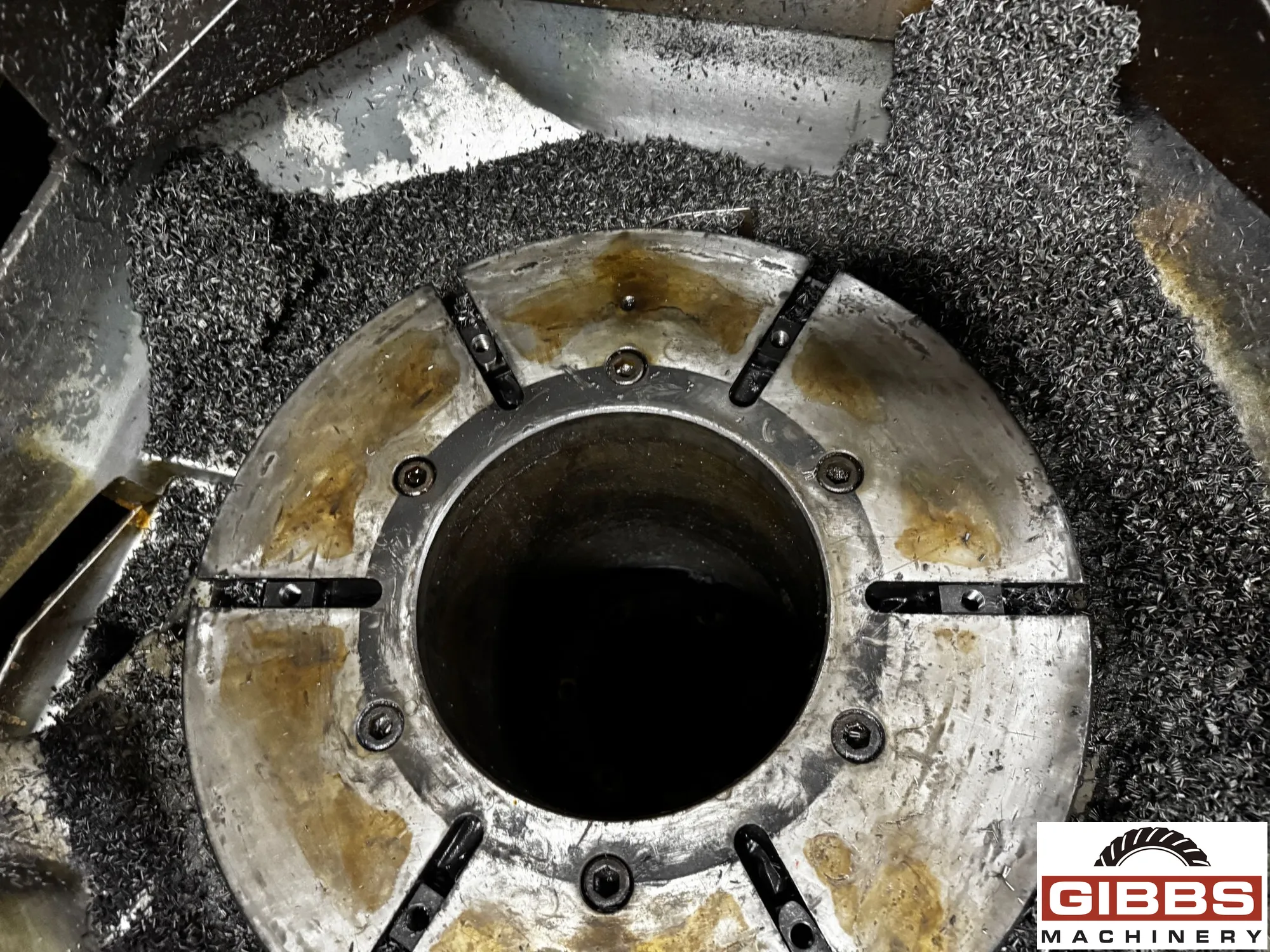

  • 20" Table
,

Machine Specifications :

  • Year
  • Manufacturer FELLOWS
  • Guide Spur
  • Maximum External Gear Diameter 20.0"
  • Maximum Internal Gear Diameter 20.0"
  • Diametral Pitch 4.0
  • Stroke 4.0"
  • Cutter Spindle Diameter 3.543"

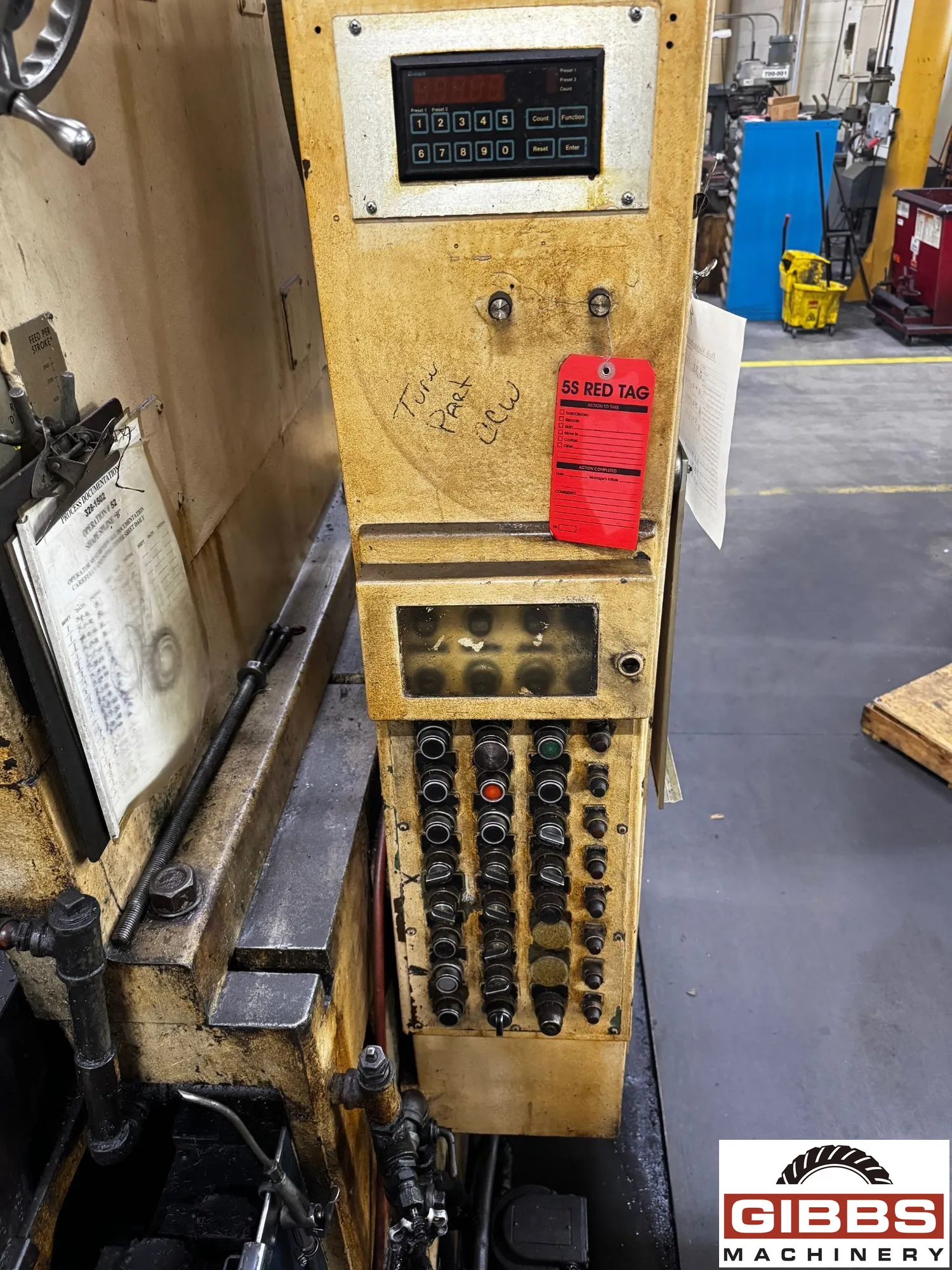

  • Control Manufacturer Conventional
,
    Max pitch diameter (External) 20"
  • Max pitch diameter (Internal) 20"
  • Max face width, external & internal 4"
  • Max diametrical pitch spur 4 DP
  • Max diametrical pitch helical 5 DP
  • Bore through work spindle 9.055"
  • Cutter spindle diameter 3.543"
  • Max helix angle with special guides 45 deg.
  • Distance between work table & cutter spindle w/no riser 12"
  • Dimensions (L x H x W) 126"x 117"x 70"
  • Machine net weight, approx 18,000 lbs.
