Used DMG MORI Vertical Mate 85

Manufacturer

DMG MORI

Category

Grinding Machines

Type

GRINDERS, VERTICAL UNIVERSAL

Stock

3690022

Model

Vertical Mate 85

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Universal Grinders
Manufacturer:
DMG MORI
Model:
Vertical Mate 85
Stock #:
3690022
Status:
For Sale
Country:
United States

Description

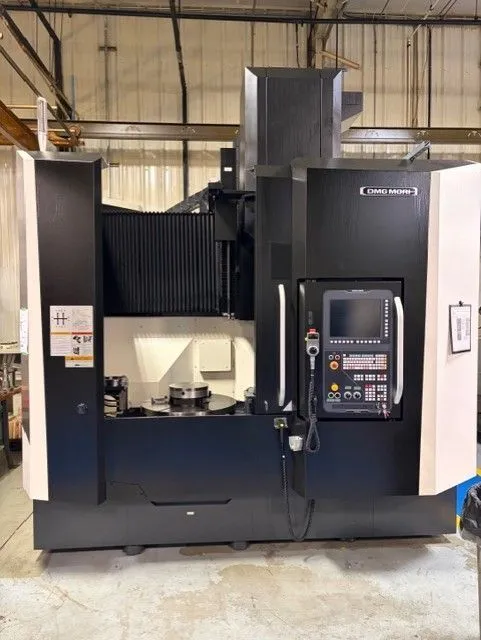

DMG MORI Vertical Mate 85 CNC vertical universal grinder designed for high-precision internal, external, and face grinding in a single setup. This machine features a Fanuc F32iB control, 29.5" table, 33.5" work spindle swing, 6-tool ATC, HSK-E100 grinding spindle, and automatic measuring capability. Built for accurate finishing of medium-to-large cylindrical workpieces.

Table Dia29.5"749.3 mm
Swing49.21"1,249.9 mm
Power15 hp11.2 kW
RPM9,000 RPM9,000 RPM
ControlCNC (Fanuc)CNC (Fanuc)
Dimensions118.7" W x 162.6" D x 127.6" H118.7" W x 162.6" D x 127.6" H
Weight28,600 lb28,600 lb

Equipped With:
Fanuc F32iB control
MAPPS IV / GriPS grinding software
Rotary dresser with diamond for OD/face grinding
Wheel rear face dresser
Load monitoring function for grinding spindle
80 L/min paper filter secondary coolant separator
Sumitomo Heavy Industries Finetec SP-8-1 filtration system
Automatic measuring system for ID, OD, and face
Renishaw MP250 touch sensor
Z-axis scale feedback control, 0.1 µm
Table for master gauge
Dia. 190 mm master gauge
Spare rotary diamond
Tool nose radius offset
Running time / parts count display
GriPS data transfer function
Virtual machine data for CNC GUIDE
FANUC CNC GUIDE
Inch display changeover
Side-mounted zeroFOG mist collector
Separate-type jog button for work spindle
DMG MORI Connect
Installation and training included
Export packing included

- Specifications are believed to be accurate and are to be verified by the buyer.
