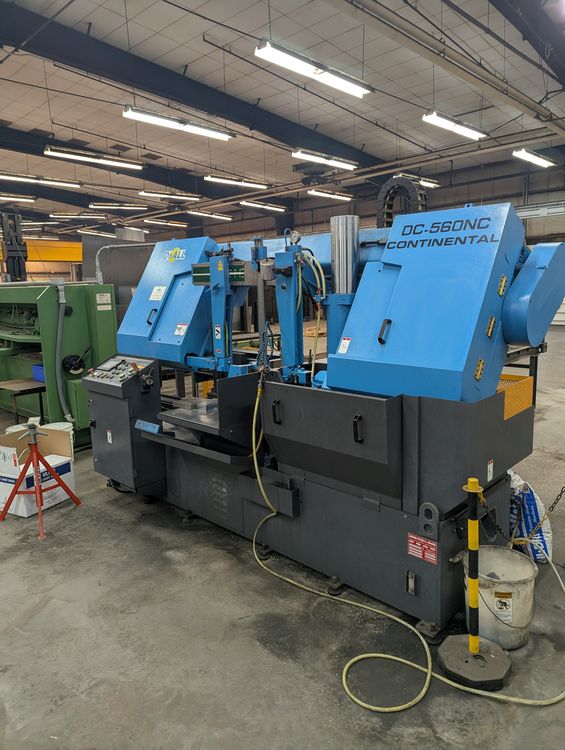

DoAll DC-560NC 24″ x 22″ Horizontal Automatic Bandsaw

Manufacturer

DoAll

Category

Saws

Stock

121260015

Model

DC-560NC

Dealer Location

Georgia

Spec Sheet

  • Stock #: 121260015
  • Location: OH
  • Brand: DoAll
  • Model: DC-560NC
  • Approx. Shipping Weight: 10,000 lbs
  • Approx. Shipping Dimensions: 84″ L x 27″ W x 85″ T

Specifications

  • Machine Capacity: 24″ x 22″
  • Cutting Capacity Round: 22″
  • Cutting Capacity Rectangle: 23.6″ x 22″
  • Band Saw Blade: 2″ x 260″
  • Band Speed: 72 – 390 SFPM
  • Band Drive: 10 HP
  • Hydraulic Pump: 3 HP
  • Hydraulic Tank Capacity: 34 Gal.
  • Coolant Tank Capacity: 37 Gal.
  • Automatic Index Length Single: 15.75″
  • Automatic Index Length Multiple: 141.73″
  • Material Pass Line Height: 33-1/2″

Equipped With

Toch Screen Control, Automatic Shuttle Vice, Hydraulic Clamping, Coolant Pump, Hydraulic Blade Tensioning

Additional Info

Can be inspected upon request.
