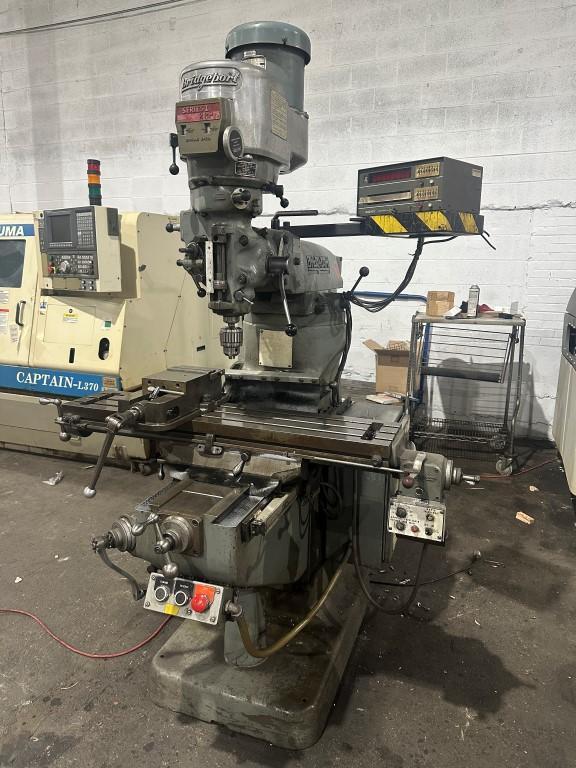

2 HP Bridgeport Series I Vertical Mill

Manufacturer

BRIDGEPORT

Category

Milling Machines

Type

MILLERS, UNIVERSAL, RAM TYPE

Stock

TM5155

Model

Series I

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Working Surface of Table - 9" x 42"
No. of T-Slots - 3
Longitudinal Travel (X-Axis) - 30 inches
Cross-Slide Travel (Y-Axis) - 12 inches
Quill Travel (Z-Axis) - 5 inches
Vertical, Knee - 16 inches
Max/Min Distance, Spindle Nose to Table - 18.5" / 2.5"
Max/Min Distance, Centerline - Spindle to Face of Column - 18.75" / 6.75"
Ram Travel - 12 inches
Head Tilt, Left / Right - 90°
Head Tilt, Front to Rear, Each Way - 45°
Power Quill Feeds (3) - .0015, .003, .006 IPR
Spindle Drive - 2 HP 3/60/230-460 V
Inf.Variable Spindle Speeds (Low) - 60 – 500 RPM
Inf.Variable Spindle Speeds (High) - 500 – 4200 RPM
Spindle Motor - 2 HP
Spindle Taper - R8
Maximum Collet Capacity - 0.75 inches
Currently Wired For - 3/60/230 Volt Operation
Approximate Overall Dimensions - 62”W x 63”D x 83”H
Approximate Weight - 2000 pounds
F.O.B. - Our Plant


Equipped with:

Power Feed for Longitudinal Travel of Table. Sony Single Axis DRO for Cross Travel. Bijur One-Shot Lubrication System. 6" Vise.
