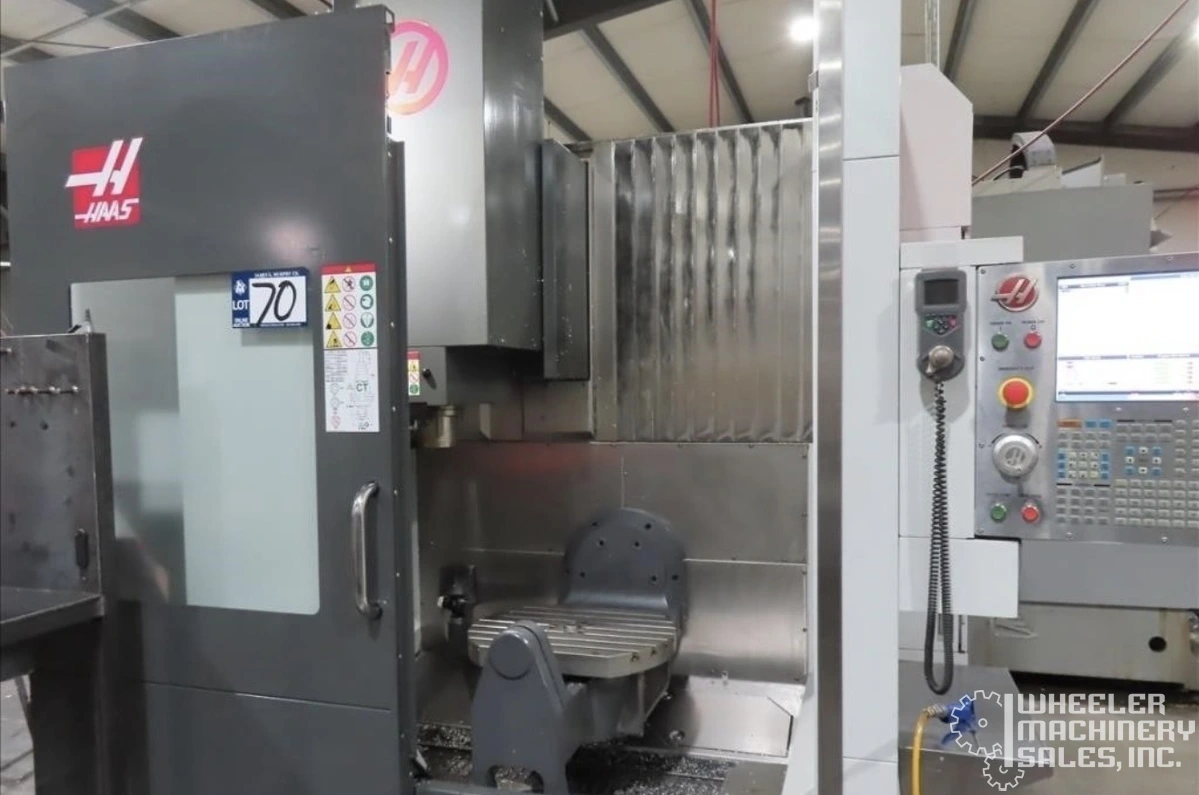

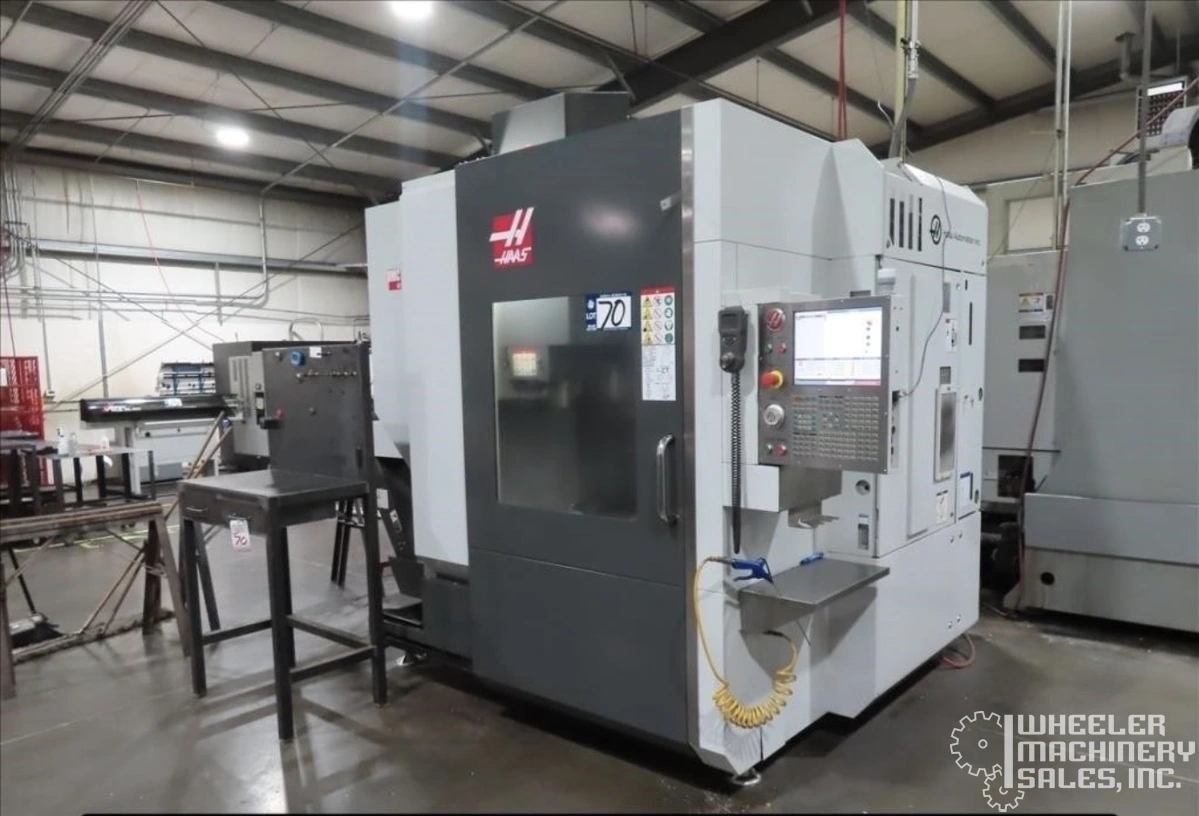

2016 HAAS UMC-750 5-Axis Vertical Machining Center #8193

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

8193

Model

UMC-750

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
MACHINING CENTERS, VERT., N/C & CNC, 5-AXIS
Manufacturer:
HAAS
Model:
UMC-750
Year:
2016
Stock #:
8193
Status:
For Sale

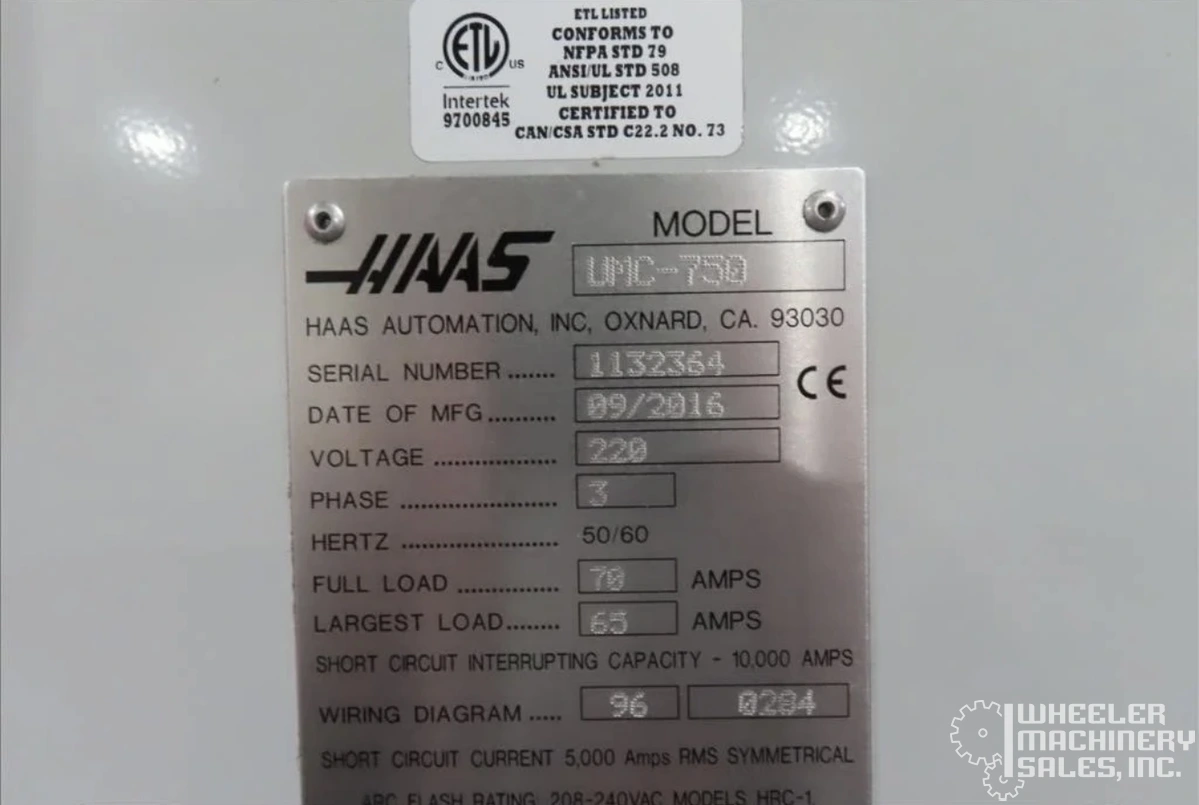

Serial #:
1132364
Country:
United States

Description

2016 HAAS UMC-750 5-Axis Vertical Machining Center, Model #8193, ideal for complex geometries. As a used equipment, it's a cost-effective choice for enhancing production capabilities with its advanced multi-axis functionality.

2016 HAAS UMC-750 5-Axis Vertical Machining Center #8193

SPECIFICATIONS:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Spindle to Nose Platter: 24"

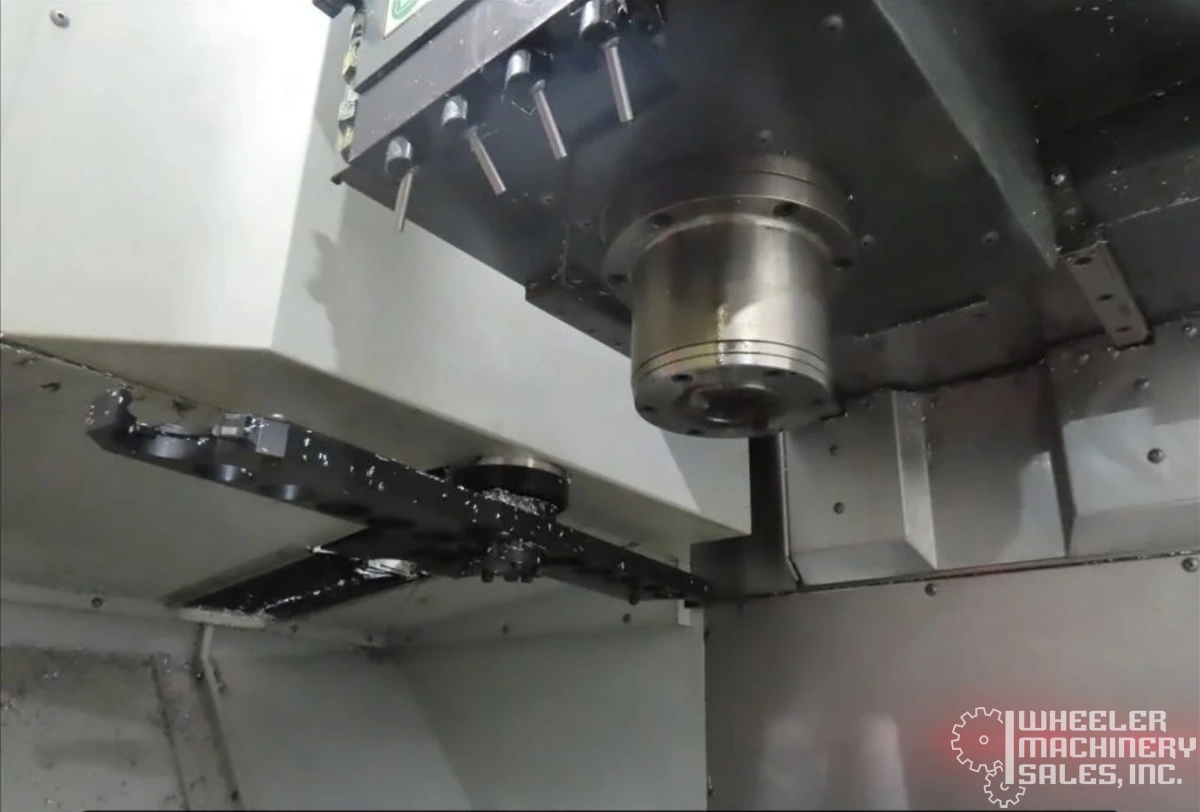

Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Torque: 90 ft-lbf @ 2000 RPM
Taper: CT40 / BT 40 / HSK-A63

B-Axis Tilt
Travel: 120 Degrees
Speed: 50 Degree/Second
Torque (Continuous): 2240 ft-lbf

C-Axis Rotation
Travel: 360 Degrees
Speed: 50 Degree/Second
Torque (Continuous): 1854 ft-lbf
Part Swing: 27"

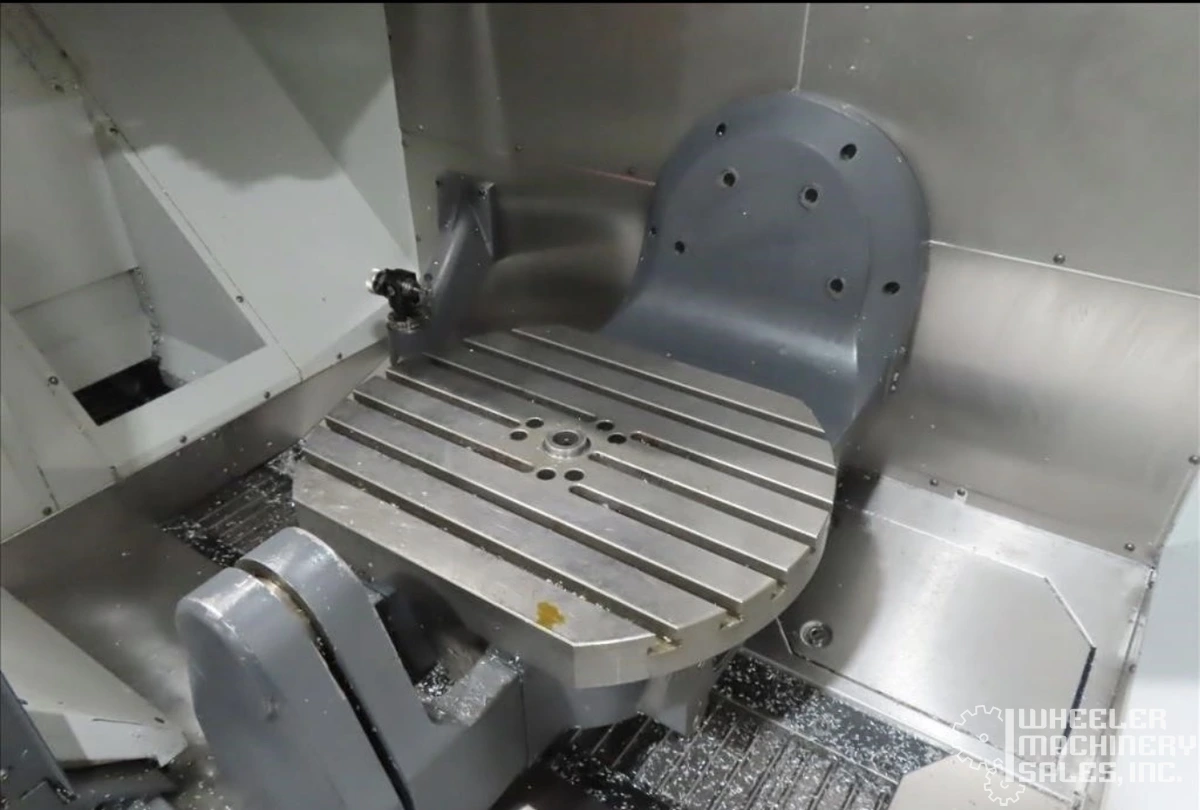

Platter
Platter Diameter: 19.7"
Weight on Platter: 660 lbs
Weight on Platter w/ Pallet Pool: 200 lbs
T-Slot Center Distance: 2.48"

Feedrates
Cutting: 650 IPM
X/Y/Z - Axis: 900 IPM

Tool Changer
Capacity: 30+1
Tool Diameter: 2.5"
Tool Diameter: 5"
Tool Length: 12"
Tool Weight: 12 lbs

Machine Dimensions: 168" x 92.5" x 110"
Machine Weight: 14,250 lbs
