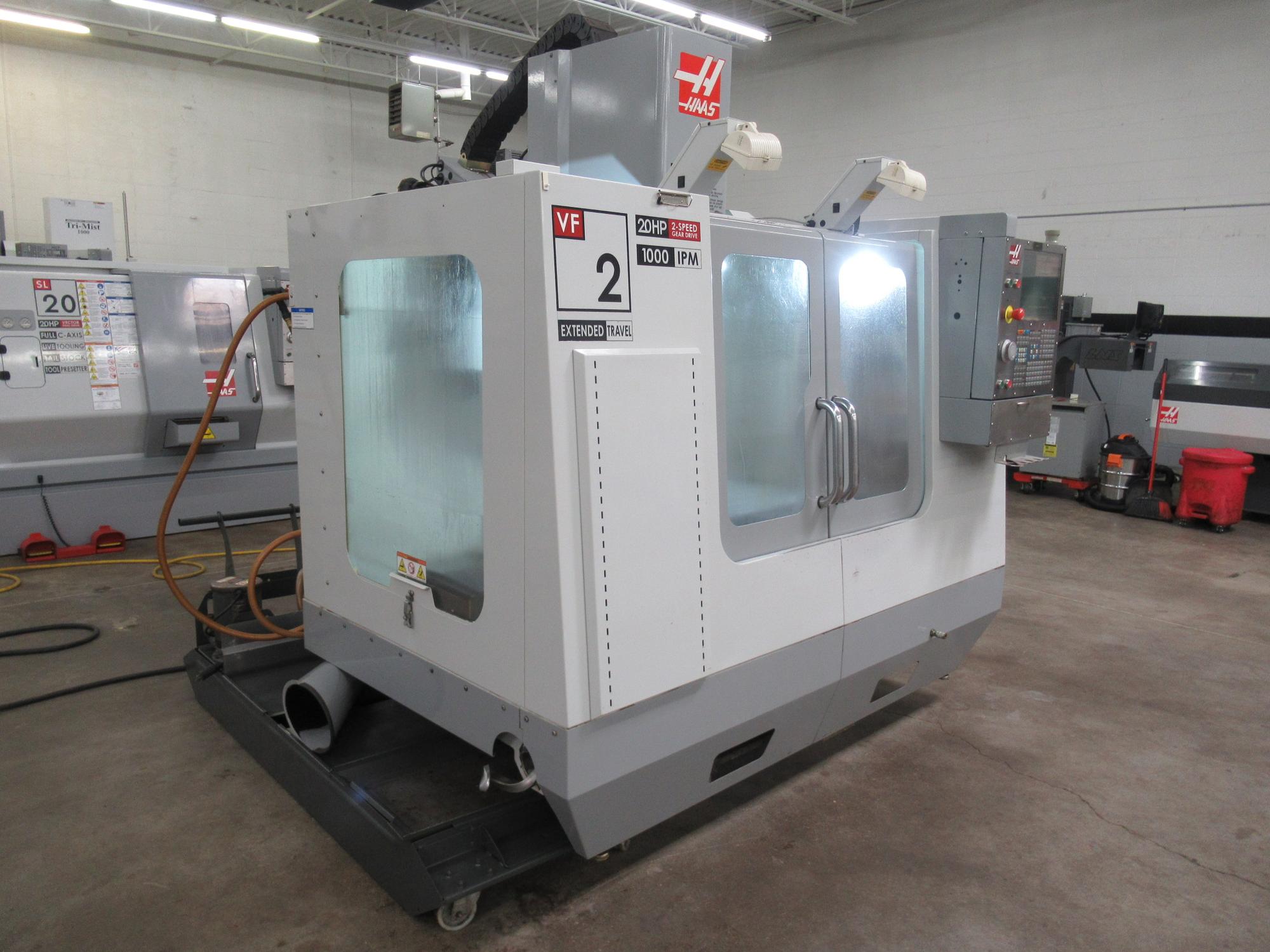

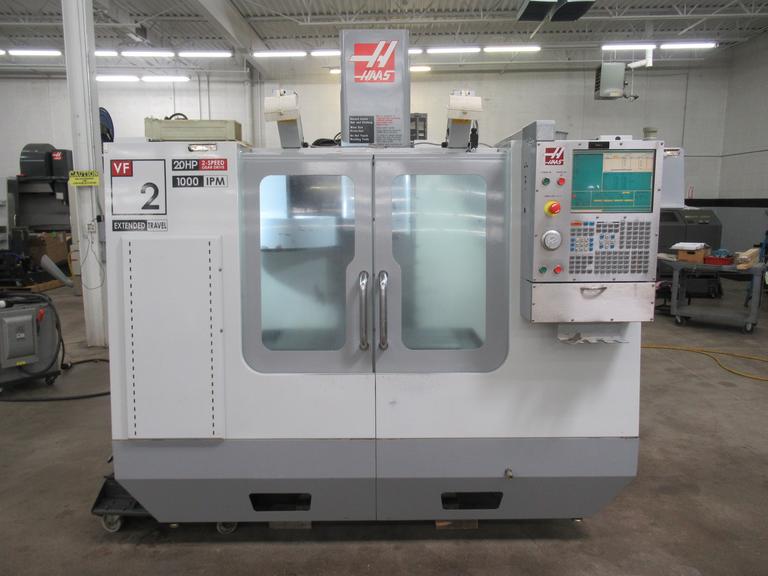

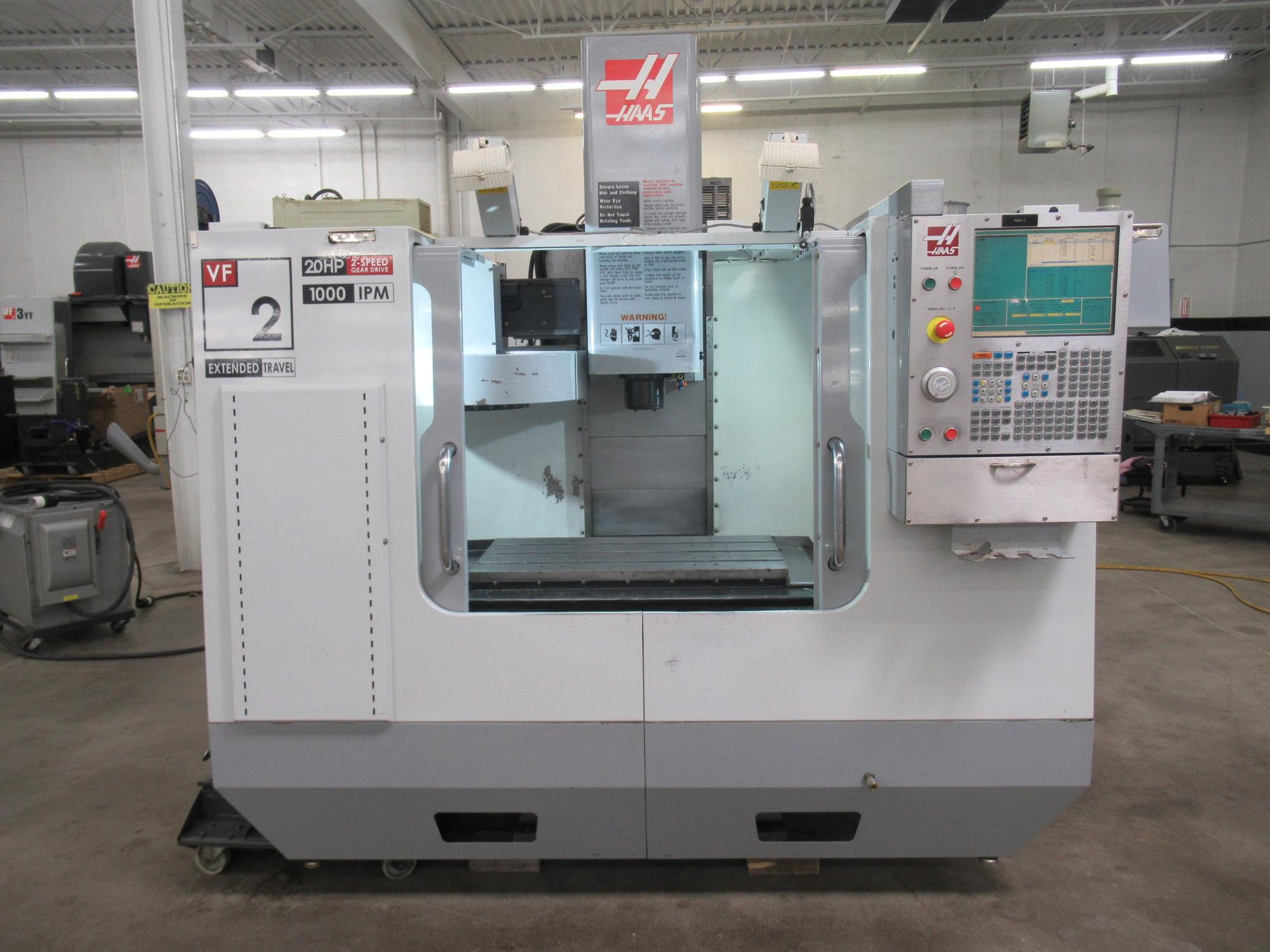

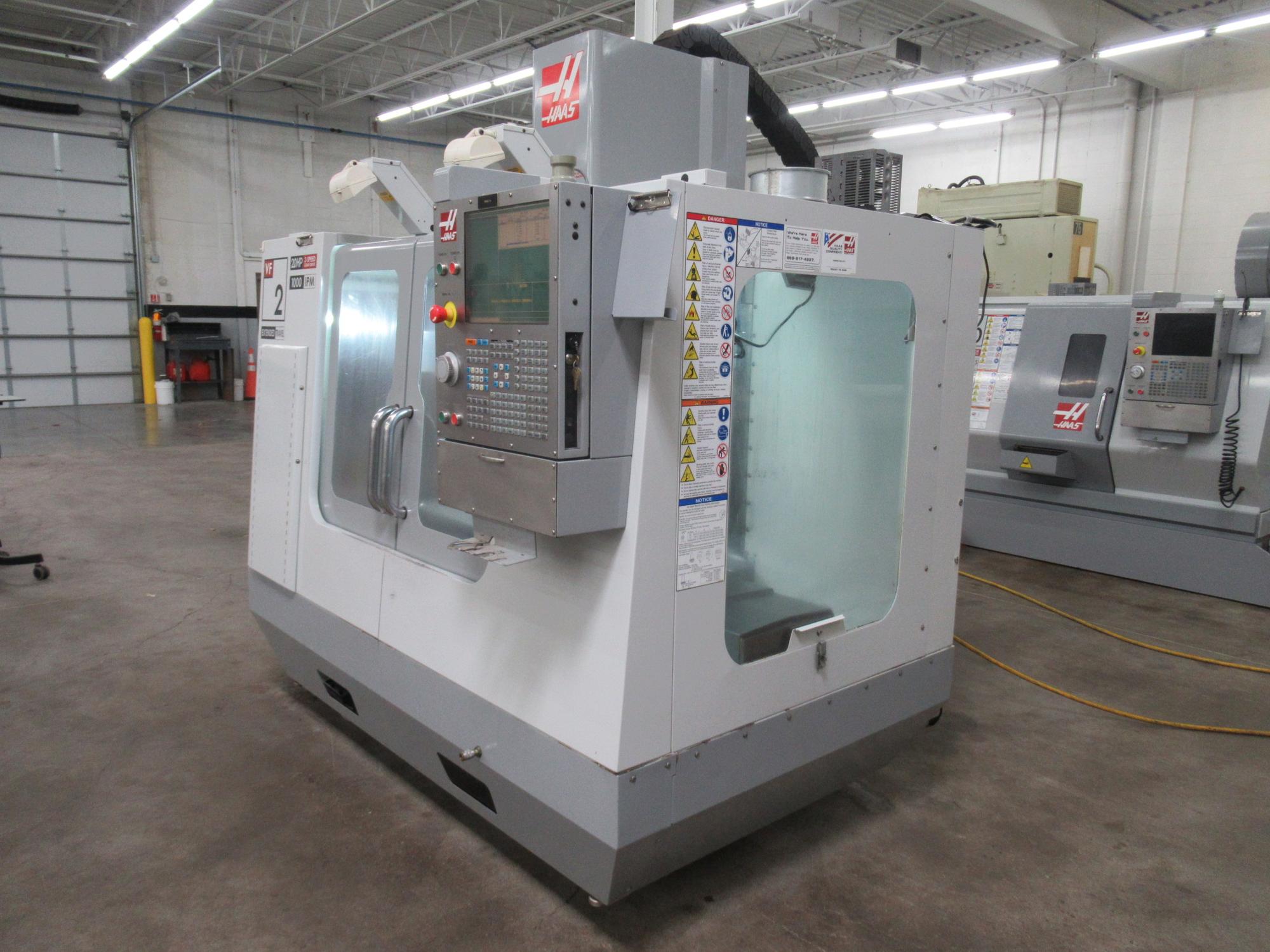

Haas VF-2YT CNC Vertical Machining Center 30" x 20" x 20" Travels, 2-Speed Gearbox, 20 Station Carousel Tool Change

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

7339

Model

VF-2YT

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

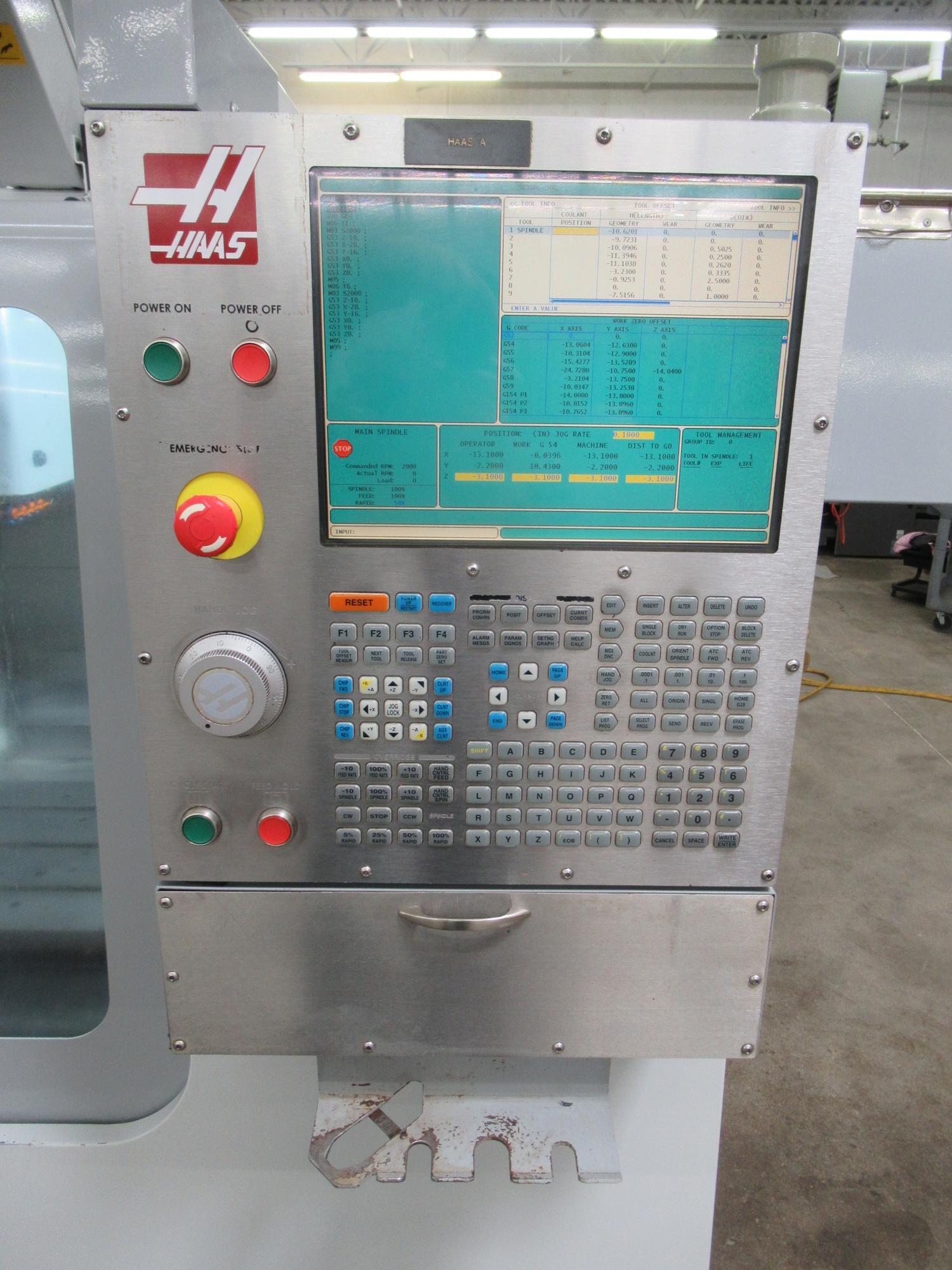

Machine Control: Haas CNC with Coldfire 2 Processor

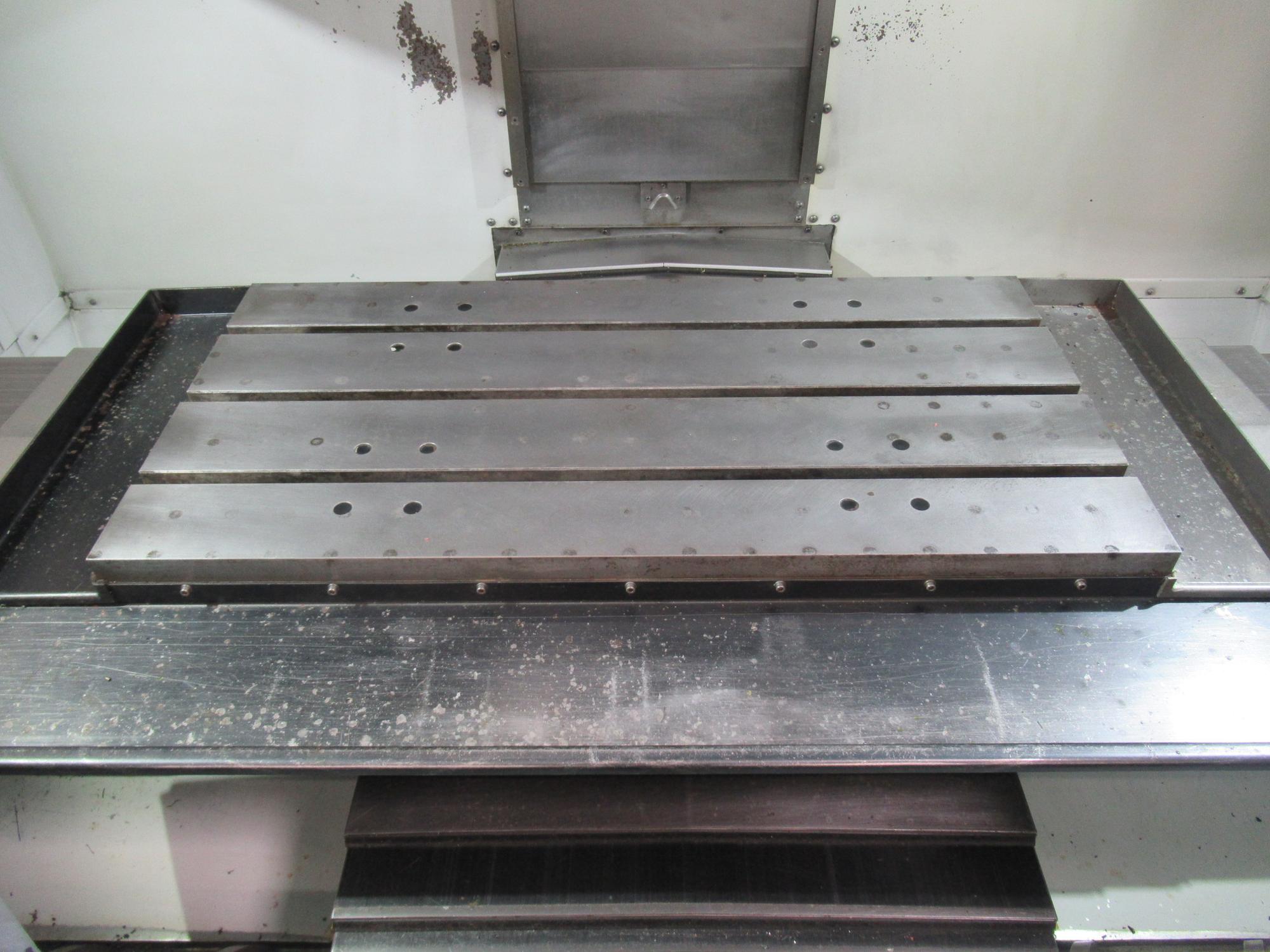

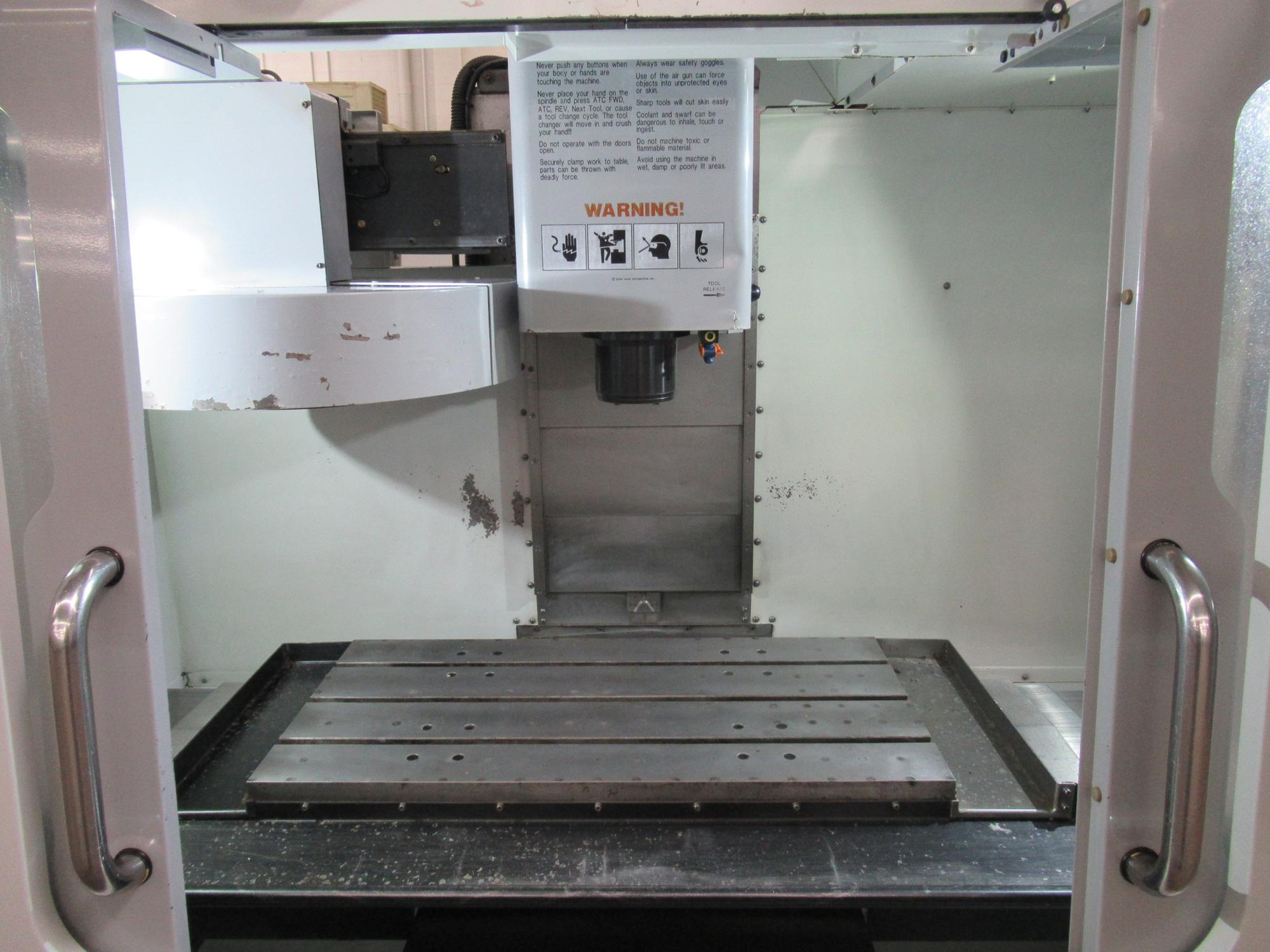

Table Size: 36" x 18"

Machine Travels (X/Y/Z): 30" x 20" x 20"

Spindle To Table Distance: 4" - 24"

Table Capacity: 3000 lbs.

Spindle Taper: Cat 40

Spindle Speeds: 7,500 RPM

Transmission: 2-Speed Gearbox

Rapid Traverse Rate (X/Y/Z): 1,000 IPM

Maximum Cutting Feed Rate: 650 IPM

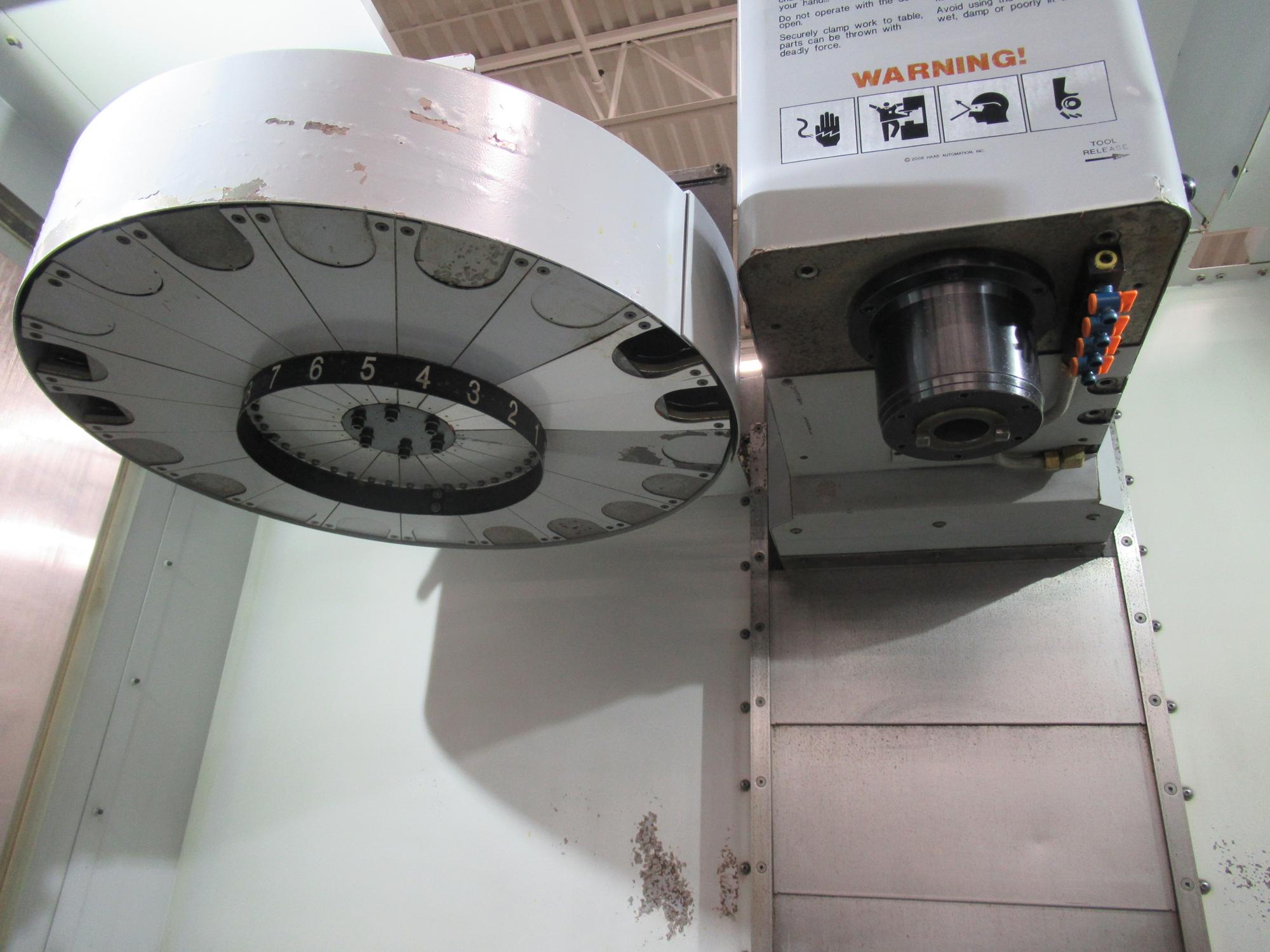

Tool Changer Style: Carousel Type

Tool Changer Capacity: 20 Stations

Max Tool weight: 12 Lbs.

Spindle Drive: 20 hp Vector Spindle Drive

Description:
2009 Haas VF‑2YT CNC vertical machining center with 30" x 20" x 20" travels, 7,500 RPM spindle, and 20‑position carousel ATC. Fully equipped and ready for production—request price and availability.
Equipped With:

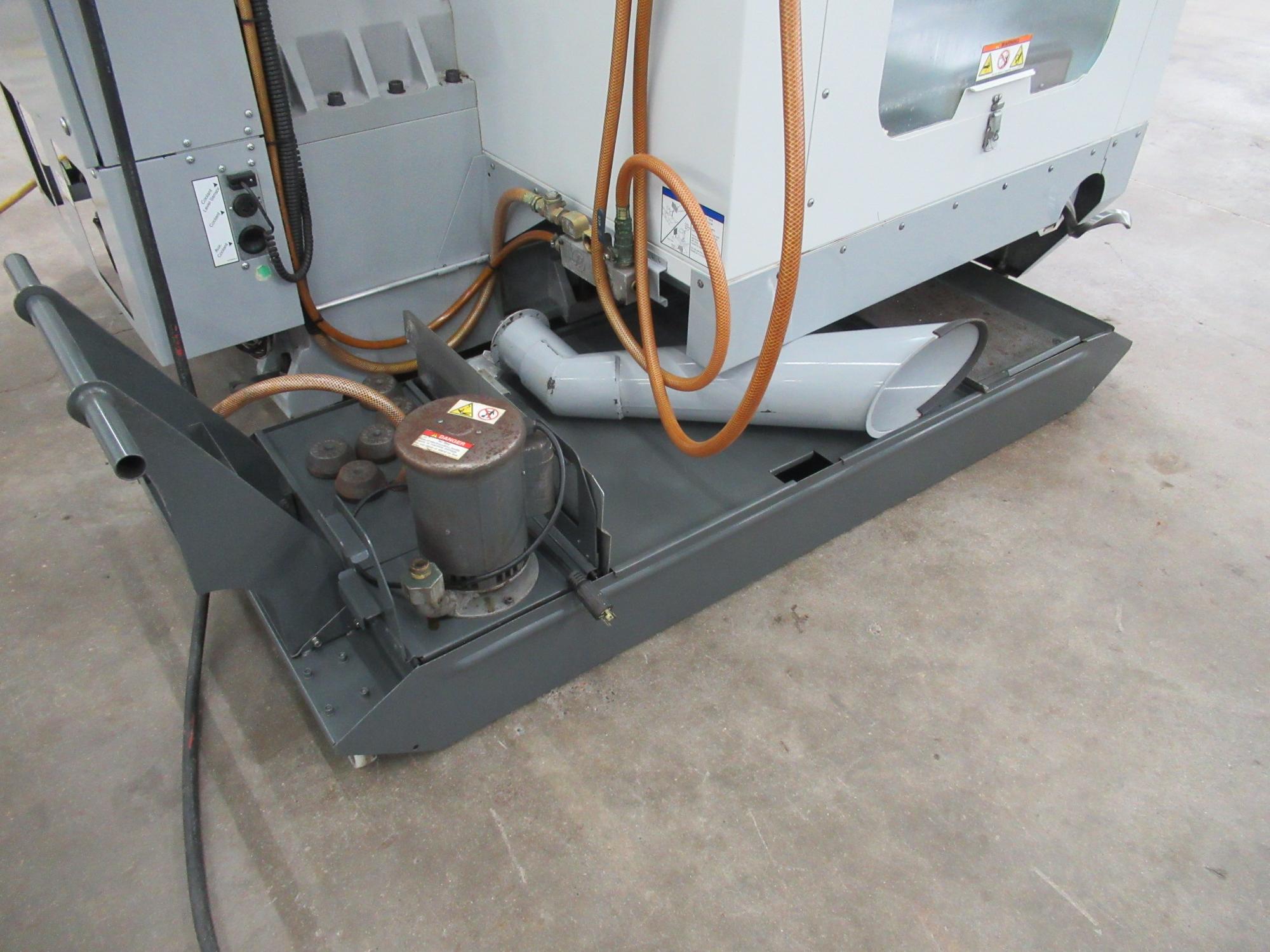

Haas CNC Control with Coldfire 2 Processor,  20 Station Carousel ATC, 2-Speed Gearbox, 7,500 Max RPM, CT 40 Taper, Chip Auger, Rigid Tapping, Standard Coolant System

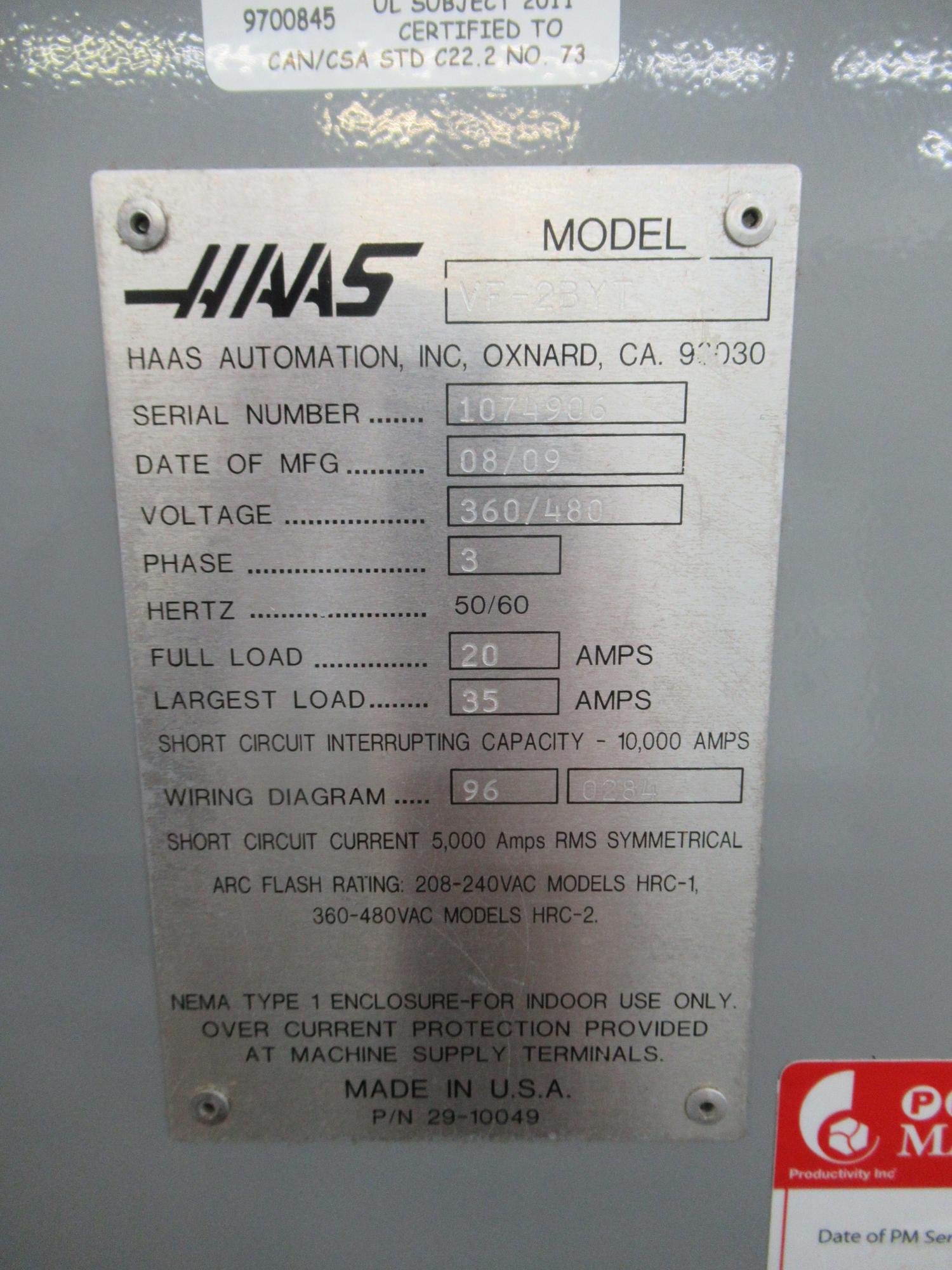

Electrics:

360/480 Volt, 3 Phase
