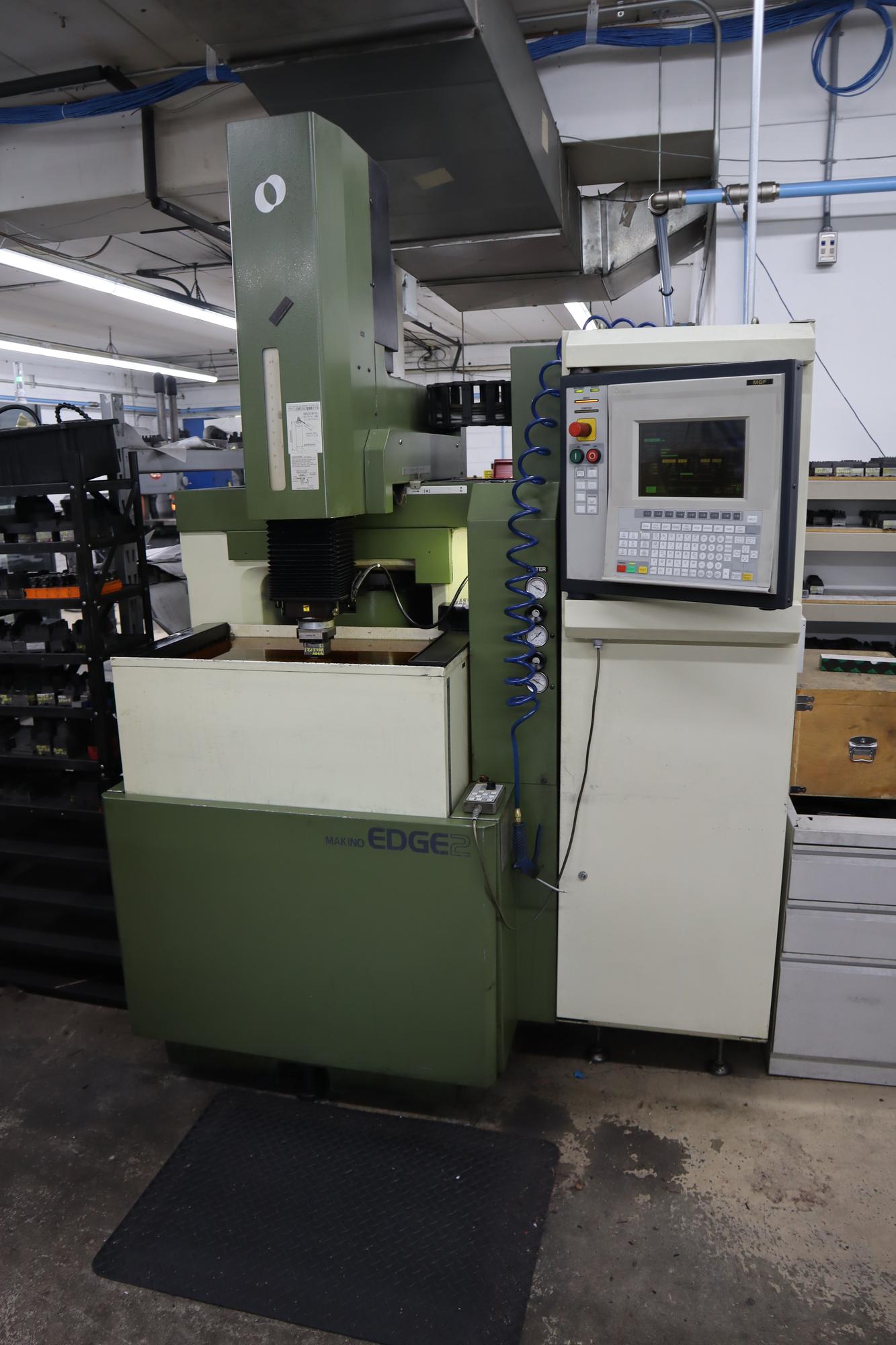

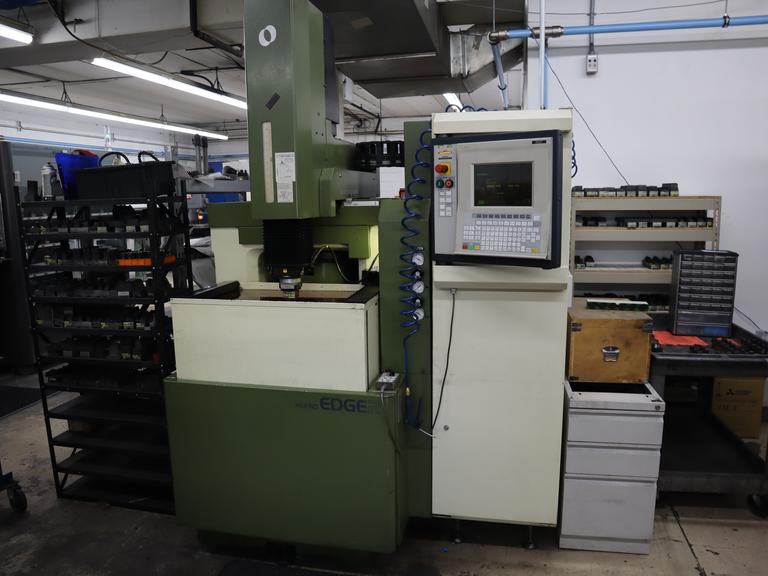

Makino Edge2-A24MR Sinker Type CNC EDM Electrical Discharge Machine, MGF-30, C-Axis, 24 ATC- Auction Item

Manufacturer

Makino

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, CONVENTIONAL, (Ram Type, Sinker)

Stock

Lot No.: 50

Model

Edge2

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/50520">,

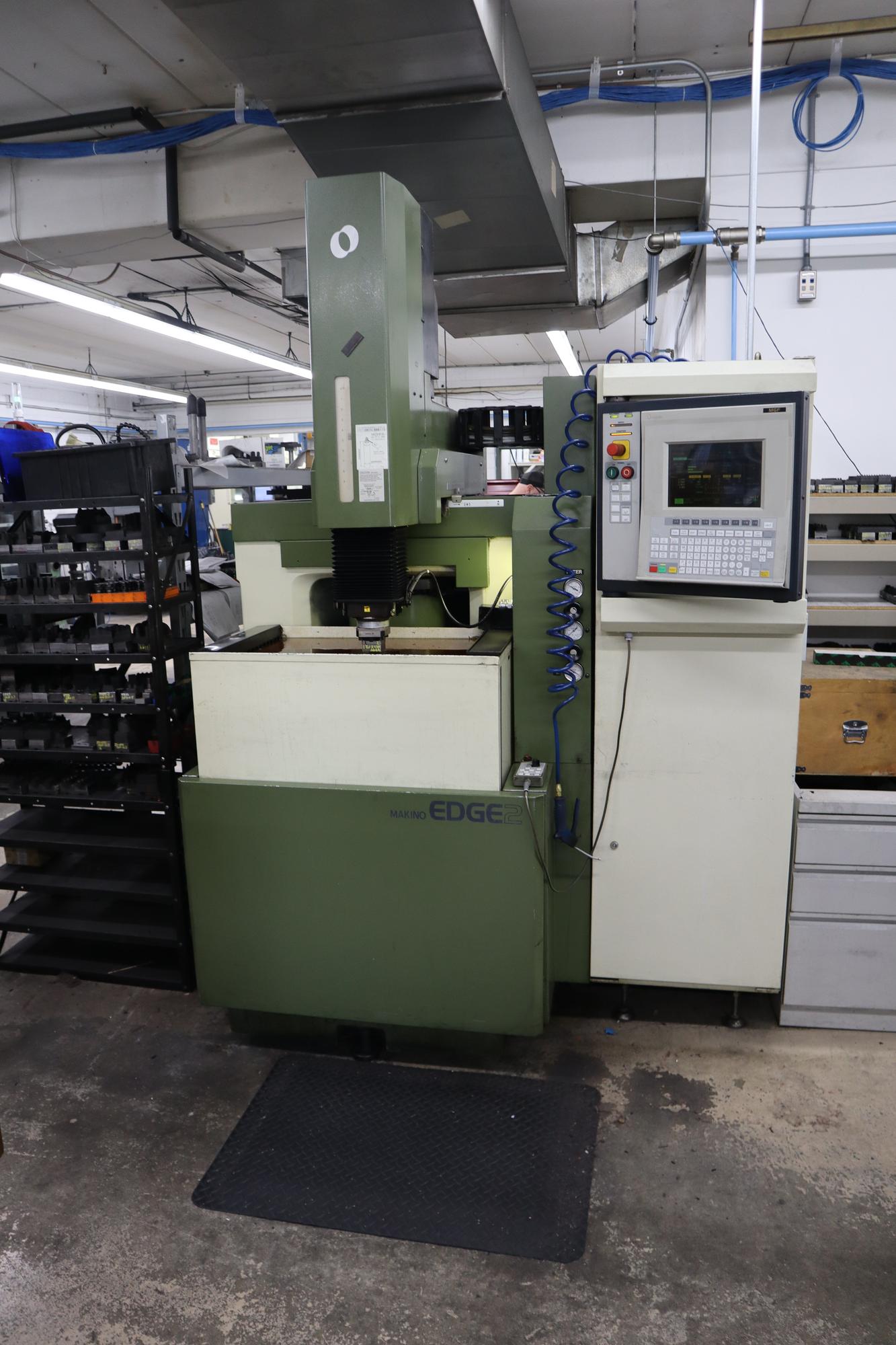

Lot 50: Makino Edge2-A24MR Sinker Type CNC EDM Electrical Discharge Machine, MGF-30, C-Axis, 24 ATC
Equipped With:

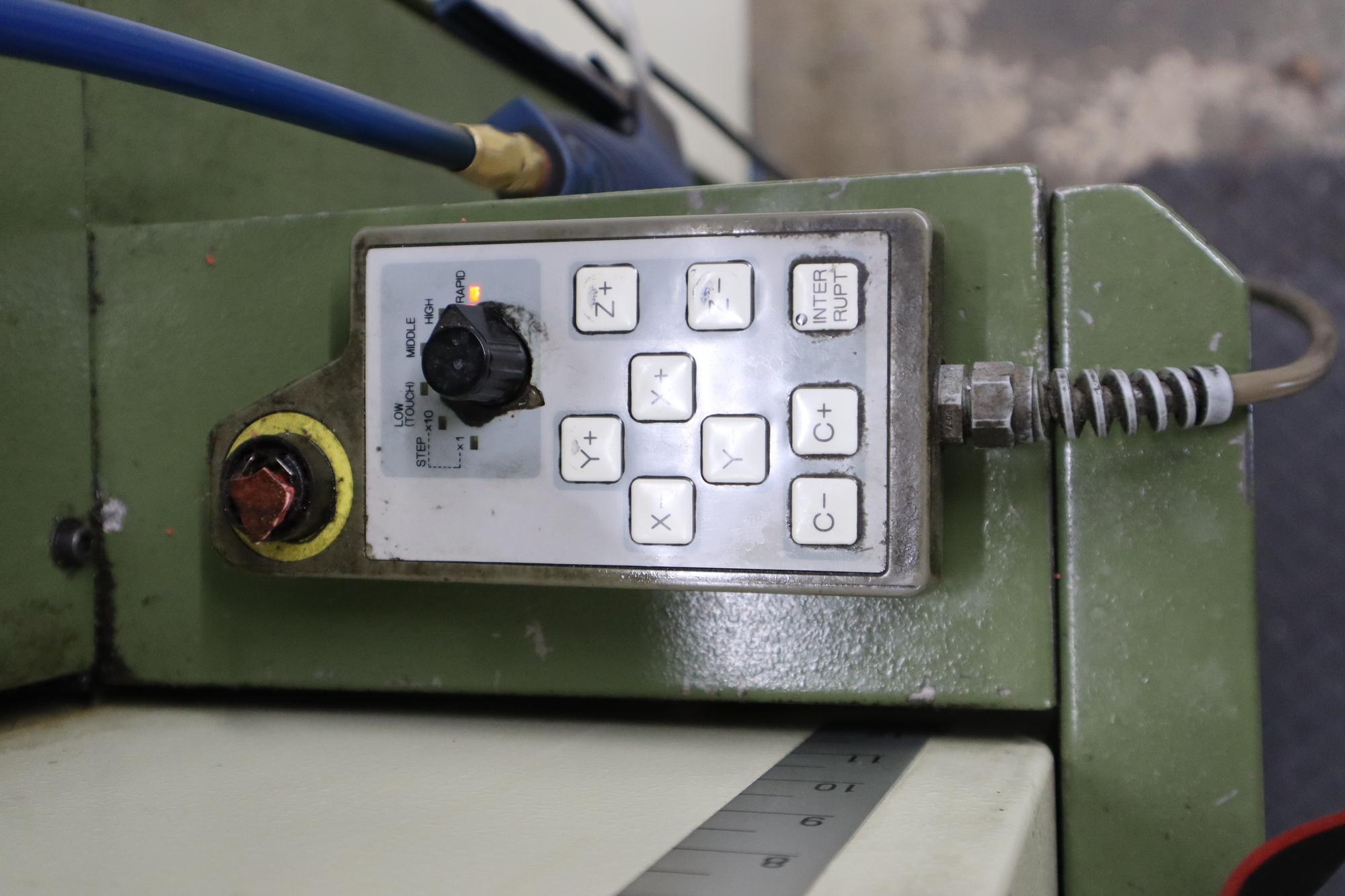

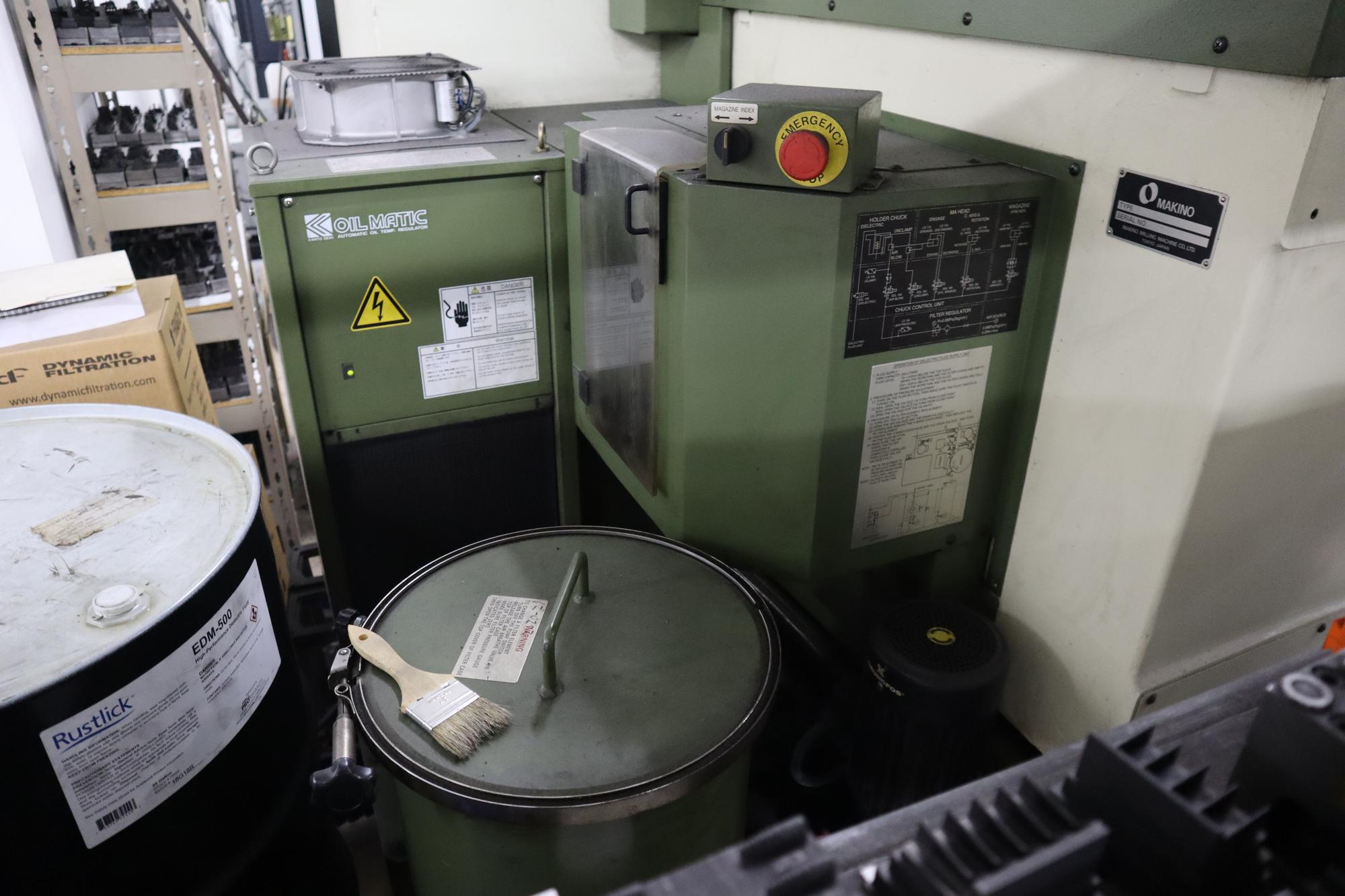

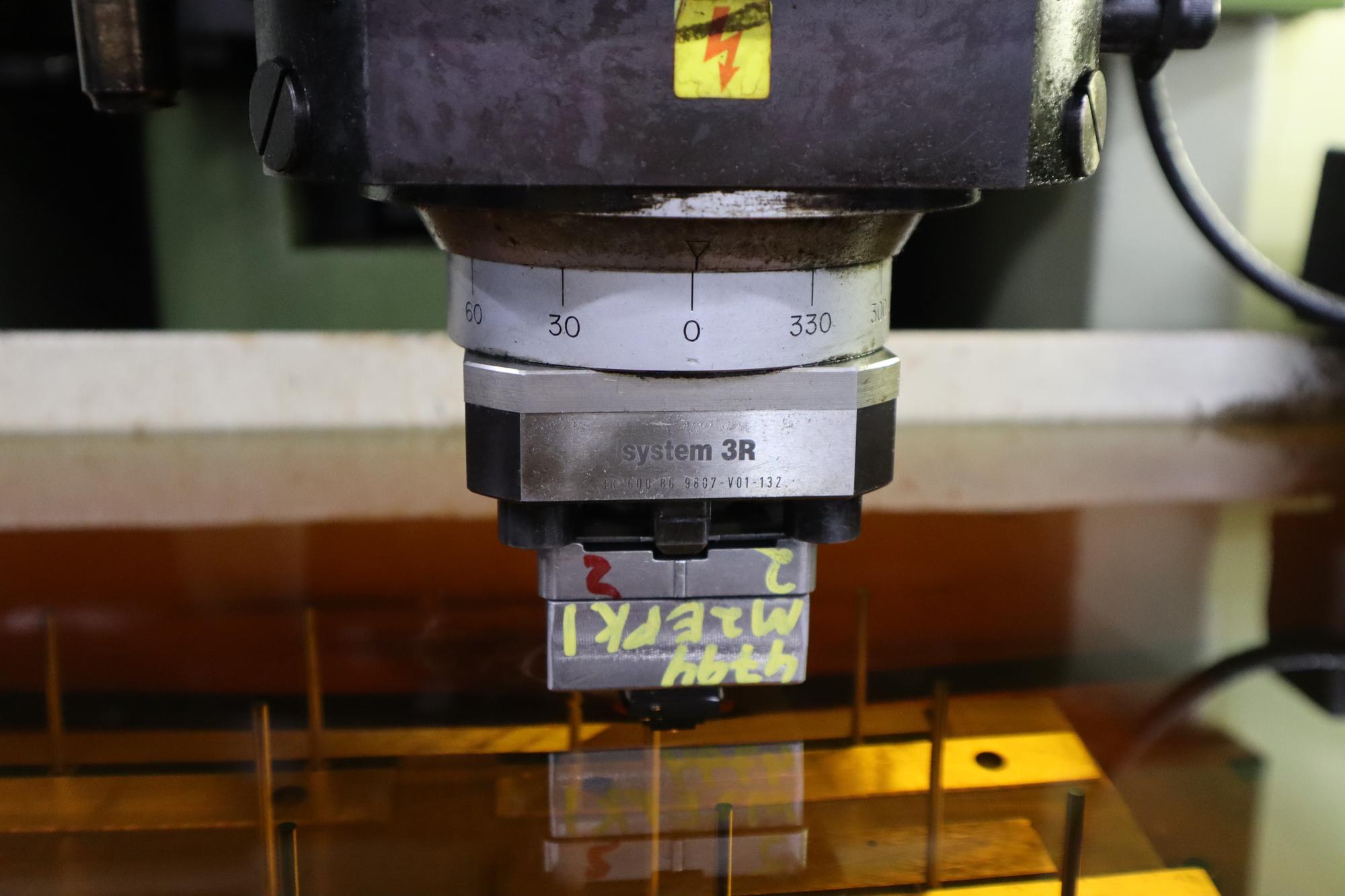

Makino MGF-30 CNC Control,MR Head System 3R Macro Tool Holder, Full C-Axis Programmable, 24 Station ATC, Dielectric System, Chiller, Remote Control Pendant

Description:

The Makino Edge2‑A24MR Sinker Type CNC Electrical Discharge Machine is designed for precision EDM applications in mold, die, and toolroom environments. Equipped with the Makino MGF-30 CNC control, this machine offers consistent machining performance with a user‑friendly interface. This configuration includes a System 3R head, supporting accurate and repeatable electrode setup for efficient workflow and reduced changeover time. A full C‑axis enables advanced electrode positioning and contouring, while the 24‑station automatic tool changer supports extended unattended operation and increased productivity. With a compact footprint and Makino’s proven EDM build quality, the Edge2‑A24MR is well suited for shops requiring precision, automation capability, and reliable sinker EDM performance.

Electrics:

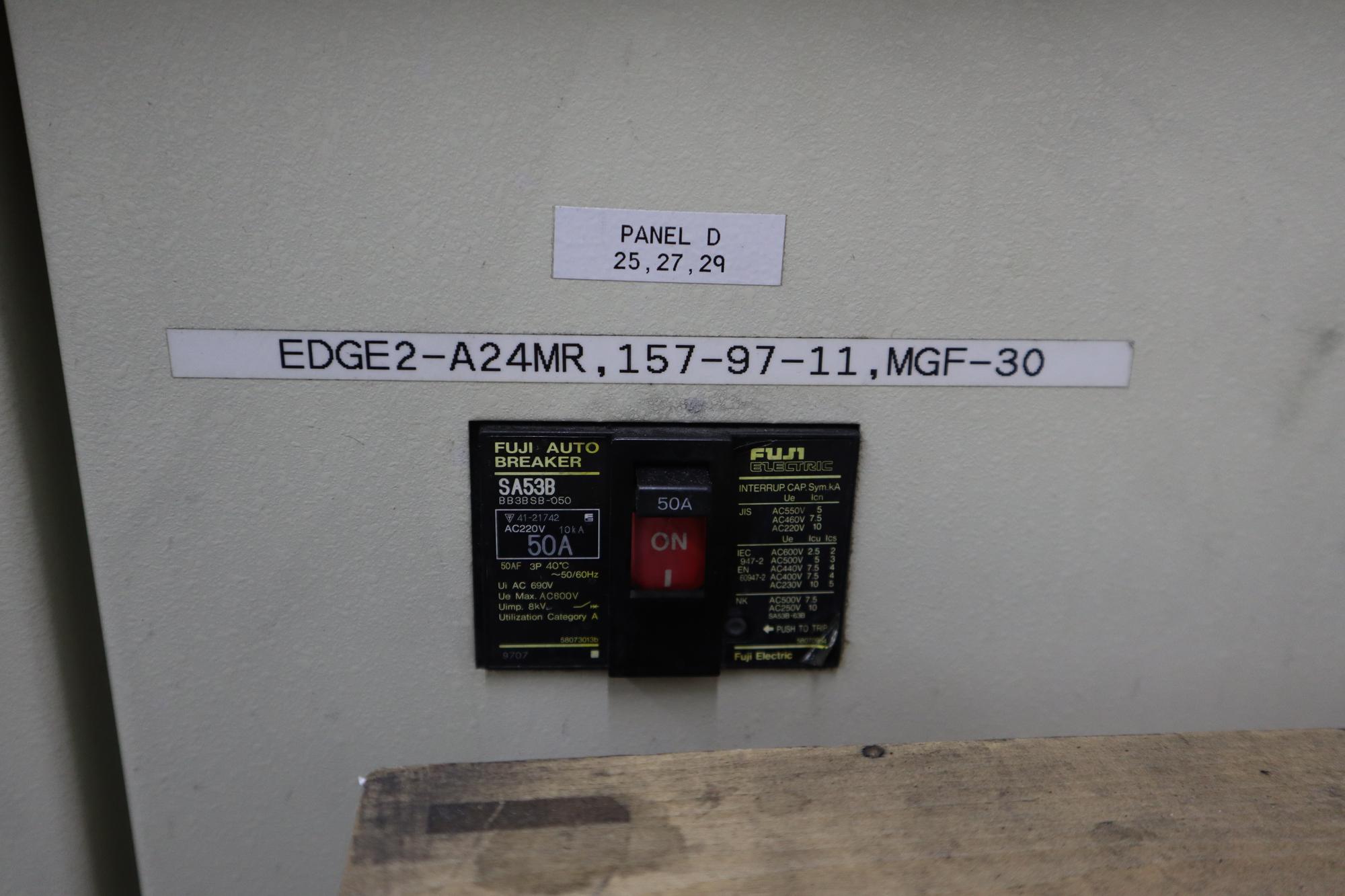

200/220 Volt, 3 Phase, 50 Amp

Manufacturer: Makino Model: Edge2 Year: 1998 Serial Number: 157-97-11
Main Unit Approx Weight: 6600.00 lbs
Main Unit Dimensions (in inches): Length: 68.90"  Width: 70.00"  Height: 90.20"
Specs:

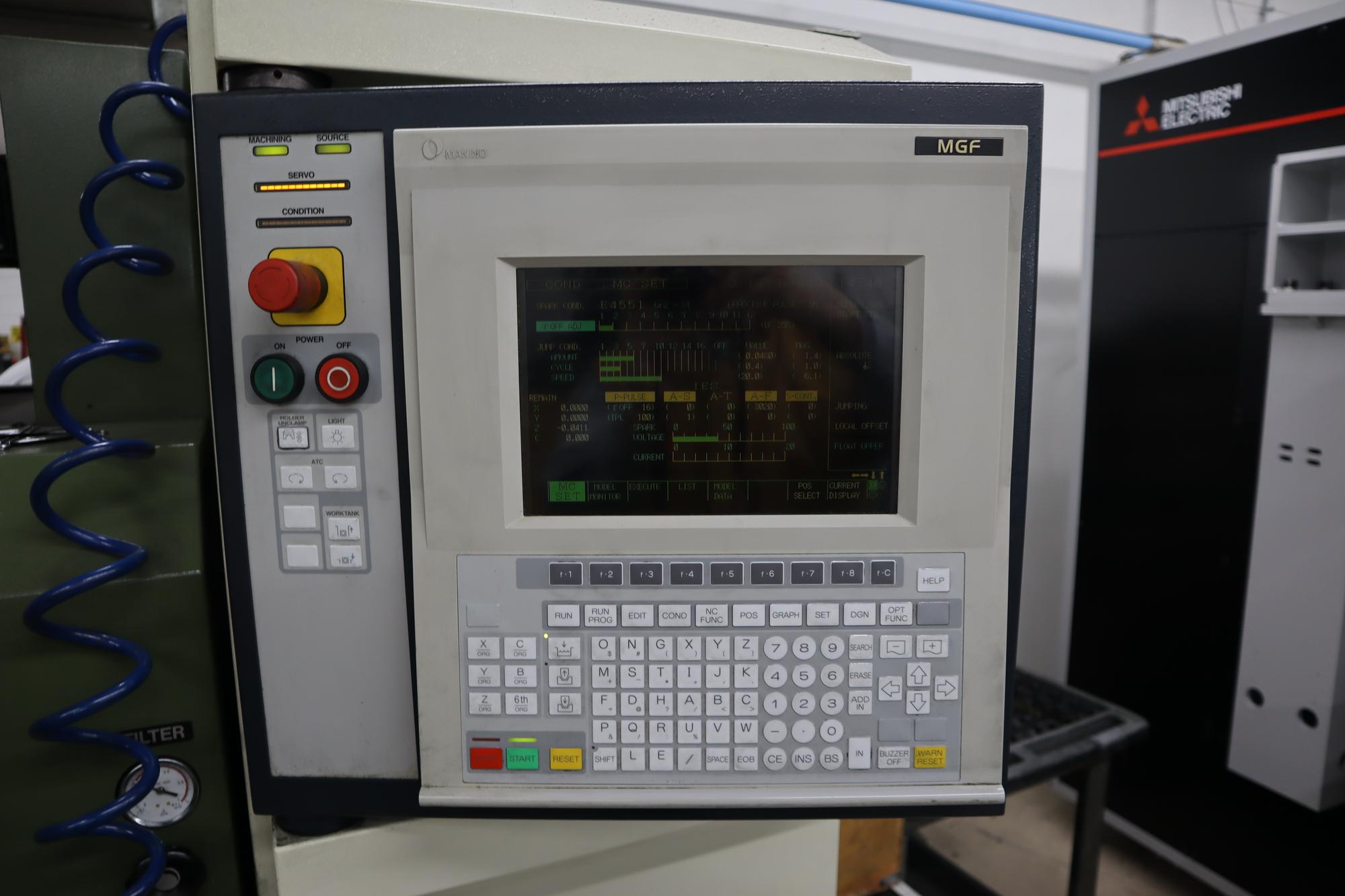

Control: Makino MGF-30
Travels (X/Y/Z): 300mm x 250mm x 250mm

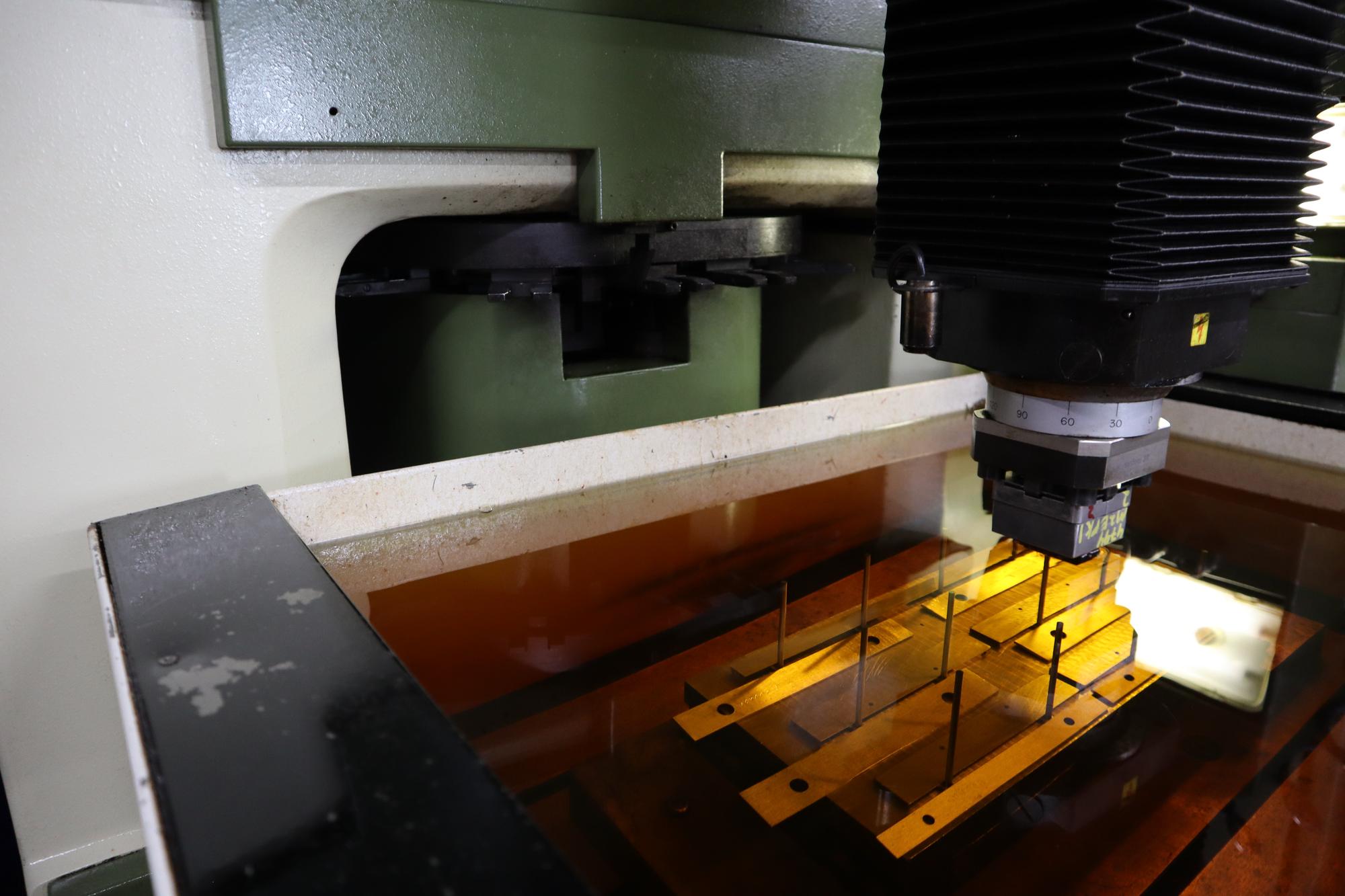

Tank Size: 650mm x 450mm x 200mm
Table Size: 500mm x 350mm
Generator Output: 30 Amp Standard
Max Table Load: 500 KG
Spindle C-Axis Positioning: Full C-Axis (.001 Degree)
Tool Changer Capacity: 24 Stations

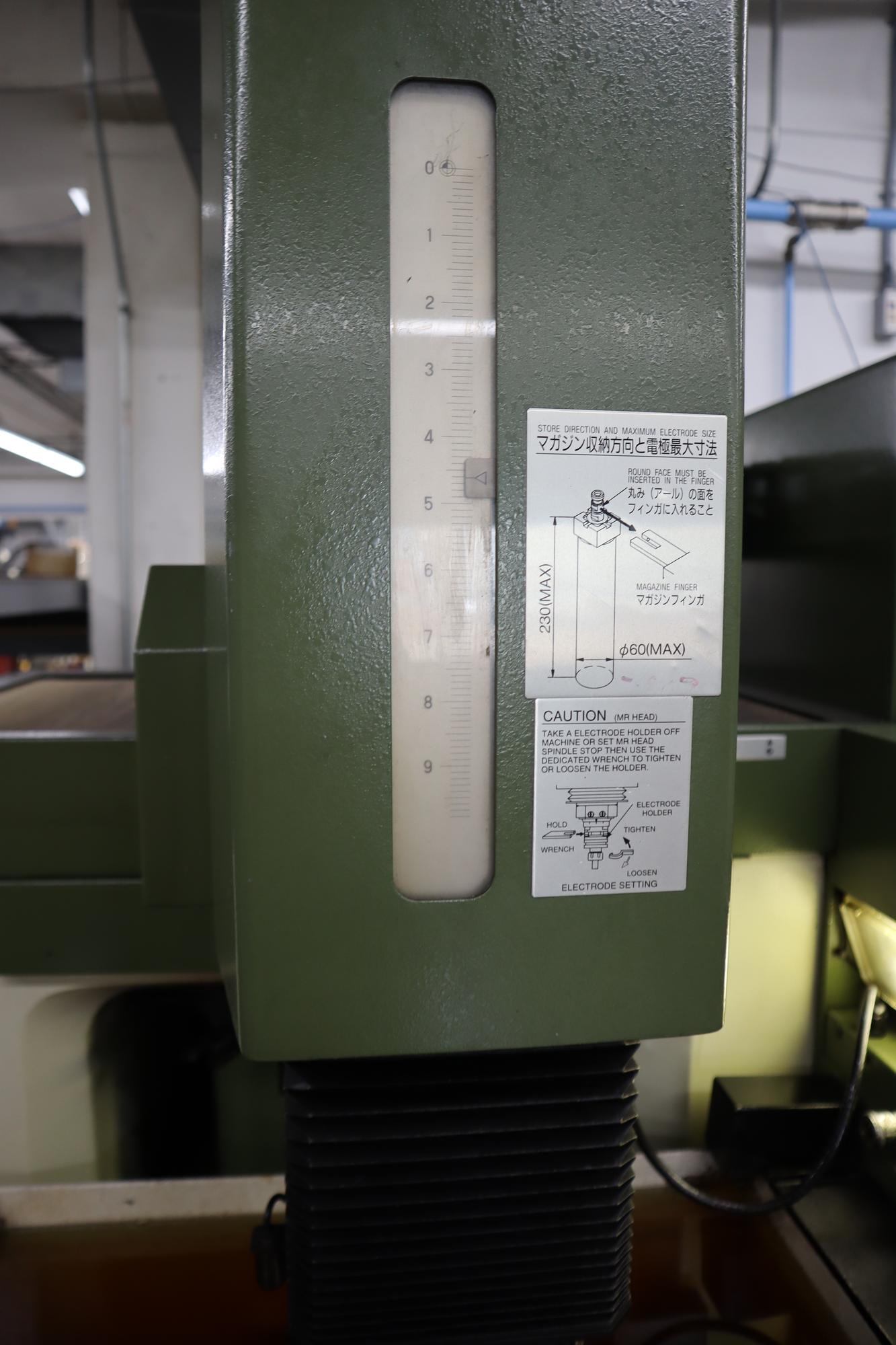

Spindle / Head Tooling Type: MR Head
Dielectric Reservoir Capacity: 200 Liters
Seller Company: Preferred Tool
Seller Contact: SAM MATHIEU Phone: (763) 783-1251
Item Location: Preferred Tool, 15195 Freeland Ave N, Hugo, MN 55038
Location Contact: SAM MATHIEU Phone: (763) 783-1251
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 120" x 133" H
Loading Dock: Ground Level Paved Lot
Removal Dates and Times: This item must be removed between Tuesday, June 2, 2026 and Friday, June 12, 2026
