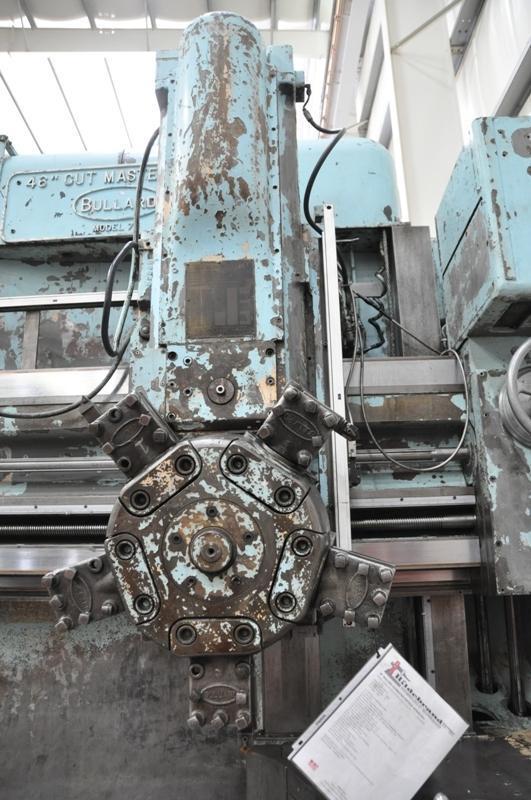

STOCK #13409 46" BULLARD 4-JAW MODEL CUTMASTER VERTICAL TURRET LATHE

Manufacturer

BULLARD

Category

Lathes

Type

LATHES, VERTICAL TURRET

Stock

13409

Model

75

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



YODER BROTHERS MACHINERY STOCK NUMBER ...... 13409
SERIAL ..................................... 30002

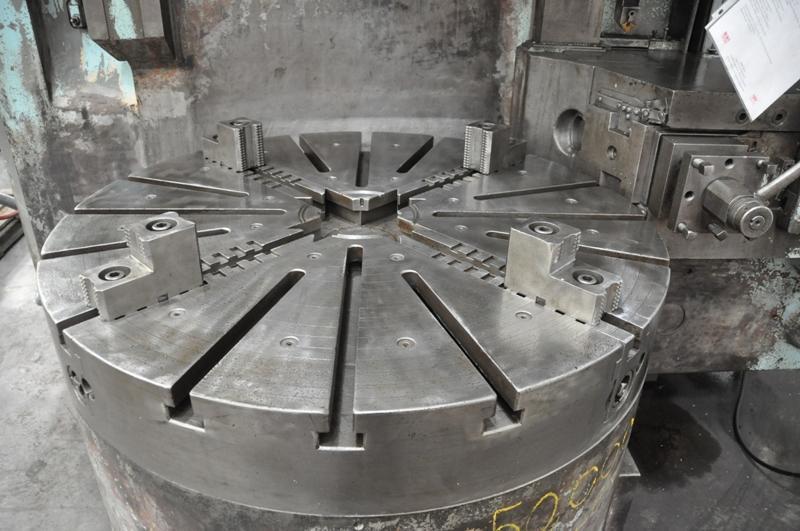

4-JAW CHUCK ................................ 46" INDEPENDENT ADJUSTABLE
MAX SWING HEAD UP .......................... 50"
MAX SWING HEAD DOWN ........................ 58"
MAX UNDER RAIL ............................. 40"
VERTICAL STROKE TURRET HEAD ................ 30"
VERTICAL TRAVEL SIDE HEAD .................. 38" (APPROX)
HORIZONTAL TRAVEL SIDE HEAD ................ 26"
MAX DISTANCE TABLE TOP TO BOTTOM SIDE HEAD . 28" (APPROX)
TABLE SPEEDS ............................... 6.8 TO 250 RPM
FEEDS ...................................... .0026 TO .5000 TPR
MAIN MOTOR ................................. 40 HORSEPOWER
PENDANT CONTROL ............................ YES
RAPID TRAVERSE ............................. YES

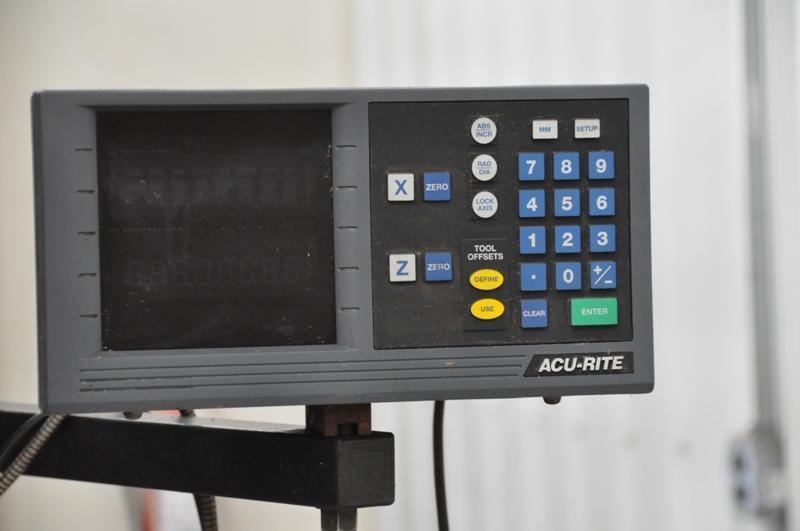

ACV-RITE DRO ............................... YES
