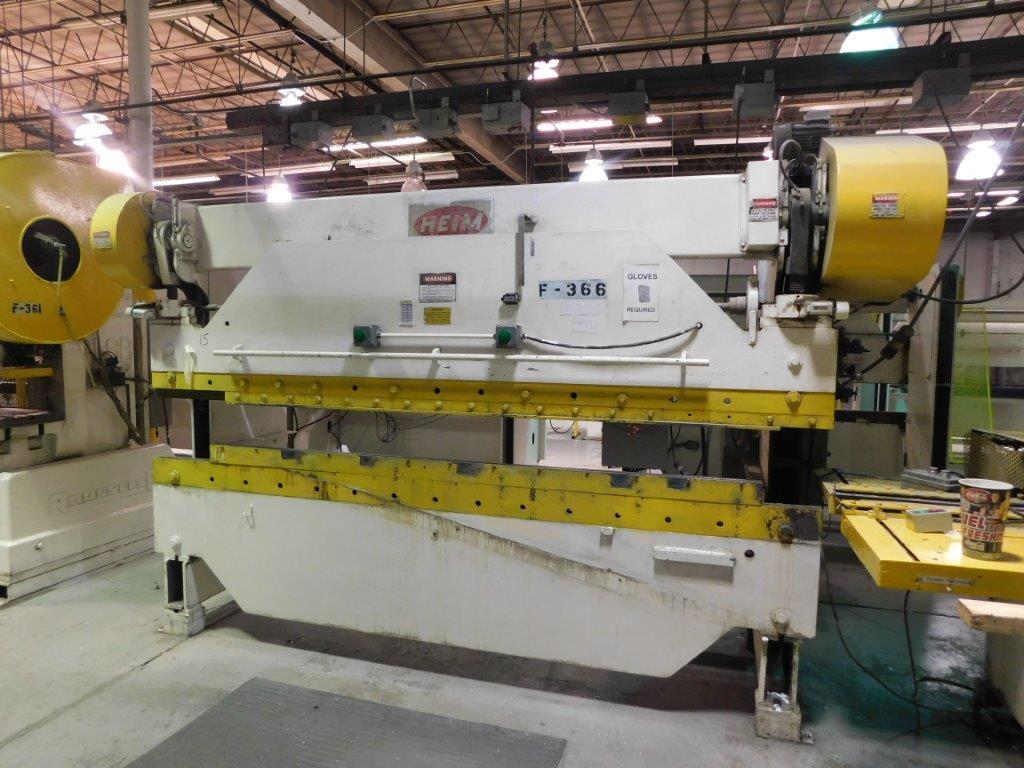

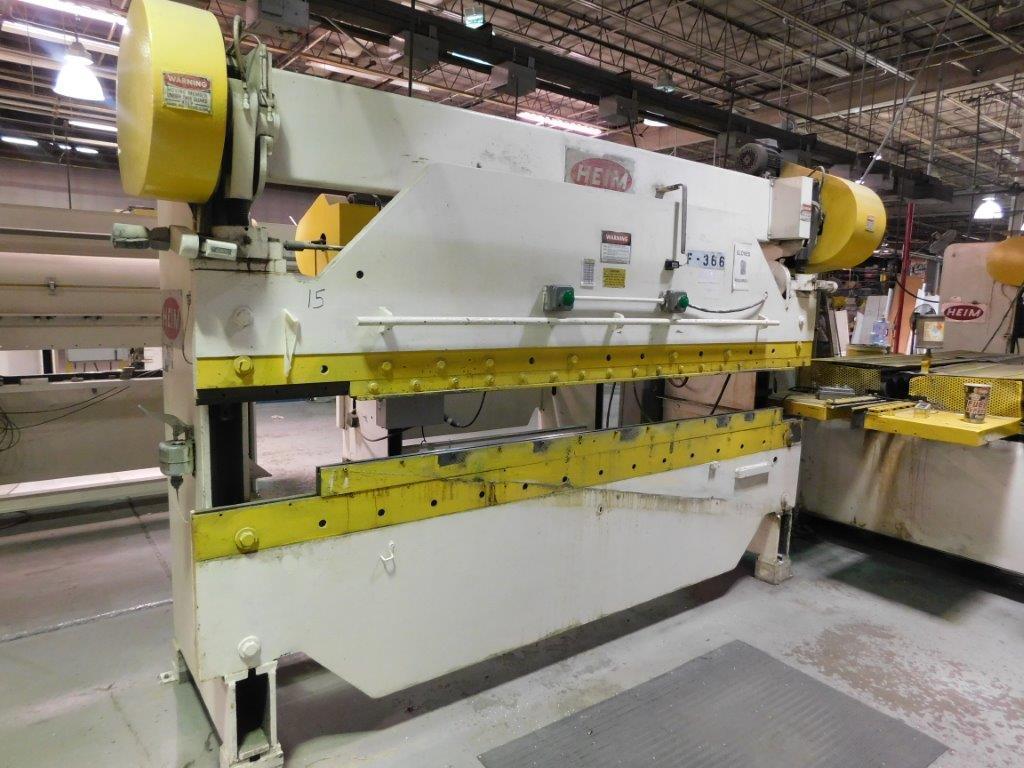

45 TON X 10' HEIM PRESS BRAKE: STOCK #68988

Manufacturer

HEIM

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

68988

Model

0045 X 10

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. H3675
MODEL .................................. 45-10
CAPACITY AT BOTTOM ..................... 45 TON
CAPACITY AT MID STROKE ................. 30 TON
OVERALL LENGTH OF BED .................. 126
DISTANCE BETWEEN HOUSINGS .............. 110"
STROKE ................................. 2"
SHUT HEIGHT ............................ 12"
POWER RAM ADJUSTMENT ................... 2-1/2"
AIR CLUTCH ............................. YES
THROAT ................................. 7"
STROKES PER MINUTE ..................... 40
AIR DISC BRAKE ......................... YES
DUAL PALM BUTTONS ...................... YES
DOUBLE END DRIVE ....................... YES
FORWARD & REVERSING .................... YES
MOTOR .................................. 5 HORSEPOWER
