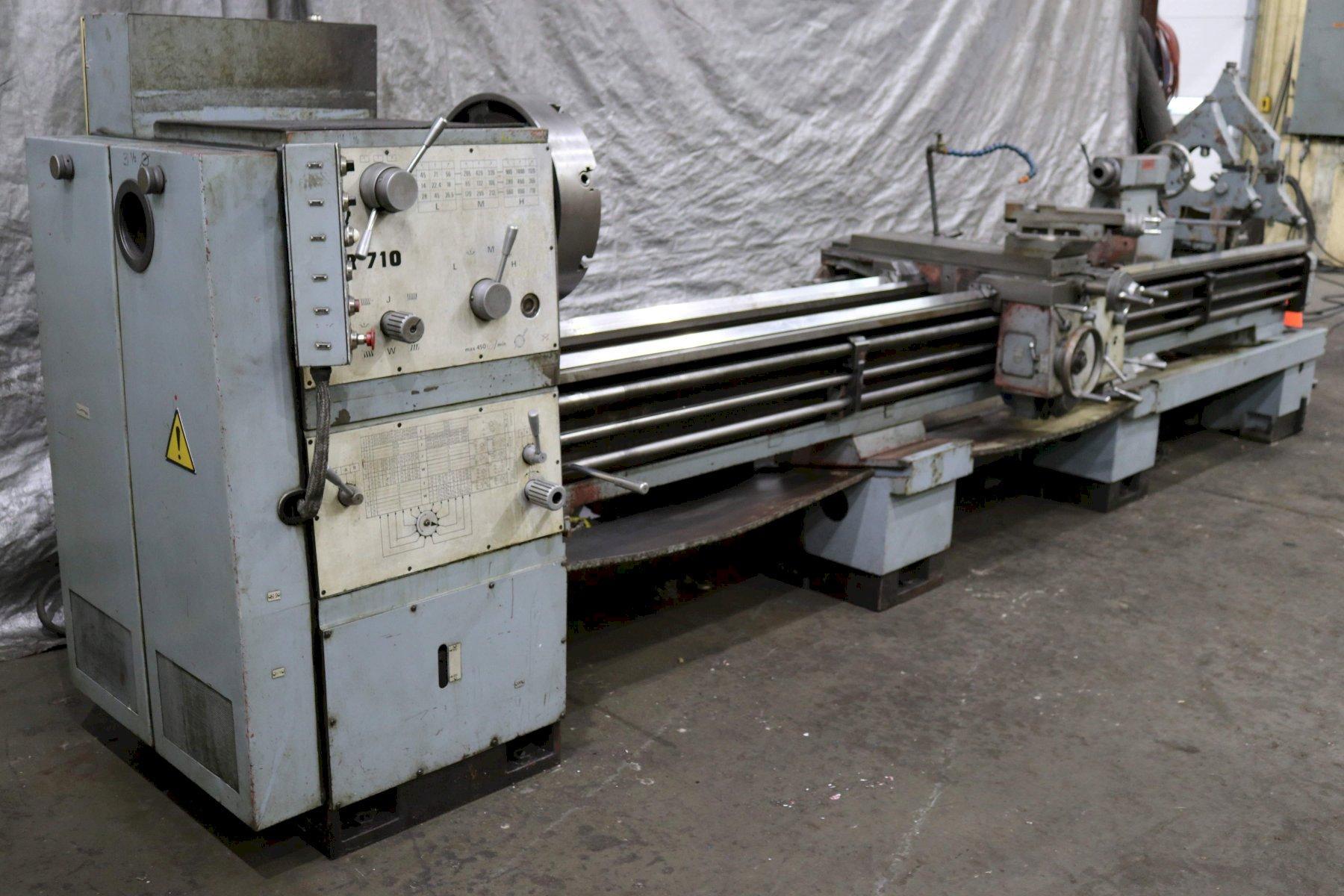

28" X 157" TOOMEX MODEL #TUR-710 LATHE WITH 3.5" HOLE: STOCK #69868

Manufacturer

TOOLMEX

Category

Lathes

Stock

69868

Model

28 X 157

Dealer Location

Ohio

Spec Sheet



SERIAL ............................ 50350
MODEL ............................. TUR-710
SWING OVER WAYS ................... 28"
SWING OVER CROSS SLIDE ............ 17.3"
DISTANCE BETWEEN CENTERS .......... 157"
DIAMETER OF SPINDLE HOLE  ......... 3-1/2
SPINDLE SPEEDS .................... (24) 14 TO 1400 RPM
LONGITUDINAL FEEDS ................ (42) .002 TO .121 IPR
CROSS FEEDS ....................... (42) .001 TO .060 IPR
THREADS ENGLISH ................... (42) 1 TO 88 TPI
THREADS METRIC .................... (42) 1 TO 88 MM PER REVOLUTION

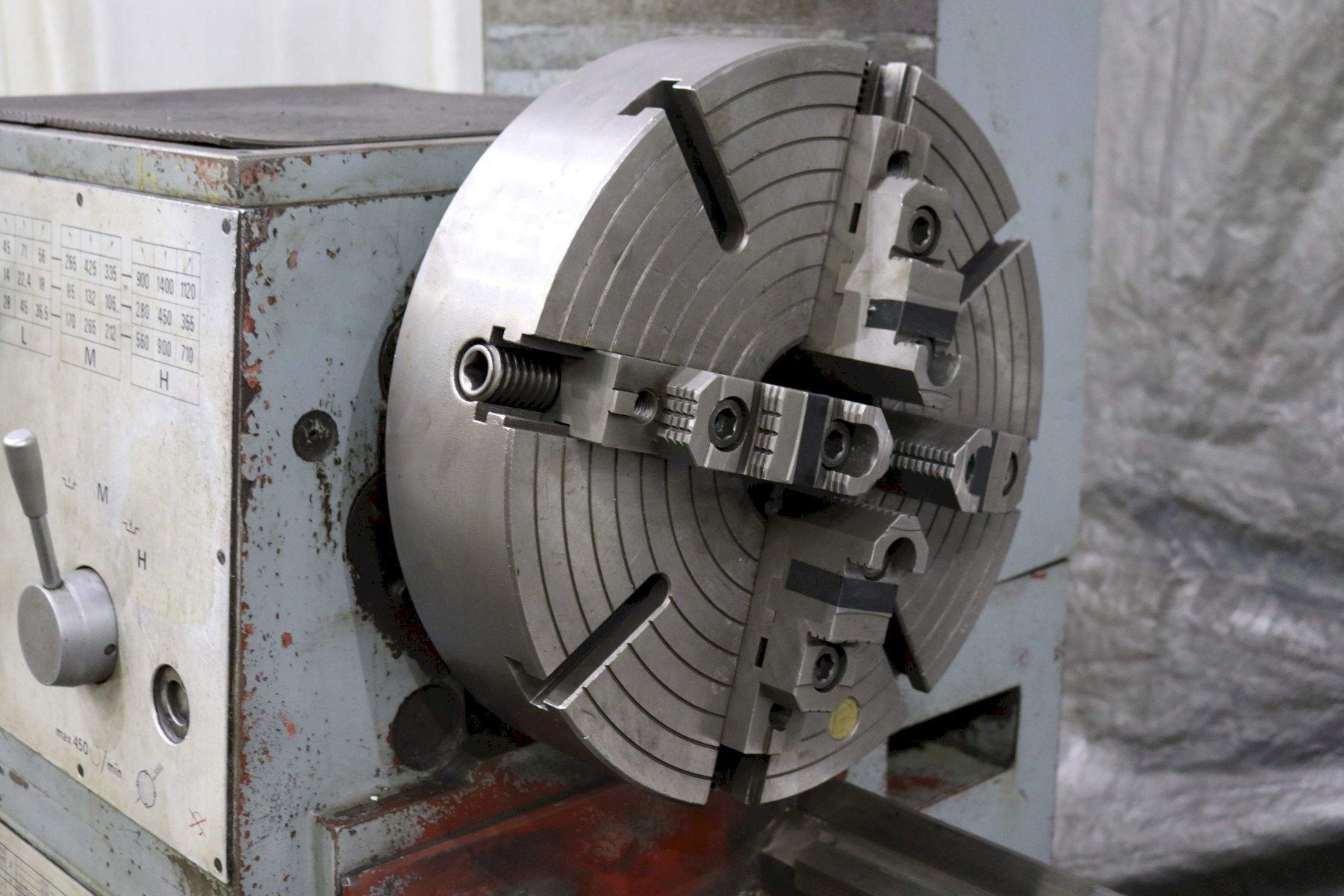

CHUCK ............................. 20" 4 JAW
TAPER ATTACHMENT .................. YES
RAPID TRAVERSE .................... 4 WAY
TRAVEL DIAL ....................... YES
STEADY REST ROLLER TYPE ........... 7" & 15"
FOLLOW REST ....................... YES
COOLANT WITH CHIP PANS ............ YES
LOAD CAPACITY ..................... 3300 LBS MAXIMUM
MOTOR ............................. 20 HORSEPOWER
