102" x 315" Dainichi H III, 86" Over Carriage, 300 RPM, 20 Ton Wt Cap. ,Inch/Metric Thread, 80 HP, #31492

Manufacturer

DAINICHI

Category

Lathes

Type

LATHES, ENGINE

Stock

31492

Model

H III 260 x 800

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31492

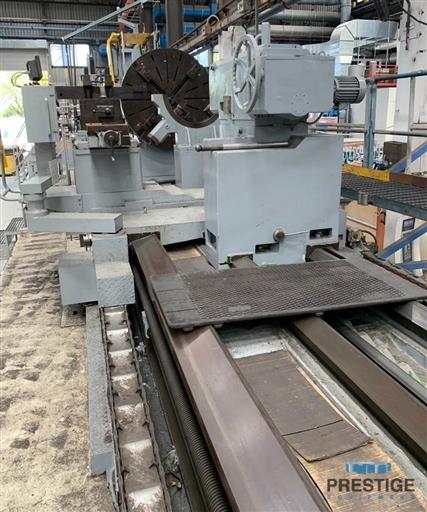

Dianichi Model H III 260 x 800 102" x 314" Manual Lathe

FEATURES:
Digital Readouts
Inch/Metric Threading
3-Steady Rest
80 HP Main Spindle Motor

CAPACITY:
Maximum Swing Over Bedways ............ 102.36"
Maximum Swing Over Carriage ........... 86.61"
Distance Between Centers .............. 314.96"
Width of Bed Ways ..................... 62.99"
Spindle Speeds ........................ .1-300 RPM
Spindle Bore ......................... 4.09"
Weight Capacity Between Centers ....... 44,000 lbs
Tailstock Quill Diameter ............. 11.81"

EQUIPPED WITH:
62.99" 4-Jaw Chuck
3-Axis Digital Readouts
Inch/Metric Threading
3-Steady Rest
Chip Conveyors
80 HP Main Spindle Motor

NOTE:
Machine was used to Machine Gas Turbine Rotors
