Geminis GHT11 G4 2200 x 8000 CNC, Steady Rests, 134 HP, Fagor 8070 CNC, 2010, #30134

Manufacturer

GEMINIS

Category

Lathes

Type

LATHES, ENGINE

Stock

30134

Model

GHT11 G4 CNC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30134

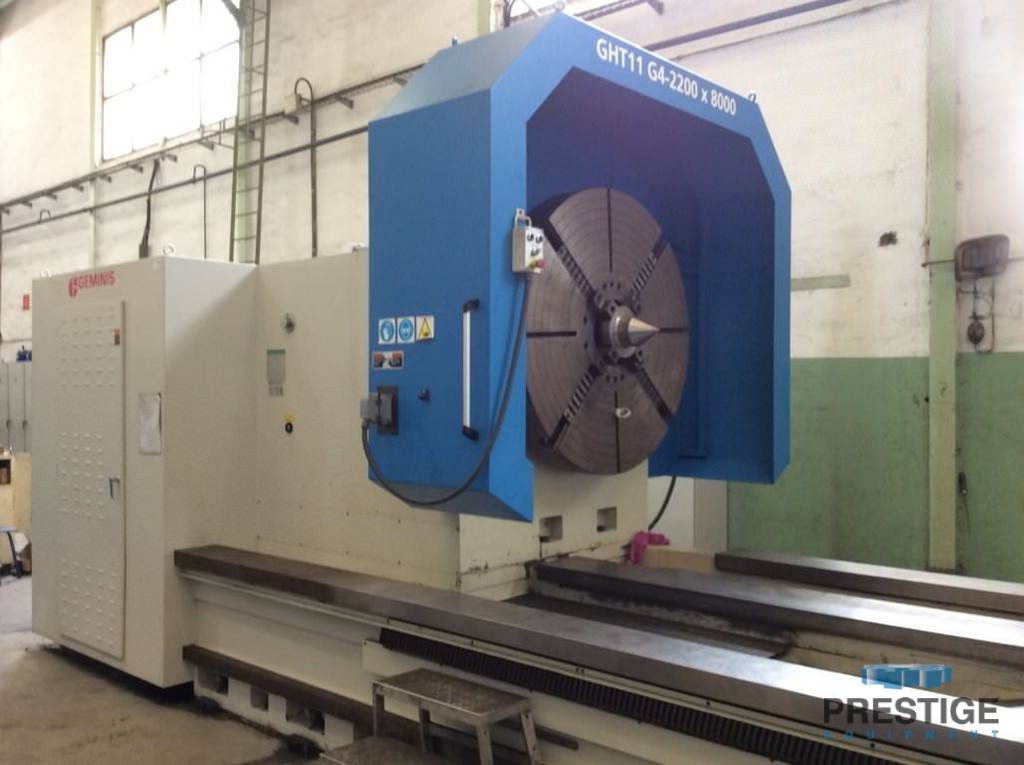

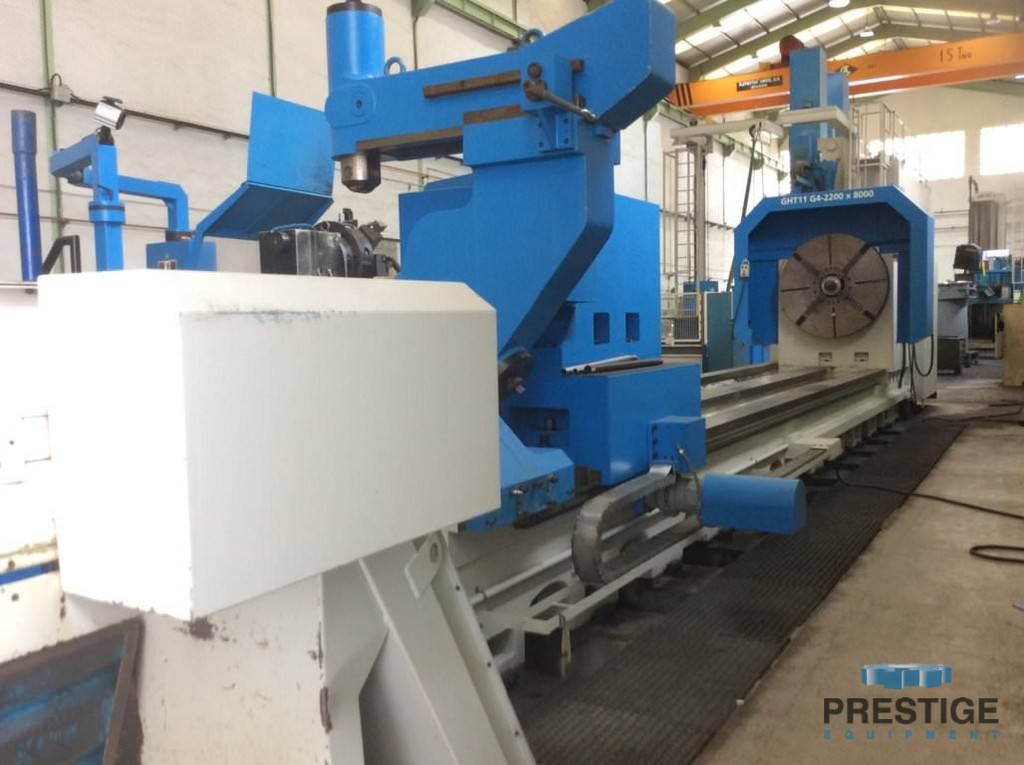

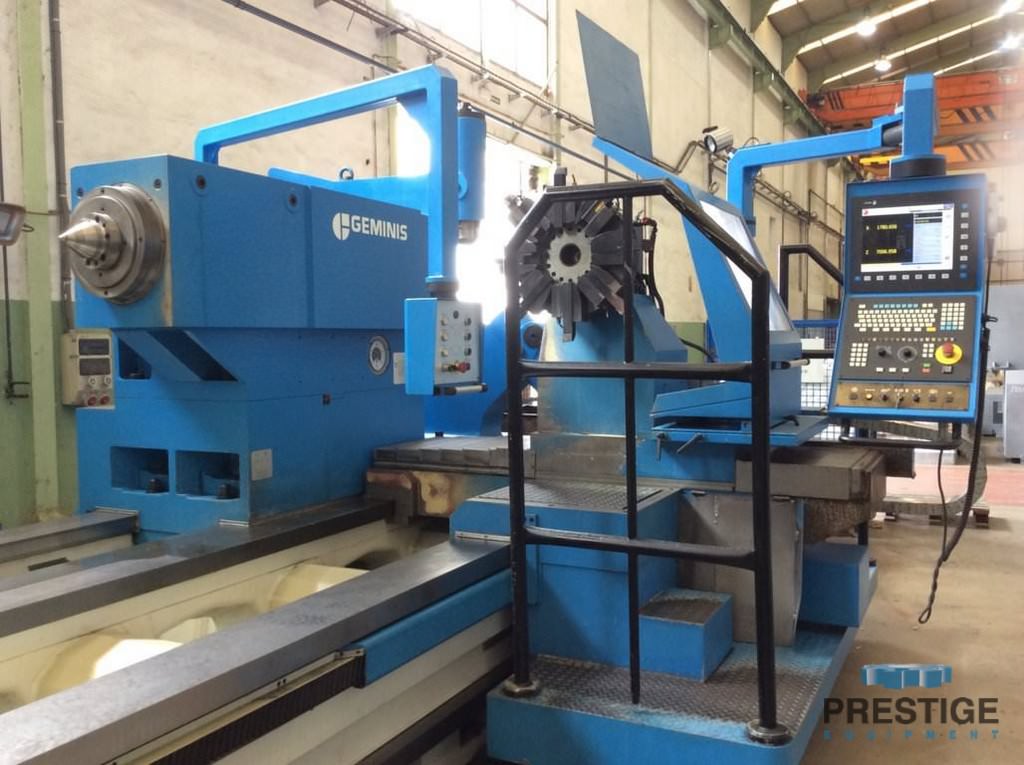

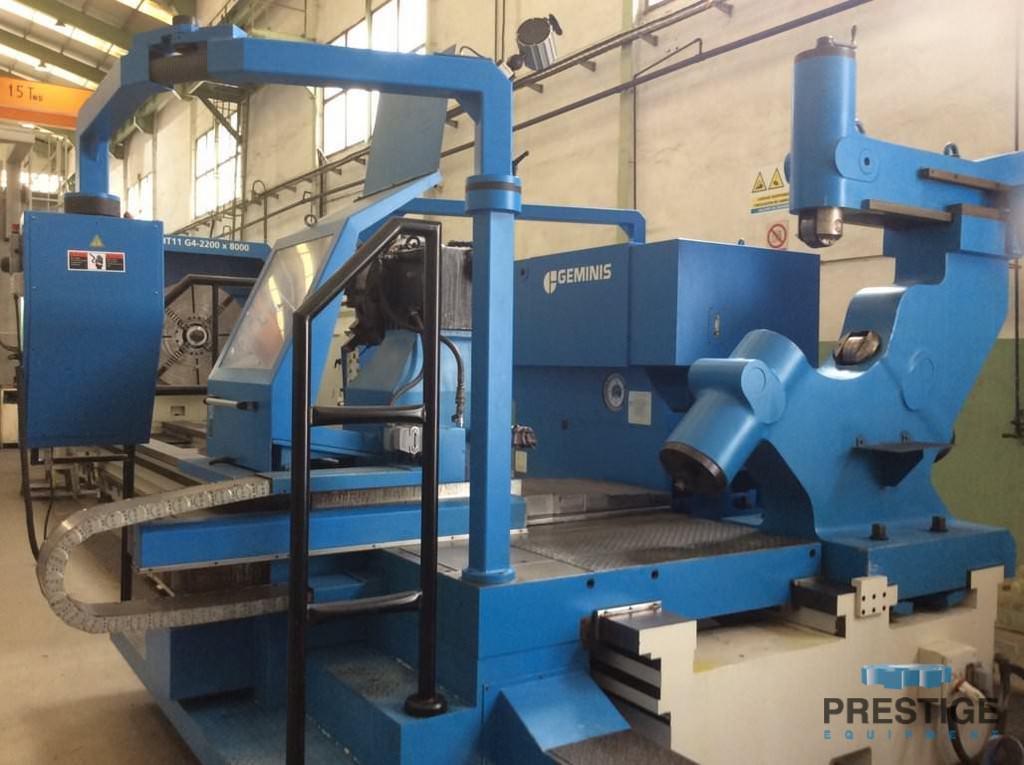

GEMINIS GHT11-G4 2200 x 8000 CNC Lathe

FEATURES:

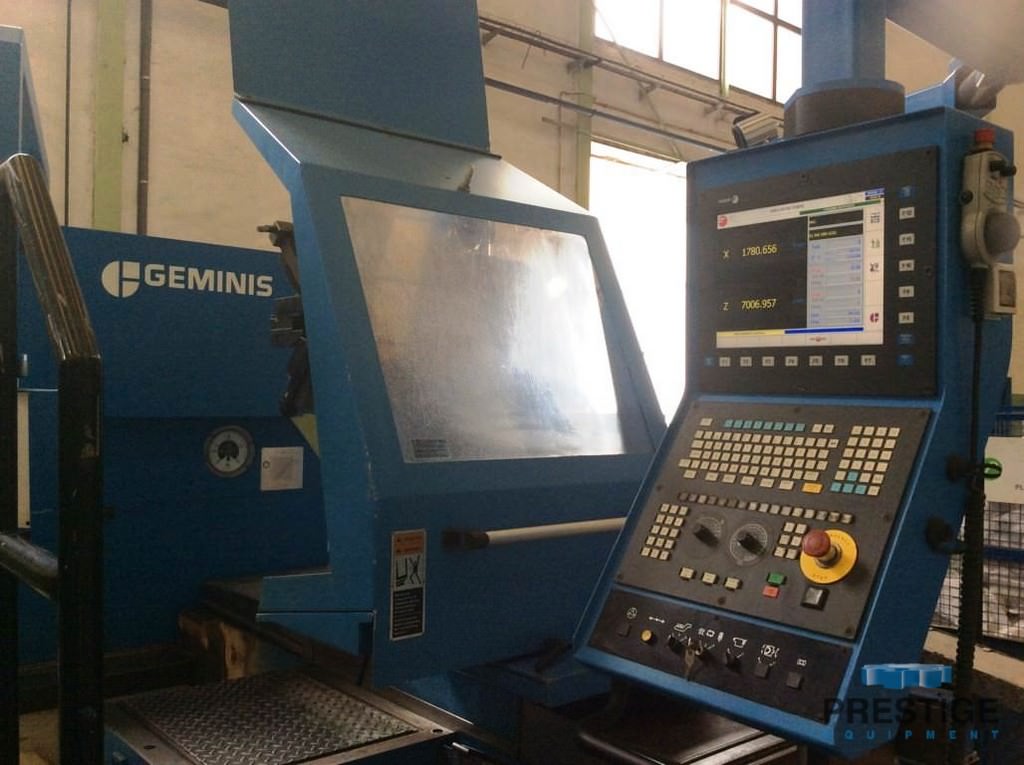

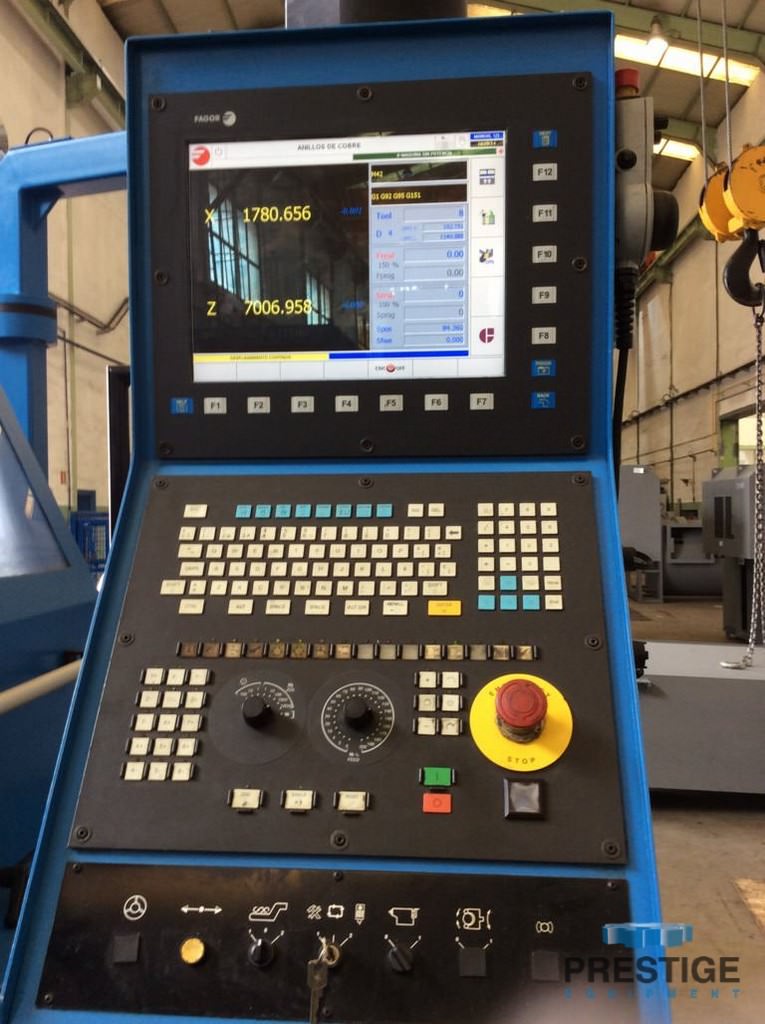

Fagor 8070 CNC Control
3-Way Bed Carriage to Pass Tailstock
25 Ton Weight Capacity

CAPACITY:
Swing Over Bed ........................ 86.61"
Swing Over Cross Slide ................ 68.89"
Max. Turning Length ................... 314.96"
Center Height .........................
Spindle Bore .......................... 6.37"
Spindle Nose .......................... DIN 55026-B20
Spindle Diameter, Front of Bearing .... 12.59"
Spindle Speeds, Variable .............. 0-550 RPM
Speed Ranges .......................... 4
Main Motor ............................ 134 HP
Bed Width ............................. 78.74"
Weight Capacity Between Centers ....... 25,000 Lbs.
Tailstock Quill Diameter .............. 12.59"
Tailstock Quill Stroke ................ 13.77"
Cross Slide Traverse .................. 44.48"

EQUIPPED WITH:
Fagor 8070 CNC Control
70.86" Independent 4-Jaw Chuck
Telescoping Way Covers
Tailstock
134 HP Main Motor
