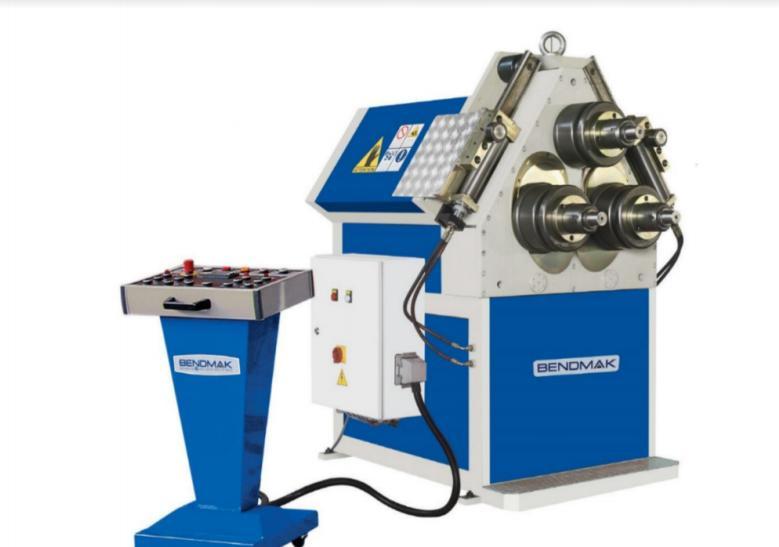

Bendmak PRO 120 Angle Roll (#3958)

Manufacturer

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



5" X 5" Angle Roll with Steel Machine Body (ST-52) Construction, on Pro 120 Rolls are Driven by a Hydraulic Motor + Planetary Gearbox and Gears, Shafts Made of Special Steel, Hardened and Grounded, Pro 120 Guide Rolls are in Two Directions Hydraulic Adjustable, One Set Standard Rolls, Manual Lubrication, Lower Rolls Hydraulic Movable Up and Down, Digital Display For Lower Rolls, Separate and Moveable Control Panel, Horizontal & Vertical Working, and Suitable for Ce.

GENERAL SPECIFICATIONS


  • Max. Section Modulus: 4.3-7.3 CM3 IN3

  • Roll Diameter: 15.35”

  • Shaft: 4.72”

  • Bending Speed: 13’ FT/MIN

  • Motor Power: 20 HP

  • Length FT: 6.5’

  • Height FT: 6.7’

  • Width FT: 4.8’

  • Weight: 10,405 LBS



INCLUDES: Steel Machine Body (ST-52) Construction, on Pro 120 Rolls are Driven by a Hydraulic Motor + Planetary Gearbox and Gears, Shafts Made of Special Steel, Hardened and Grounded, Pro 120 Guide Rolls are in Two Directions Hydraulic Adjustable, One Set Standard Rolls, Manual Lubrication, Lower Rolls Hydraulic Movable Up and Down, Digital Display For Lower Rolls, Separate and Moveable Control Panel, Horizontal & Vertical Working, and Suitable for Ce.



***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
