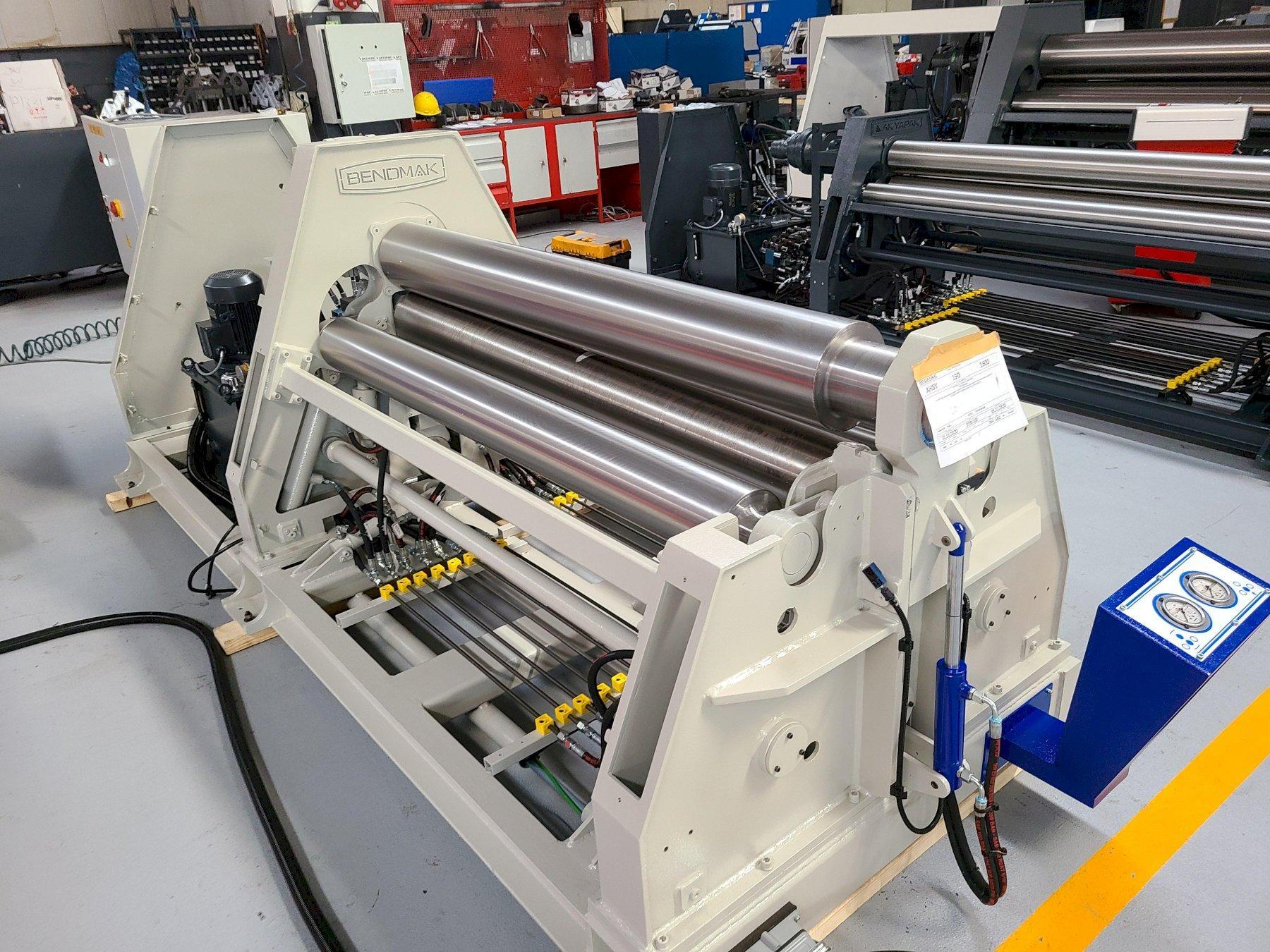

New Bendmak CY4R-HHS 300-20/20 Plate Roll (#3981)

Manufacturer

Category

Rolls

Type

ROLLS, PINCH

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

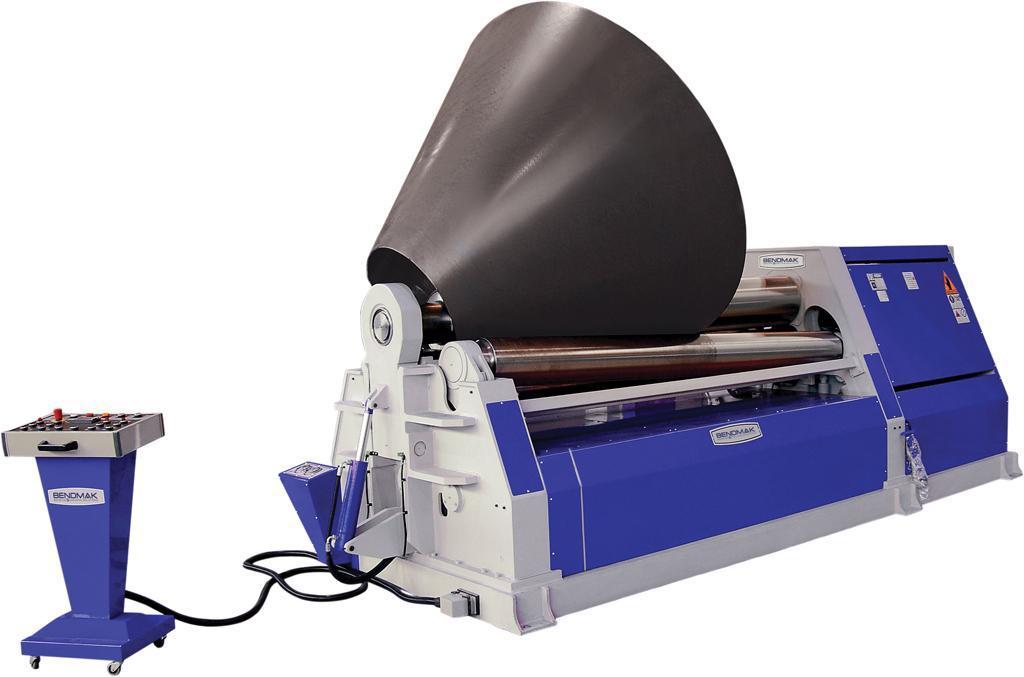

13/16” X 6’ 4 Roll Plate Roll with Cone Bending Device, Induction Hardened Rolls, Digital Display for Side Rolls, Fully Welded ST-52 Construction, Separate Moving Control Panel, 2 Rolling Speeds, Electro-Hydraulic Calibration, Rolls Mounted in Spherical Roller Bearings, Safety Equipment Around Machine, Central Rolls Driven by Hydraulic Motors and Planetary Gearboxes and Side and Top Support Ready.

GENERAL SPECIFICATIONS


  • Working Length: 6’

  • Max. Thickness: 13/16”

  • Max. Pre-Bend: ⅝”

  • Top Roll Dia.: 11.8”

  • Bottom Roll Dia.: 10.6”

  • Side Roll Dia.: 8.3”

  • MotorPower: 20 HP

  • Length: 14.9’

  • Height: 4.9’

  • Width: 5.7’

  • Weight: 15,212 LBS


INCLUDES: Cone Bending Device, Induction Hardened Rolls, Digital Display for Side Rolls, Fully Welded ST-52 Construction, Separate Moving Control Panel, 2 Rolling Speeds, Electro-Hydraulic Calibration, Rolls Mounted in Spherical Roller Bearings, Safety Equipment Around Machine, Central Rolls Driven by Hydraulic Motors and Planetary Gearboxes and Side and Top Support Ready.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
